Inventory # 48348 Year: 2011

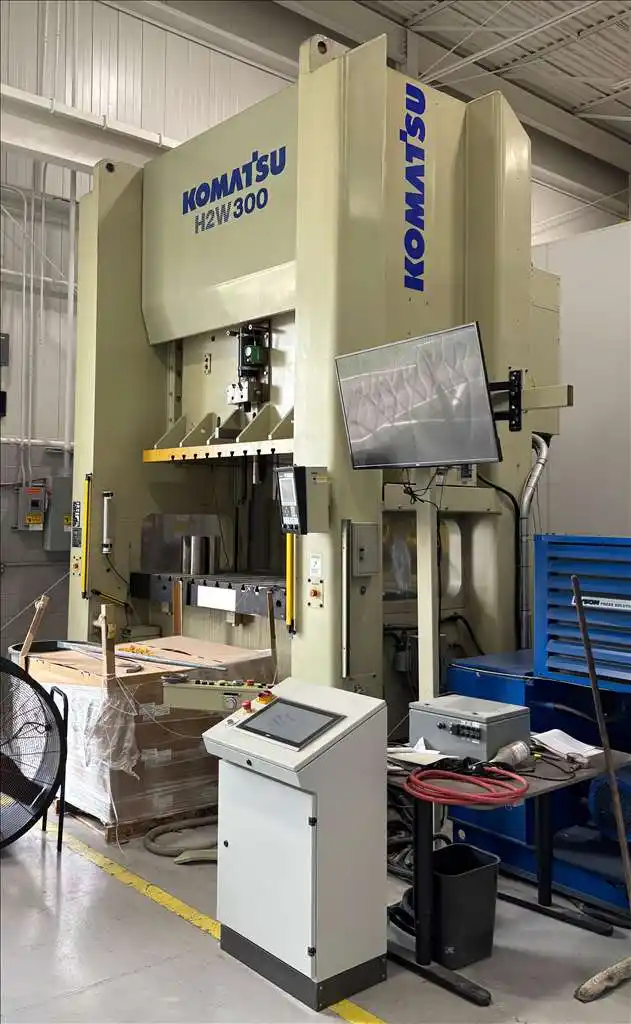

Komatsu H2W300-S Servo Drive Straight Side Double Crank Press
Specifications
- Tonnage Capacity: 330 Ton
- Stroke Length: 11.8"
- Max. Stroke w/ Cushion: 4.9"
- Stroke Speed (Pendulum Mode): 55 SPM
- Stroke Speed (Full Rotation Mode): 40 SPM
- Die Height: 23.6"
- Bolster Area (L-R x F-B): 94.5" x 47.2"
- Bolster Thickness: 7.8"
- Slide Adjustment: 7.9"
- Opening Width in Uprights: 38.6"
- Show More
- Show Less
- Tonnage Capacity: 300 Metric Ton
- Stroke Length: 299.72mm
- Max. Stroke w/ Cushion: 124.46mm
- Stroke Speed (Pendulum Mode): 55 SPM
- Stroke Speed (Full Rotation Mode): 40 SPM
- Die Height: 599.44mm
- Bolster Area (L-R x F-B): 2400.30mm x 1198.88mm
- Bolster Thickness: 198.12mm
- Slide Adjustment: 200.66mm
- Opening Width in Uprights: 980.44mm
- Show More
- Show Less
Equipped With

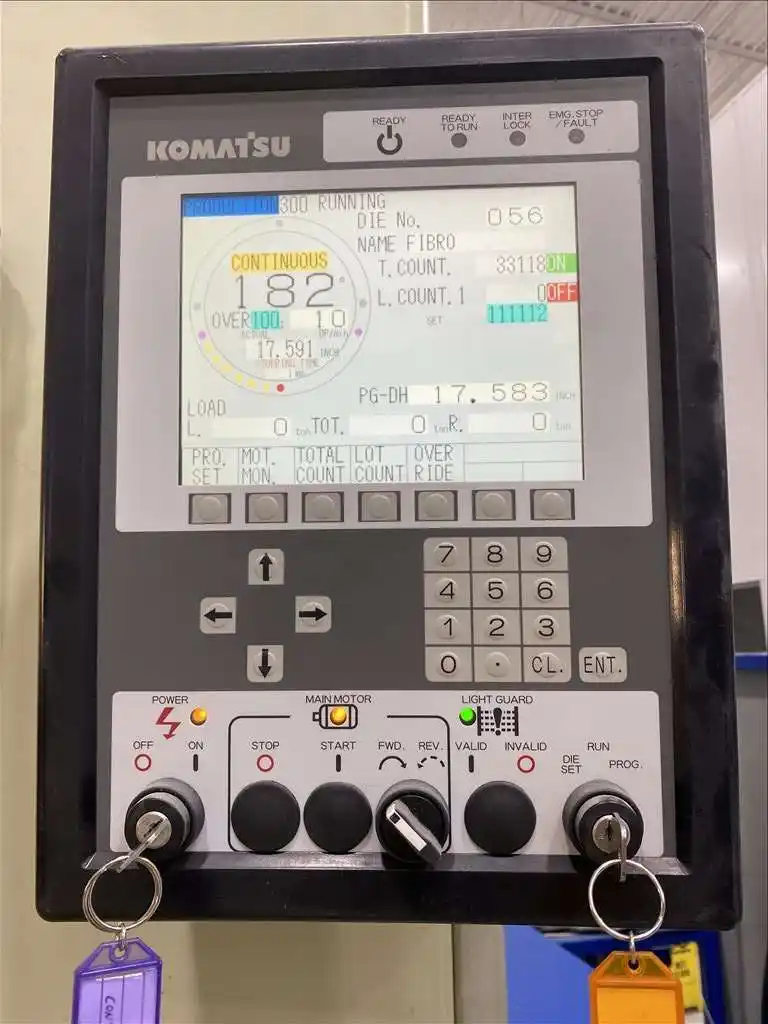

- Komatsu SIT 3 Control
- Dual Servo Drive Motors

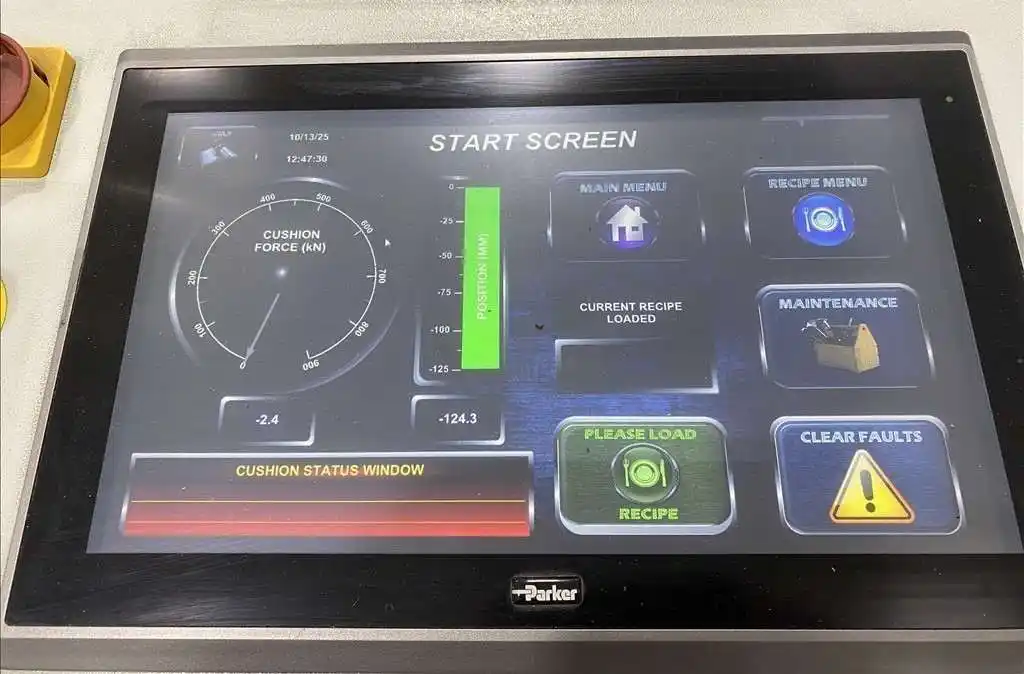

- 100 Ton Servo Cushion
- Hydraulic Overload Protection
- Linear Glass Scales
- Plunger Guided Ram
- Auto Die Height Adjustment
- Operator T-Stand
- Show More
- Show Less
- Komatsu SIT 3 Control
- Dual Servo Drive Motors
- 90.71 Metric Ton Servo Cushion
- Hydraulic Overload Protection
- Linear Glass Scales
- Plunger Guided Ram
- Auto Die Height Adjustment
- Operator T-Stand
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
