Inventory # 46412 Year: 2011

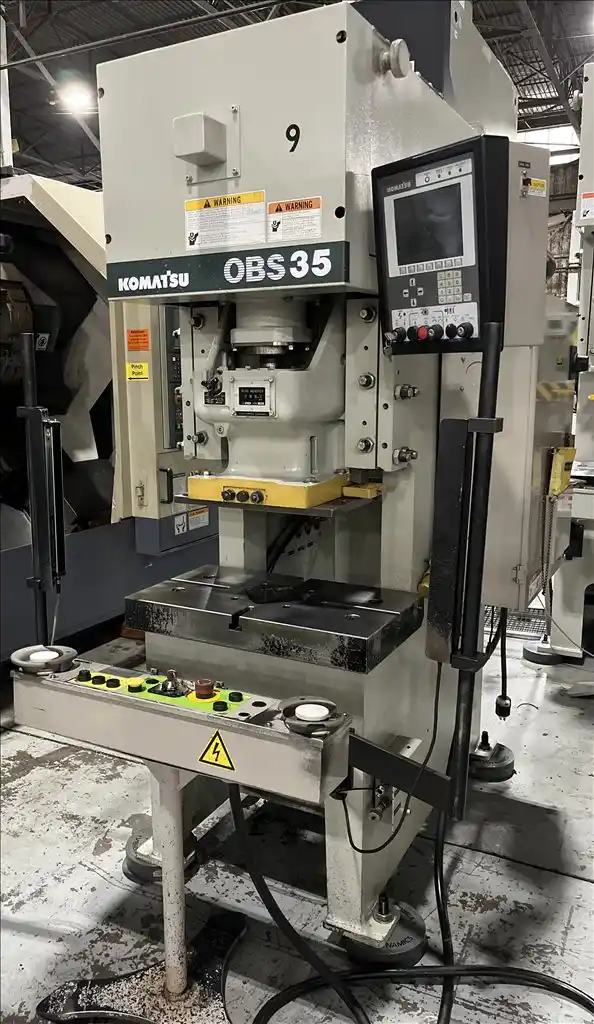

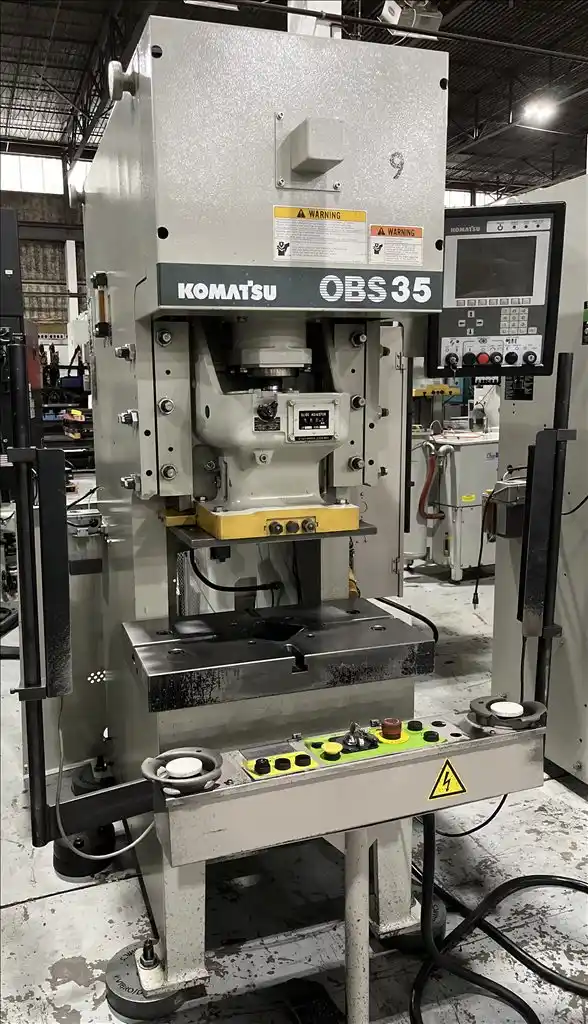

KOMATSU OBS35-34 Gap Frame Single Point Mechanical Press

Send a text message to yourself or a friend

Note: On submit, this will open your devices SMS application

Message will say:

Perfection Global Equipment: https://perfectionglobal.com/blog/the-top-8-cnc-machine-tool-for-manufacturers/?ProductNumber=46412

Inventory # 46412 Year: 2011
https://perfectionglobal.com/blog/the-top-8-cnc-machine-tool-for-manufacturers/?ProductNumber=46412

KOMATSU OBS35-34 Gap Frame Single Point Mechanical Press

Request a Quote
Measurement

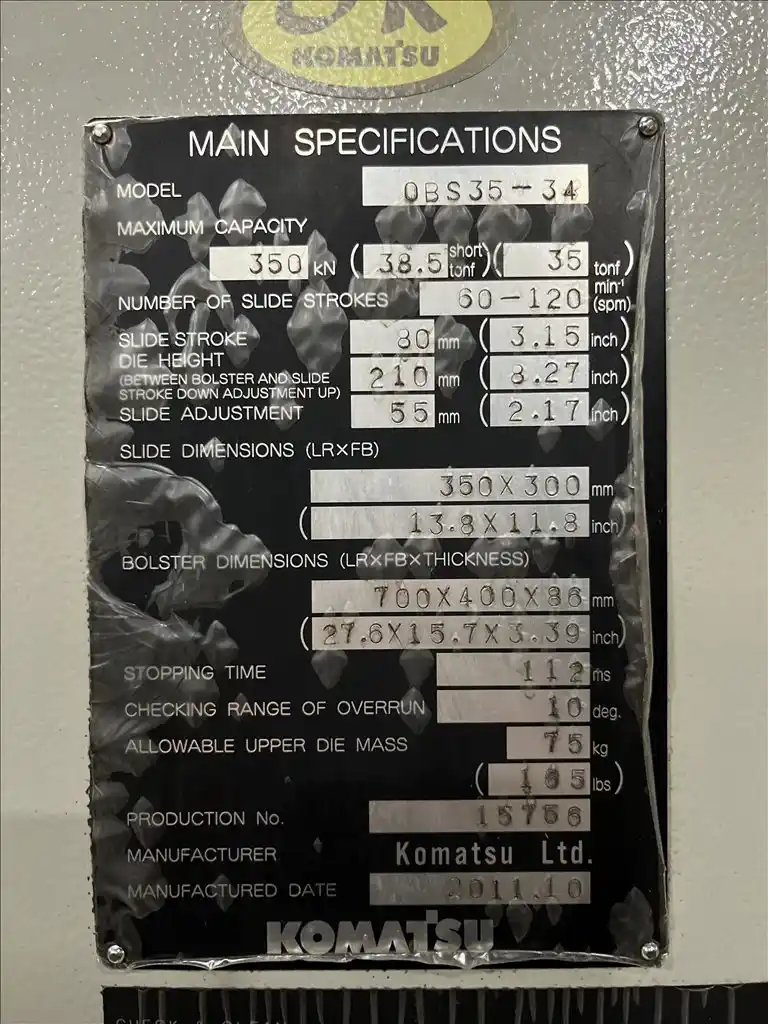

Specifications
  • Stroke: 3.15"
  • Speed: 60 - 120 SPM
  • Slide: 13.8" x 11.8"

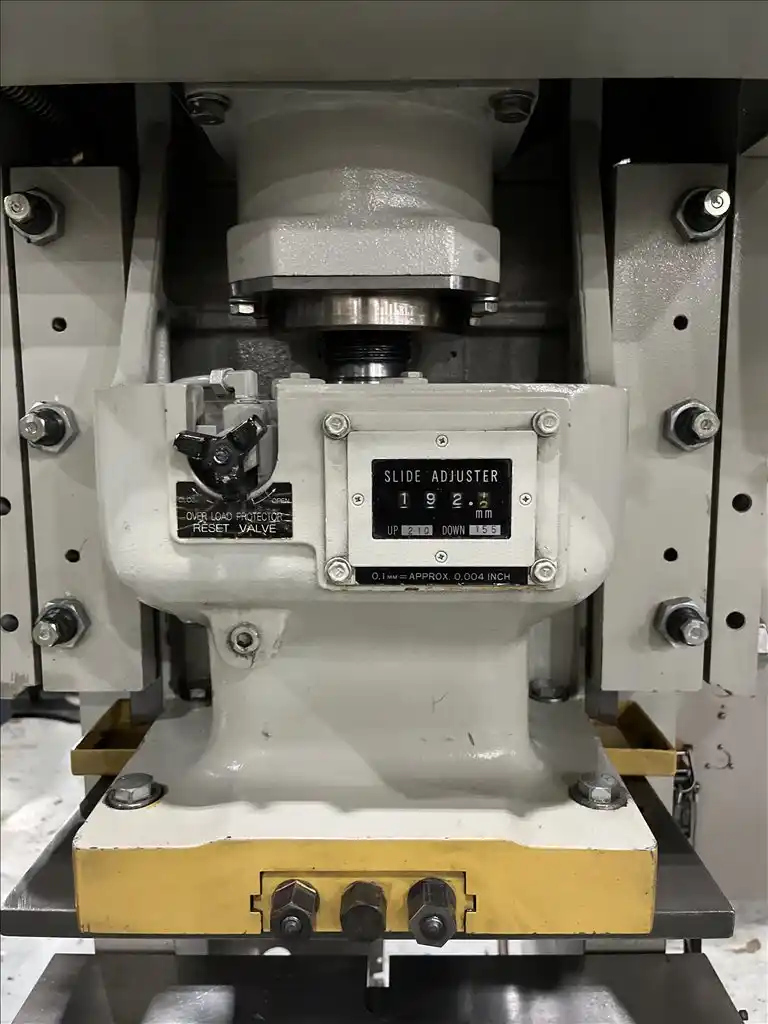

  • Slide Adjustment: 2.17"
  • Die Height: 8.27"
  • Capacity: 38.5 Ton

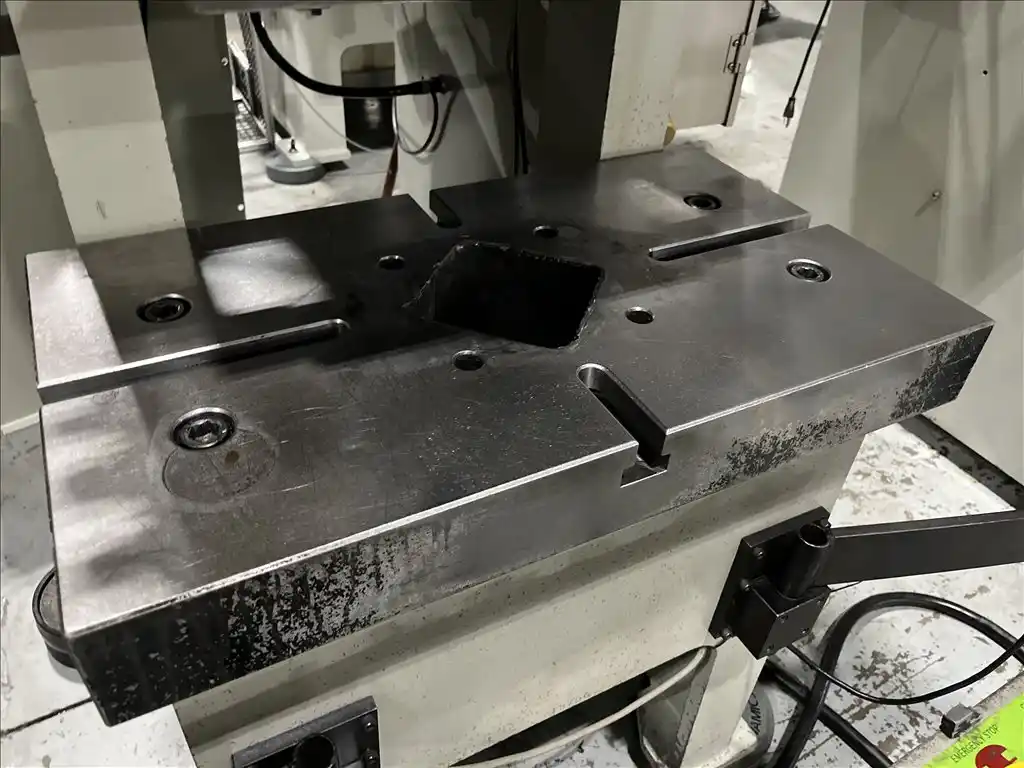

  • Bolster: 27.6" x 15.7" x 3.4"
  • Show More
  • Show Less
  • Stroke: 80.01mm
  • Speed: 60 - 120 SPM
  • Slide: 350.52mm x 299.72mm
  • Slide Adjustment: 55.12mm
  • Die Height: 210.06mm
  • Capacity: 34.92 Metric Ton
  • Bolster: 701.04mm x 398.78mm x 86.36mm
  • Show More
  • Show Less
Equipped With

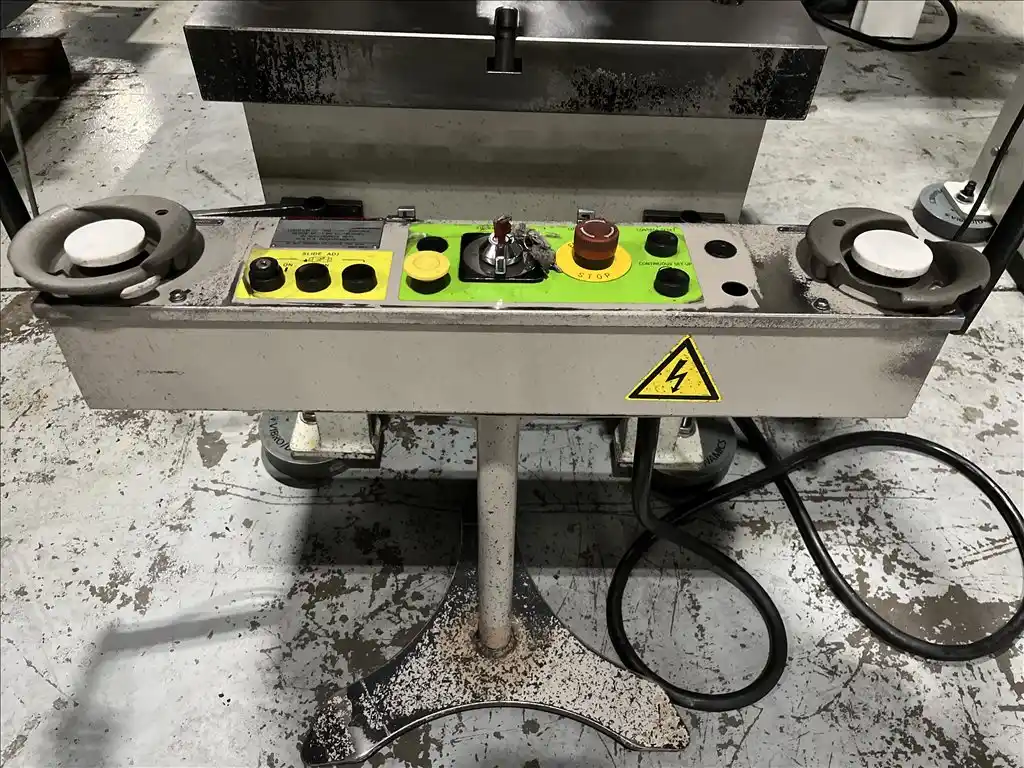

  • Pedestal Dual Palm Controls

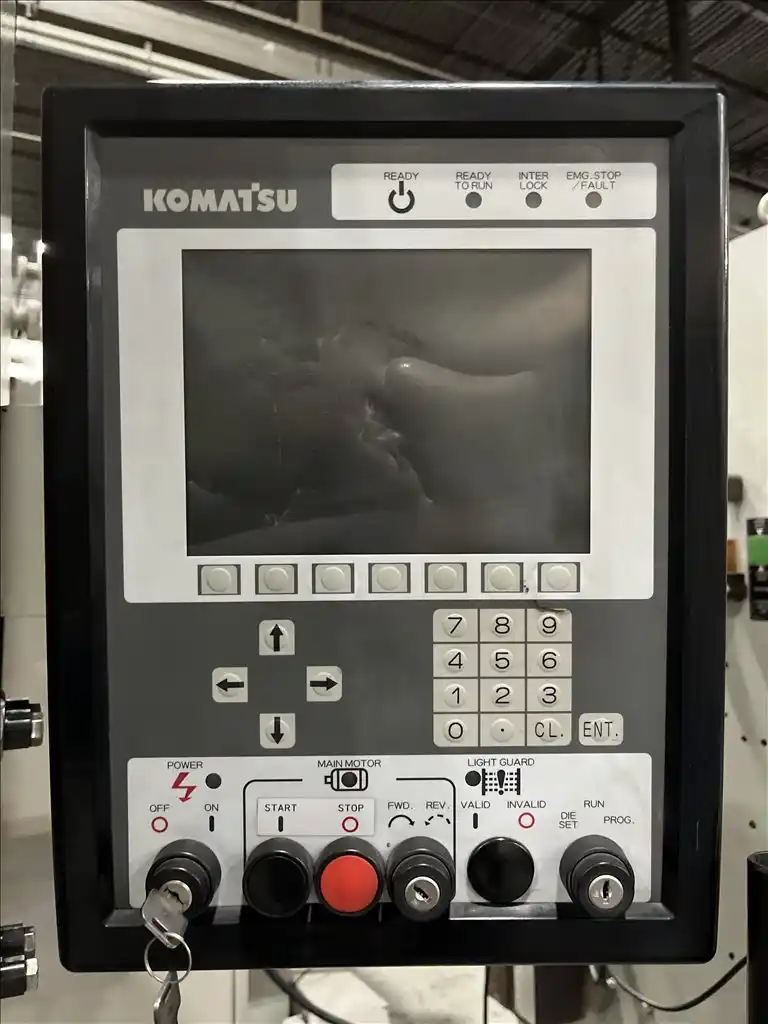

  • Komatsu SIT Control
  • Pedestal Dual Palm Controls
  • Komatsu SIT Control
Location & Terms
  • Terms: F.O.B.
  • Location: Elk Grove Village, IL
  • Disclaimer: Preliminary Specifications....
