Inventory # 46410 Year: 2016

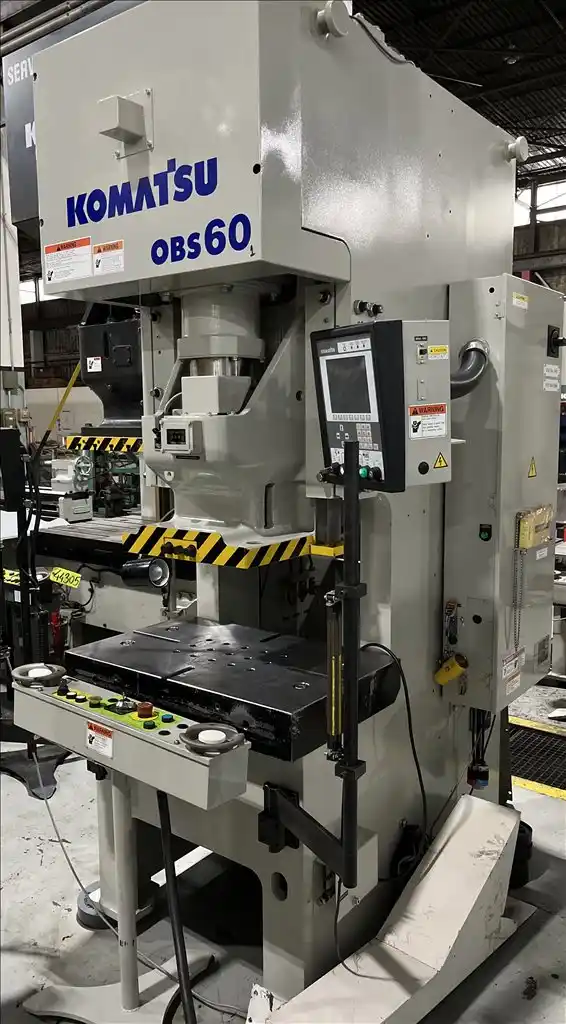

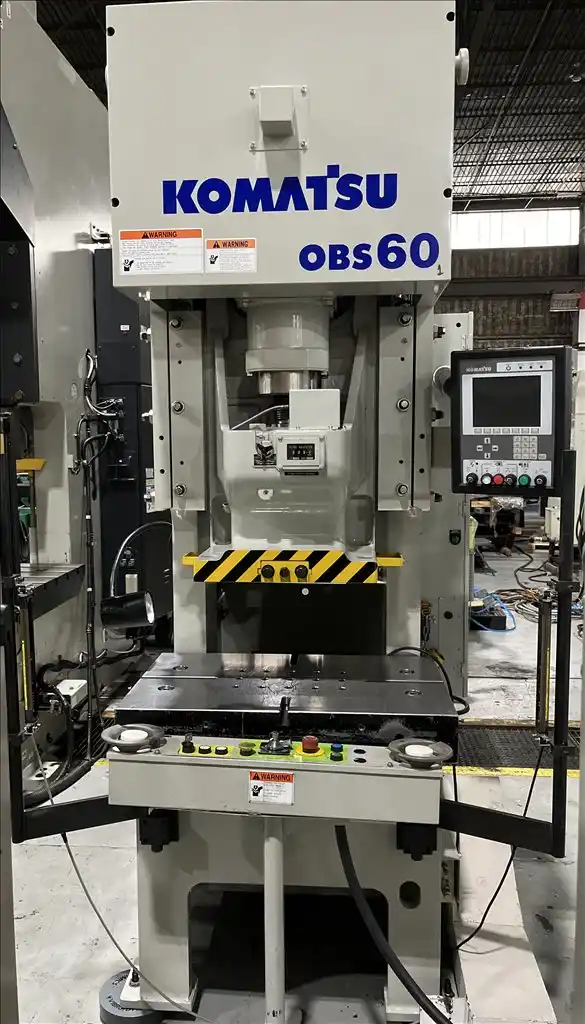

Komatsu OBS60-34 Gap Frame Single Point Mechanical Press

Request a Quote
Measurement

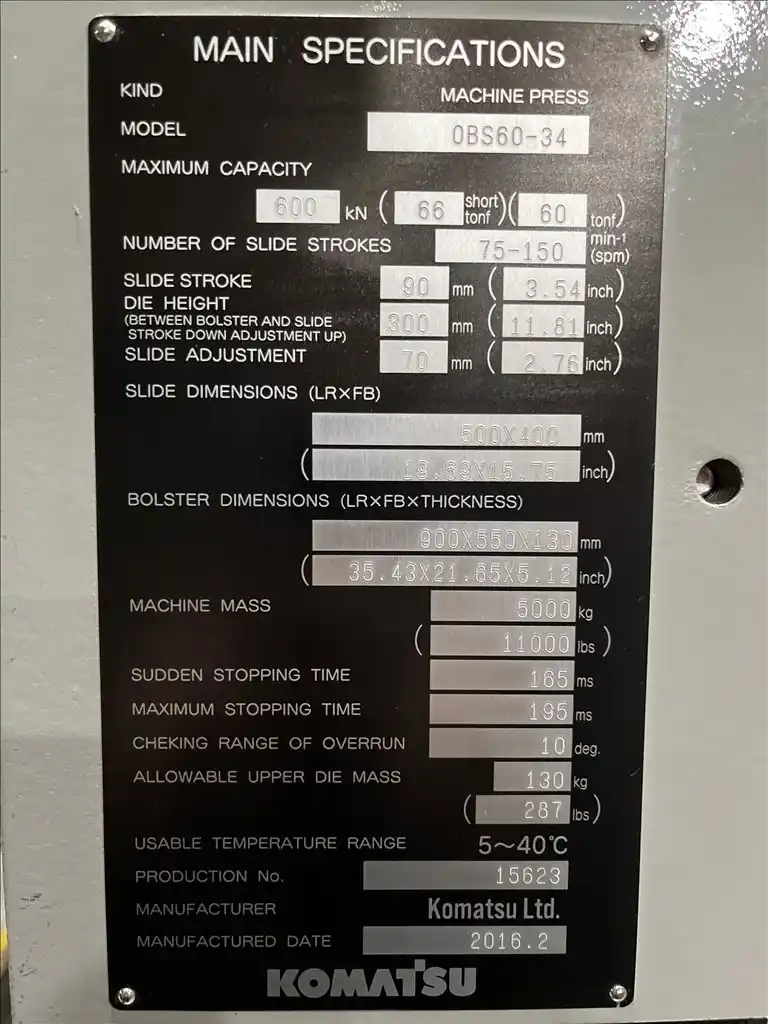

Specifications
  • Capacity: 66 Ton
  • Stroke: 3.5"
  • Die Height: 11.8"
  • Slide: 19.7" x 15.7"

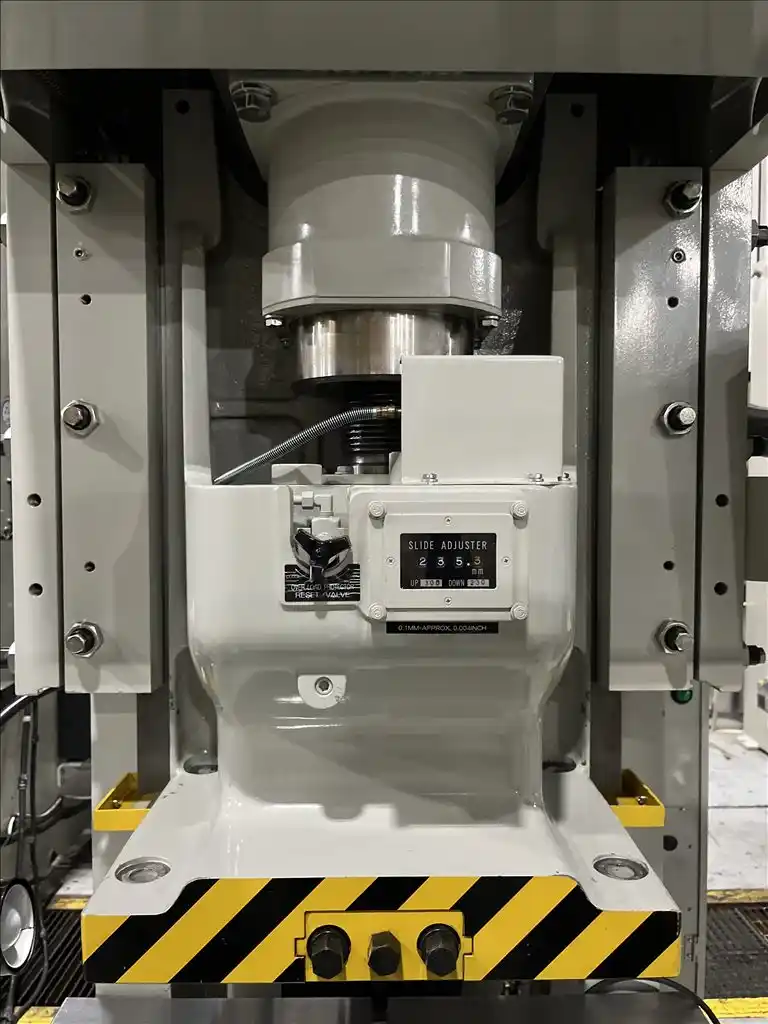

  • Slide Adjustment: 2.76"

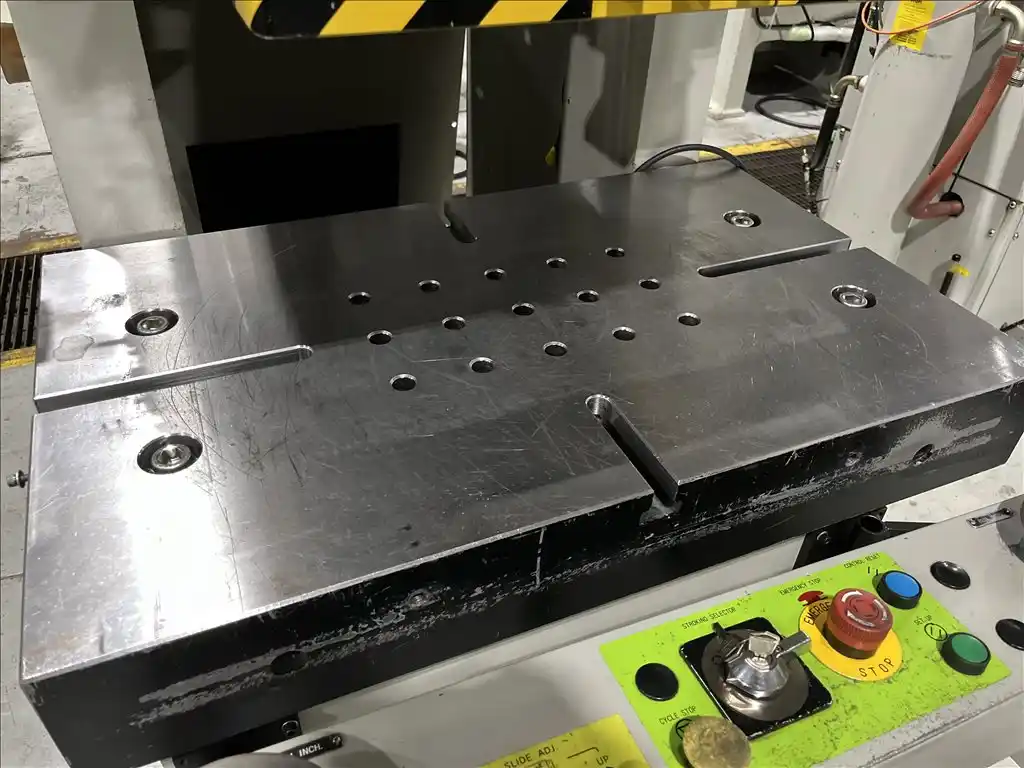

  • Bolster: 35.4" x 21.7" x 5"
  • Speed: 75 - 150 SPM
  • Show More
  • Show Less
  • Capacity: 59.87 Metric Ton
  • Stroke: 88.90mm
  • Die Height: 299.72mm
  • Slide: 500.38mm x 398.78mm
  • Slide Adjustment: 70.10mm
  • Bolster: 899.16mm x 551.18mm x 127.00mm
  • Speed: 75 - 150 SPM
  • Show More
  • Show Less
Equipped With

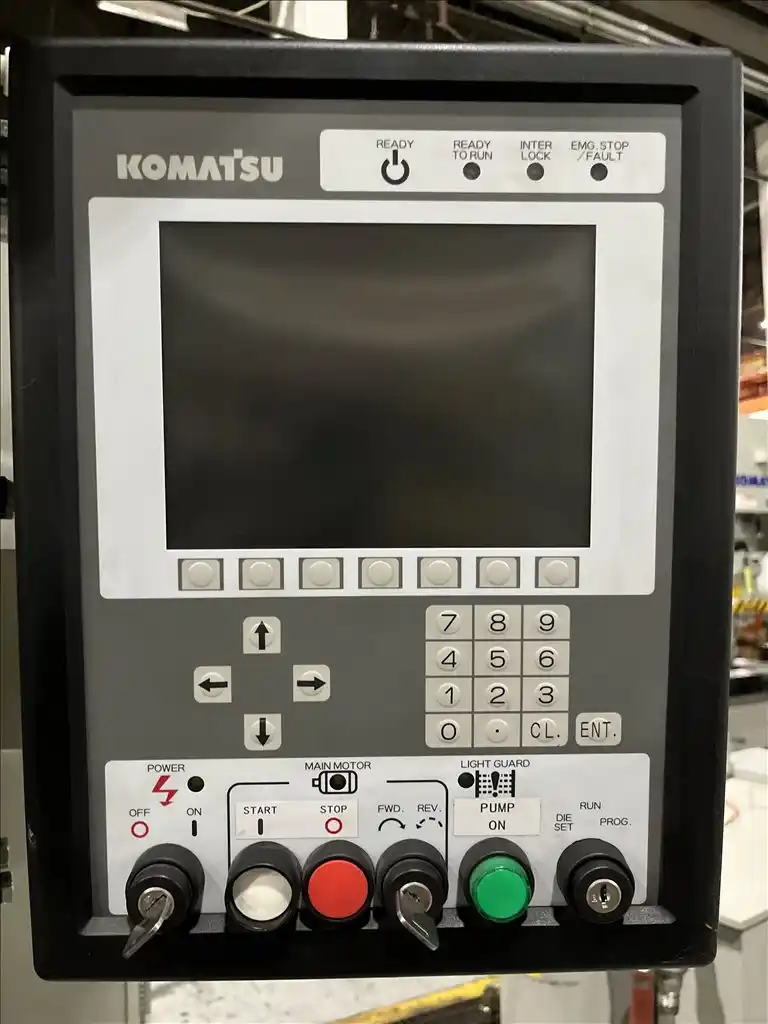

  • Komatsu SIT IV Control

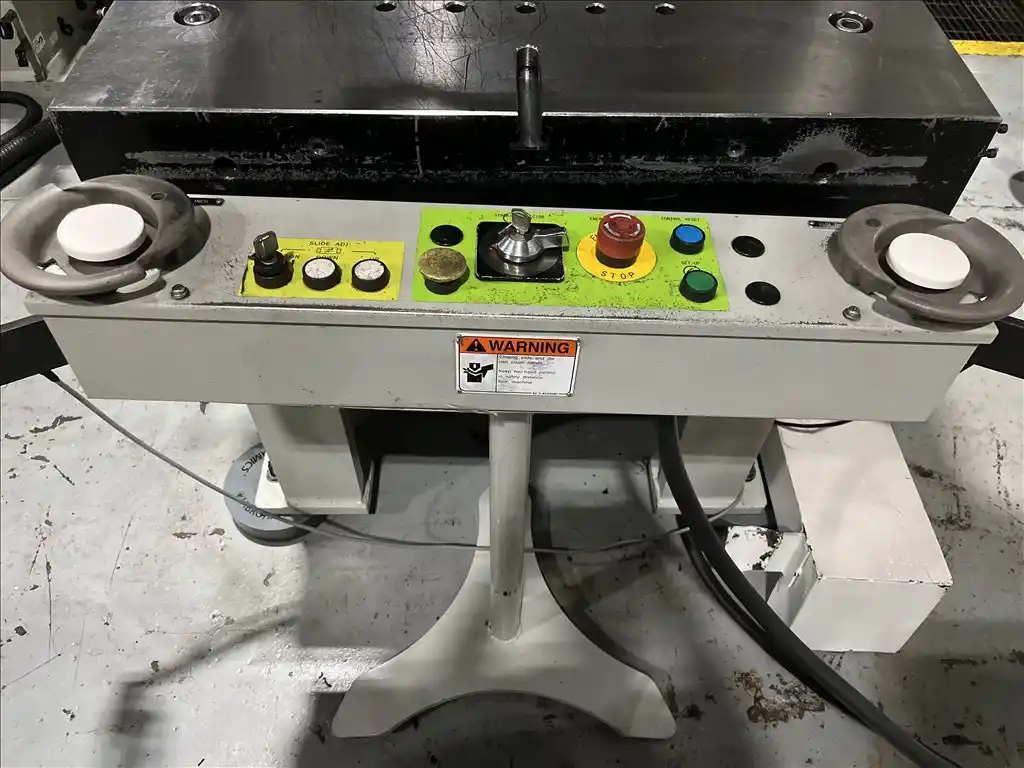

  • Pedestal Dual Palm Controls
  • Komatsu SIT IV Control
  • Pedestal Dual Palm Controls
Location & Terms
  • Terms: F.O.B.
  • Location: Elk Grove Village, IL
  • Disclaimer: Preliminary Specifications....
