Inventory # 47781 Year: 2000

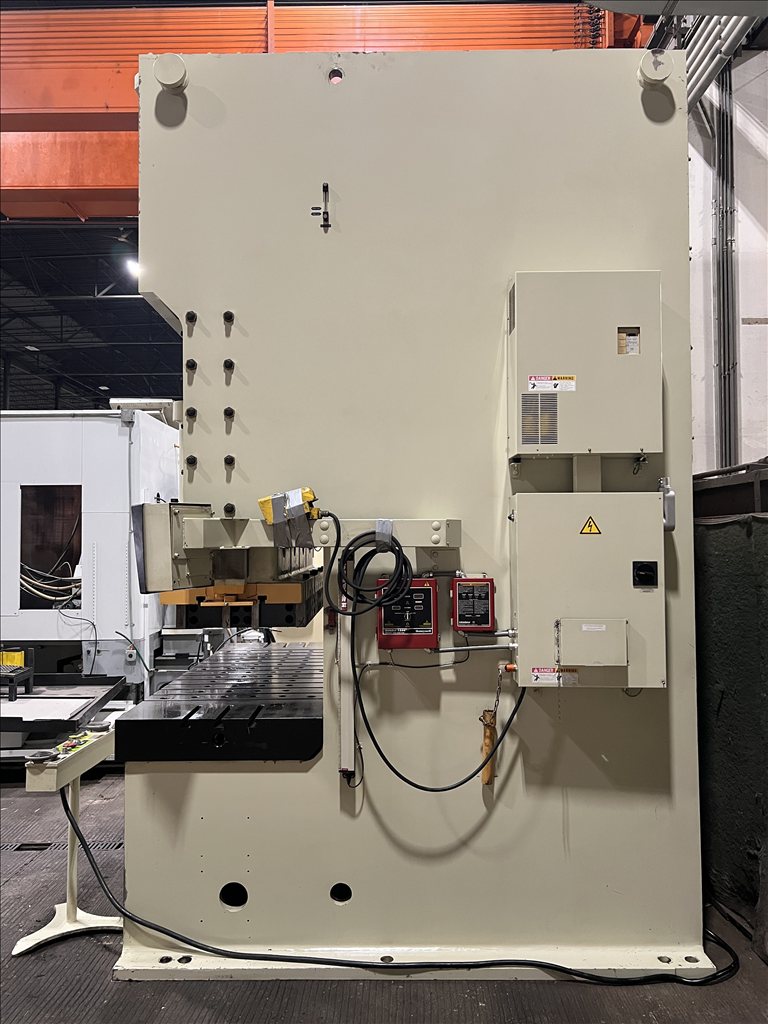

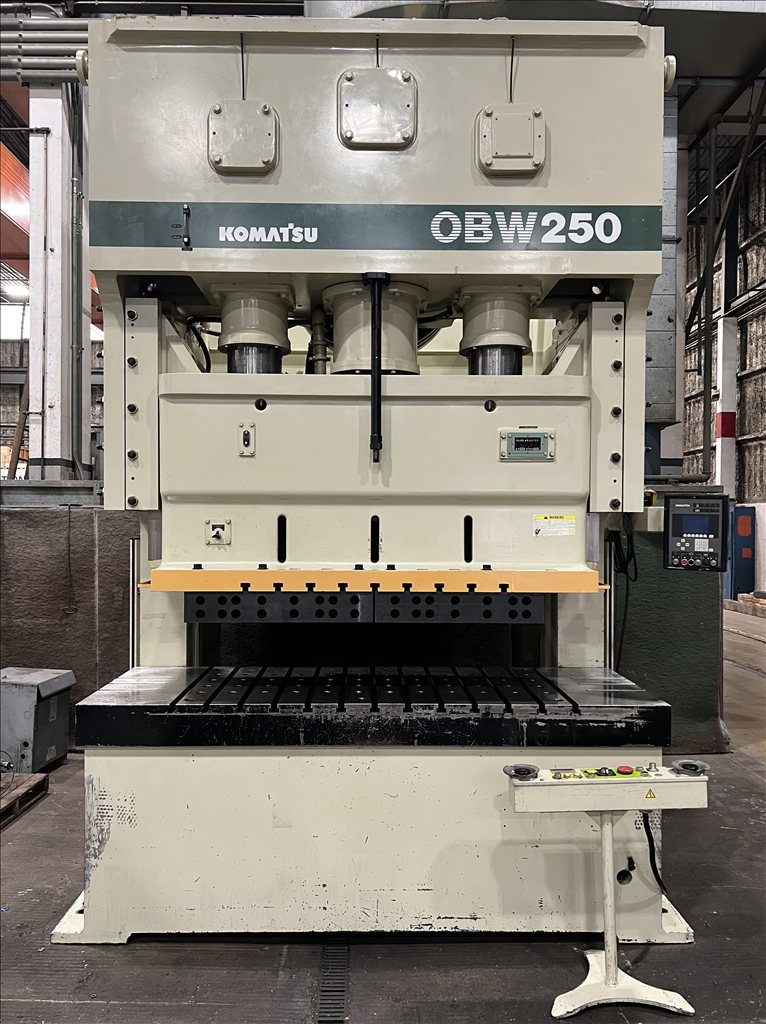

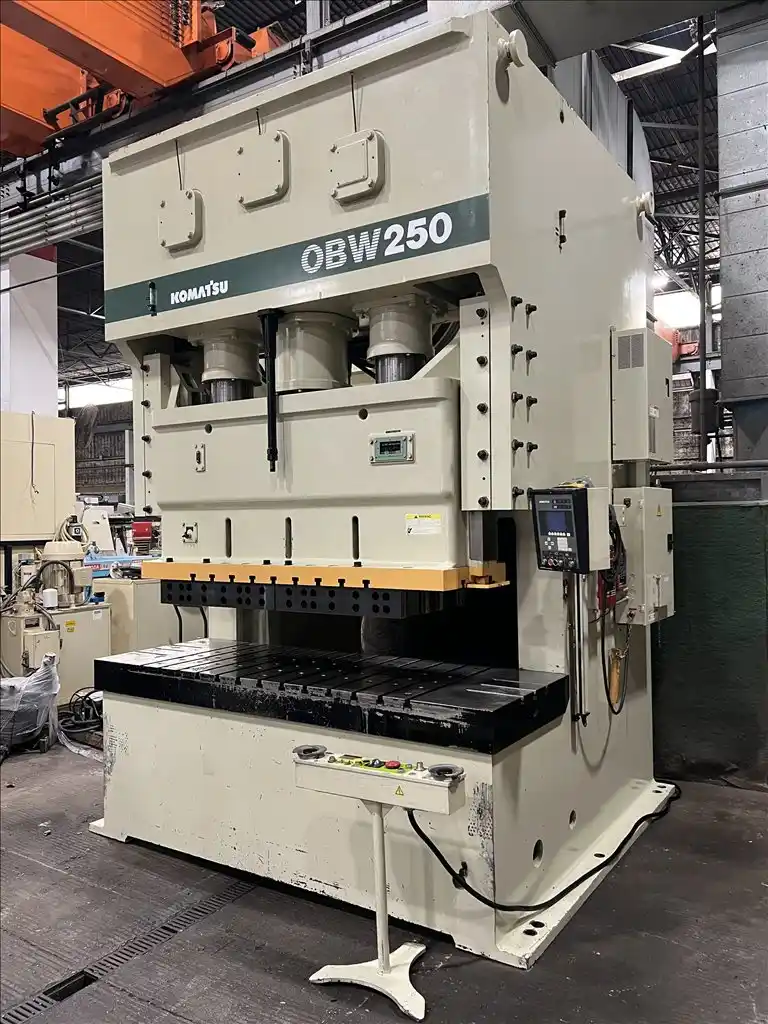

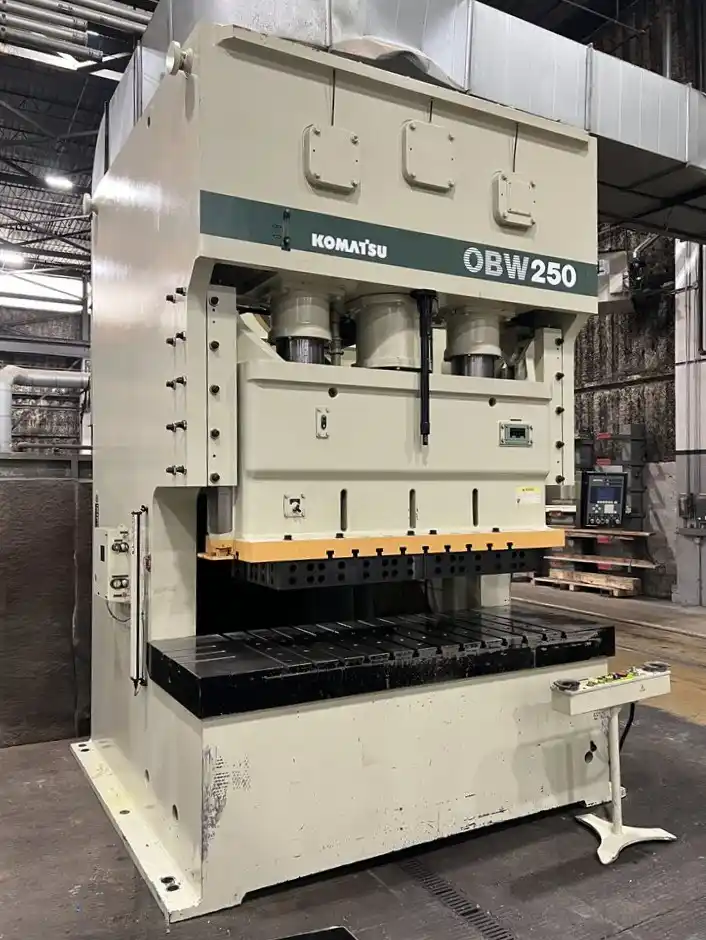

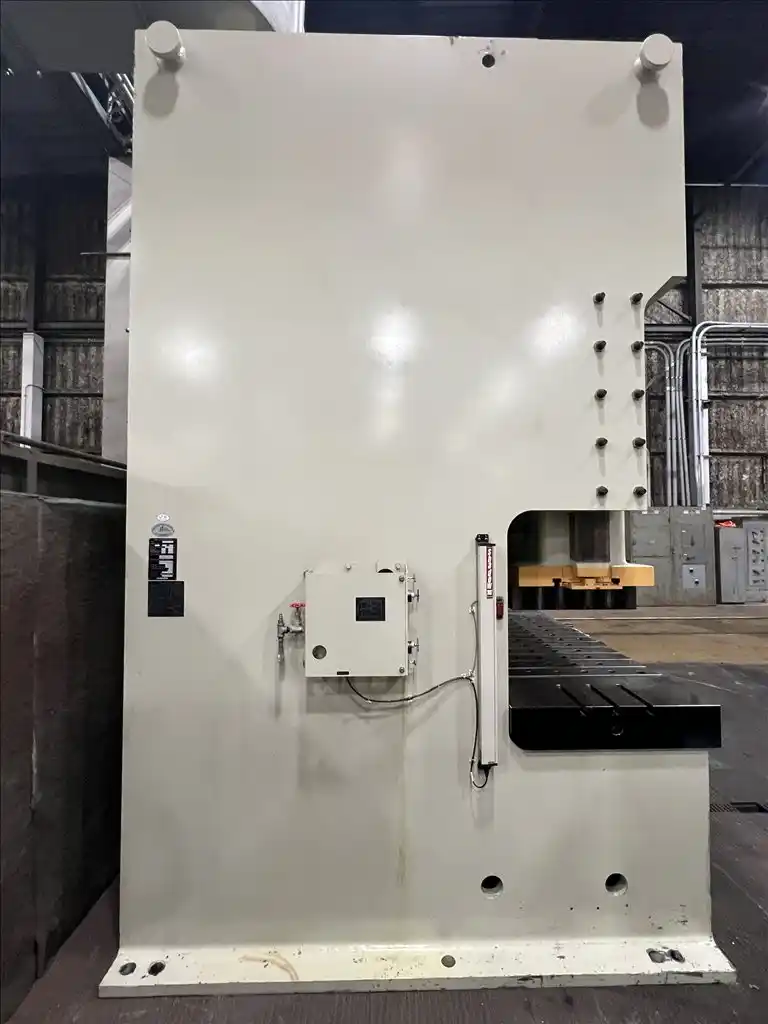

Komatsu OBW 250 Double Crank Gap Frame Press

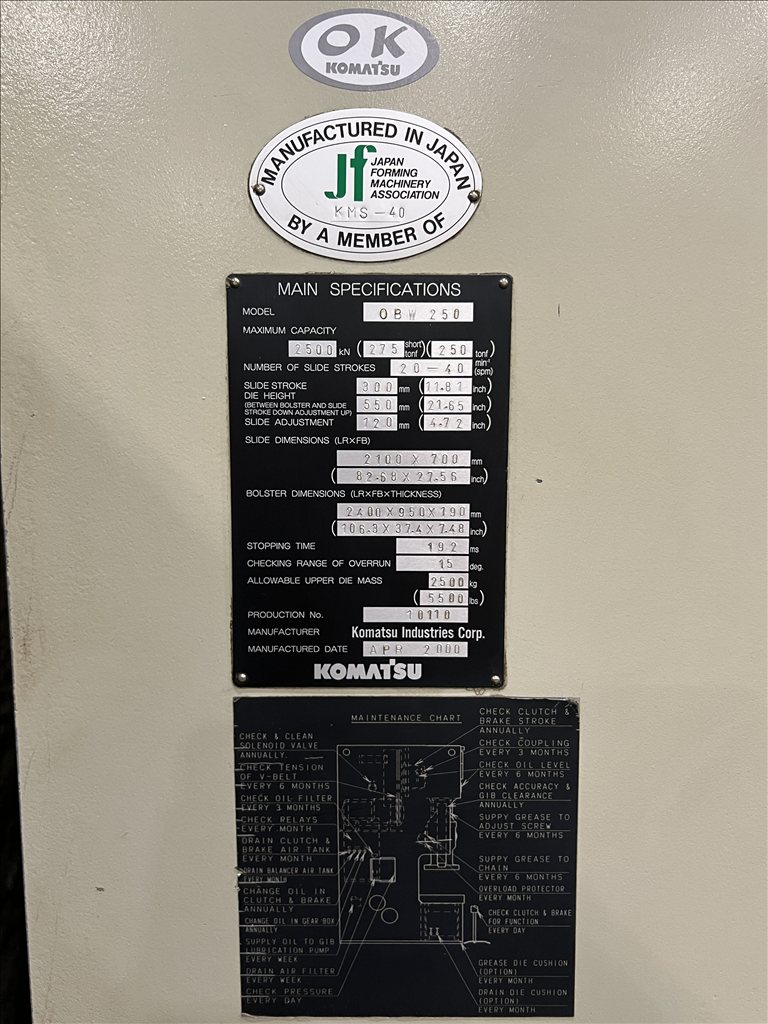

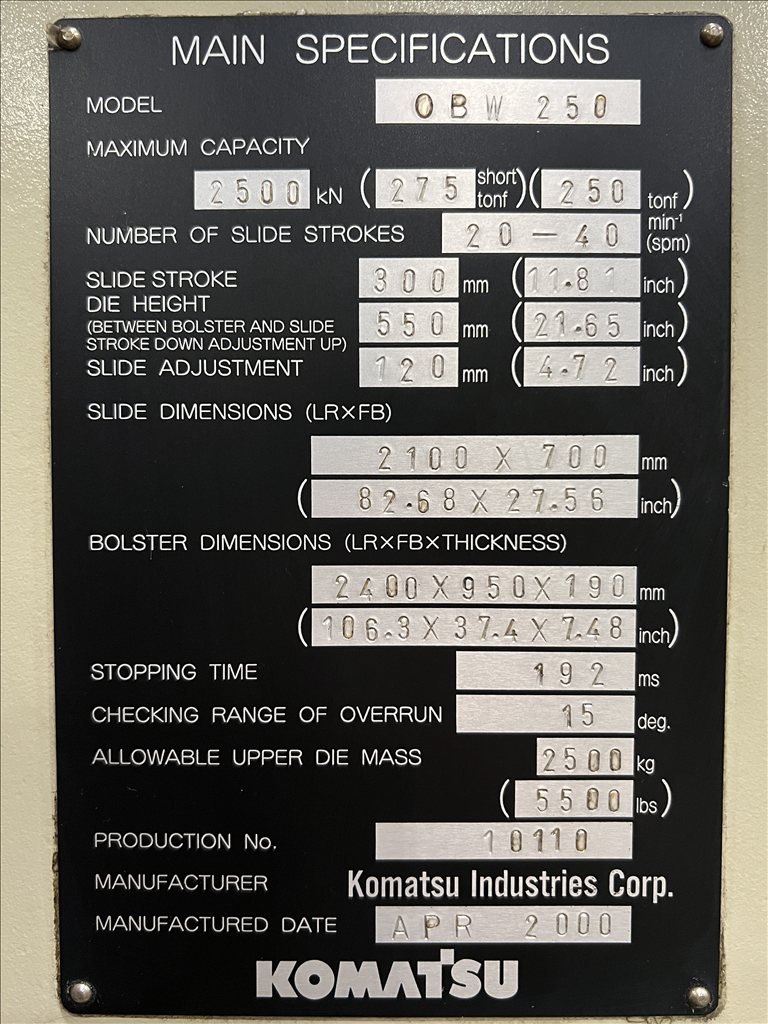

Specifications
- Capacity: 275 Ton
- Stroke: 11.8"
- Speed: 20-40 RPM
- Ram Area: 82.7” x 27.6”
- Bolster Area: 106.3" x 37.4"
- Die Height Over Bolster: 21.7"
- Adjustment: 4.7"
- Bolster Thickness: 7.5"
- Show More
- Show Less
- Capacity: 249.45 Metric Ton
- Stroke: 299.72mm
- Speed: 20-40 RPM
- Ram Area: 2100.58mm x 701.04mm
- Bolster Area: 2700.02mm x 949.96mm
- Die Height Over Bolster: 551.18mm
- Adjustment: 119.38mm
- Bolster Thickness: 190.50mm
- Show More
- Show Less
Equipped With
- Hydraulic Clutch & Brake
- Hydraulic Overload
- Air Counterbalance

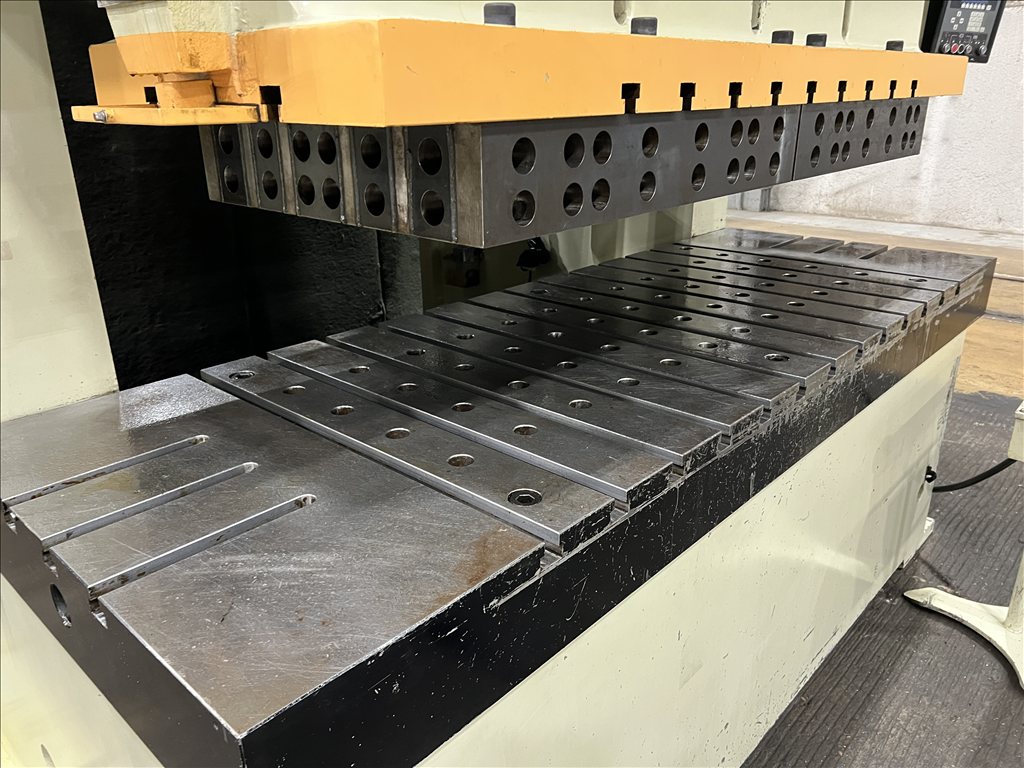

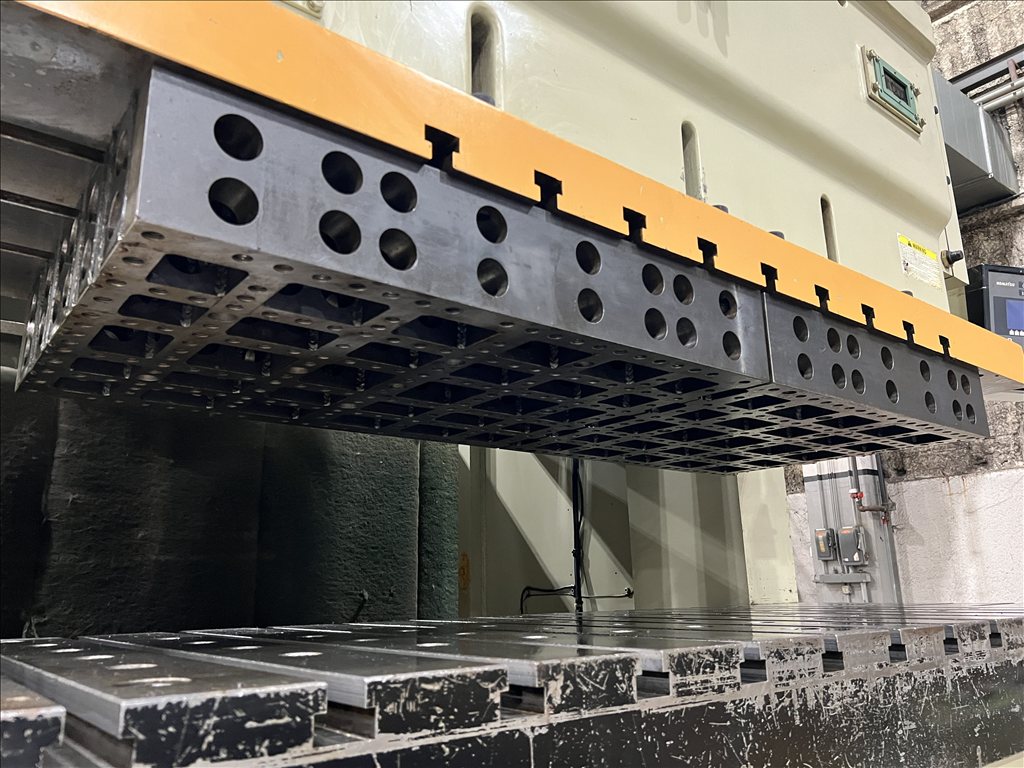

- T-Slotted Bolster & Ram
- Hydraulic Clutch & Brake
- Hydraulic Overload
- Air Counterbalance
- T-Slotted Bolster & Ram
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
