Inventory # 48388 Year: 2019
Lindberg/MPH Roller Hearth Heat Treat Cell with Robotic Handling and Wheelabrator TMS12 Tumble Blast
Specifications
- Furnace Specs

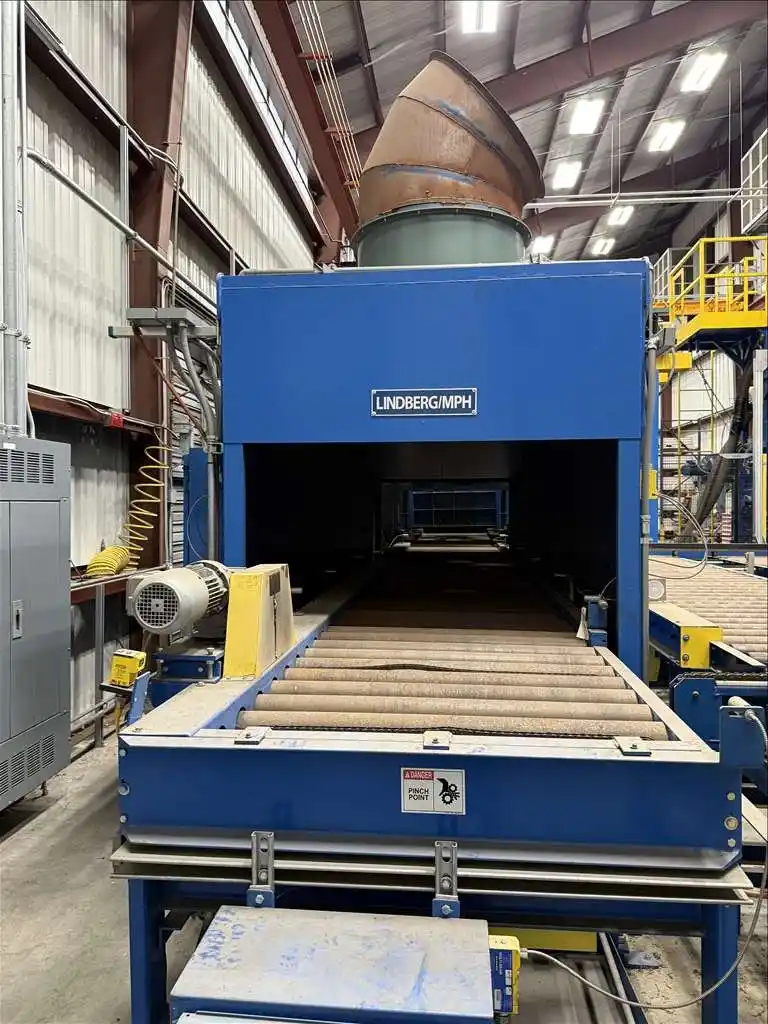

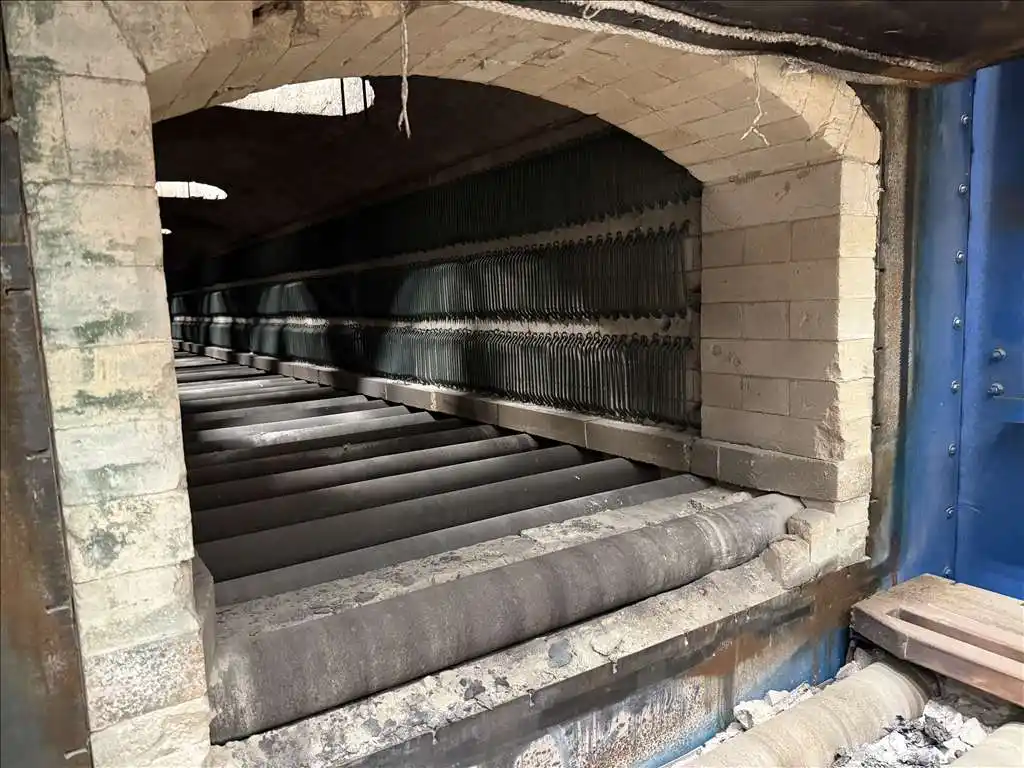

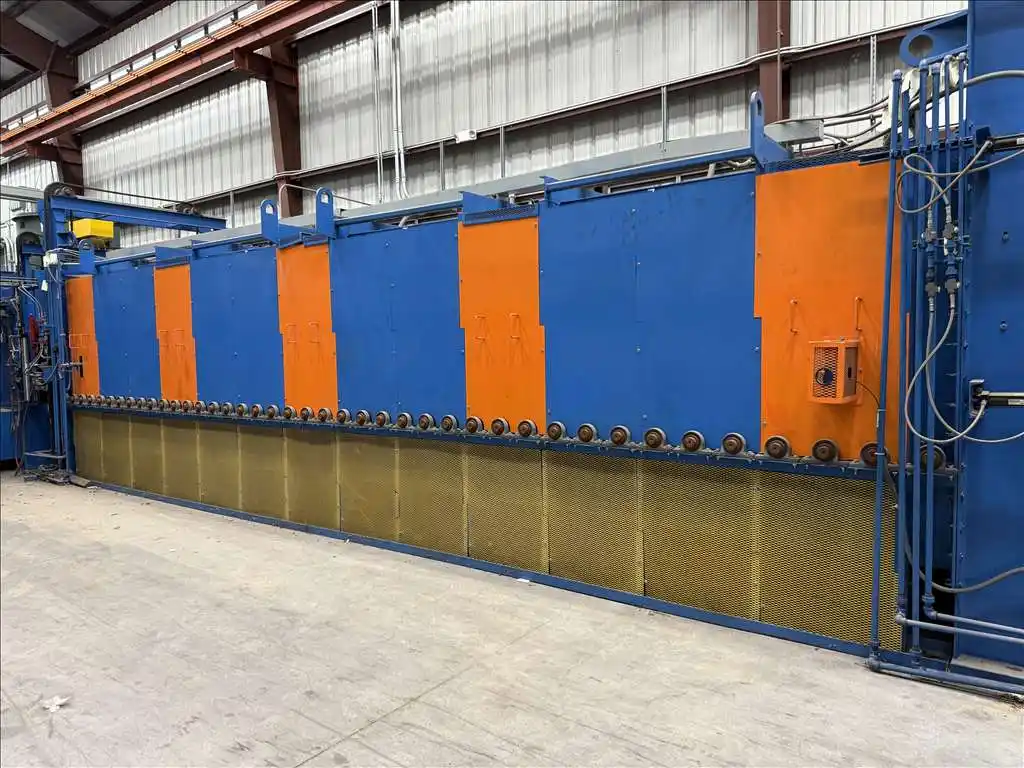

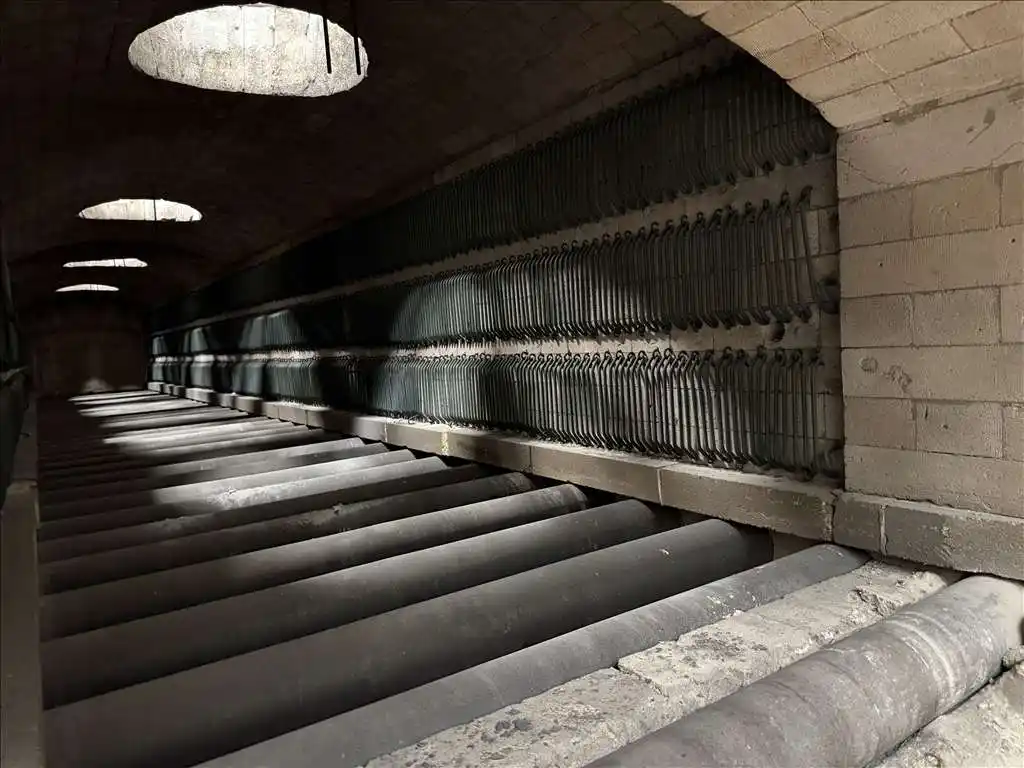

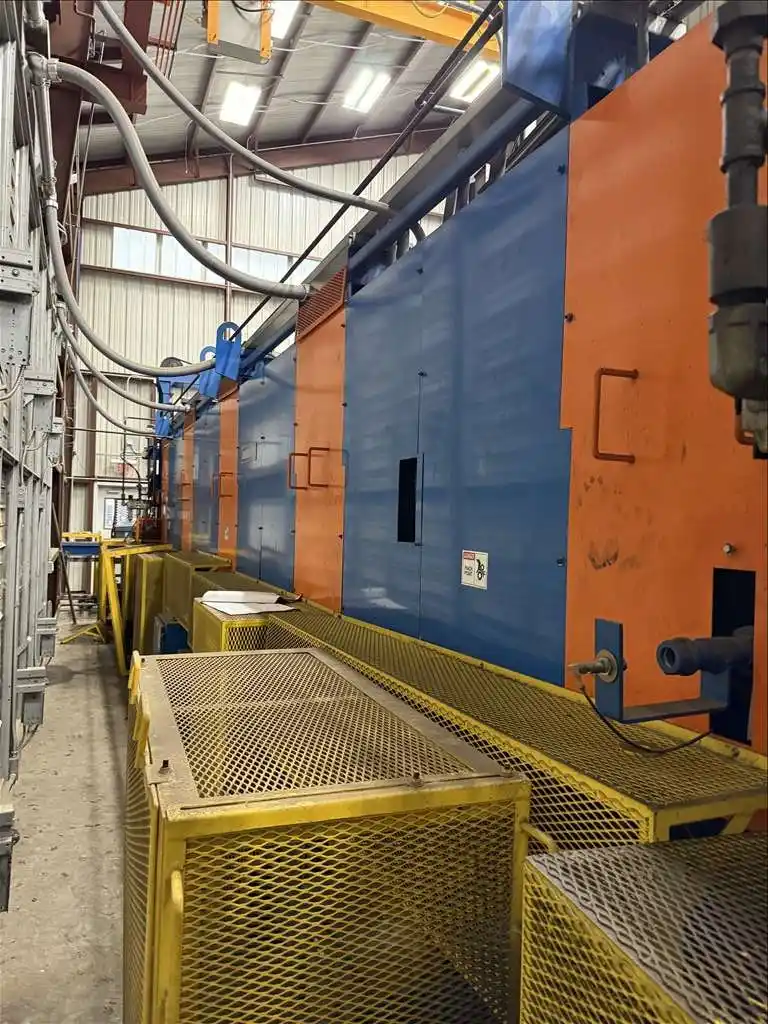

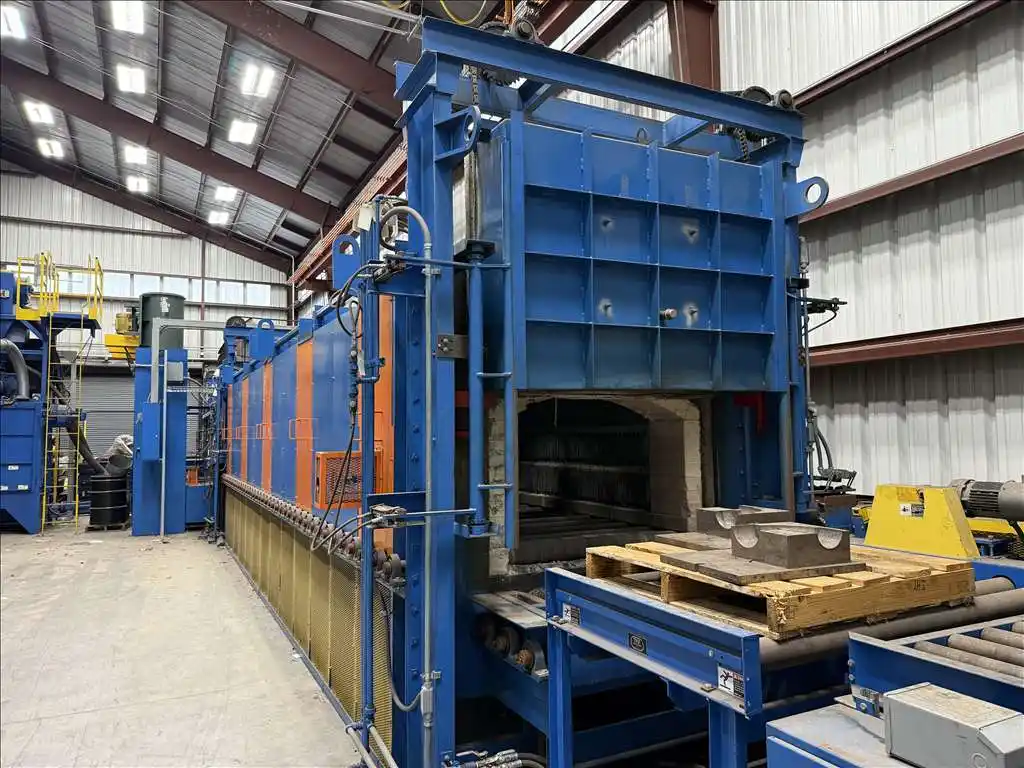

- Furnace Type: Lindberg/MPH Electric Roller Hearth, Pass-Through
- Opening: 42"W x 25"H
- Overall Length: 420"
- Operating Temperature: 1600°F
- Max. Temperature: 1750°F
- Heating Zones: 4
- Heating Source: Electric

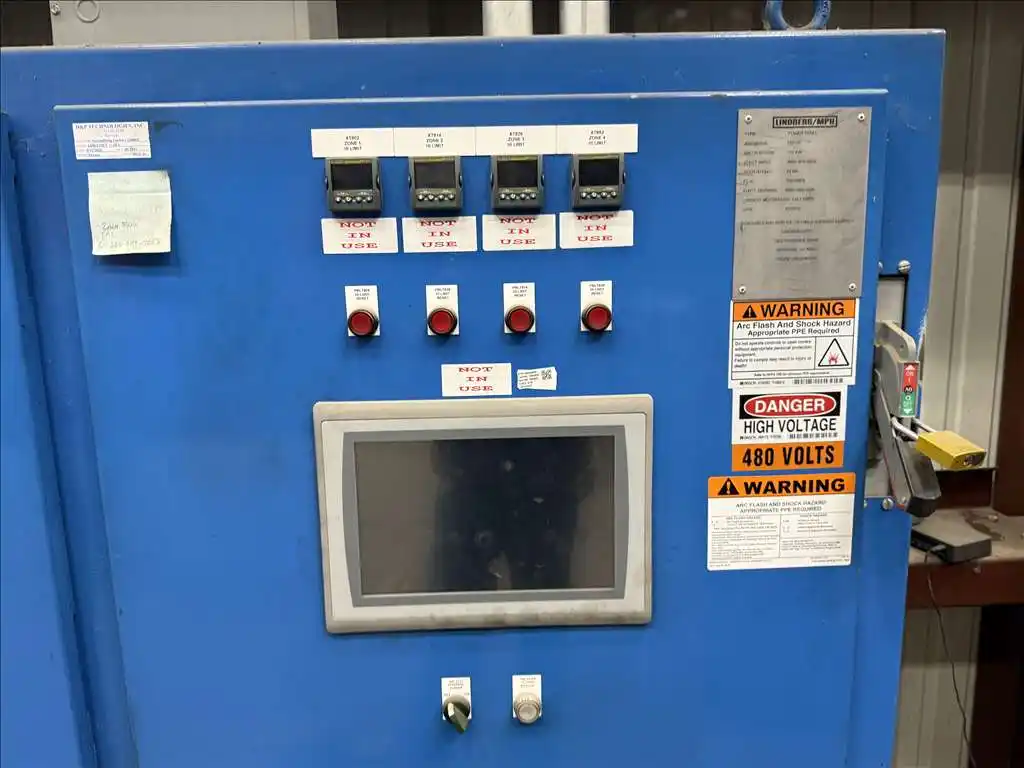

- Controls: Allen-Bradley PLC
- Cool-Down Zone w/ Powered Fans & Enclosure
- Shot Blasting System

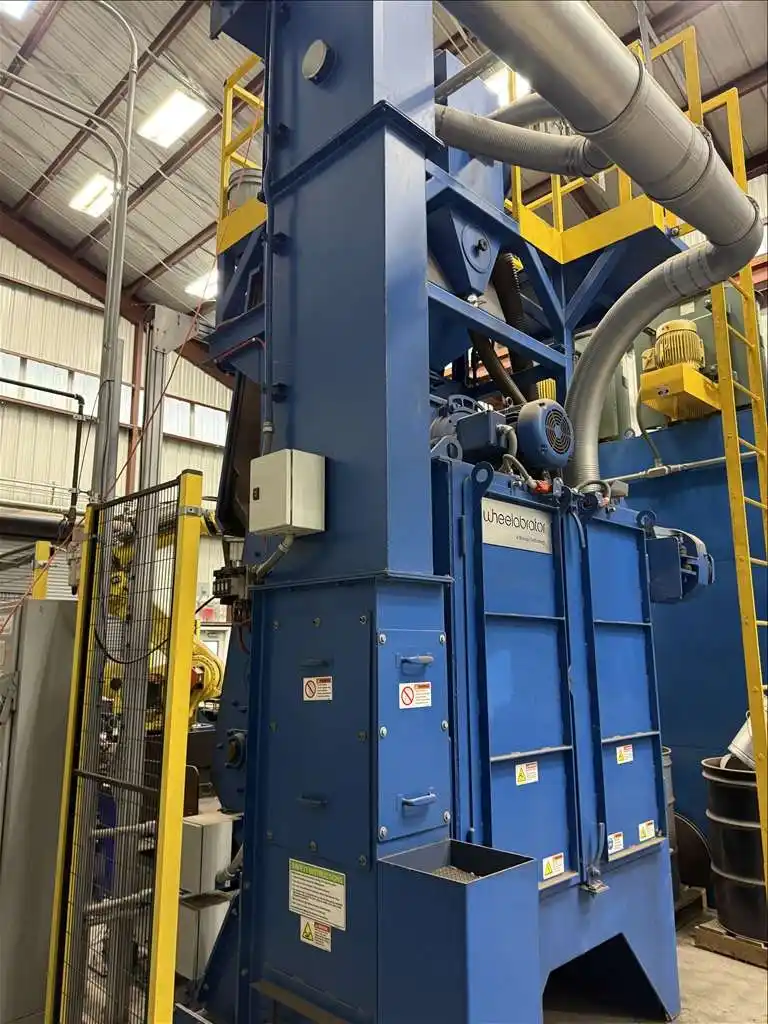

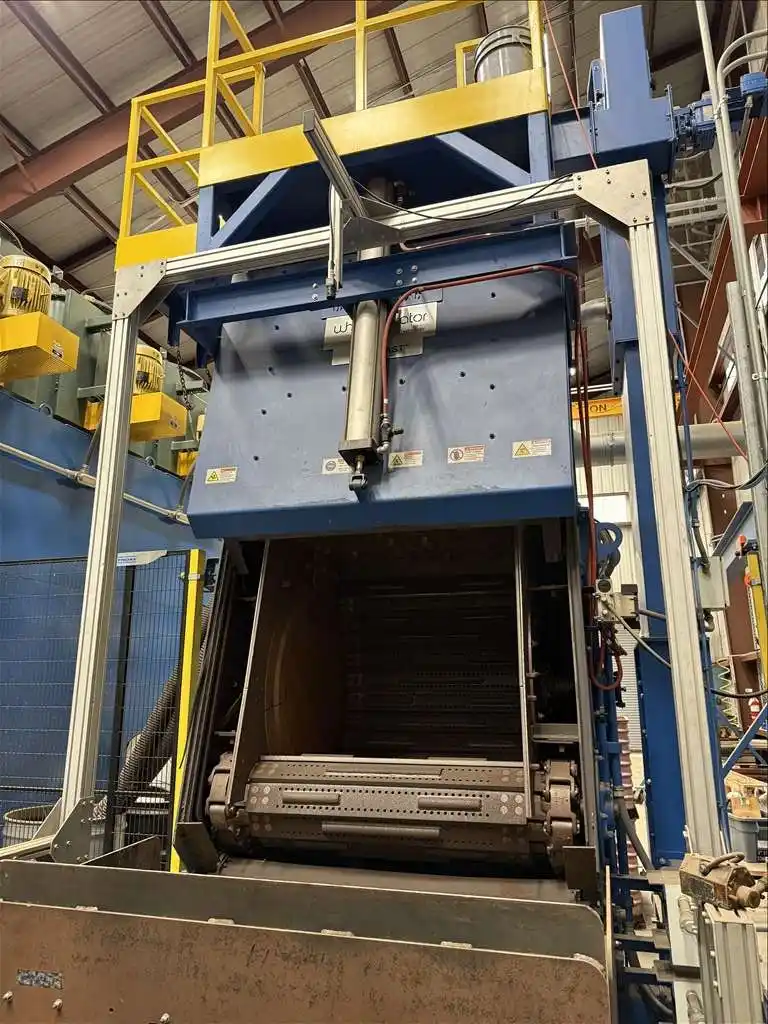

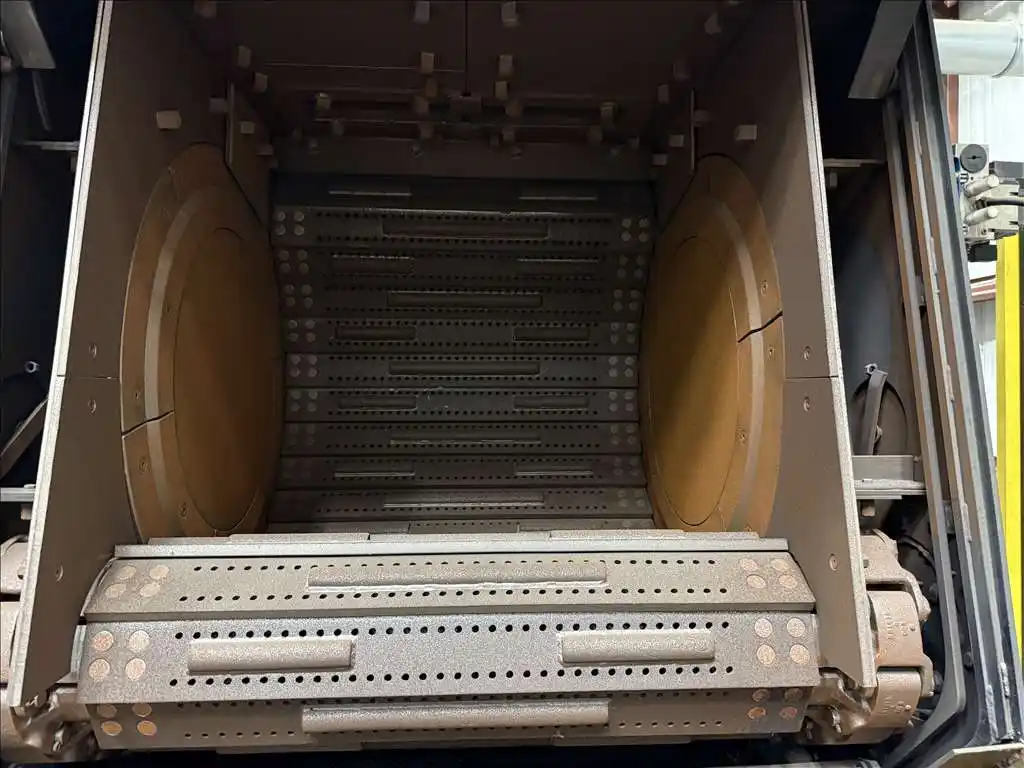

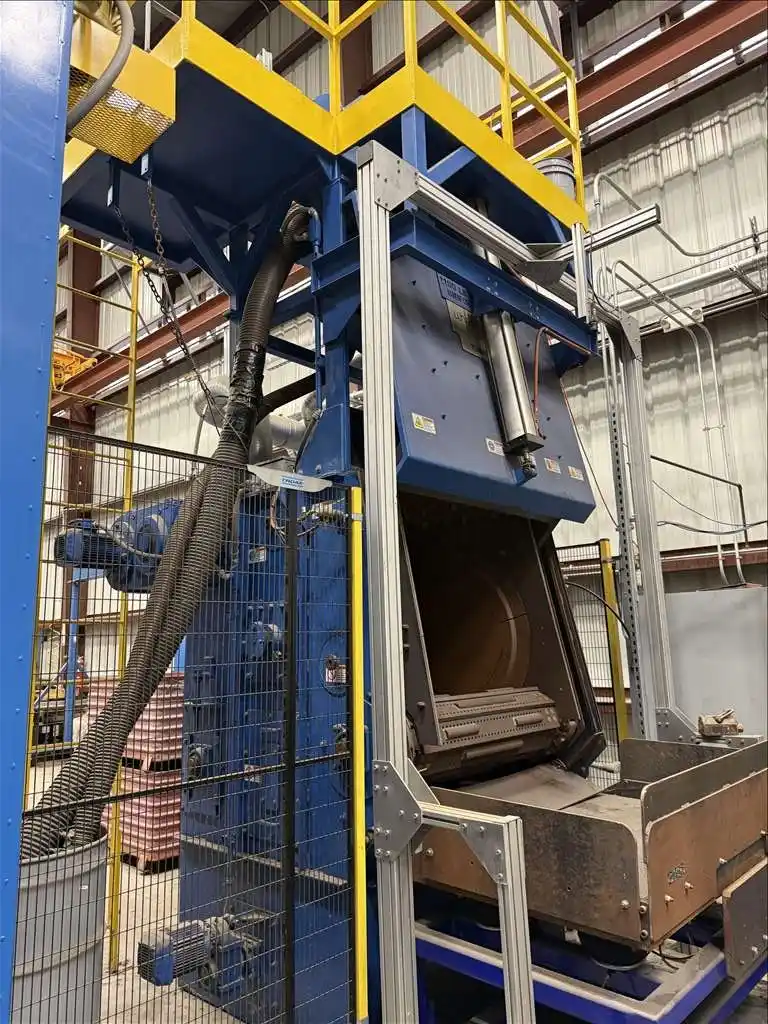

- Shot Blast Type: Wheelabrator TMS12 Tumble Blast (New in 2018)
- Batch-Style Tumble Blasting for Post-Heat Treat Cleaning
- 30 HP EZFit Blast Wheel
- Material Handling & Automation
- Integrated Robotic Material Handling System

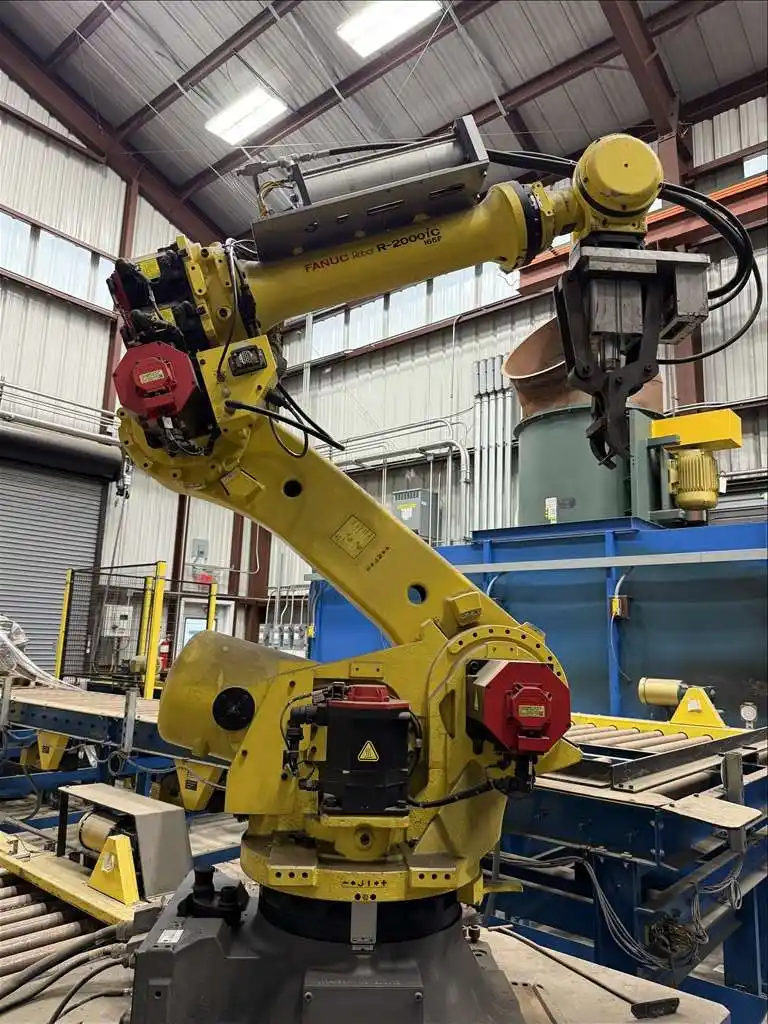

- Robot Make / Model: Fanuc R-2000iC/165F (Installed New in 2018)
- Payload: 363 lb.

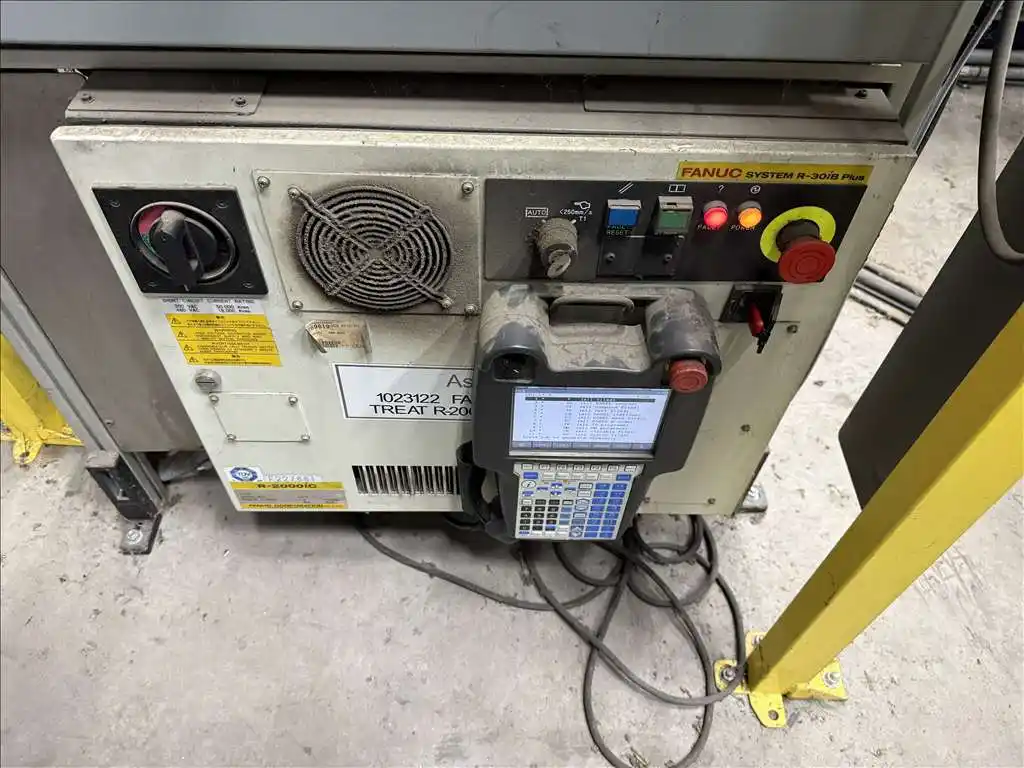

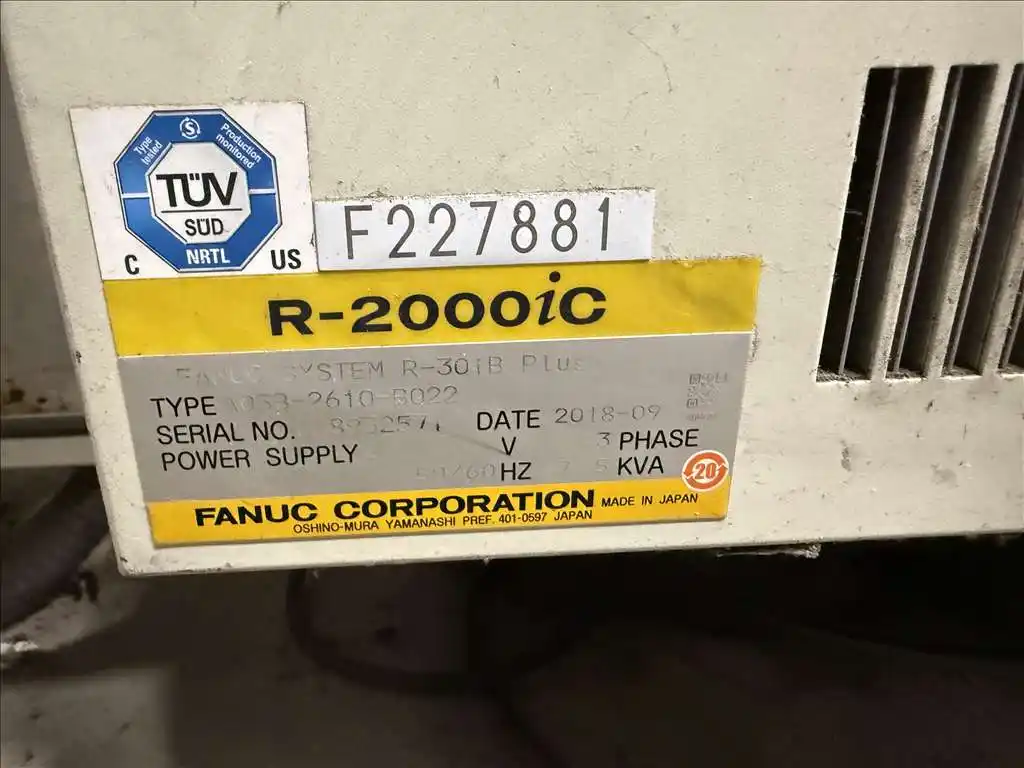

- Robot Controller: Fanuc R-30iB Plus
- Powered Roller Conveyor System: 3.5"Ø Rollers on 9" Centers

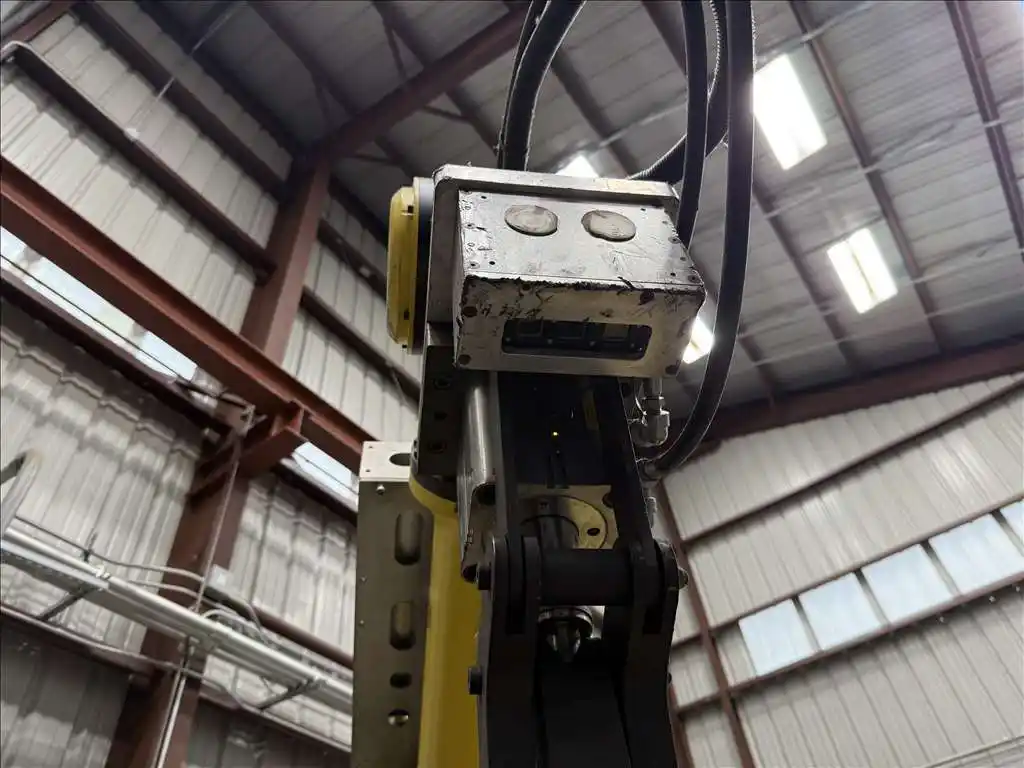

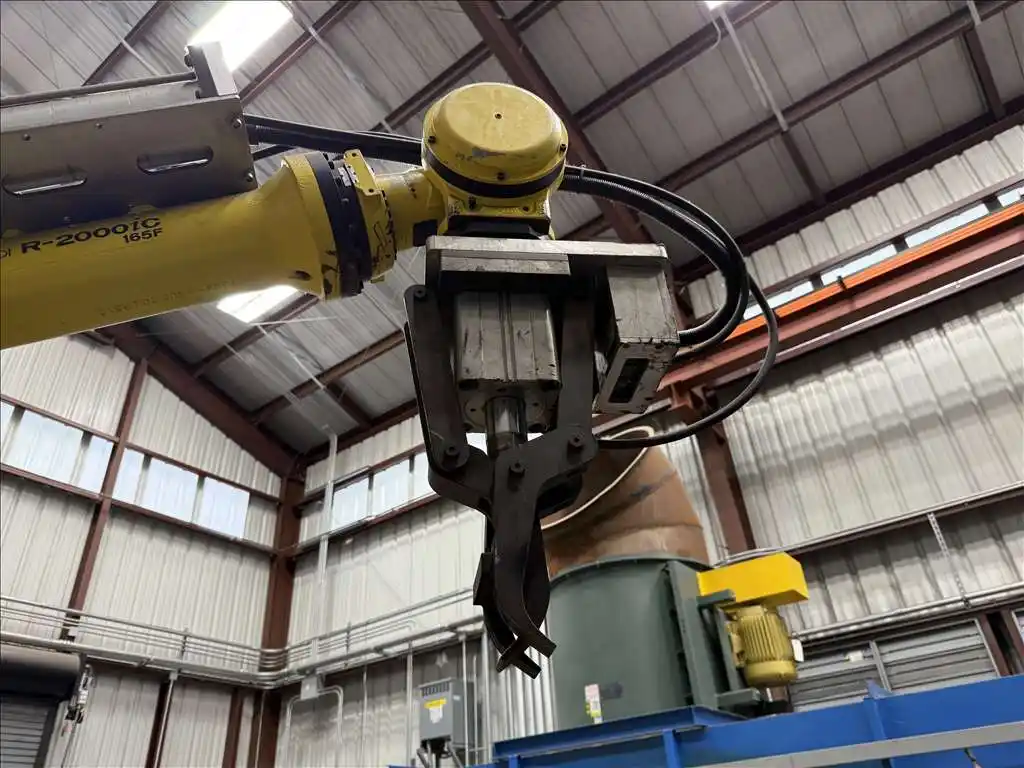

- End Effector w/ Integrated Camera System
- Tech Pendant Included
- Show More
- Show Less
- Furnace Specs
- Furnace Type: Lindberg/MPH Electric Roller Hearth, Pass-Through
- Opening: 1066.80mm W x 635.00mm H
- Overall Length: 10668.00mm
- Operating Temperature: 1600°F
- Max. Temperature: 1750°F
- Heating Zones: 4
- Heating Source: Electric
- Controls: Allen-Bradley PLC
- Cool-Down Zone w/ Powered Fans & Enclosure
- Shot Blasting System
- Shot Blast Type: Wheelabrator TMS12 Tumble Blast (New in 2018)
- Batch-Style Tumble Blasting for Post-Heat Treat Cleaning
- 22.37 kw EZFit Blast Wheel
- Material Handling & Automation
- Integrated Robotic Material Handling System
- Robot Make / Model: Fanuc R-2000iC/165F (Installed New in 2018)
- Payload: 363 lb.
- Robot Controller: Fanuc R-30iB Plus
- Powered Roller Conveyor System: 88.90mm Rollers on 228.60mm Centers
- End Effector w/ Integrated Camera System
- Tech Pendant Included
- Show More
- Show Less
More Info

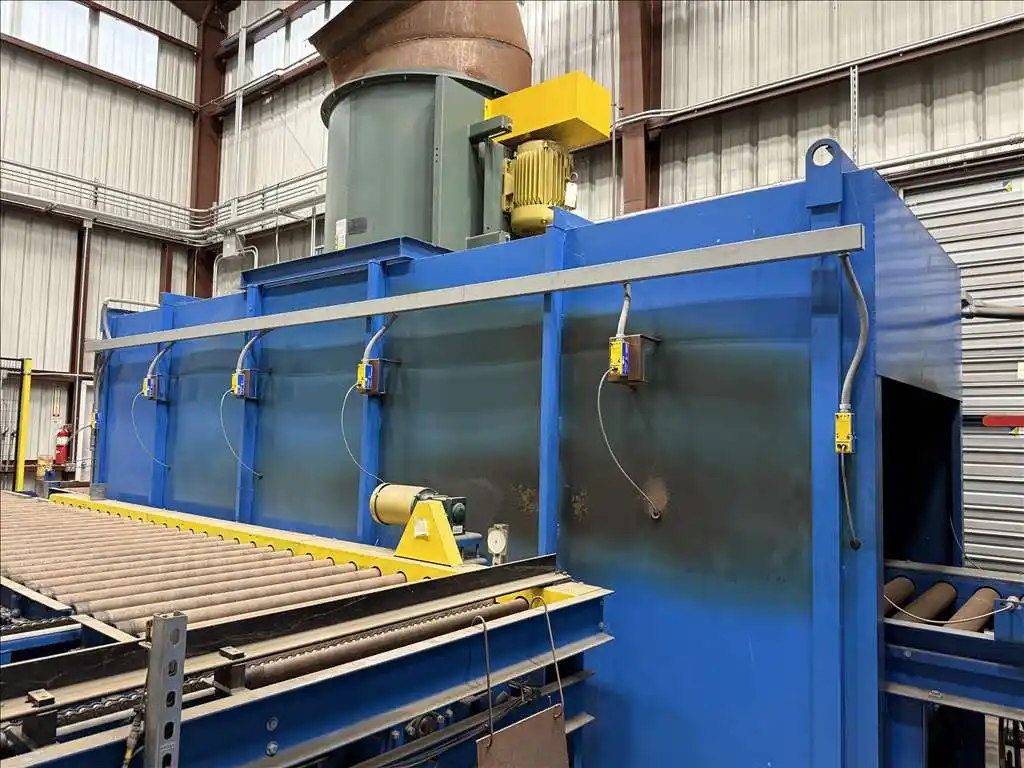

This Lindberg / MPH heat treat and shot blasting system was engineered as a fully integrated production cell, combining a roller hearth furnace with automated material handling and a dedicated Wheelabrator TMS12 tumble blast for post-heat treat cleaning.
Parts are processed through the roller hearth furnace, then transferred for batch shot blasting to remove scale and residue before discharge. The system was designed to reduce manual handling, improve consistency, and support repeatable production workflows without the cost or lead time of a new automation build.
Ideal for manufacturers looking to bring heat treat and secondary finishing in-house while maintaining control over part quality and throughput.
Looking for similar equipment? Check out more used industrial furnaces available at Perfection Global.
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
