Inventory # 48751 Year: 2019

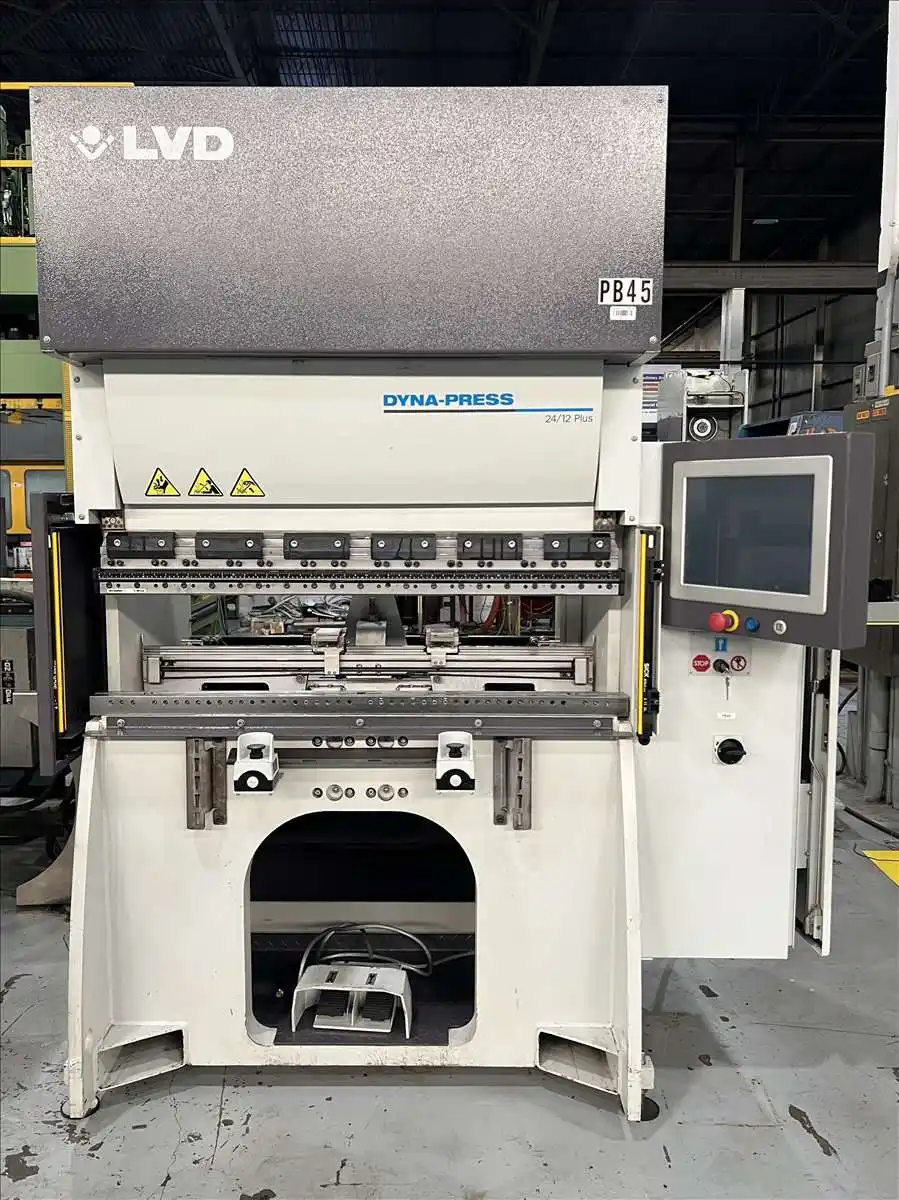

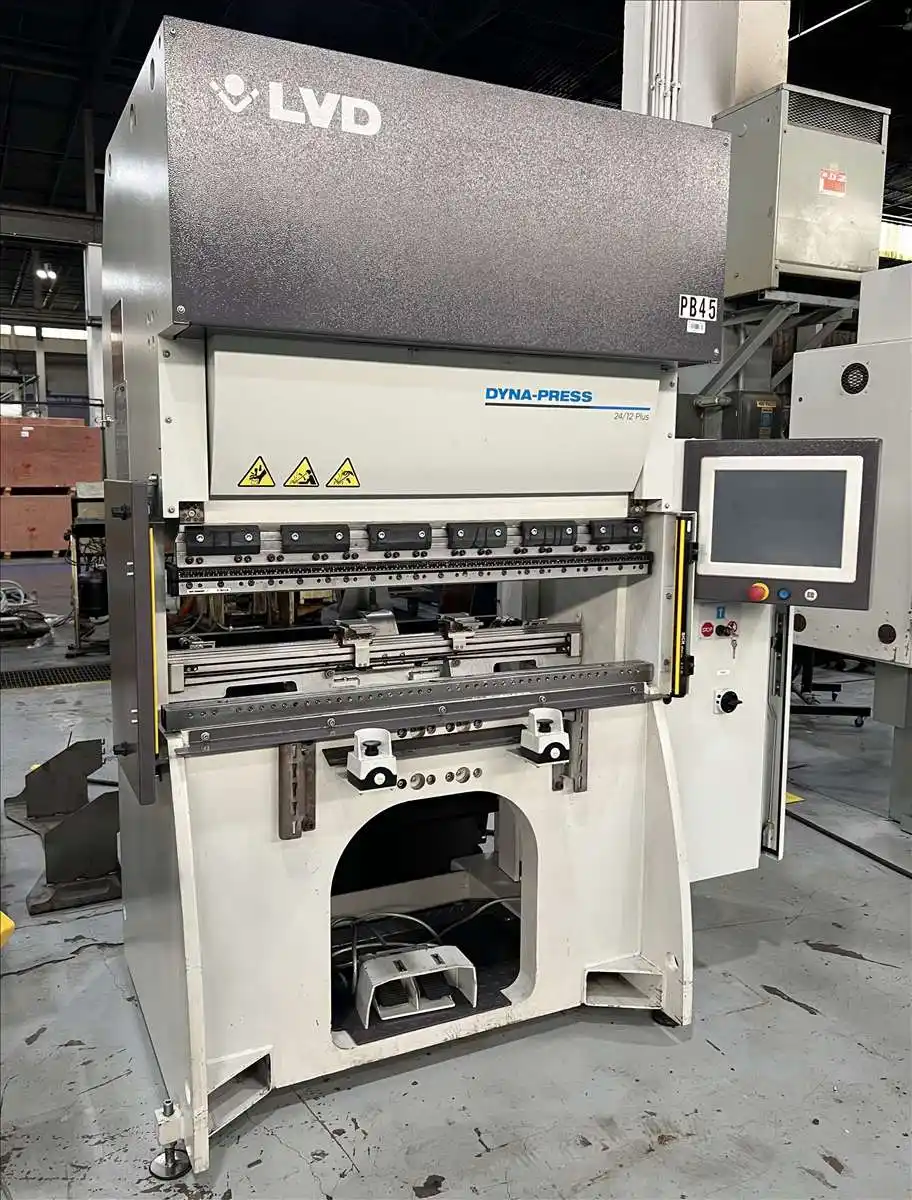

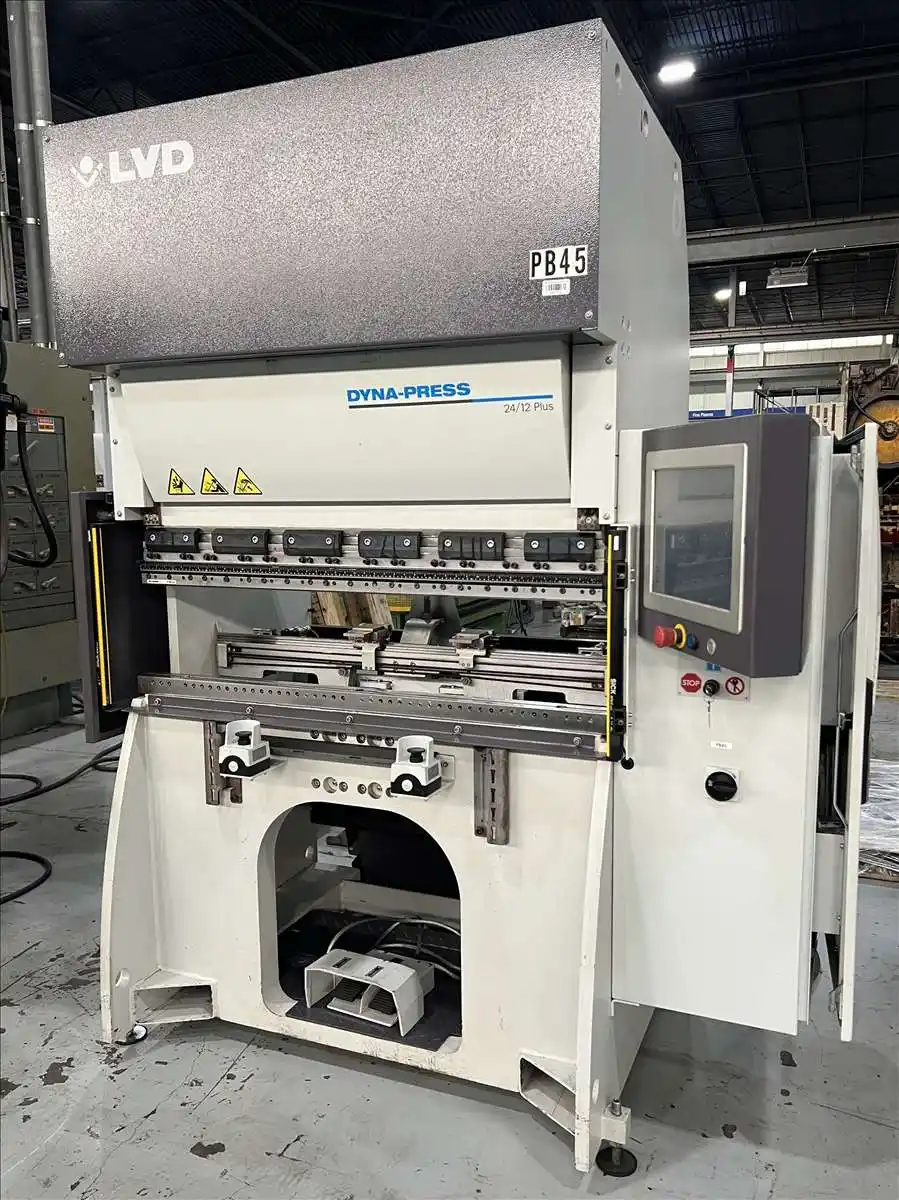

LVD Strippit Dyna-Press 24/12+ 24 Ton Electric CNC Press Brake
Specifications
- Tonnage Capacity: 24 Ton
- Working Length: 49.2"
- Working Height: 35.4"
- Distance Between Uprights: 47"
- Stroke: 5.9"
- Max. Distance Between Ram & Table 13.8"
- Depth of the Gap: 3.9"
- Motor: 9.7 HP
- Ram Speeds
- Approah Speed: 236 IPM
- Working Speed: 59 IPM
- Return Speed: 236 IPM
- Show More
- Show Less
- Tonnage Capacity: 24.47 Metric Ton
- Working Length: 1250mm
- Working Height: 900mm
- Distance Between Uprights: 1195mm
- Stroke: 150mm
- Max. Distance Between Ram & Table 350mm
- Depth of the Gap: 100mm
- Motor: 7.23 kw
- Ram Speeds
- Approah Speed: 100 mm/sec
- Working Speed: 25 mm/sec
- Return Speed: 100 mm/sec
- Show More
- Show Less
Equipped With

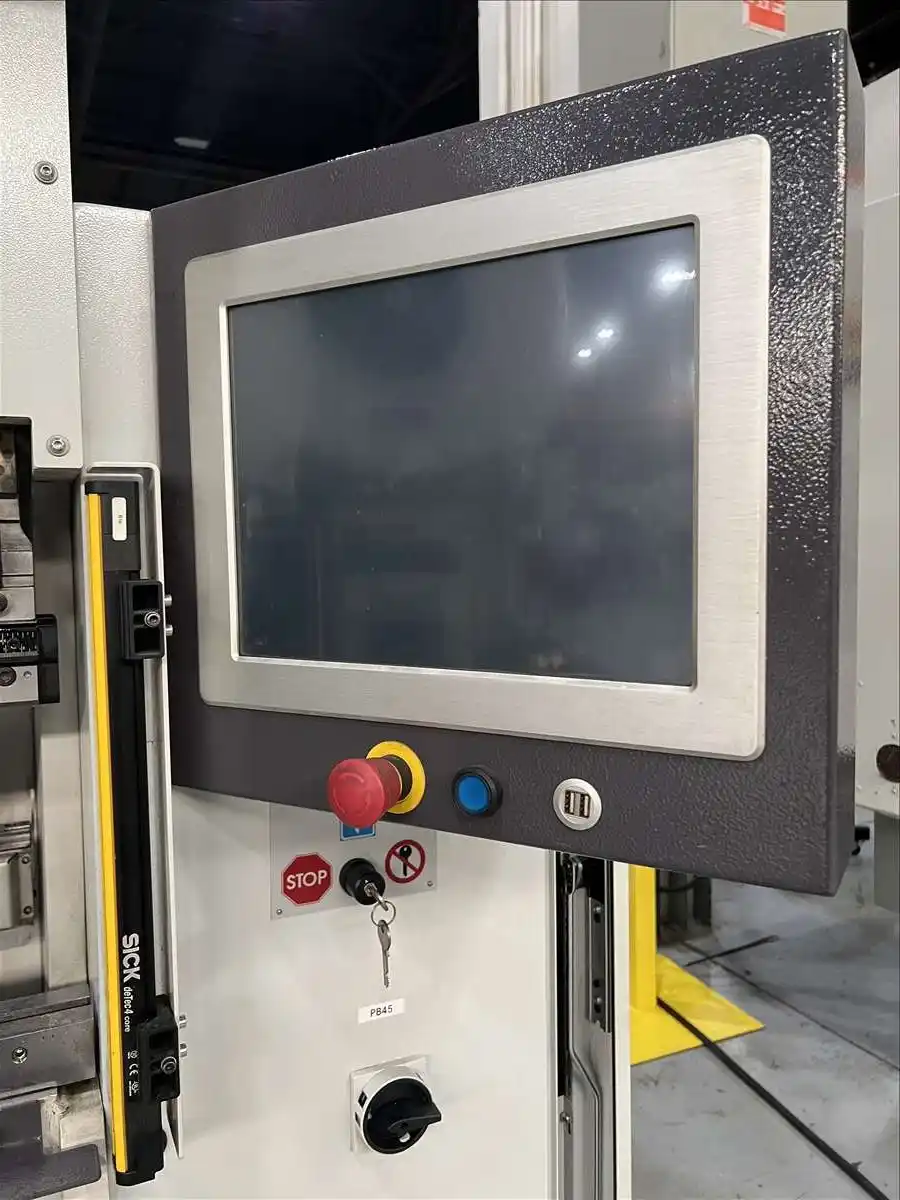

- LVD 15" Touch-B CNC Control w/ CADMAN-B Software

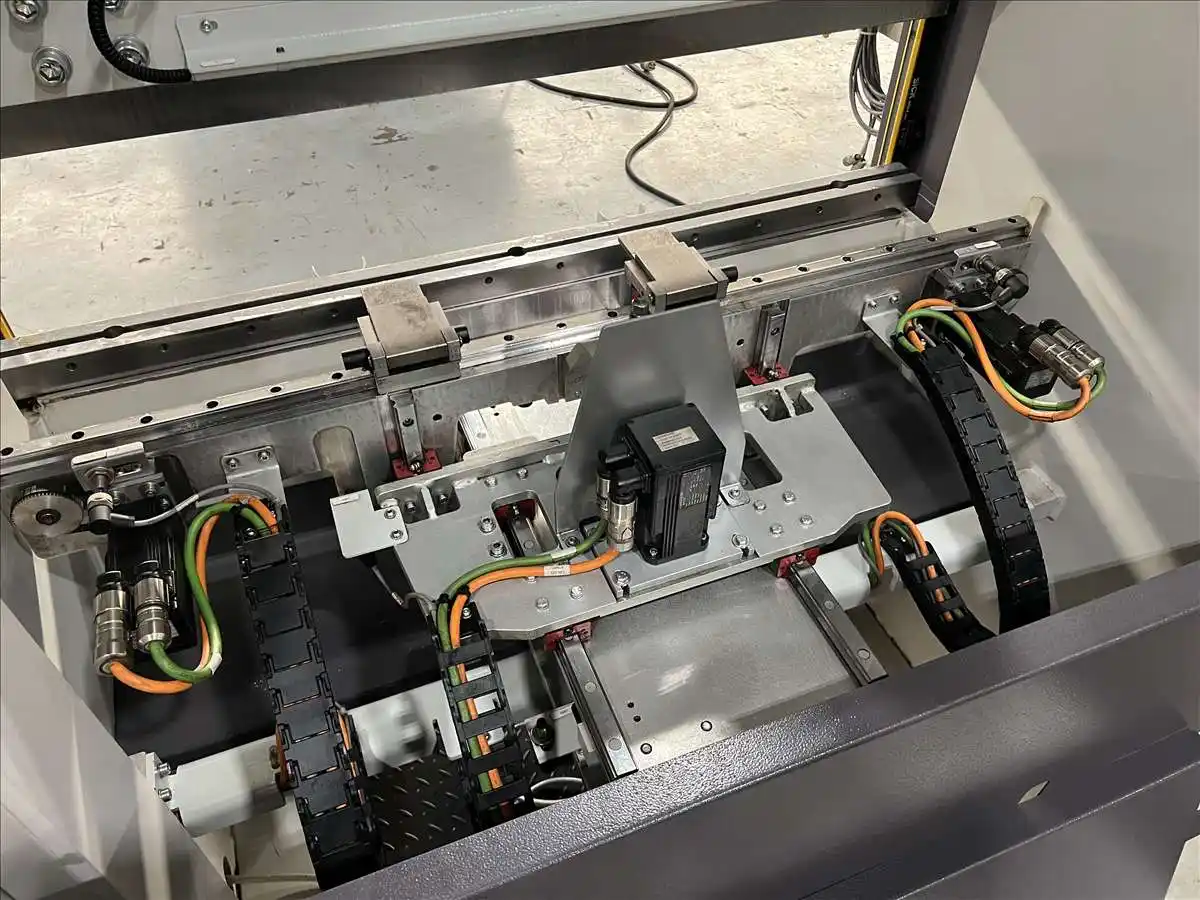

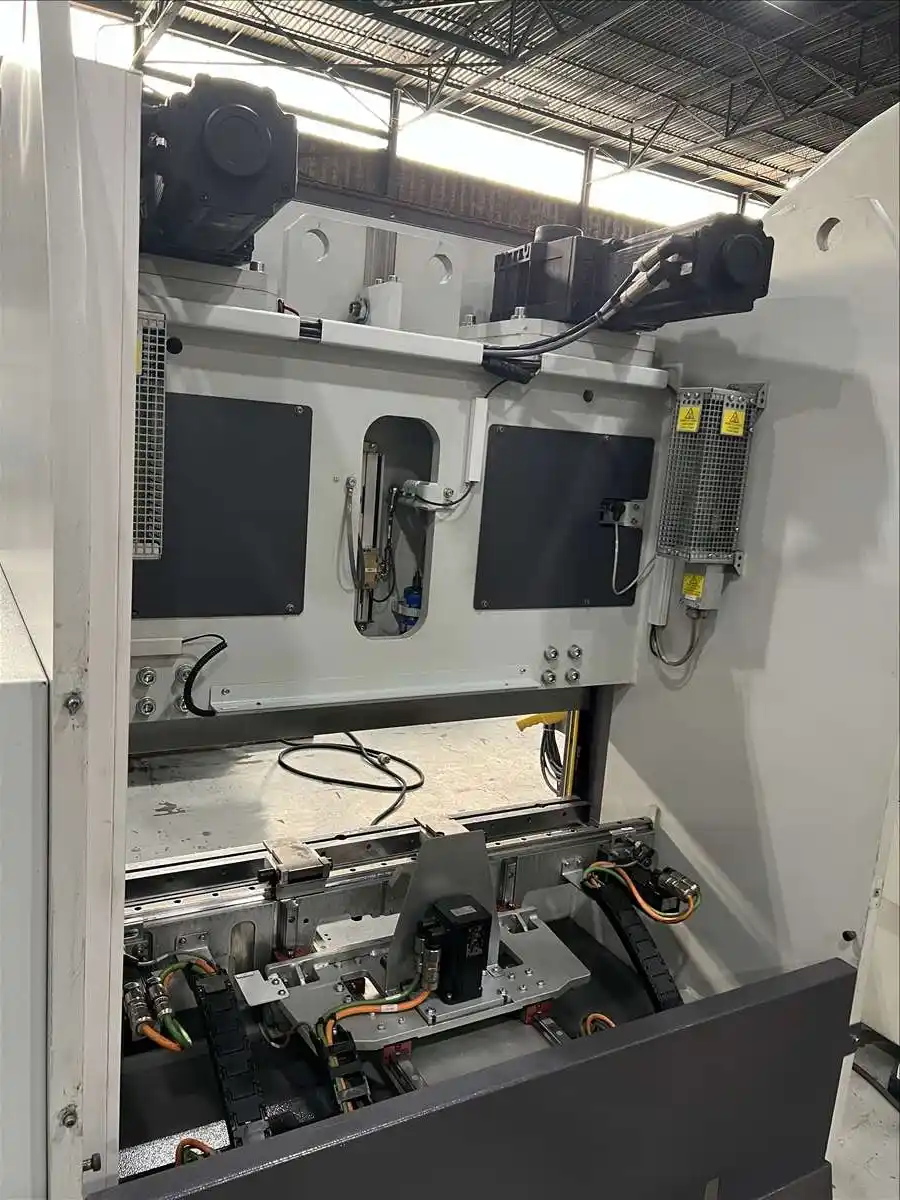

- 4-Axis CNC Backgauge (X, R, Z1, Z2)
- Manual Clamping
- LVD 381.00mm Touch-B CNC Control w/ CADMAN-B Software
- 4-Axis CNC Backgauge (X, R, Z1, Z2)
- Manual Clamping
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
