Inventory # 46122 Year: 2016

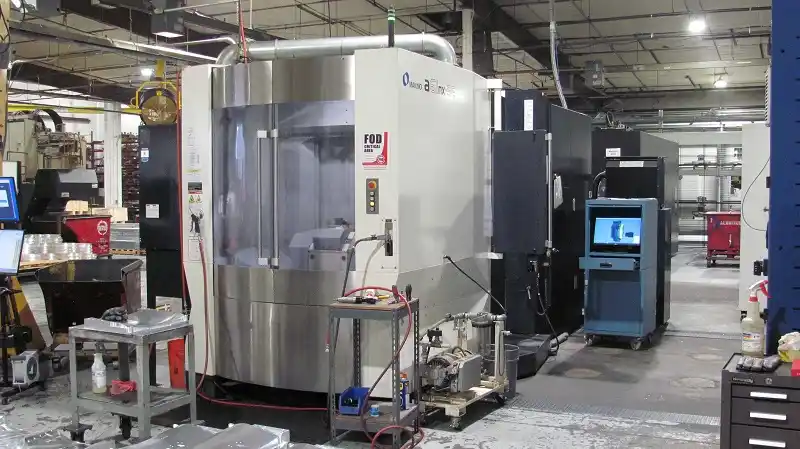

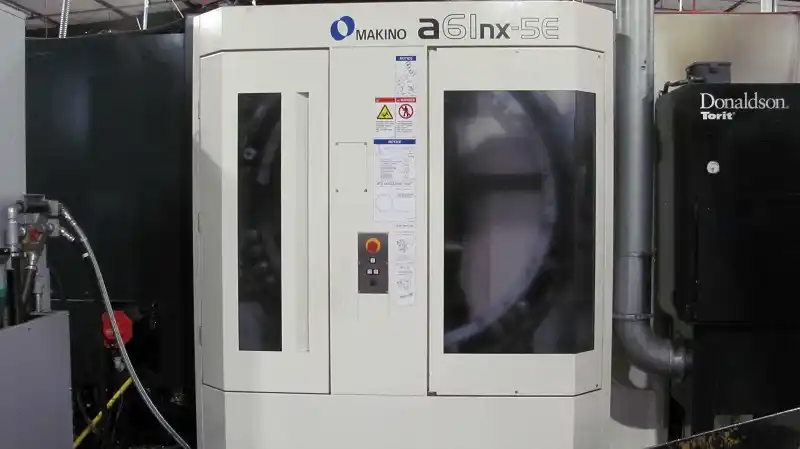

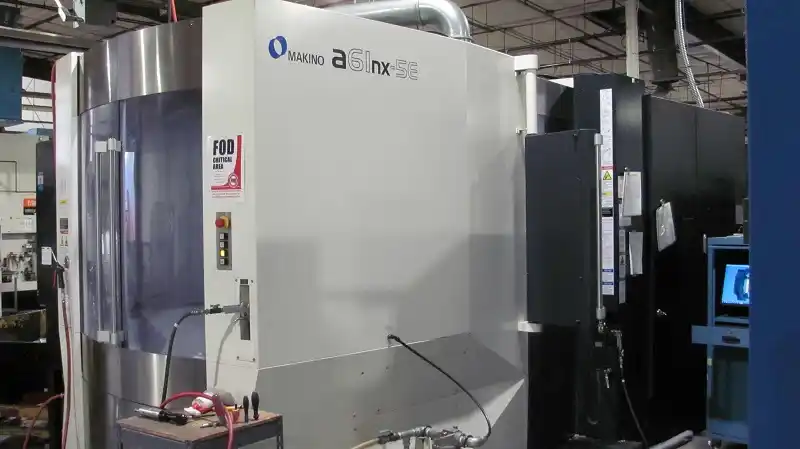

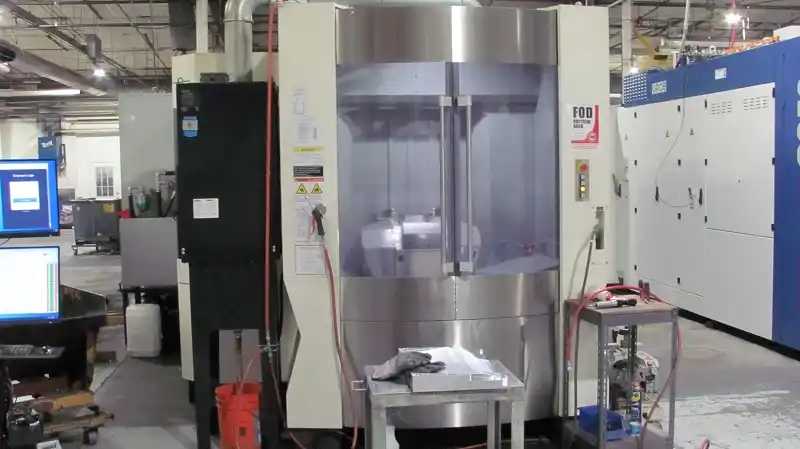

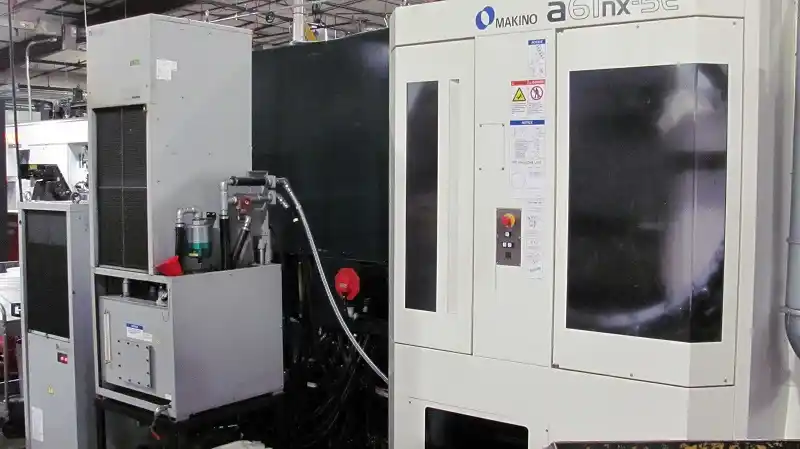

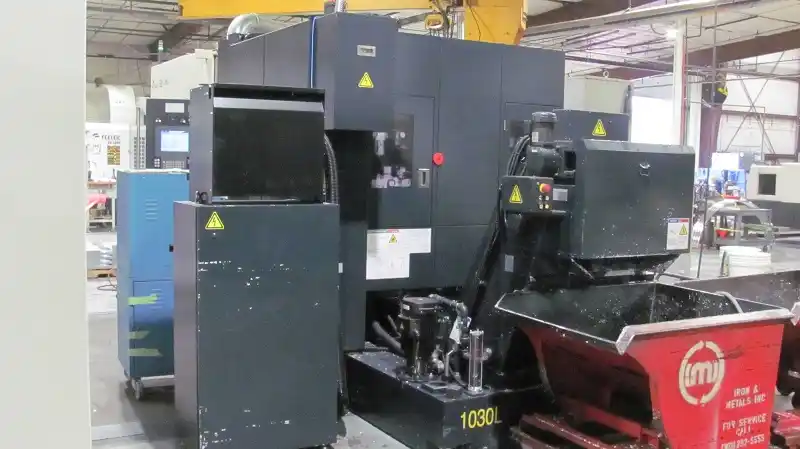

MAKINO A61NX-5E CNC 5-AXIS HORIZONTAL MACHINING CENTER
Specifications
- X-Axis: 28.7"
- Y-Axis: 28.7"
- Z-Axis: 26.8"
- B-Axis: -110° to +180°
- C-Axis Index: .0001°
- Max Feedrate: 1969 IPM
- Pallet Size: 15.75" x 15.75"
- No. of Pallets: 2
- Pallet Load Capacity: 300 lbs
- Spindle Motor: 80 hp
- Spindle Nose to Table Center: 3.9" - 30.7"
- Spindle Speed: 24,000 RPM
- Spindle Taper: HSK-A63
- Tool Changer: 60-ATC
- Rapid Traverse Rates (X & Y / Z): 1890 IPM / 1693 IPM
- Max Tool Diameter: 2.76" / 6.7"
- Max Tool Length: 20.1"
- Max Tool Weight: 26.4 lbs
- Show More
- Show Less
- X-Axis: 728.98mm
- Y-Axis: 728.98mm
- Z-Axis: 680.72mm
- B-Axis: -110° to +180°
- C-Axis Index: .0001°
- Max Feedrate: 50.01 m/min
- Pallet Size: 400.05mm x 400.05mm
- No. of Pallets: 2
- Pallet Load Capacity: 136.05 kg
- Spindle Motor: 59.66 kw
- Spindle Nose to Table Center: 99.06mm - 779.78mm
- Spindle Speed: 24,000 RPM
- Spindle Taper: HSK-A63
- Tool Changer: 60-ATC
- Rapid Traverse Rates (X & Y / Z): 48.01 m/min /43.00 m/min
- Max Tool Diameter: 70.10mm / 170.18mm
- Max Tool Length: 510.54mm
- Max Tool Weight: 11.97 kg
- Show More
- Show Less
Equipped With

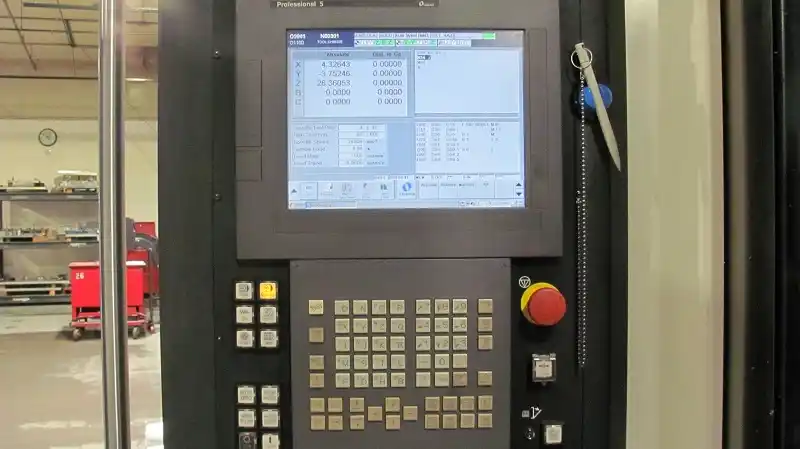

- Professional 5 CNC Control
- 5-Axis Simultaneous Machining Capability

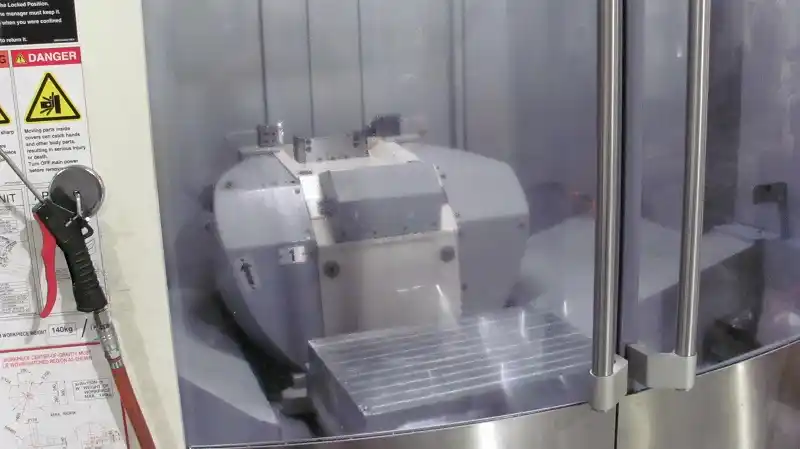

- Integral Trunnion Tilt/Rotary Table
- Through Spindle Coolant
- Renishaw RMP600 Workpiece Measuring Probe
- Resnishaw NC4S Laser ATLM
- Chip Conveyor
- Vacuum Table with Condinsate Spearator
- Automatic Air Blower Nozzle
- Workpiece Washing Gun

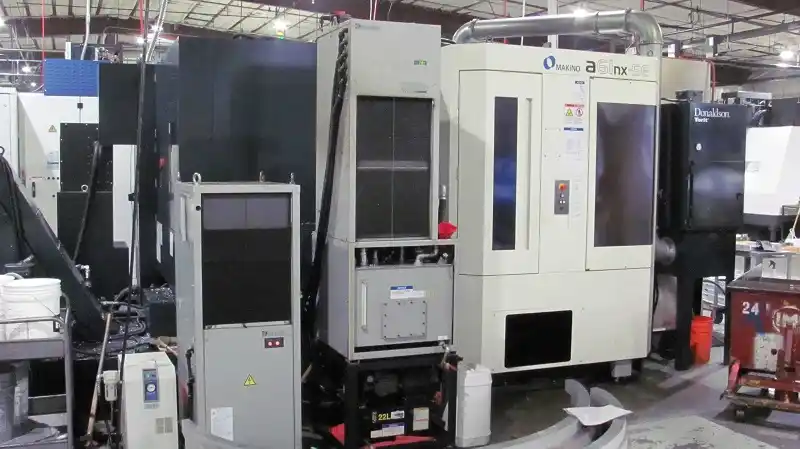

- Spindle Chiller Unit
- Remote Jog Handle
- Donaldson Torit Mist Collector
- Show More
- Show Less
- Professional 5 CNC Control
- 5-Axis Simultaneous Machining Capability
- Integral Trunnion Tilt/Rotary Table
- Through Spindle Coolant
- Renishaw RMP600 Workpiece Measuring Probe
- Resnishaw NC4S Laser ATLM
- Chip Conveyor
- Vacuum Table with Condinsate Spearator
- Automatic Air Blower Nozzle
- Workpiece Washing Gun
- Spindle Chiller Unit
- Remote Jog Handle
- Donaldson Torit Mist Collector
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
