Inventory # 46639 Year: 2005

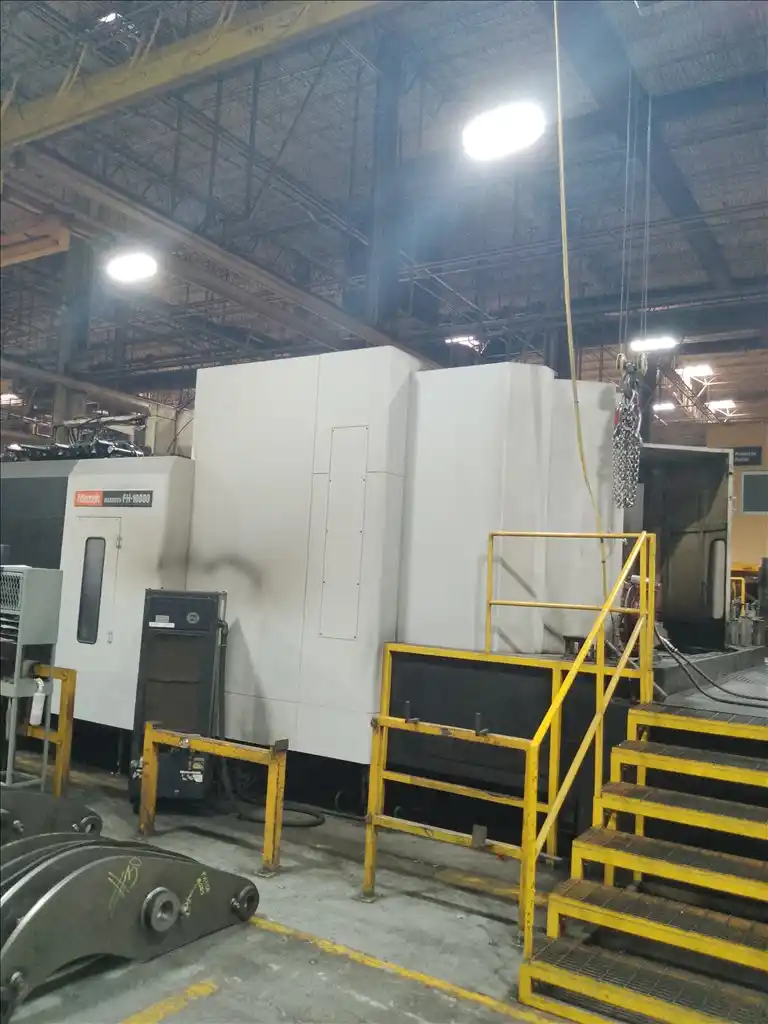

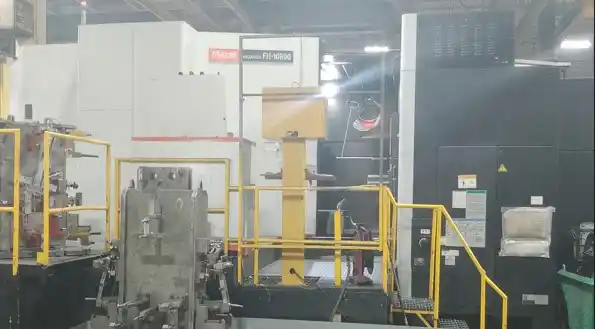

Mazak FH-10800 CNC Horizontal Machining Center
Specifications
- X-Axis: 66.9"
- Y-Axis: 55.1"
- Z-Axis: 55.1"
- B-Axis Indexing: 1°

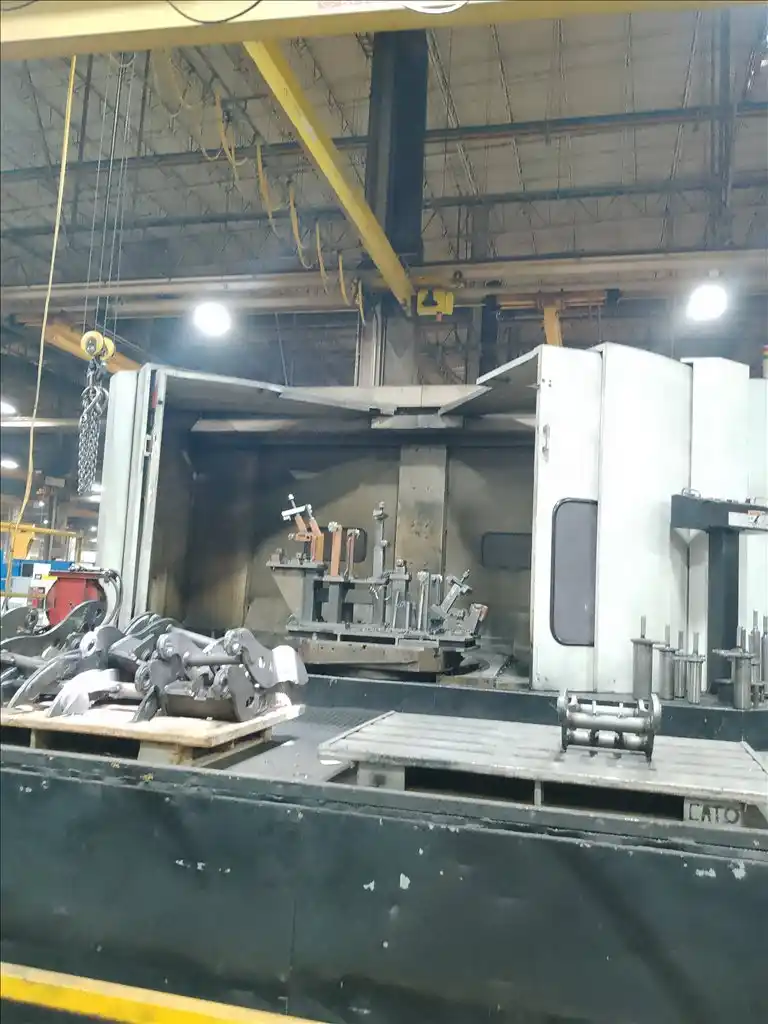

- Number of Pallets: 2
- Pallet Size: 39.3" x 39.3"
- Max Pallet Load: 6600 lbs
- Max Workpiece Size: 80" D x 40" H
- Spindle Nose to Pallet Top: 3.94" - 60"
- Spindle Nose to Pallet Center: 8" - 64"
- Rapid Traverse, All Axes: 1600 IPM
- Spindle Power: 40/50 hp
- Spindle Taper: CAT 50
- Max Spindle Speed: 7000 RPM

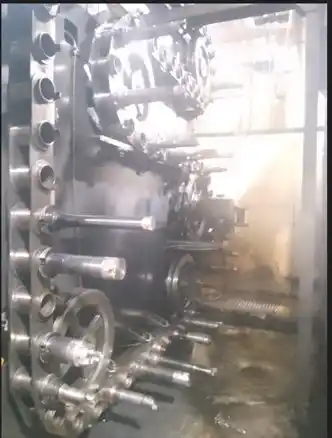

- Tool Changer: 120-ATC

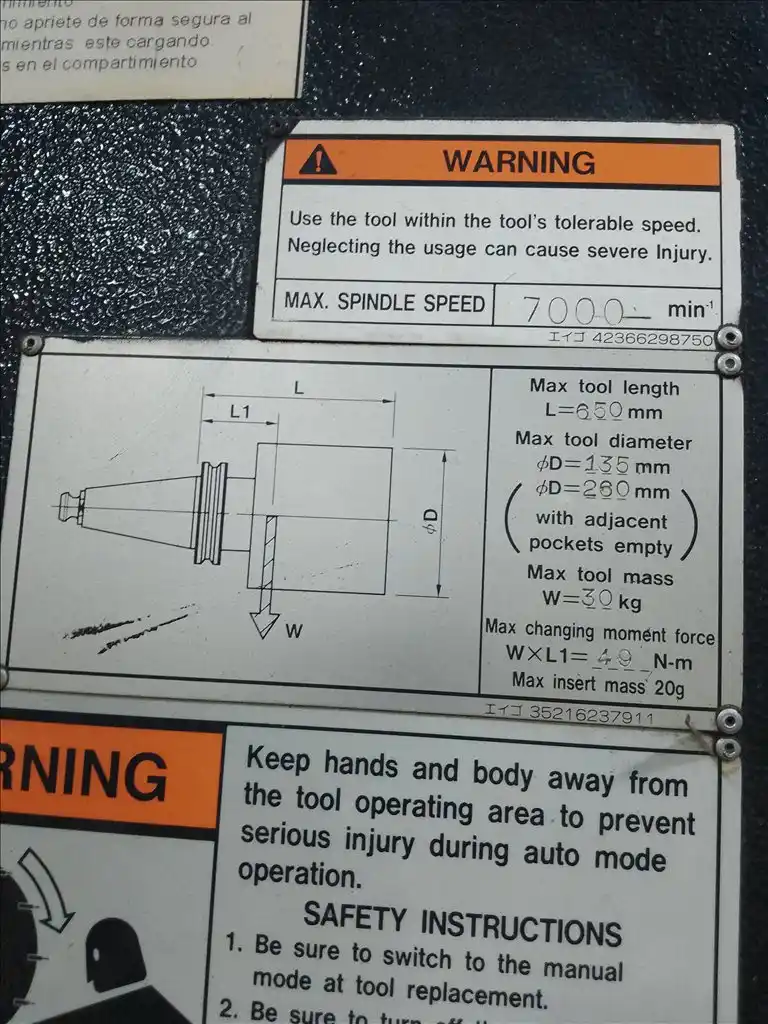

- Max Tool Diameter: 10.24"
- Max Tool Length: 26"
- Max Tool Weight: 66 lbs
- Show More
- Show Less
- X-Axis: 1699.26mm
- Y-Axis: 1399.54mm
- Z-Axis: 1399.54mm
- B-Axis Indexing: 1°
- Number of Pallets: 2
- Pallet Size: 998.22mm x 998.22mm
- Max Pallet Load: 2993.10 kg
- Max Workpiece Size: 2032.00mm D x 1016.00mm H
- Spindle Nose to Pallet Top: 100.08mm - 1524.00mm
- Spindle Nose to Pallet Center: 203.20mm - 1625.60mm
- Rapid Traverse, All Axes: 40.64 m/min
- Spindle Power: 29.83/37.29 kw
- Spindle Taper: CAT 50
- Max Spindle Speed: 7000 RPM
- Tool Changer: 120-ATC
- Max Tool Diameter: 260.10mm
- Max Tool Length: 660.40mm
- Max Tool Weight: 29.93 kg
- Show More
- Show Less
Equipped With
- Mazatrol Fusion 640M CNC Control
- Coolant Thru Spindle
- Mazatrol Fusion 640M CNC Control
- Coolant Thru Spindle
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
