Inventory # 47776 Year: 2011

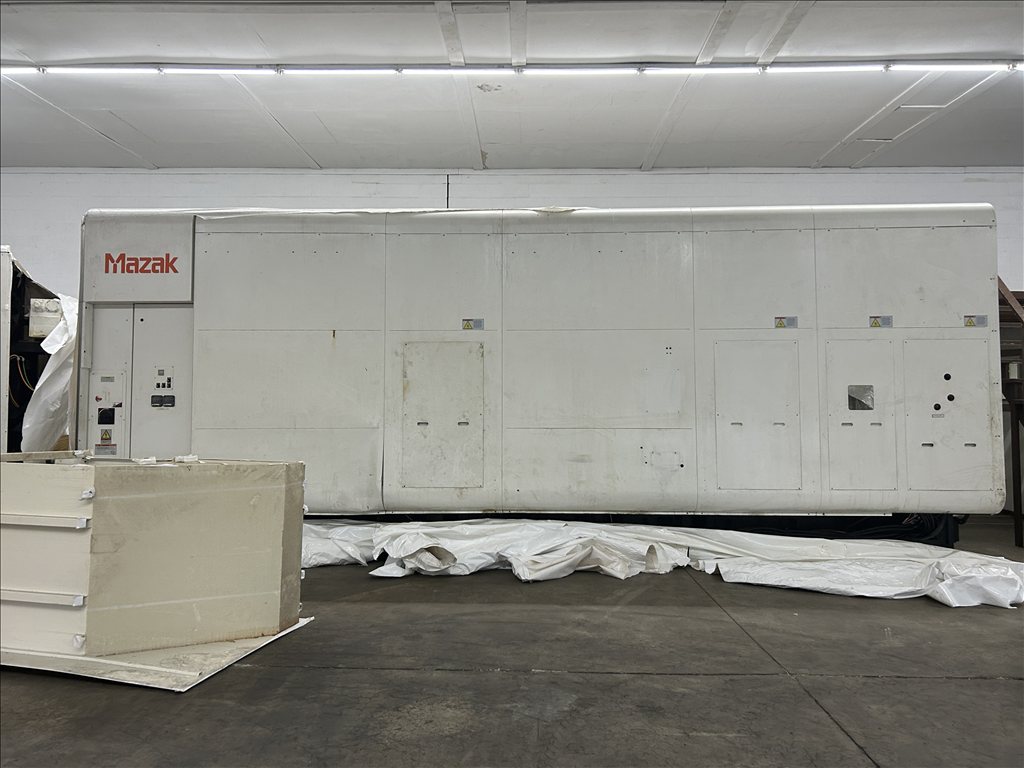

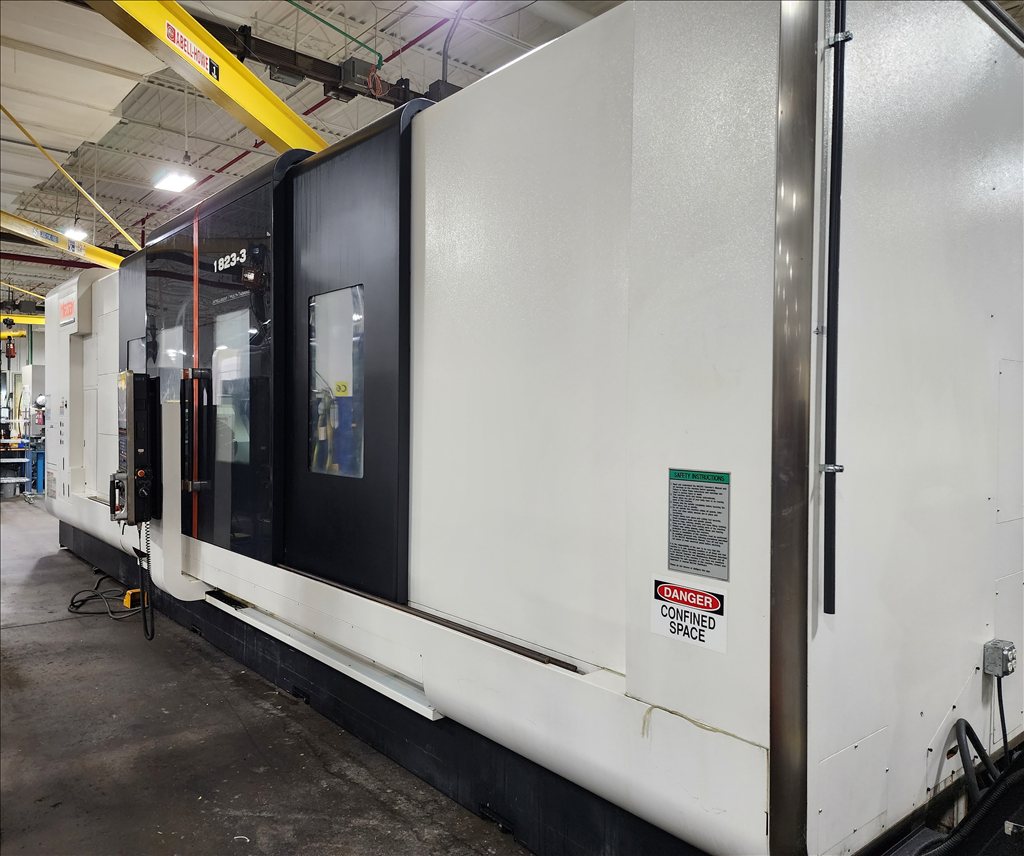

Mazak Integrex E-670H II 5-Axis Multi-Tasking Mill-Turn Center
Specifications
- Swing Over Bed: 42.1"
- Max. Cutting/Turning Diameter: 42.1"
- Max. Cutting/Turning Length: 160"
- Distance Between Centers: 160"
- X-Axis Travel: 40.4"
- Y-Axis Travel: 26.4"
- Z-Axis Travel: 163"
- C-Axis: 0.0001°

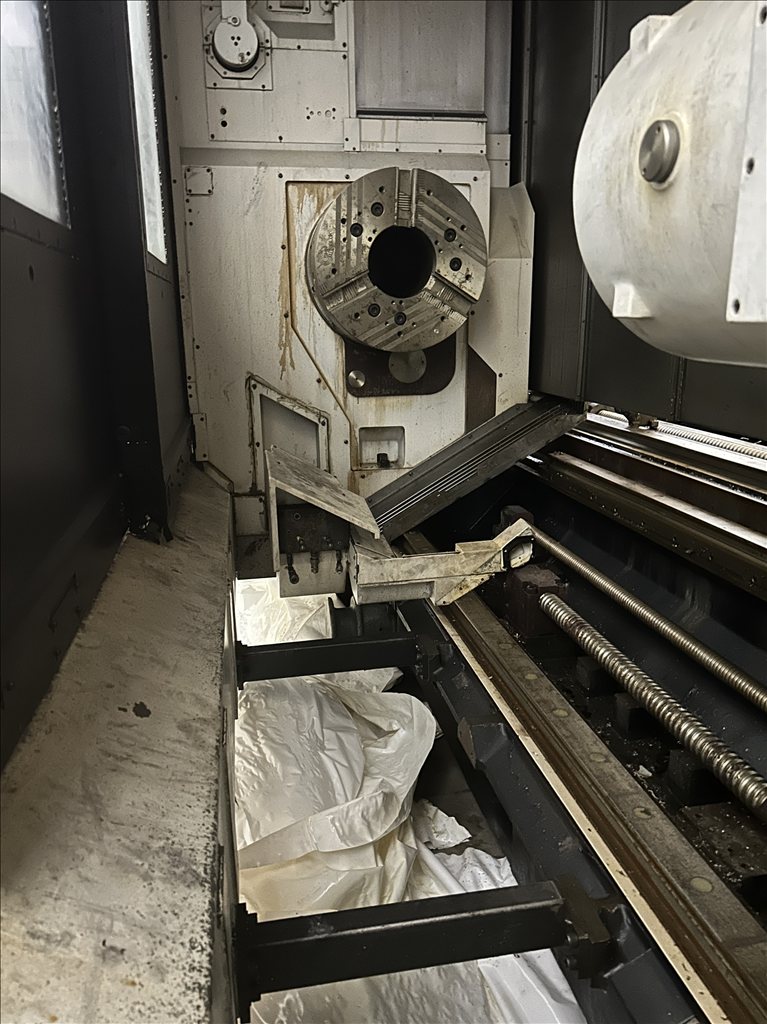

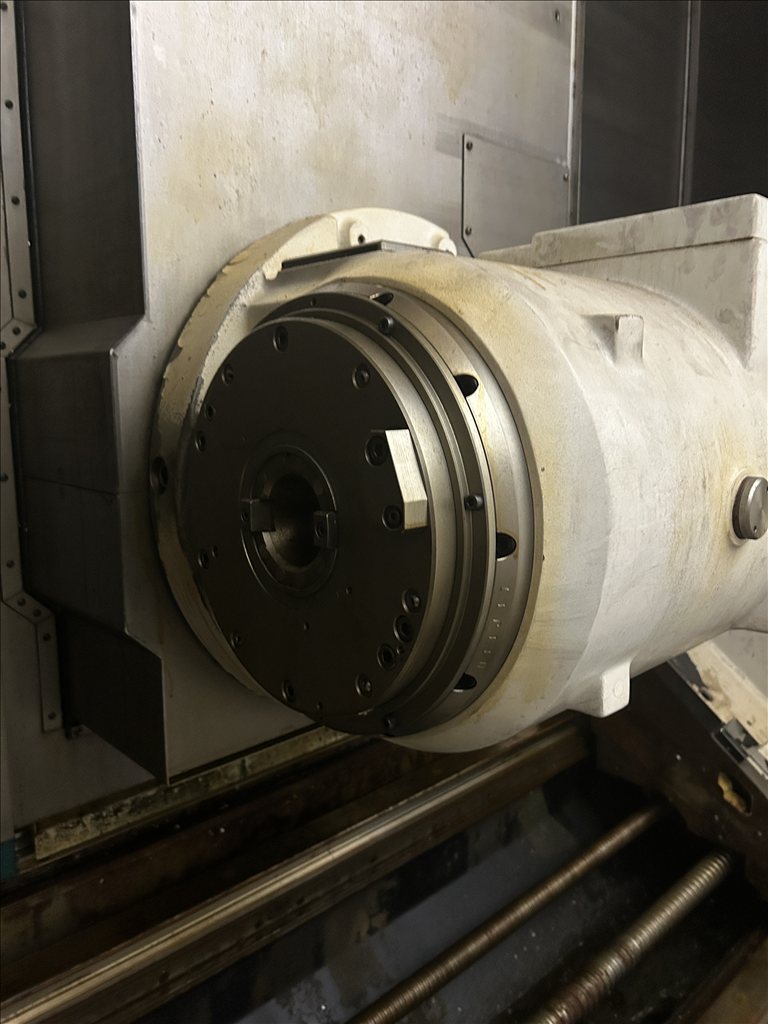

- Chuck: 20.9"
- Bar Capacity: 10"
- Spindle Bore: 10.2"
- Max. Live Milling Speed: 5000 RPM
- Spindle Motor: 60 HP
- Turret: CAT 50

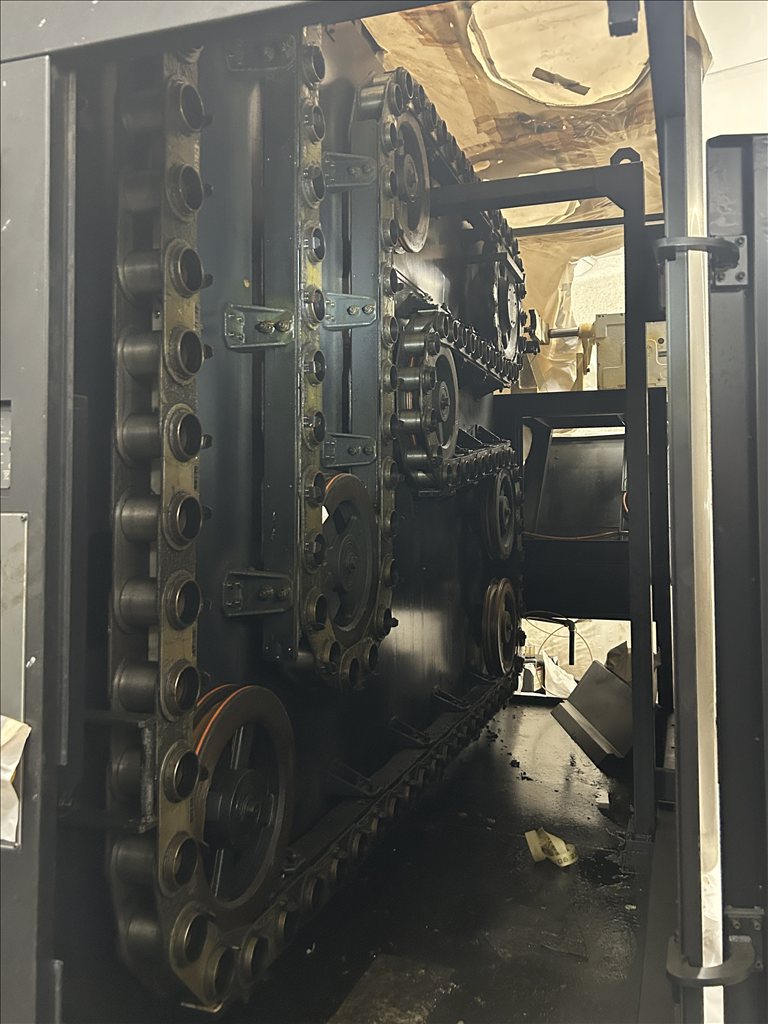

- Tool Positions: 120
- Max.Turret Speed: 5000 RPM
- Steadyrest Capacity: 13.8"
- Show More
- Show Less
- Swing Over Bed: 1069.34mm
- Max. Cutting/Turning Diameter: 1069.34mm
- Max. Cutting/Turning Length: 4064.00mm
- Distance Between Centers: 4064.00mm
- X-Axis Travel: 1026.16mm
- Y-Axis Travel: 670.56mm
- Z-Axis Travel: 4140.20mm
- C-Axis: 0.0001°
- Chuck: 530.86mm
- Bar Capacity: 254.00mm
- Spindle Bore: 259.08mm
- Max. Live Milling Speed: 5000 RPM
- Spindle Motor: 44.74 kw
- Turret: CAT 50
- Tool Positions: 120
- Max.Turret Speed: 5000 RPM
- Steadyrest Capacity: 350.52mm
- Show More
- Show Less
Equipped With

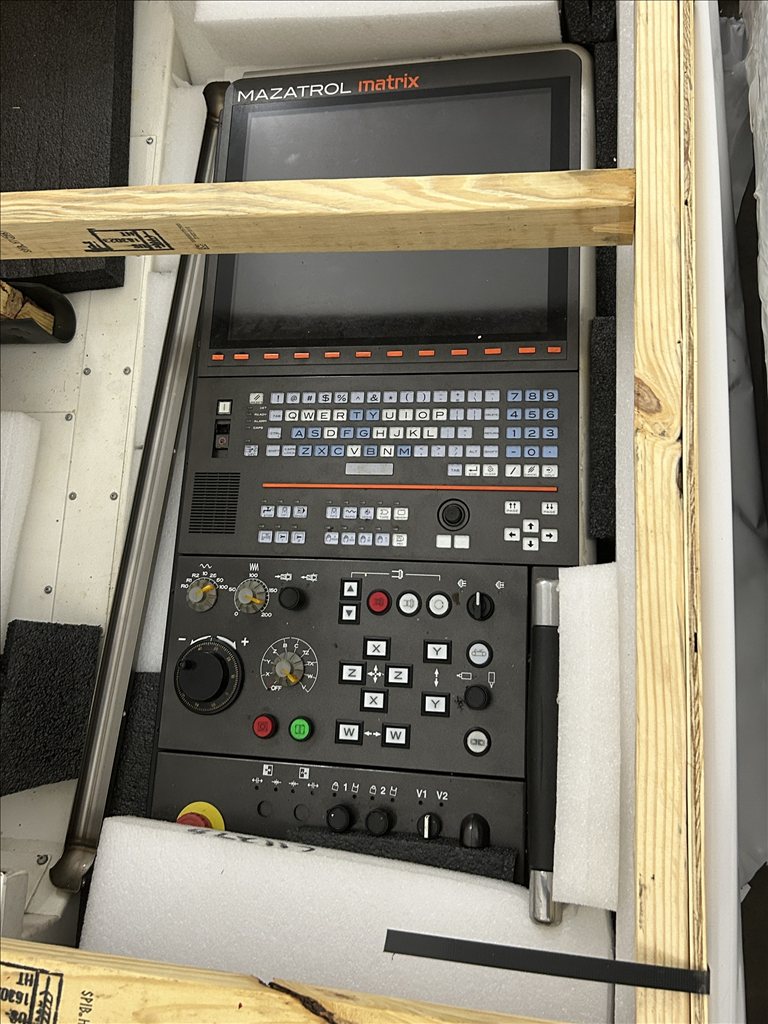

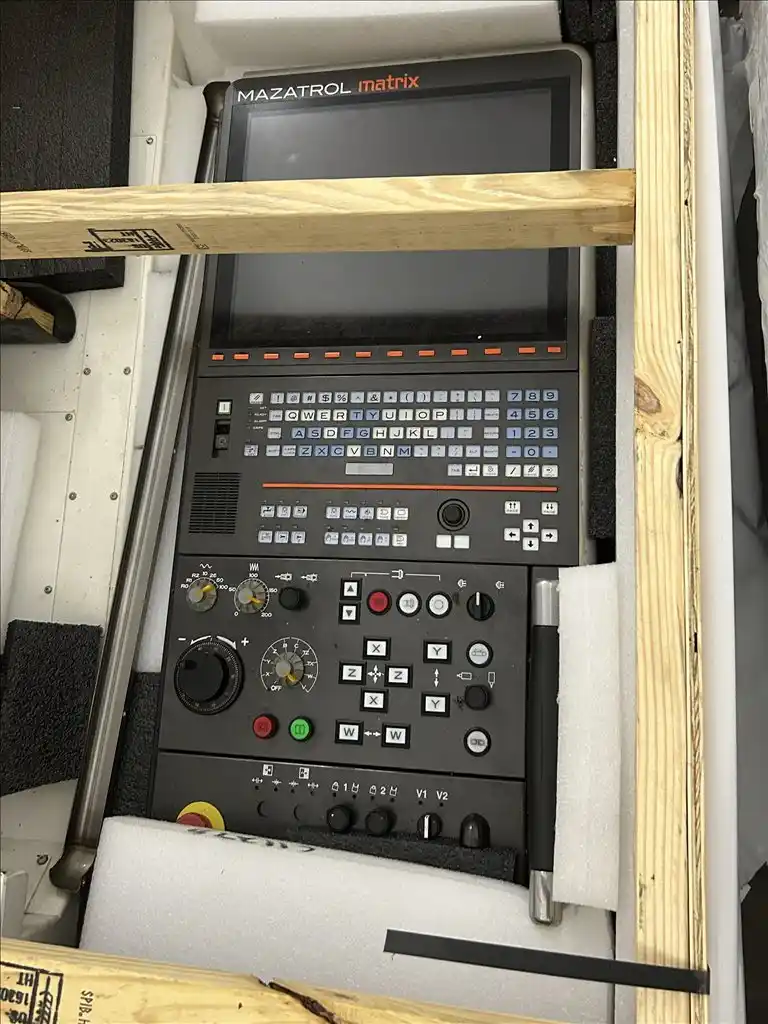

- Mazatrol Matrix CNC Control
- Rigid Tapping
- Synchronized Tapping
- Macros
- Manual Pulse Generator / Pendant
- RMP600 Work Measuring System
- Windows XP Operating System
- Renishaw Probe

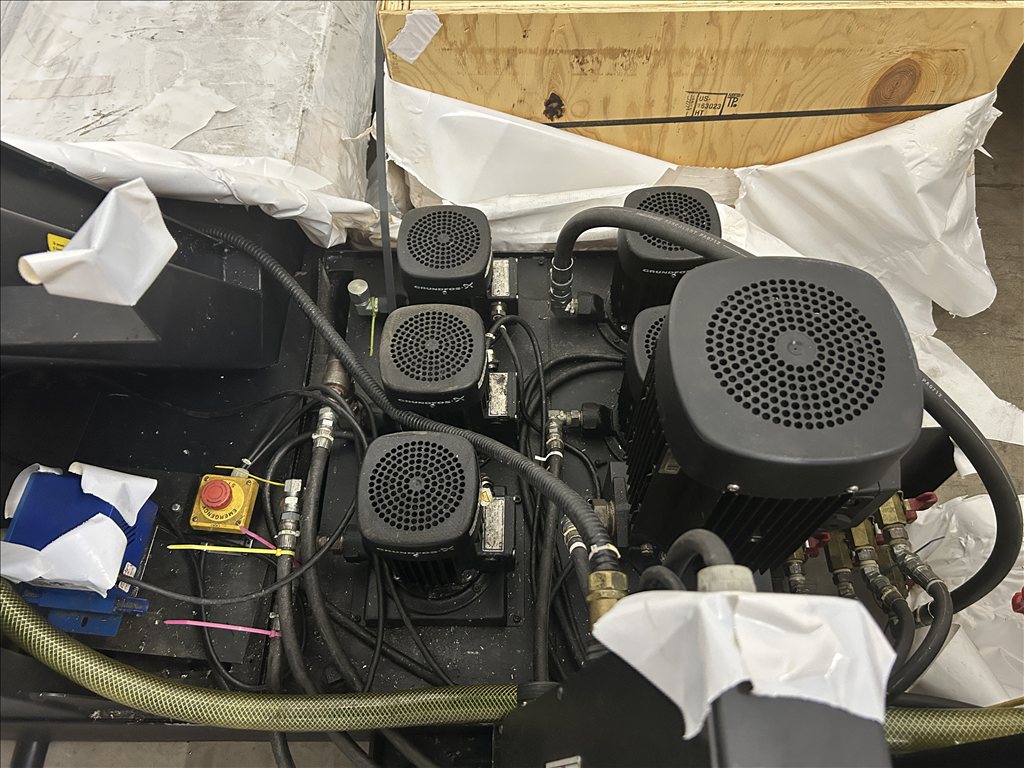

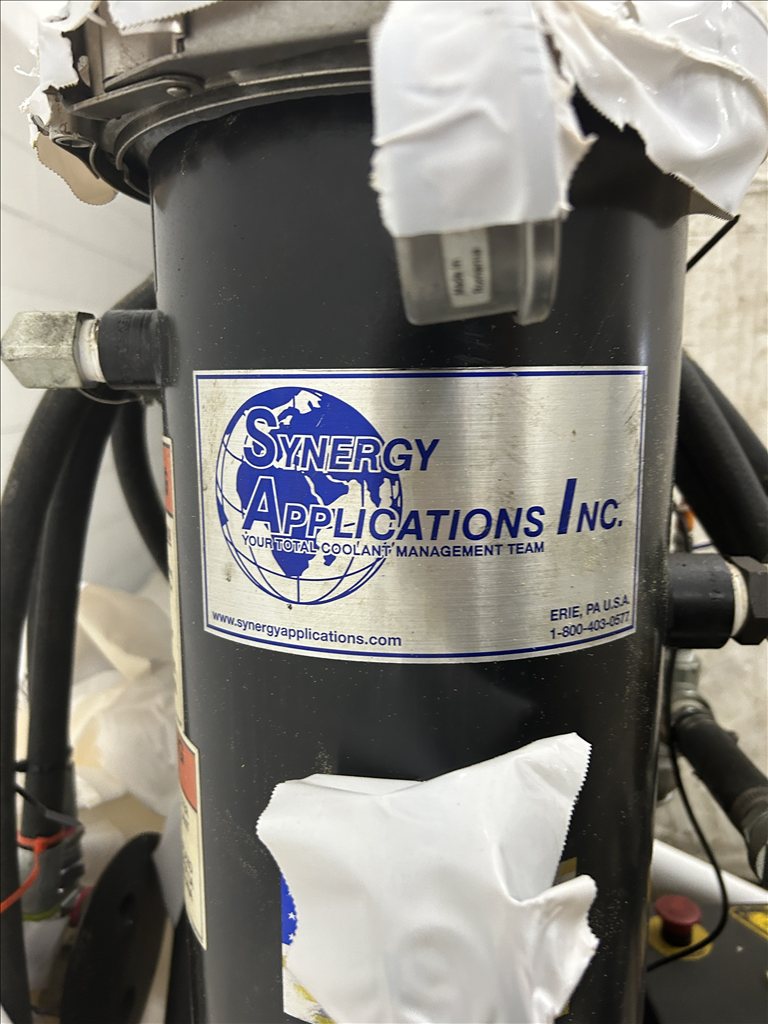

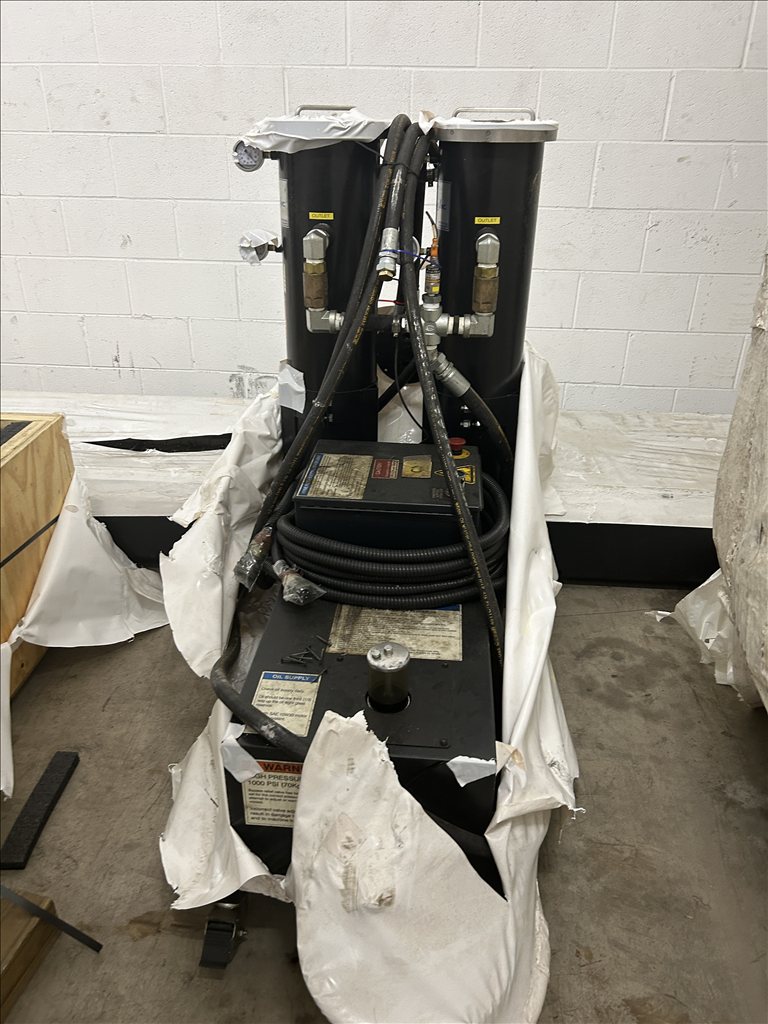

- High Pressure Coolant (1000 PSI)
- Tool Eye

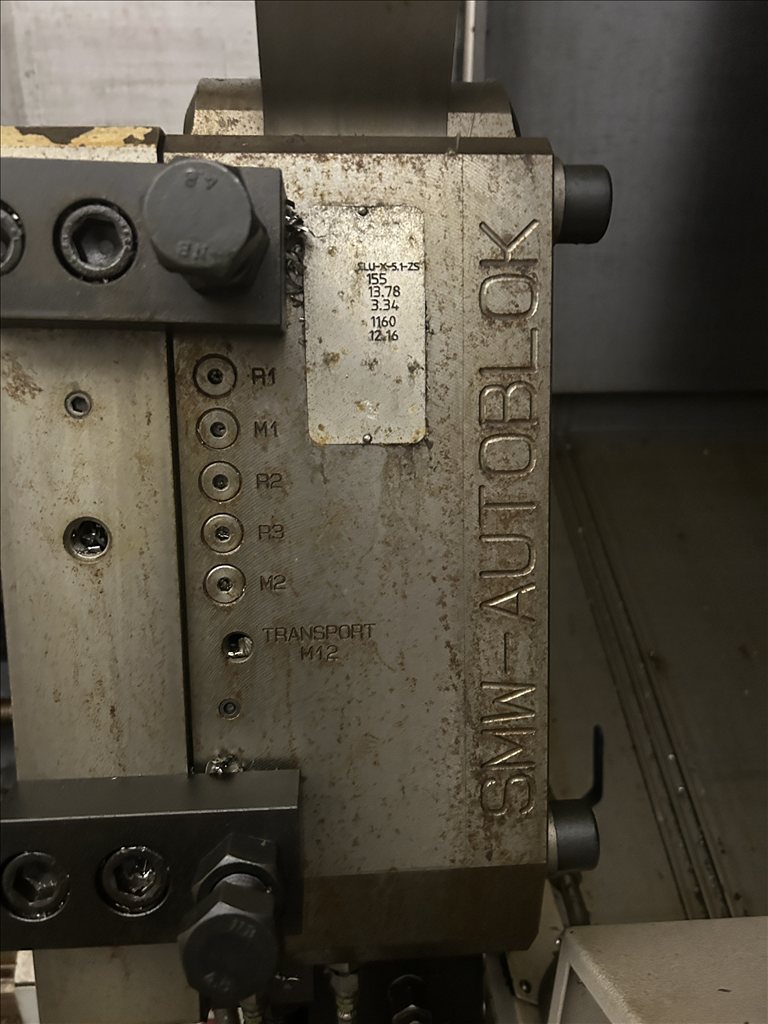

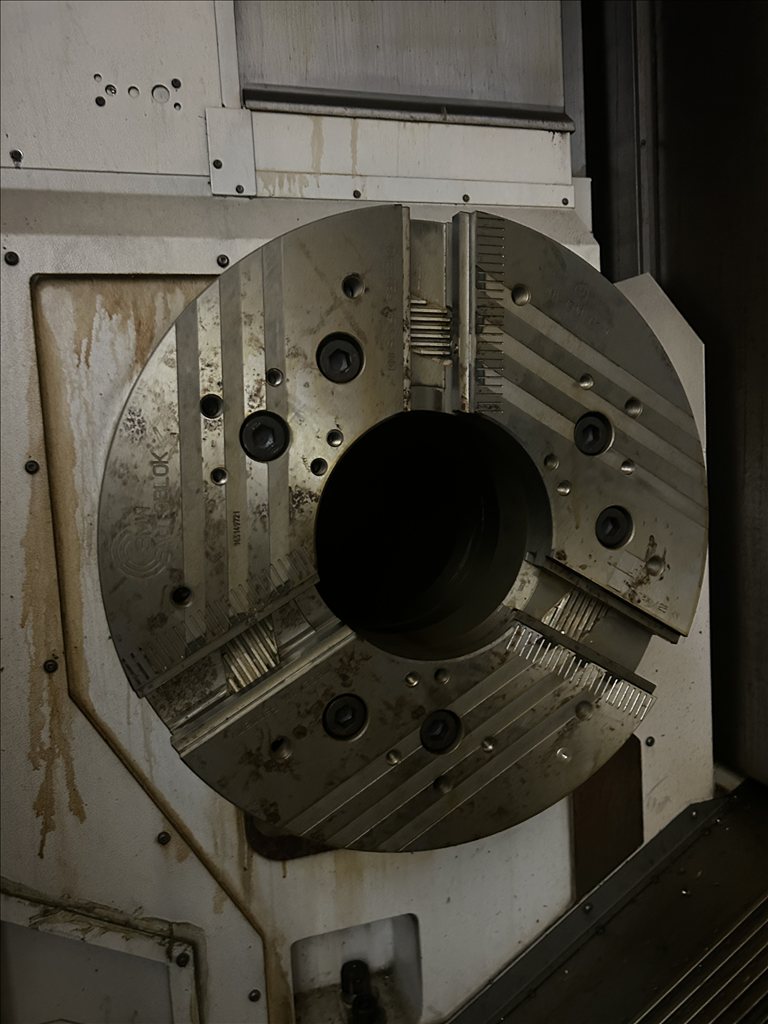

- Hydraulic SMW Autoblok Chuck

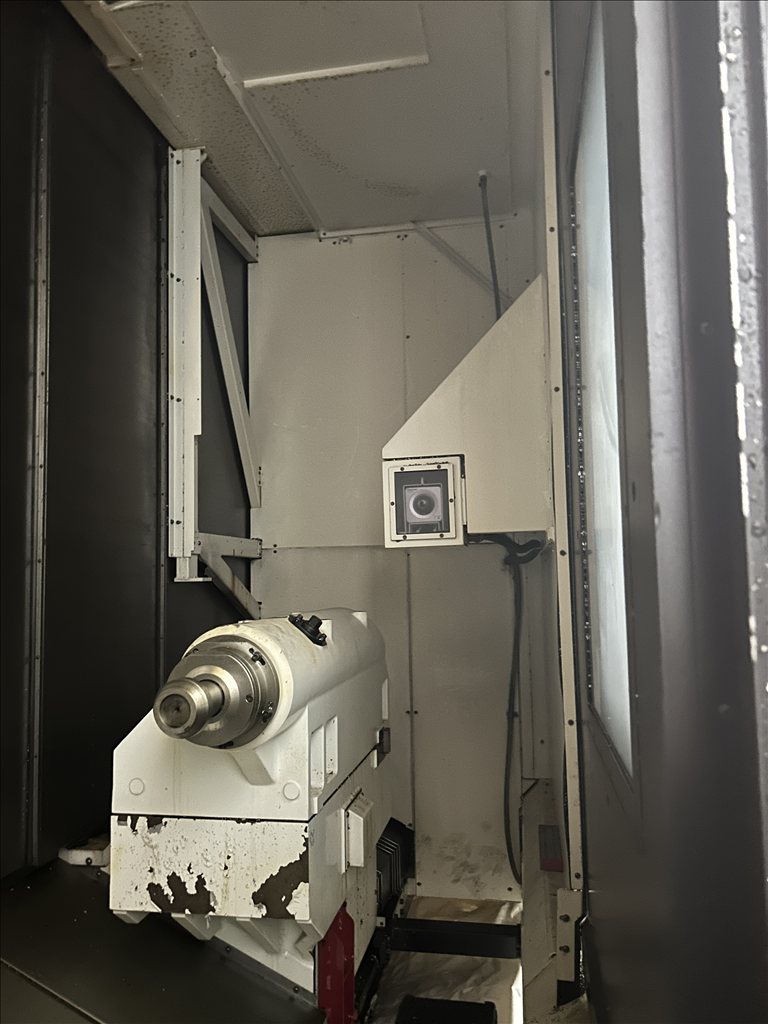

- Programmable Tailstock

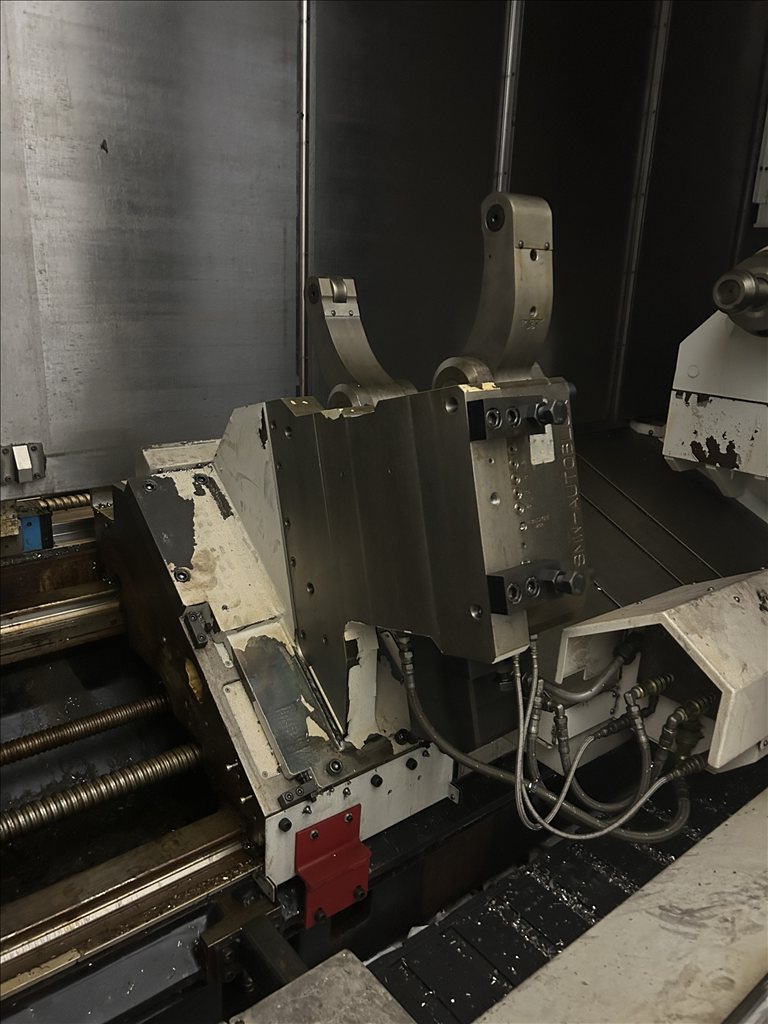

- (2) Hydraulic Steady Rests
- Automatic Tool Length Measurement System
- High Torque Spindle
- Re-Threading

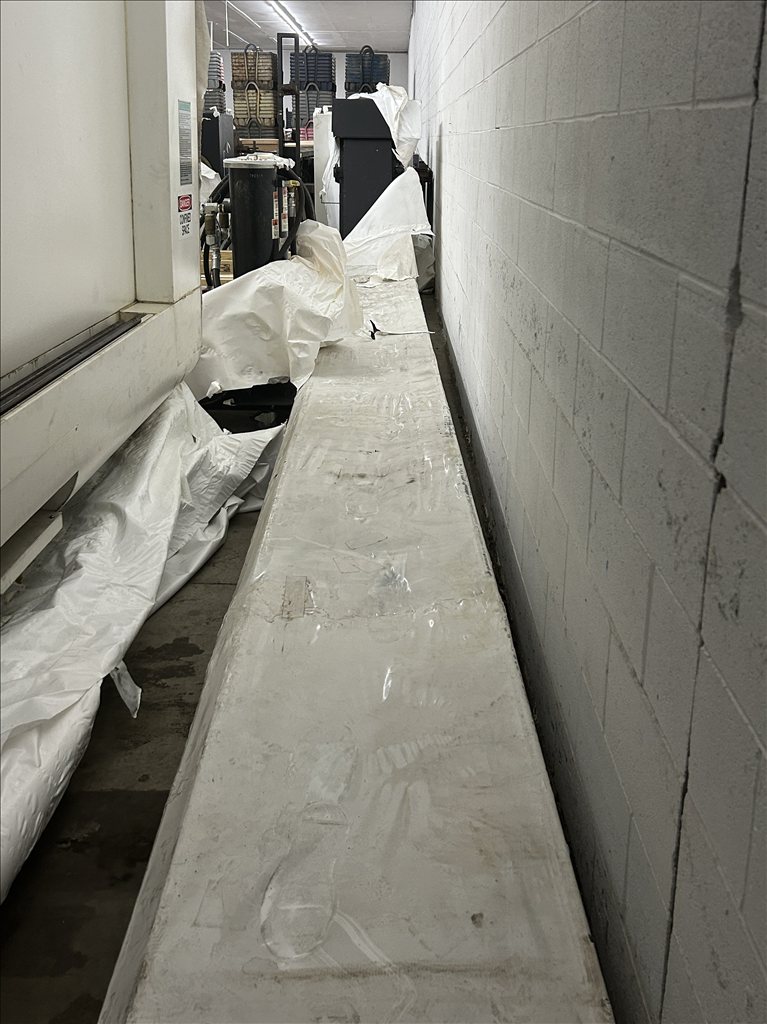

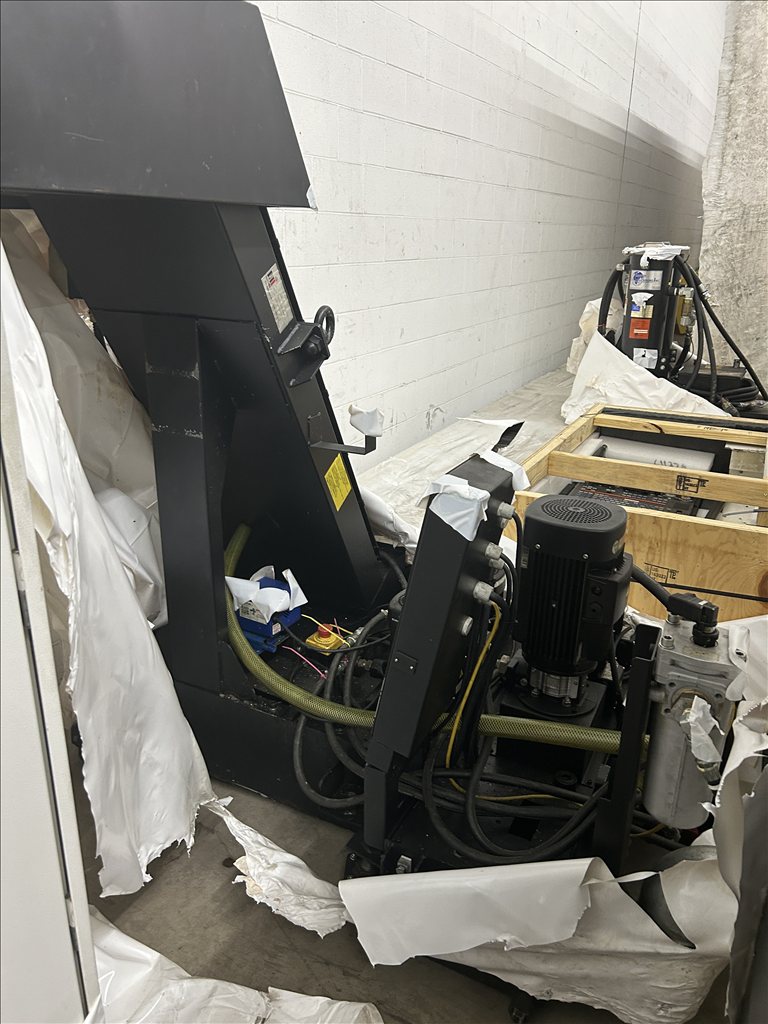

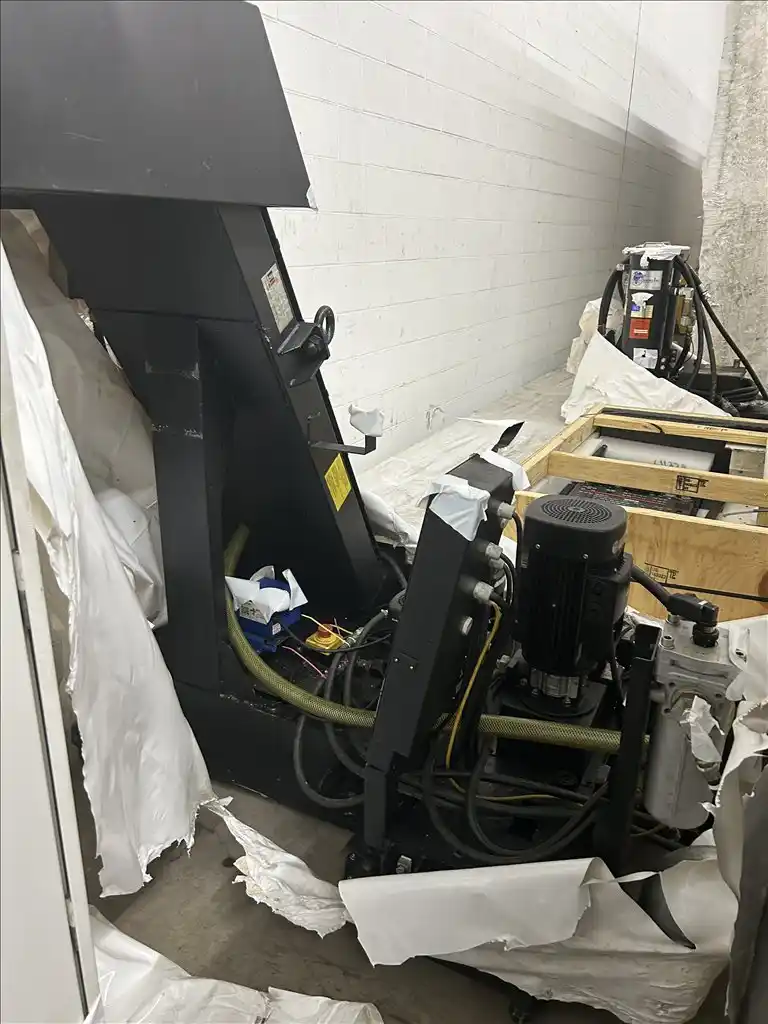

- Chip Conveyor
- Show More
- Show Less
- Mazatrol Matrix CNC Control
- Rigid Tapping
- Synchronized Tapping
- Macros
- Manual Pulse Generator / Pendant
- RMP600 Work Measuring System
- Windows XP Operating System
- Renishaw Probe
- High Pressure Coolant ( 70.30 kgs./sq.cm. )
- Tool Eye
- Hydraulic SMW Autoblok Chuck
- Programmable Tailstock
- (2) Hydraulic Steady Rests
- Automatic Tool Length Measurement System
- High Torque Spindle
- Re-Threading
- Chip Conveyor
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
