Inventory # 47760 Year: 2013

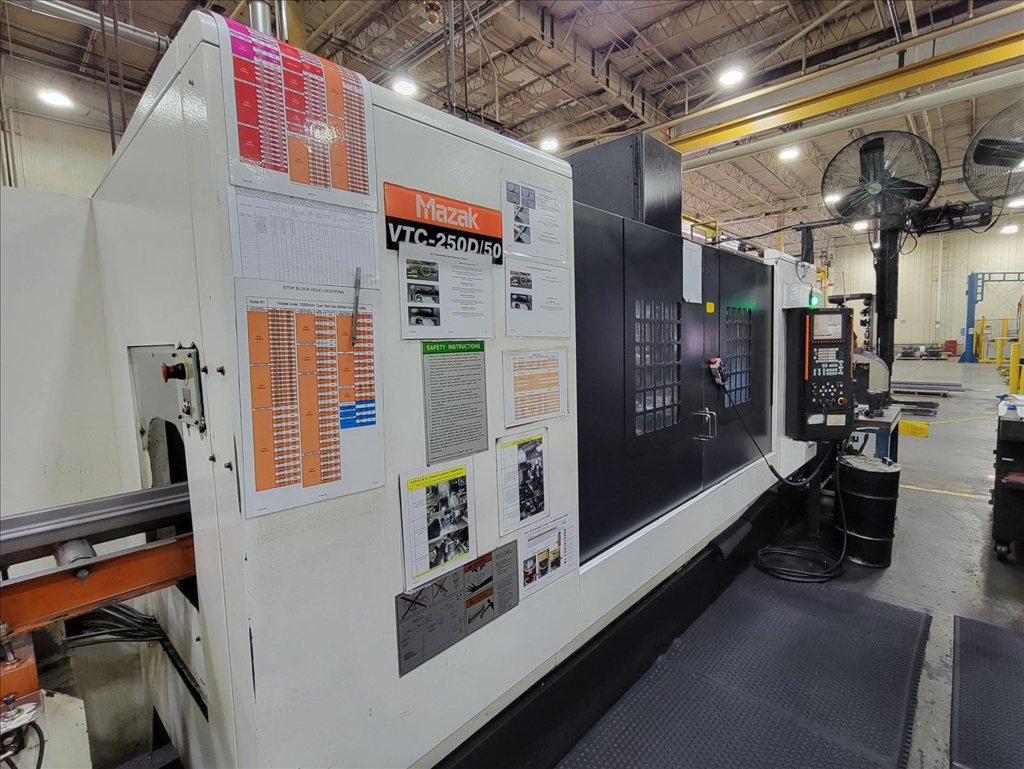

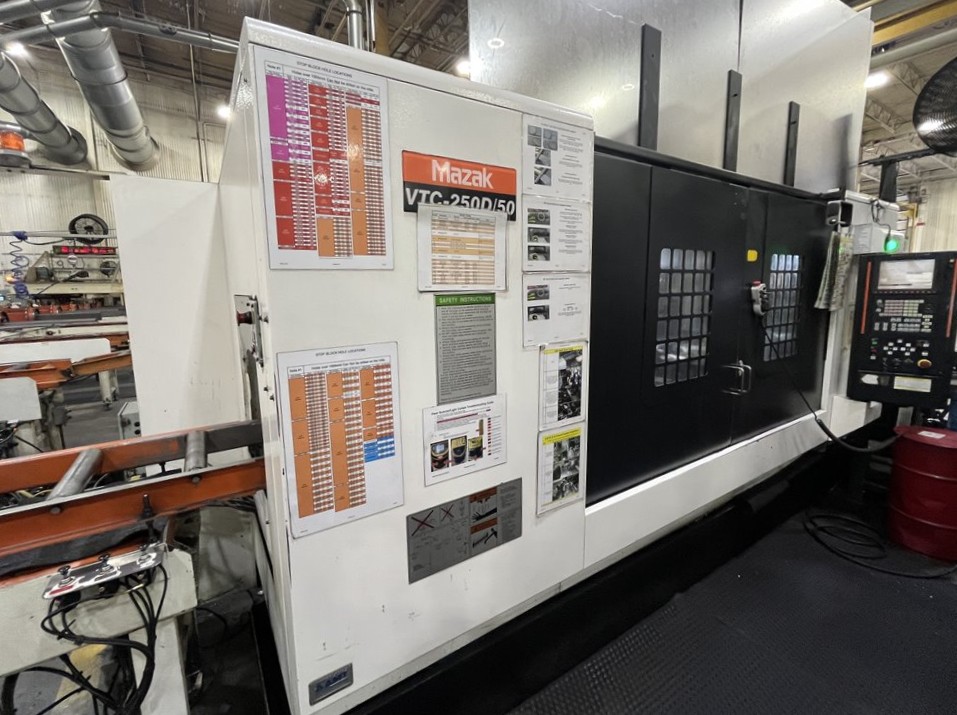

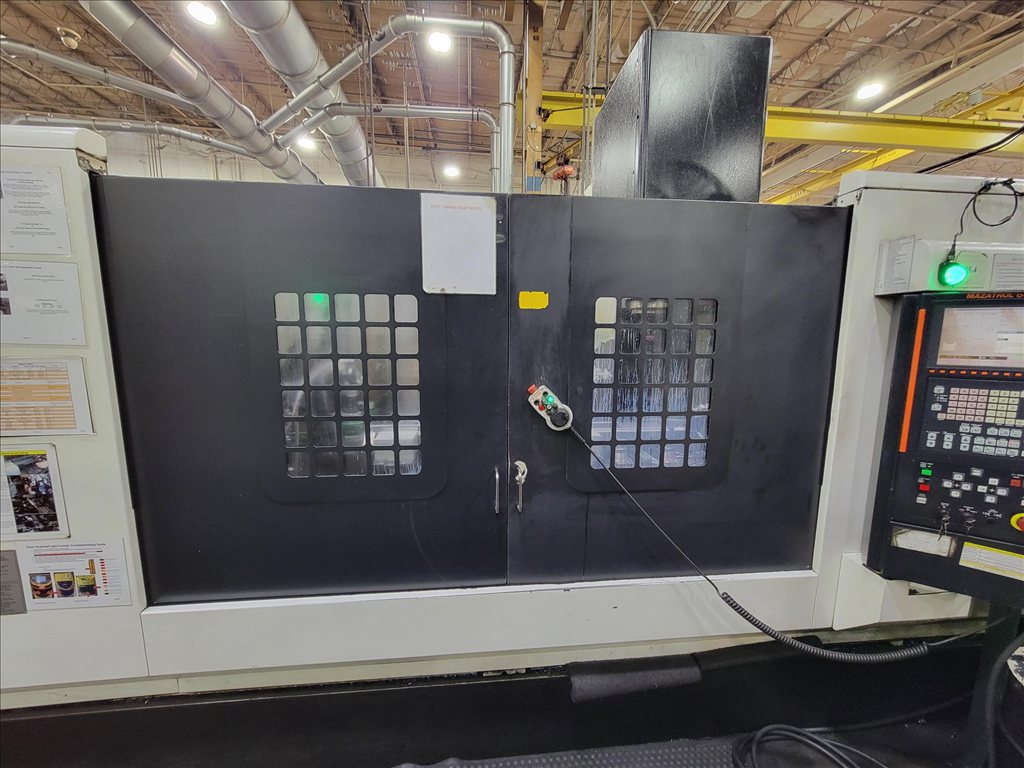

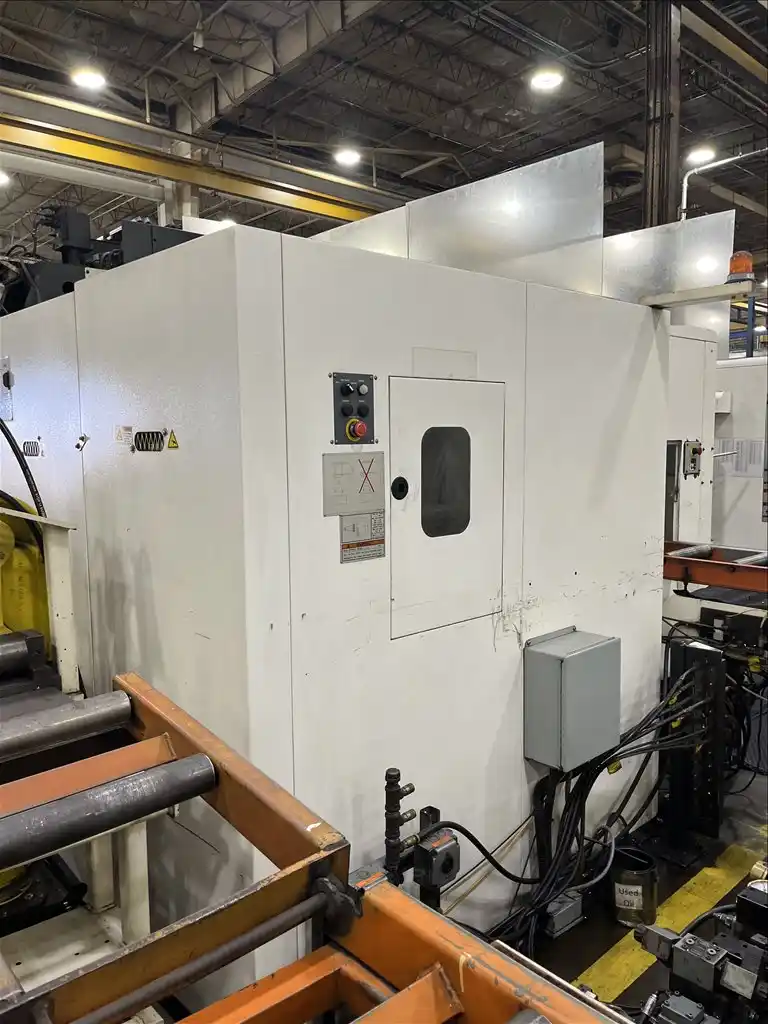

** ITEM IS SOLD - if you are looking for a similar item OR have a similar item to sell please contact us Phone 847-427-3333 or email scott@perfectionglobal.com Mazak VTC-250/50 CNC Vertical Machining Center
Specifications
- X-Axis Travel: 69.3"
- Y-Axis Travel: 25"
- Z-Axis Travel: 26"
- Table Size: 82.7" x 25"
- Table Load Capacity: 3000 lb.
- Spindle Nose: CAT 50
- Spindle Nose to Table Top Distance (Min./Max.): 7.1" - 33"
- Spindle Speed: 6000 RPM
- Rapid Traverse (X/Y/Z): 1181 IPM
- Cutting Feed Rate: 315 IPM
- Tooling: 24-ATC
- Tooling Shank Type: MAS BT-50
- Max. Tool Diameter (w/ Adjacent Tools): 4.3"
- Max. Tool Diameter (w/o Adjacent Tools): 8.3"
- Max. Tool Weight: 33 lb.
- Max. Tool Length: 13.8"
- Show More
- Show Less
- X-Axis Travel: 1760.22mm
- Y-Axis Travel: 635.00mm
- Z-Axis Travel: 660.40mm
- Table Size: 2100.58mm x 635.00mm
- Table Load Capacity: 1360 kg
- Spindle Nose: CAT 50
- Spindle Nose to Table Top Distance (Min./Max.): 180.34mm - 838.20mm
- Spindle Speed: 6000 RPM
- Rapid Traverse (X/Y/Z): 499.96 mm/sec
- Cutting Feed Rate: 133.35 mm/sec
- Tooling: 24-ATC
- Tooling Shank Type: MAS BT-50
- Max. Tool Diameter (w/ Adjacent Tools): 109.22mm
- Max. Tool Diameter (w/o Adjacent Tools): 210.82mm
- Max. Tool Weight: 15 kg
- Max. Tool Length: 350.52mm
- Show More
- Show Less
Equipped With

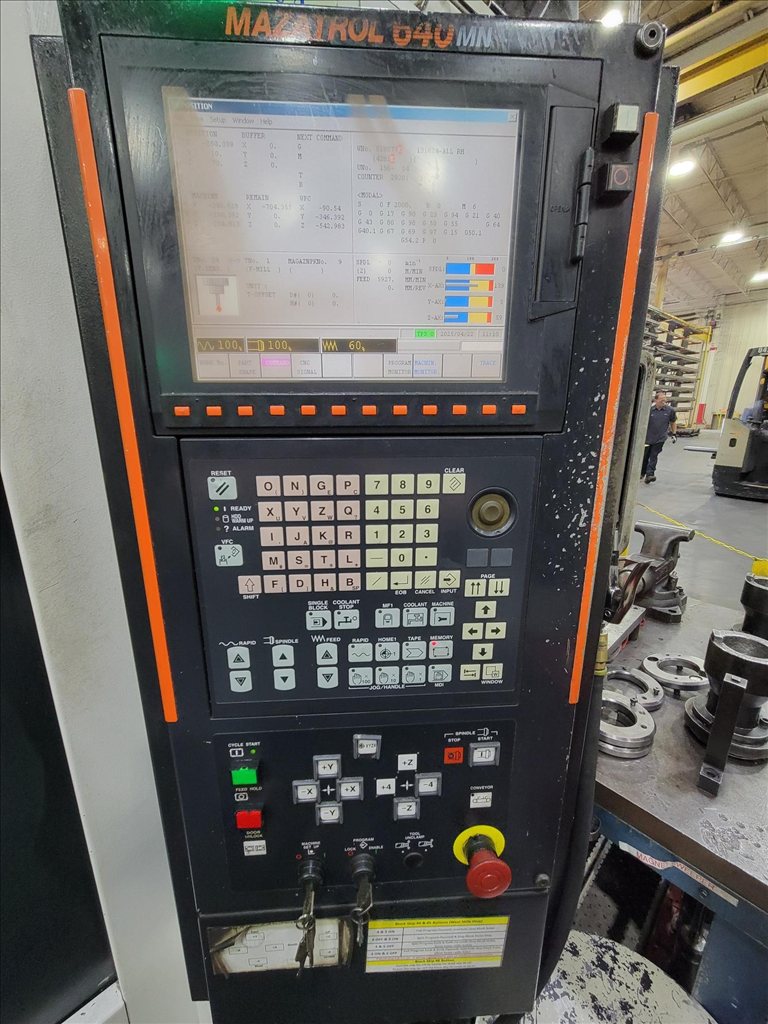

- Mazatrol 640MN CNC Control
- Spindle Thru Coolant

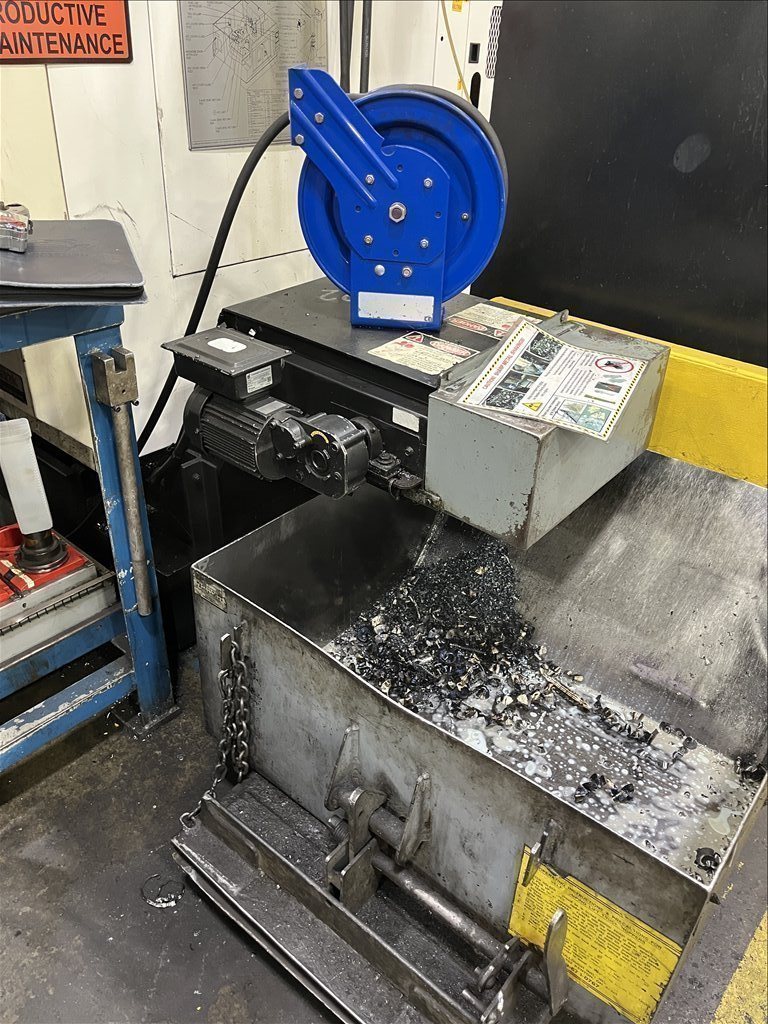

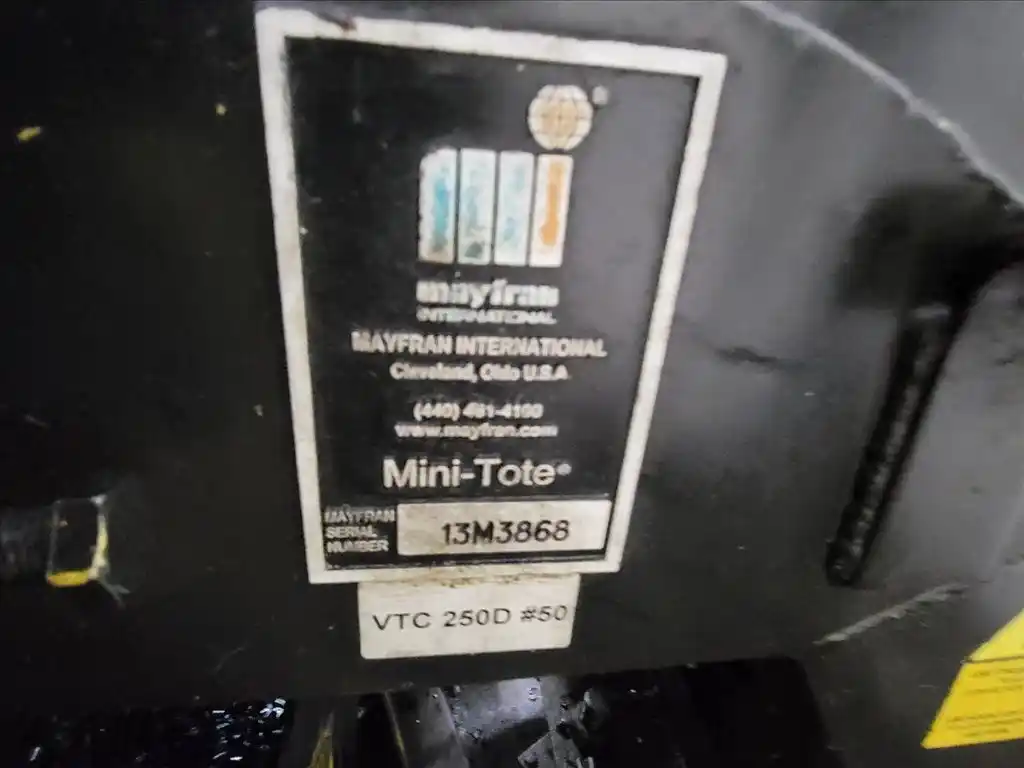

- Mayfran Chip Conveyor
- Mazatrol 640MN CNC Control
- Spindle Thru Coolant
- Mayfran Chip Conveyor
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
