Inventory # 47761 Year: 2014

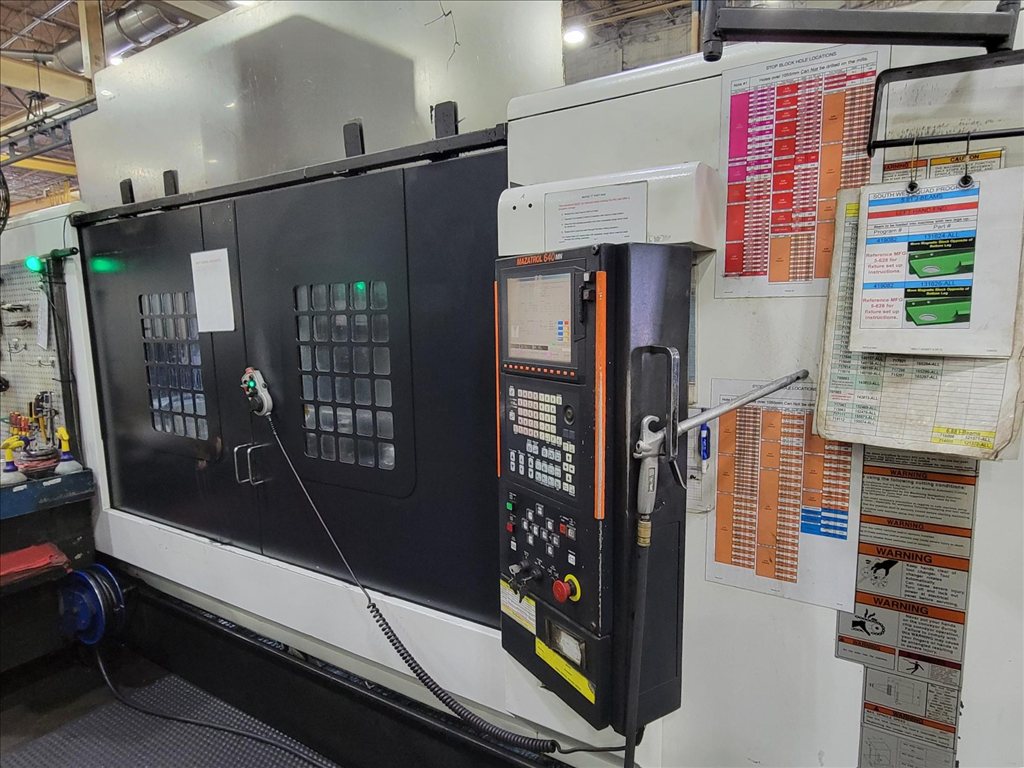

Mazak VTC250/50 CNC Vertical Machining Center

Request a Quote
Measurement

Specifications
  • X-Axis Travel: 64.1"
  • Y-Axis Travel: 25.1"
  • Z-Axis Travel: 25.1"
  • Throat: 26"
  • Table Size: 67.5" x 25.1"
  • Table Capacity: 2778 lb.
  • Spindle Nose to Table Top Distance (Min./Max.): 7.1" - 32.2"
  • Spindle Nose: CAT 50
  • Spindle Speed: 6000 RPM
  • Rapid Traverse (X/Y/Z): 1181 IPM
  • Cutting Feed Rate: .04 IPM - 697.8 IPM
  • Tooling: 24-ATC
  • Tool Diameter (Min./Max.): 3.1" - 4.3"
  • Max. Tool Weight: 17.8 lb.
  • Max. Tool Length: 13.7"
  • Motor: 30 HP
  • Show More
  • Show Less
  • X-Axis Travel: 1628.14mm
  • Y-Axis Travel: 637.54mm
  • Z-Axis Travel: 637.54mm
  • Throat: 660.40mm
  • Table Size: 1714.50mm x 637.54mm
  • Table Capacity: 1260 kg
  • Spindle Nose to Table Top Distance (Min./Max.): 180.34mm - 817.88mm
  • Spindle Nose: CAT 50
  • Spindle Speed: 6000 RPM
  • Rapid Traverse (X/Y/Z): 499.96 mm/sec
  • Cutting Feed Rate: 0.02 mm/sec -295.40 mm/sec
  • Tooling: 24-ATC
  • Tool Diameter (Min./Max.): 78.74mm - 109.22mm
  • Max. Tool Weight: 8 kg
  • Max. Tool Length: 347.98mm
  • Motor: 22.37 kw
  • Show More
  • Show Less
Equipped With

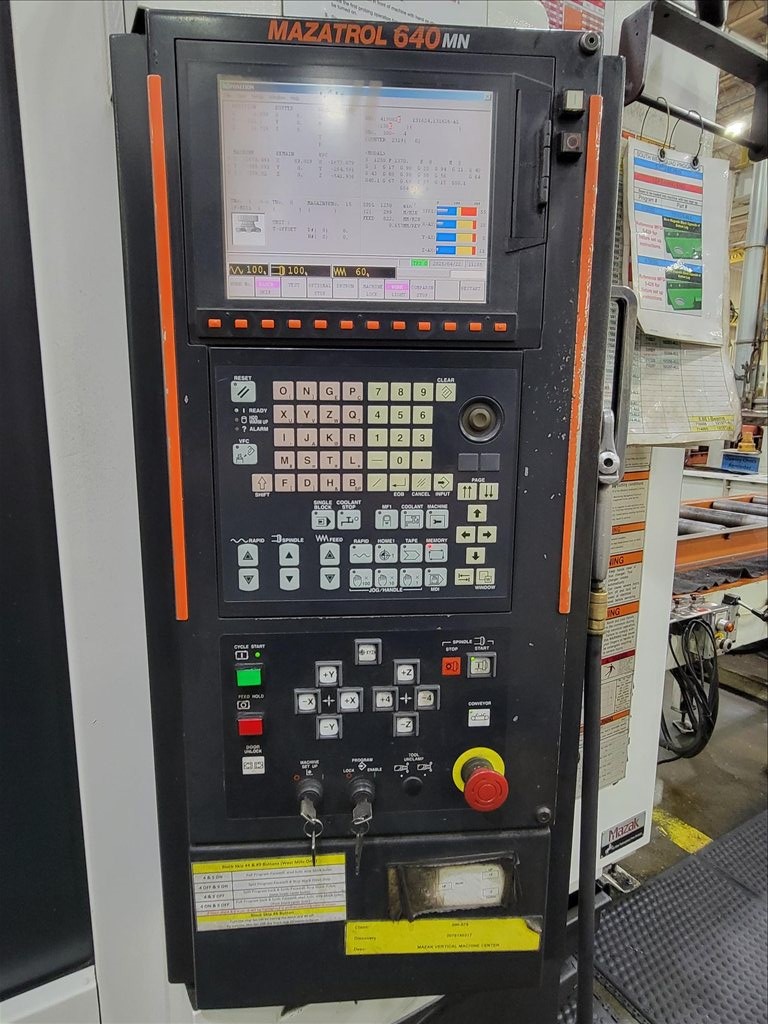

  • Mazatrol 640MN CNC Control
  • Spindle Thru Coolant

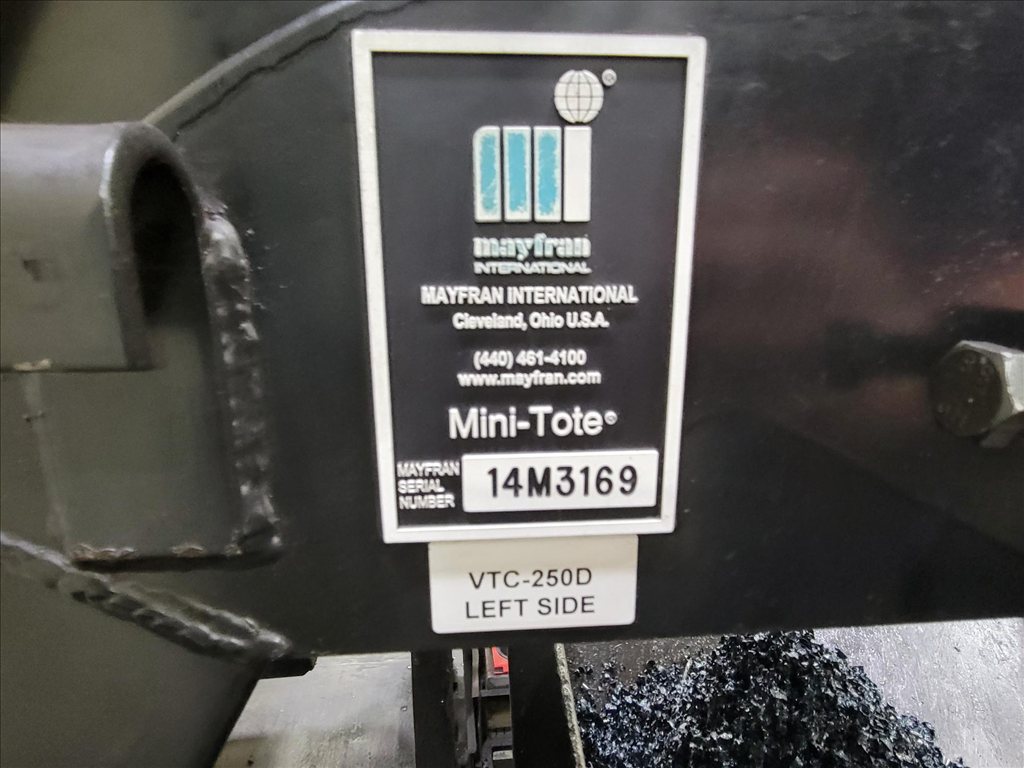

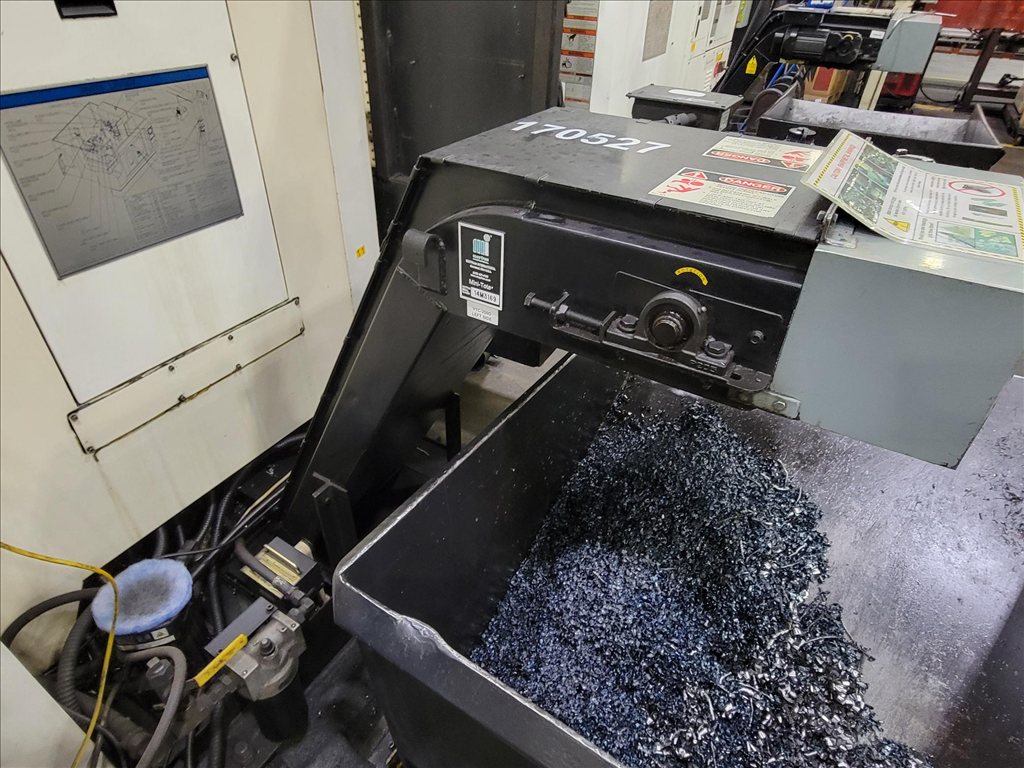

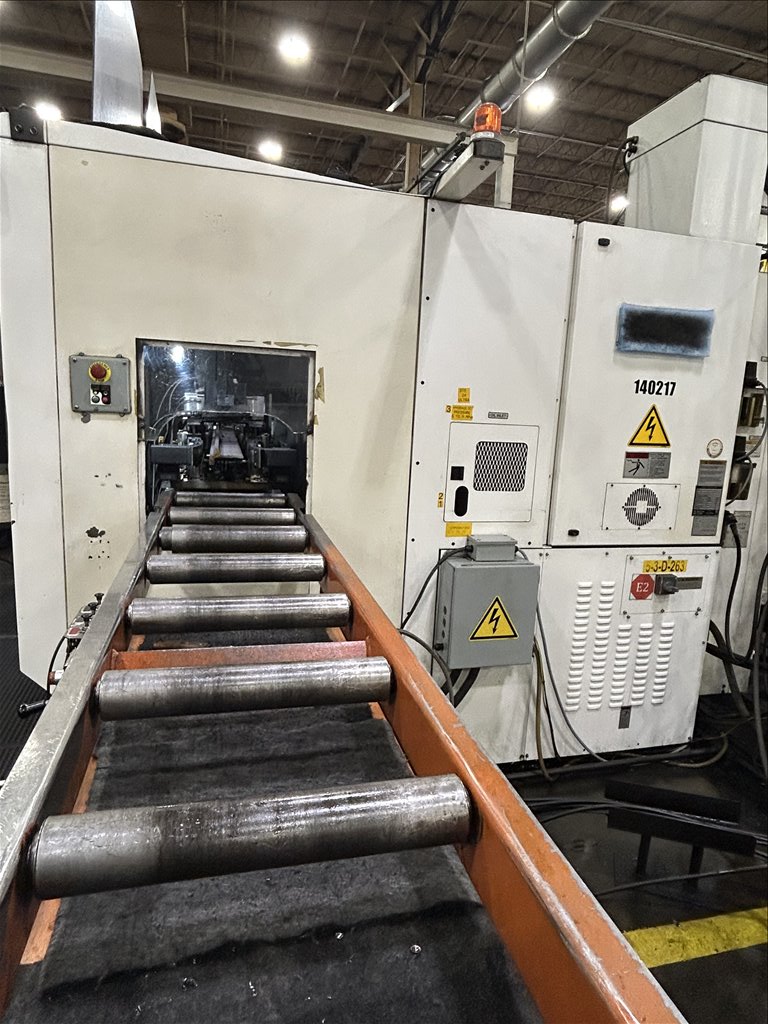

  • Mayfran Chip Conveyor
  • Mazatrol 640MN CNC Control
  • Spindle Thru Coolant
  • Mayfran Chip Conveyor
Location & Terms
  • Terms: As Is, Where Is
  • Disclaimer: Preliminary Specifications....
