Inventory # 46587

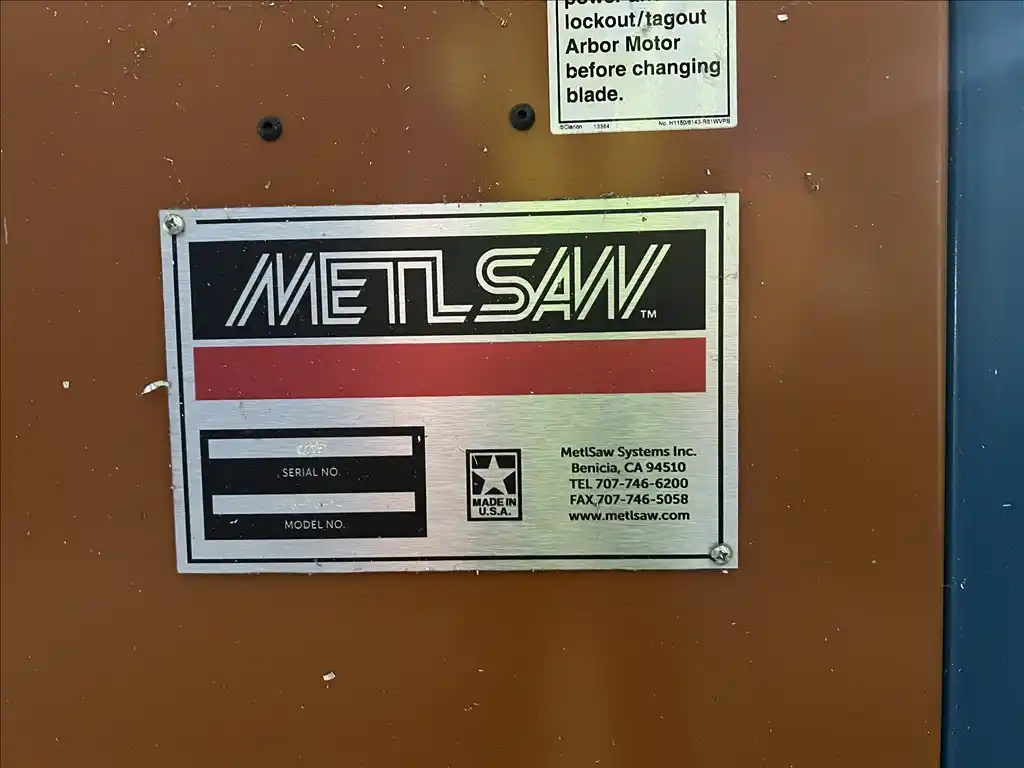

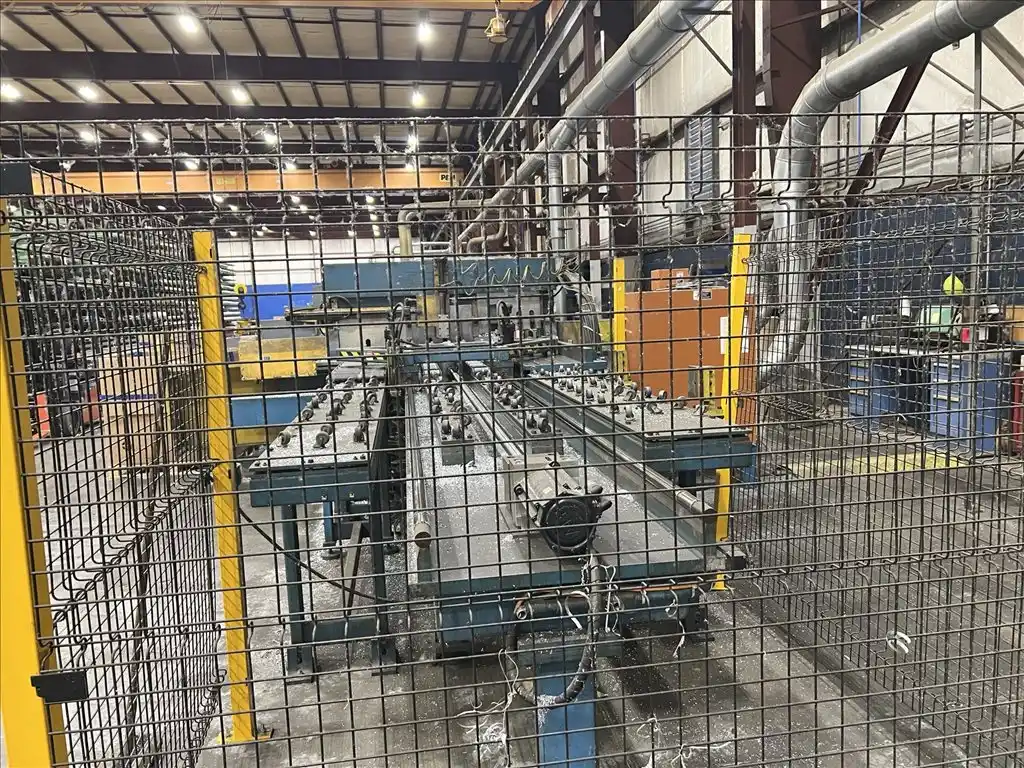

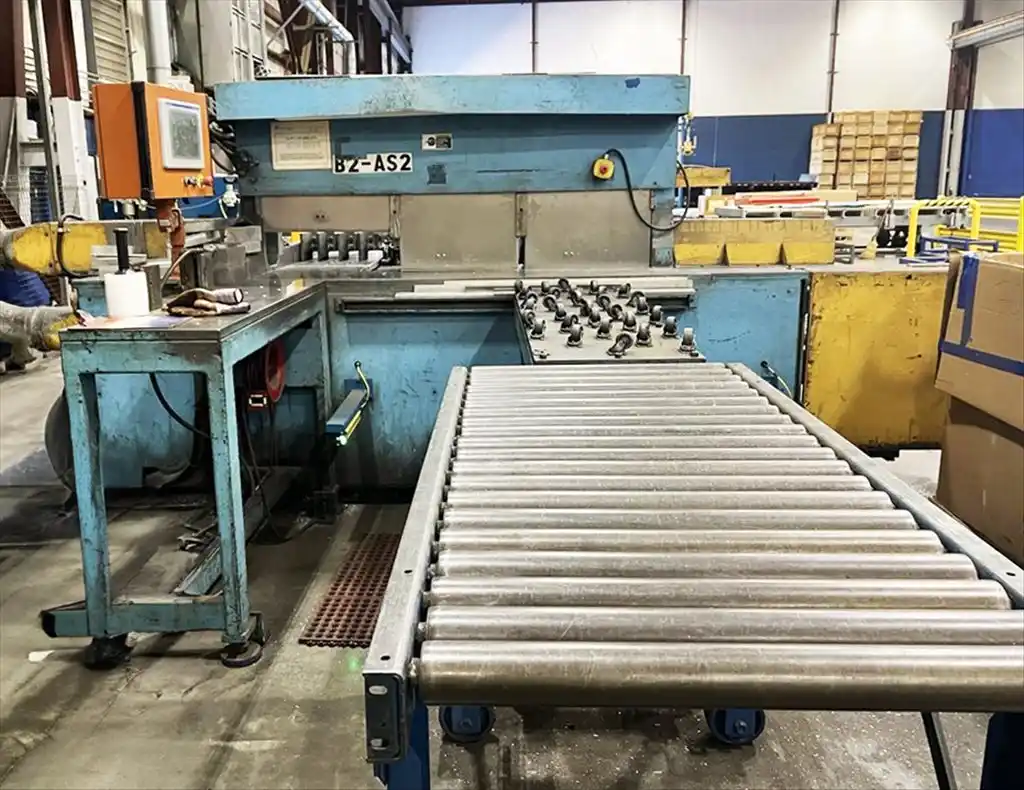

Metlsaw NF6-T6-14 Plate Saw
Specifications
- Cutting Window: 6'
- Cutting Height: 8" - 10"
- Backgauge Length: 6' - 14'
- Position Tolerance: +/- .003"
- Vertical Squarness: +/- .0005"
- Horizontal Squarness: +/- .002"
- Arbor Motor: 30 hp
- Cutting Speed: 300 IPM
- Material Increment Speed: 200 IPM
- Reverse Backgauge Speed: 250 IPM
- Power: 450/480 @ 80 AMP
- Air: 60 CFM @ 80 PSI
- Show More
- Show Less
- Cutting Window: 1828.80mm
- Cutting Height: 203.20mm - 254.00mm
- Backgauge Length: 2184.40mm
- Position Tolerance: +/- 0.08mm
- Vertical Squarness: +/- 0.01mm
- Horizontal Squarness: +/- 0.05mm
- Arbor Motor: 22.37 kw
- Cutting Speed: 127.00 mm/sec
- Material Increment Speed: 84.67 mm/sec
- Reverse Backgauge Speed: 105.83 mm/sec
- Power: 450/480 @ 80 AMP
- Air: 60 CFM @ 5.62 kgs./sq.cm.
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
