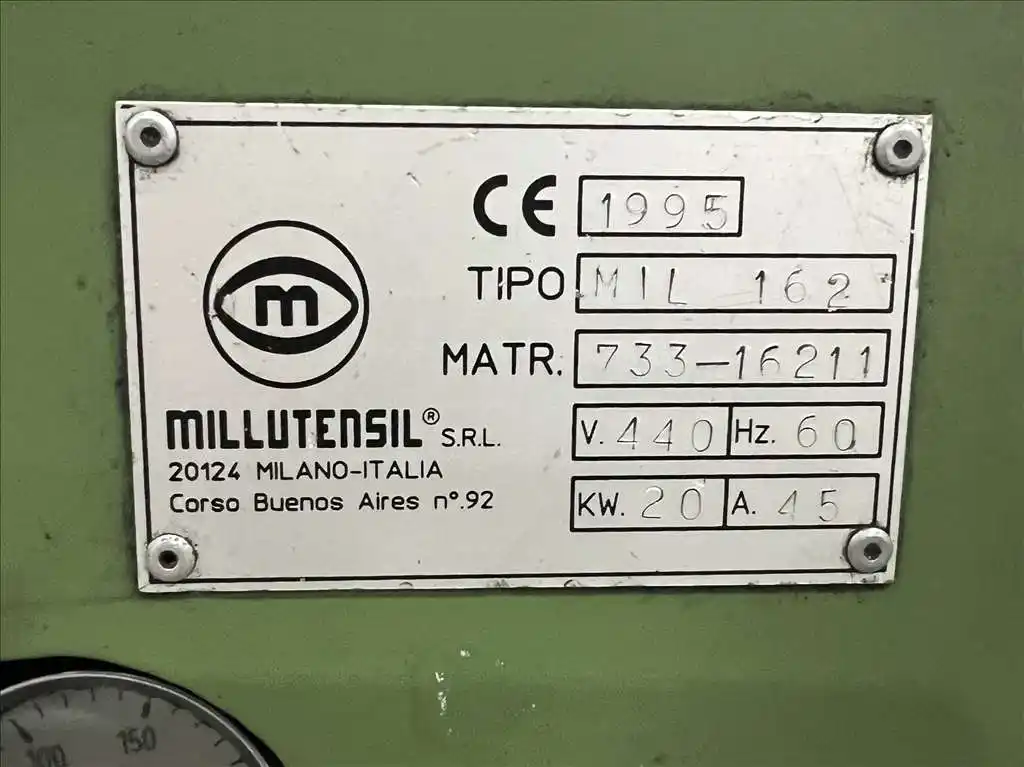

Inventory # 48336 Year: 1995

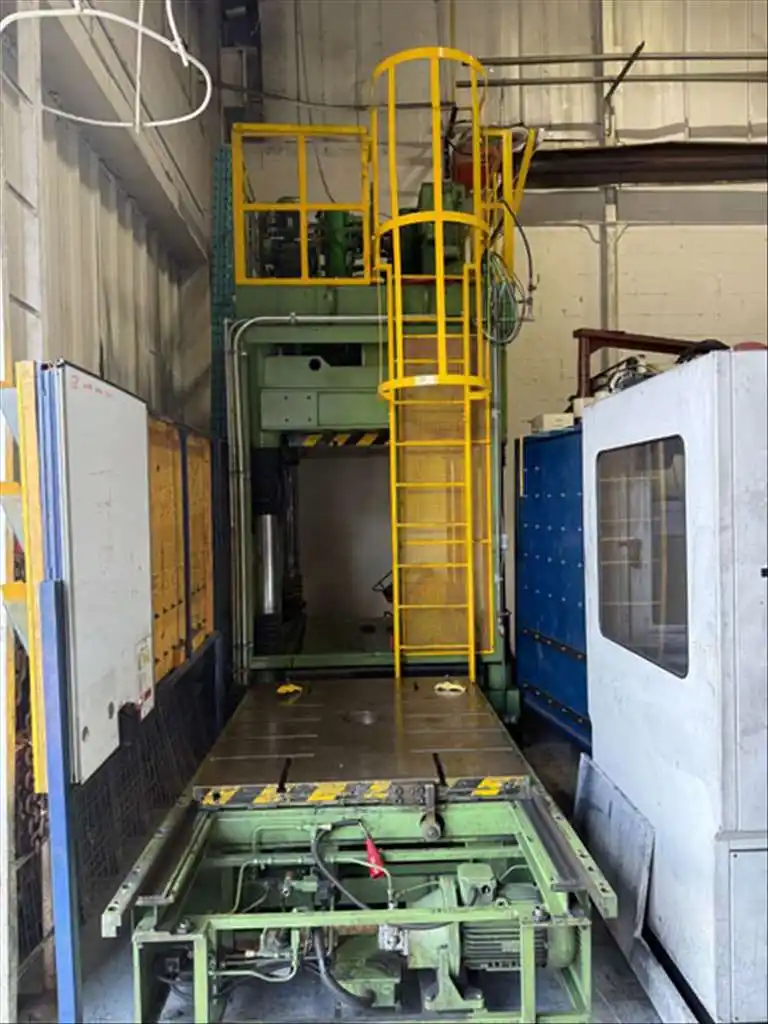

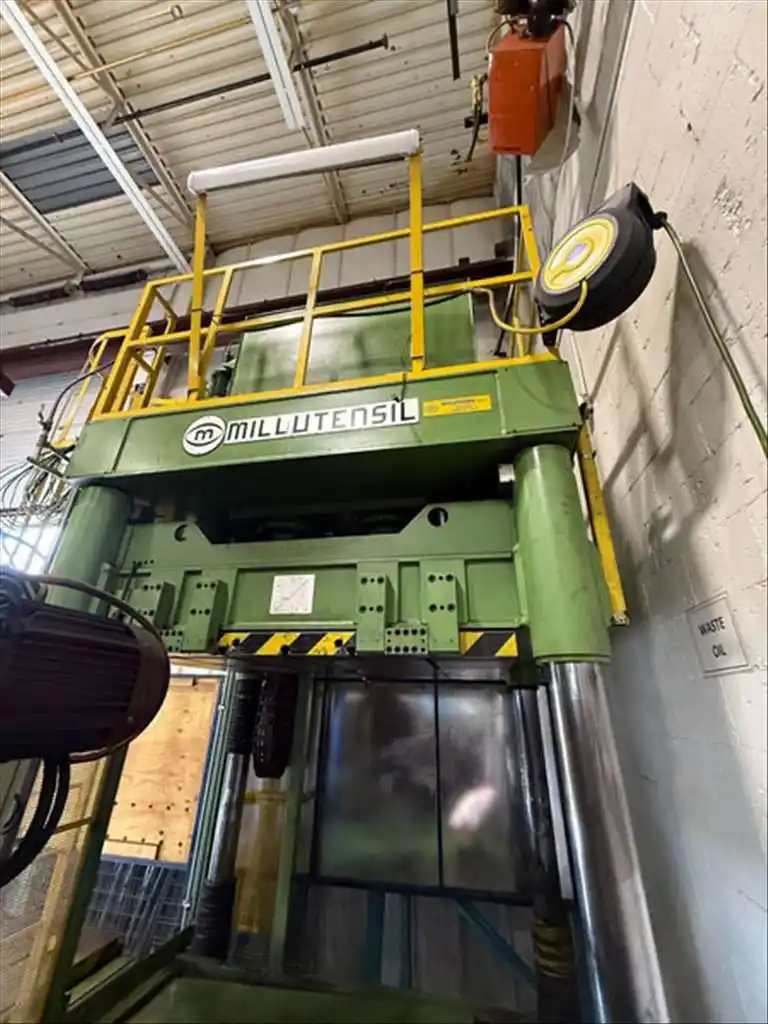

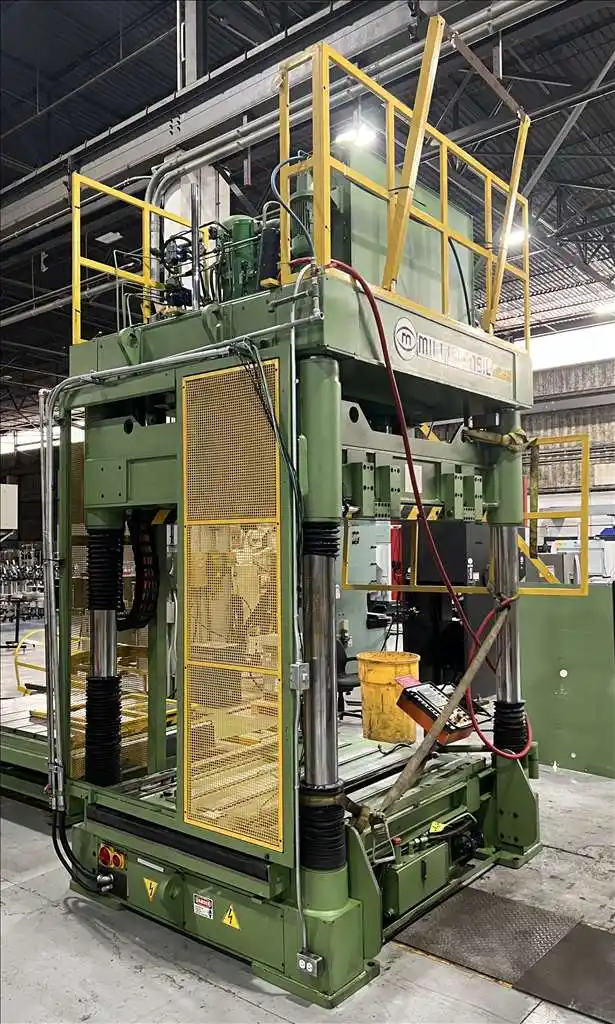

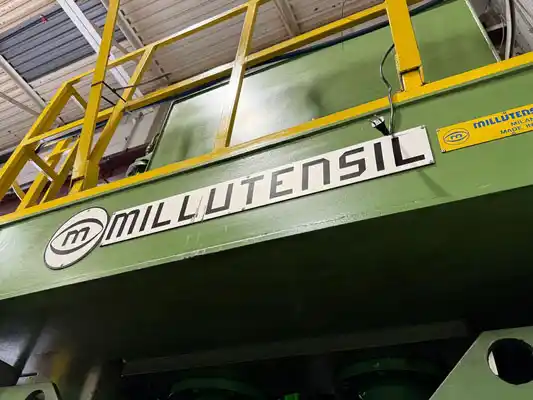

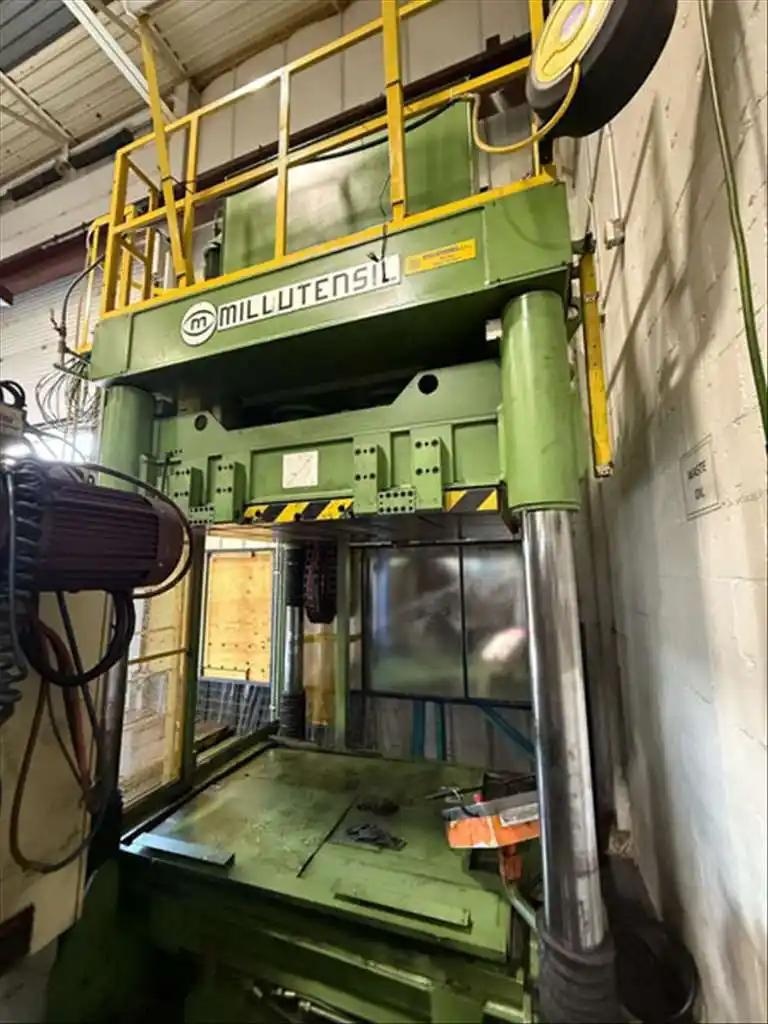

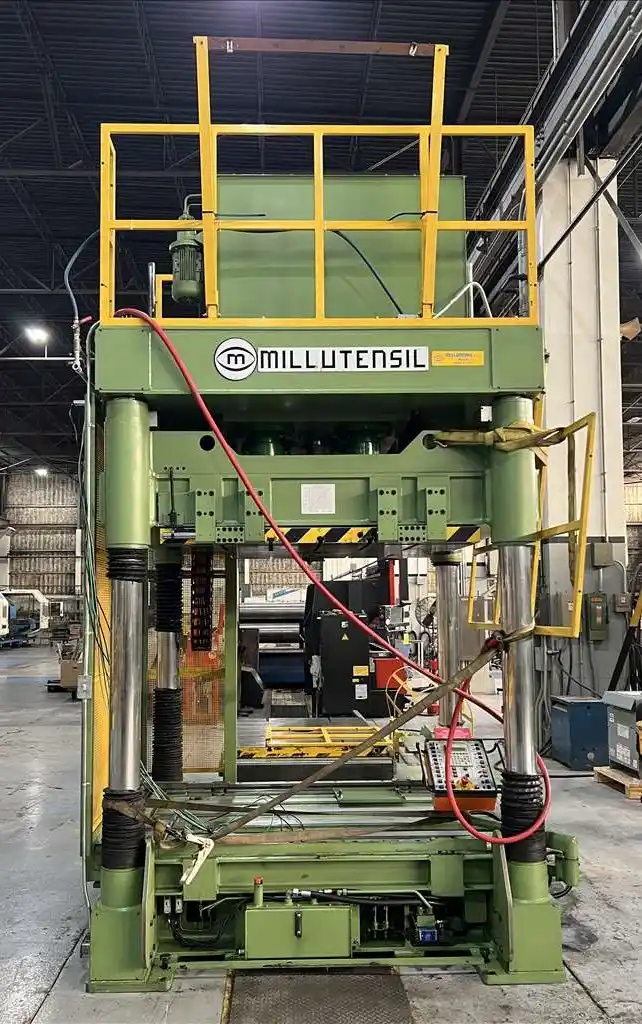

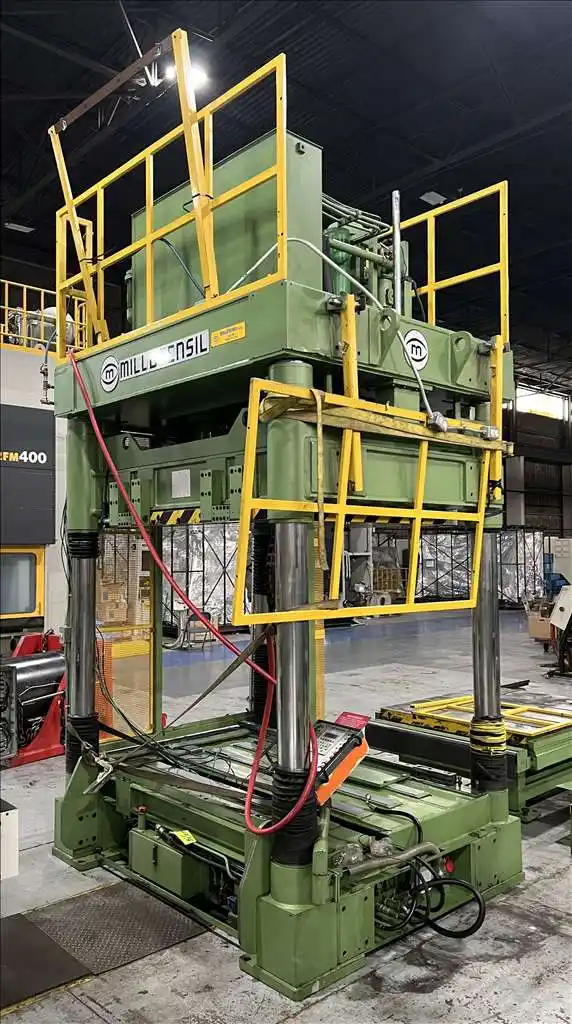

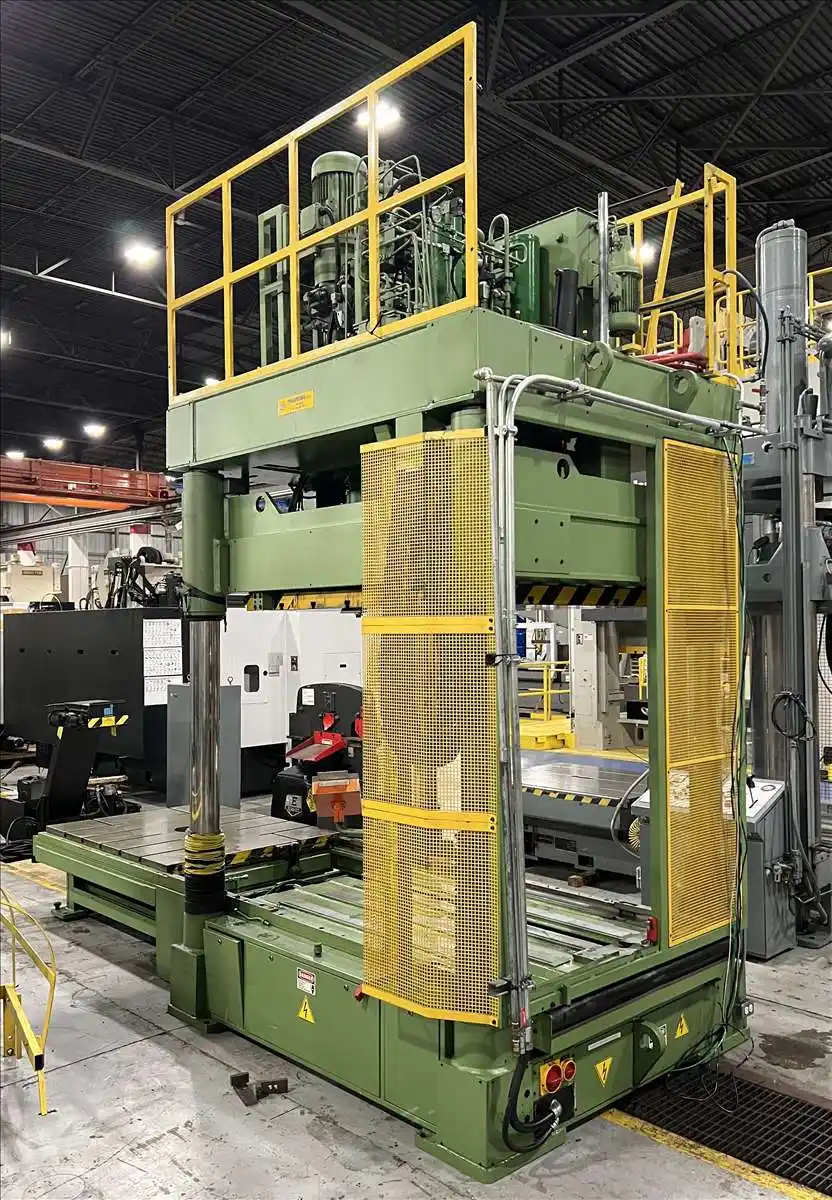

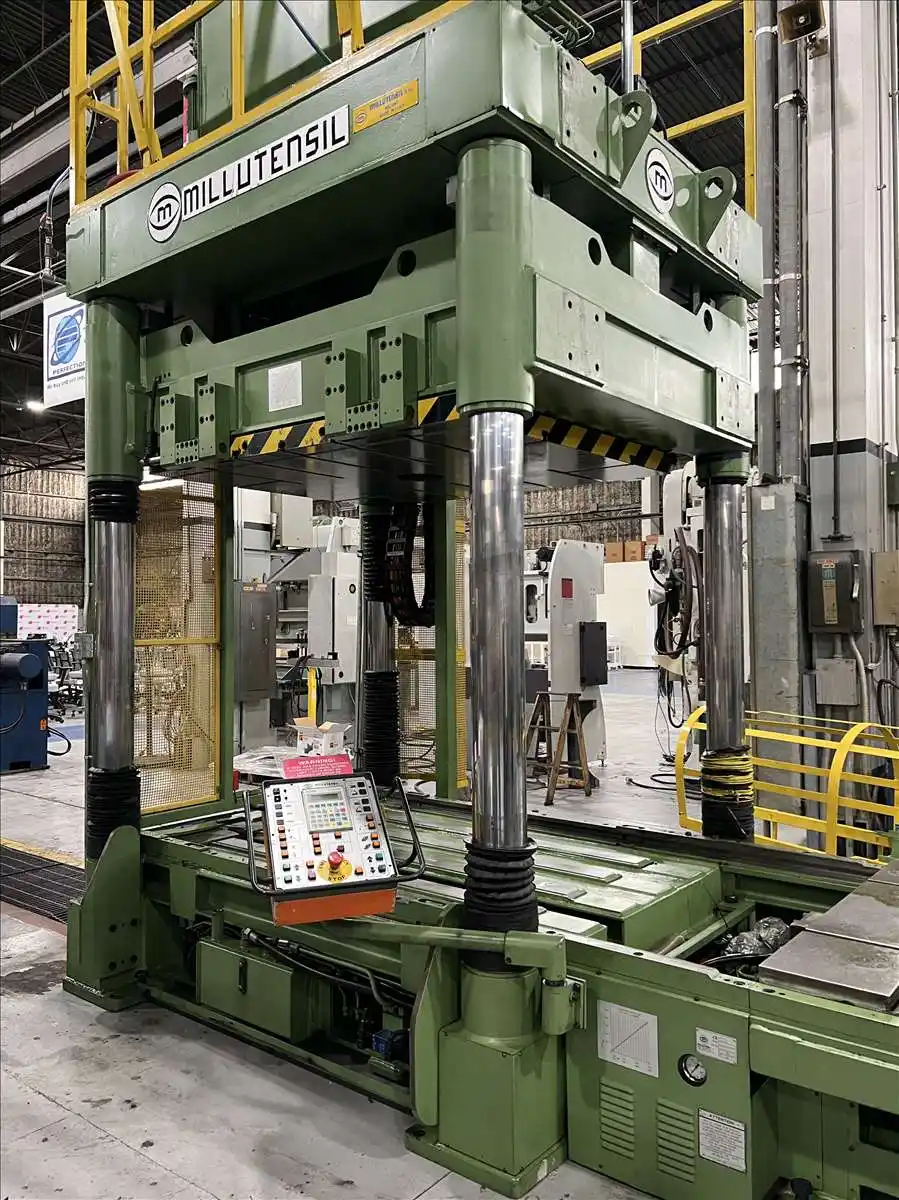

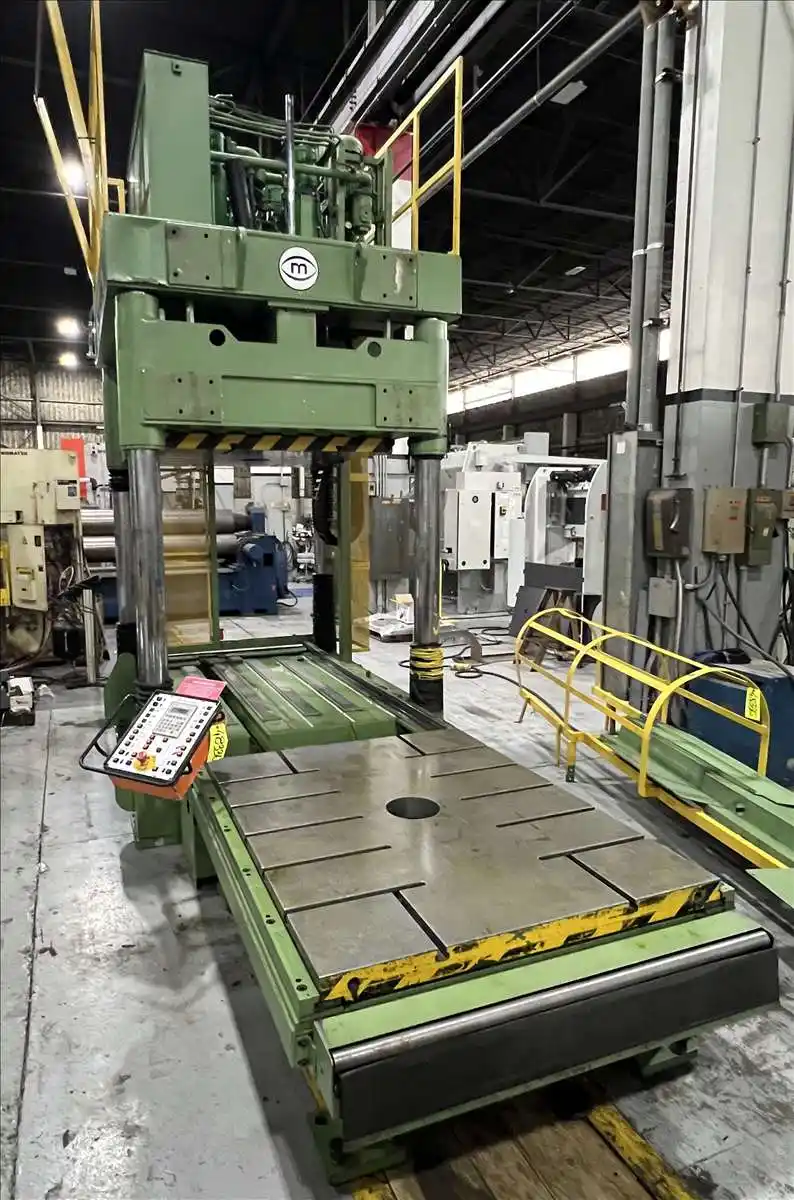

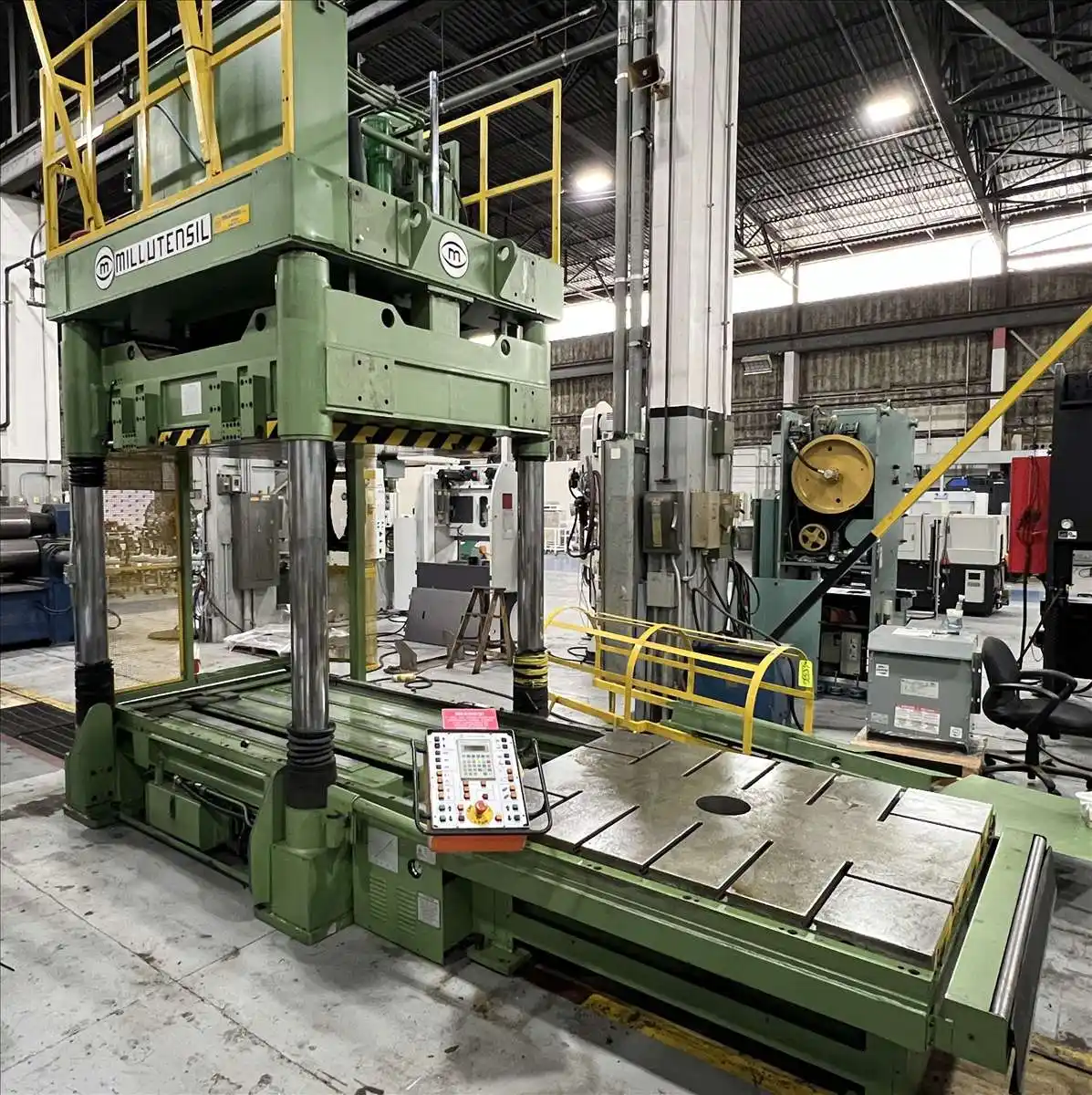

Millutensil MIL 162 110-Ton Die-Tryout & Spotting Press
Specifications
- Tonnage Capacity: 110 Ton
- Stroke Length: 39.4"

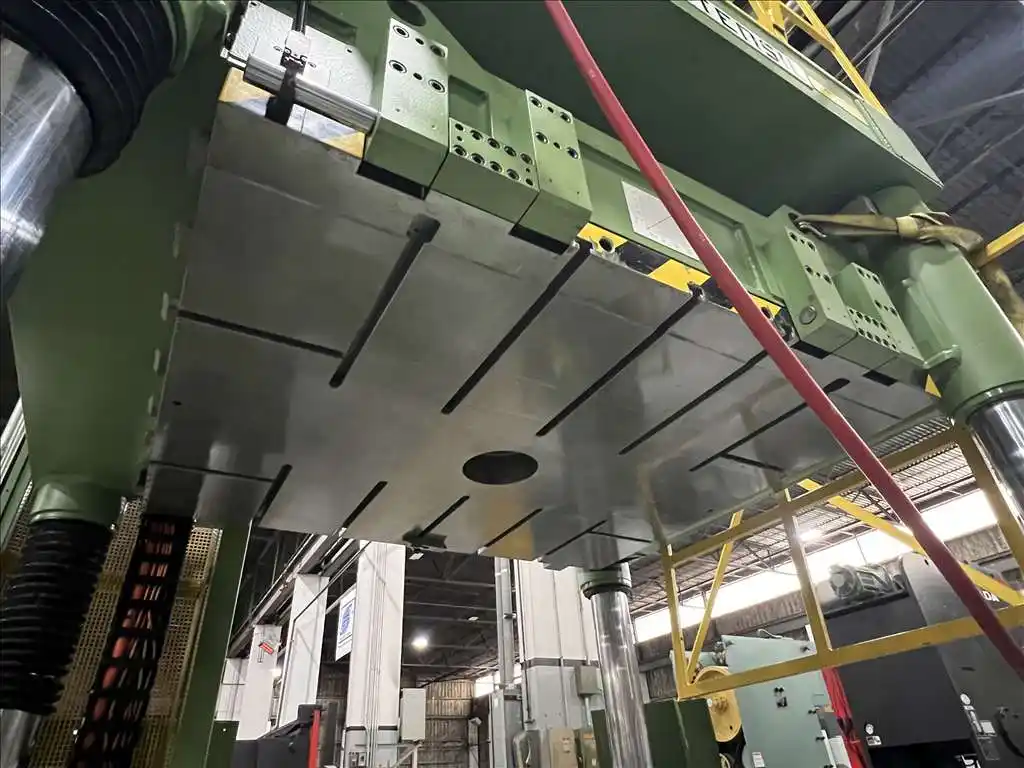

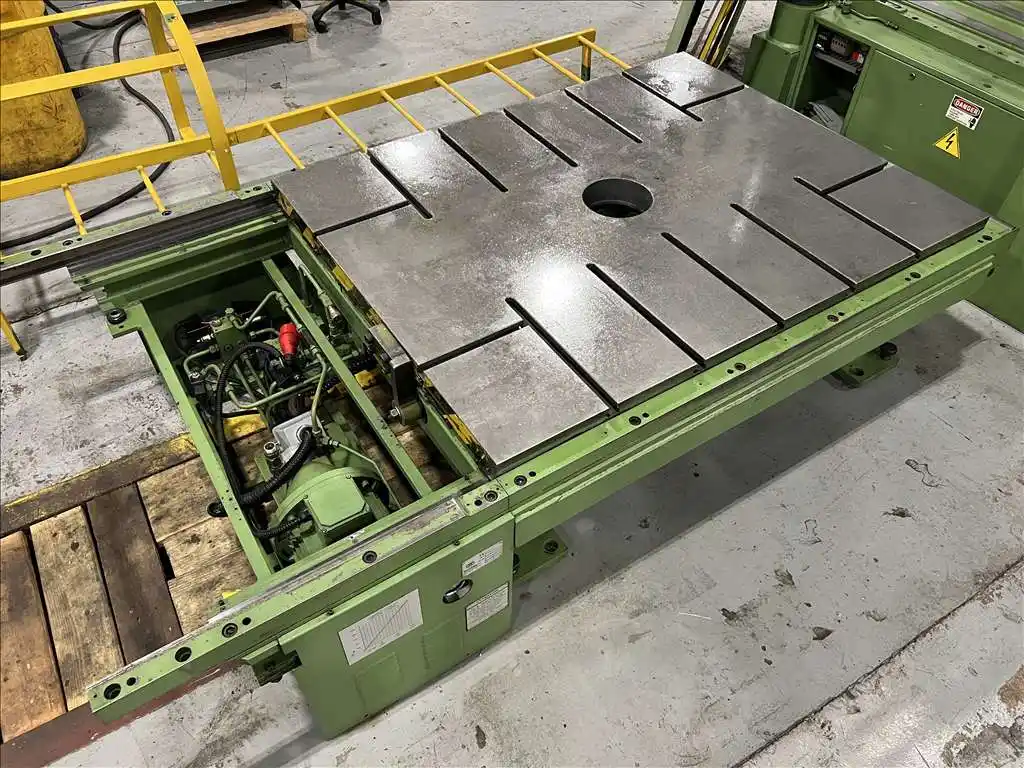

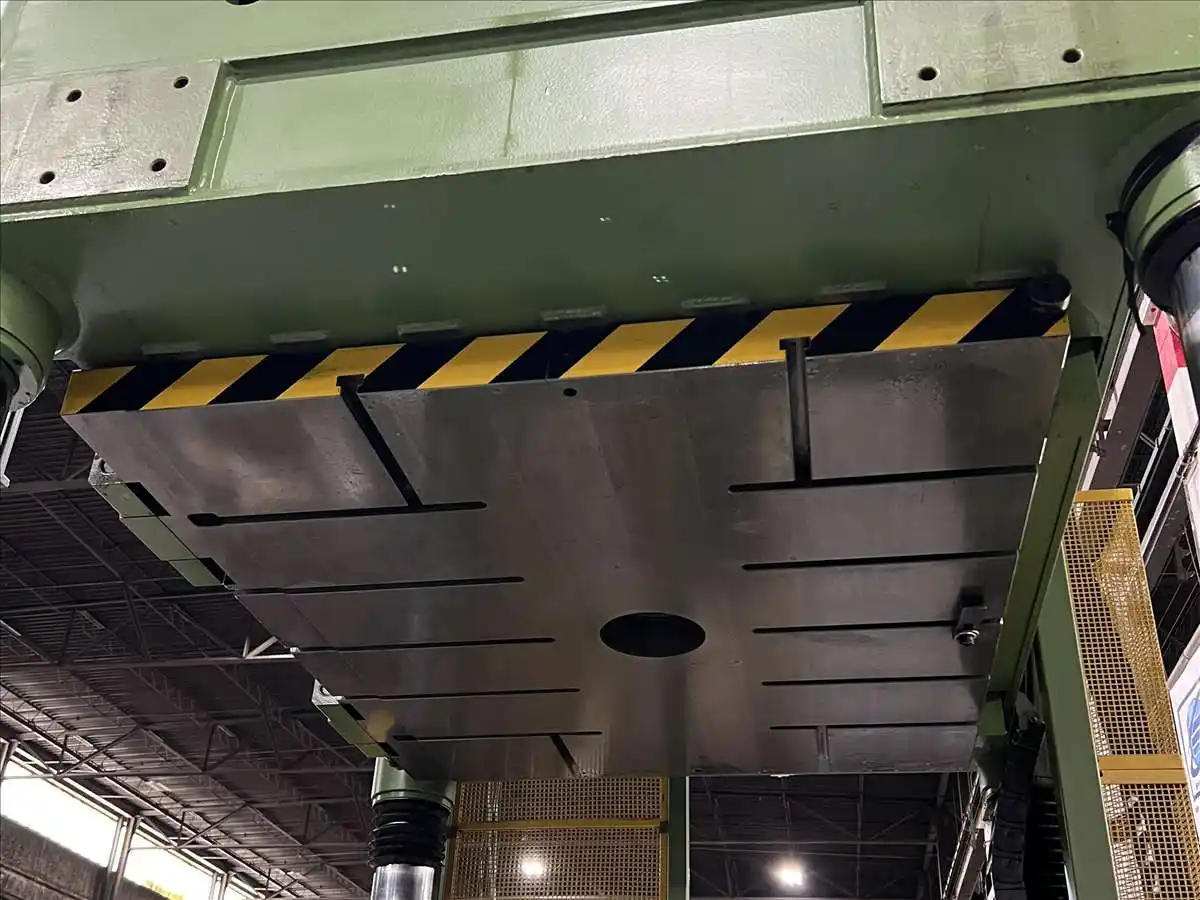

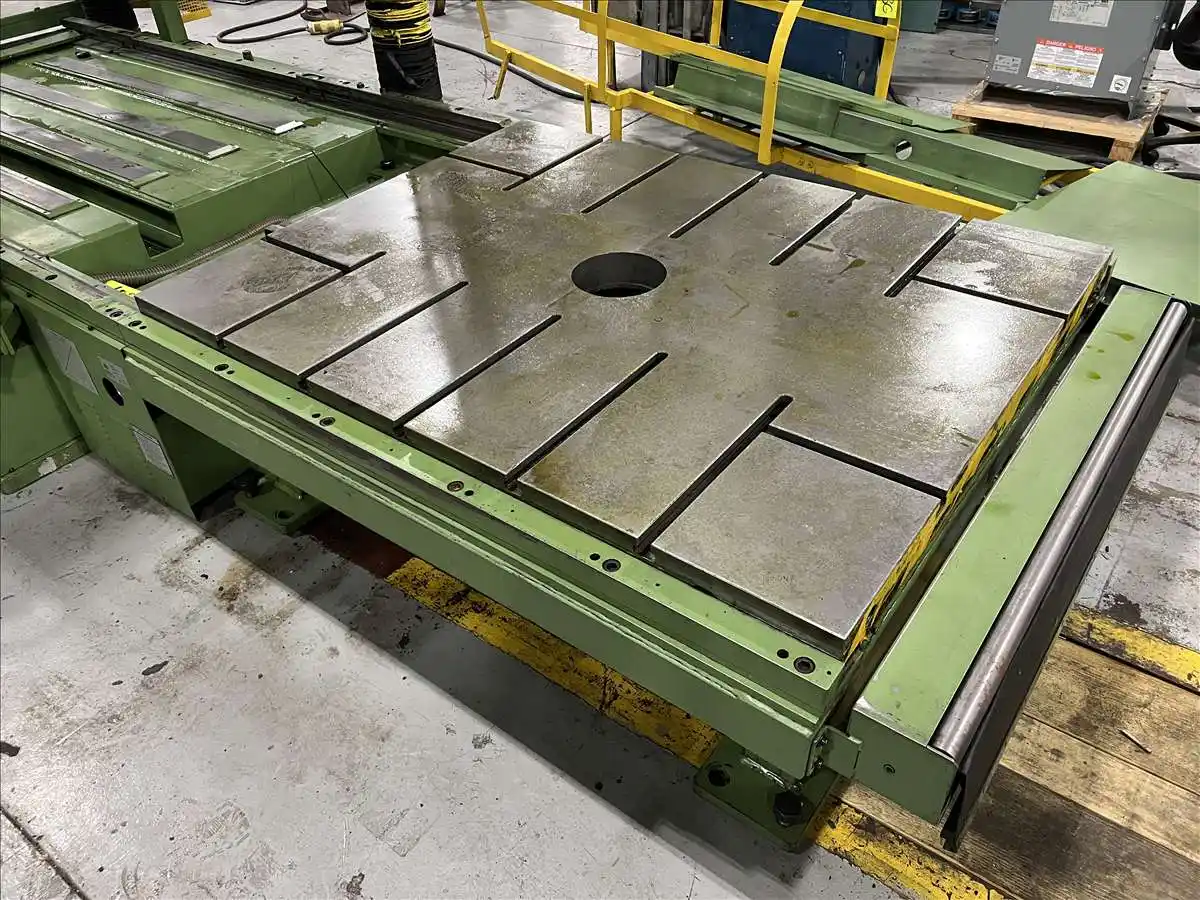

- Platen Area (L x R): 63" x 51.1"
- Column Area (L x H): 67" x 54"
- Max. Close Force: ~224,800 lbf
- Max. Open Force: ~33,700 lbf
- Max. Upper Load: 17,600 lb.
- Max. Lower Load: 35270 lb.

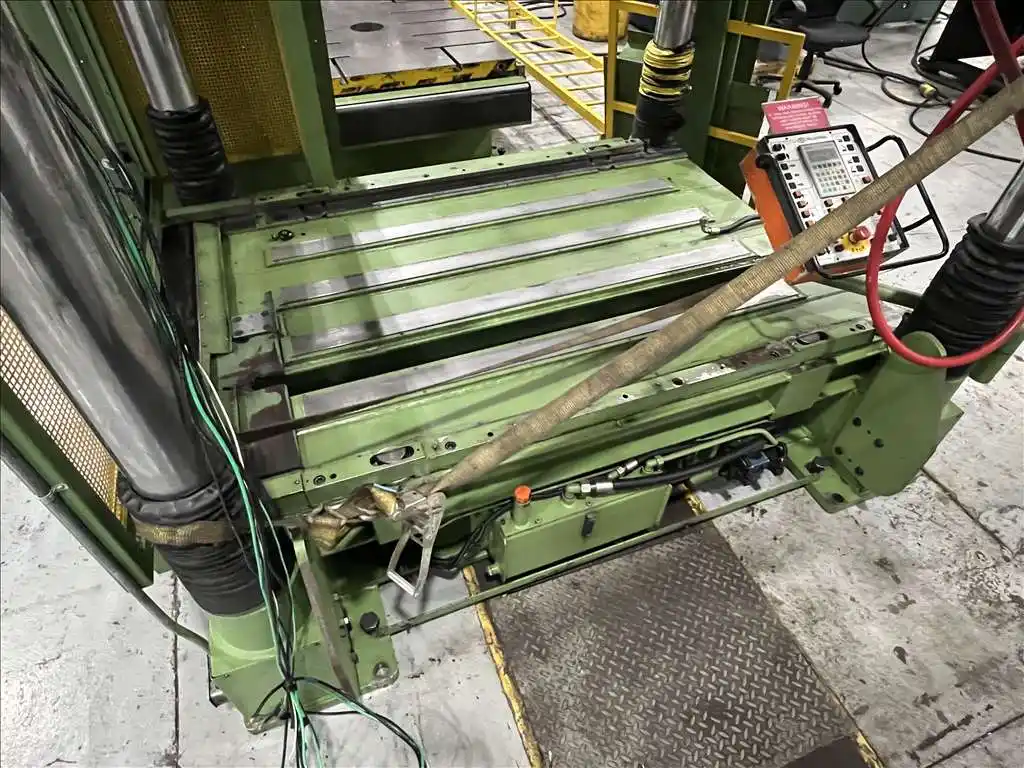

- Plate Rotation: Up To 180°

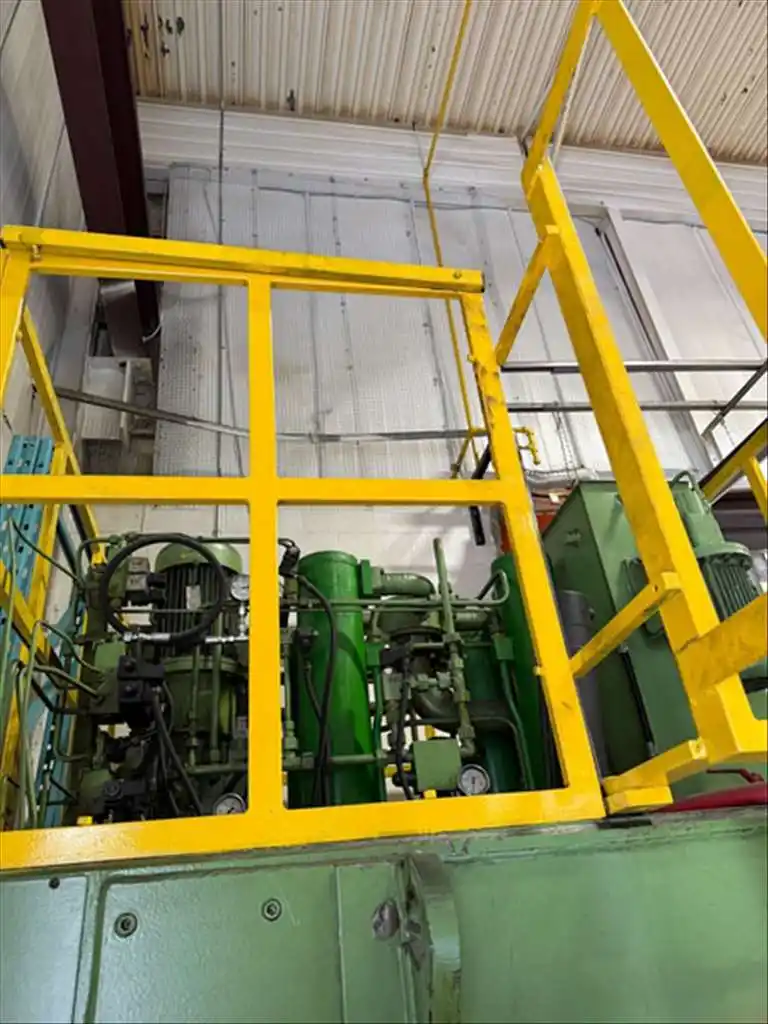

- Motor: 24 HP
- Speeds
- Quick: 157 IPM
- Working: 19.6 IPM
- Return: 78.7 IPM
- Feed Speeds
- Approach: 189 IPM
- Working: 19 IPM
- Return: 118 IPM
- Show More
- Show Less
- Tonnage Capacity: 99.78 Metric Ton
- Stroke Length: 1000.76mm
- Platen Area (L x R): 1600.20mm x 1297.94mm
- Column Area (L x H): 1701.80mm x 1371.60mm
- Max. Close Force: ~1,000 kN
- Max. Open Force: ~150 kN
- Max. Upper Load: 8,000 kg
- Max. Lower Load: 16,000 kg
- Plate Rotation: Up To 180°
- Motor: 17.90 kw
- Speeds
- Quick: 66.46 mm/sec
- Working: 8.30 mm/sec
- Return: 33.32 mm/sec
- Feed Speeds
- Approach: 80.01 mm/sec
- Working: 8.04 mm/sec
- Return: 49.95 mm/sec
- Show More
- Show Less
Equipped With

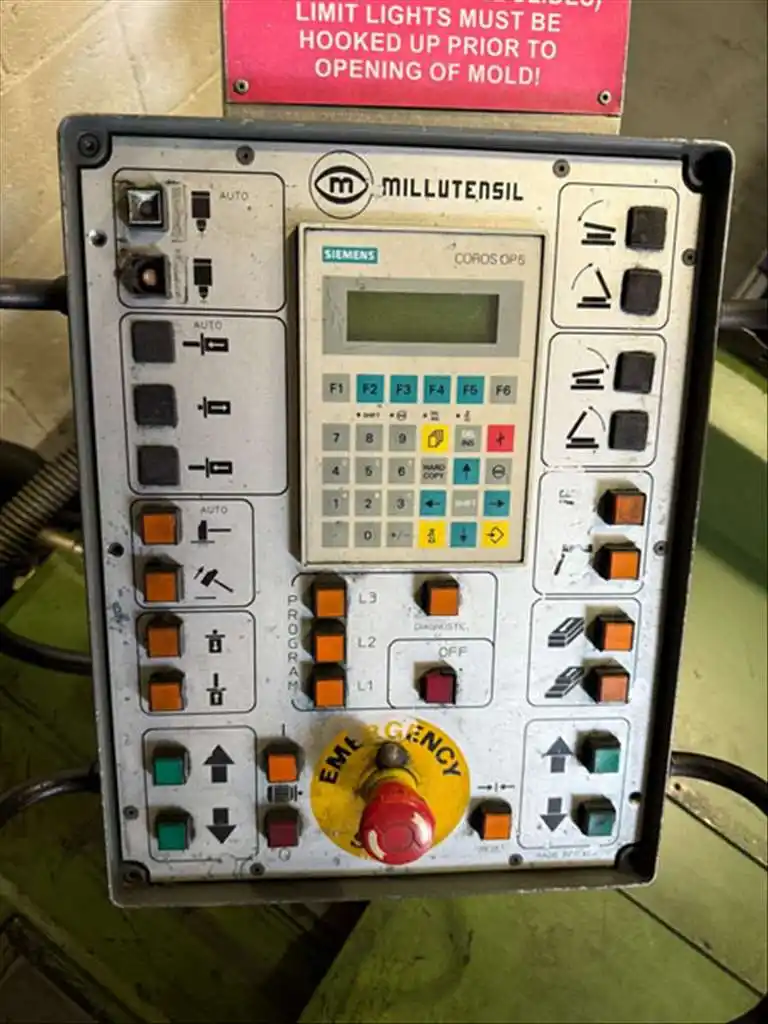

- Siemens PLC Control w/ Coros OP5 Touch Panel
- Siemens PLC Control w/ Coros OP5 Touch Panel
Location & Terms
- Terms: F.O.B.
- Location: ELK GROVE-ON ARRIVAL, IL
- Disclaimer: Preliminary Specifications....
