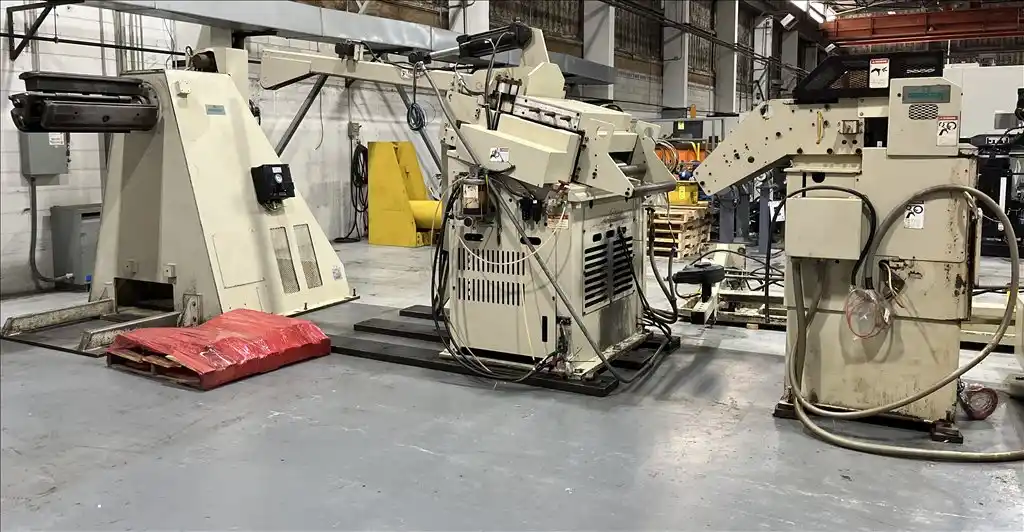

Minster 15,000 LB. X 26" X .350" Servo Feed Line

Inventory # 46241 Year: 1997

Minster 15,000 LB. X 26" X .350" Servo Feed Line

Inventory # 46241 Year: 1997

https://perfectionglobal.com/blog/the-top-8-cnc-machine-tool-makes-for-manufacturers/?ProductNumber=46241

Minster 15,000 LB. X 26" X .350" Servo Feed Line

Request a Quote

Measurement

US Standard Metric

Specifications

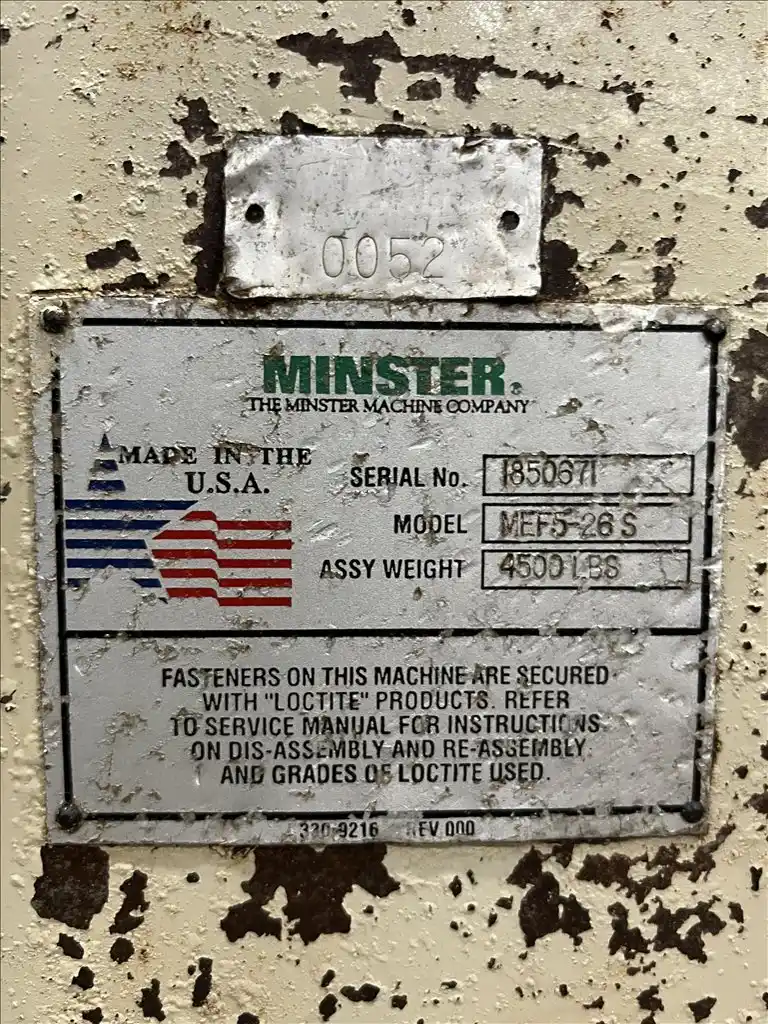

MEF5-26S SINGLE ROLL ELECTRIC FEED (S/N 18-50671)
Minimum Feed Line Over Floor: 52"
Maximum Feed Line Over Floor: 61"
Feed Roll Diameter: 5.392"
Maximum Stock Width: 26"
Minimum Stock Thickness: 0.020"
Maximum Stock Thickness: 0.250"
Maximum Thickness at Full Width: 0.125"
Maximum Width at Full Thickness: 16"
Roll Opening for Threading: 0.47"

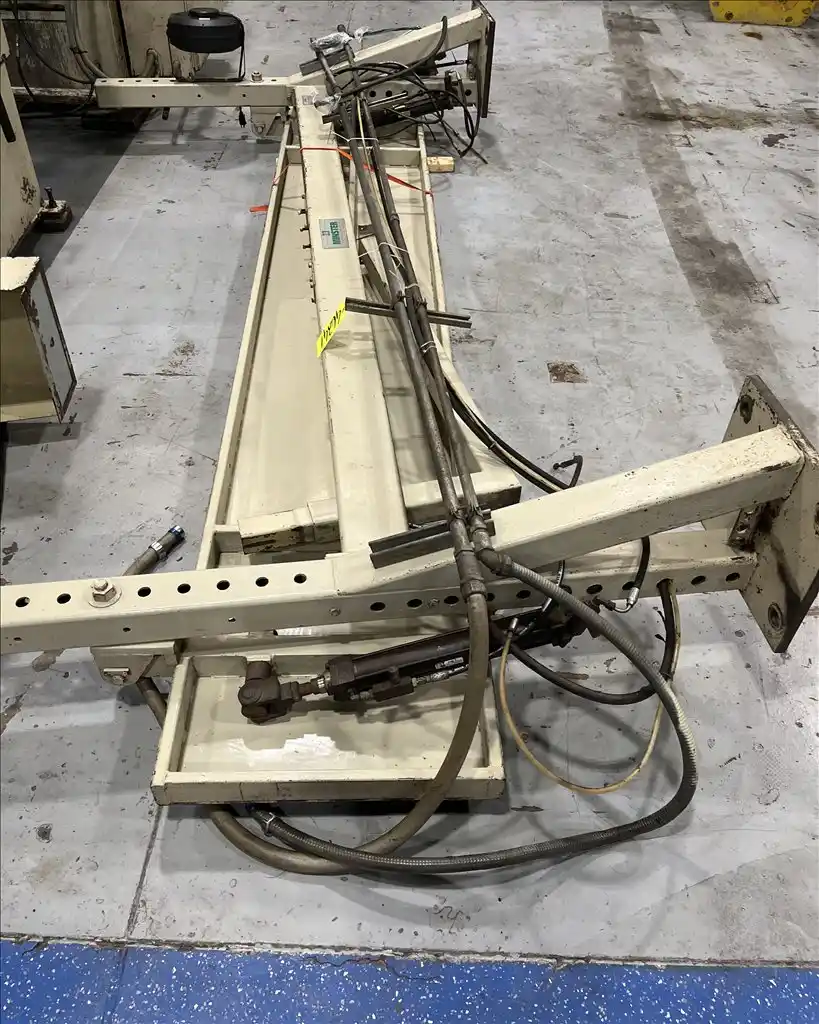

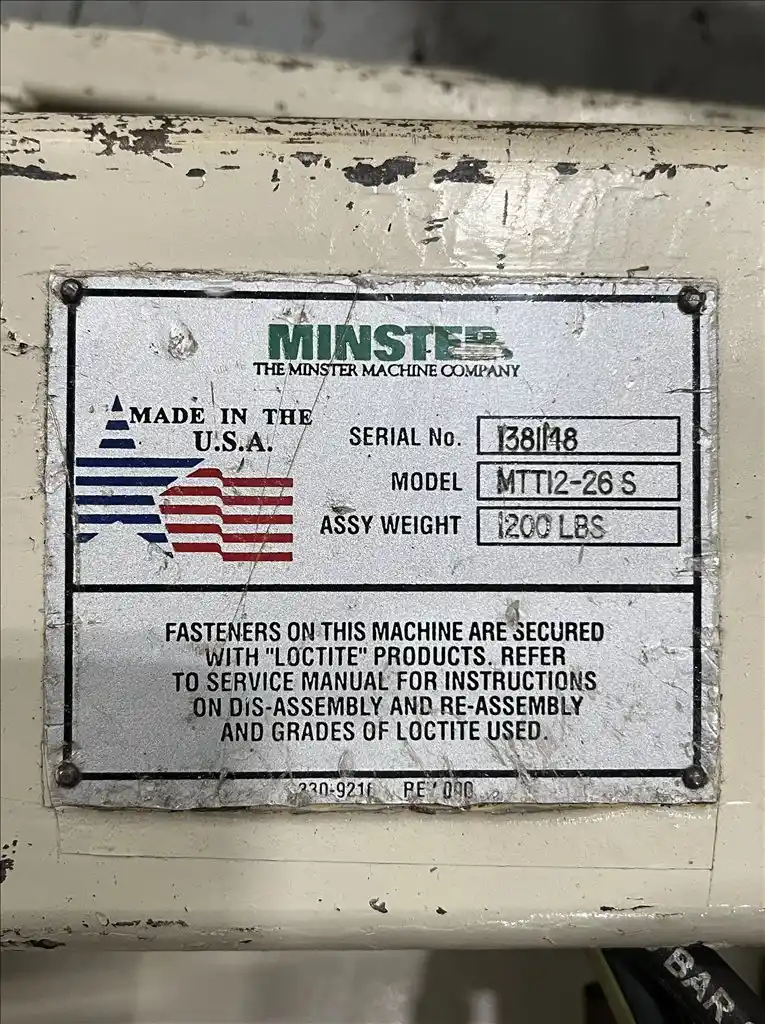

MTT12-26S THREADING TABLE (S/N 13-81148)
Length of Table: 12'
Maximum Stock Width: 26"

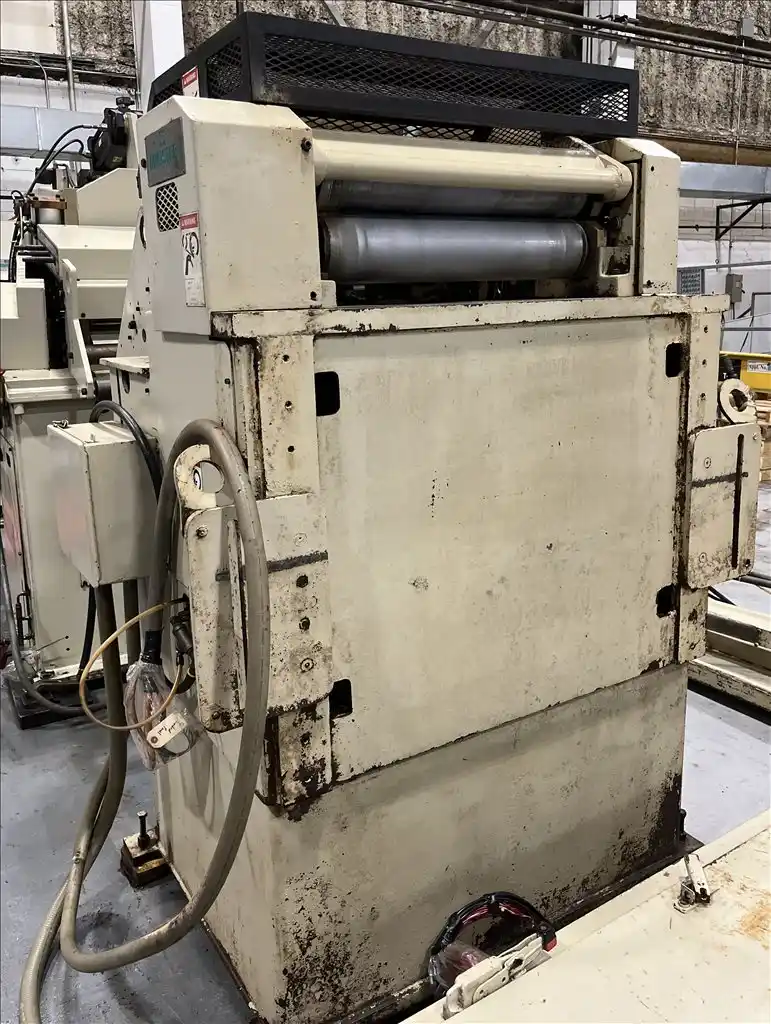

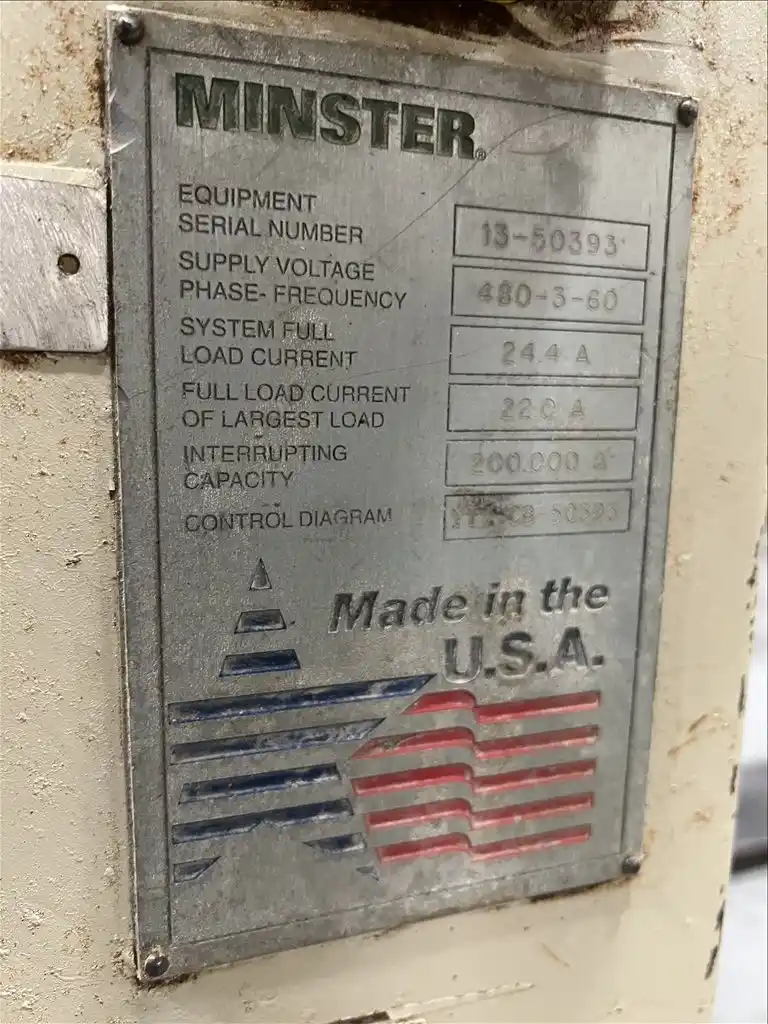

MSH30-26-7 STRAIGHTENER (S/N 13-50393)
Maximum Strip Thickness: 0.350"
Minimum Strip Thickness: 0.020"
Maximum Strip Width: 26"
Maximum Width at Maximum Thickness: 5"
Maximum Thickness at Full Width: 0.140"
Line Speed: 40 - 1200 IPM

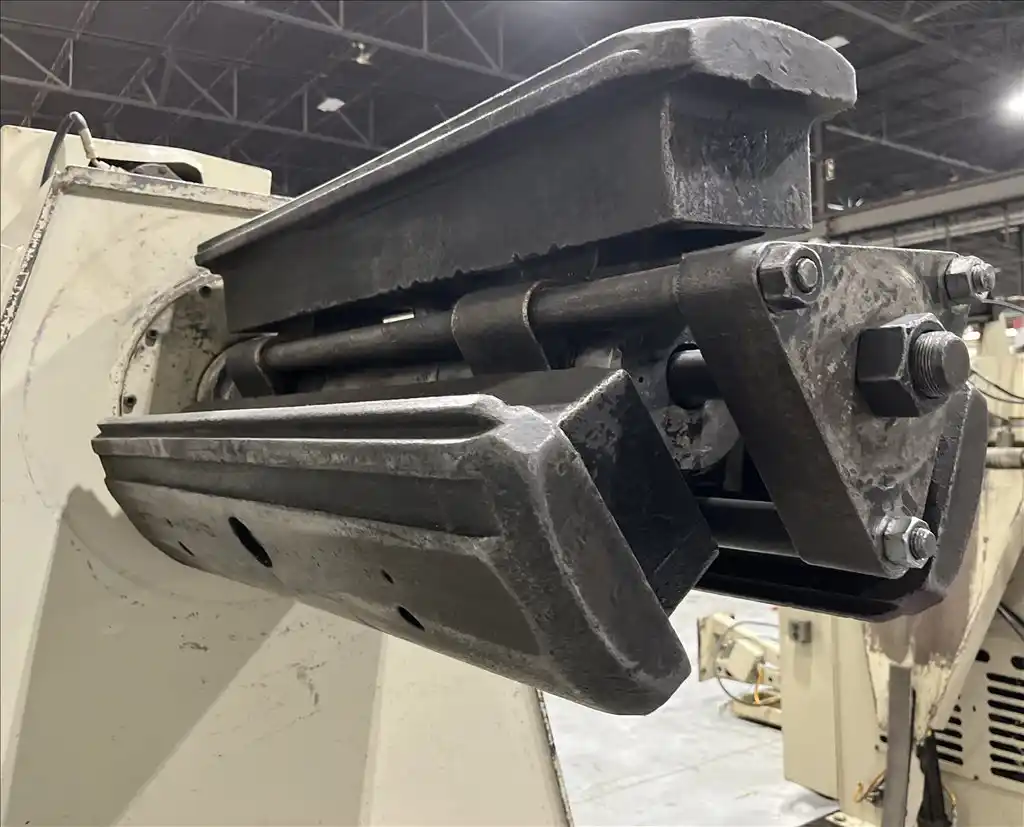

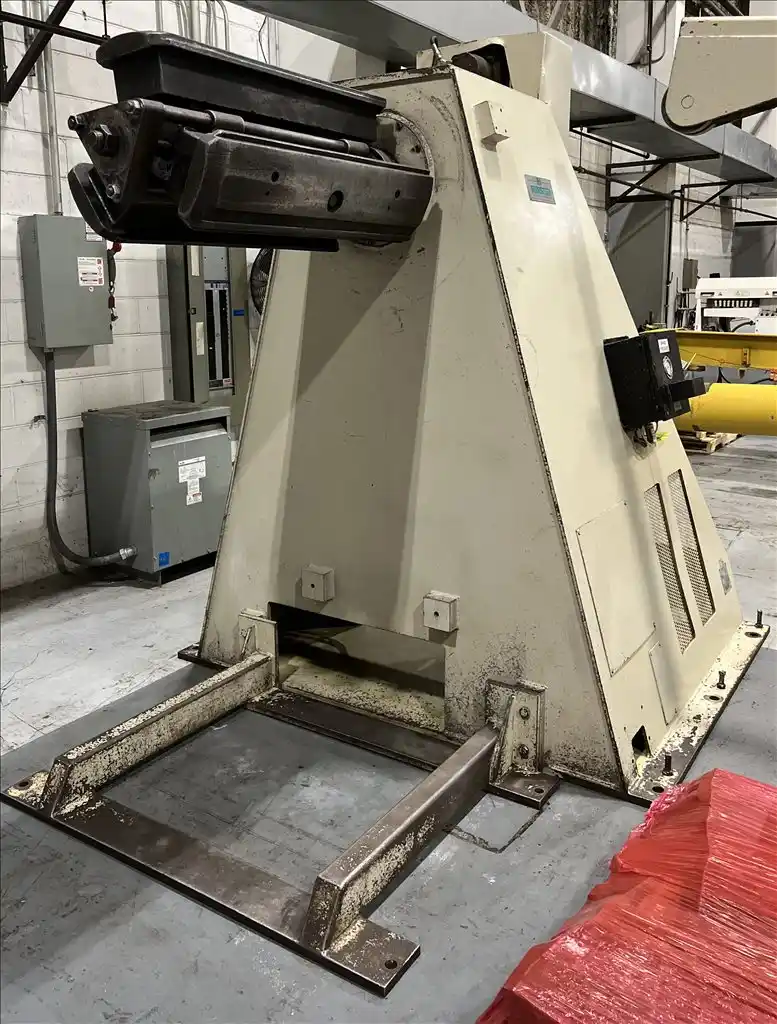

MR15-26S SINGLE REEL (S/N 13-70453)
Coil Weight, Maximum on Center: 15,000 lbs
Coil Width, Maximum: 26"
Coil I.D. Range: 20" - 24"
Coil O.D. Maximum: 60"
Coil Load Position: Operator Side
Show More
Show Less

MEF5-26S SINGLE ROLL ELECTRIC FEED (S/N 18-50671)
Minimum Feed Line Over Floor: 1320.80mm
Maximum Feed Line Over Floor: 1549.40mm
Feed Roll Diameter: 136.96mm
Maximum Stock Width: 660.40mm
Minimum Stock Thickness: 0.51mm
Maximum Stock Thickness: 6.35mm
Maximum Thickness at Full Width: 3.18mm
Maximum Width at Full Thickness: 406.40mm
Roll Opening for Threading: 11.94mm
MTT12-26S THREADING TABLE (S/N 13-81148)
Length of Table: 3657.60mm
Maximum Stock Width: 660.40mm
MSH30-26-7 STRAIGHTENER (S/N 13-50393)
Maximum Strip Thickness: 8.89mm
Minimum Strip Thickness: 0.51mm
Maximum Strip Width: 660.40mm
Maximum Width at Maximum Thickness: 127.00mm
Maximum Thickness at Full Width: 3.56mm
Line Speed: 40 -508.00 mm/sec
MR15-26S SINGLE REEL (S/N 13-70453)
Coil Weight, Maximum on Center: 6802.50 kg
Coil Width, Maximum: 660.40mm
Coil I.D. Range: 508.00mm - 609.60mm
Coil O.D. Maximum: 1524.00mm
Coil Load Position: Operator Side
Show More
Show Less

Location & Terms

Terms: F.O.B.
Location: Elk Grove Village, IL
Disclaimer: Preliminary Specifications....
