Inventory # 48282 Year: N/A

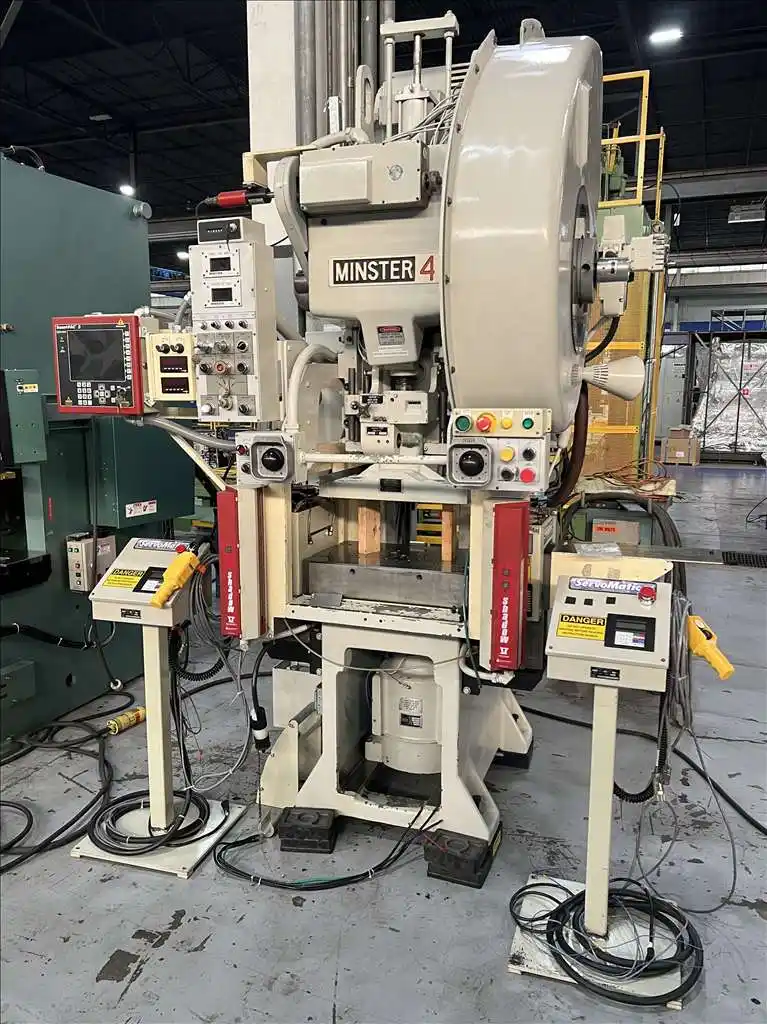

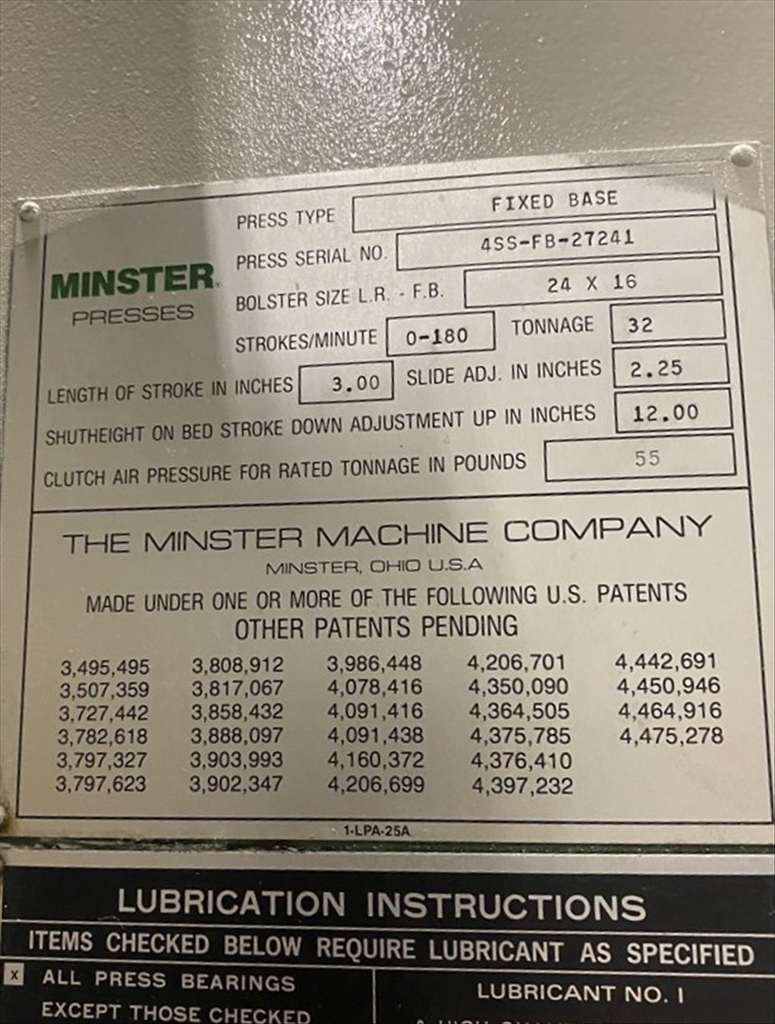

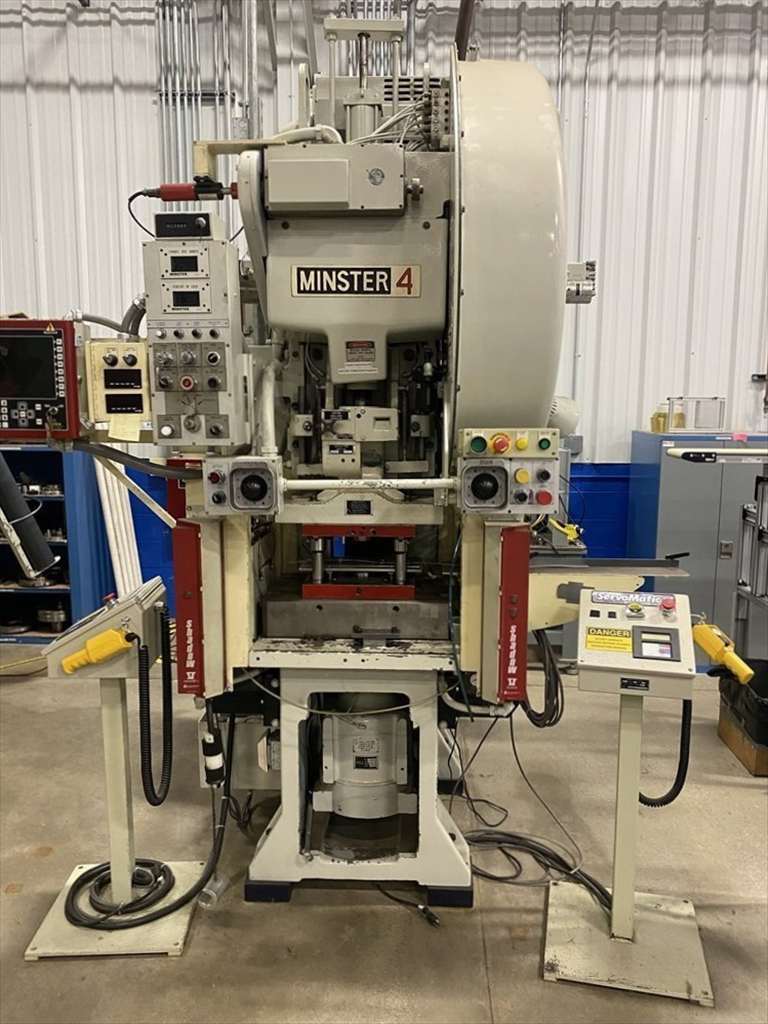

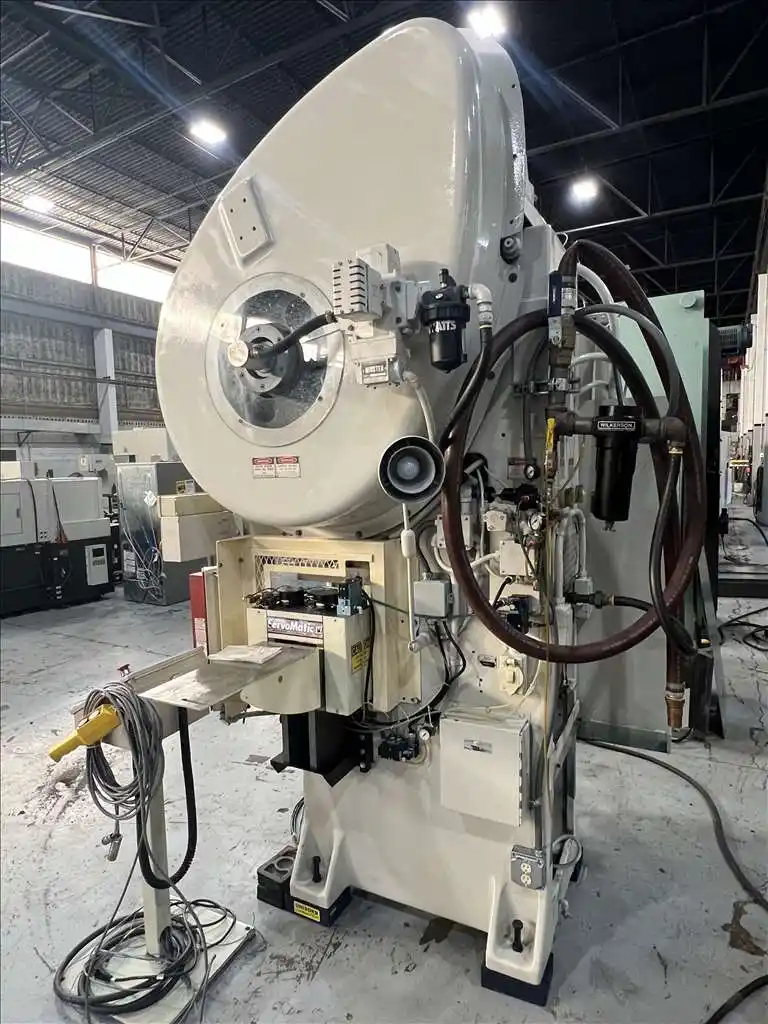

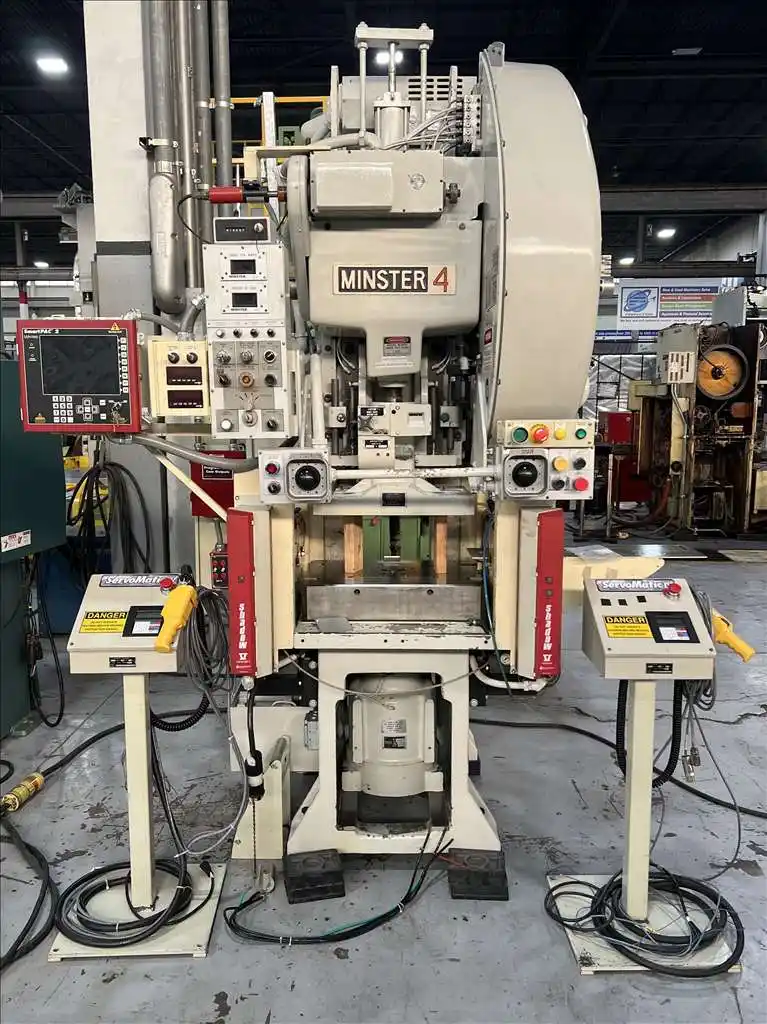

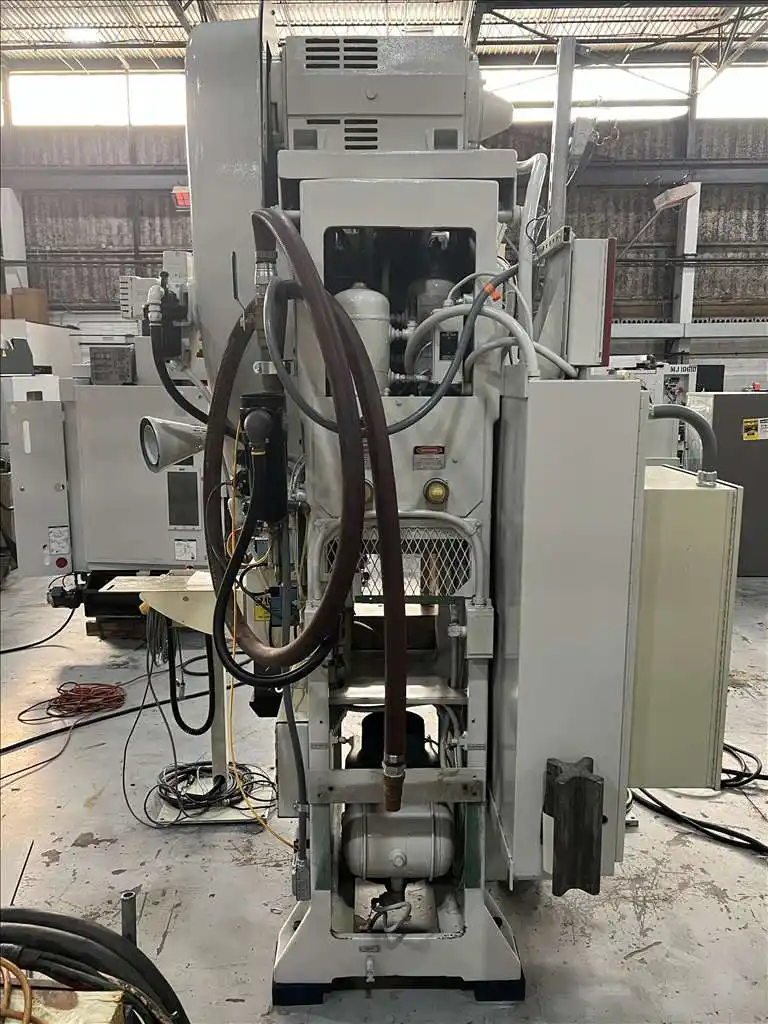

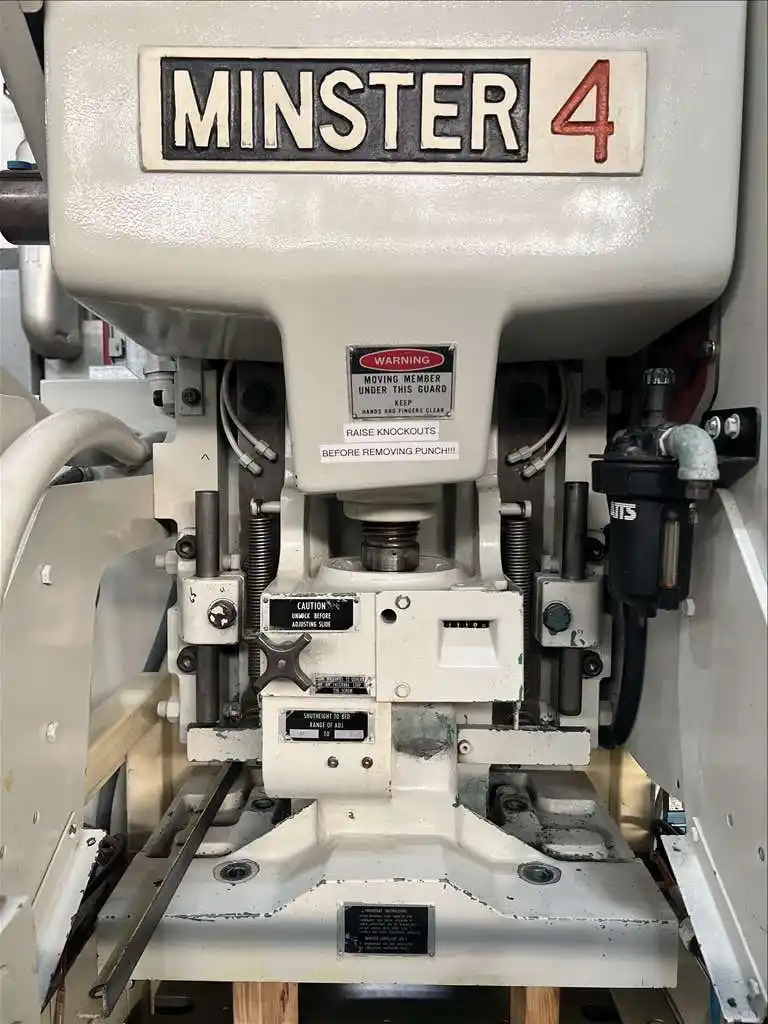

Minster 4SS Fixed Base Single Point Gap Frame Press

Request a Quote
Measurement

Specifications

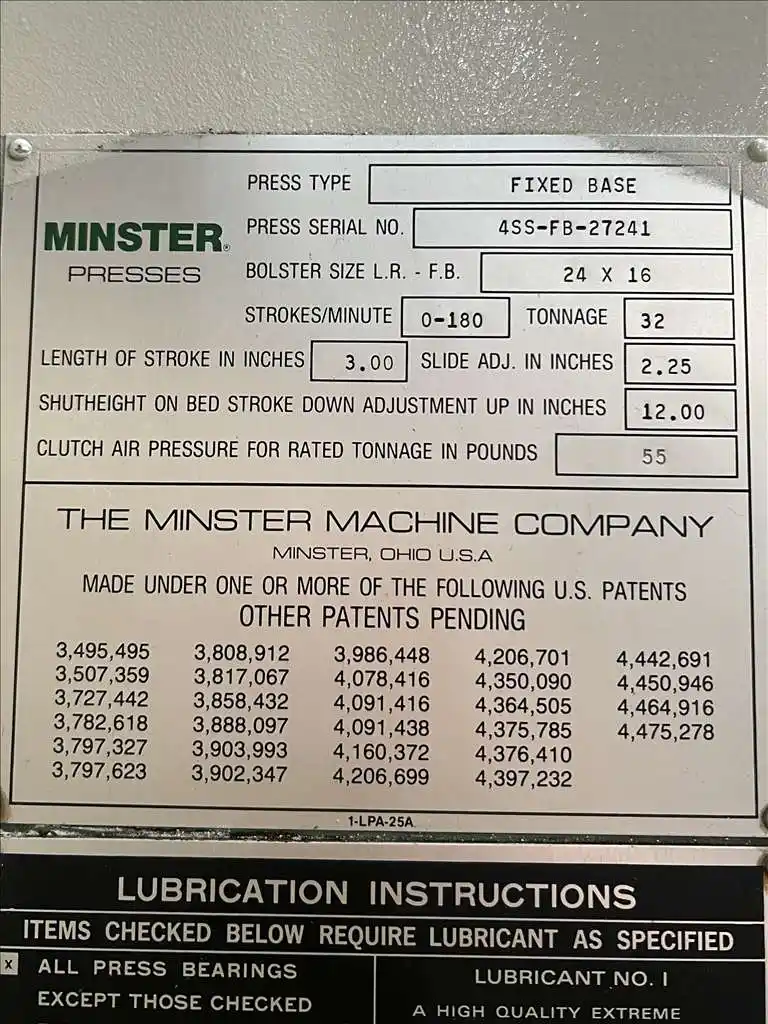

  • Tonnage Capacity: 32 Ton
  • Mild Steel Capacity (Width x Thickness): 6" x 0.125"

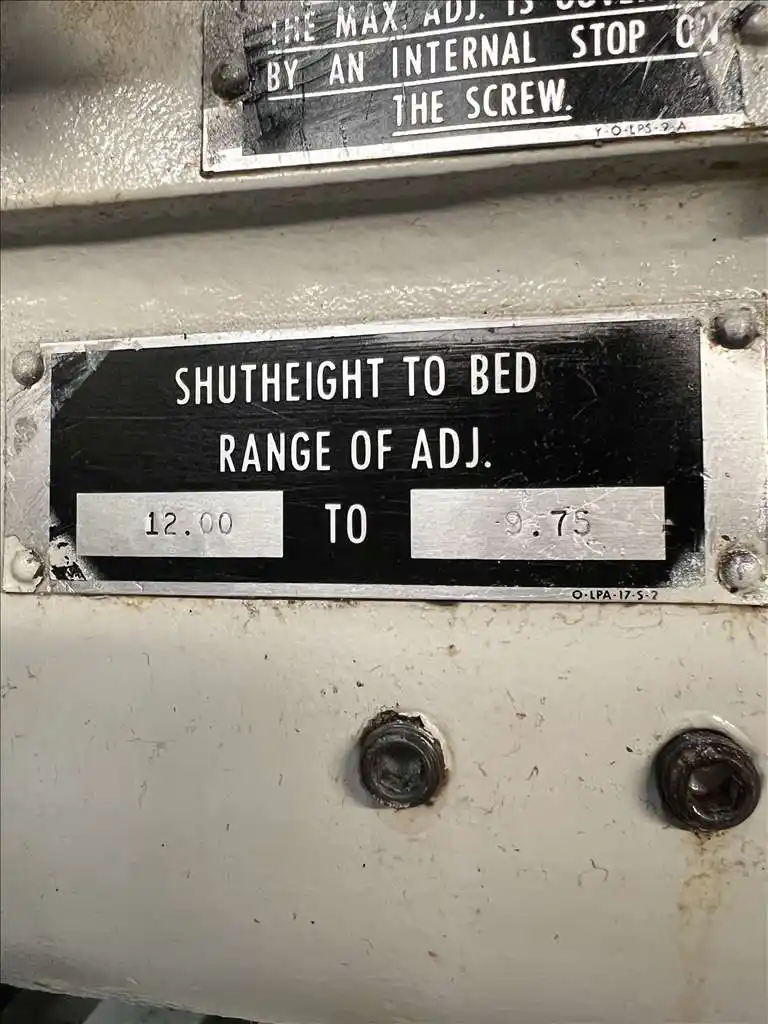

  • Shut Height on Bed (SDAU): 12"
  • Stroke Length: 3"
  • Max. Stroke Speed: 180 SPM
  • Throat: 9.5"
  • Slide Adjustment: 2.25"

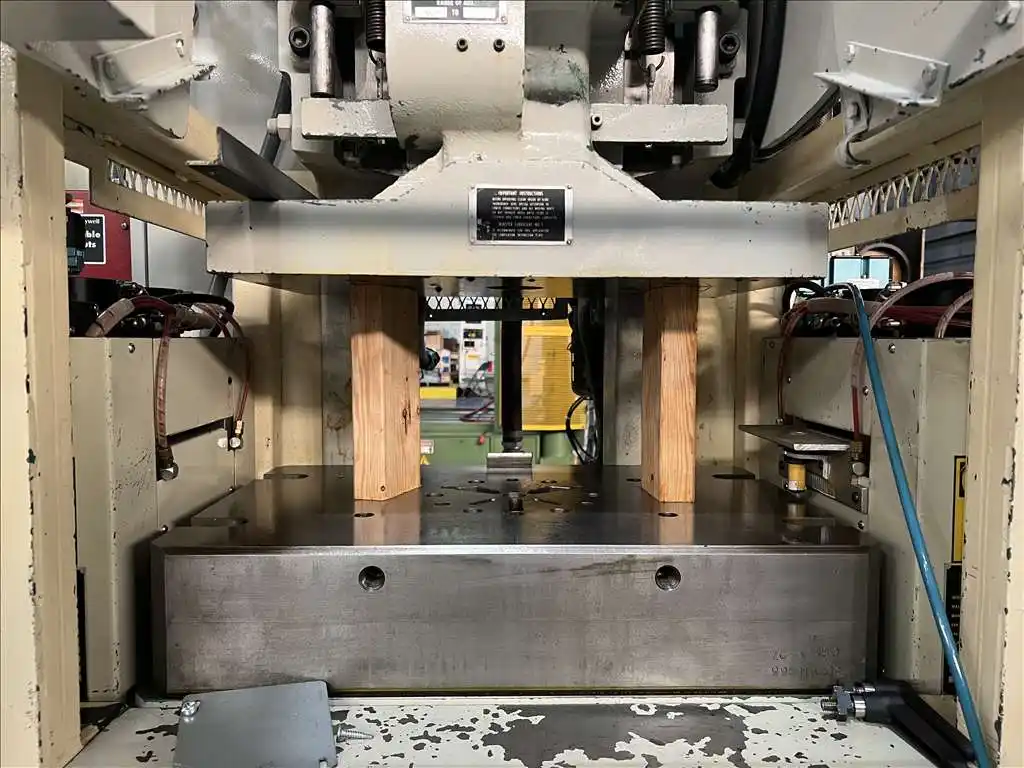

  • Bolster Area (L-R x F-B): 16" x 24"
  • Bolster Thickness: 5"
  • Bed Opening: 12" x 16"
  • Back Opening Width: 13.5"
  • Flanged Side Area: 12" x 20"

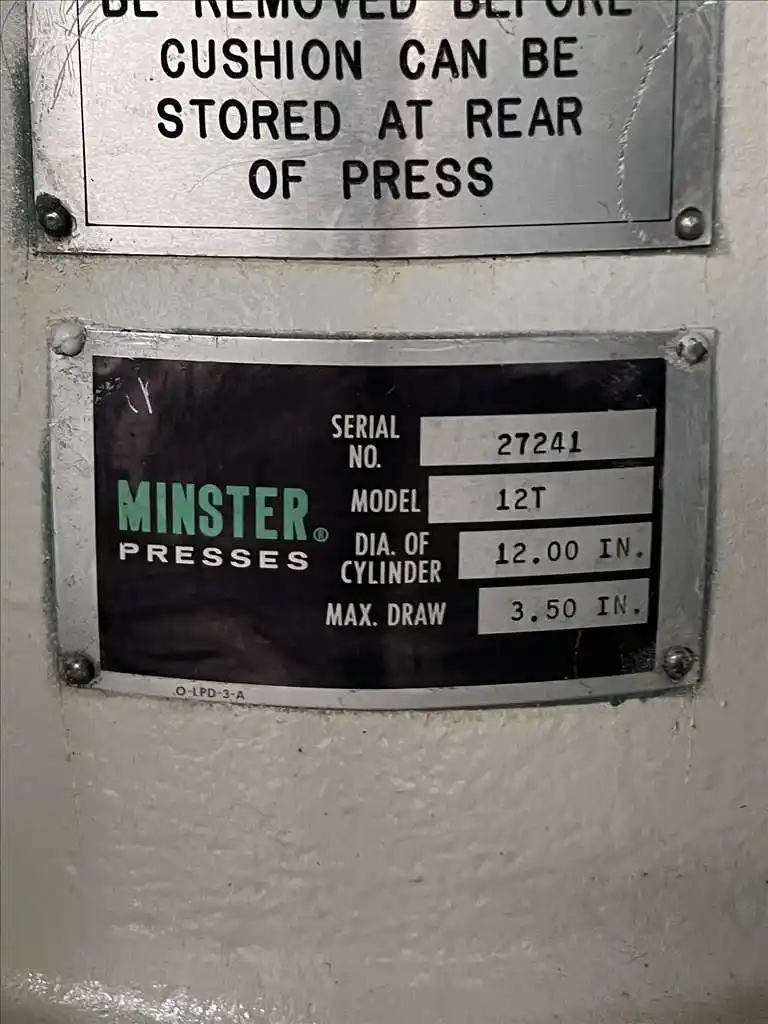

  • Air Cushion Diameter: 12"
  • Max. Air Cushion Draw: 3.5"
  • Main Motor: 3 HP
  • Electrical: 480V/3Ph/60Hz
  • Show More
  • Show Less
  • Tonnage Capacity: 29.03 Metric Ton
  • Mild Steel Capacity (Width x Thickness): 152.40mm x 3.18mm
  • Shut Height on Bed (SDAU): 304.80mm
  • Stroke Length: 76.20mm
  • Max. Stroke Speed: 180 SPM
  • Throat: 241.30mm
  • Slide Adjustment: 57.15mm
  • Bolster Area (L-R x F-B): 406.40mm x 609.60mm
  • Bolster Thickness: 127.00mm
  • Bed Opening: 304.80mm x 406.40mm
  • Back Opening Width: 342.90mm
  • Flanged Side Area: 304.80mm x 508.00mm
  • Air Cushion Diameter: 304.80mm
  • Max. Air Cushion Draw: 88.90mm
  • Main Motor: 2.24 kw
  • Electrical: 480V/3Ph/60Hz
  • Show More
  • Show Less
Equipped With

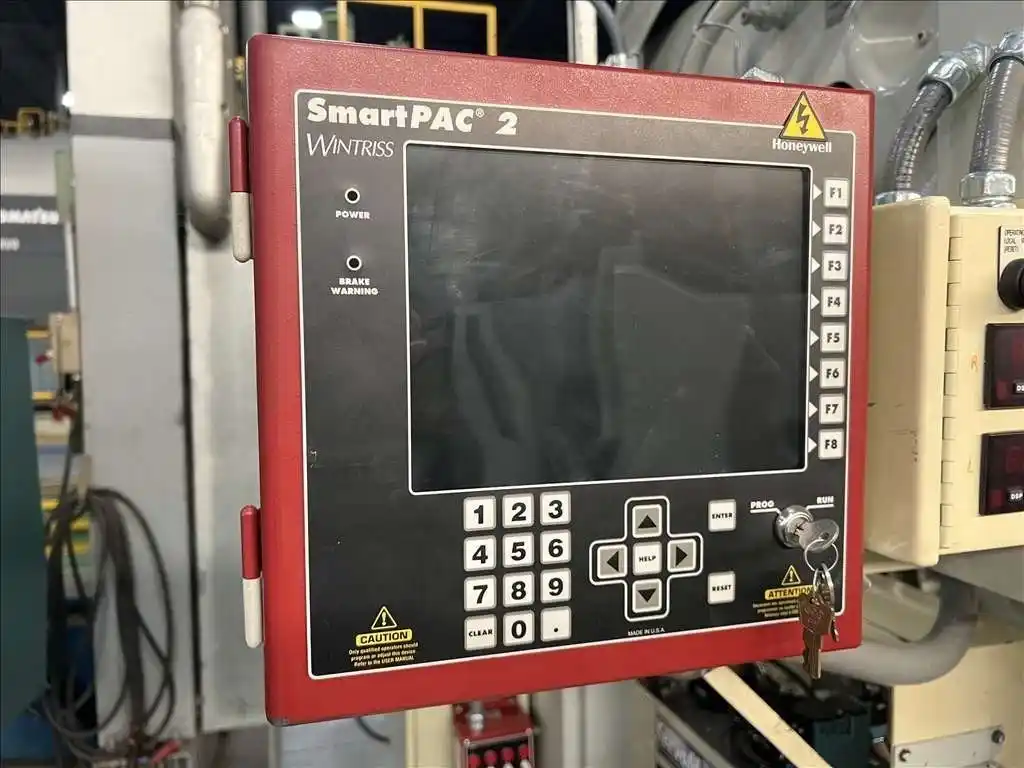

  • Wintress Smart Pac 2 Control

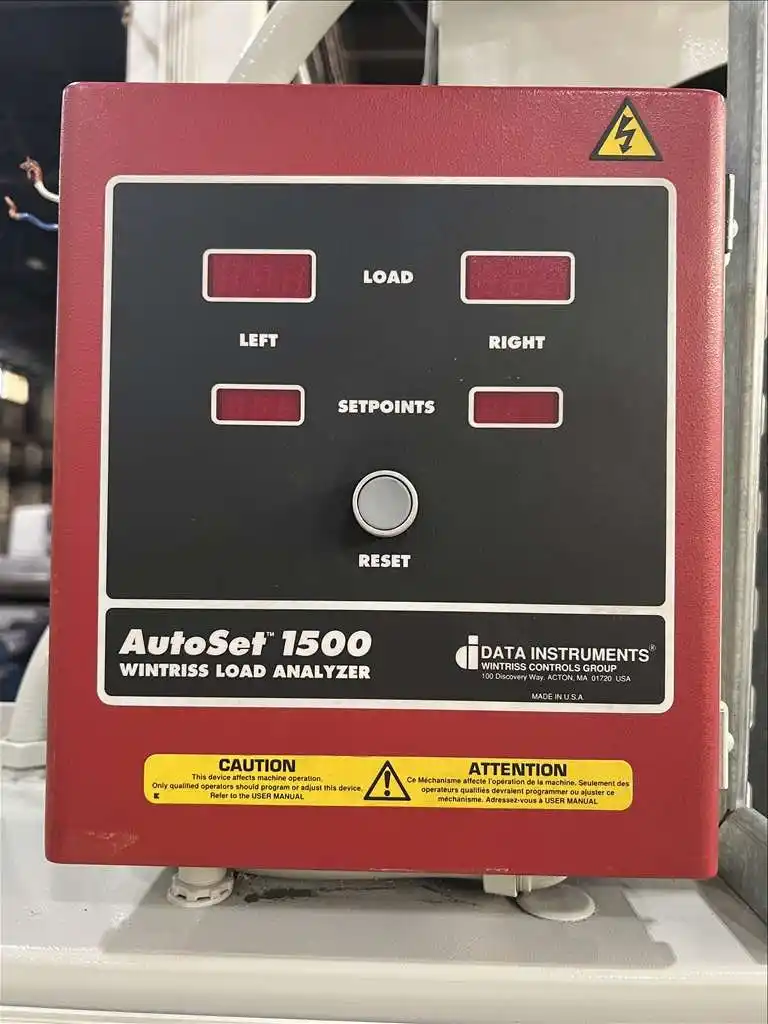

  • Wintress Autoset 1500 Load Analyzer
  • Air Clutch & Brake

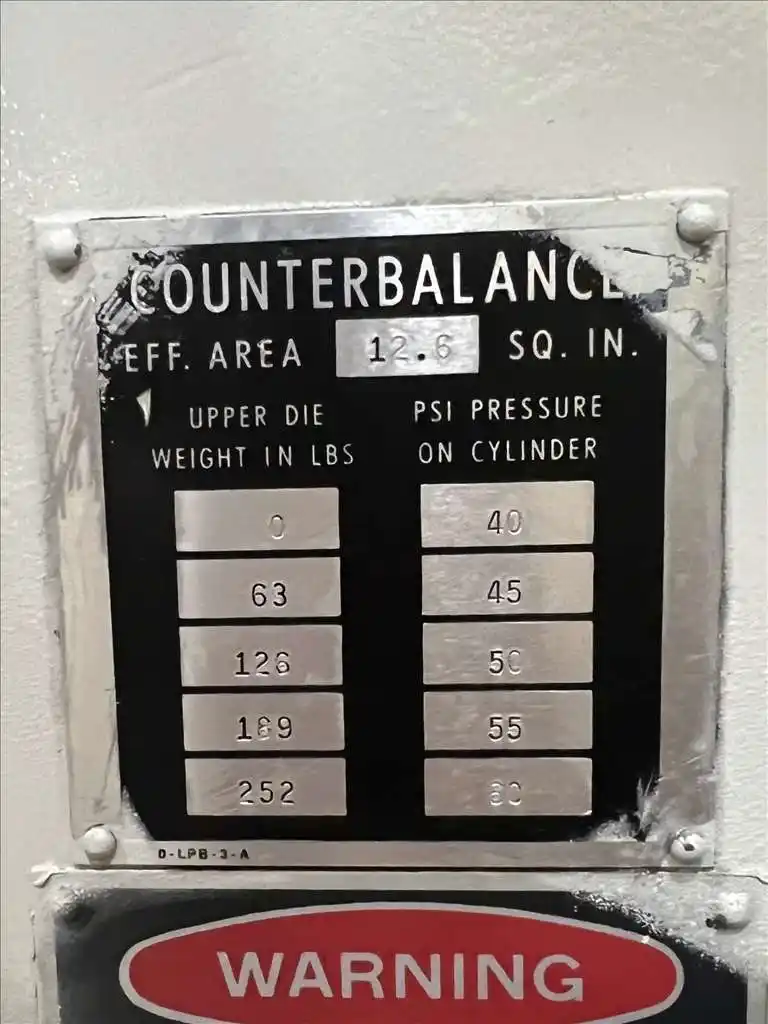

  • Air Counterbalance
  • Air Cushion Model 12T

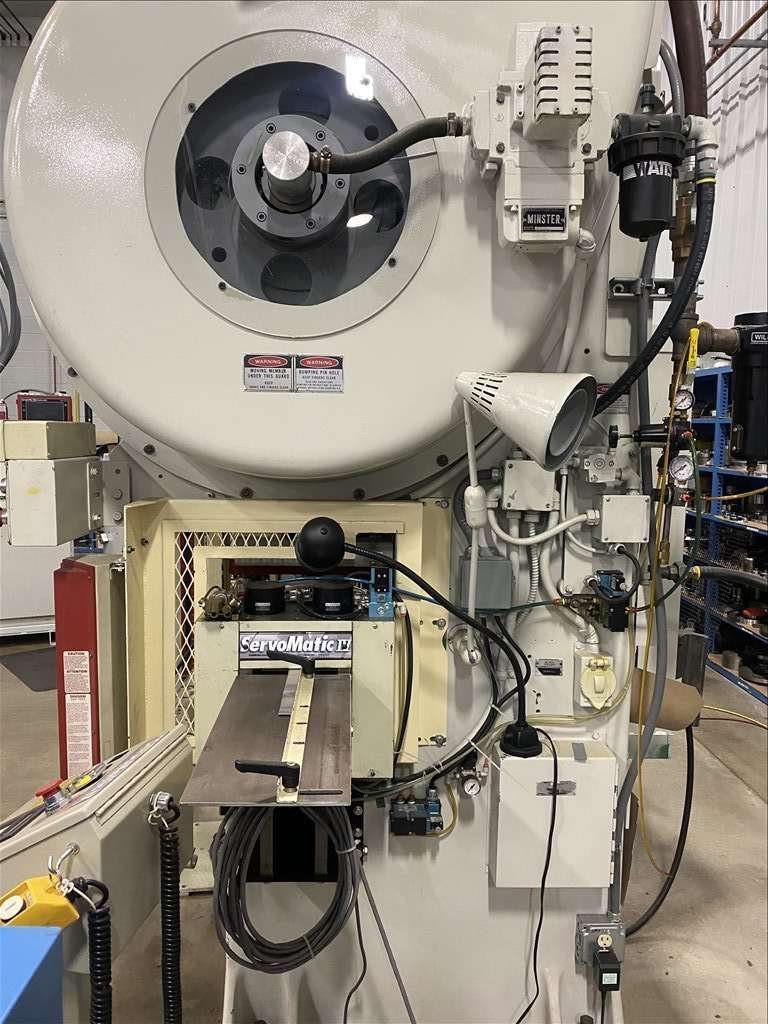

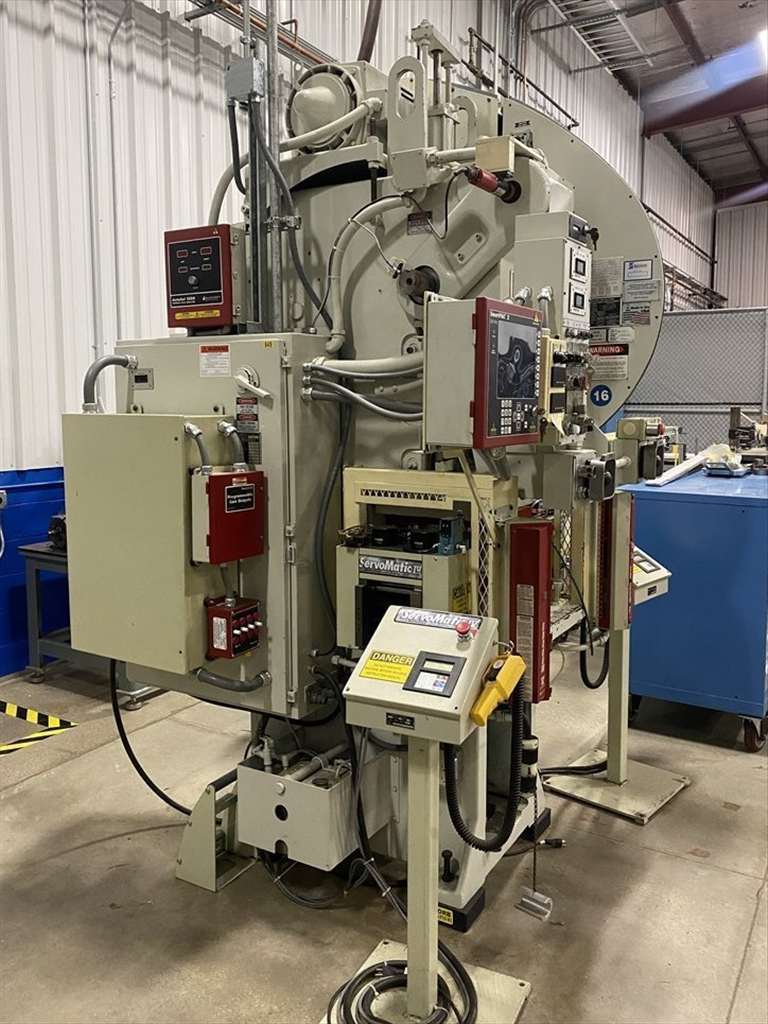

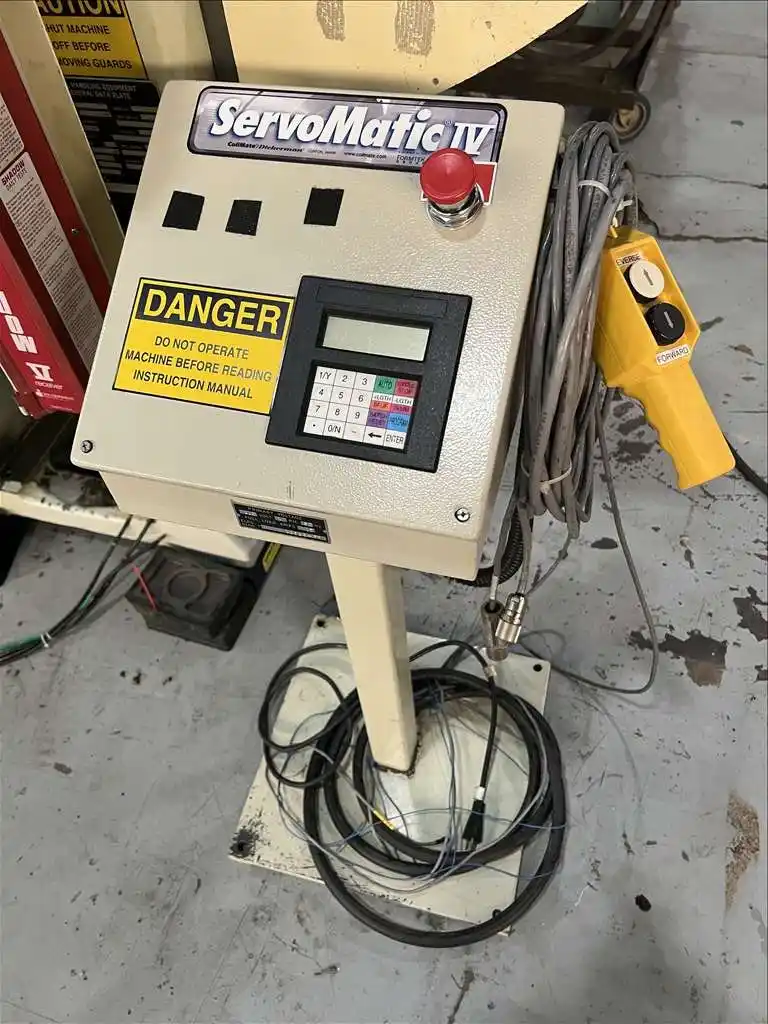

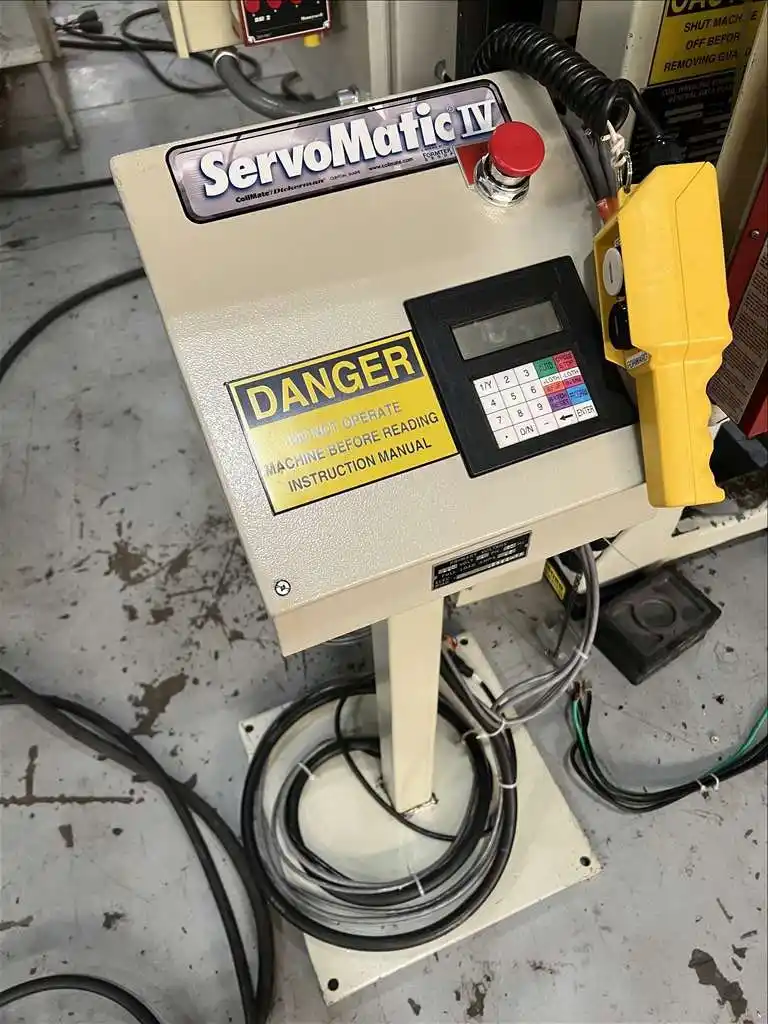

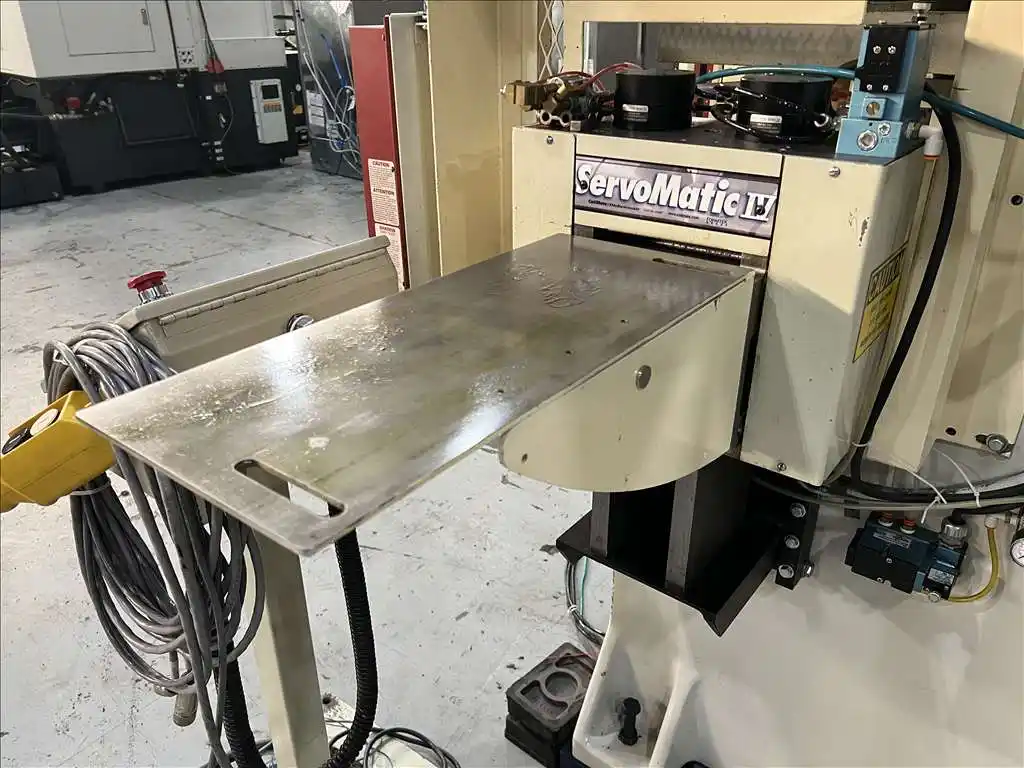

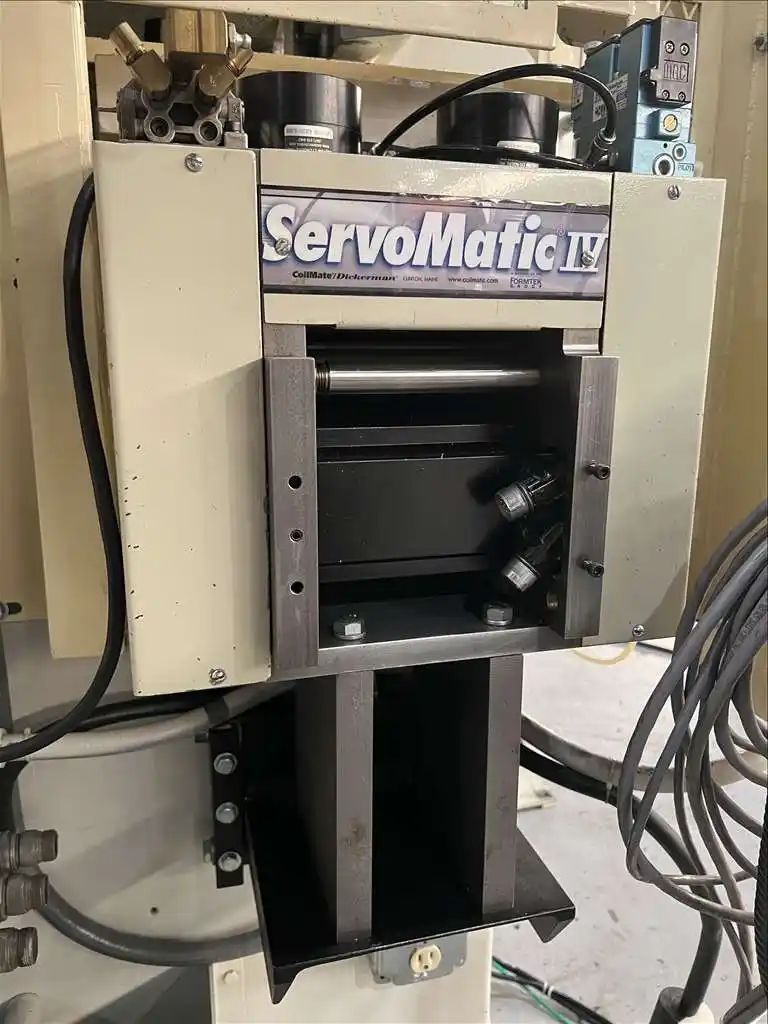

  • Push Pull Servo Feeds
  • Press Mounted Dual-Palm Buttons
  • (8) Programmable CAM Outputs

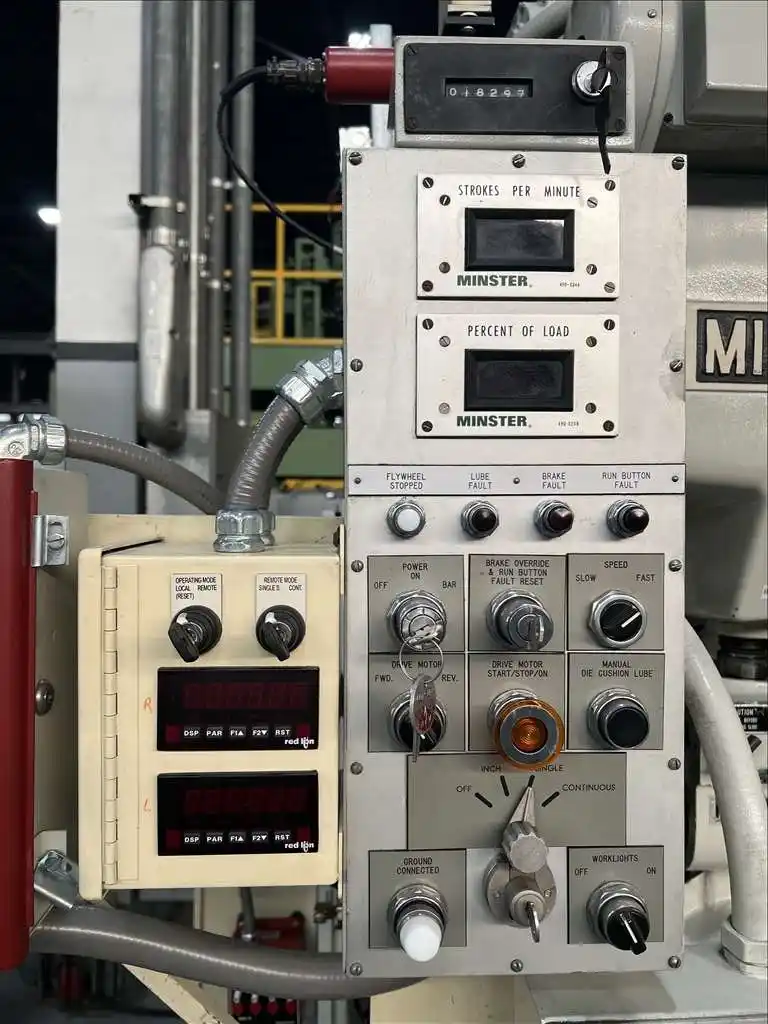

  • Keyed Selector Switch (Inch/Single/Cont.)
  • Variable Speed Motor
  • Knockout in Slide
  • Unisorb Level-Rite Mounts
  • Show More
  • Show Less
  • Wintress Smart Pac 2 Control
  • Wintress Autoset 1500 Load Analyzer
  • Air Clutch & Brake
  • Air Counterbalance
  • Air Cushion Model 12T
  • Push Pull Servo Feeds
  • Press Mounted Dual-Palm Buttons
  • (8) Programmable CAM Outputs
  • Keyed Selector Switch (Inch/Single/Cont.)
  • Variable Speed Motor
  • Knockout in Slide
  • Unisorb Level-Rite Mounts
  • Show More
  • Show Less
Location & Terms
  • Terms: F.O.B.
  • Location: Elk Grove Village, IL
  • Disclaimer: Preliminary Specifications....
