Inventory # 46236 Year: 1997

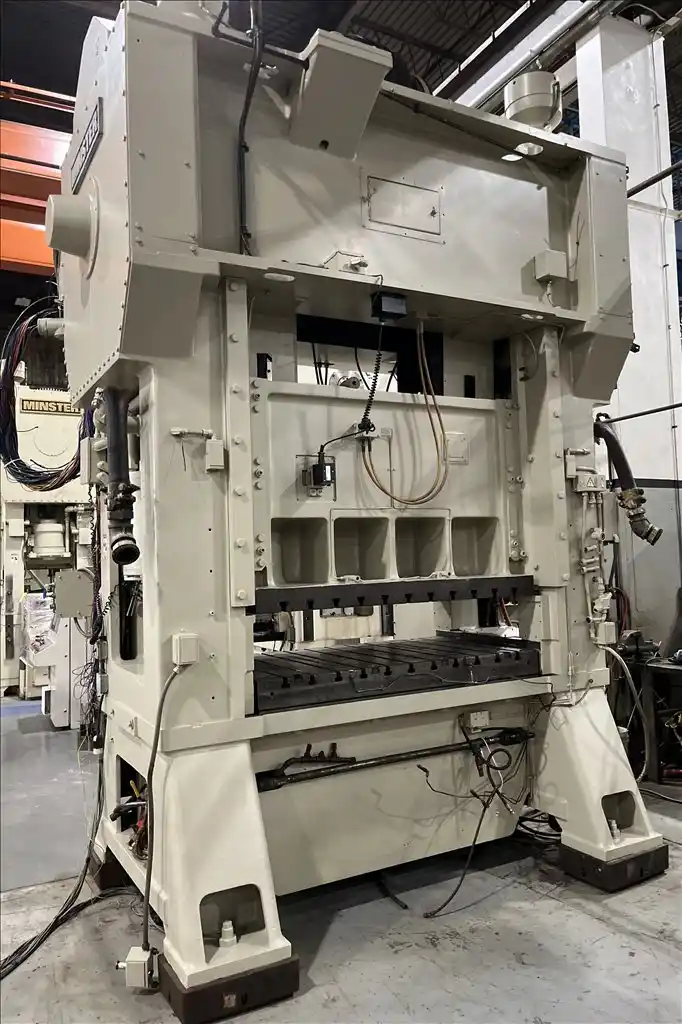

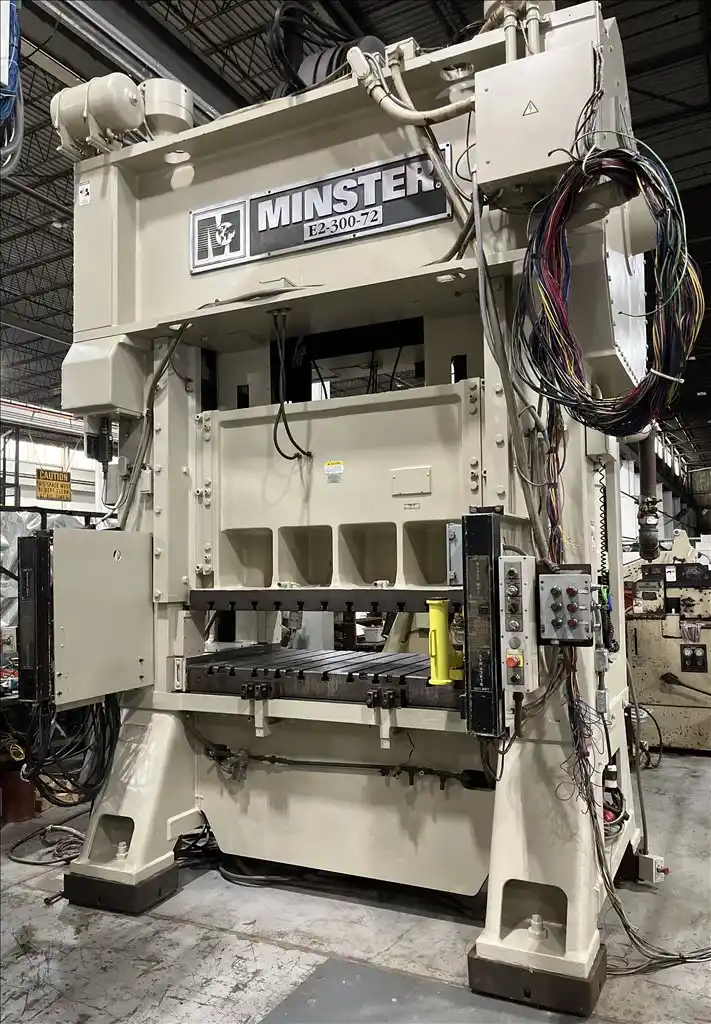

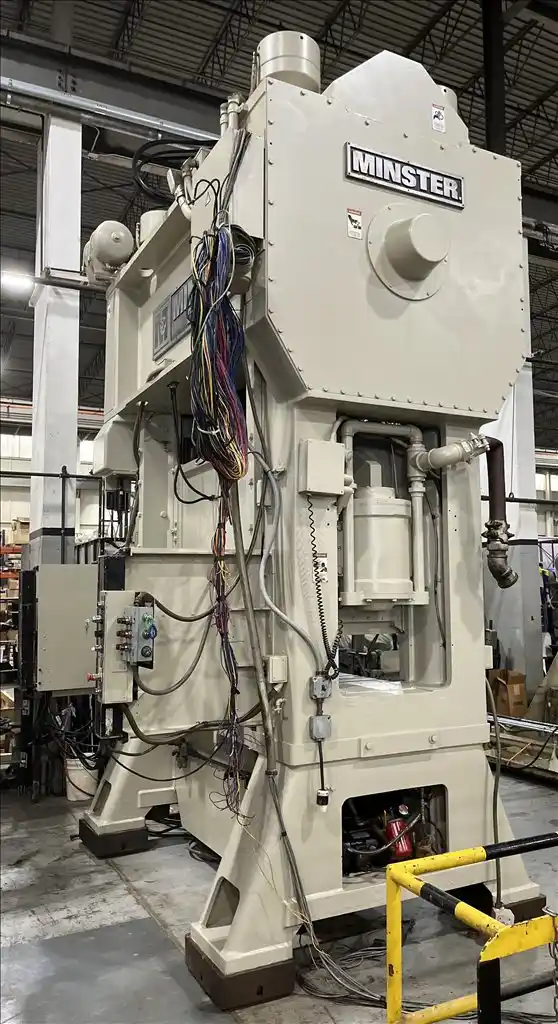

Minster E2-300-72 Hevistamper Straight Side Press

Request a Quote
Measurement

Specifications
  • Capacity: 300 Ton
  • Stroke: 8"
  • Shut Height: 26"
  • Bolster Area: 72" x 42"

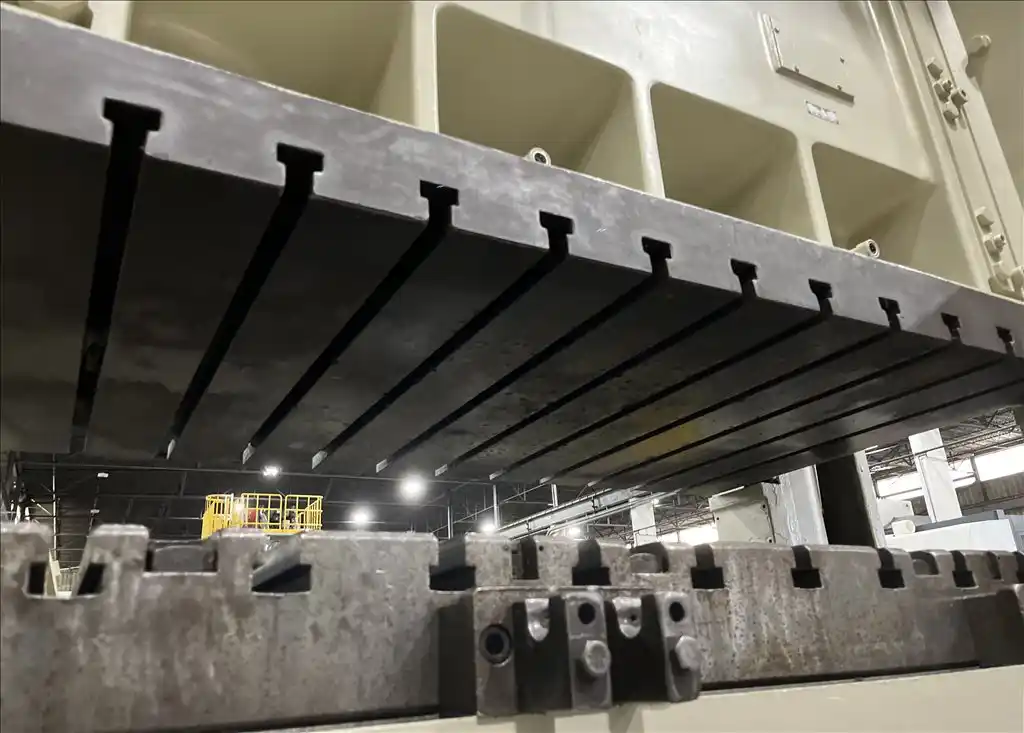

  • Slide Area: 72" x 42"

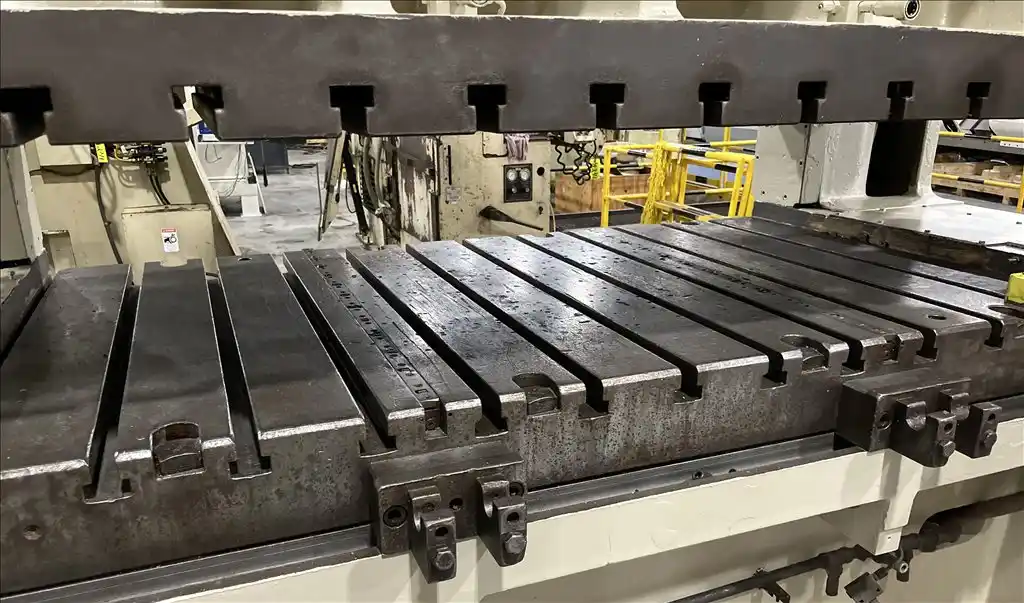

  • Bolster Thickness (T-Slotted): 6"
  • Motorized Slide Adjustment: 6"
  • Speed: 0 - 100 SPM
  • Windows: 27"
  • Show More
  • Show Less
  • Capacity: 272.13 Metric Ton
  • Stroke: 203.20mm
  • Shut Height: 660.40mm
  • Bolster Area: 1828.80mm x 1066.80mm
  • Slide Area: 1828.80mm x 1066.80mm
  • Bolster Thickness (T-Slotted): 152.40mm
  • Motorized Slide Adjustment: 152.40mm
  • Speed: 0 - 100 SPM
  • Windows: 685.80mm
  • Show More
  • Show Less
Equipped With

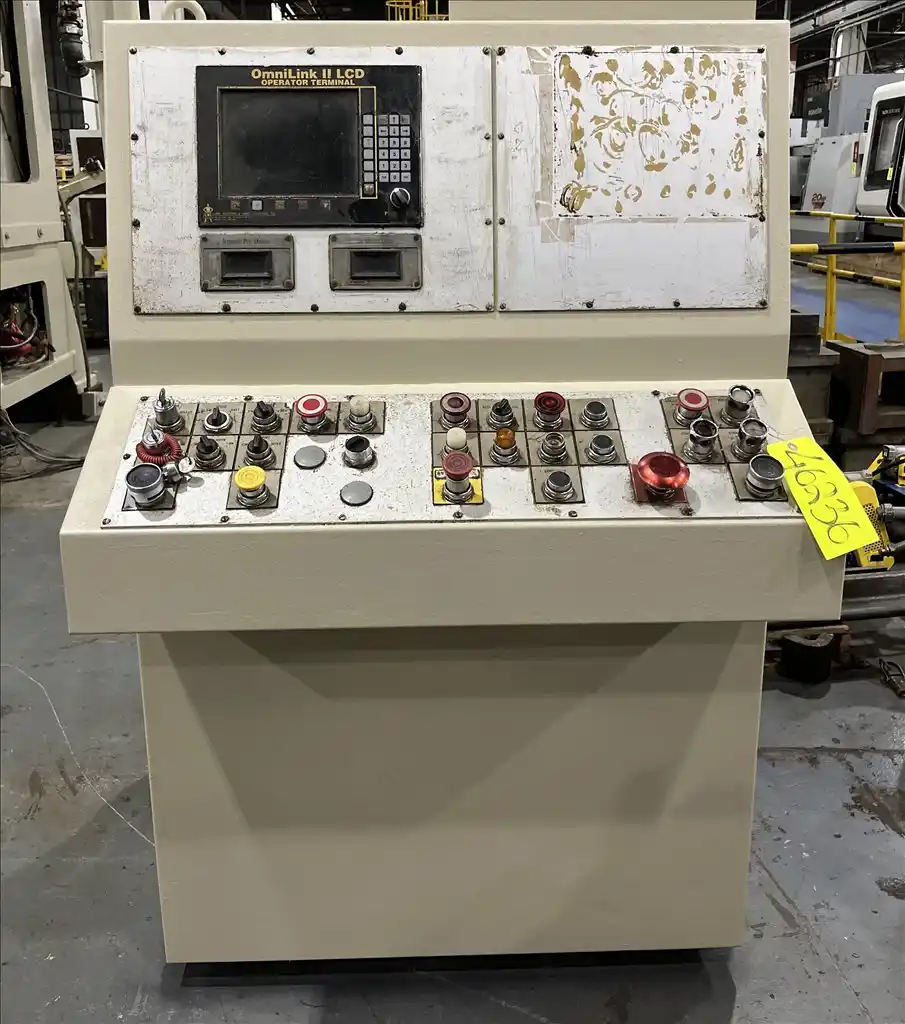

  • Omnilink 5000 Press Control
  • 4-Piece Tie Rod Construction with Hydraulic Tie Rod Nuts
  • Monitorflow Recirculating Oil Lube System
  • 8-Point Gibbing
  • Vibramounts
  • Minster servo coil line: MEF5-26 servo feed 26” x .125” (16” x .250”) capacity
  • MSH30-36-7 straightener 26” x .140” (5” x .350”) capacity
  • MR15-26S single reel 26” x 15,000 lb cap. (20”-24” I.D., 72” O.D.)
  • Air Clutch & Brake
  • Air Counterbalance
  • Show More
  • Show Less
  • Omnilink 5000 Press Control
  • 4-Piece Tie Rod Construction with Hydraulic Tie Rod Nuts
  • Monitorflow Recirculating Oil Lube System
  • 8-Point Gibbing
  • Vibramounts
  • Minster servo coil line: MEF5-26 servo feed 660.40mm x 3.18mm ( 406.40mm x 6.35mm ) capacity
  • MSH30-36-7 straightener 660.40mm x 3.56mm ( 127.00mm x 8.89mm ) capacity
  • MR15-26S single reel 660.40mm x6802.50 kg cap. ( 508.00mm - 609.60mm I.D., 1828.80mm O.D.)
  • Air Clutch & Brake
  • Air Counterbalance
  • Show More
  • Show Less
Location & Terms
  • Terms: F.O.B.
  • Location: Elk Grove Village, IL
  • Disclaimer: Preliminary Specifications....
