Inventory # 46240 Year: 1984 Remanufactured 2017 by NIDEC ARISA including New Control

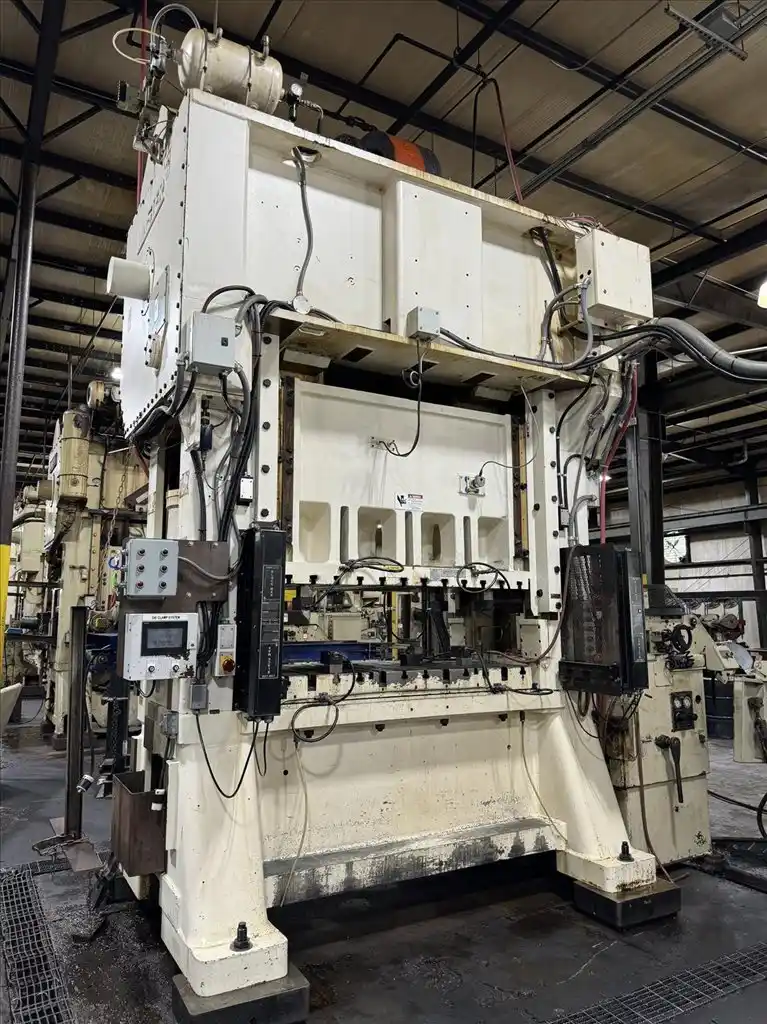

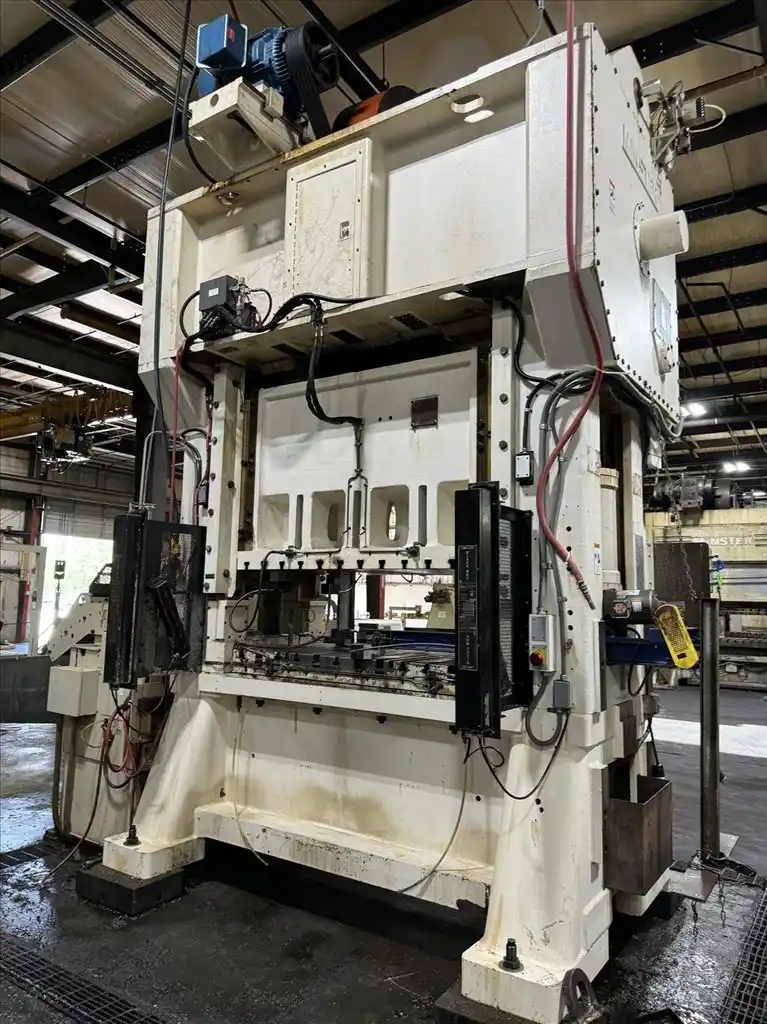

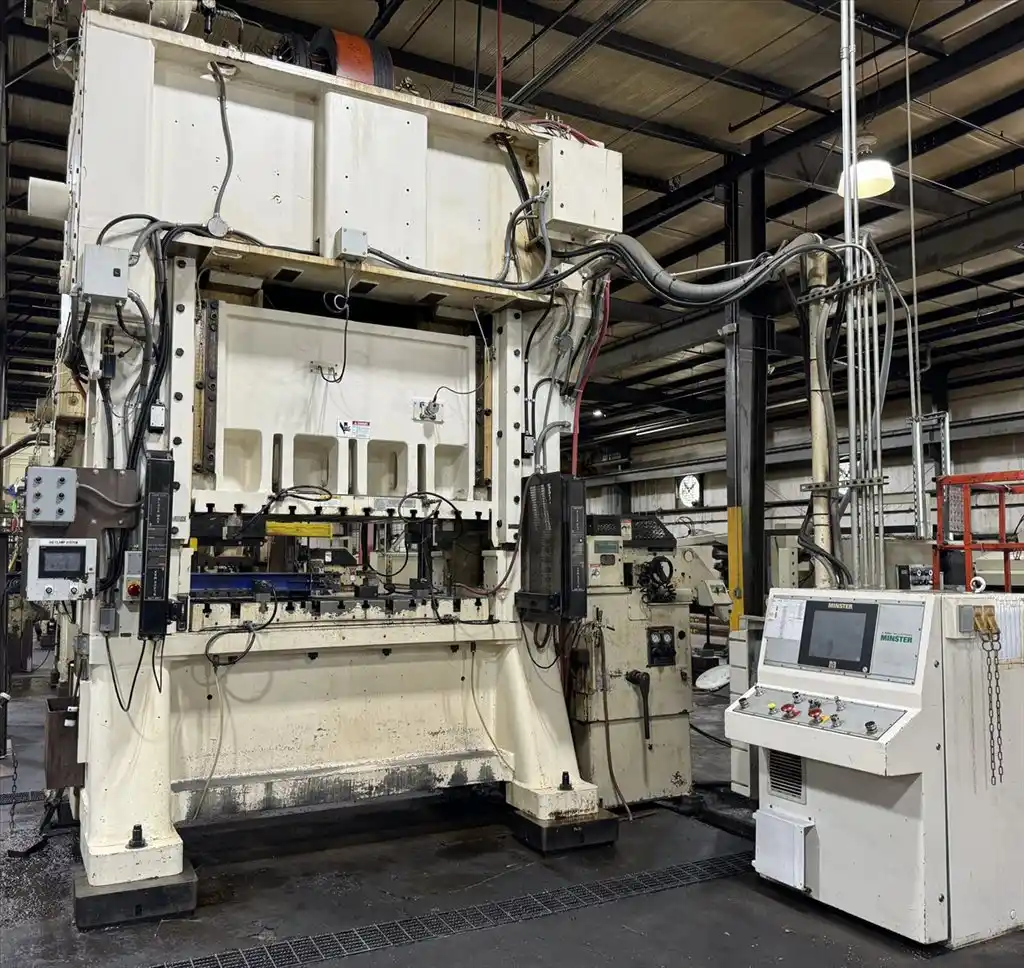

Minster E2-300-72 Hevistamper Straight Side Press (Rebuilt 2017)

Request a Quote
Measurement

Specifications
  • Capacity: 300 Ton
  • Stroke: 4"
  • Shut Height on Bed: 26"
  • Bed Area: 72" x 36"

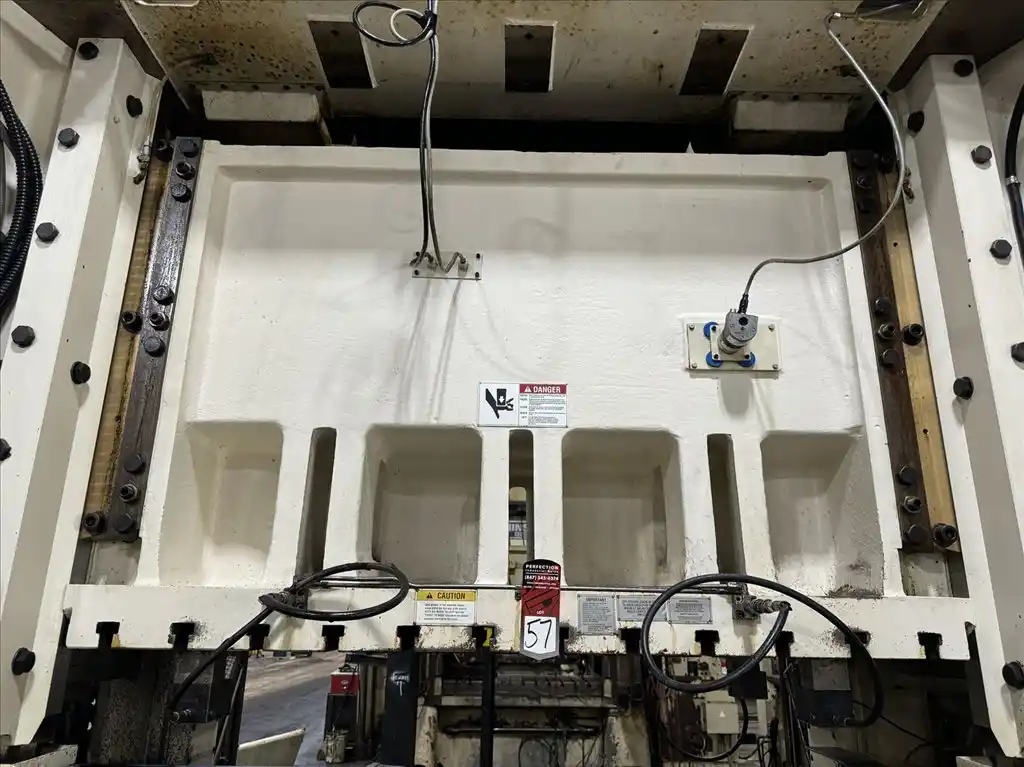

  • Slide Area: 72" x 36"

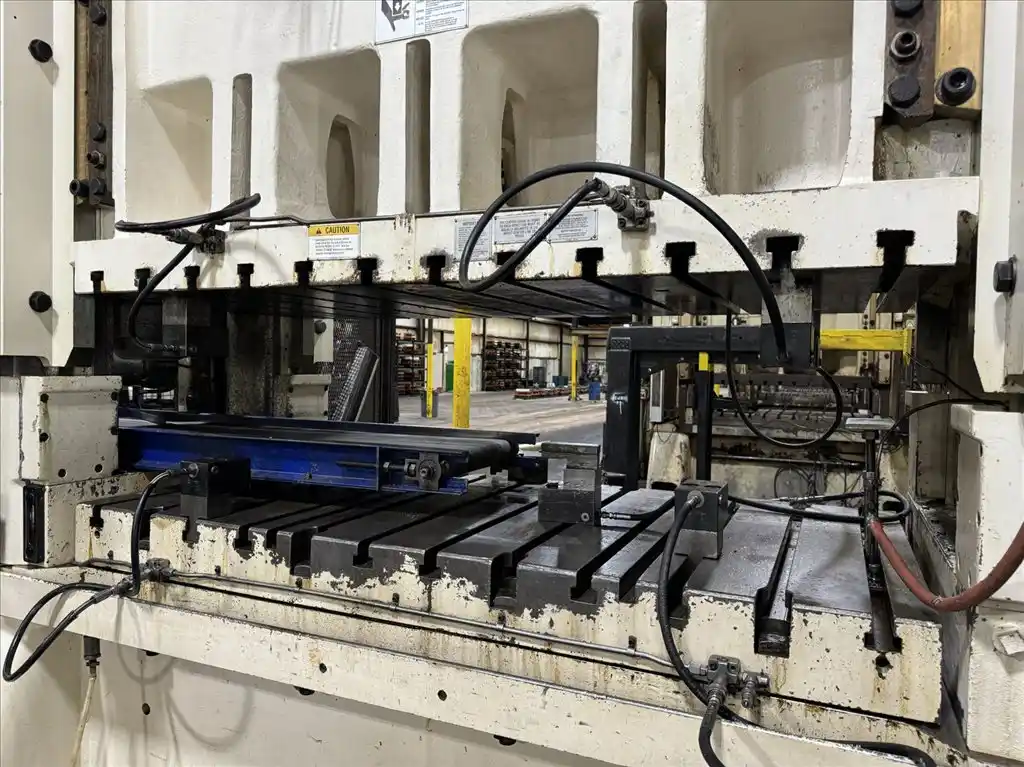

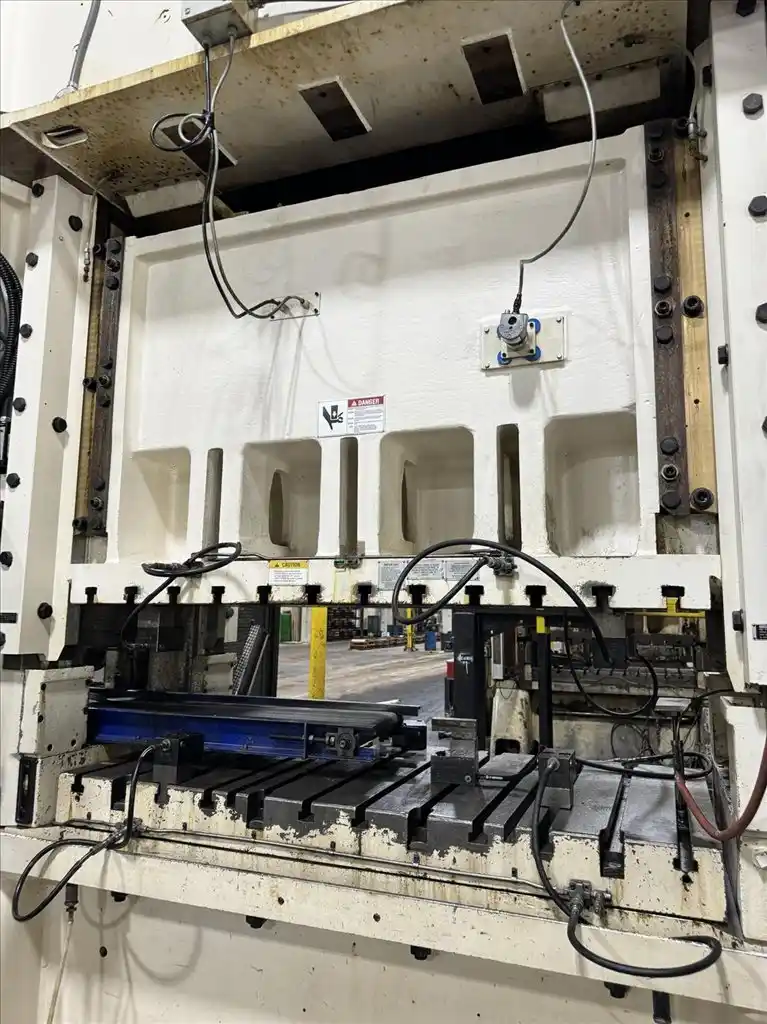

  • Bolster Thickness (T-Slotted): 6"
  • Motorized Slide Adjustment: 6"
  • Speed: 0 - 120 SPM
  • Windows: 22"
  • Show More
  • Show Less
  • Capacity: 272.13 Metric Ton
  • Stroke: 101.60mm
  • Shut Height on Bed: 660.40mm
  • Bed Area: 1828.80mm x 914.40mm
  • Slide Area: 1828.80mm x 914.40mm
  • Bolster Thickness (T-Slotted): 152.40mm
  • Motorized Slide Adjustment: 152.40mm
  • Speed: 0 - 120 SPM
  • Windows: 558.80mm
  • Show More
  • Show Less
Equipped With

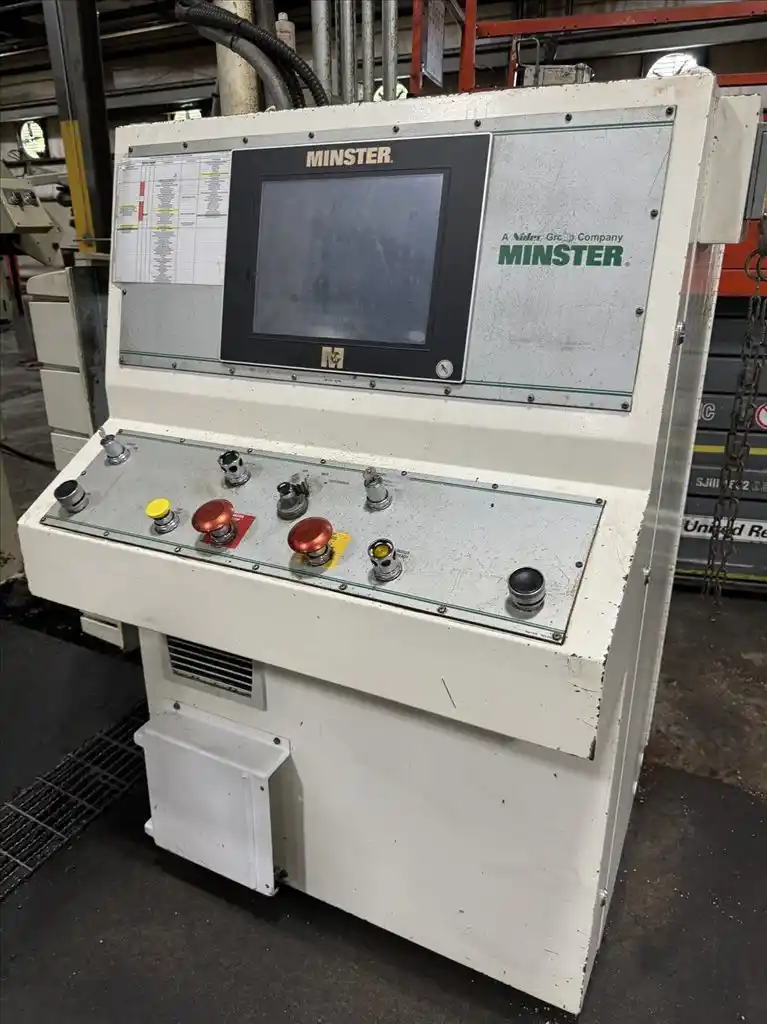

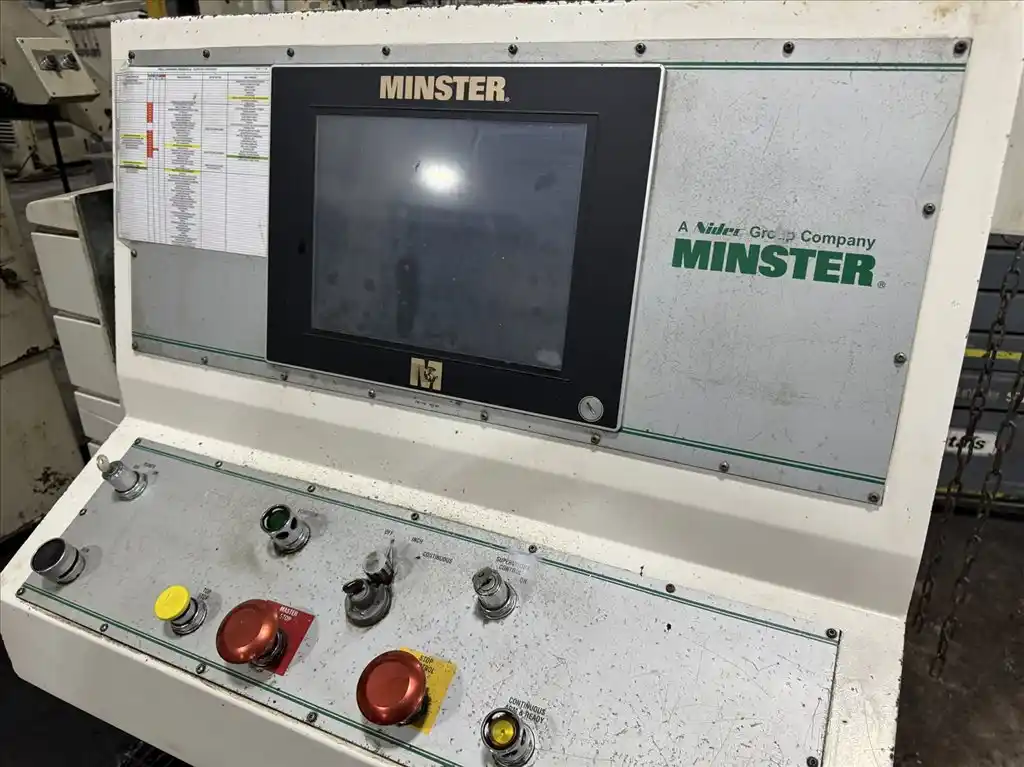

  • Minster PMS Touch Screen Control
  • 4-Piece Tie Rod Construction
  • 8-Point Gibbing
  • Vibramounts

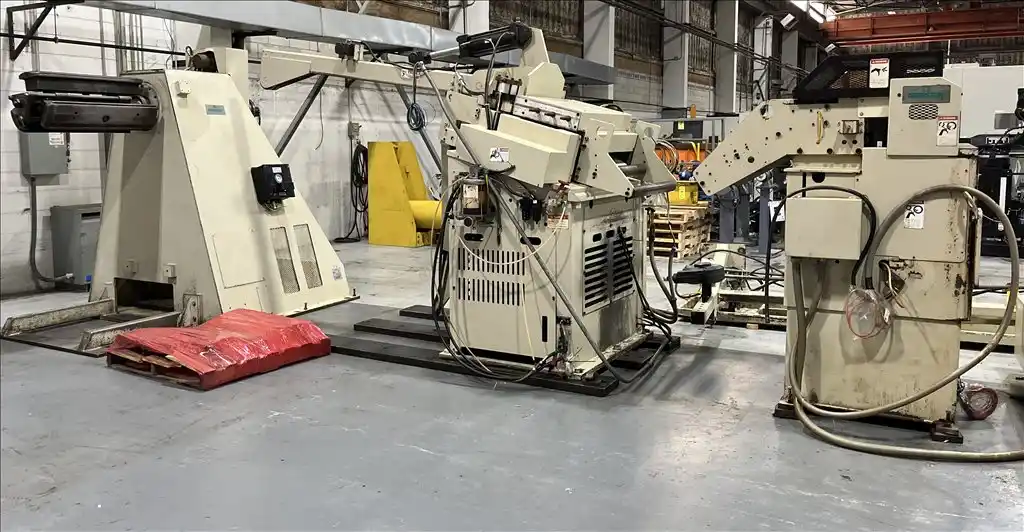

  • Minster servo coil line: MEF5-26 servo feed 26” x .125” (16” x .250”) capacity

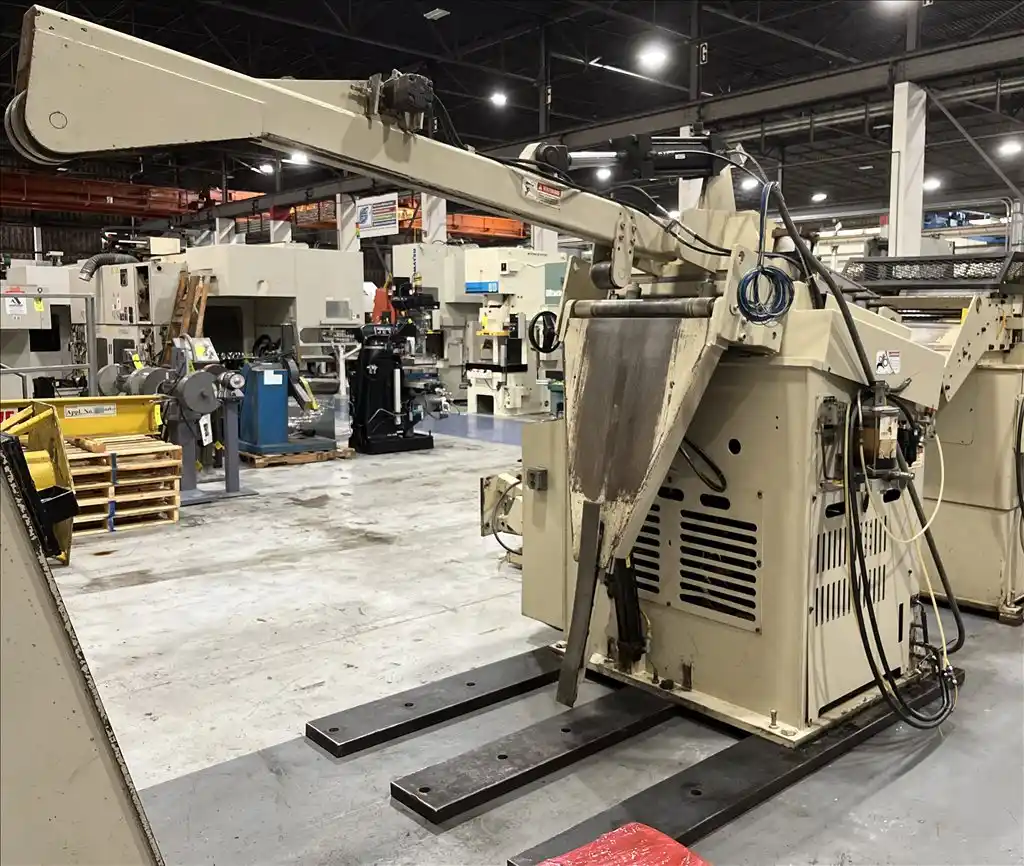

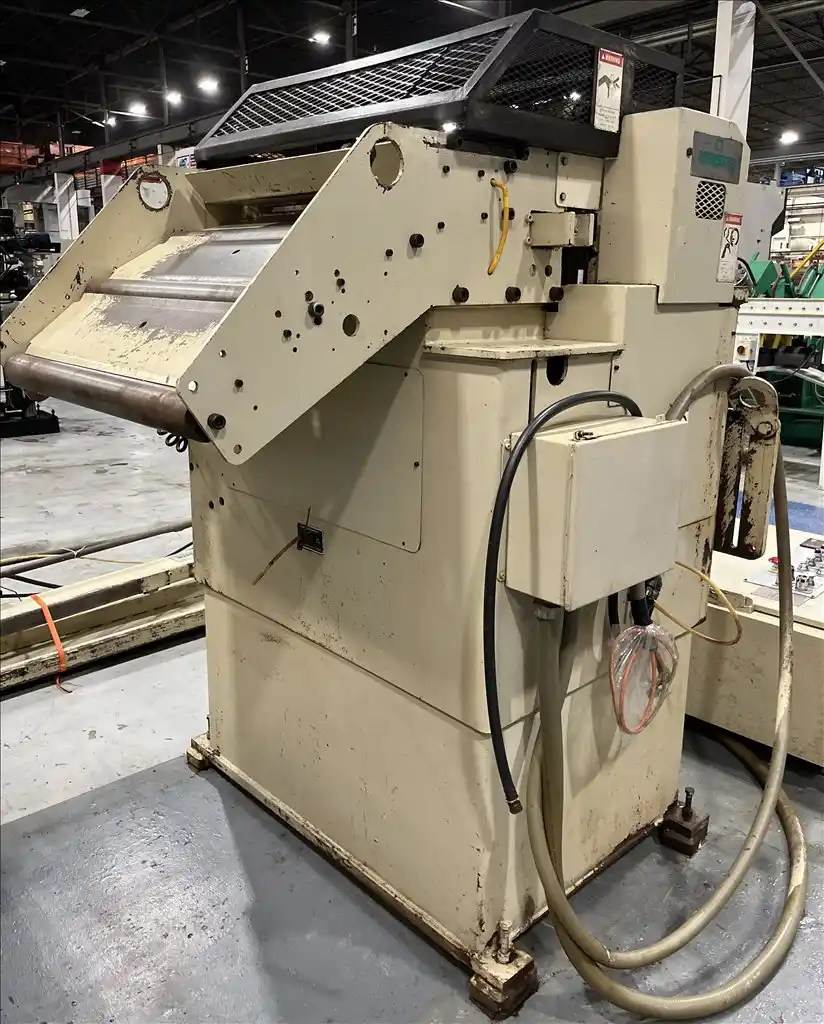

  • MSH30-36-7 straightener 26” x .140” (5” x .350”) capacity

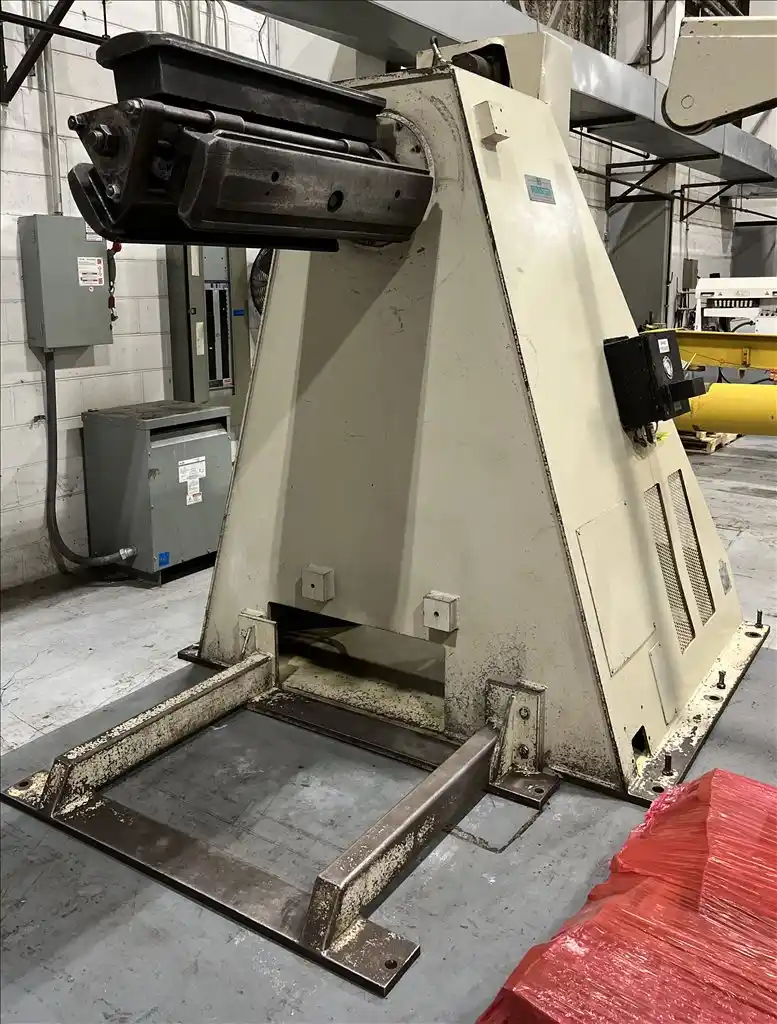

  • MR15-26S single reel 26” x 15,000 lb cap. (20”-24” I.D., 60” O.D.)
  • Air Clutch & Brake
  • Air Counterbalance
  • Remanufactured by Nidec Arisa 2017
  • Show More
  • Show Less
  • Minster PMS Touch Screen Control
  • 4-Piece Tie Rod Construction
  • 8-Point Gibbing
  • Vibramounts
  • Minster servo coil line: MEF5-26 servo feed 660.40mm x 3.18mm ( 406.40mm x 6.35mm ) capacity
  • MSH30-36-7 straightener 660.40mm x 3.56mm ( 127.00mm x 8.89mm ) capacity
  • MR15-26S single reel 660.40mm x6802.50 kg cap. ( 508.00mm - 609.60mm I.D., 1524.00mm O.D.)
  • Air Clutch & Brake
  • Air Counterbalance
  • Remanufactured by Nidec Arisa 2017
  • Show More
  • Show Less
More Info

The Minster E2-300-72 is a heavy-duty mechanical stamping press designed for precision and durability in demanding manufacturing environments. This used Minster straight side press for sale features a 300-ton capacity and a 72” x 36” bed, making it ideal for large-scale metal stamping applications, including automotive, aerospace, and industrial component production.

Equipped with a 4” stroke length and a 72” x 36” slide area, this press delivers consistent, high-quality results for forming, blanking, and progressive die work. The Minster E2 series is known for its robust steel construction, ensuring superior rigidity and minimal deflection under load. Additionally, its precision clutch and brake system improves efficiency and workplace safety.

Features of this Minster E2-300-72 press include:

✔ Rebuilt by Nidec Arisa in 2017

✔ 300-ton stamping capacity for heavy-duty applications

✔ 72” x 36” bed to accommodate large workpieces

✔ 4” stroke length for deep-draw and forming operations

✔ High production speeds with range of 0 to 120 strokes per minute

✔ Precision clutch and brake system for improved safety and control

Inspect this used straight side press by making an appointment. Interested in a comparable stamping press? Check out Perfection’s full inventory of used straight side presses for sale. We also offer a wide variety of used Minster presses for your unique production needs.

Location & Terms
  • Terms: As Is, Where Is
  • Location: Elk Grove Village, IL
  • Disclaimer: Preliminary Specifications....
