Inventory # 48212 Year: 2001

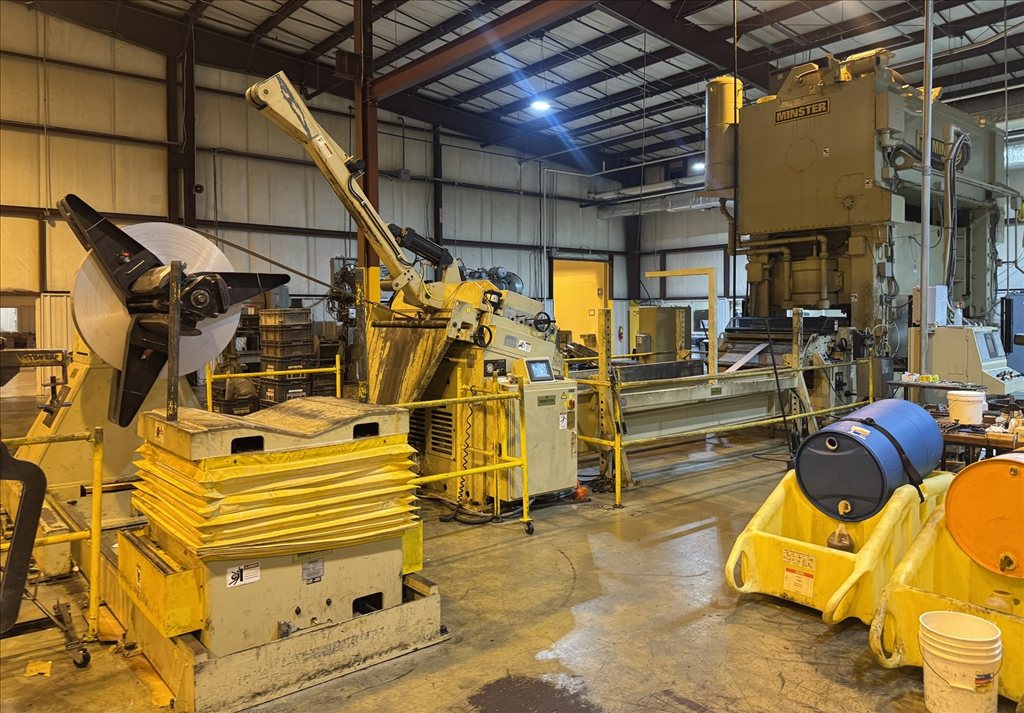

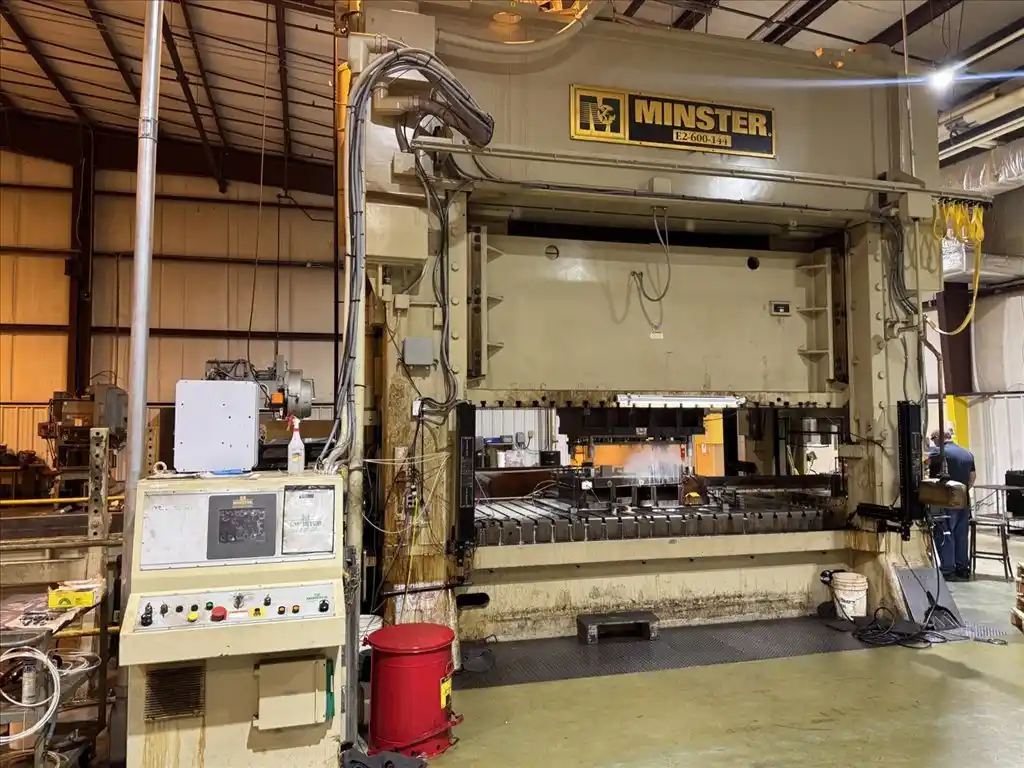

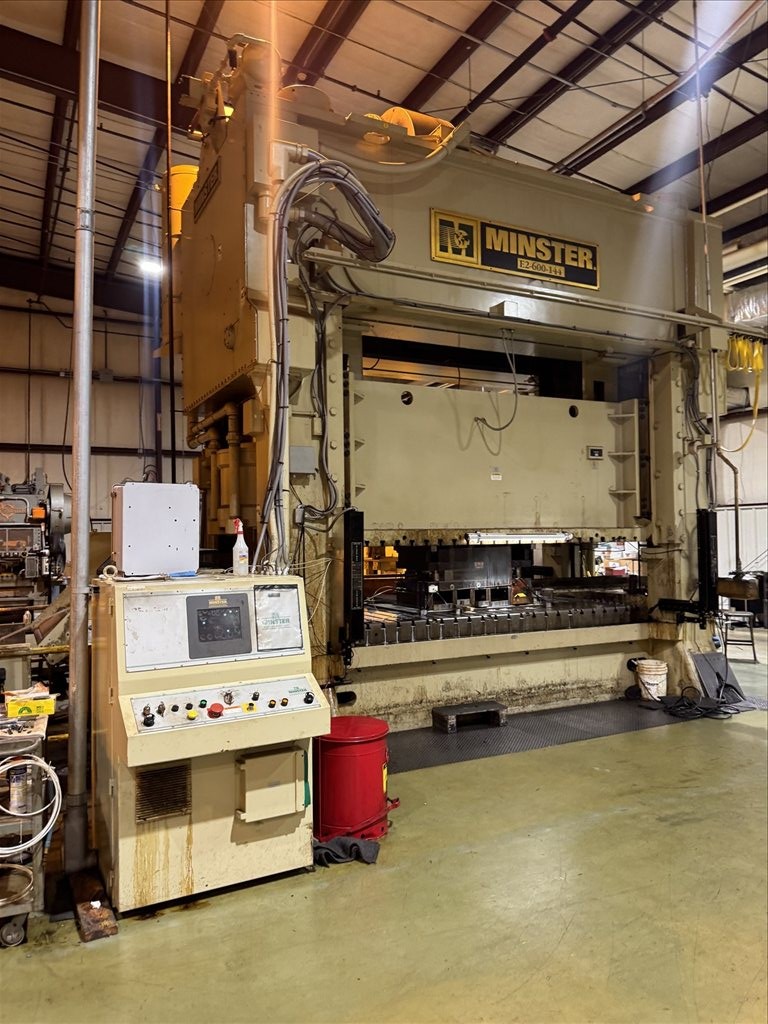

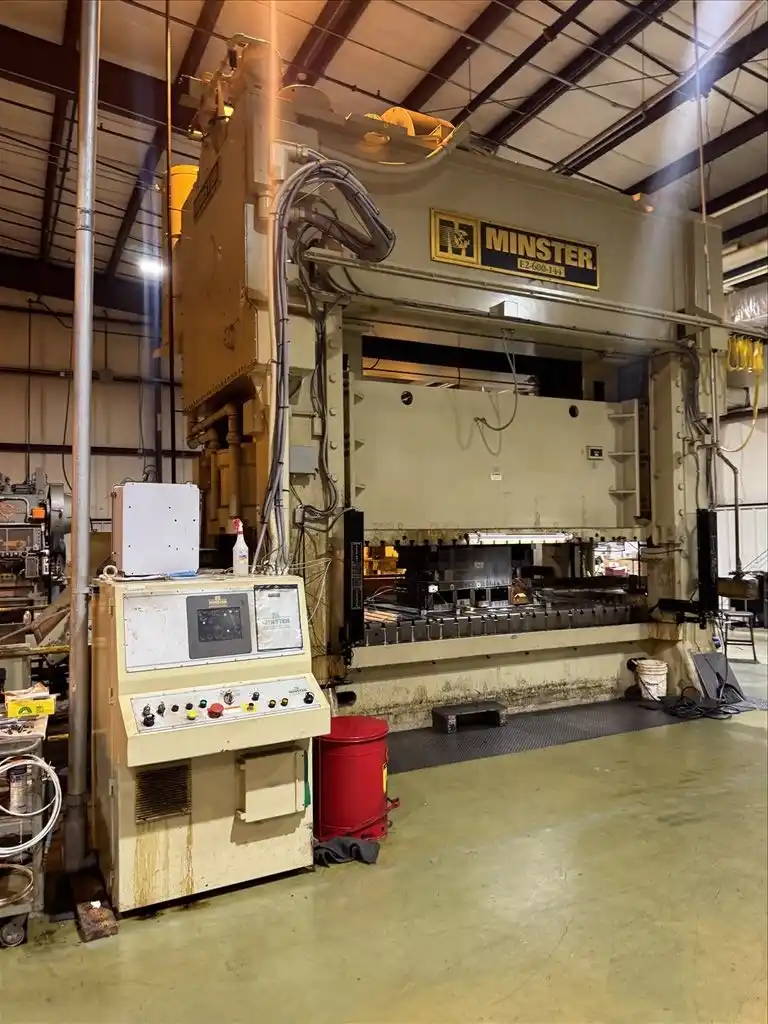

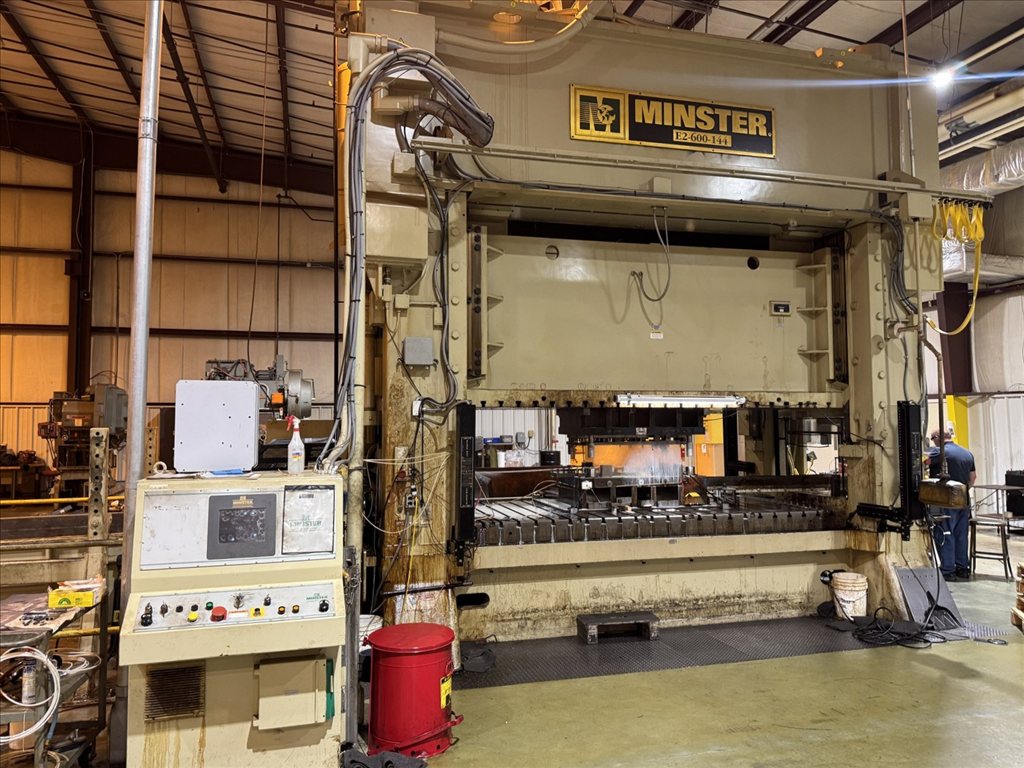

Minster E2-600-144 Straight-Side Double-Crank Press w/ Servo Coil Line

Request a Quote
Measurement

Specifications
  • Tonnage Capacity @ ¼" ABDC: 600 Tons
  • Stroke Length: 12"
  • Stroke Speed: 35 - 70 SPM
  • Shut Height on Bed: 38"
  • Bed & Slide Area (R-L x F-B): 144" x 68"
  • Bed Opening Area (R-L x F-B): 138" x 26"
  • Slide Adjustment: 6"
  • Bolster Thickness: 7"
  • Window Width: 53"
  • Drive Motor: 100 HP

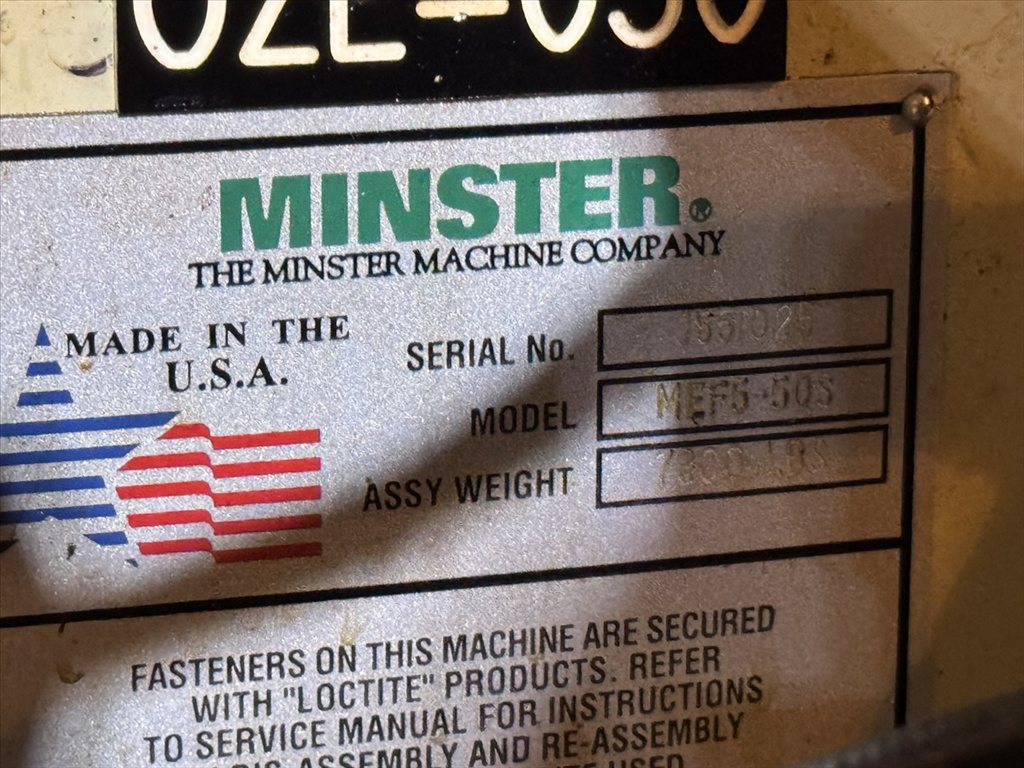

  • Minster MEF5-50S Servo Feed
  • Max. Stock Thickness @ Full Width: 0.062'
  • Max. Stock Width @ Full Thickness: 25"
  • Stock Width Range: 2" - 50"
  • Stock Thickness Range: 0.062" - 0.125"
  • Feed Roll Diameter: 5.4"

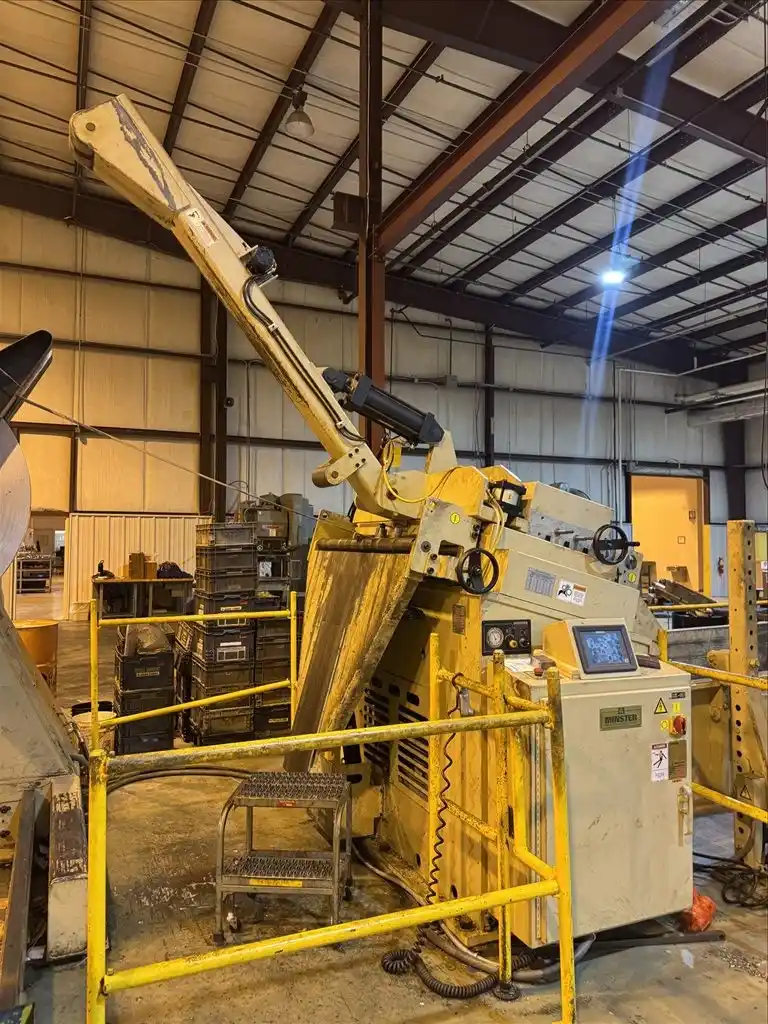

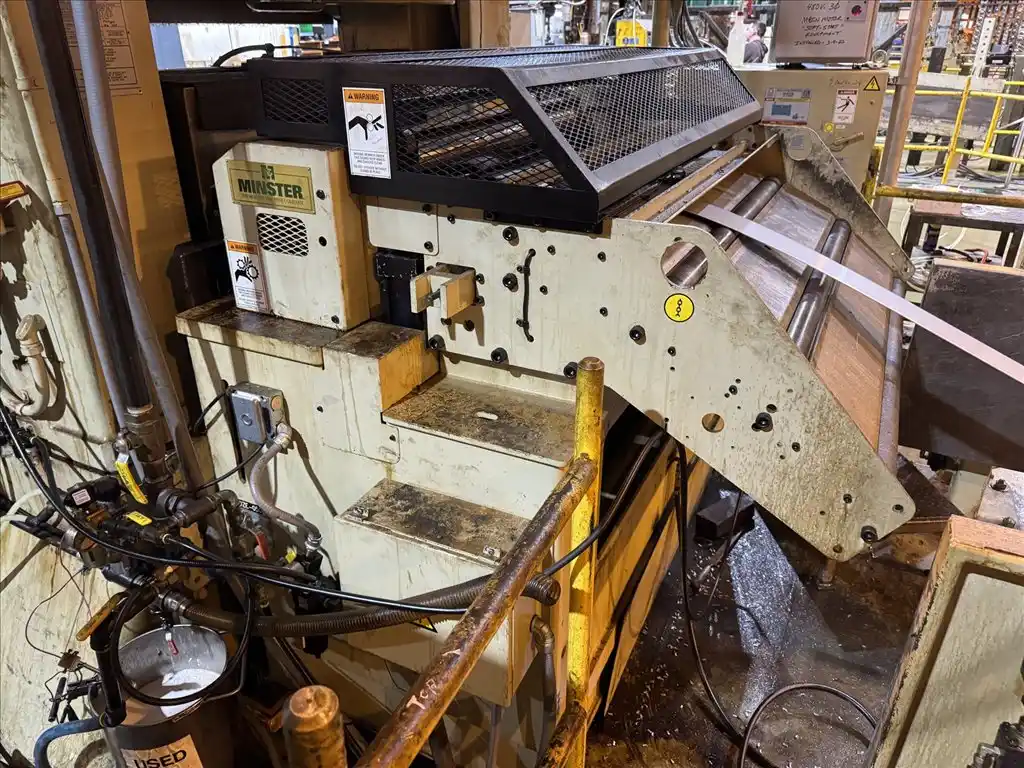

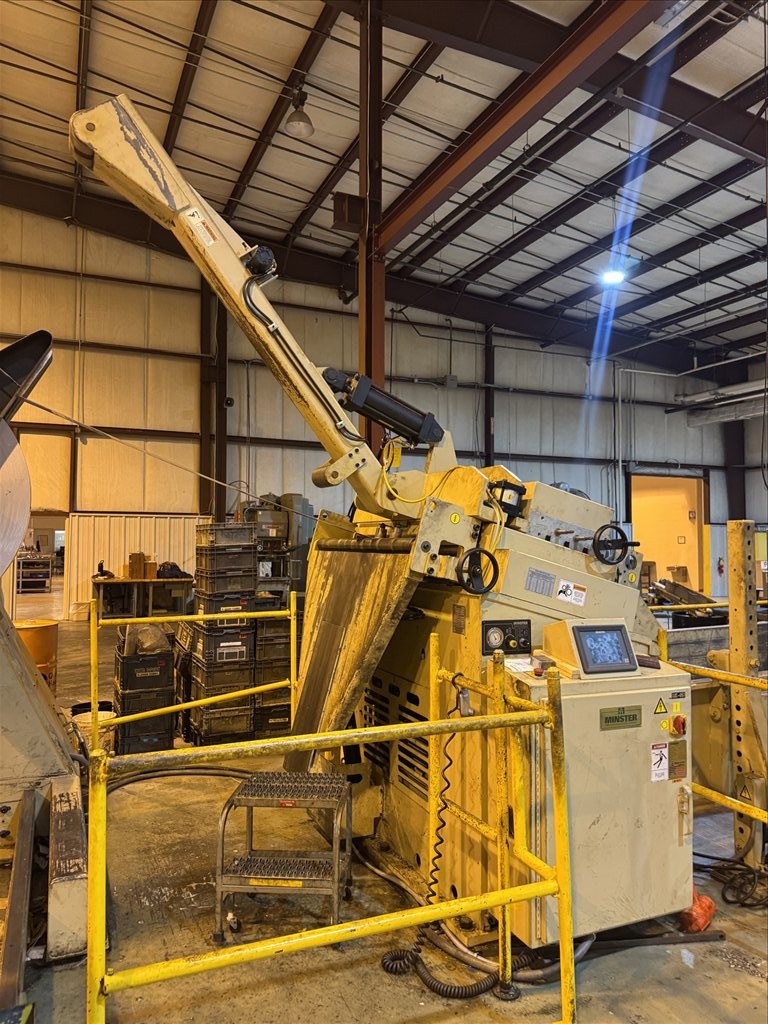

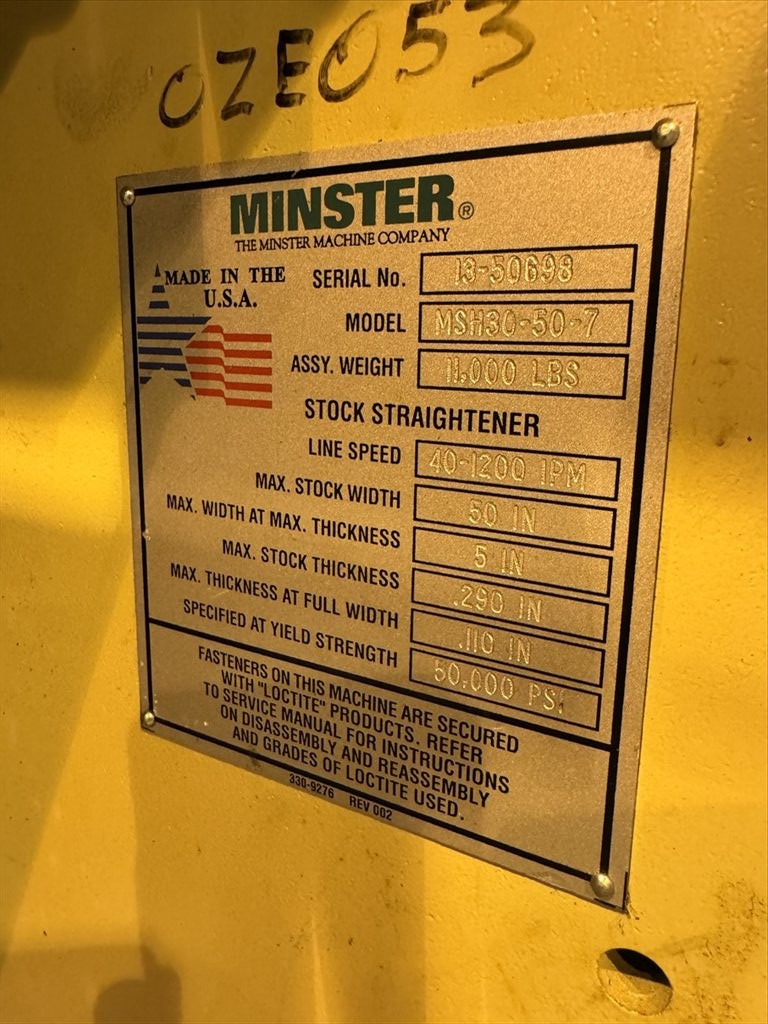

  • Minster MSH30-50-7 Straightener
  • Line Speed: 40 - 1200 IPM
  • Strip Width Range: 2" - 50"
  • Strip Thickness Range: 0.110" - 0.290"
  • Pinch Roll Diameter: 5.1"
  • Number of Work Rolls: 7
  • Work Rolls Diameter: 3"

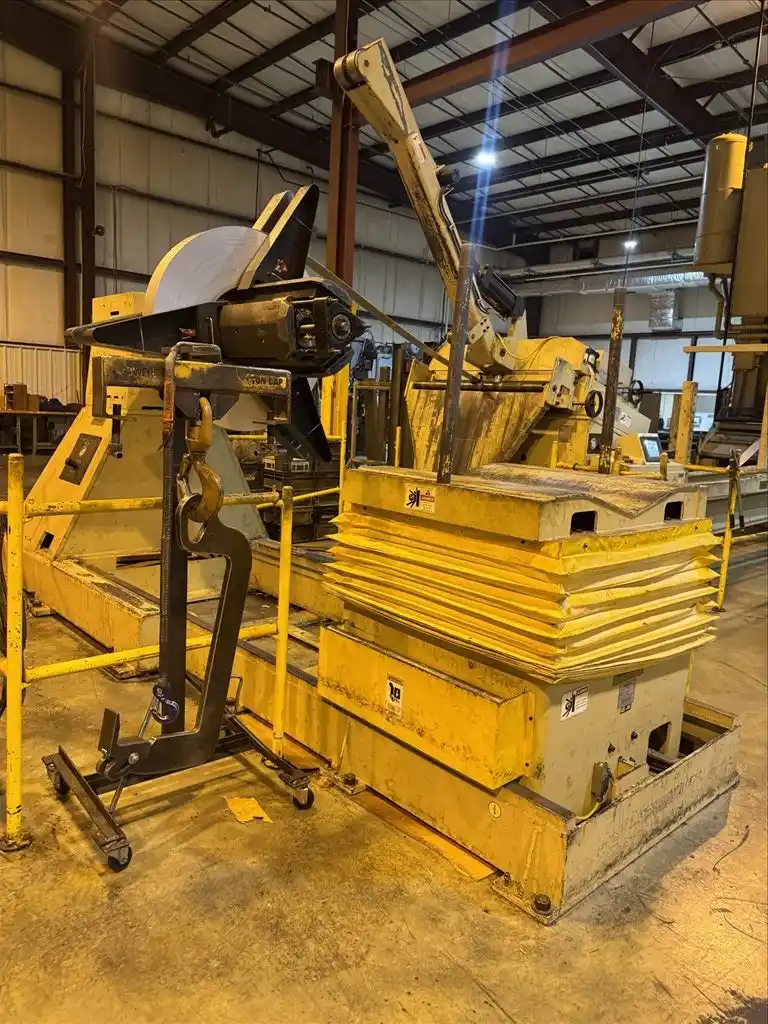

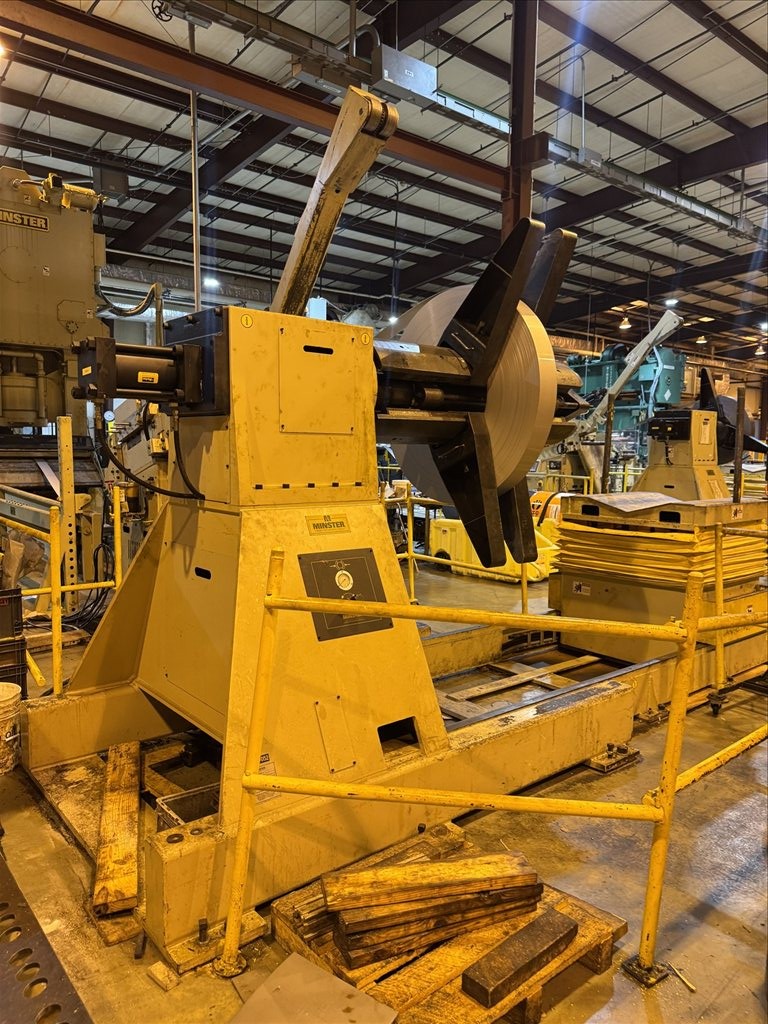

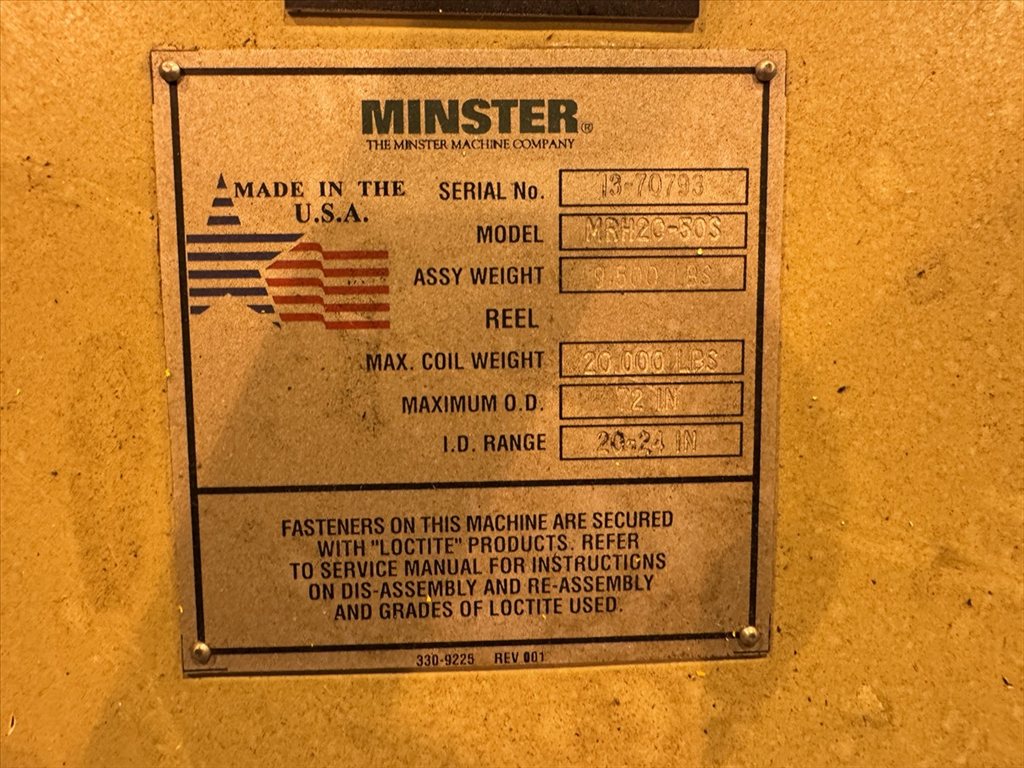

  • Minster MRH20-50S Reel
  • Capacity on Center: 20,000 lb.
  • Max. Stock Width: 50"
  • Max. Stock Thickness: 0.375"
  • Coil ID Range: 20" - 24"
  • Max. Coil OD: 72"
  • Max. Coil OD @ Full Width: 55.6"
  • Show More
  • Show Less
  • Tonnage Capacity @ ABDC: 544.26 Metric Tons
  • Stroke Length: 304.80mm
  • Stroke Speed: 35 - 70 SPM
  • Shut Height on Bed: 965.20mm
  • Bed & Slide Area (R-L x F-B): 3657.60mm x 1727.20mm
  • Bed Opening Area (R-L x F-B): 3505.20mm x 660.40mm
  • Slide Adjustment: 152.40mm
  • Bolster Thickness: 177.80mm
  • Window Width: 1346.20mm
  • Drive Motor: 74.57 kw
  • Minster MEF5-50S Servo Feed
  • Max. Stock Thickness @ Full Width: 18.90mm
  • Max. Stock Width @ Full Thickness: 635.00mm
  • Stock Width Range: 50.80mm - 1270.00mm
  • Stock Thickness Range: 1.57mm - 3.18mm
  • Feed Roll Diameter: 137.16mm
  • Minster MSH30-50-7 Straightener
  • Line Speed: 40 -508.00 mm/sec
  • Strip Width Range: 50.80mm - 1270.00mm
  • Strip Thickness Range: 2.79mm - 7.37mm
  • Pinch Roll Diameter: 129.54mm
  • Number of Work Rolls: 7
  • Work Rolls Diameter: 76.20mm
  • Minster MRH20-50S Reel
  • Capacity on Center: 9070 kg
  • Max. Stock Width: 1270.00mm
  • Max. Stock Thickness: 9.53mm
  • Coil ID Range: 508.00mm - 609.60mm
  • Max. Coil OD: 1828.80mm
  • Max. Coil OD @ Full Width: 1412.24mm
  • Show More
  • Show Less
Equipped With

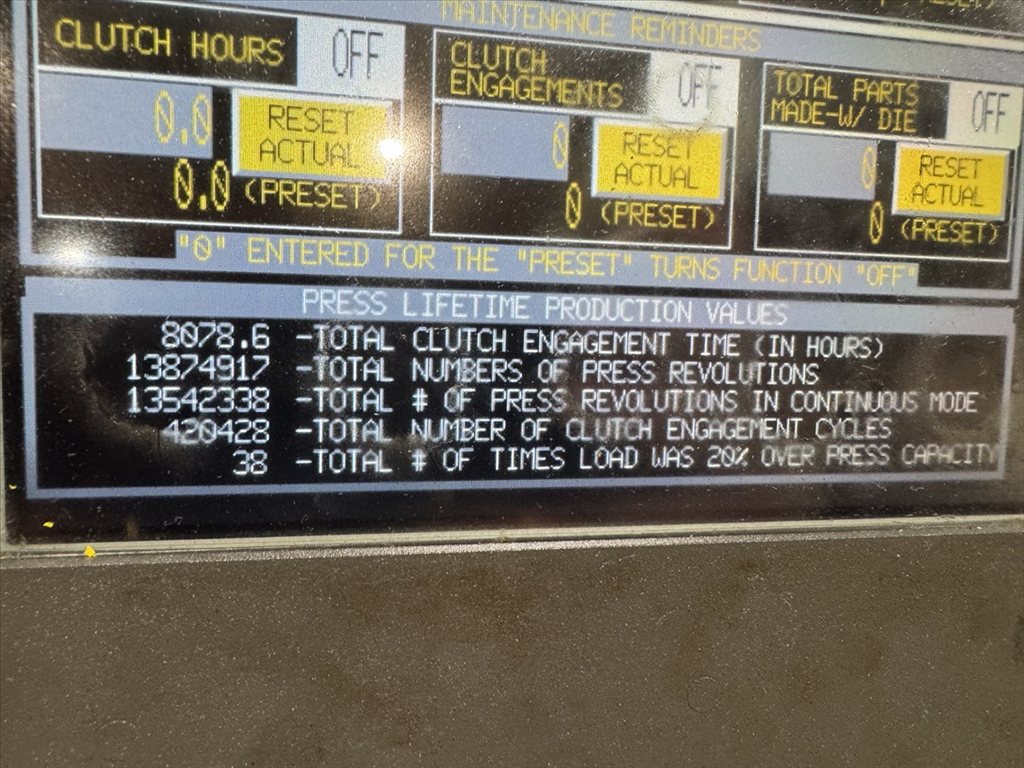

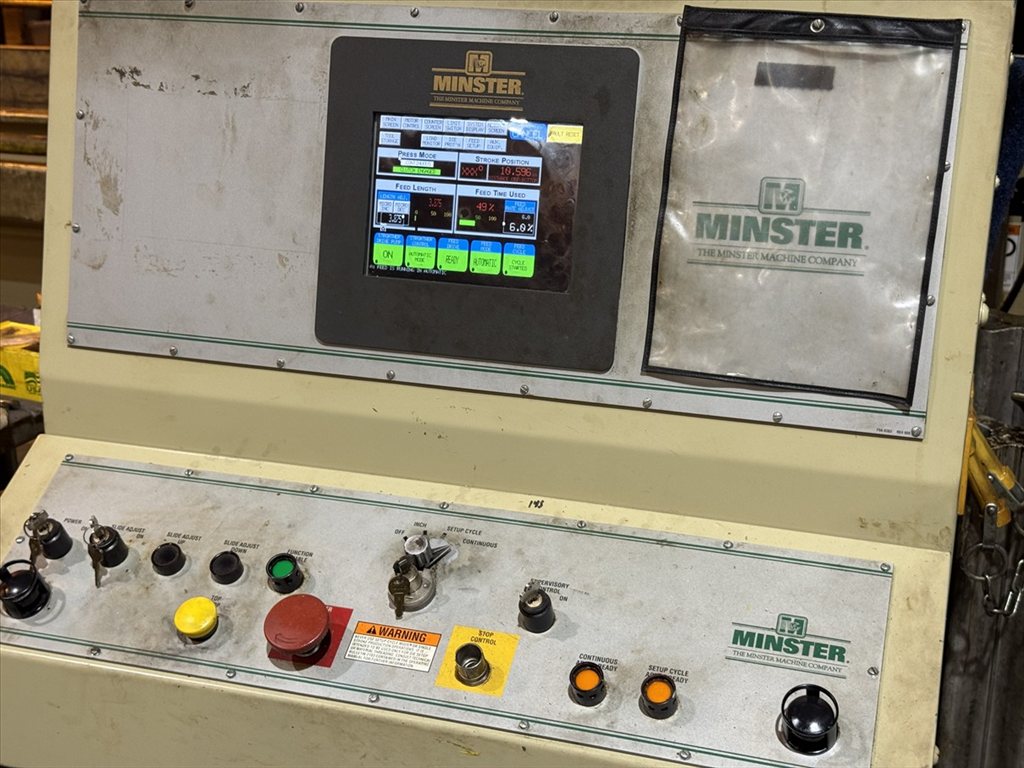

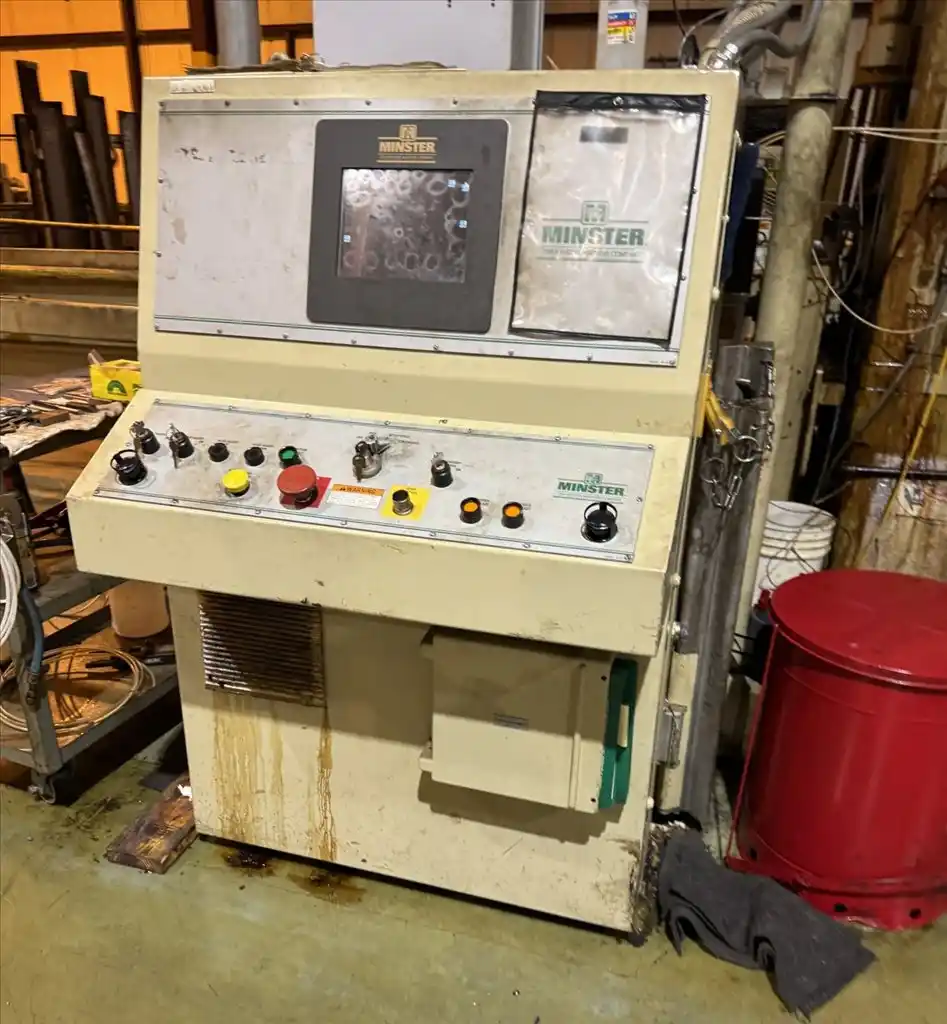

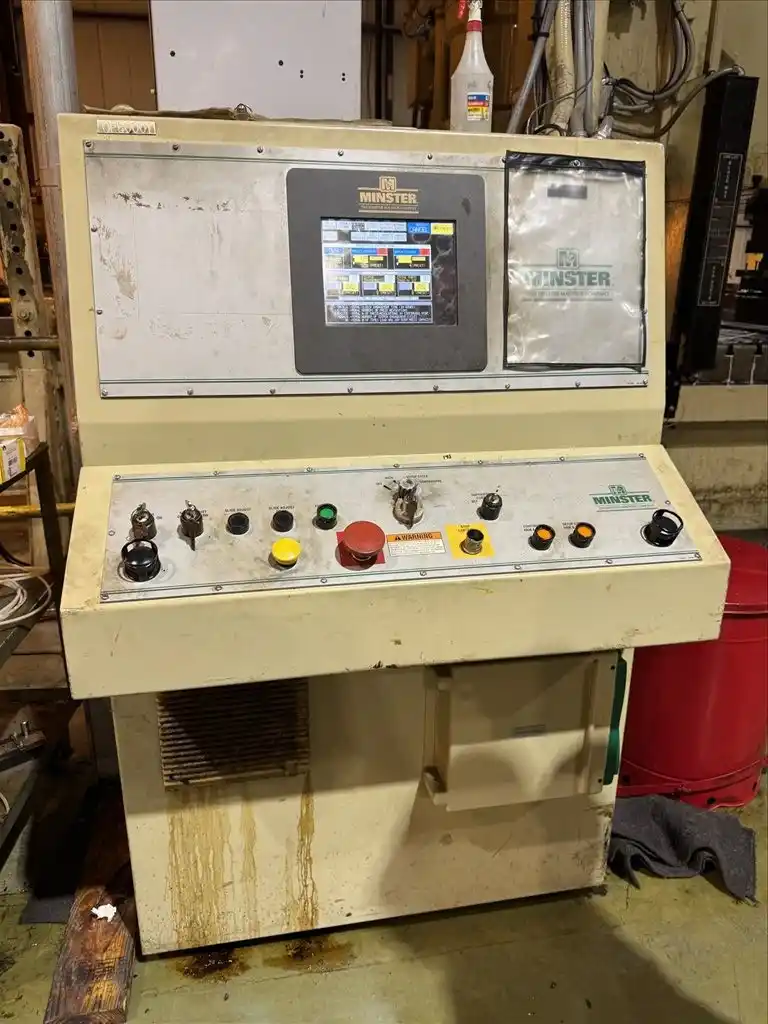

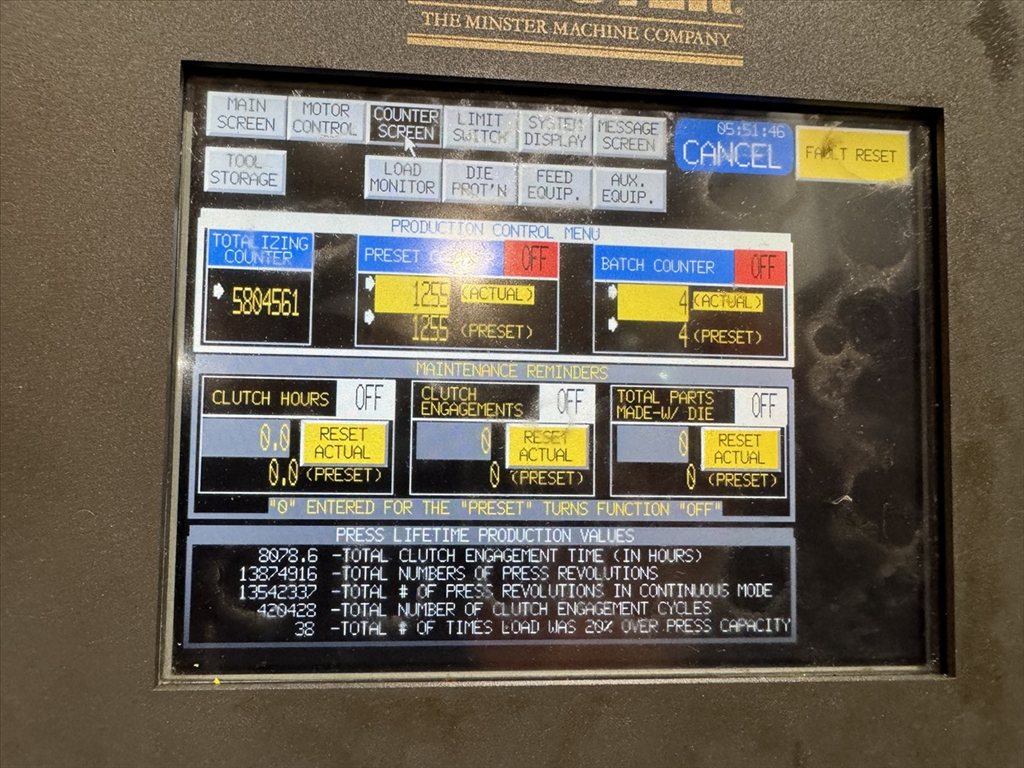

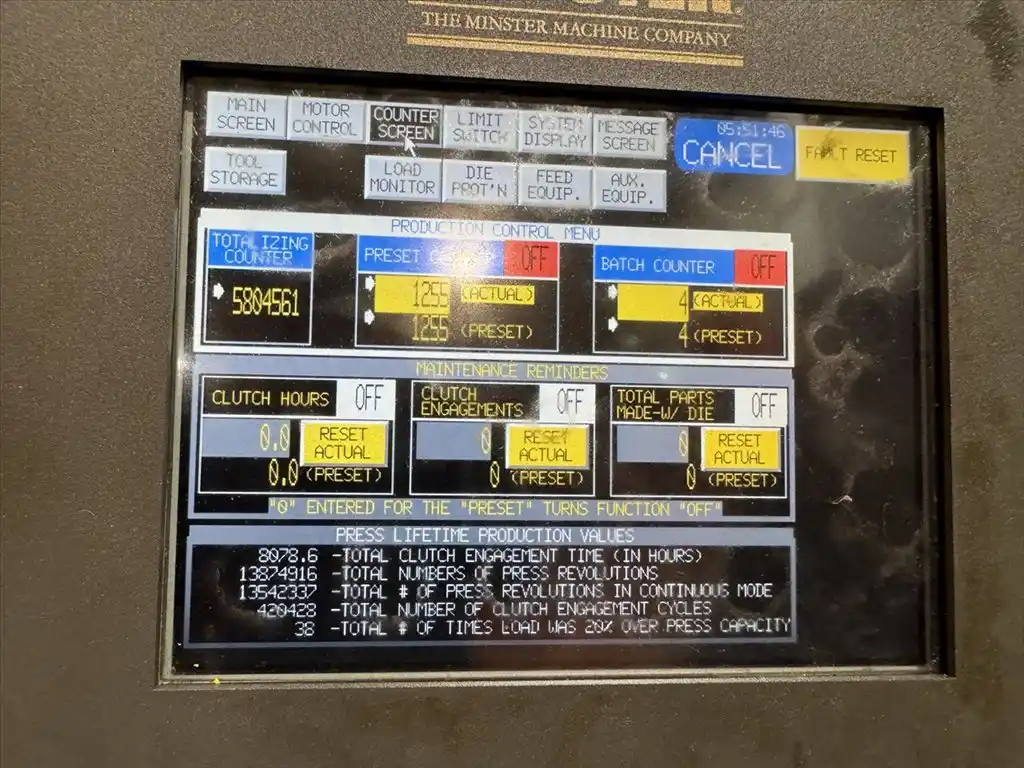

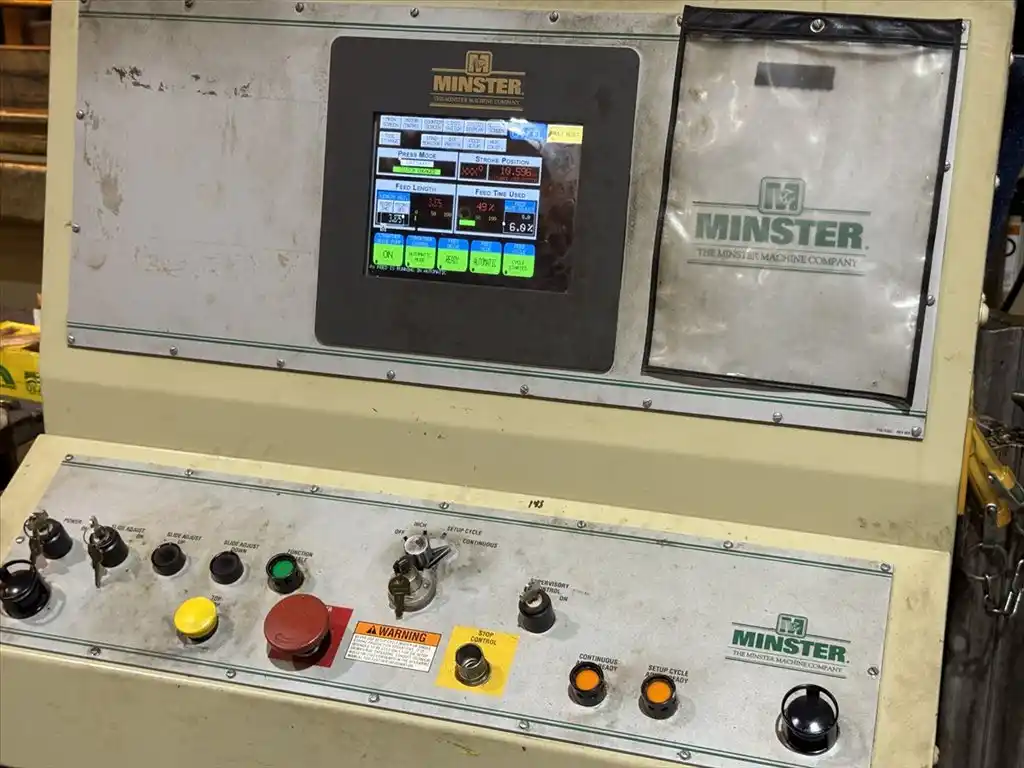

  • Minster Production Management Press Control Console
  • Air Clutch & Brake
  • Air Counterbalance
  • E2-Monitorflow Lube System
  • Hydraulic Tiie Rod Nuts
  • Two Point Eccentric Crank Shaft
  • Single Geared, Twin-End Drive

  • Minster Servo Coil Line
  • Minster MEF5-50S Servo Feed

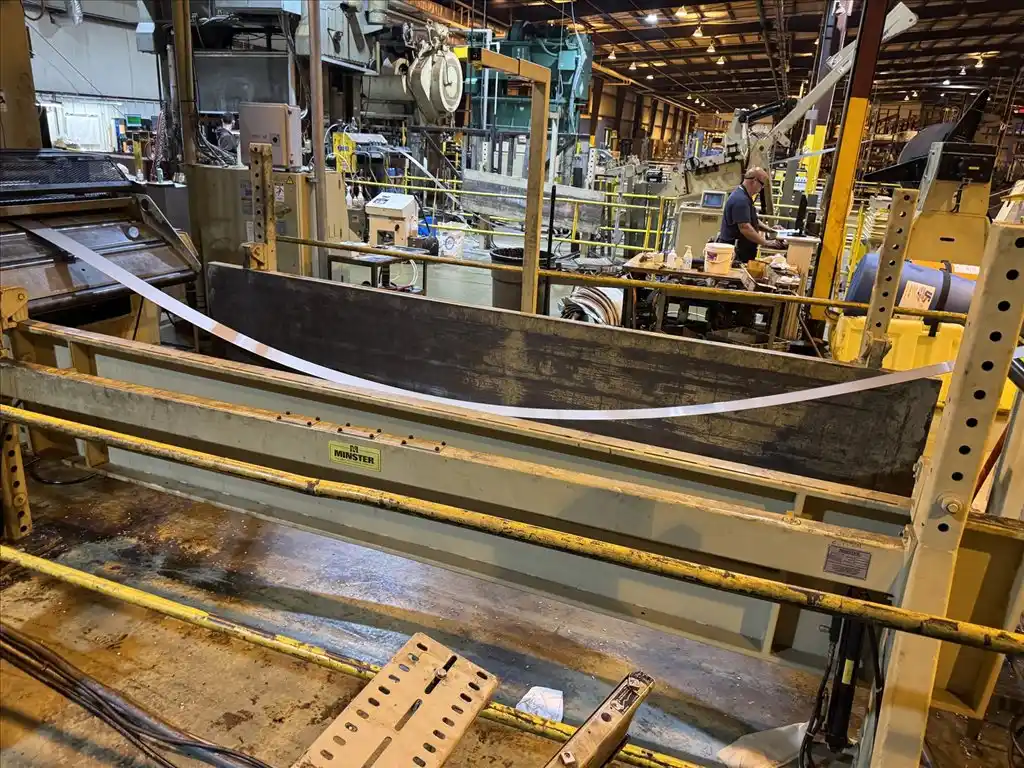

  • Minster Thread Table
  • Minster MSH30-50-7 Straightener
  • Minster MRH20-50S Reel w/ 35,000 lb. Coil Car
  • Show More
  • Show Less
  • Minster Production Management Press Control Console
  • Air Clutch & Brake
  • Air Counterbalance
  • E2-Monitorflow Lube System
  • Hydraulic Tiie Rod Nuts
  • Two Point Eccentric Crank Shaft
  • Single Geared, Twin-End Drive

  • Minster Servo Coil Line
  • Minster MEF5-50S Servo Feed
  • Minster Thread Table
  • Minster MSH30-50-7 Straightener
  • Minster MRH20-50S Reel w/ 35,000 lb. Coil Car
  • Show More
  • Show Less
Location & Terms
  • Terms: As Is, Where Is
  • Location: Owensboro, KY
  • Disclaimer: Preliminary Specifications....
