Inventory # 47290 Year: N/A

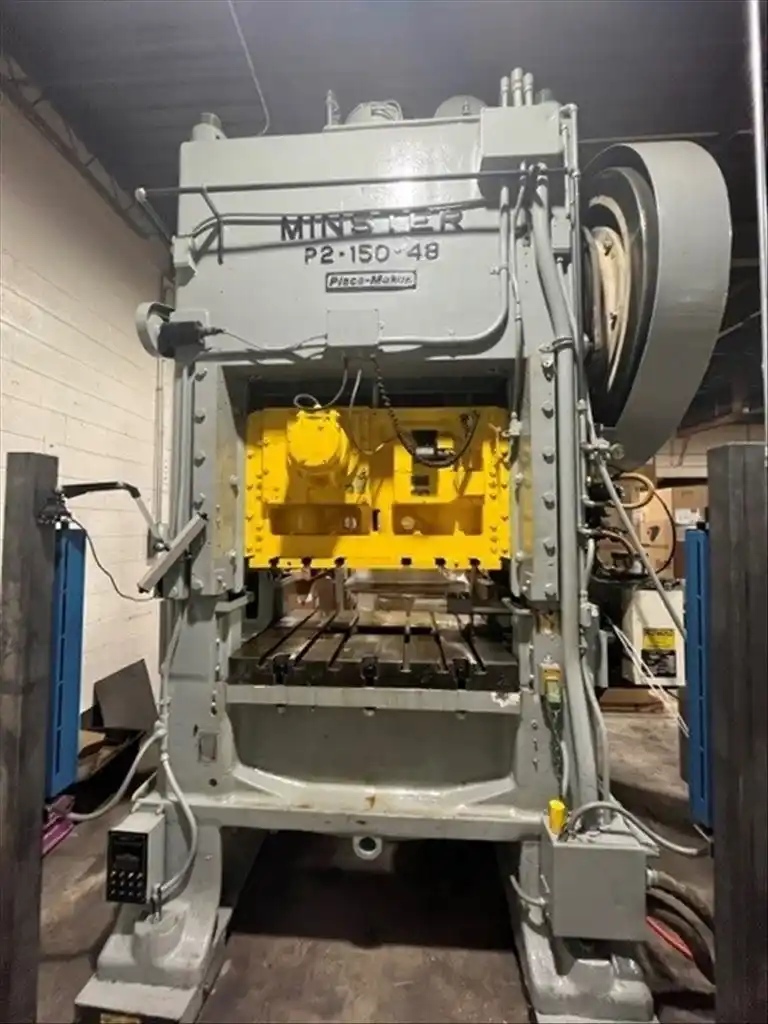

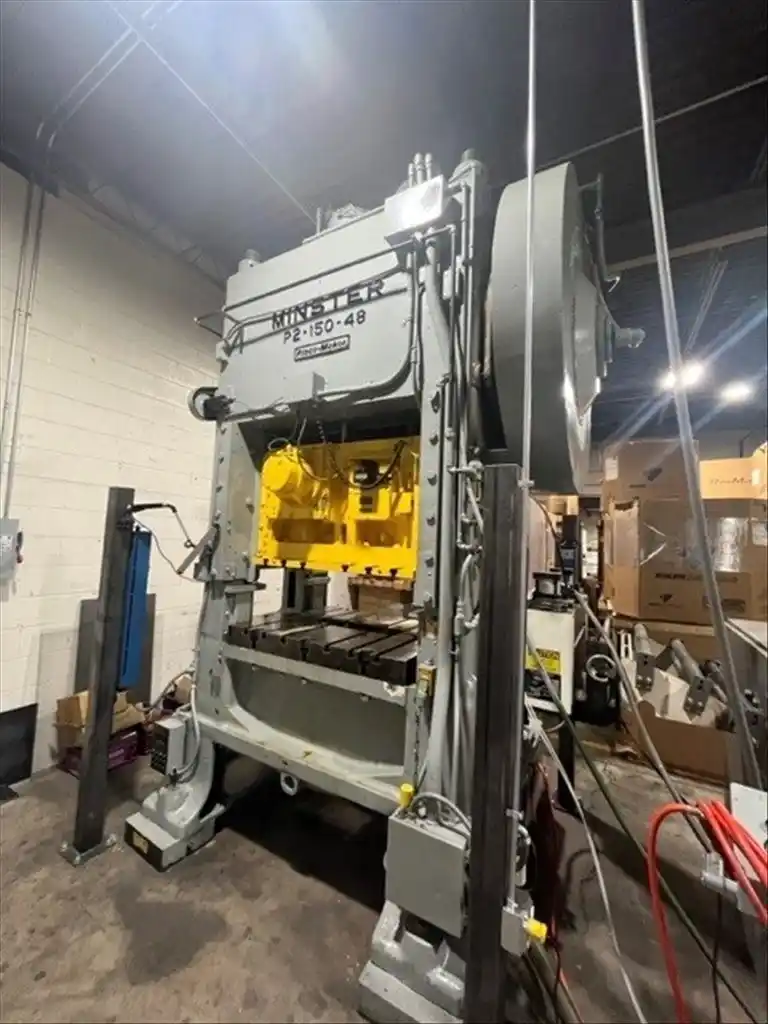

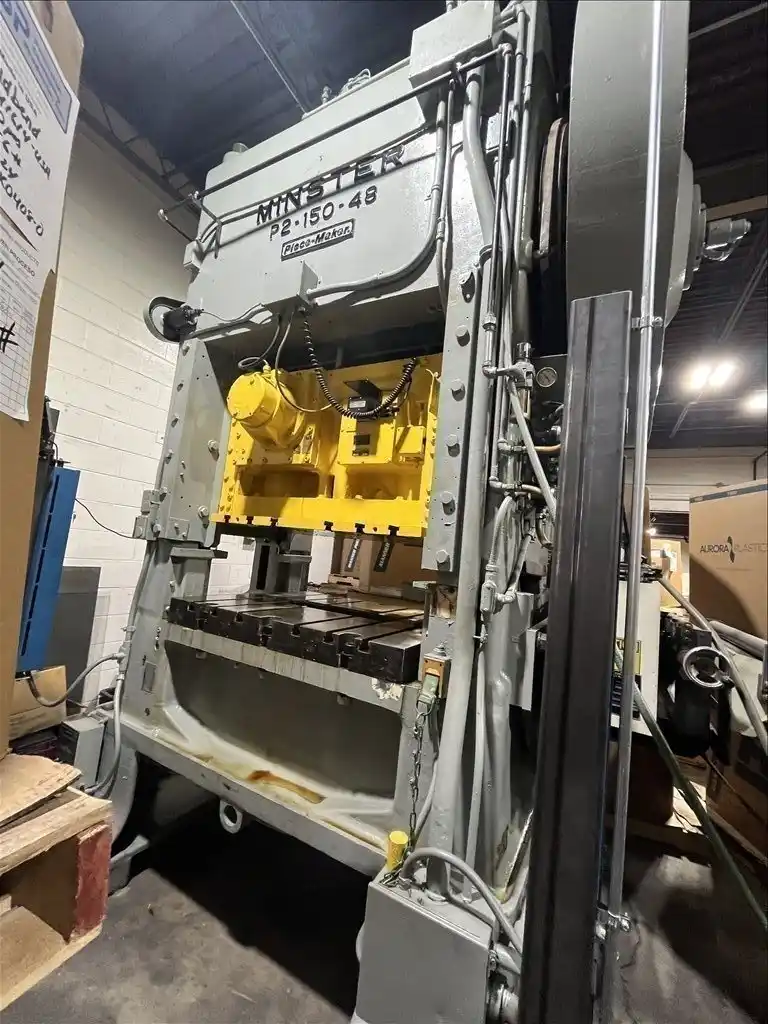

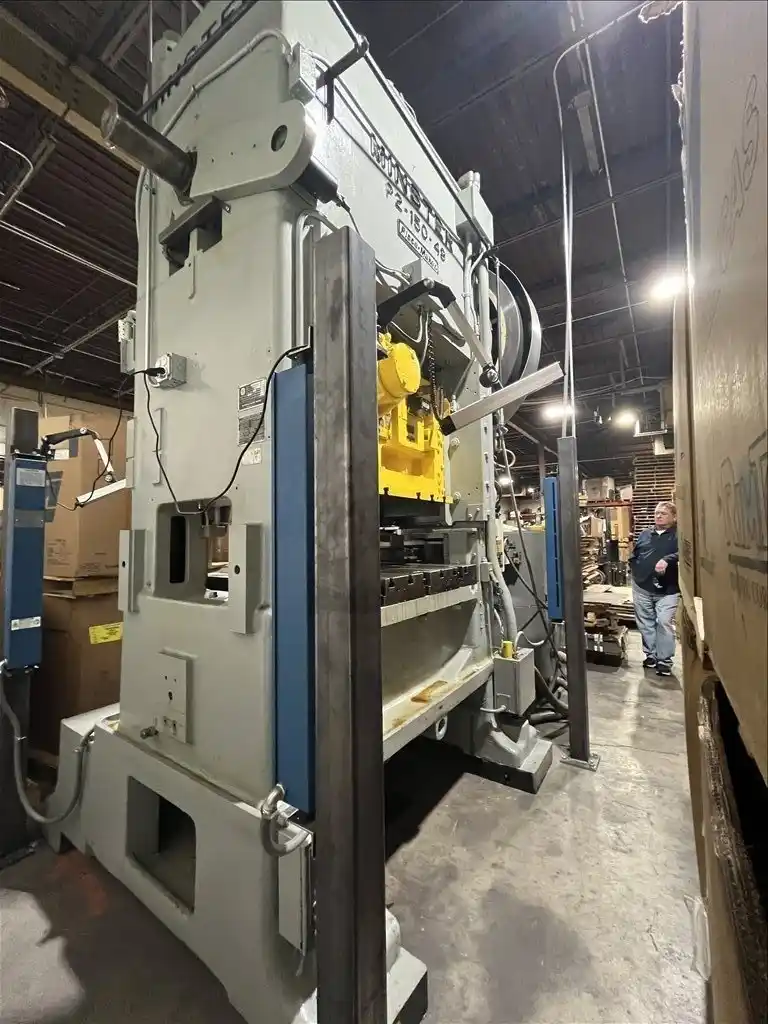

Minster P2-150-48 Piecemaker Straight Side Double Crank High Speed Press
Specifications
- Capacity: 150 Ton
- Stroke: 4"
- Shut Height: 20"
- Slide Adjustment: 4"
- Bed Area: 48" x 40"
- Slide Area: 45"x 30"
- Windows: 20" Wide
- Speed: 100 - 200 SPM
- Show More
- Show Less
- Capacity: 136.07 Metric Ton
- Stroke: 101.60mm
- Shut Height: 508.00mm
- Slide Adjustment: 101.60mm
- Bed Area: 1219.20mm x 1016.00mm
- Slide Area: 1143.00mm x 762.00mm
- Windows: 508.00mm Wide
- Speed: 100 - 200 SPM
- Show More
- Show Less
Equipped With

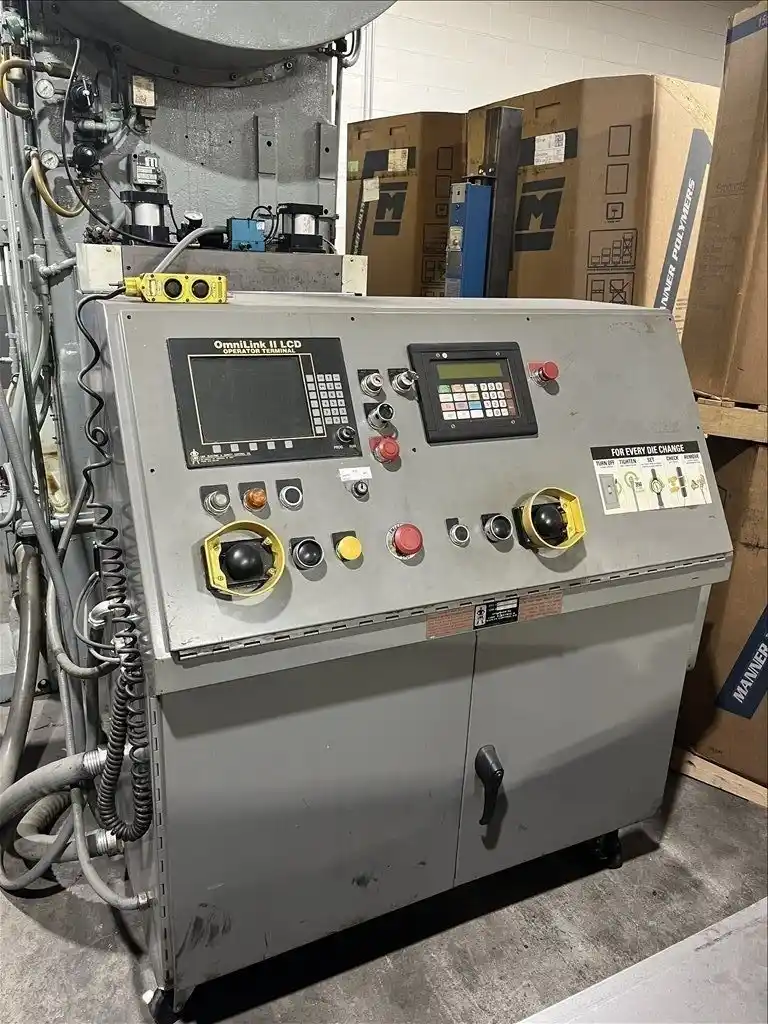

- Omnilink II 5000 Control (New 2014)

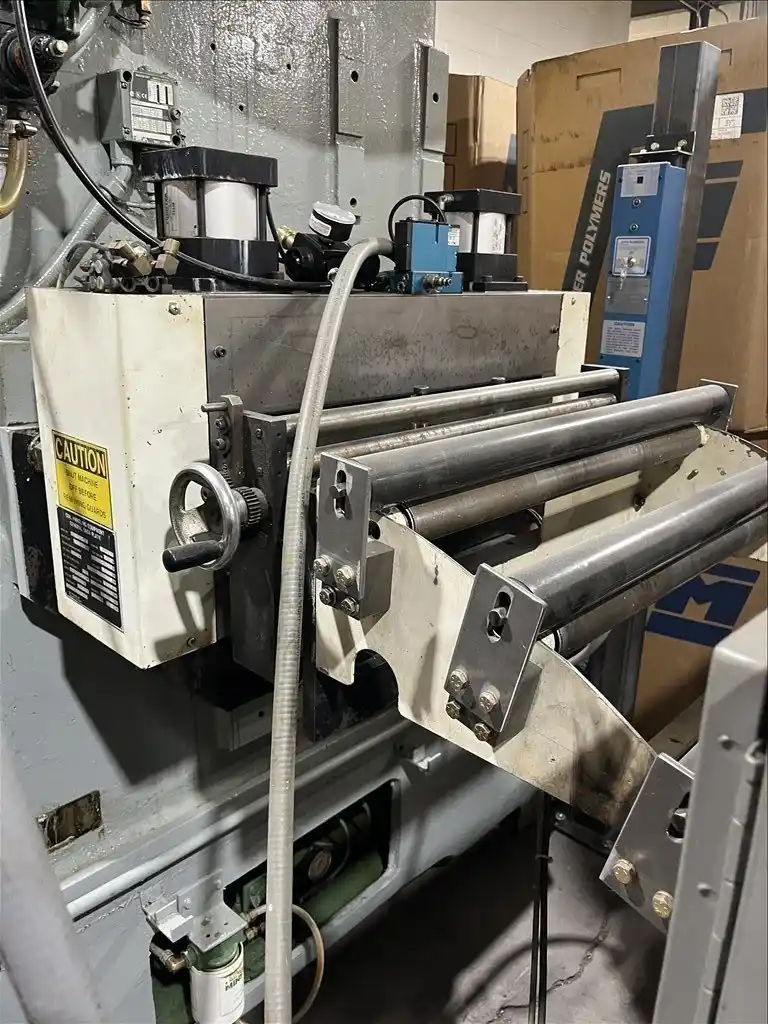

- CWP SMXSE24 24" x .093" Press Mounted Servo Feed
- Accra Wire Controls F-300AF 7,000 lbs Pallet Uncoiler
- Air Clutch and Brake
- Air Counterbalance
- T-Slotted Bolster
- T-Slotted Ram Plate
- Control Console
- Vibration Pads
- Show More
- Show Less
- Omnilink II 5000 Control (New 2014)
- CWP SMXSE24 609.60mm x 2.36mm Press Mounted Servo Feed
- Accra Wire Controls F-300AF3174.50 kg Pallet Uncoiler
- Air Clutch and Brake
- Air Counterbalance
- T-Slotted Bolster
- T-Slotted Ram Plate
- Control Console
- Vibration Pads
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
