Inventory # 47532 Year: 2019

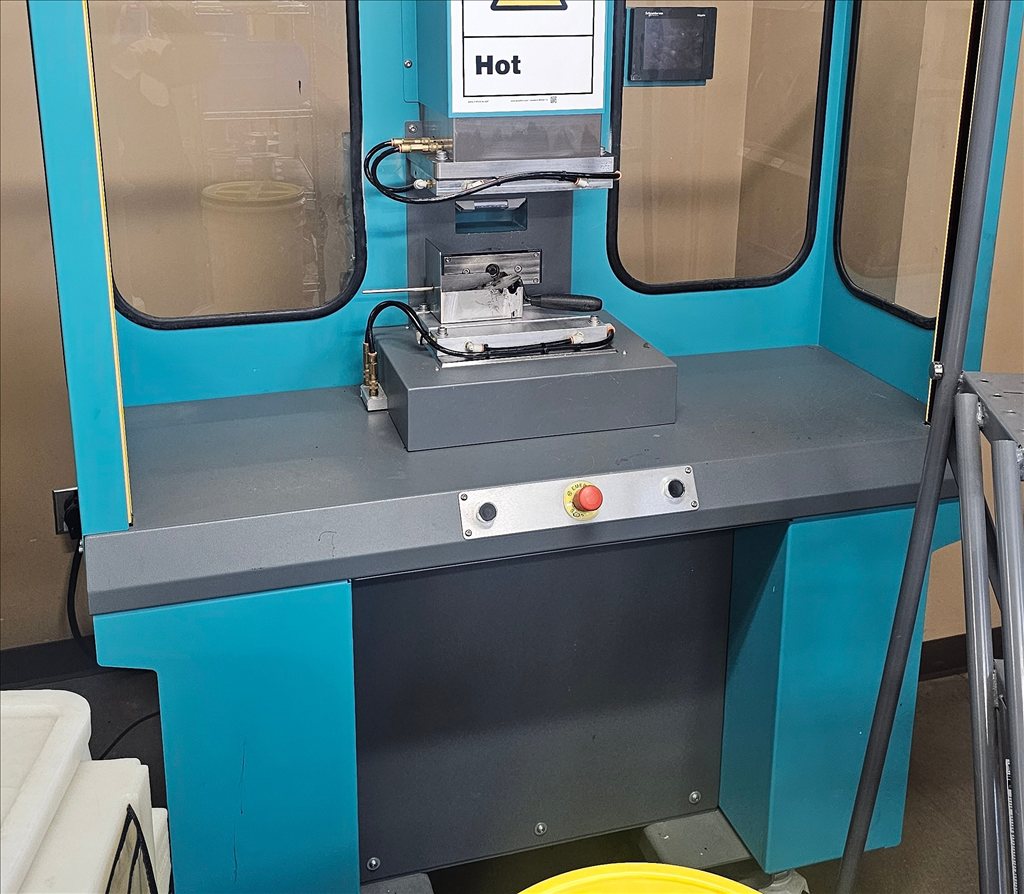

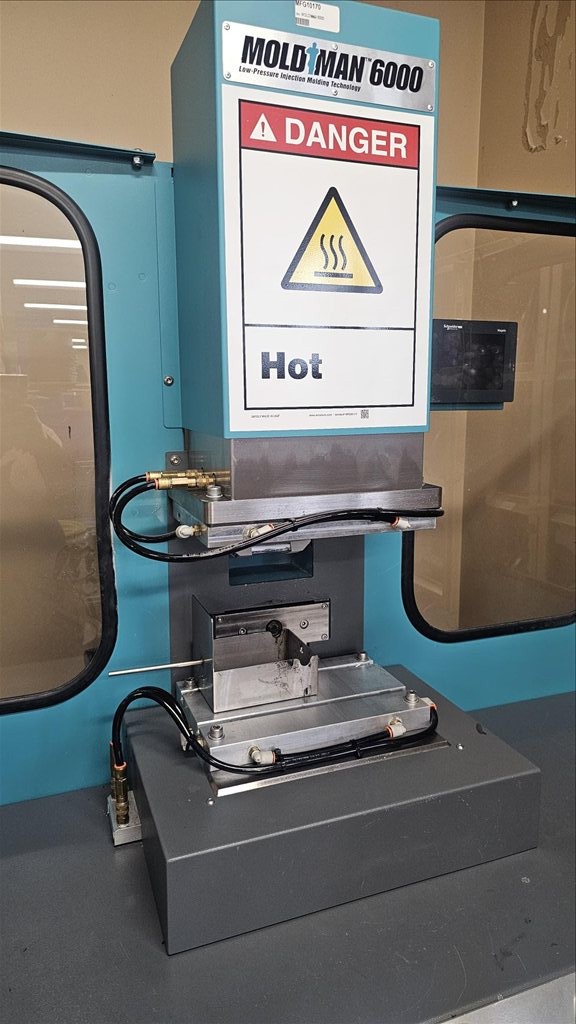

Moldman 6000 Low-Pressure Injection Molding Machine
Specifications
- Clamping Force: 2 Ton
- Clamp Stroke: 6"
- Shot Size: .02 - 3 oz.
- Thickness: 6"
- Ejector Force: 345 lbf
- Ejector Stroke: .4"
- Mold-Set Dimension Mold: 8.7" x 7.1"
- Injection Pressure: 15-450 PSI
- Motor: .5 HP
- Air Pressure Requirement: 116 PSI
- Air Volume Requirement: 6 SCFM
- Show More
- Show Less
- Clamping Force: 1.81 Metric Ton
- Clamp Stroke: 150 mm
- Shot Size: .5 - 100 grams
- Thickness: 150 mm
- Ejector Force: 345 lbf
- Ejector Stroke: 10 mm
- Mold-Set Dimension Mold: 220.98mm x 180.34mm
- Injection Pressure: 0.00 kgs./sq.cm.
- Motor: 0.37 kw
- Air Pressure Requirement: 8.15 kgs./sq.cm.
- Air Volume Requirement: 6 SCFM
- Show More
- Show Less
Equipped With
- Double Clamping Cylinder Mold-Set Cooling Kit
- Double Clamping Cylinder Mold-Set Cooling Kit
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
