Inventory # 48352 Year: 1997

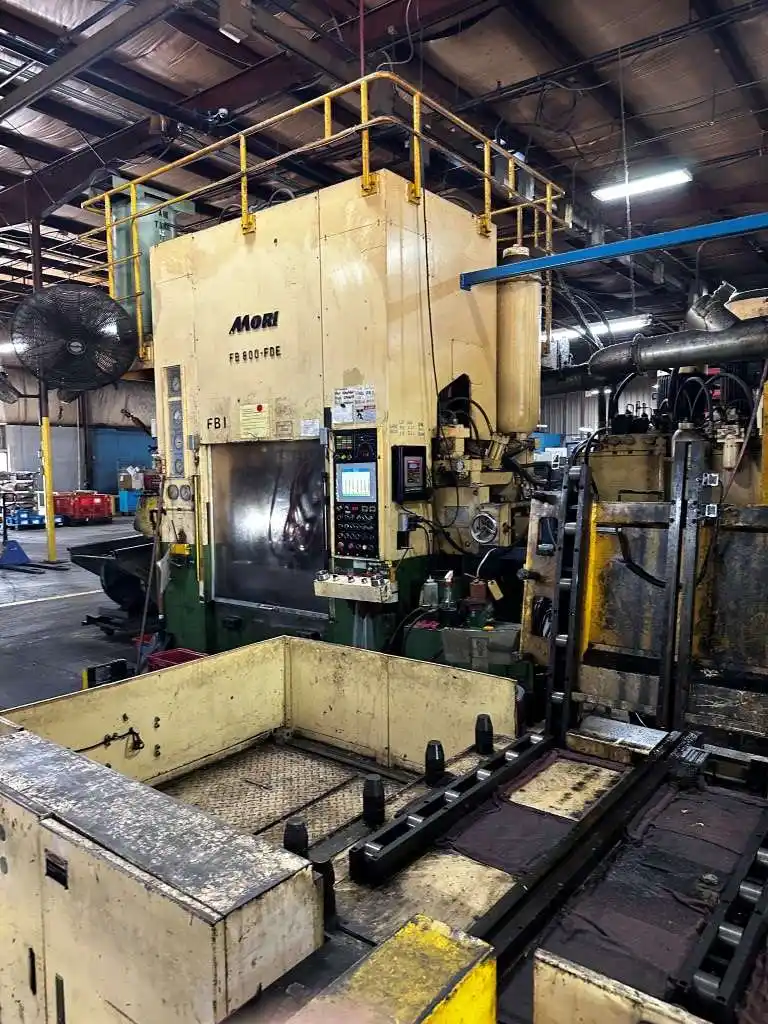

Mori FB-800-FDE Fine Blanking Press with Coil Line
Specifications
- Main Pressure: 880 Ton
- V-Ring Pressure: 440 Ton
- Counter Pressure: 220 Ton
- Maximum Stroke Length: 11"
- Maximum Approach Speed: 425 IPM
- Over Run Distance: 1.4"
- Stopping Time: .2 sec
- Maximum Stopping Time: .22 sec
- Maximum Feed Length: 17.7"
- Line Speed: 394 IPM
- Line Direction: Right to Left
- Show More
- Show Less
- Main Pressure: 798.25 Metric Ton
- V-Ring Pressure: 399.12 Metric Ton
- Counter Pressure: 199.56 Metric Ton
- Maximum Stroke Length: 279.40mm
- Maximum Approach Speed: 179.92 mm/sec
- Over Run Distance: 35.56mm
- Stopping Time: .2 sec
- Maximum Stopping Time: .22 sec
- Maximum Feed Length: 449.58mm
- Line Speed: 166.79 mm/sec
- Line Direction: Right to Left
- Show More
- Show Less

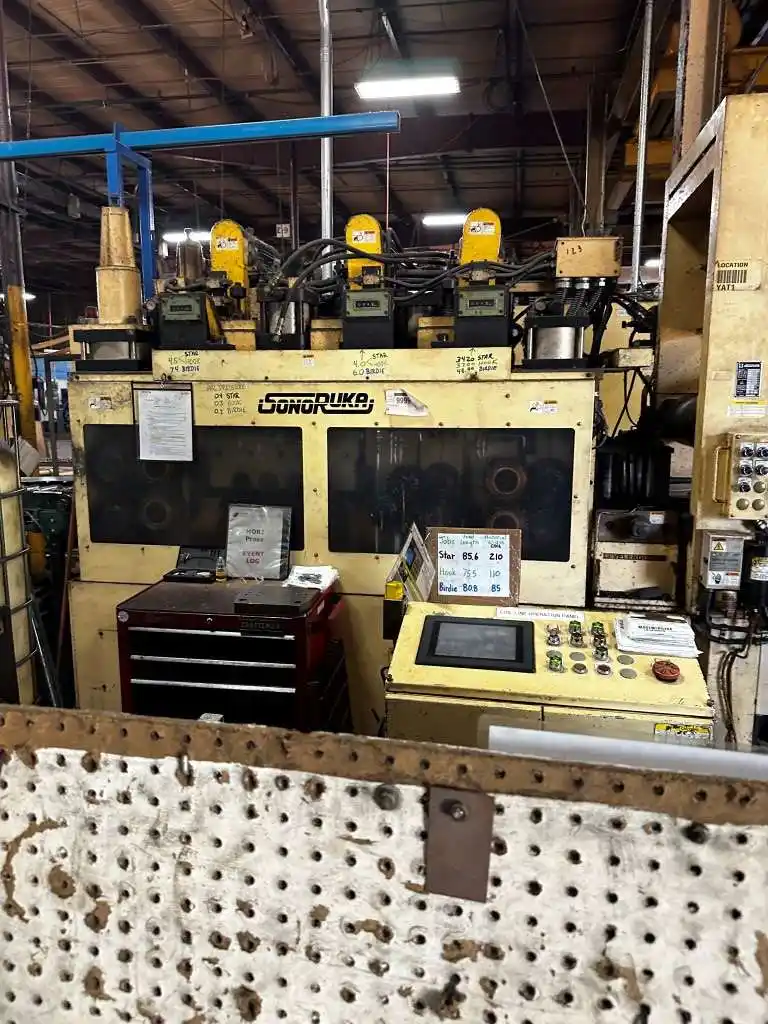

Equipped With
- Coil Car
- Uncoiler
- Coiler Opener
- Leveler/Feeder
- Roller Table
- Hydraulic Unit
- Electric Devices (Operation Panel, Control Panel, Sensors)
- Show More
- Show Less
- Coil Car
- Uncoiler
- Coiler Opener
- Leveler/Feeder
- Roller Table
- Hydraulic Unit
- Electric Devices (Operation Panel, Control Panel, Sensors)
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
