Inventory # 48284 Year: 2016

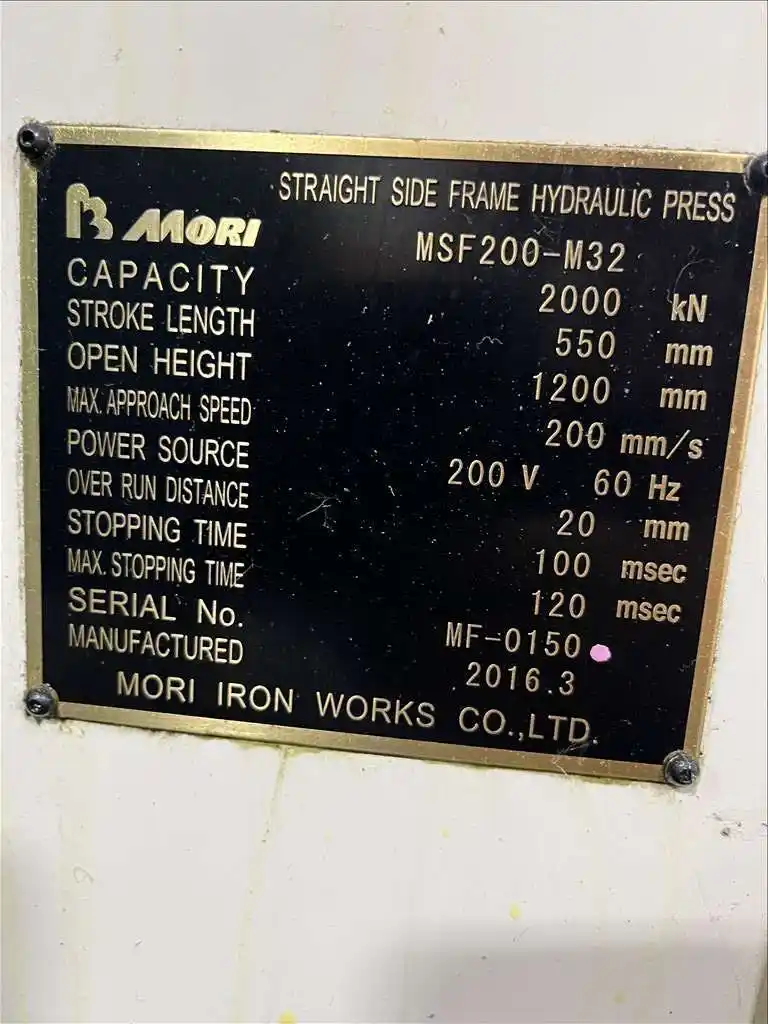

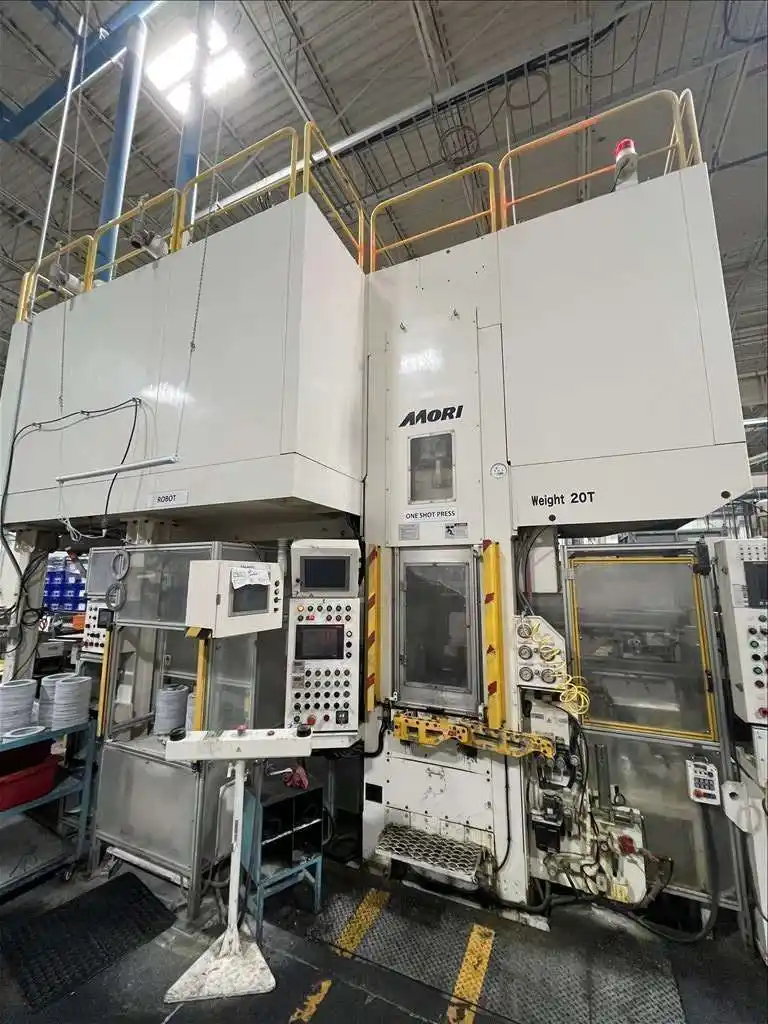

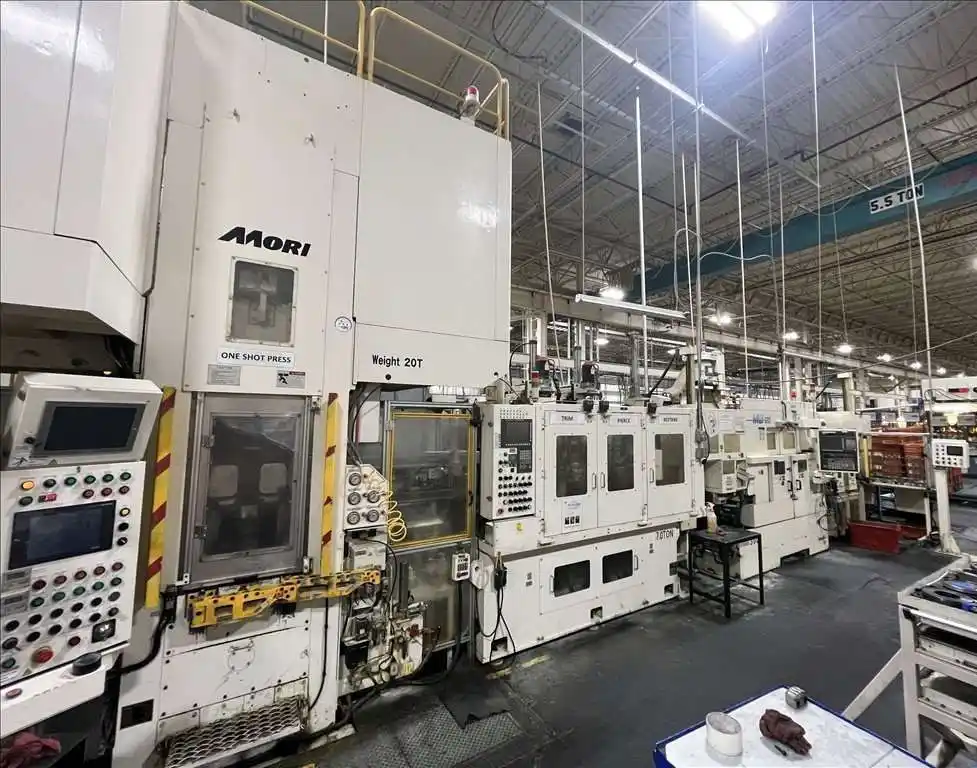

Mori Iron Works MSF200-M32 200 Ton Multi-Axis Servo Hydraulic Cold Forming Press
Specifications
- Main Slide
- Tonnage Capacity: 200 Ton
- Bolster Area (L-R x F-B) 20.1" x 28.7"
- Slide Area (L-R x F-B) 21.7" x 18.9"
- Daylight: 47.2"
- Opening in Upright: 20"
- Stroke Length: 21.7"
- Unloaded Stroke Speeds (Up / Down): 472 IPM / 472 IPM
- Pressing Speeds (20-100 Tons) 82 IPM
- Pressing Speeds (100-200 Tons) 35 IPM
- Lifting Power: 30 Ton
- Slide Core (Servo Valve Control)
- Pressure Capability: 1.5 - 30 Ton
- Stroke Length: 3.9"
- Head Diameter: 2.7"
- Pressing Speed: 106 IPM
- Slide Inner (Proportional Valve Control)
- Pressure Capability: 10 - 30 Ton
- Stroke Length: 8.7"
- Head Diameter: 1.4" - 4"
- Bed Core (Servo Valve Control)
- Pressure Capability: 3 - 60 Ton
- Stroke Length: 2.8"
- Head Diameter: 2.2"
- Bed Inner (Servo Valve Control)
- Pressure Capability: 10 - 100 Ton
- Stroke Length: 8.7"
- Head Diameter: 1.3" - 3"
- Show More
- Show Less
- Main Slide
- Tonnage Capacity: 181.42 Metric Ton
- Bolster Area (L-R x F-B) 510.54mm x 728.98mm
- Slide Area (L-R x F-B) 551.18mm x 480.06mm
- Daylight: 1198.88mm
- Opening in Upright: 508.00mm
- Stroke Length: 551.18mm
- Unloaded Stroke Speeds (Up / Down): 199.81 mm/sec /199.81 mm/sec
- Pressing Speeds ( 0.18 Metric Tons) 34.71 mm/sec
- Pressing Speeds ( 0.45 Metric Tons) 14.82 mm/sec
- Lifting Power: 27.21 Metric Ton
- Slide Core (Servo Valve Control)
- Pressure Capability: 0.05 Metric Ton
- Stroke Length: 99.06mm
- Head Diameter: 68.58mm
- Pressing Speed: 44.87 mm/sec
- Slide Inner (Proportional Valve Control)
- Pressure Capability: 0.30 Metric Ton
- Stroke Length: 220.98mm
- Head Diameter: 35.56mm - 101.60mm
- Bed Core (Servo Valve Control)
- Pressure Capability: 0.05 Metric Ton
- Stroke Length: 71.12mm
- Head Diameter: 55.88mm
- Bed Inner (Servo Valve Control)
- Pressure Capability: 0.09 Metric Ton
- Stroke Length: 220.98mm
- Head Diameter: 33.02mm - 76.20mm
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
