Inventory # 48705 Year: 2011

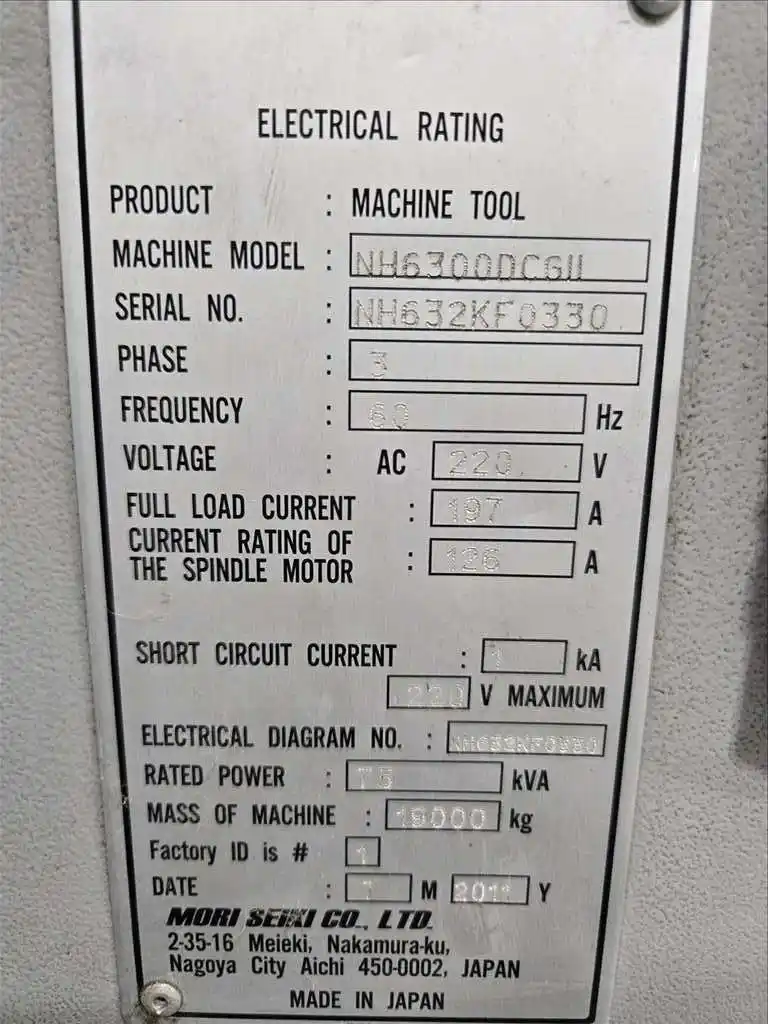

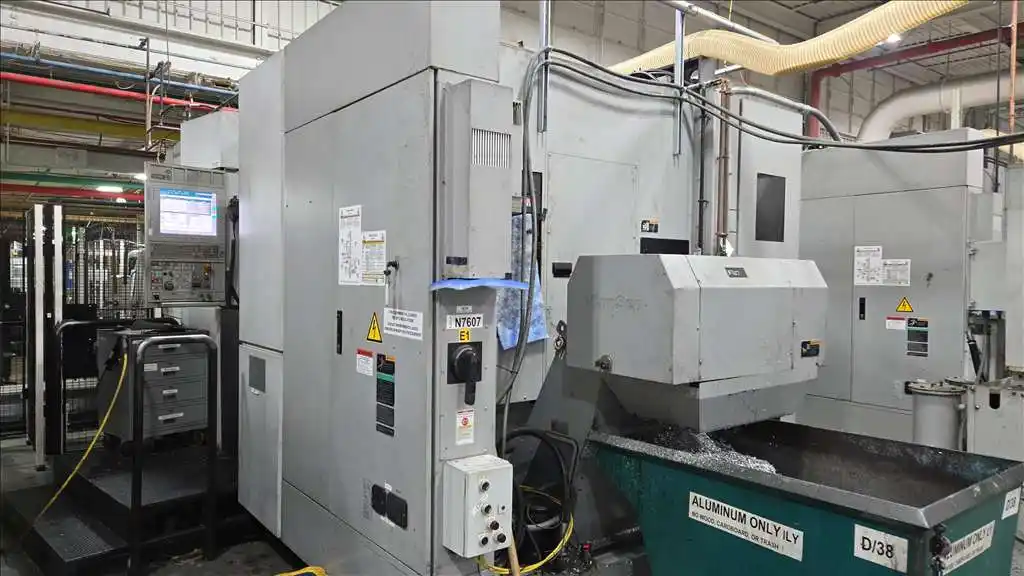

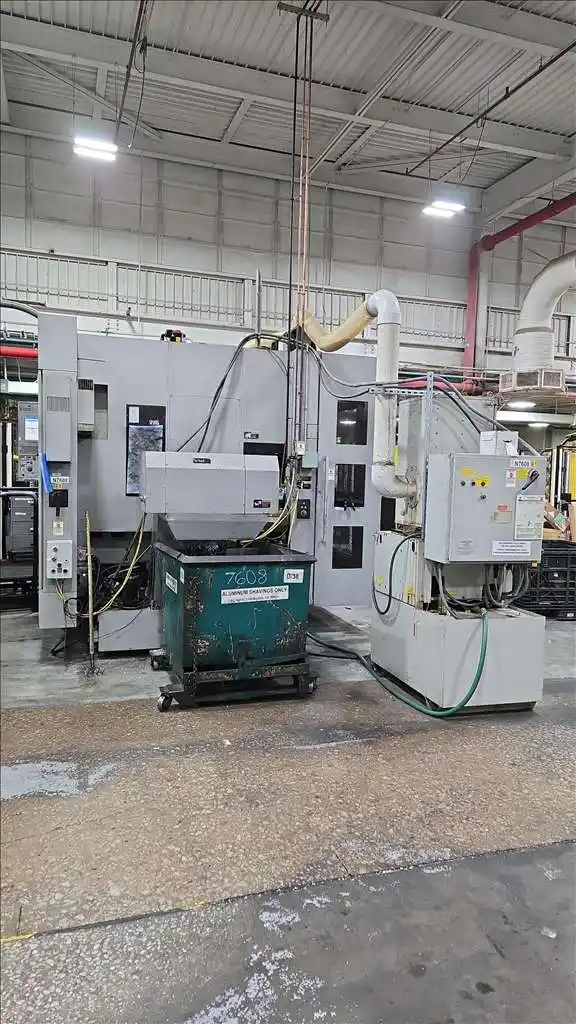

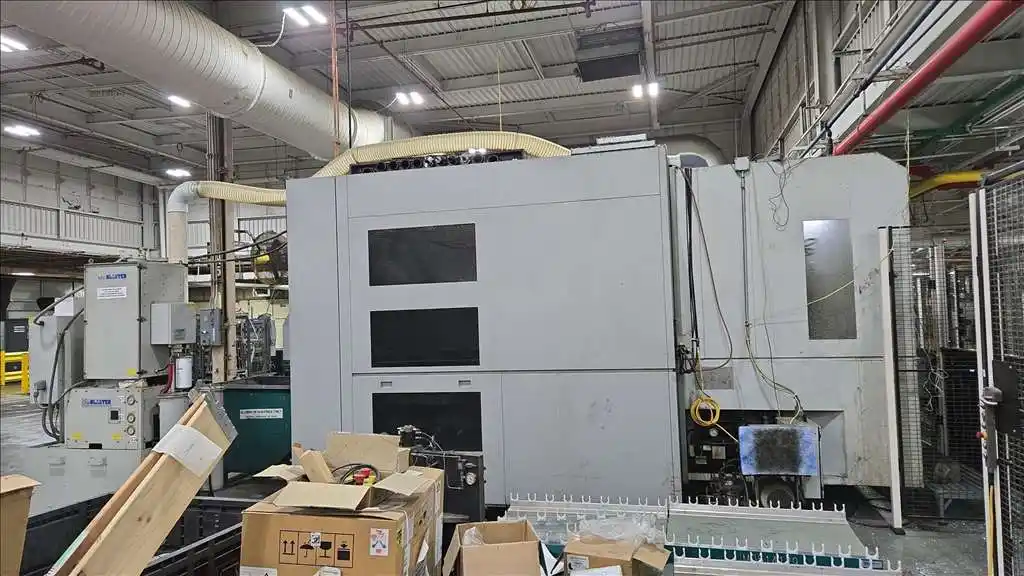

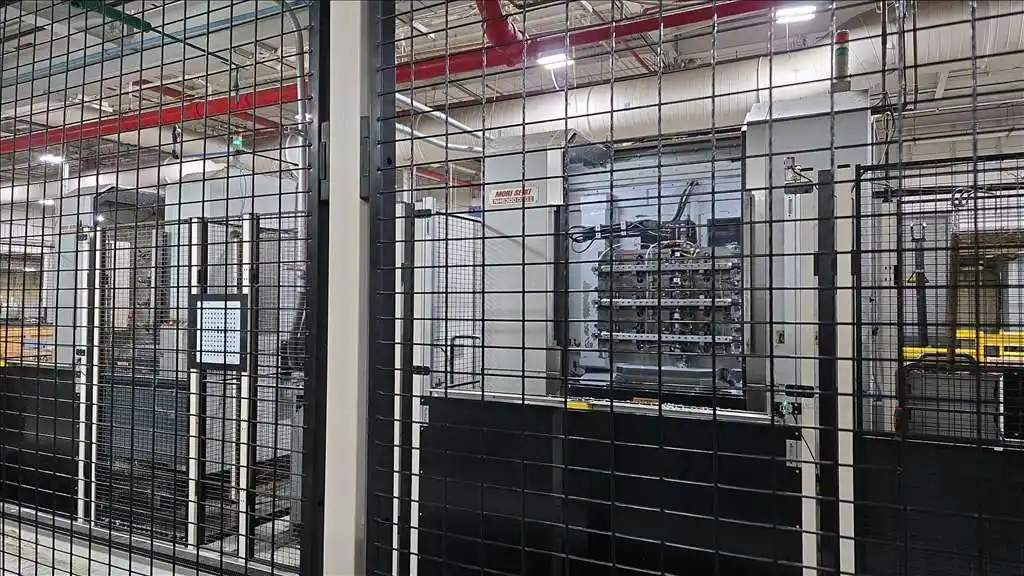

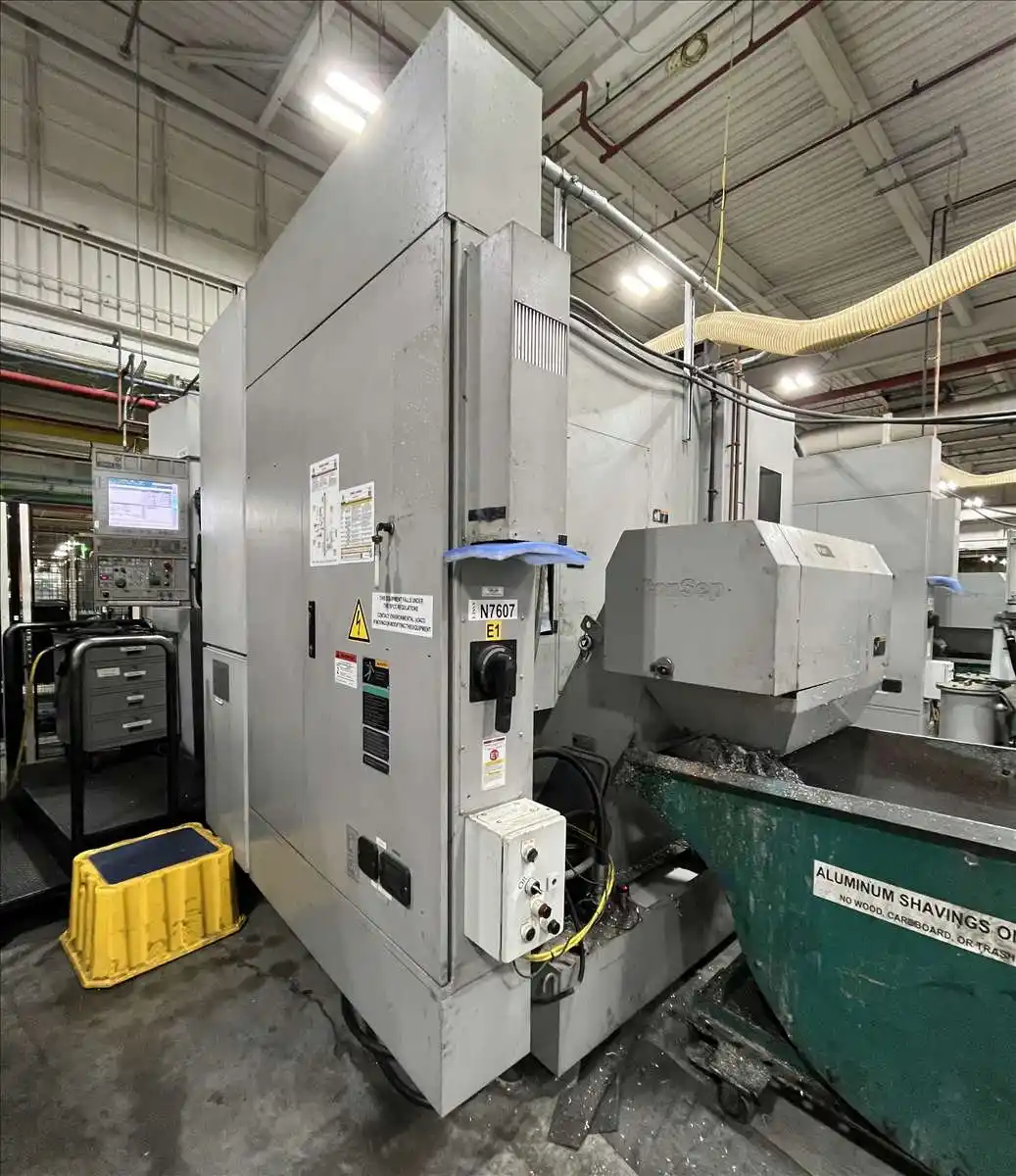

Mori Seiki NH6300 Twin Pallet CNC Horizontal Machining Center
Specifications
- Pallet Size: 24.8" x 24.8"
- Number of Pallets: 2
- Pallet Weight Capacity: 3,300 lb.
- Max. Workpiece Swing Diameter: 41.3"
- Max. Workpiece Height: 51.1"
- X-Axis Travel: 41.3"
- Y-Axis Travel: 35.4"
- Z-Axis Travel: 38.6"
- B-Axis Index: 0.001°

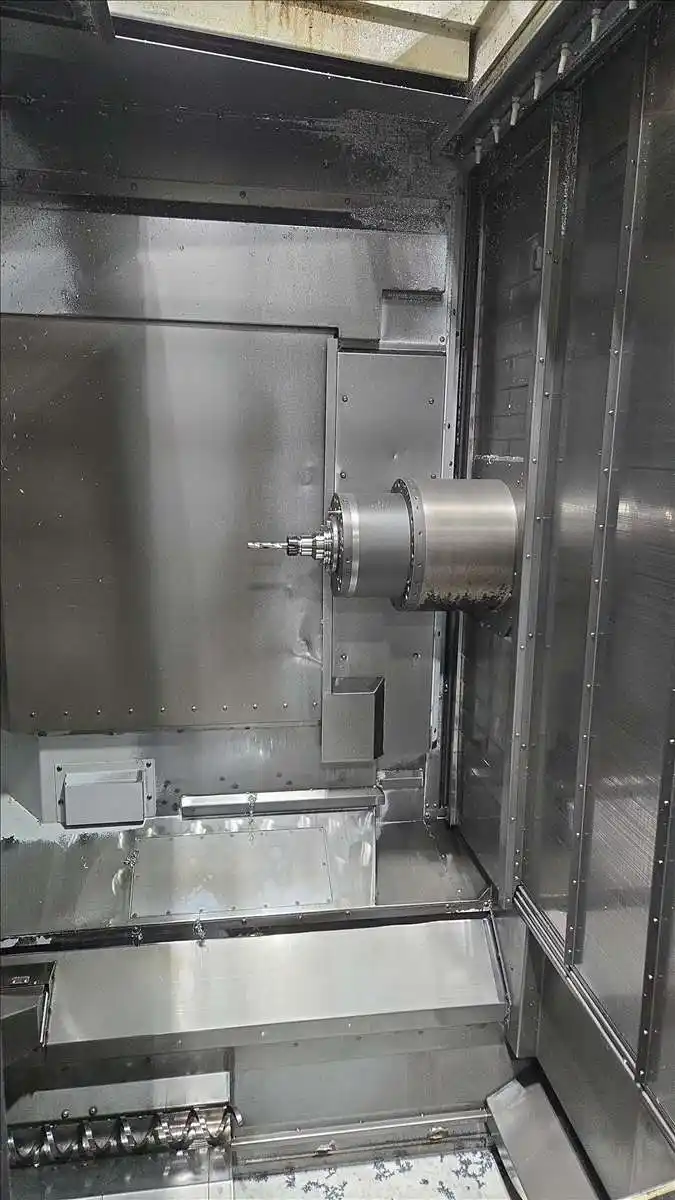

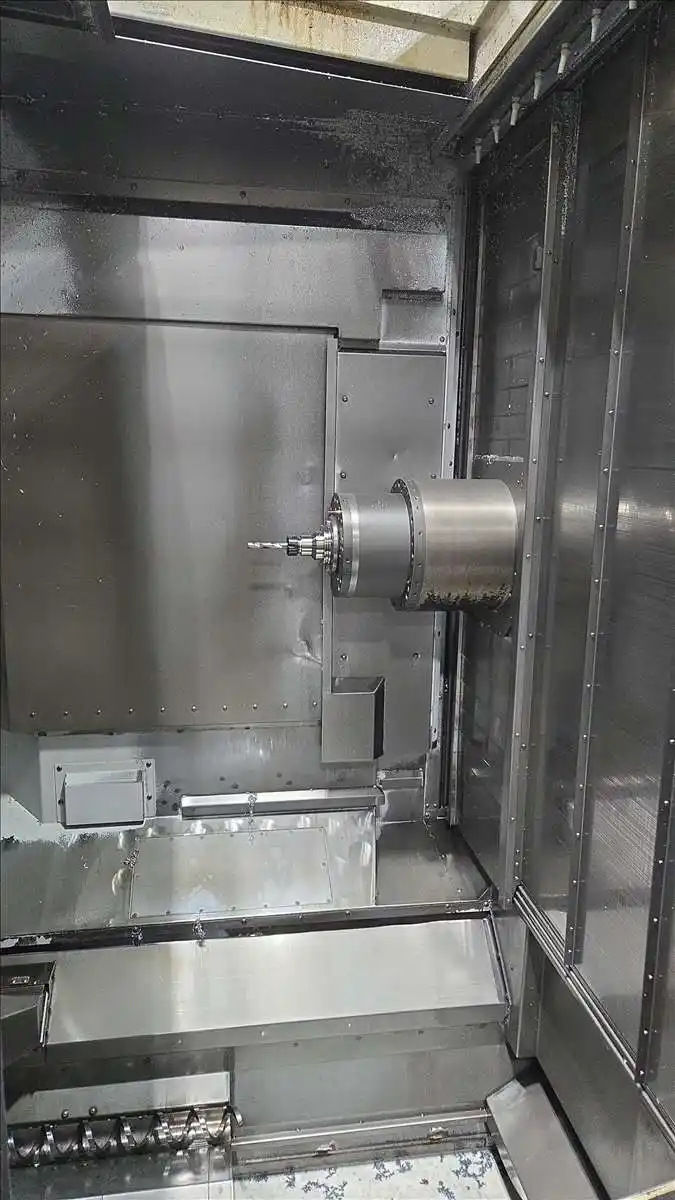

- Spindle Speed: 10,000 RPM
- Spindle Taper: CAT 50
- Tool Changer: 60-ATC
- Show More
- Show Less
- Pallet Size: 630mm x 630mm
- Number of Pallets: 2
- Pallet Weight Capacity: 1,500 kg
- Max. Workpiece Swing Diameter: 1050mm
- Max. Workpiece Height: 1300mm
- X-Axis Travel: 1050mm
- Y-Axis Travel: 900mm
- Z-Axis Travel: 980mm
- B-Axis Index: 0.001°
- Spindle Speed: 10,000 RPM
- Spindle Taper: CAT 50
- Tool Changer: 60-ATC
- Show More
- Show Less
Equipped With

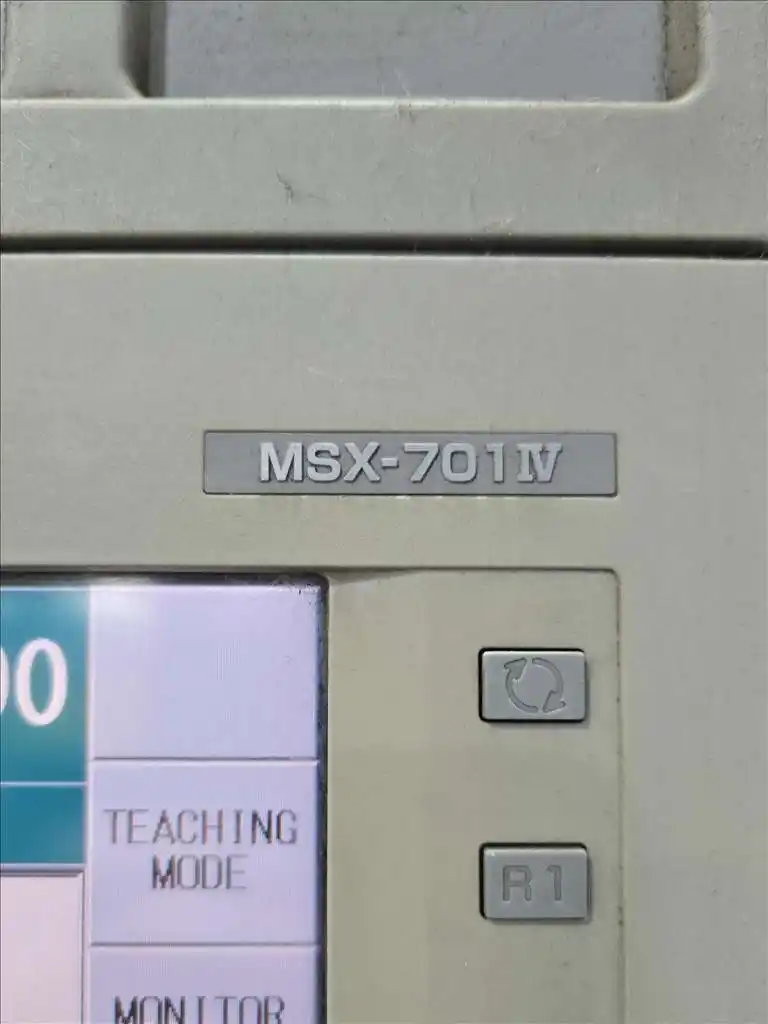

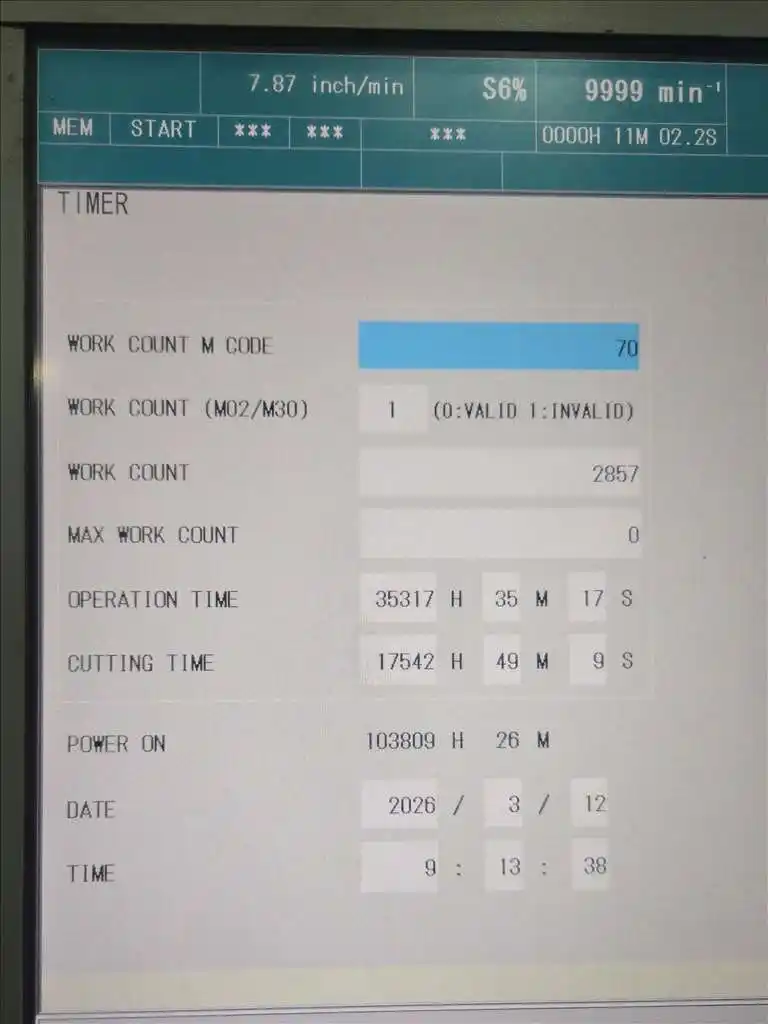

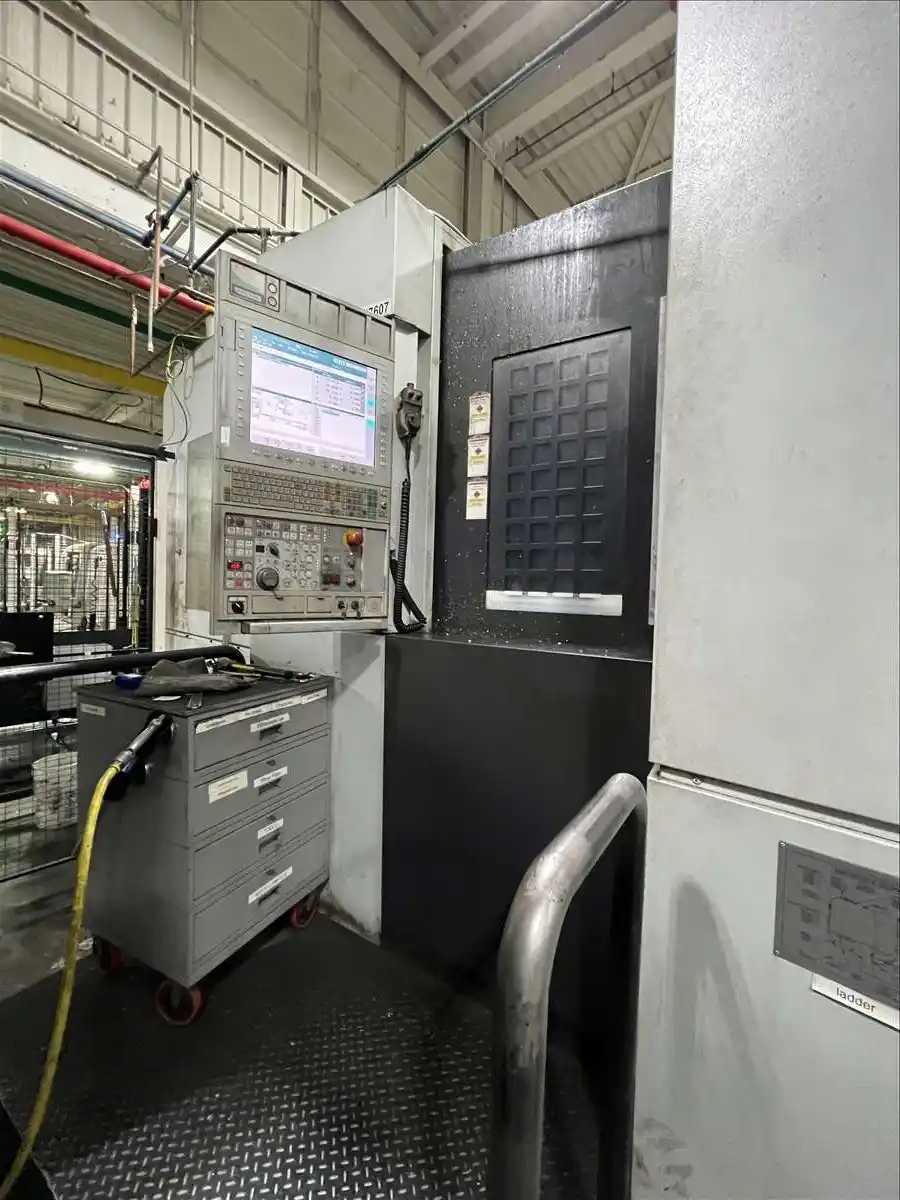

- Mori Seiki MSX-701 IV Fanuc Bbased Control
- Thru Flange Coolant

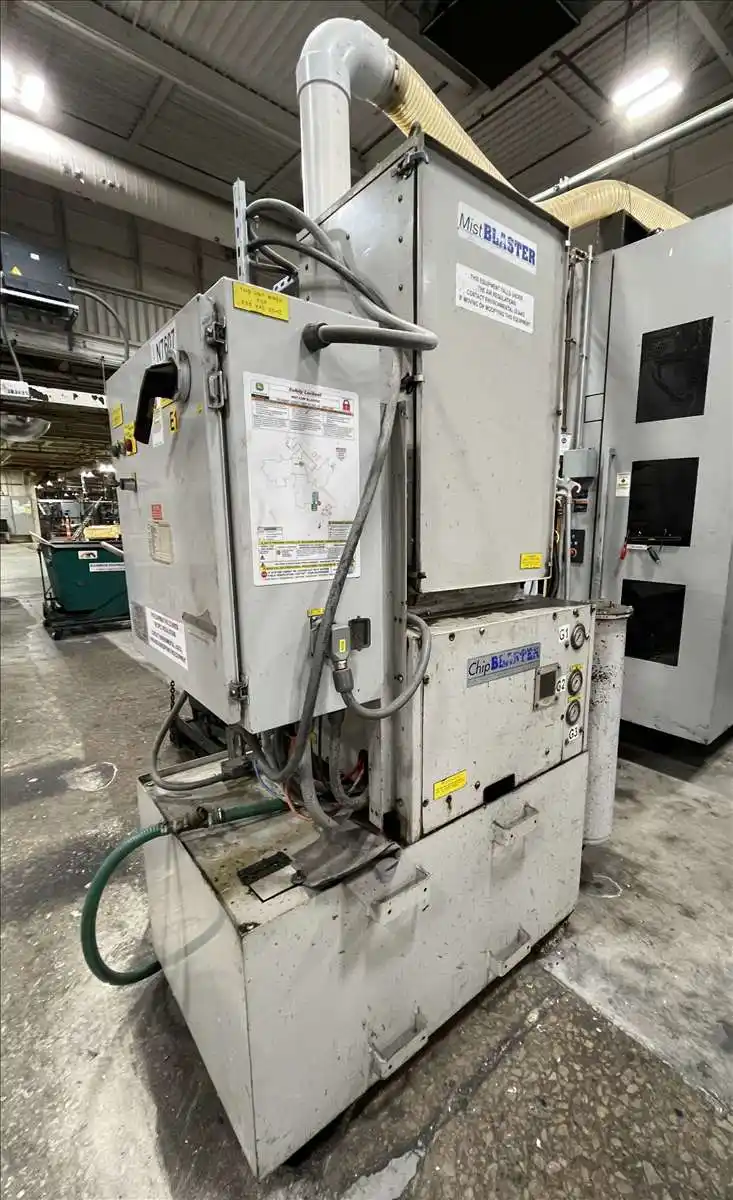

- Chip Blaster High Pressure Unit
- Full 4th Axis B-Axis
- Mori Seiki MSX-701 IV Fanuc Bbased Control
- Thru Flange Coolant
- Chip Blaster High Pressure Unit
- Full 4th Axis B-Axis
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
