Inventory # 47817 Year: 2004

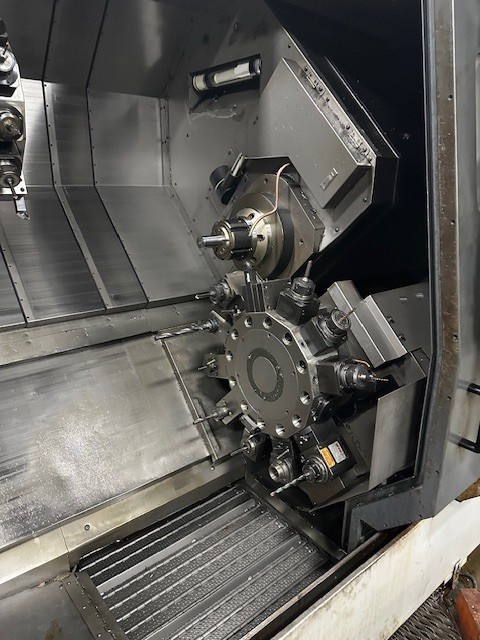

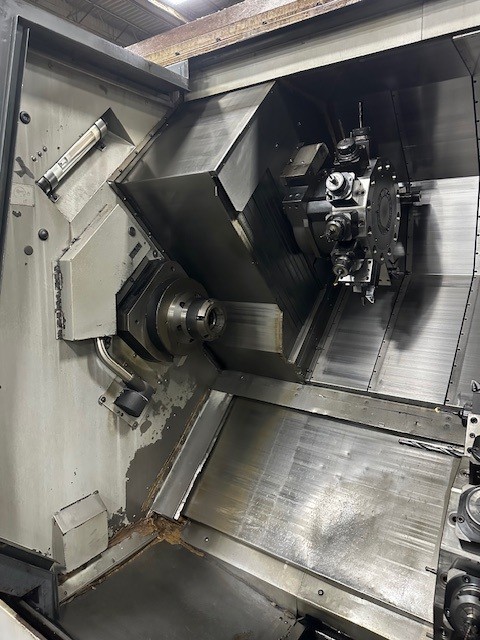

Mori Seiki ZT2500Y 4-Axis Twin Spindle & Turret CNC Lathe w/ Live Milling & Dual Bar Feeds
Thank you for your interest, please note the following: THIS ITEM IS OFFERED FOR SALE BY "ONLINE AUCTION" and is part of the "2 Location Auction: Surplus to Ongoing Operations of SPM Oil & Gas Fort Worth Texas and Caterpillar Precision Pins Sumter SC" auction. Lots from this online-only auction will begin closing at 10:00 AM CT on Tuesday, June 24.
Specifications
- Max. Swing Over Bed: 27.7"
- Max. Swing Over Cross Slide: 16.5"
- Max. Turning Diameter: 15.3" (Main) / 14.1" (Secondary)
- Standard Turning Diameter: 10.2"
- Max. Turning Length: 13.7"
- Spindle Speeds: 40 - 4000 RPM
- Spindle Motor (30 Min. / Continuous): 30 / 25 HP
- Spindle Through Hole: 3.5"
- Subspindle Travel: 38"
- C-Axis Indexing: .001°
- Spindle Bearing Inner Diameter: 5.1"
- Rotary Tool Spindle Speed: 4,000 RPM
- X-Axis Travel (Turret 1 / Turret 2): 11" / 7.9"
- Y-Axis Travel (Upper Turret Only): +/- 2.8"
- Z-Axis Travel (Turret 1 & Turret 2): 37.8"
- Show More
- Show Less
- Max. Swing Over Bed: 703.58mm
- Max. Swing Over Cross Slide: 419.10mm
- Max. Turning Diameter: 388.62mm (Main) / 358.14mm (Secondary)
- Standard Turning Diameter: 259.08mm
- Max. Turning Length: 347.98mm
- Spindle Speeds: 40 - 4000 RPM
- Spindle Motor (30 Min. / Continuous): 30 / 18.64 kw
- Spindle Through Hole: 88.90mm
- Subspindle Travel: 965.20mm
- C-Axis Indexing: .001°
- Spindle Bearing Inner Diameter: 129.54mm
- Rotary Tool Spindle Speed: 4,000 RPM
- X-Axis Travel (Turret 1 / Turret 2): 279.40mm / 200.66mm
- Y-Axis Travel (Upper Turret Only): +/- 71.12mm
- Z-Axis Travel (Turret 1 & Turret 2): 960.12mm
- Show More
- Show Less
Equipped With
- Fanuc MSC-501 CNC Control
- Live Milling
- 2.5" LNS Hydro Sprint Bar Loader
- 2.5" LNS Blaze Air Unloader
- (1) 12-Position Upper Turret
- (1) 12-Position Lower Turret
- Chip Conveyor
- Transformer
- Show More
- Show Less
- Fanuc MSC-501 CNC Control
- Live Milling
- 63.50mm LNS Hydro Sprint Bar Loader
- 63.50mm LNS Blaze Air Unloader
- (1) 12-Position Upper Turret
- (1) 12-Position Lower Turret
- Chip Conveyor
- Transformer
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Location: Sumter, SC
- Disclaimer: Preliminary Specifications....
