Inventory # 47704 Year: 2013

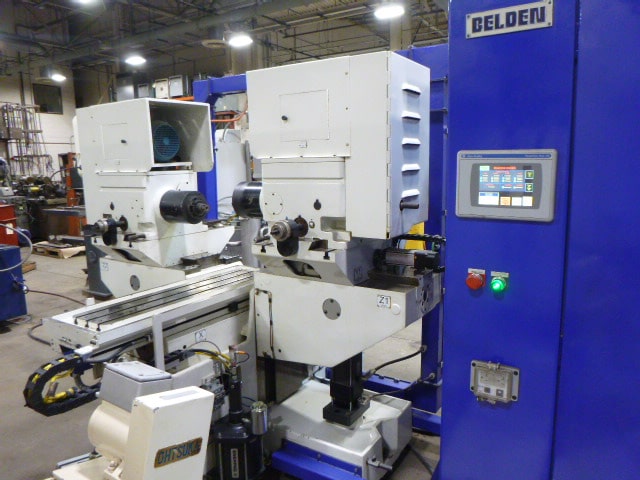

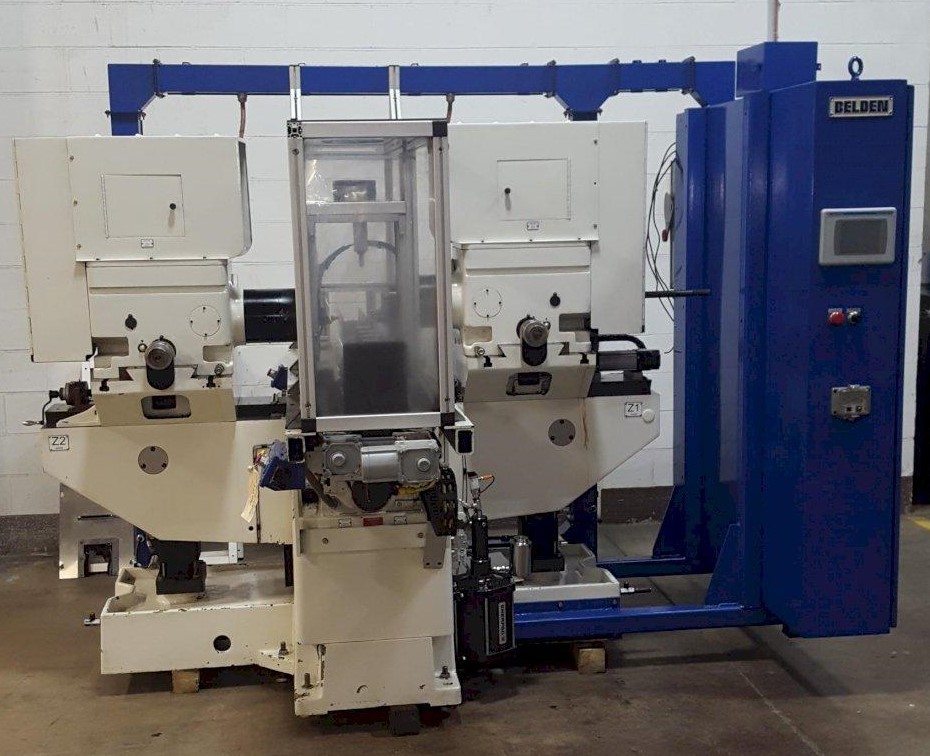

** ITEM IS SOLD - if you are looking for a similar item OR have a similar item to sell please contact us Phone 847-427-3333 or email scott@perfectionglobal.com Nichols Big Twin Belden CNC Duplex Milling Machine (2 Available)
Specifications
- Nichols Big Twin Belden, 10" x 42" Working Area, 16" x 48" Table, 4.5"-16.5" Height Between Spindle & Table, 4"-12" Spindle Nose Seperation, 37" Max. Cutting Stroke, 50 NST Taper, 1" Spindle Hole Ø, 100-1740 RPM, 3" Saddle Traverse, 4.625" Vertical Travel of Knee, Spindle Extension, (2) 10 HP Servo VFD Spindle Drive Motor & Controls, AC Servo Elevating Motors, , AC Servo Saddle Feed Servo Drive, Allen Bradley MicroLogix PLC w/ PanelView Color HMI Programmable Servo Control, 2013 (2 Available)
- Nichols Big Twin Belden, 10" x 42" Working Area, 16" x 48" Table, 4.5"-16.5" Height Between Spindle & Table, 4"-12" Spindle Nose Seperation, 37" Max. Cutting Stroke, 50 NST Taper, 1" Spindle Hole Ø, 100-1740 RPM, 3" Saddle Traverse, 4.625" Vertical Travel of Knee, Spindle Extension, (2) 10 HP Servo VFD Spindle Drive Motor & Controls, AC Servo Elevating Motors, , AC Servo Saddle Feed Servo Drive, Allen Bradley MicroLogix PLC w/ PanelView Color HMI Programmable Servo Control, 2013 (2 Available)
Location & Terms
- Terms: As Is, Where Is
- Location: Lake Bluff, IL
- Disclaimer: Preliminary Specifications....
