Inventory # 47881 Year: 2014

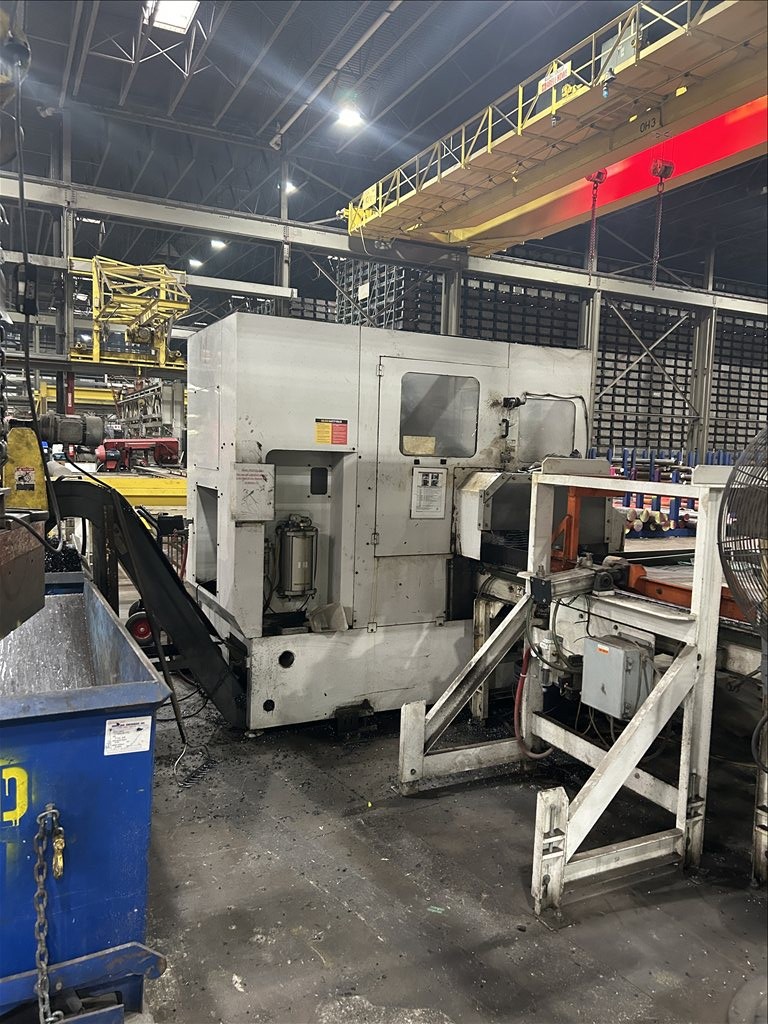

Nishijimax NHC-180NB High Speed Circular Saw
Specifications
- Cutting Capacity (Diameter): 3.9" - 7"
- Cutting Capacity (Length): 0.6" - 118"
- Outer Blade Diameter: 22"
- Inner Blade Diameter: 1.9"
- Blade Thickness: 0.11"
- Saw Feed Rate: 0-9.8 ft/min
- Saw Feed Platform Slant: 45°
- Blade Motor: 21 HP
- Show More
- Show Less
- Cutting Capacity (Diameter): 99.06mm - 177.80mm
- Cutting Capacity (Length): 15.24mm - 2997.20mm
- Outer Blade Diameter: 558.80mm
- Inner Blade Diameter: 48.26mm
- Blade Thickness: 2.79mm
- Saw Feed Rate: 0-9.8 ft/min
- Saw Feed Platform Slant: 45°
- Blade Motor: 15.66 kw
- Show More
- Show Less
Equipped With

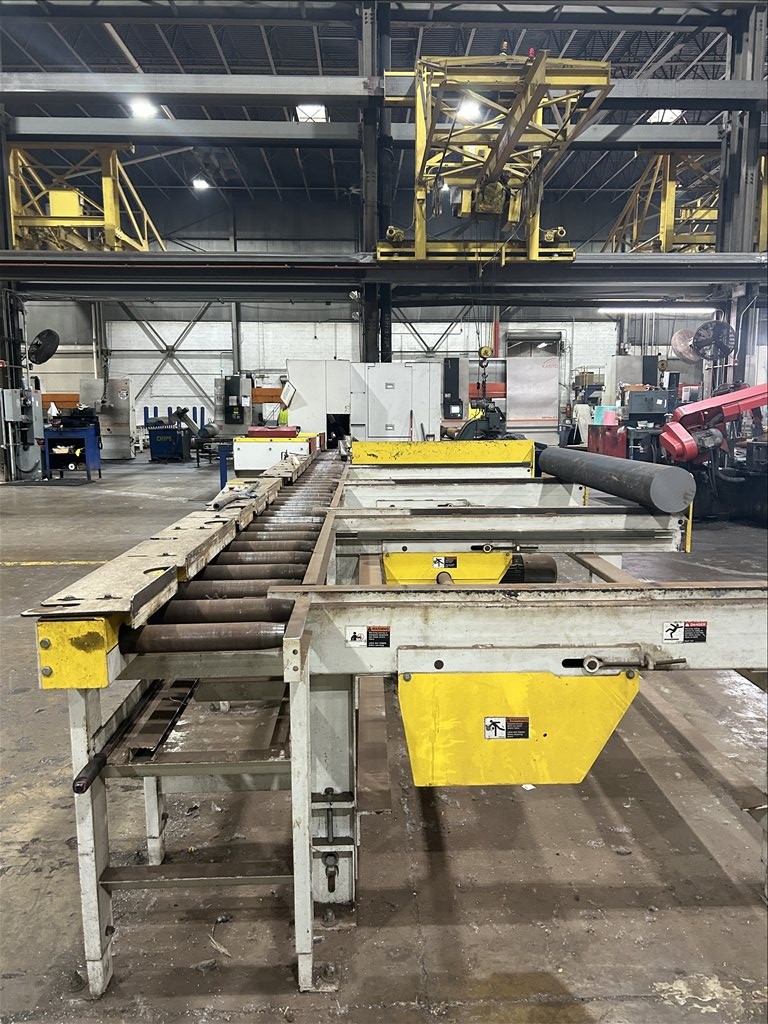

- Powered Roller Conveyor
- Manual Bar Loader
- Post Cut Auto Push-Off

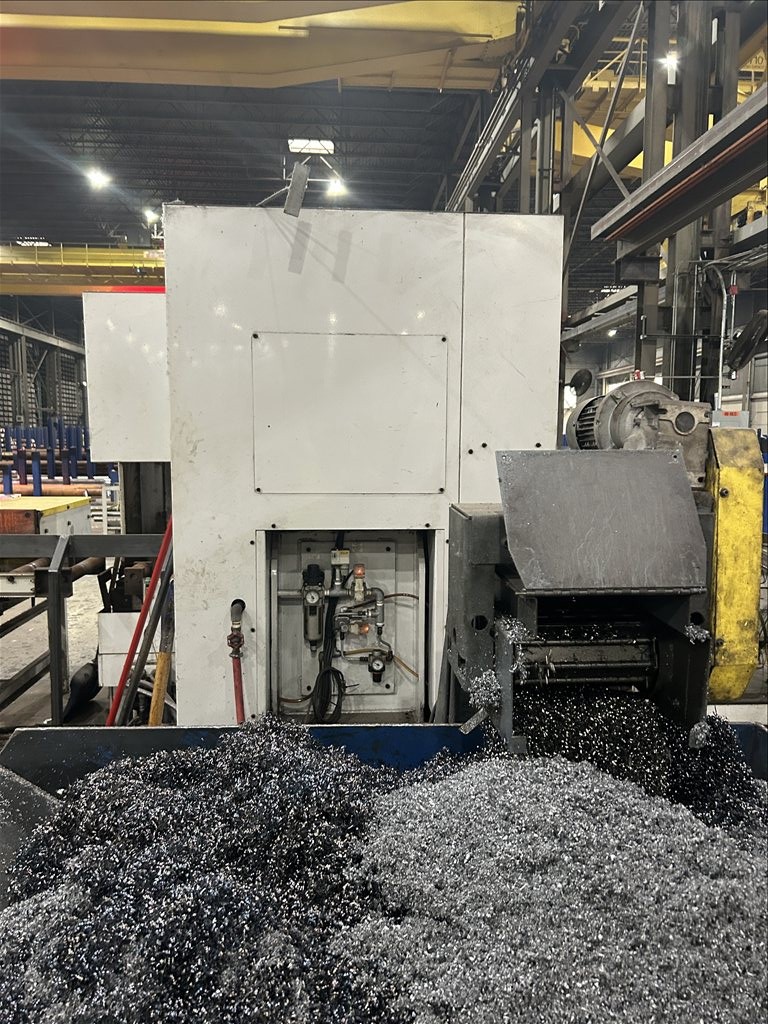

- Chip Conveyor
- Oil Mist Coolant System

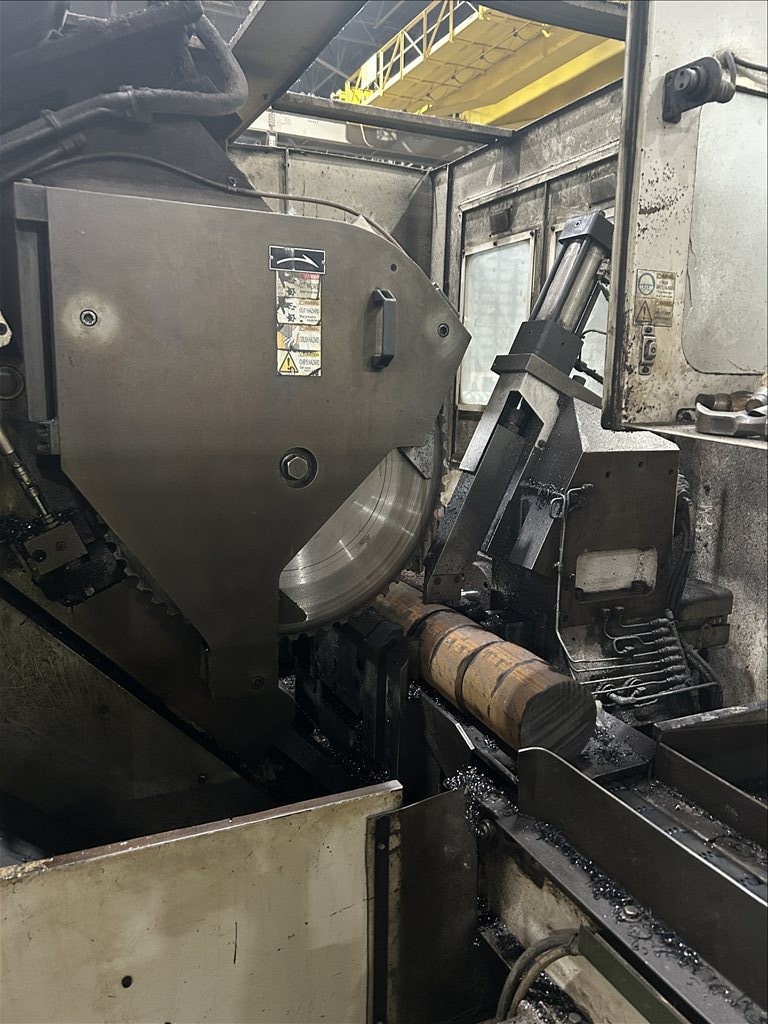

- Saw Blade w/ Carbide Tips
- Show More
- Show Less
- Powered Roller Conveyor
- Manual Bar Loader
- Post Cut Auto Push-Off
- Chip Conveyor
- Oil Mist Coolant System
- Saw Blade w/ Carbide Tips
- Show More
- Show Less
More Info

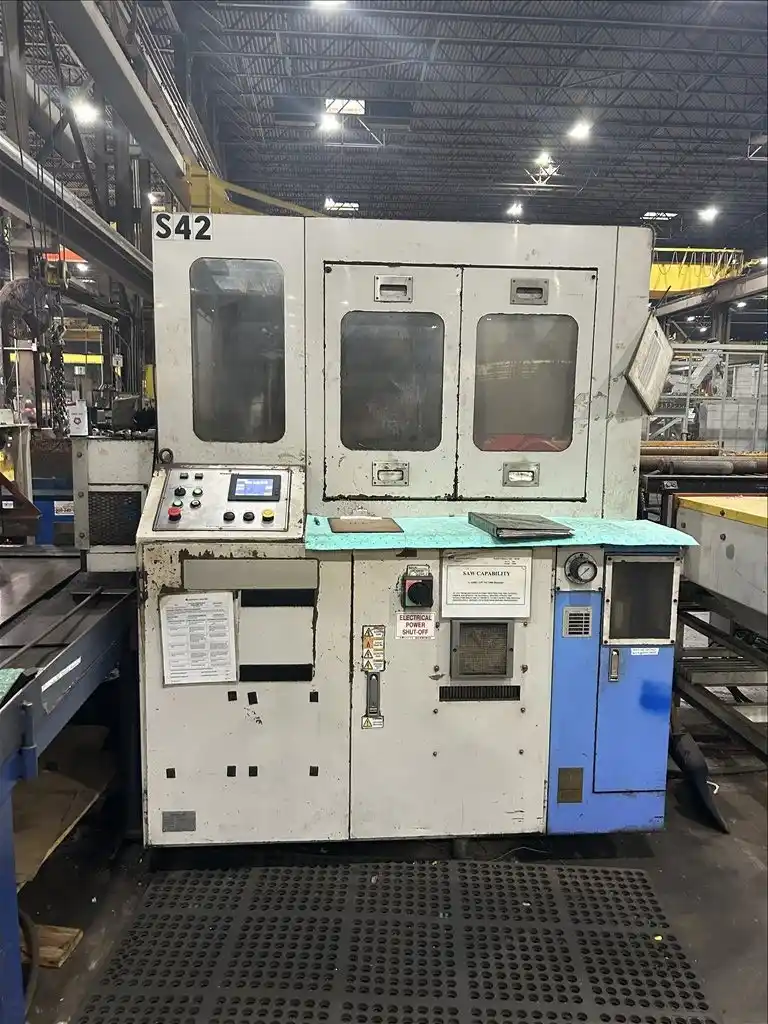

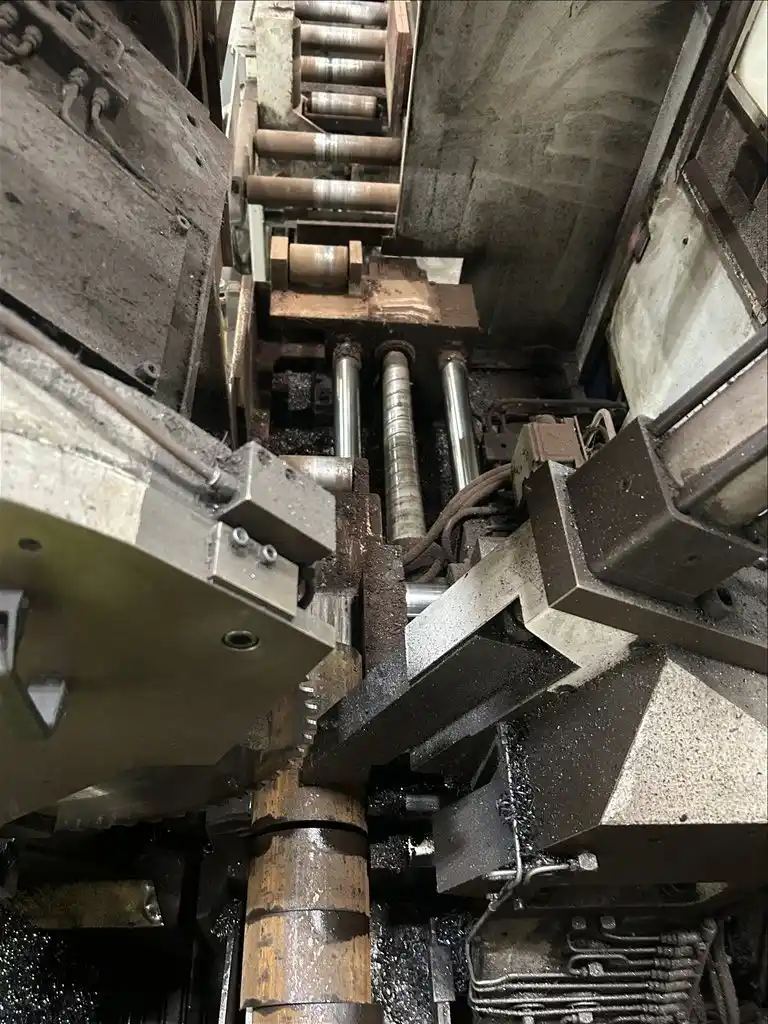

This Nishijimax NHC-180NB is a 7-inch (180 mm) high-speed carbide circular saw engineered for precision cut-off of carbon-steel, alloy-steel and stainless bar or tube. A 45° Z-axis slant-bed design and AC-servo / ball-screw feed give the blade longer life and deliver high feed rates at a low cost per cut. Control is via a Mitsubishi Q-Series PLC touchscreen HMI for recipe storage and on-screen troubleshooting. The saw comes with hydraulic horizontal & vertical clamping, an automatic bundle loader, chip conveyor, and spare carbide blade—providing near-new productivity at a huge savings versus buying new.
Looking for similar equipment?
Explore Perfection Global’s inventory of used cold & friction saws.
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
