Inventory # 48069 Year: 2002

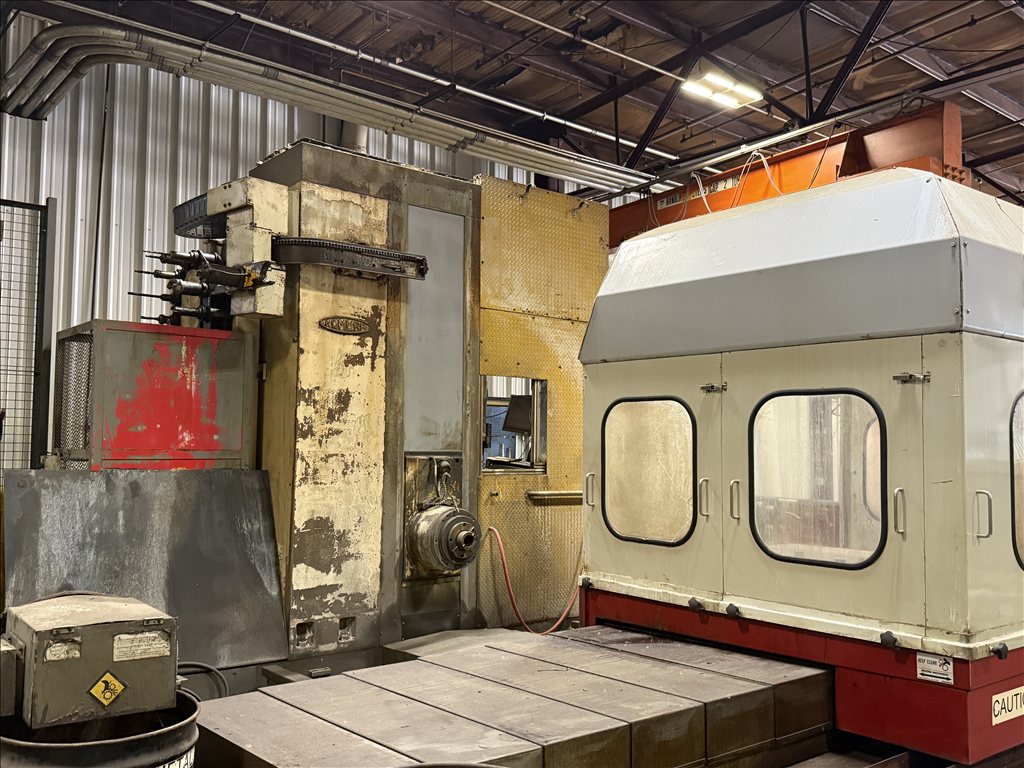

Nomura HBA-110T-R3 Table-Type CNC Horizontal Boring Mill
Specifications

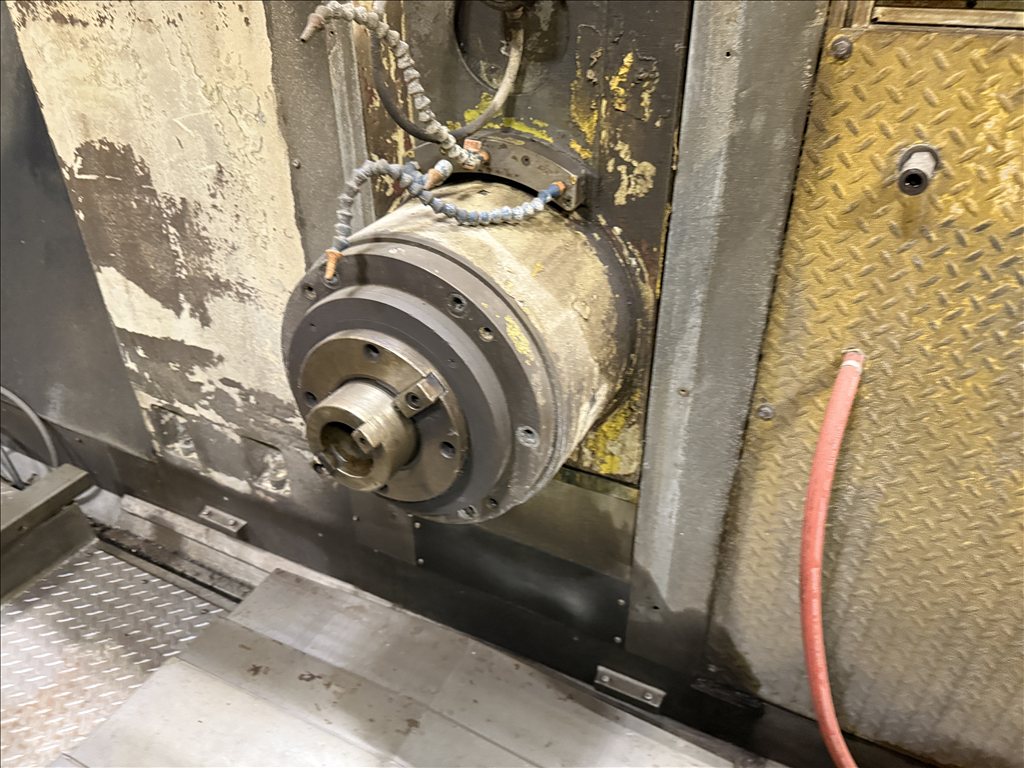

- Spindle Diameter: 4.3"
- Spindle Taper: CAT 50
- Table Size: 55" x 63"
- X-Axis Travel: 77"
- Y-Axis Travel: 60"
- Z-Axis Travel: 50"
- W-Axis Travel: 19"
- B Axis Resolution: 0.001 Degrees
- Tooling: 40-ATC
- Max. Spindle Speed: 3200 RPM
- Spindle Motor: 25 HP
- Show More
- Show Less
- Spindle Diameter: 109.22mm
- Spindle Taper: CAT 50
- Table Size: 1397.00mm x 1600.20mm
- X-Axis Travel: 1955.80mm
- Y-Axis Travel: 1524.00mm
- Z-Axis Travel: 1270.00mm
- W-Axis Travel: 482.60mm
- B Axis Resolution: 0.001 Degrees
- Tooling: 40-ATC
- Max. Spindle Speed: 3200 RPM
- Spindle Motor: 18.64 kw
- Show More
- Show Less
Equipped With

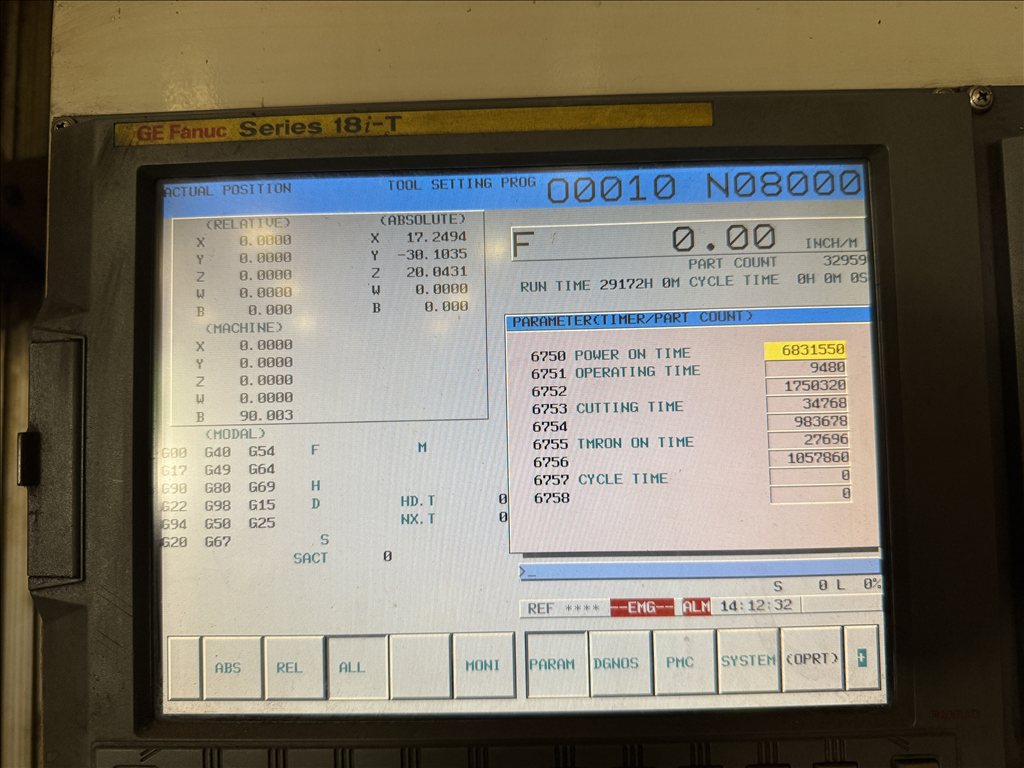

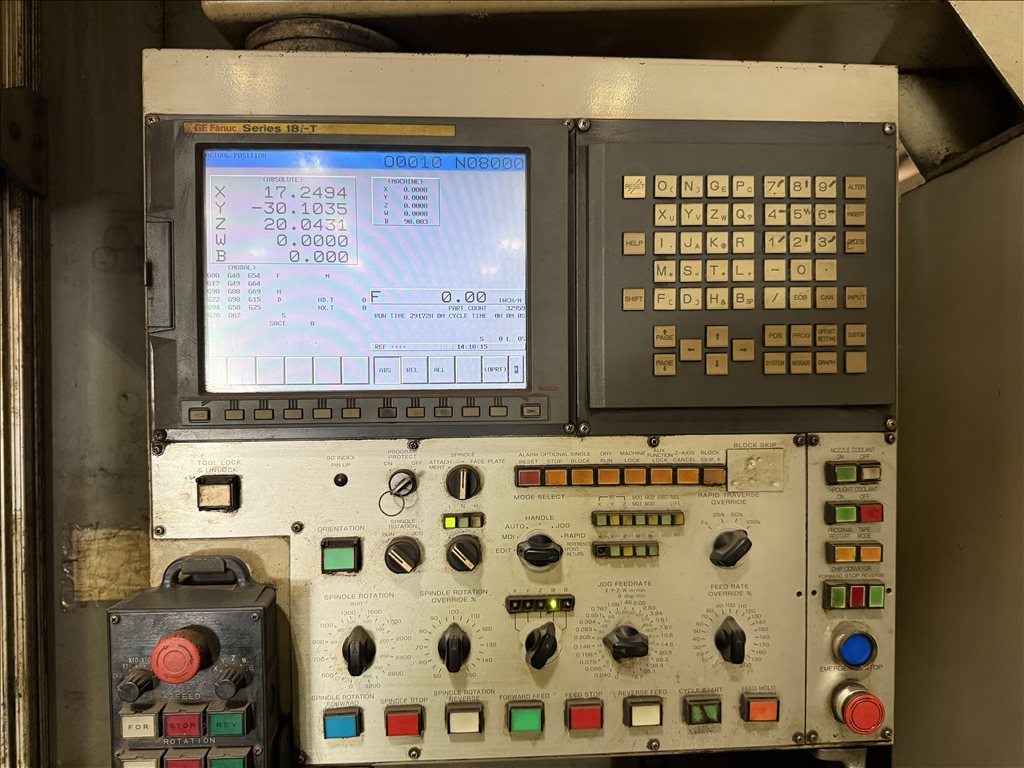

- Fanuc 18iT CNC Control
- Through Spindle Coolant System
- Partial Enclosure
- Fanuc 18iT CNC Control
- Through Spindle Coolant System
- Partial Enclosure
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
