Inventory # 41495
** ITEM IS SOLD - if you are looking for a similar item OR have a similar item to sell please contact us Phone 847-427-3333 or email scott@perfectionglobal.com OCEANEERING INTERNATIONAL INSTALLATION AND WORKOVER CONTROL SYSTEMS (IWOCS)
Specifications
- Entire System Never Deployed

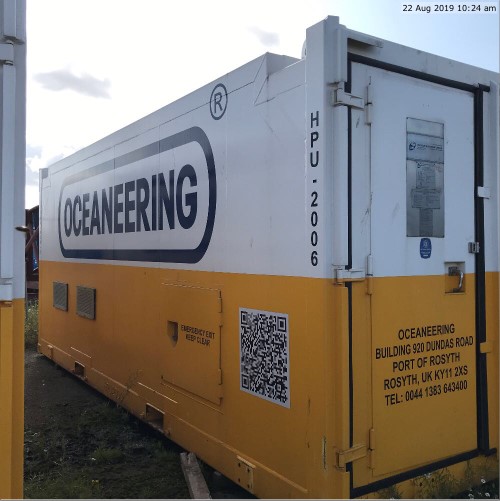

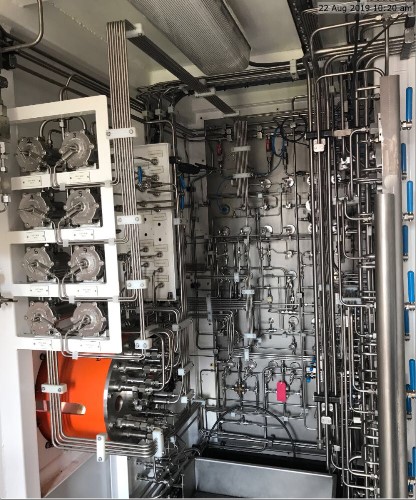

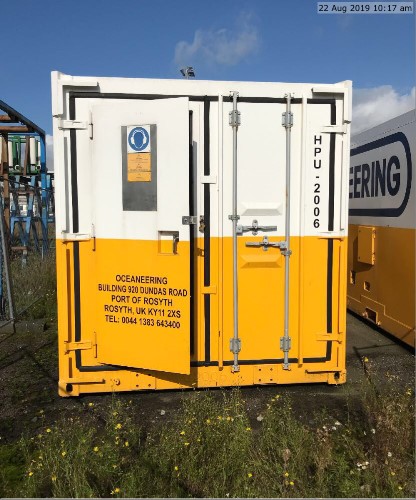

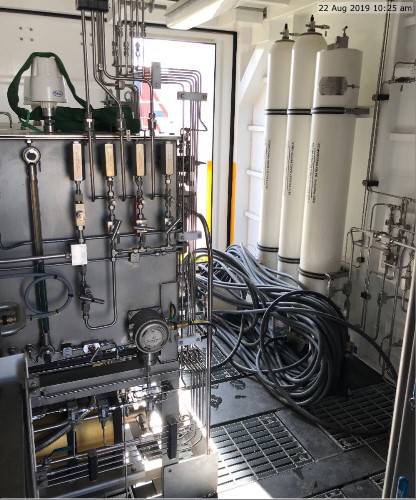

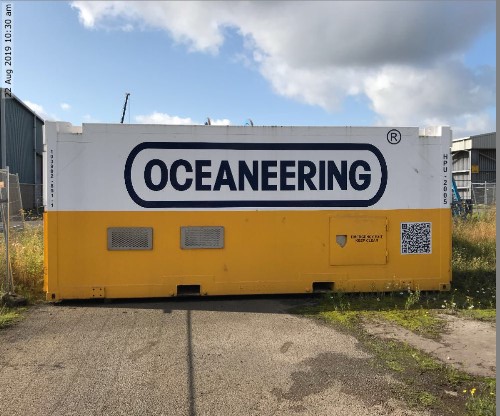

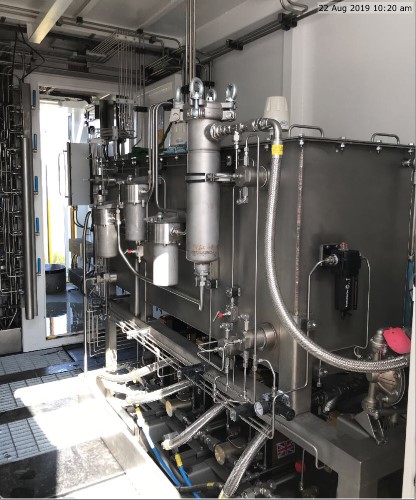

- (2) HPU-2006 Hydraulic Power Units
- Number of Lines: 33
- Reservoir: 145 Gal. Supply / 59 Gal. Return
- Fluid Requirements: Glycol-Based Control Fluid
- (2) Hydratron Inc. DHDA66 Pneumatic Pumps: 12,000 PSI / 0.9 GPM
- (2) Hydratron Inc. DHDA33 Pneumatic Pumps: 6,000 PSI / 1.7 GPM
- (1) ARO 66053-344 Diaphragm Pump: 1:1 / 100 PSI MAWP / 13 GPM
- View Photos & Details - HPU #1
- View Photos & Details - HPU #2
- (3) Load Systems International GS550 Load Cell Receivers
- View Photos & Details

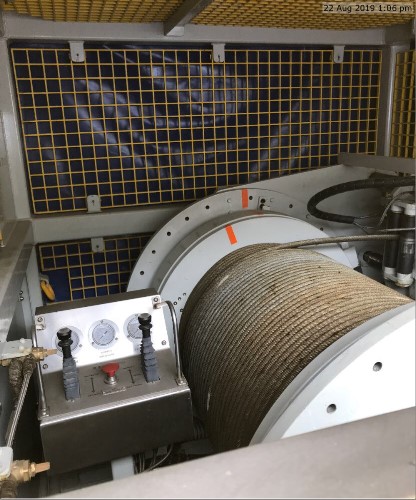

- EDL R-206 Pneumatic Reeler
- Cable Capacity (Length x Cable OD): 3,280' x 2.1"
- Number of Conductors: 8 x 0.157 in³
- Drum Diameter: 63"
- Drum Length: 47"
- Flange Diameter: 100"
- View Photos & Details

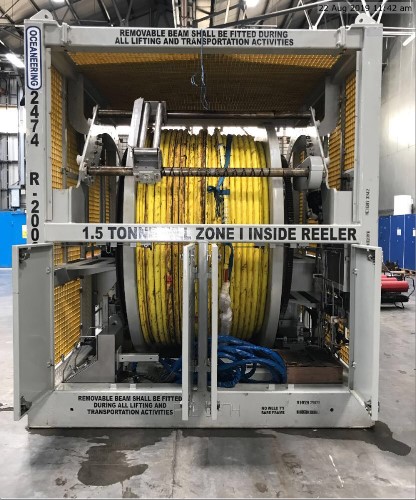

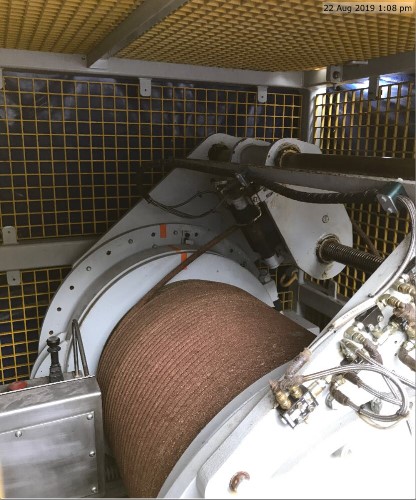

- R-2011 Installation / Workover Reel
- Number of Functions: 21
- Umbilical Capacity (Length x OD): 1000' x 3.1"
- Drum Diameter: 63"
- Drum Length: 47"
- Flange Diameter: 99"
- View Photos & Details

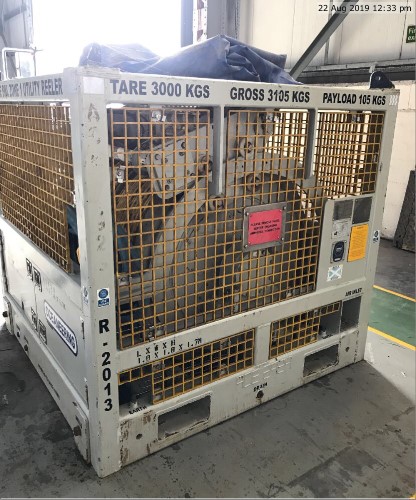

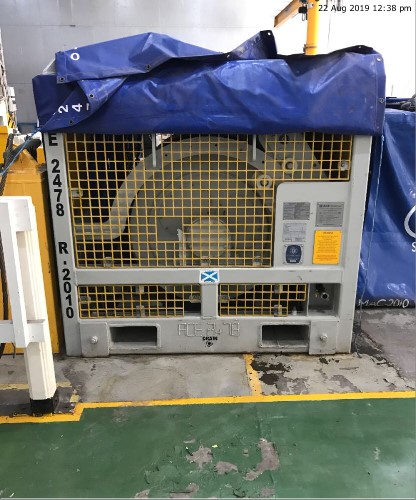

- (3) R-2010 Pneumatic Utility Reels
- Capacity (Length x OD): 1000' x 0.74"
- Drum Diameter: 33"
- Drum Length: 30"
- Flange Height: 5"
- View Photos & Details - Reel #1
- View Photos & Details - Reel #2
- View Photos & Details - Reel #3

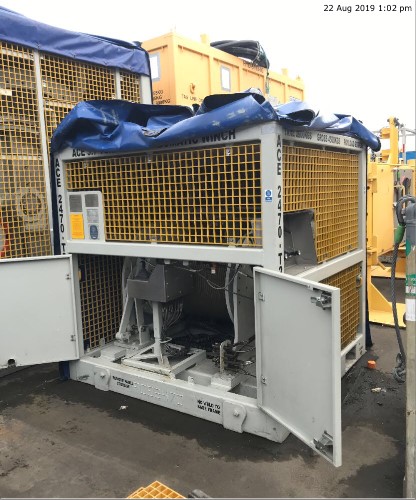

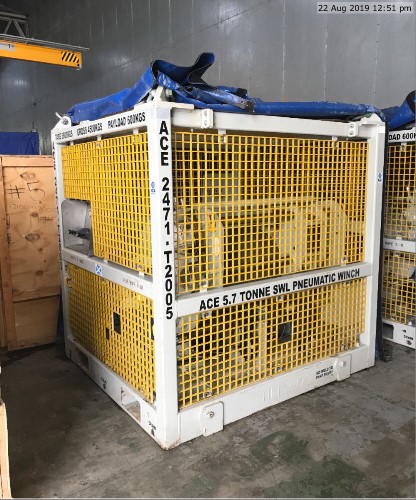

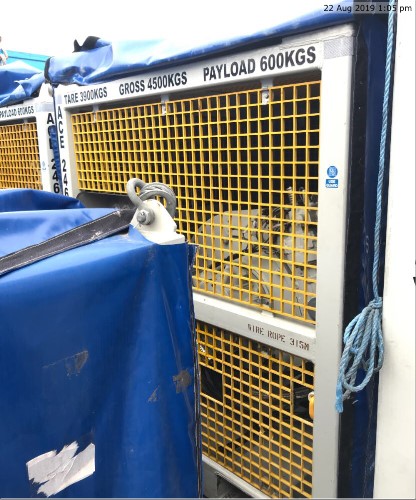

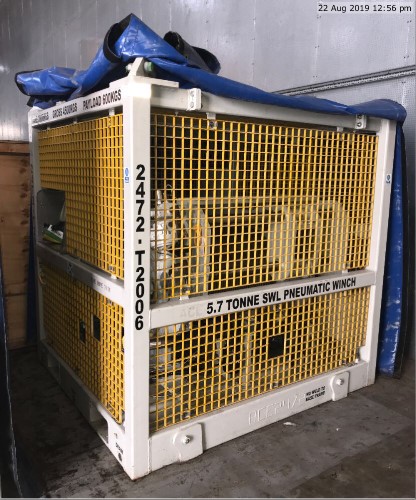

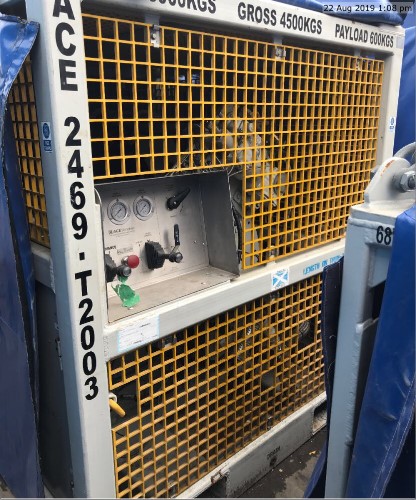

- (5) T-2004 Pneumatic Tuggers
- Rating, Full Drum: 628 Tons @ 54 FPM
- Rating, Bare Drum: 9 Tons @ 34 FPM
- Max. Cable Length: 1,000'
- View Photos & Details

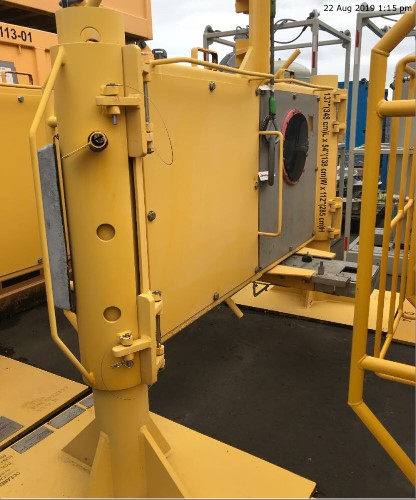

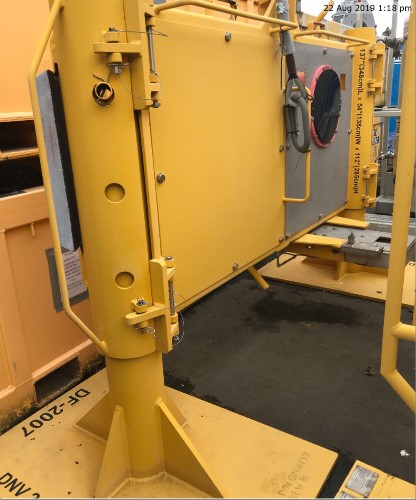

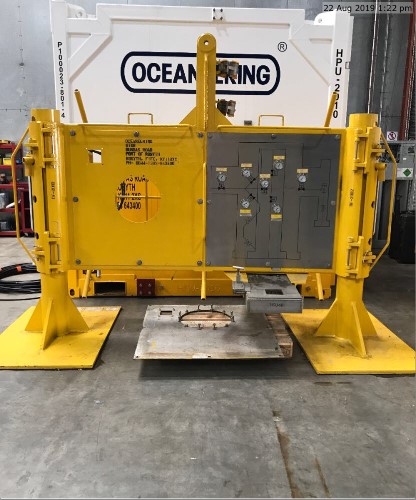

- (4) DF-2005 IWOCS Deployment Frames
- Overall Dimensions: 137" x 54" x 112"
- Max. Gross Weight: 4013 Lb.
- Tare Weight: 893 Lb.
- View Photos & Details

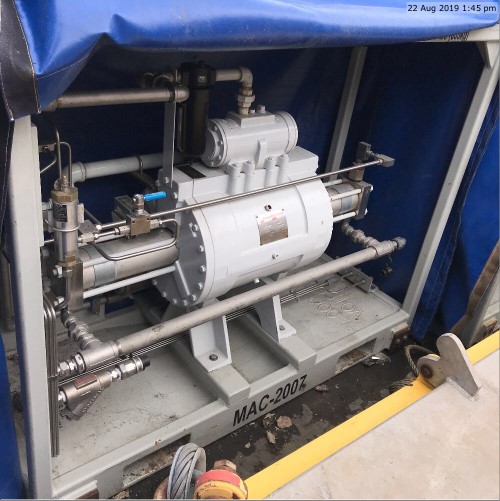

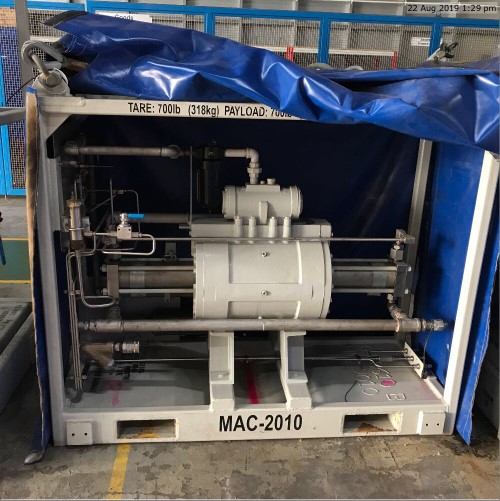

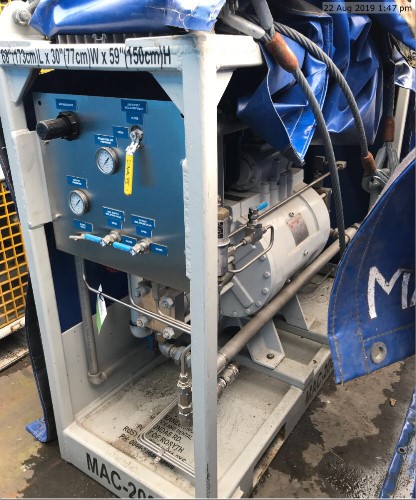

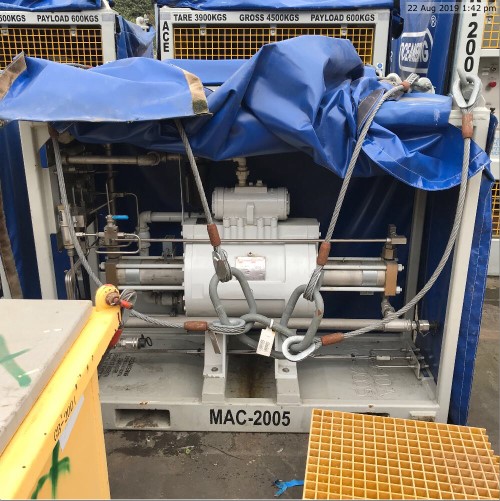

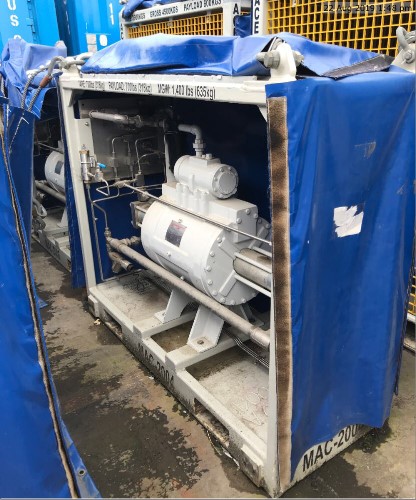

- (5) McFarland Tritan MAC-14 Chemical Injection Pumps
- Output: 1.65 GPM
- Operating Pressure: 13,370 PSI
- View Photos & Details

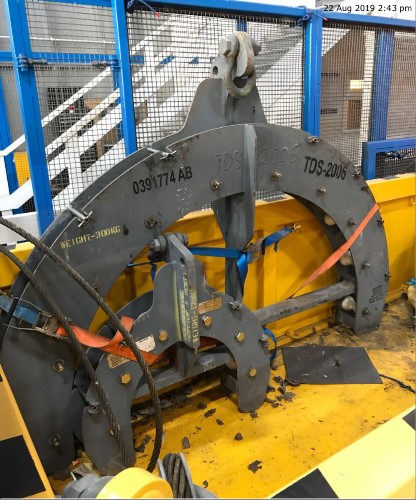

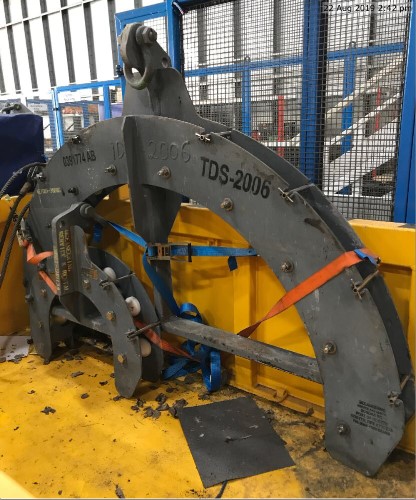

- Umbilical Turn Down Sheave
- Bend Radius: 40"
- Max. Umbilical OD: 4"
- View Photos & Details

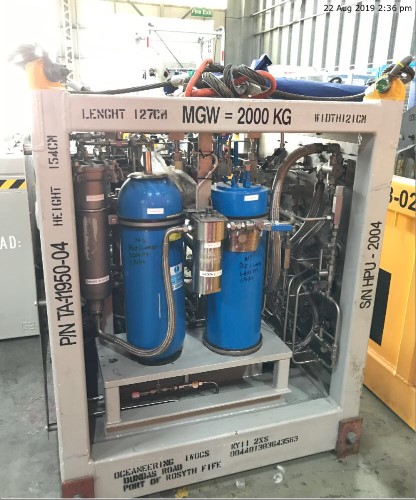

- HPU-2004 Hydraulic Water Glycol Power / Testing Unit
- View Photos & Details
- The System Can Be Sold In Its Entirety, or Alternatively, Offers for Individual Components Will Be Considered
- Show More
- Show Less
- Entire System Never Deployed
- (2) HPU-2006 Hydraulic Power Units
- Number of Lines: 33
- Reservoir: 145 Gal. Supply / 59 Gal. Return
- Fluid Requirements: Glycol-Based Control Fluid
- (2) Hydratron Inc. DHDA66 Pneumatic Pumps: 12,000 PSI / 0.9 GPM
- (2) Hydratron Inc. DHDA33 Pneumatic Pumps: 6,000 PSI / 1.7 GPM
- (1) ARO 66053-344 Diaphragm Pump: 1:1 / 100 PSI MAWP / 13 GPM
- View Photos & Details - HPU #1
- View Photos & Details - HPU #2
- (3) Load Systems International GS550 Load Cell Receivers
- View Photos & Details
- EDL R-206 Pneumatic Reeler
- Cable Capacity (Length x Cable OD): 999744.00mmx 53.34mm
- Number of Conductors: 8 x 0.157 in
- Drum Diameter: 1600.20mm
- Drum Length: 1193.80mm
- Flange Diameter: 2540.00mm
- View Photos & Details
- R-2011 Installation / Workover Reel
- Number of Functions: 21
- Umbilical Capacity (Length x OD): 304800.00mmx 78.74mm
- Drum Diameter: 1600.20mm
- Drum Length: 1193.80mm
- Flange Diameter: 2514.60mm
- View Photos & Details
- (3) R-2010 Pneumatic Utility Reels
- Capacity (Length x OD): 304800.00mmx 18.80mm
- Drum Diameter: 838.20mm
- Drum Length: 762.00mm
- Flange Height: 127.00mm
- View Photos & Details - Reel #1
- View Photos & Details - Reel #2
- View Photos & Details - Reel #3
- (5) T-2004 Pneumatic Tuggers
- Rating, Full Drum: 569.66 Metric Tons @ 274.32 mm/sec
- Rating, Bare Drum: 8.16 Metric Tons @ 172.72 mm/sec
- Max. Cable Length: 304800.00mm
- View Photos & Details
- (4) DF-2005 IWOCS Deployment Frames
- Overall Dimensions: 3479.80mm x 1371.60mm x 2844.80mm
- Max. Gross Weight: 4013 Lb.
- Tare Weight: 893 Lb.
- View Photos & Details
- (5) McFarland Tritan MAC-14 Chemical Injection Pumps
- Output: 6.25 liters/min
- Operating Pressure: 939.91 kgs./sq.cm.
- View Photos & Details
- Umbilical Turn Down Sheave
- Bend Radius: 1016.00mm
- Max. Umbilical OD: 101.60mm
- View Photos & Details
- HPU-2004 Hydraulic Water Glycol Power / Testing Unit
- View Photos & Details
- The System Can Be Sold In Its Entirety, or Alternatively, Offers for Individual Components Will Be Considered
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Location: Renfrew , UNITED KINGDOM
- Disclaimer: Preliminary Specifications....
