Inventory # 47999 Year: 2011

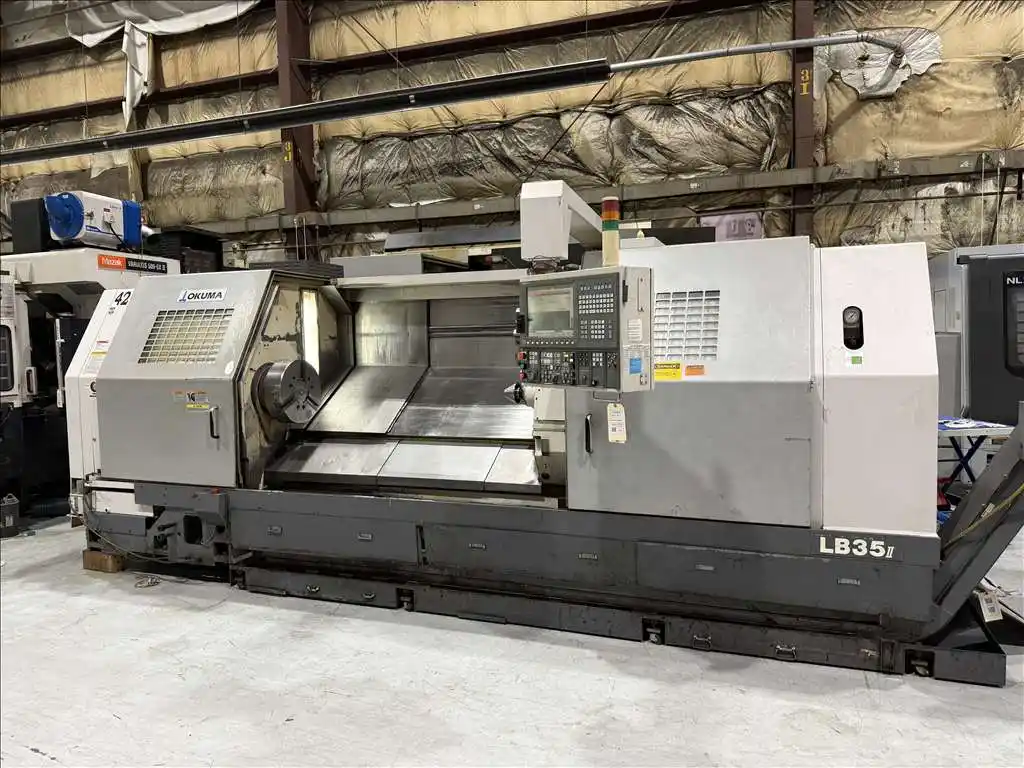

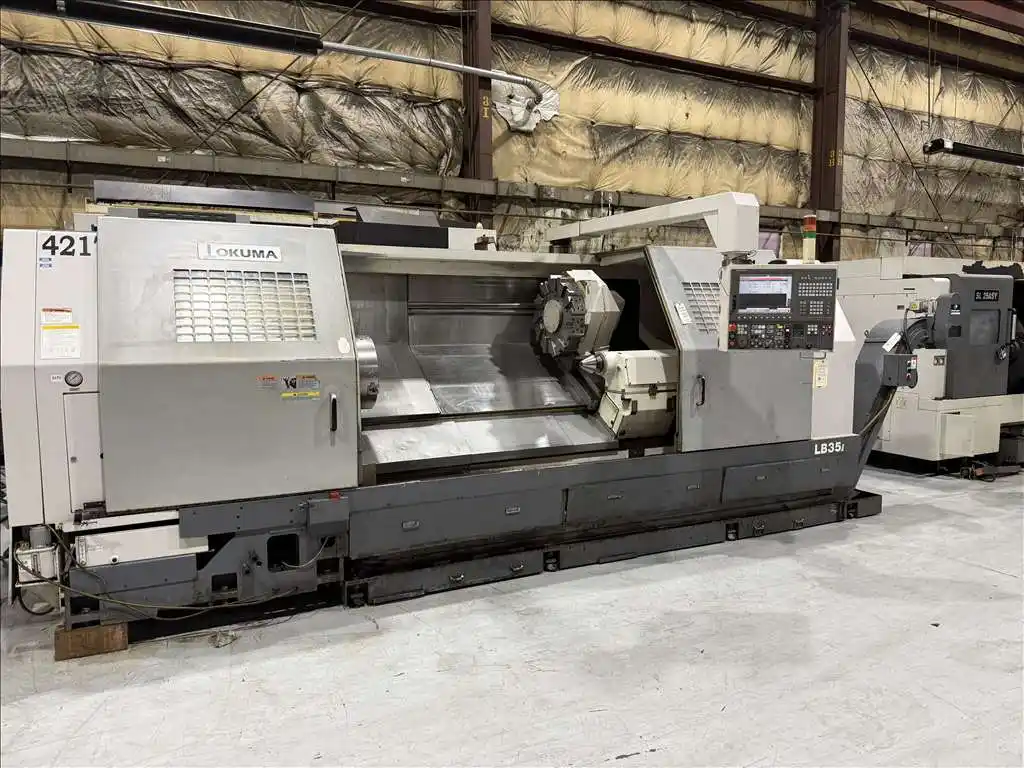

Okuma LB-35-II Turning Center
Specifications

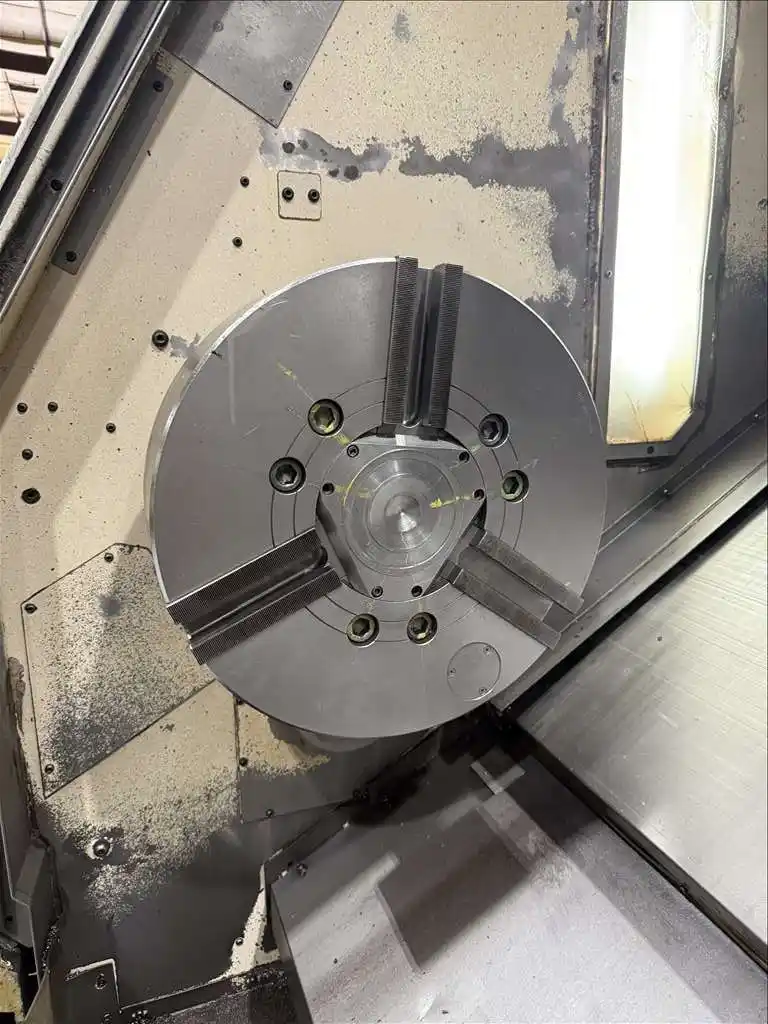

- Chuck: 18" 3-Jaw
- Swing: 27.6"
- Max. Turning Diameter: 19.3"
- Distance Between Centers: 81.5"
- X-Axis Travel: 13"
- Z-Axis Travel: 81.5"
- Bar Capacity: 3.5"
- Spindle Speed: 3,200 RPM
- Spindle Motor: 40 HP

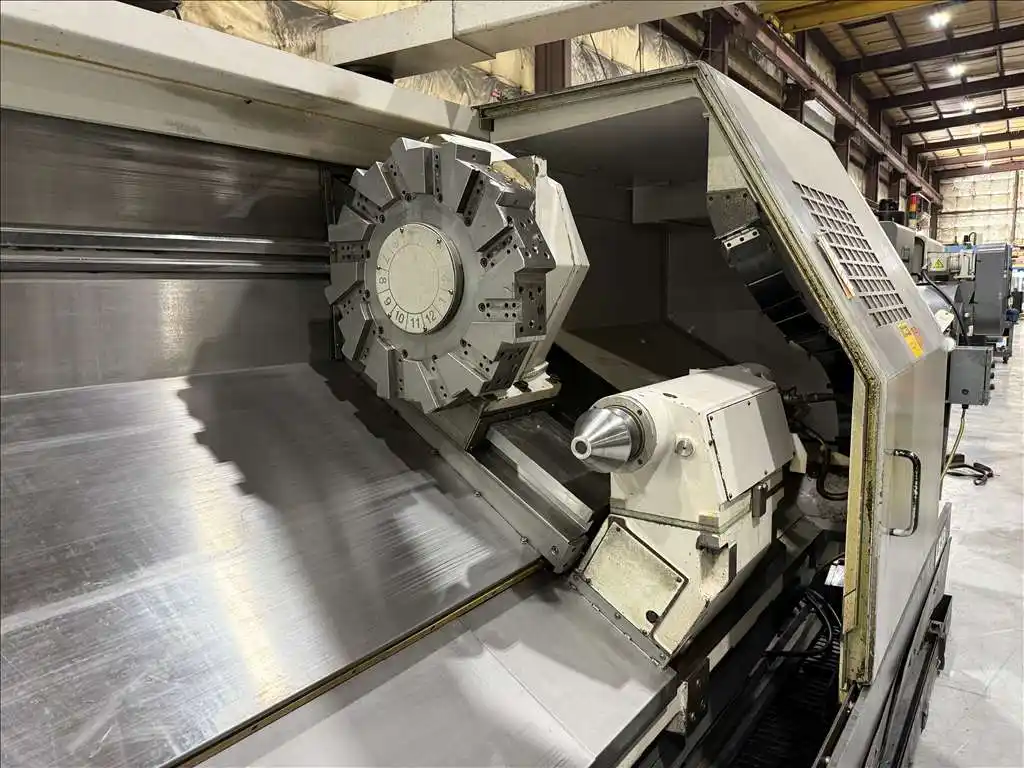

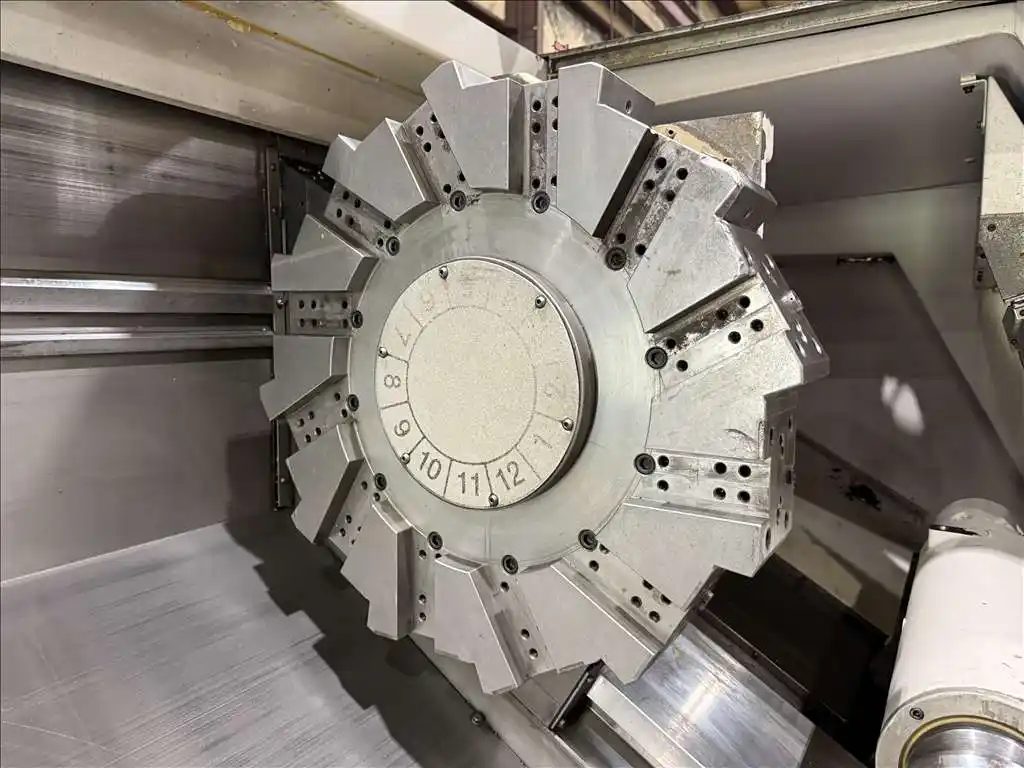

- Number of Turret Positions: 12
- Show More
- Show Less
- Chuck: 457.20mm 3-Jaw
- Swing: 701.04mm
- Max. Turning Diameter: 490.22mm
- Distance Between Centers: 2070.10mm
- X-Axis Travel: 330.20mm
- Z-Axis Travel: 2070.10mm
- Bar Capacity: 88.90mm
- Spindle Speed: 3,200 RPM
- Spindle Motor: 29.83 kw
- Number of Turret Positions: 12
- Show More
- Show Less
Equipped With

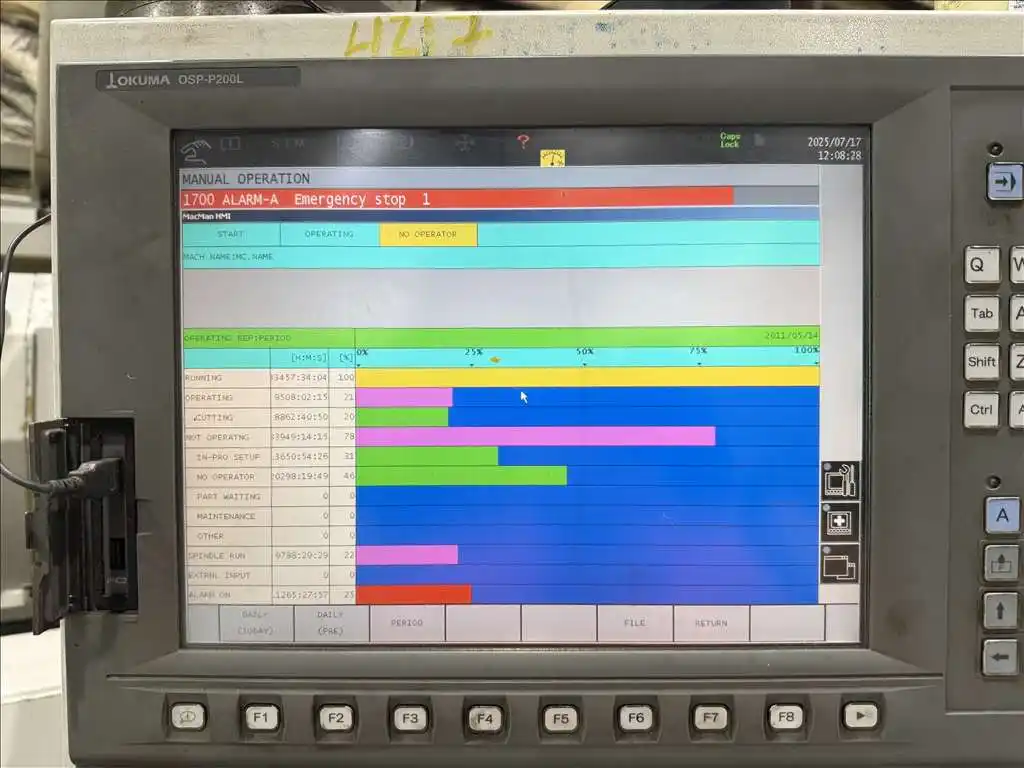

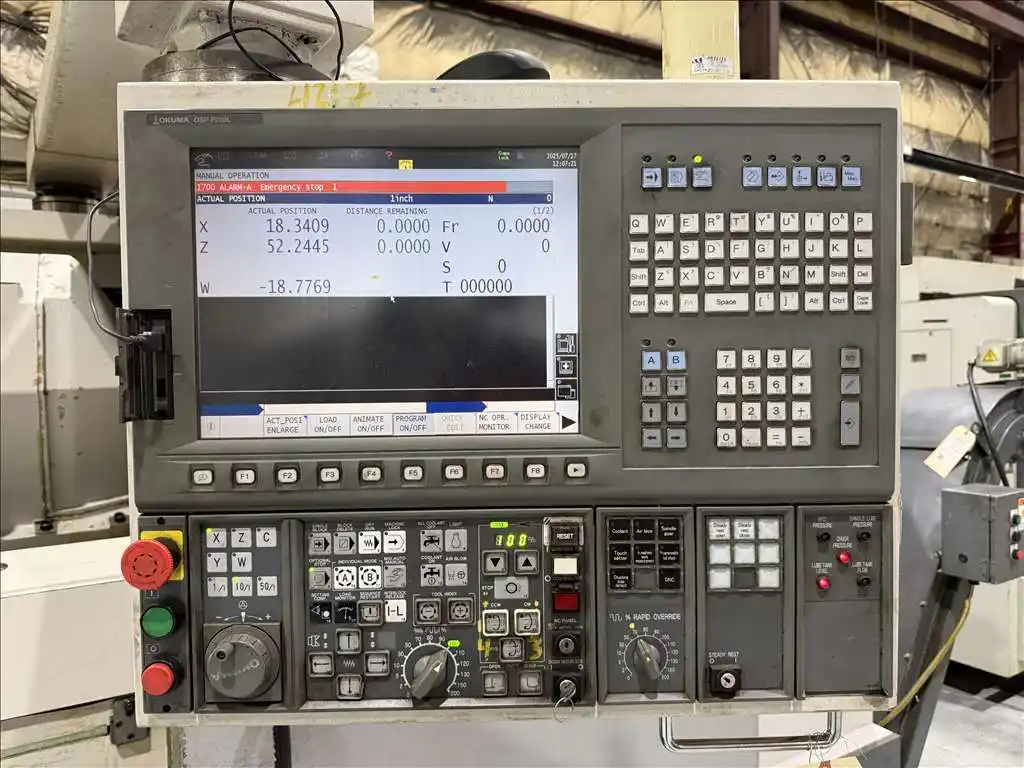

- OSP-P200L CNC Control
- Chip Conveyor

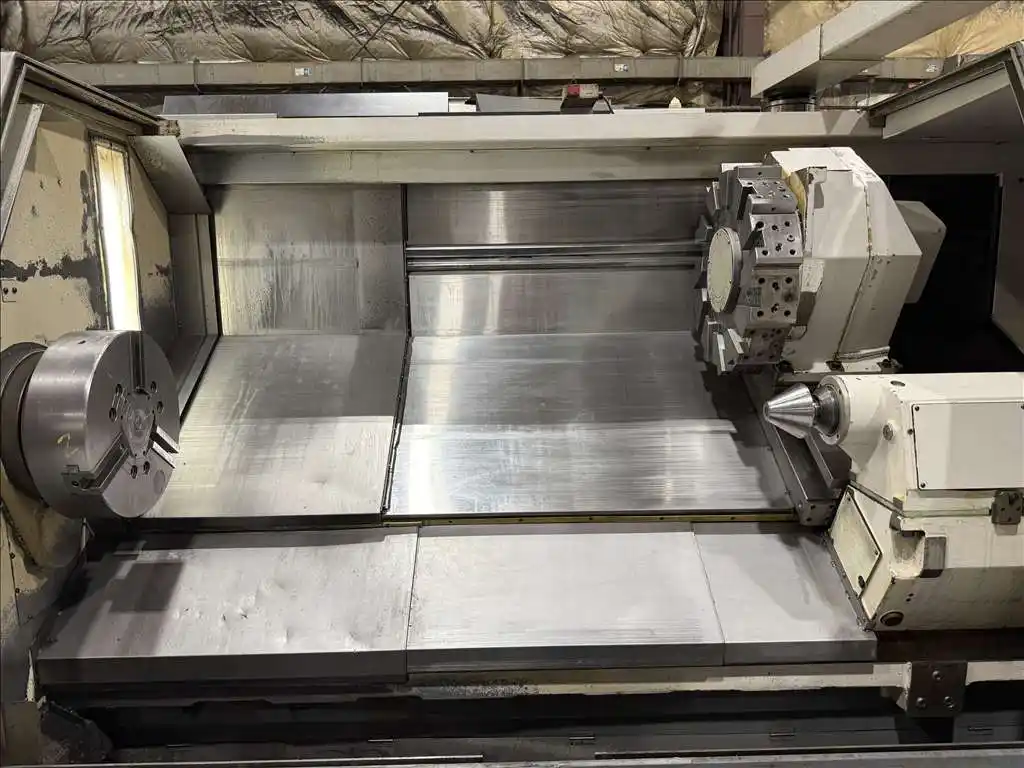

- Programmable Tailstock
- No Tooling, Mist Collector, or Workholding Jaws Included
- OSP-P200L CNC Control
- Chip Conveyor
- Programmable Tailstock
- No Tooling, Mist Collector, or Workholding Jaws Included
Location & Terms
- Terms: As Is, Where Is
- Location: Novi, MI
- Disclaimer: Preliminary Specifications....
