Inventory # 48383 Year: 2019

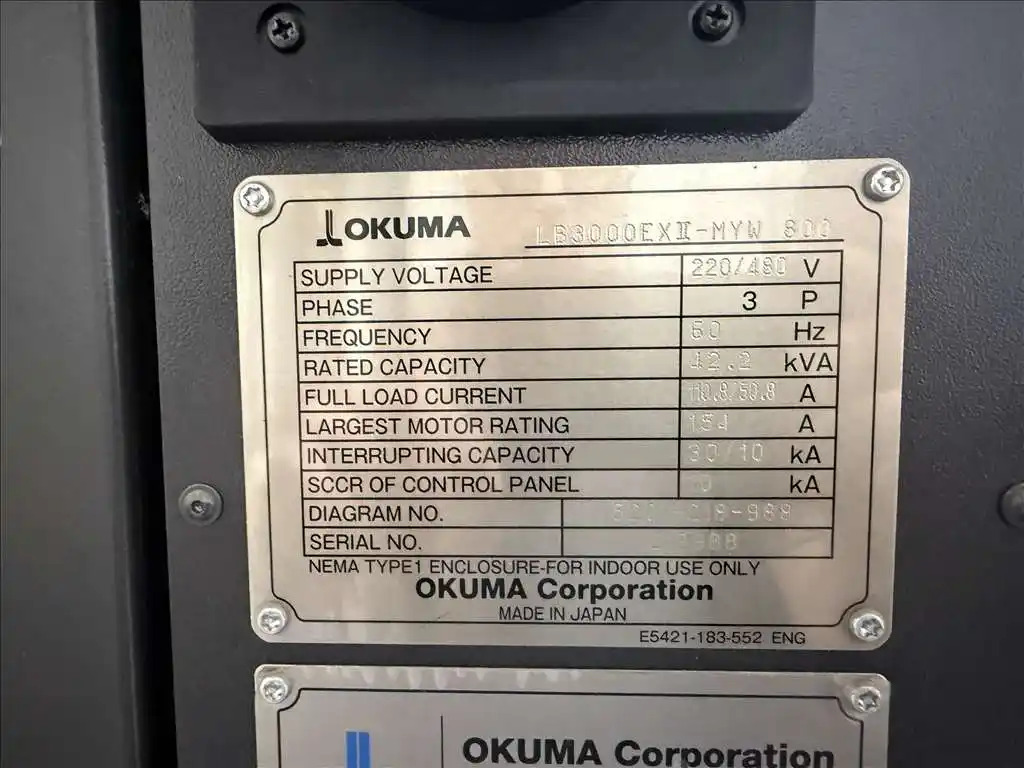

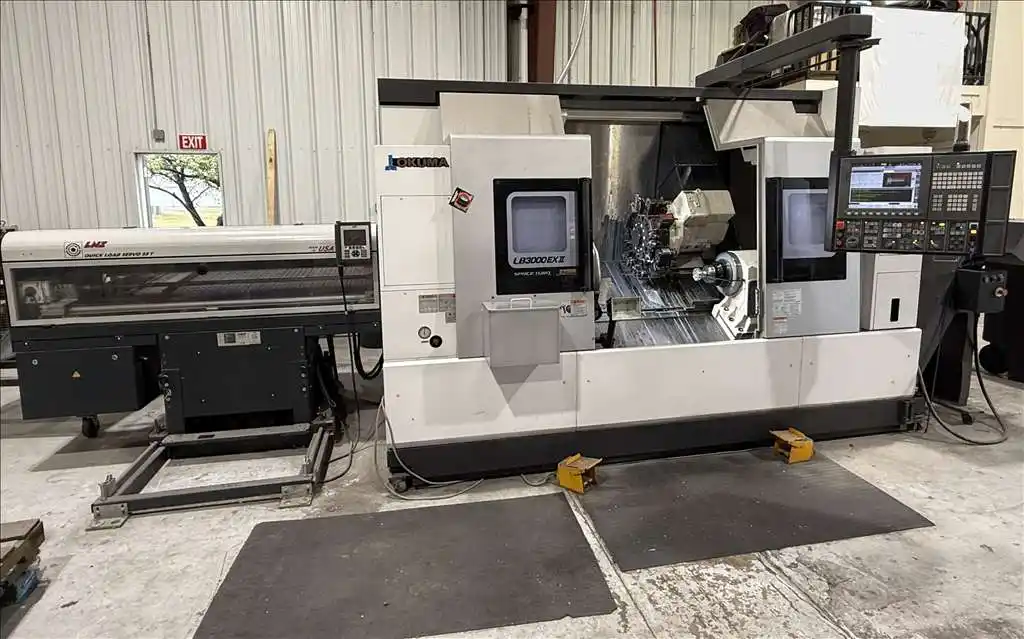

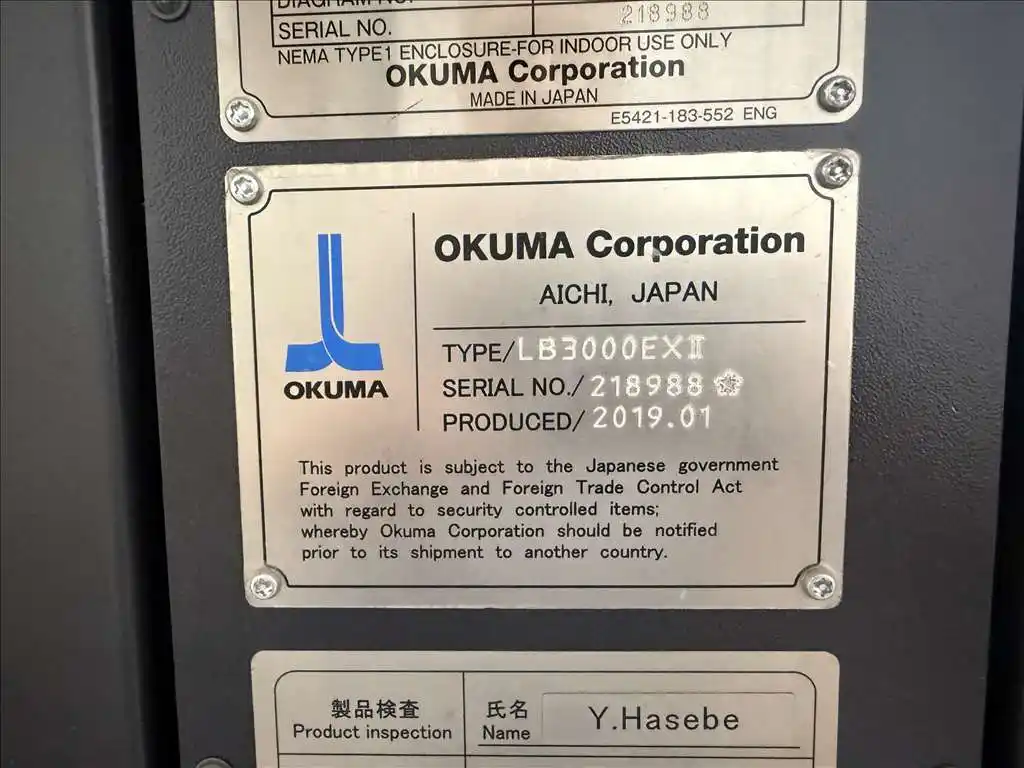

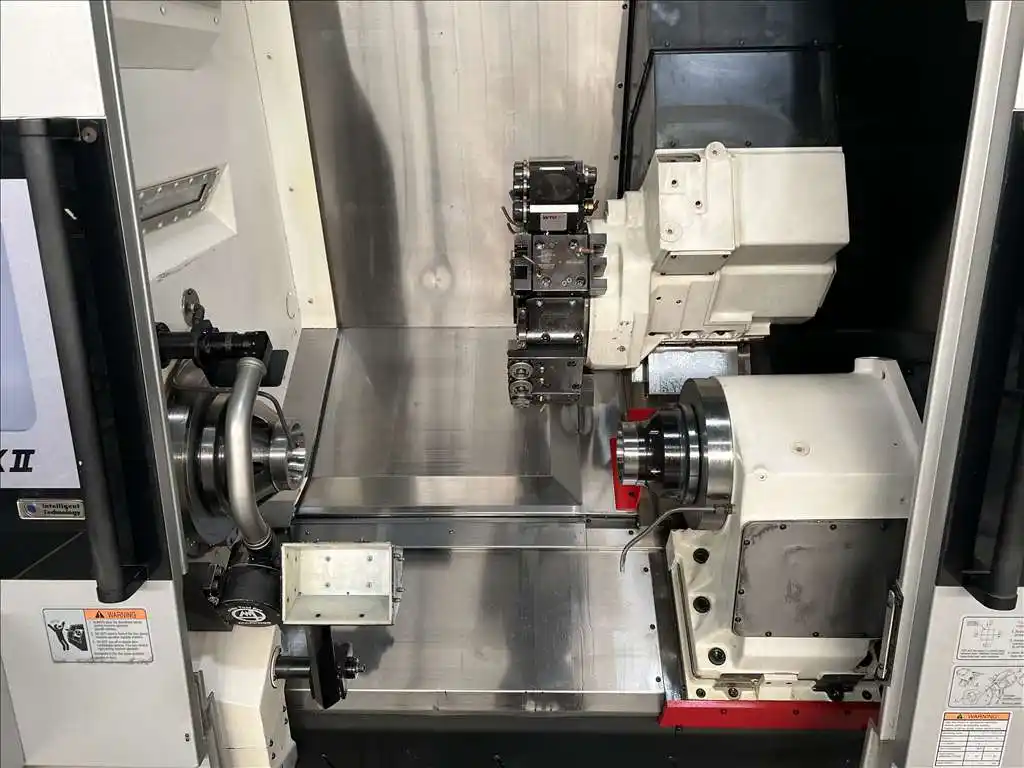

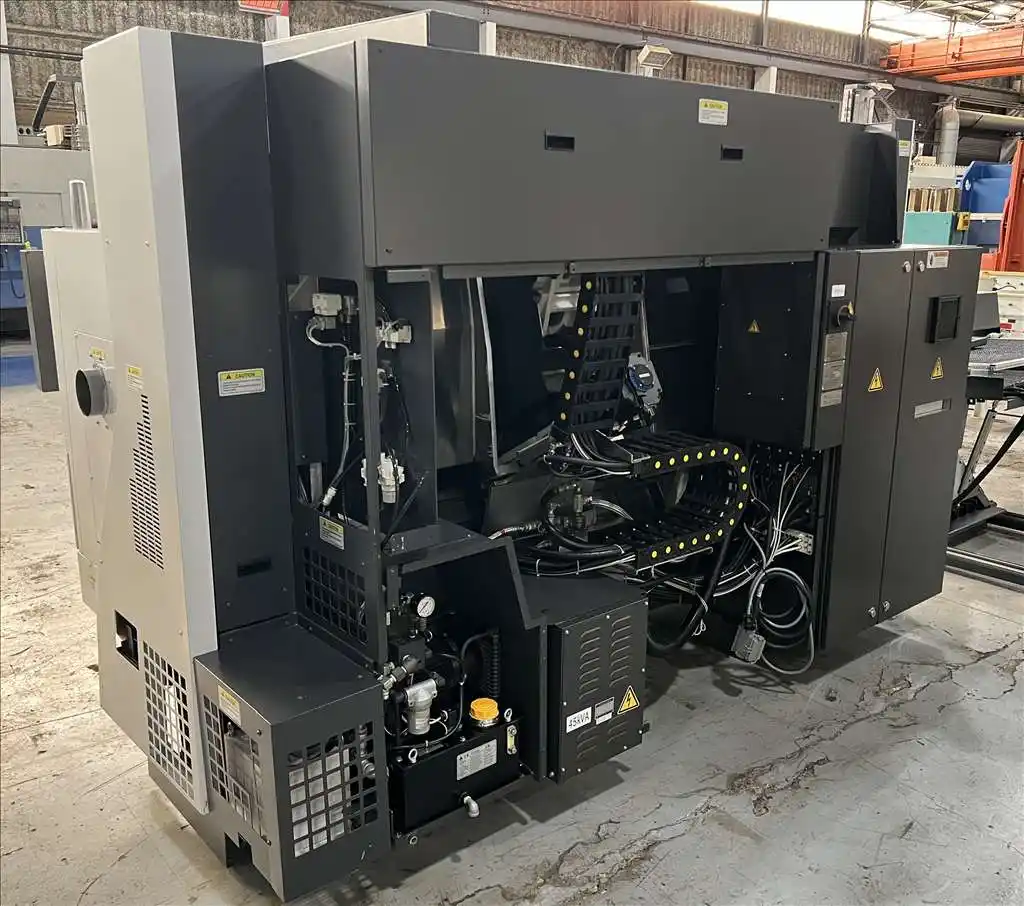

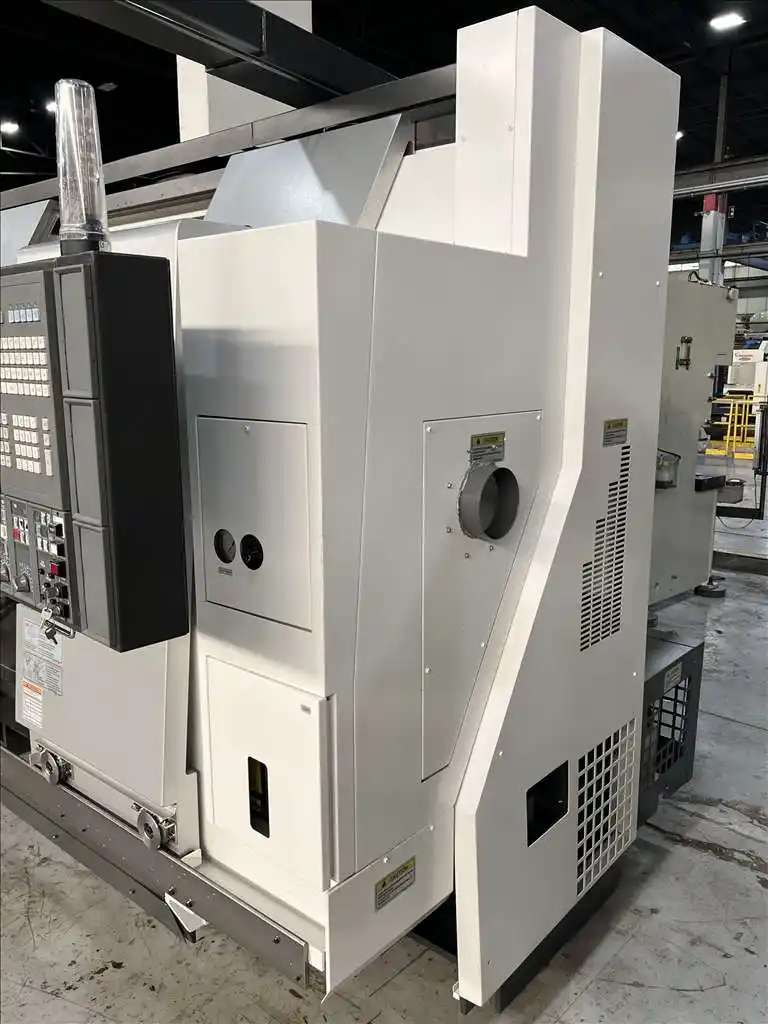

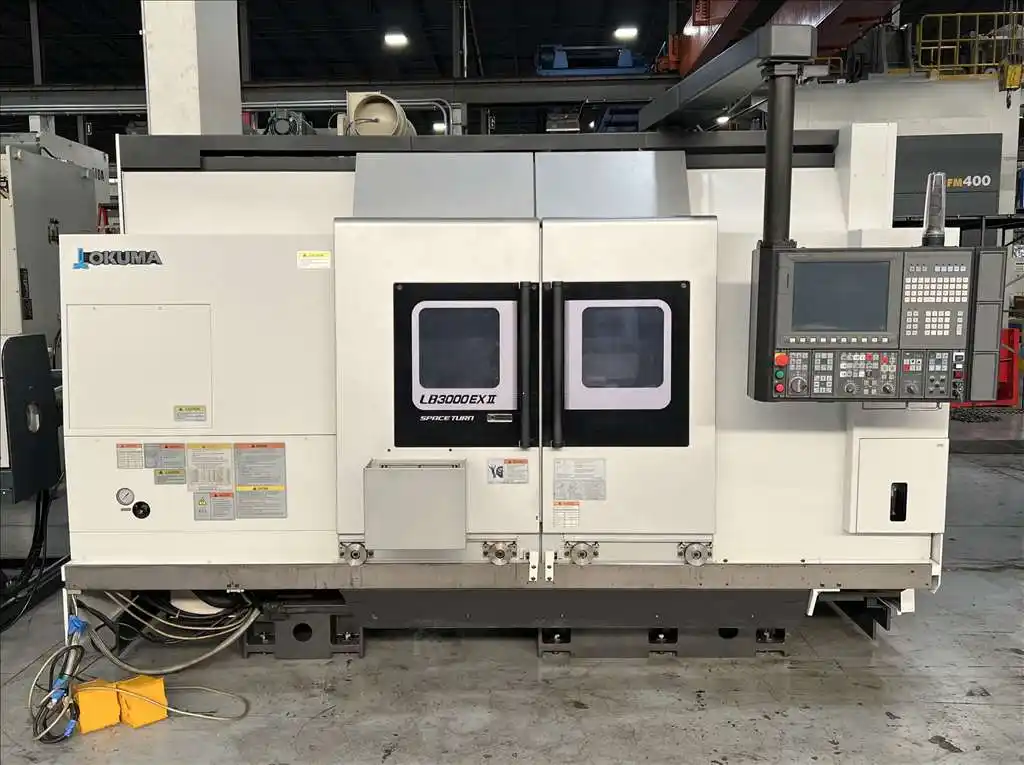

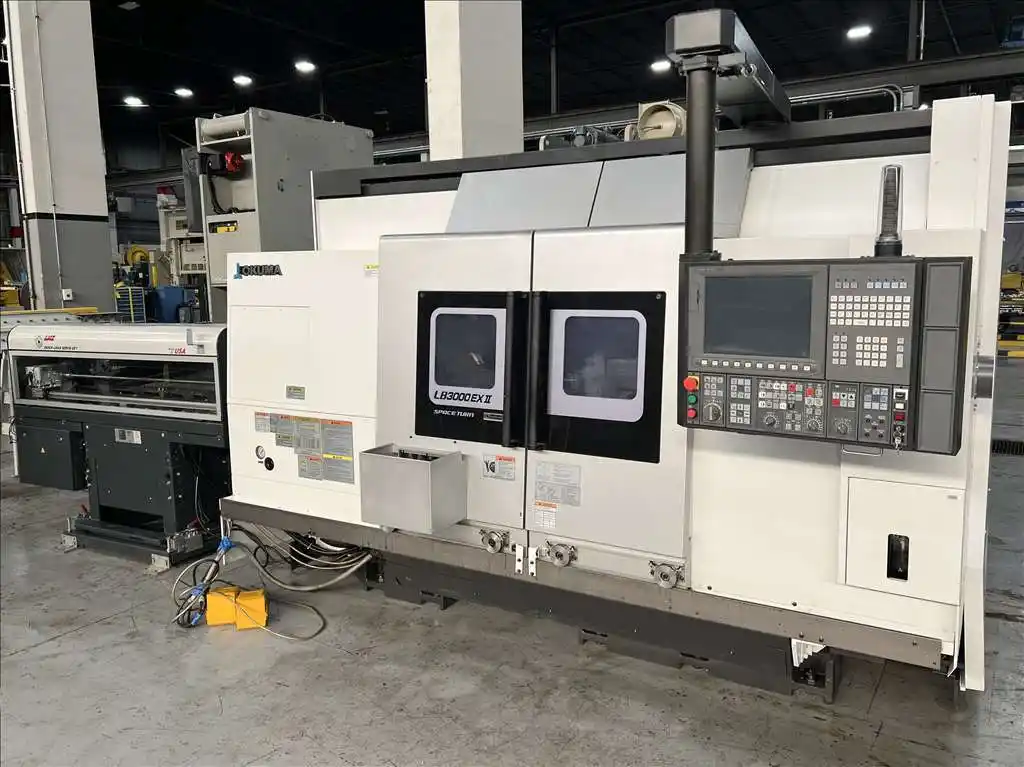

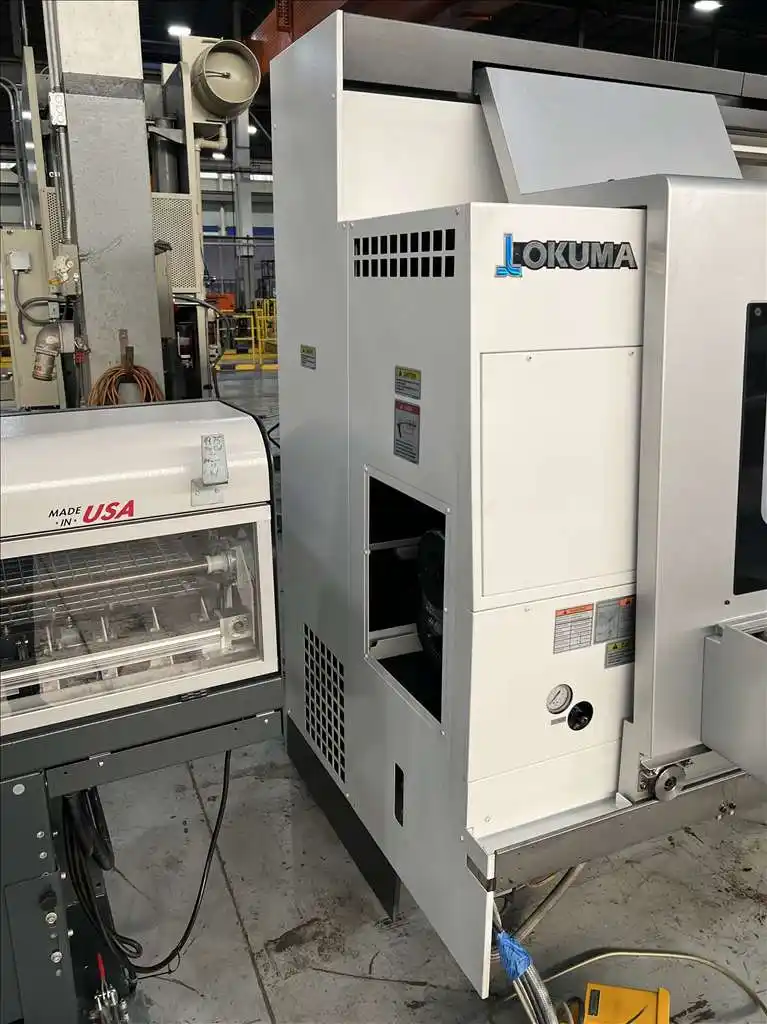

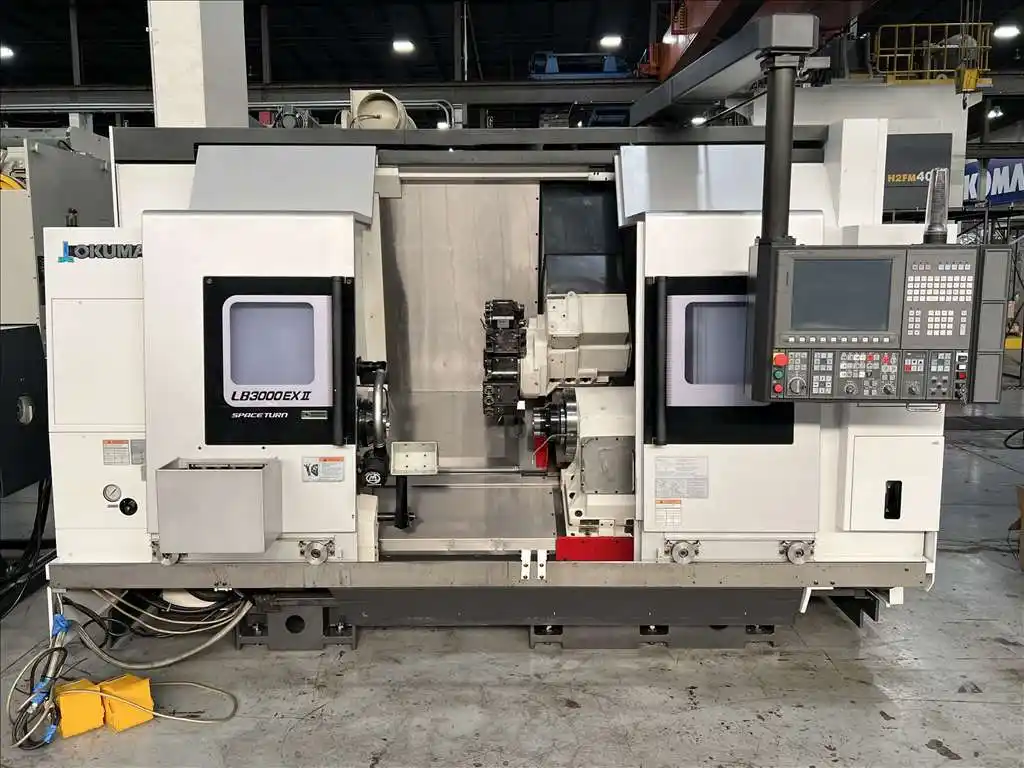

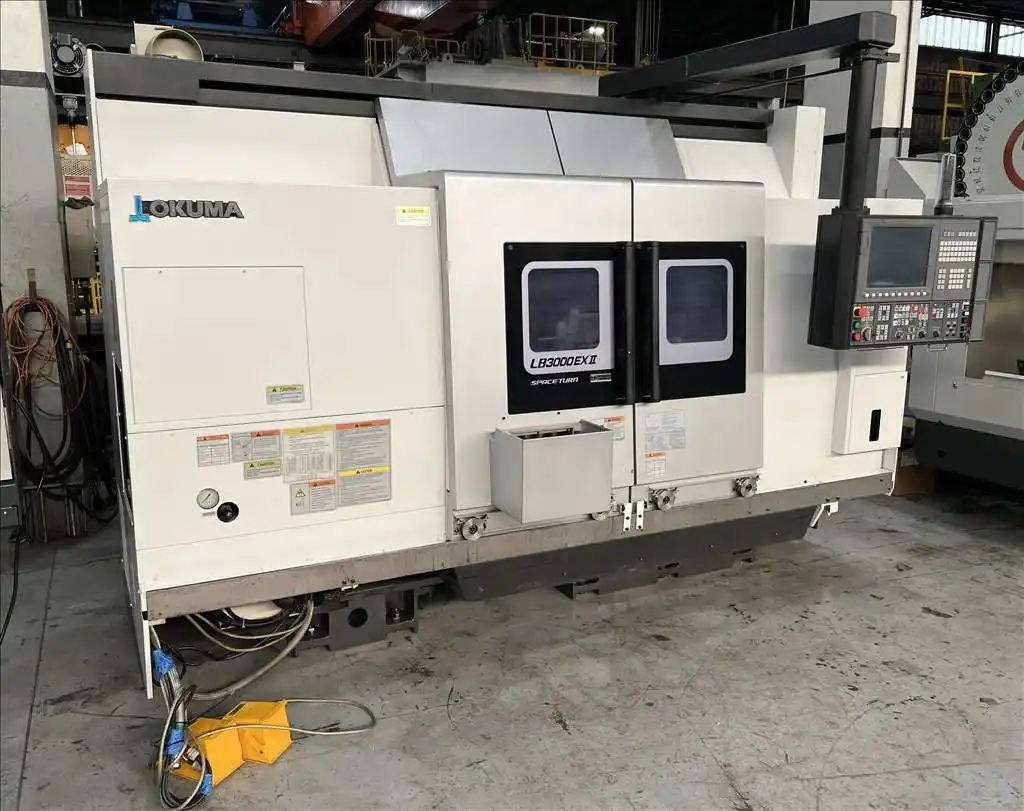

Okuma Spaceturn LB3000EXII-MYW 800 CNC Turning Center
Specifications

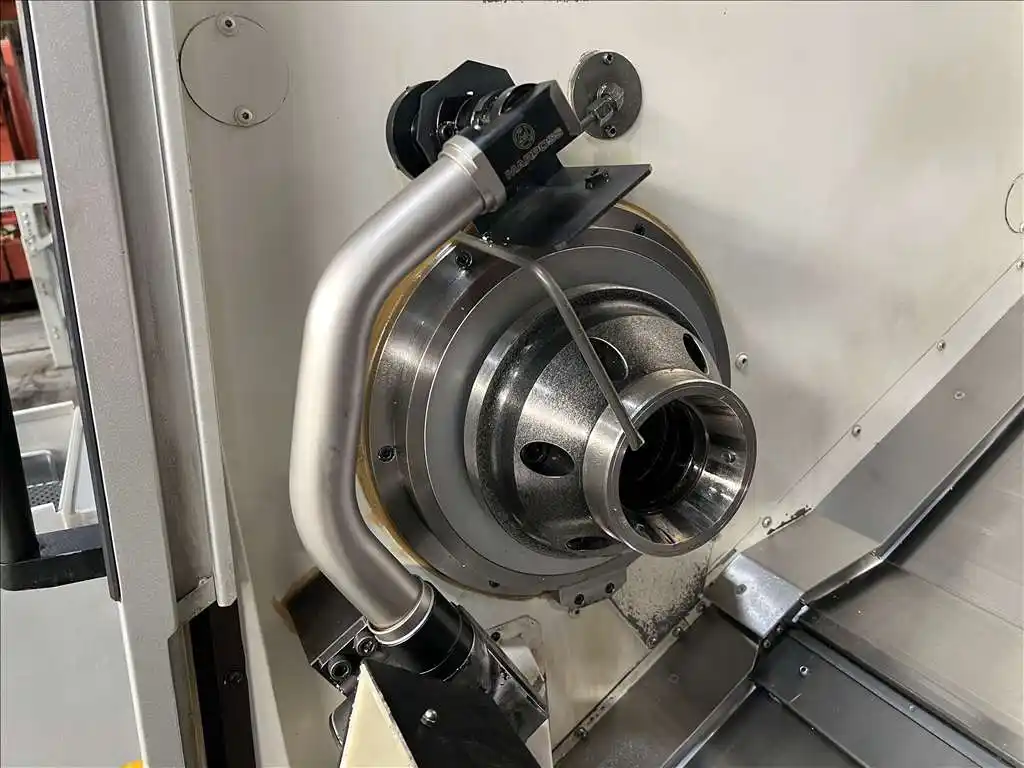

- Front Chuck: 10" 3-Jaw

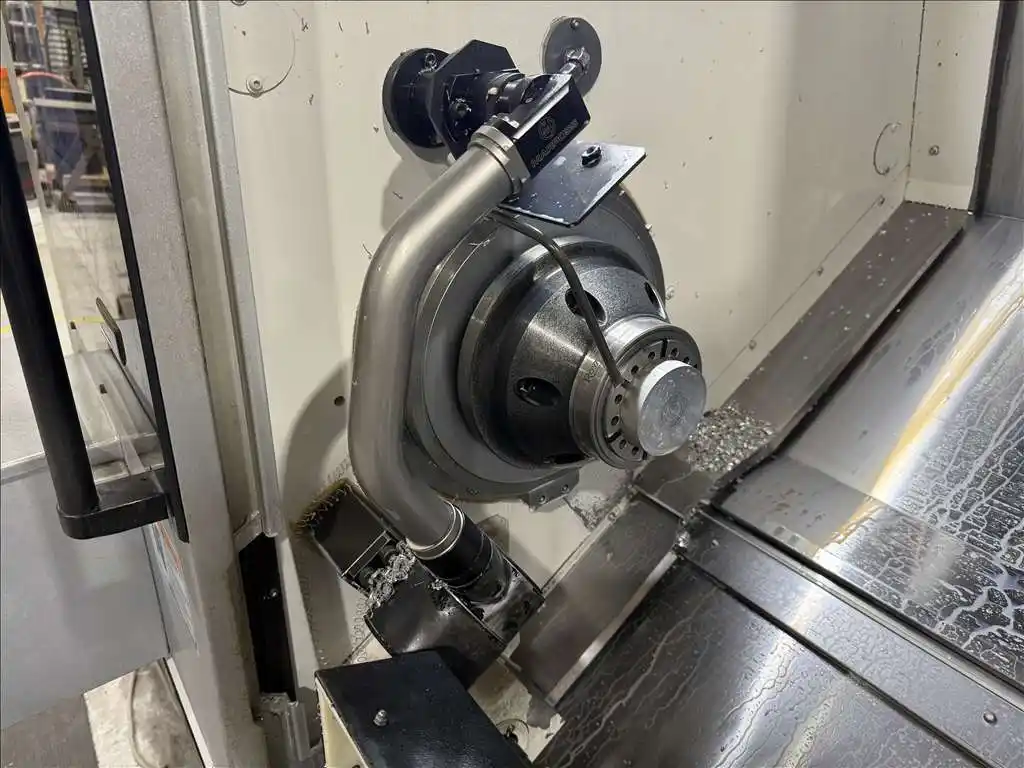

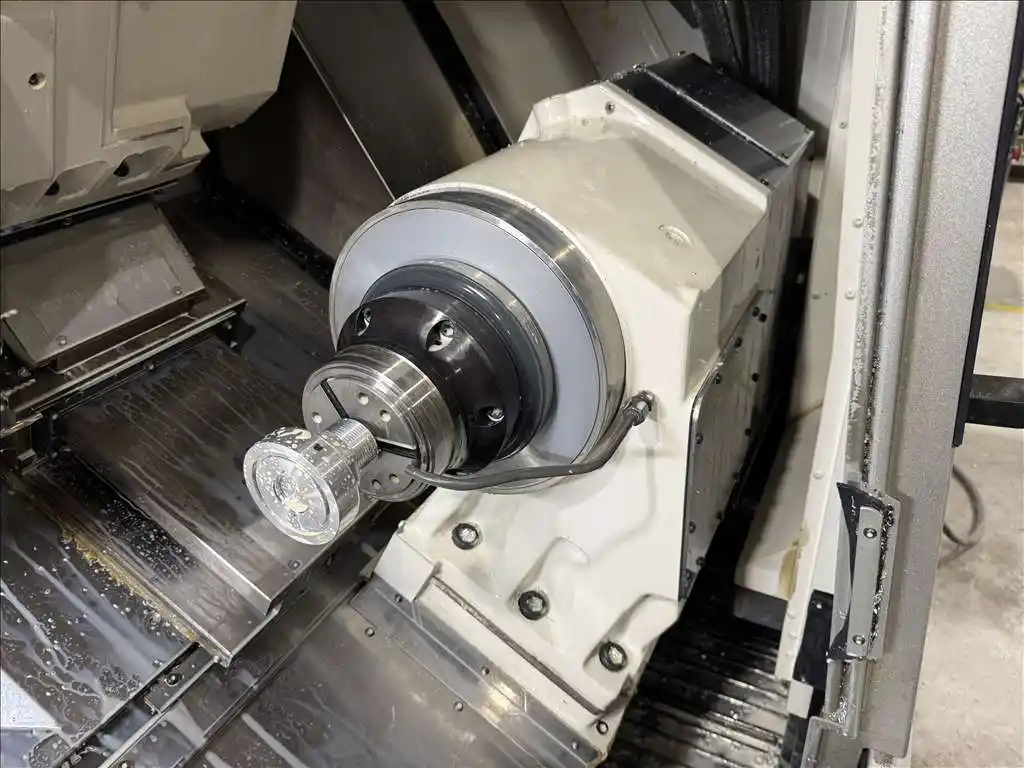

- Rear Chuck: 8" 3-Jaw
- Swing: 22.8"
- Max. Turning Length: 32"
- Distance Between Centers: 42.7"
- Max. Turning Diameter: 13.4"
- Bar Capacity: 3.5"
- Hole-Through Spindle: 3.6"
- Spindle Nose: A2-8
- Spindle Speed: 45-5000 RPM
- Spindle Motor: 40/30 HP
- Tooling: Live and Static

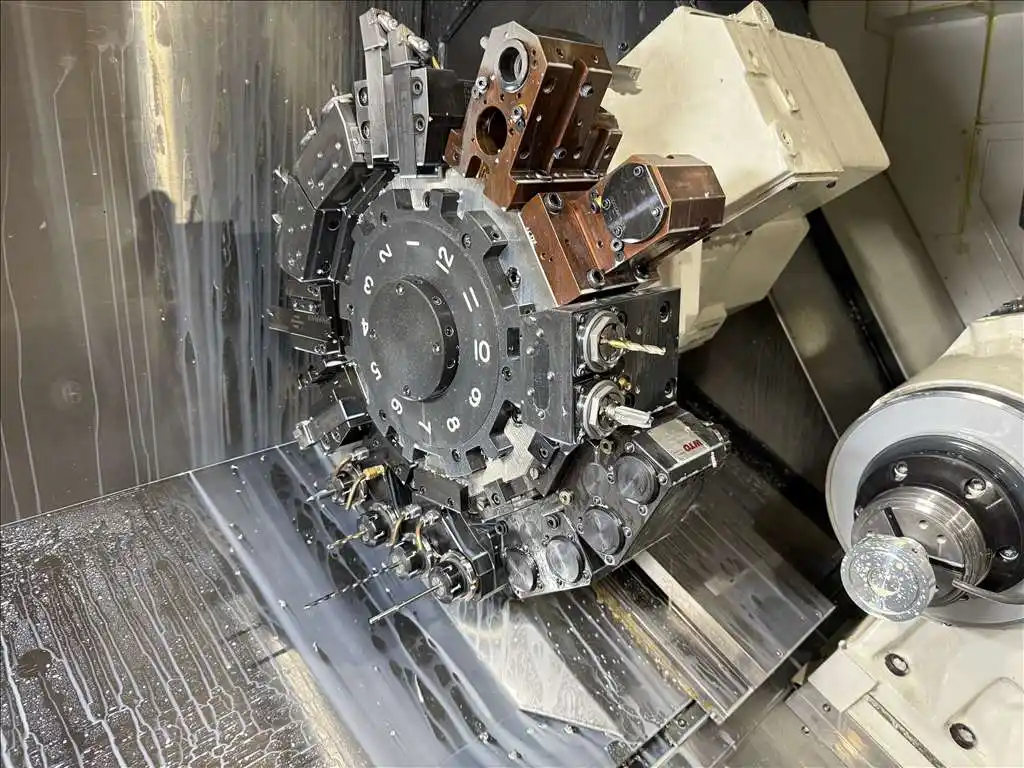

- Number of Turret Positions: 12
- X-Axis Travel: 10.23"
- Y-Axis Travel: 4.5"
- Z-Axis Travel: 39.7"
- C-Axis: 360,000
- Rapid Traverse (X): 984 IPM
- Rapid Traverse (Y): 492 IPM
- Rapid Traverse (Z): 1181 IPM
- Show More
- Show Less
- Front Chuck: 254.00mm 3-Jaw
- Rear Chuck: 203.20mm 3-Jaw
- Swing: 579.12mm
- Max. Turning Length: 812.80mm
- Distance Between Centers: 1084.58mm
- Max. Turning Diameter: 340.36mm
- Bar Capacity: 88.90mm
- Hole-Through Spindle: 91.44mm
- Spindle Nose: A2-8
- Spindle Speed: 45-5000 RPM
- Spindle Motor: 40/ 22.37 kw
- Tooling: Live and Static
- Number of Turret Positions: 12
- X-Axis Travel: 259.84mm
- Y-Axis Travel: 114.30mm
- Z-Axis Travel: 1008.38mm
- C-Axis: 360,000
- Rapid Traverse (X): 416.56 mm/sec
- Rapid Traverse (Y): 208.28 mm/sec
- Rapid Traverse (Z): 499.96 mm/sec
- Show More
- Show Less
Equipped With

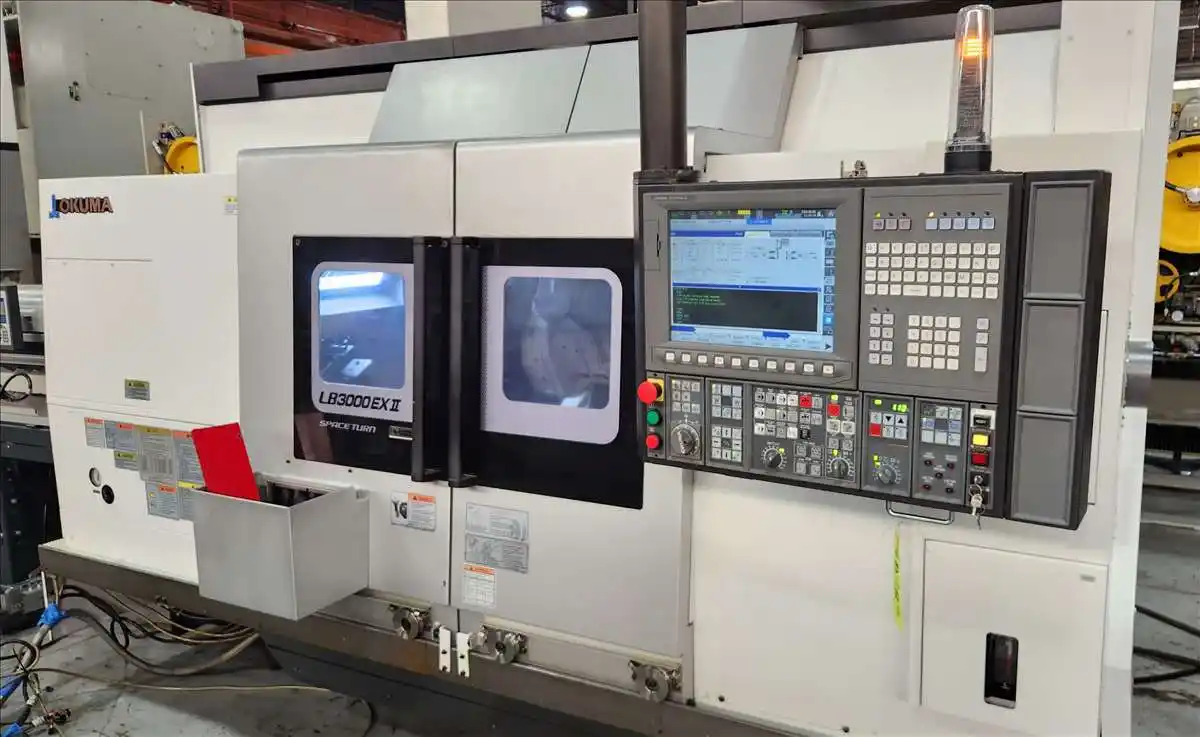

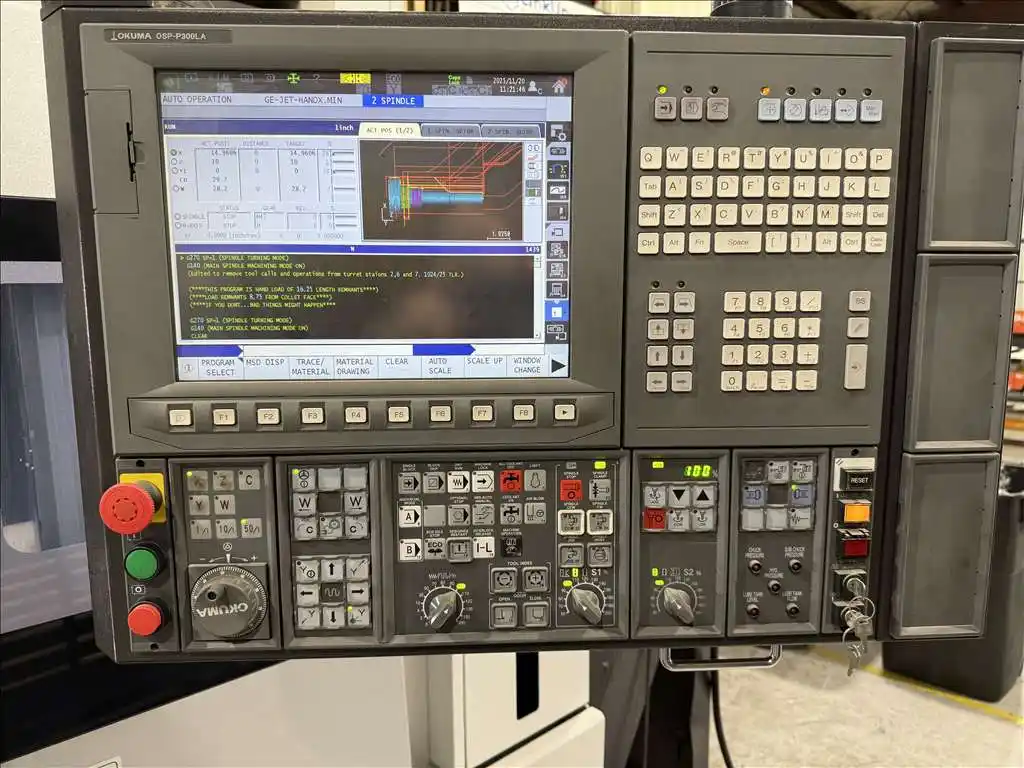

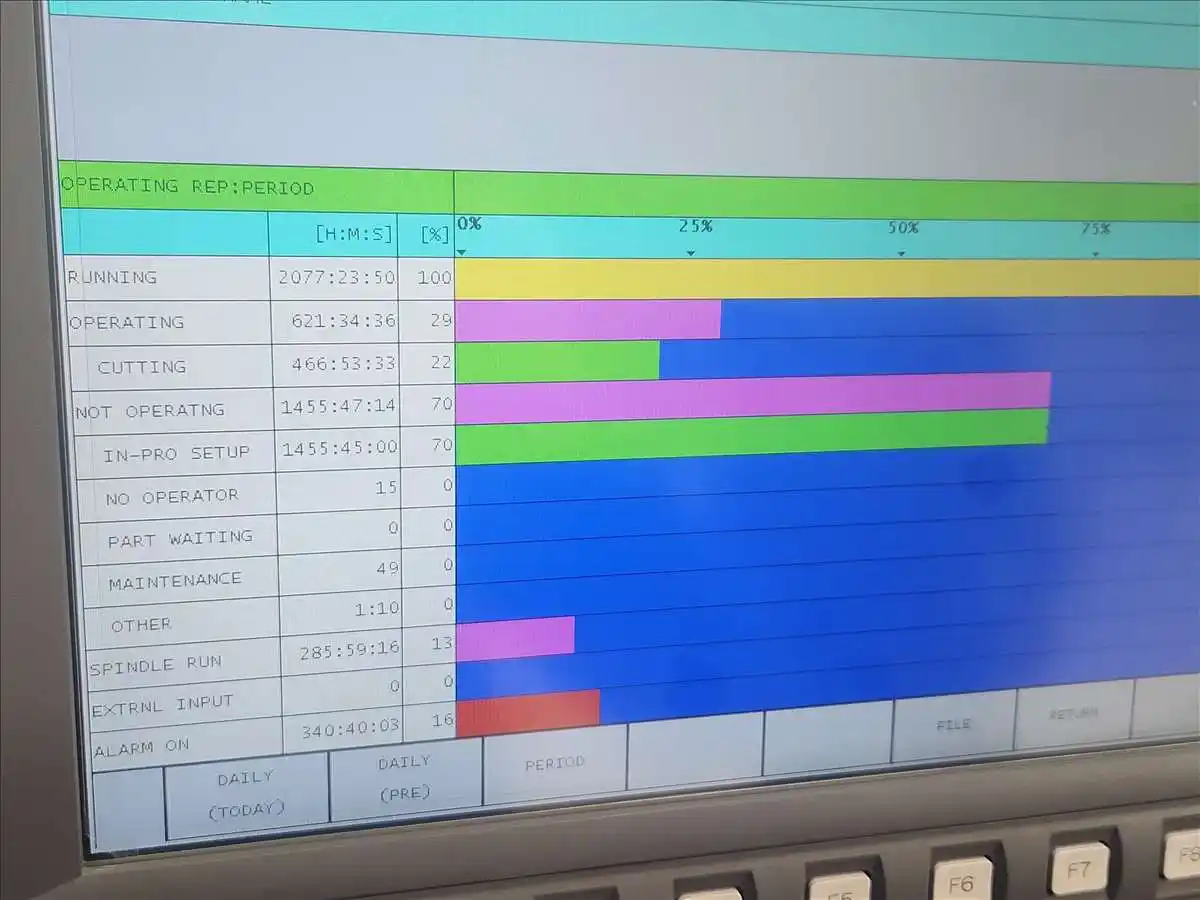

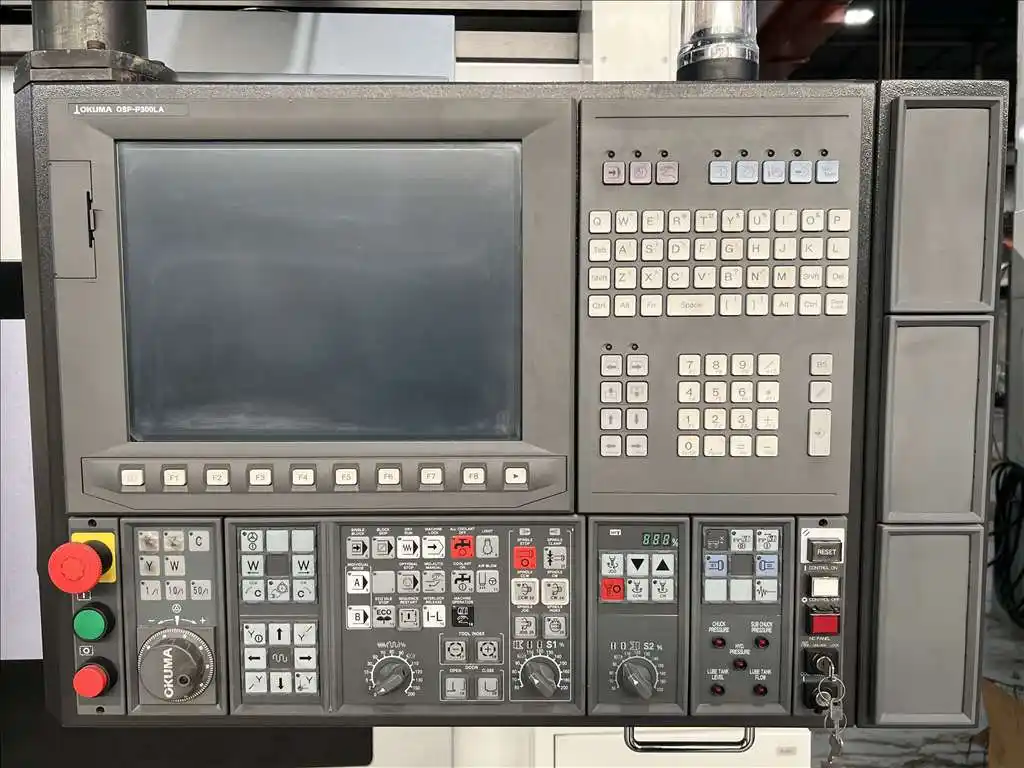

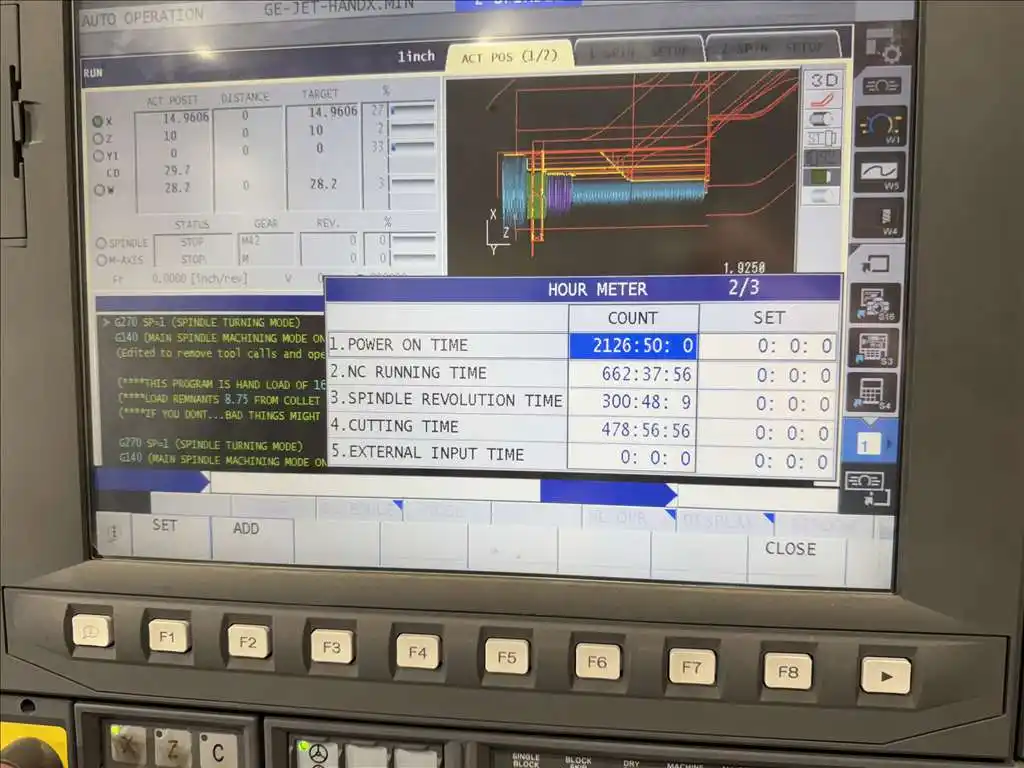

- OSP-P300LA CNC Control

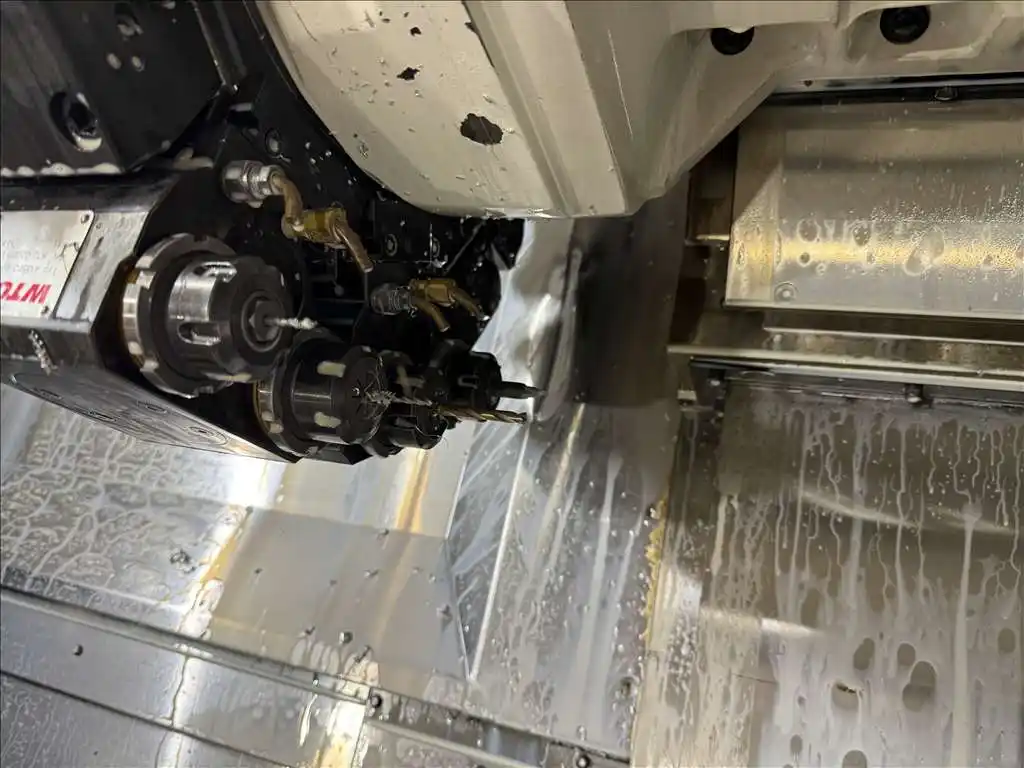

- Live Tooling
- Tool Probe
- Pick-off Feature

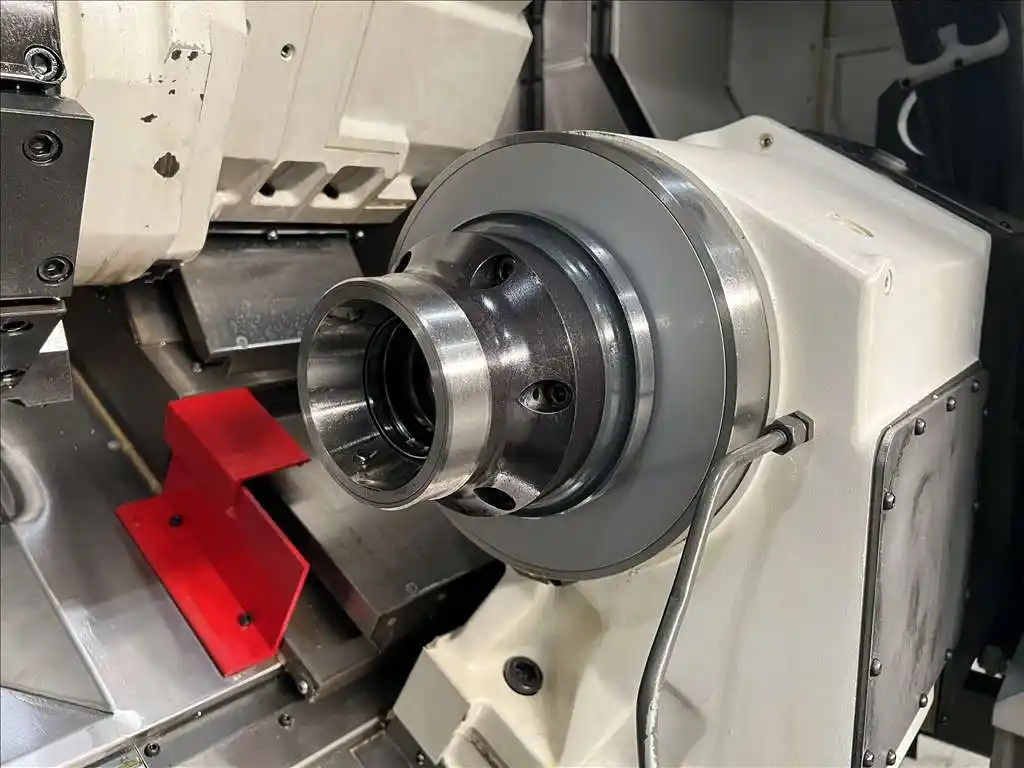

- (2) Royal Collet Chucks

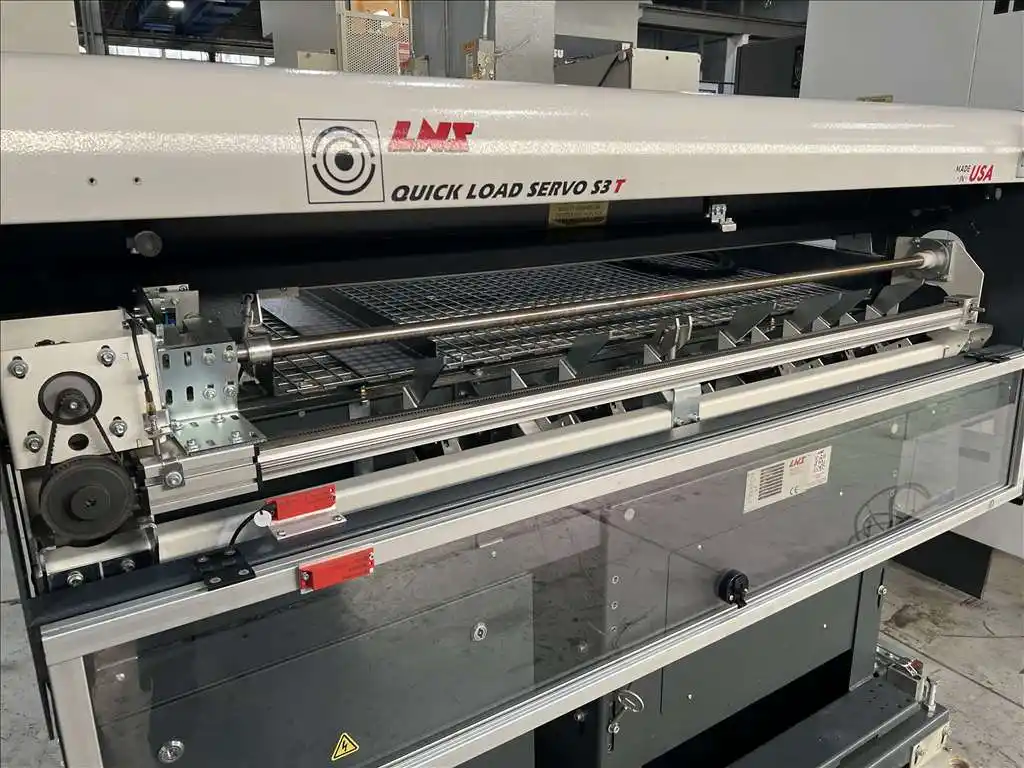

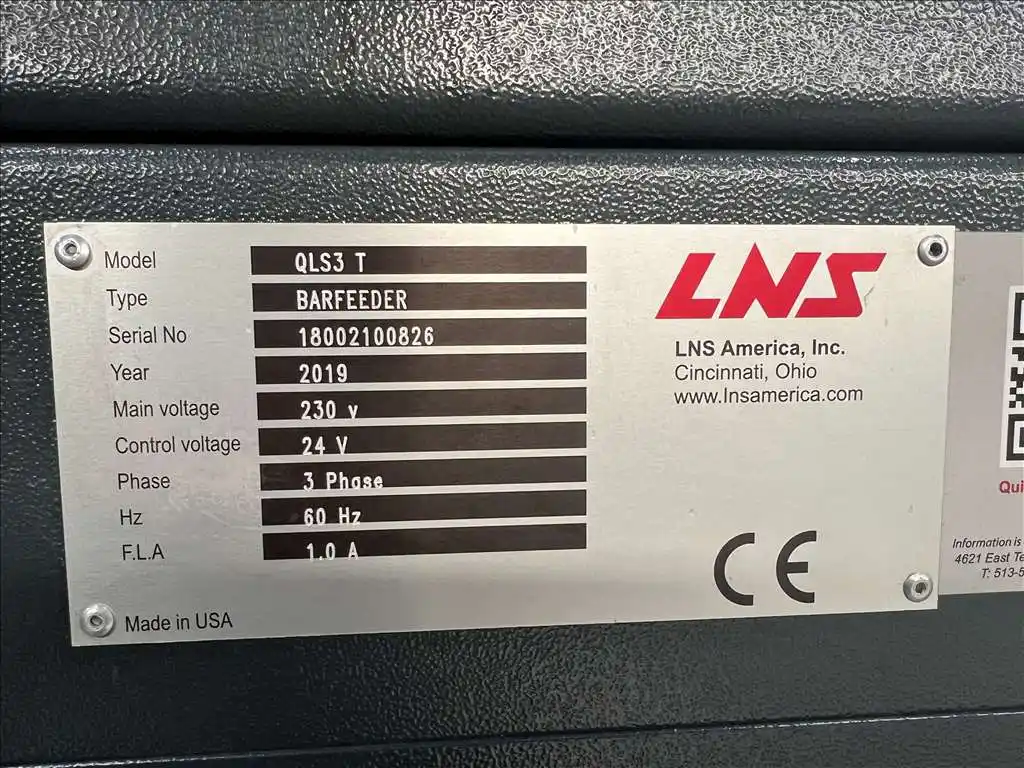

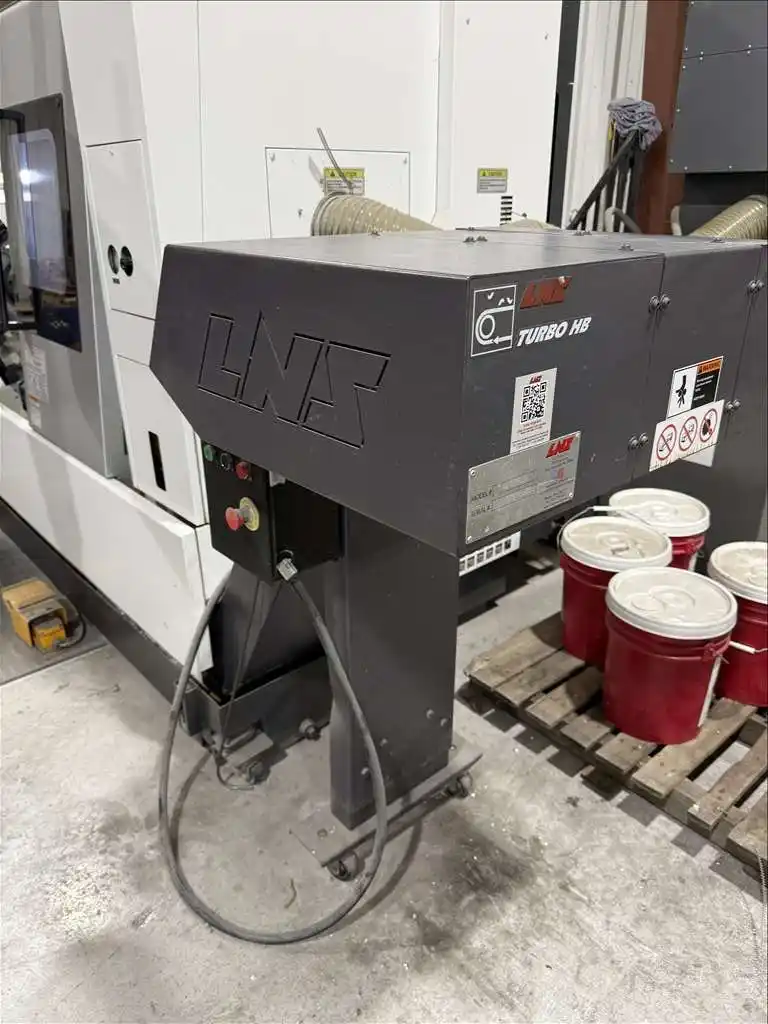

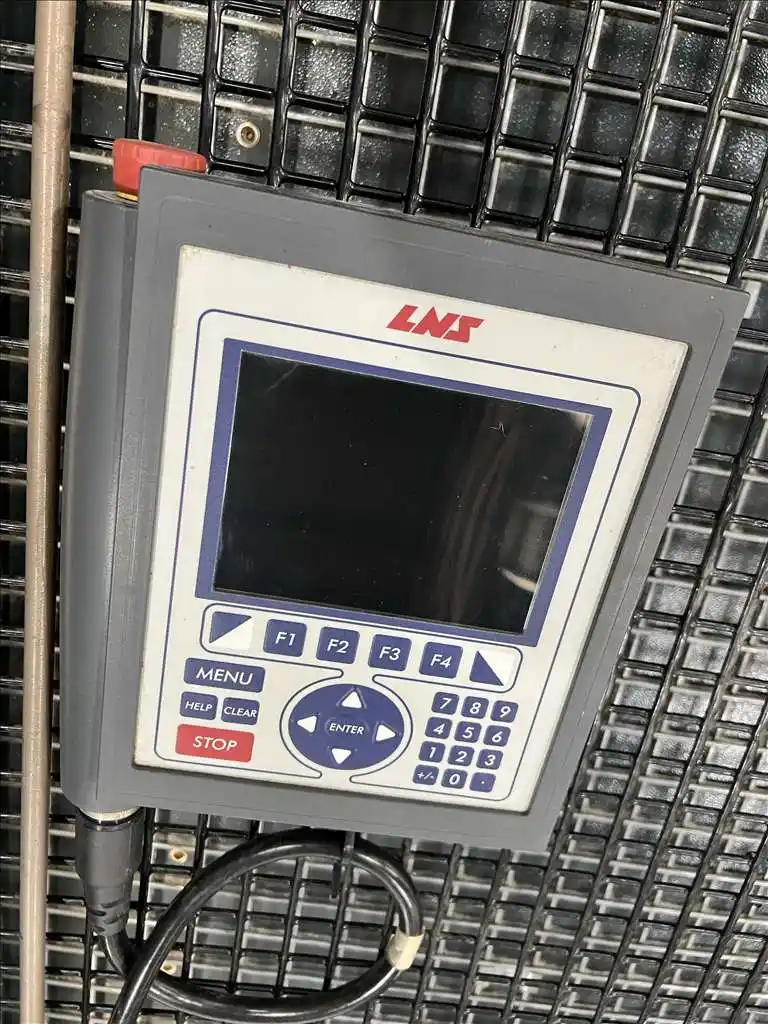

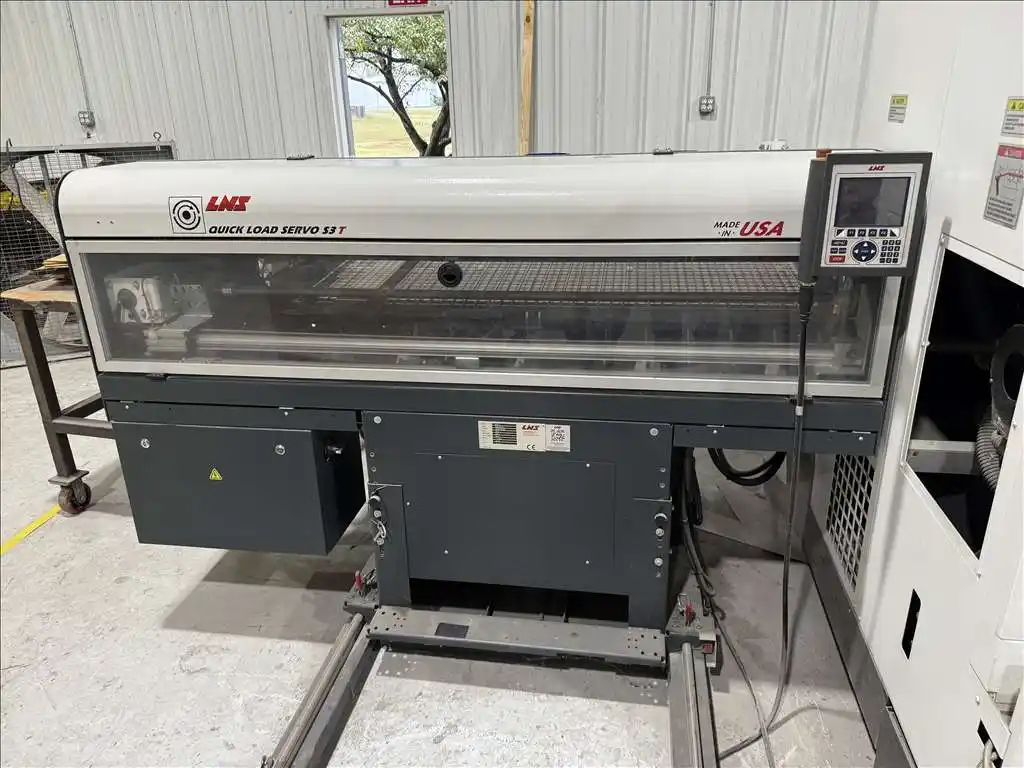

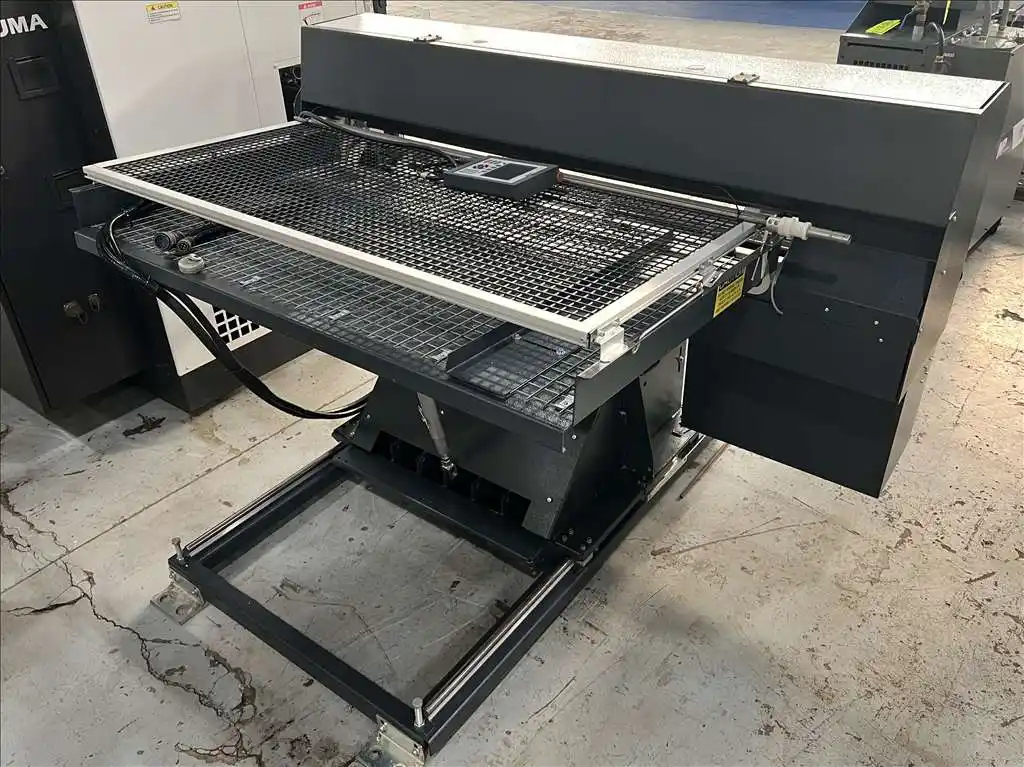

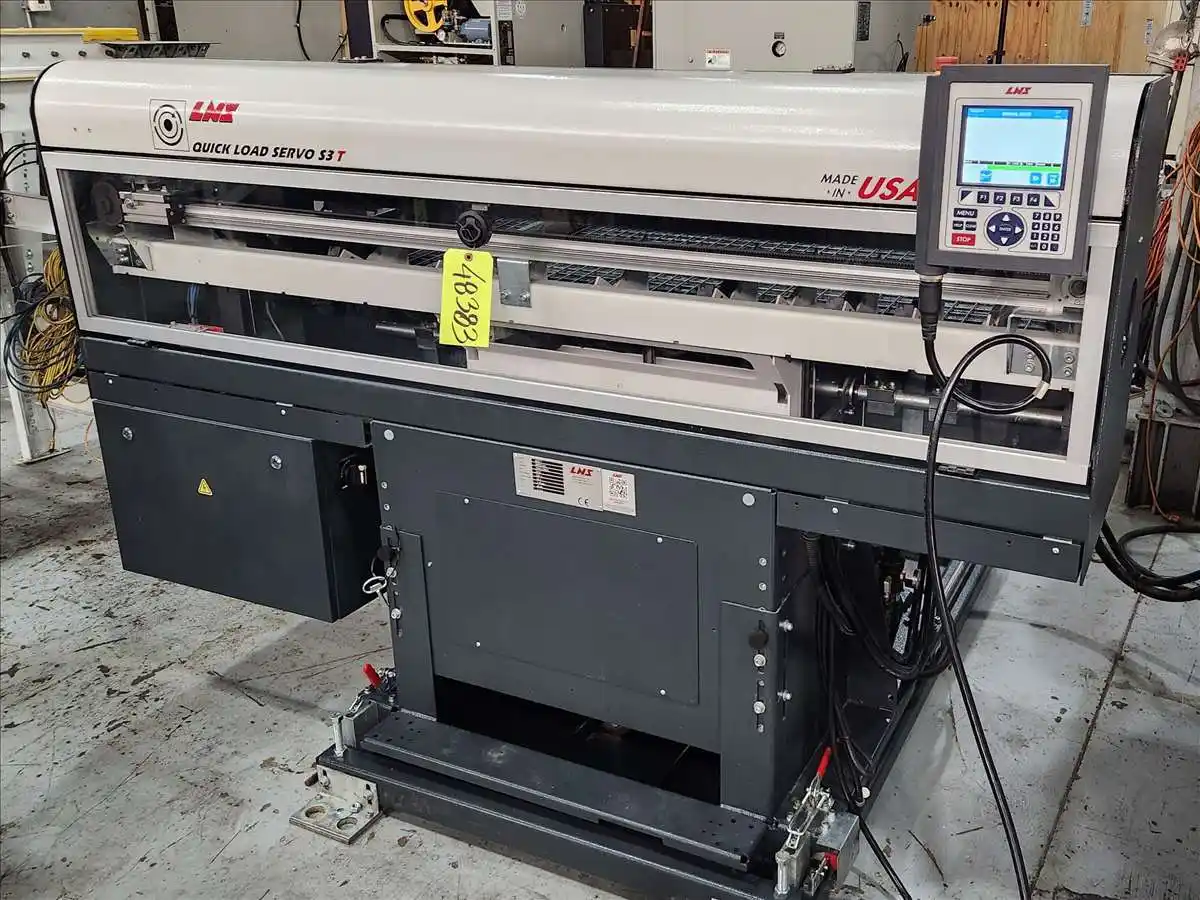

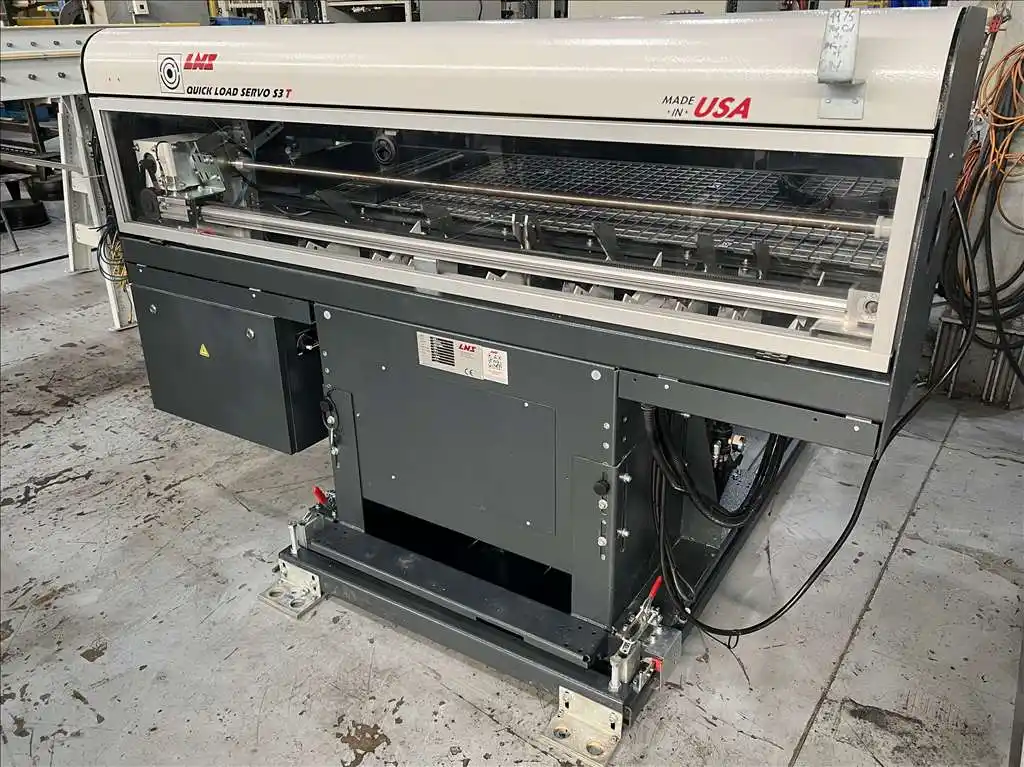

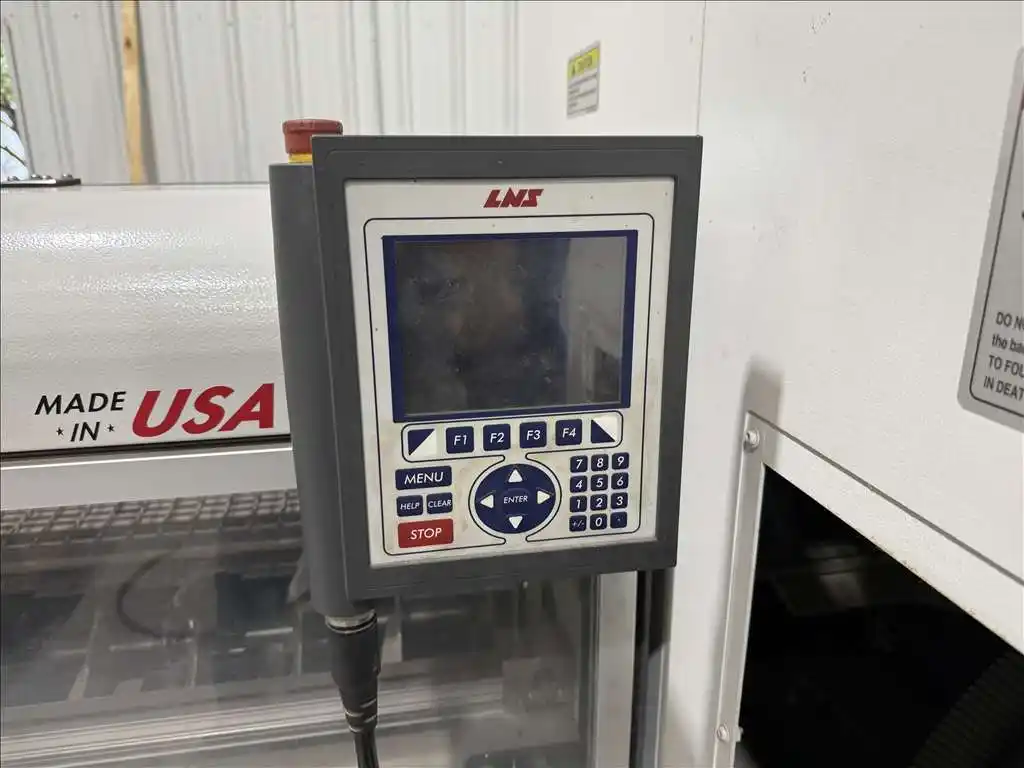

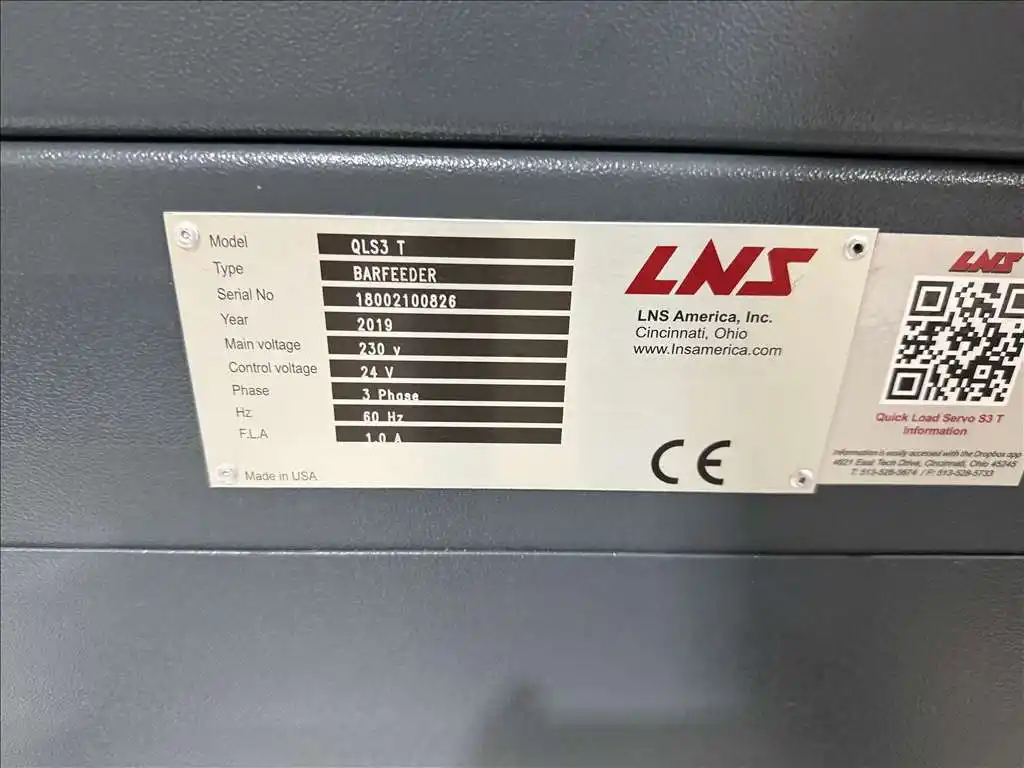

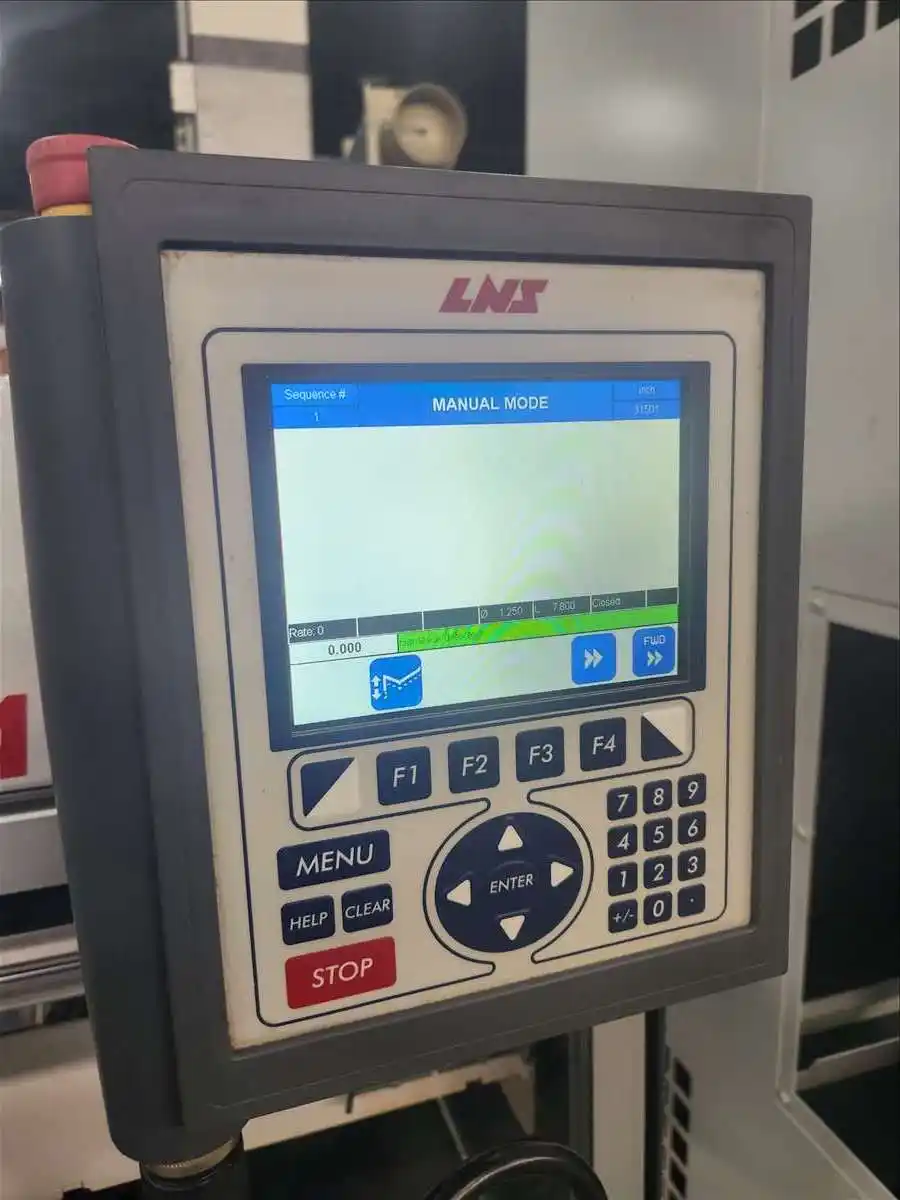

- LNS QLS3 T Servo Bar Feeder

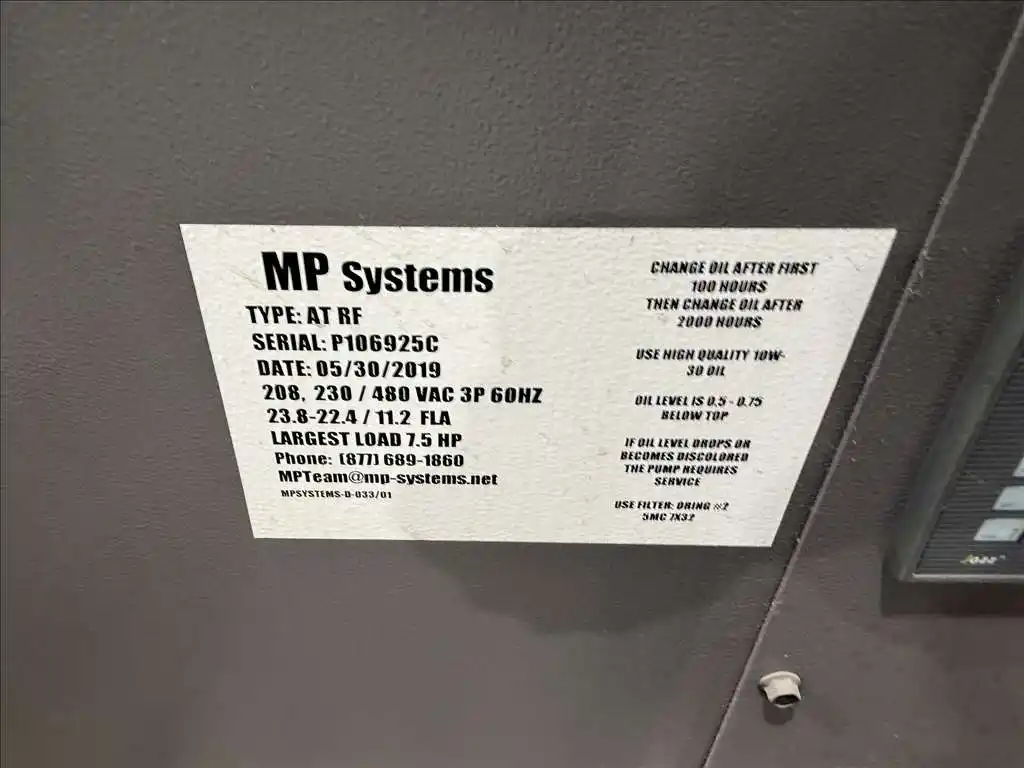

- MP Systems AT RF High Pressure Coolant

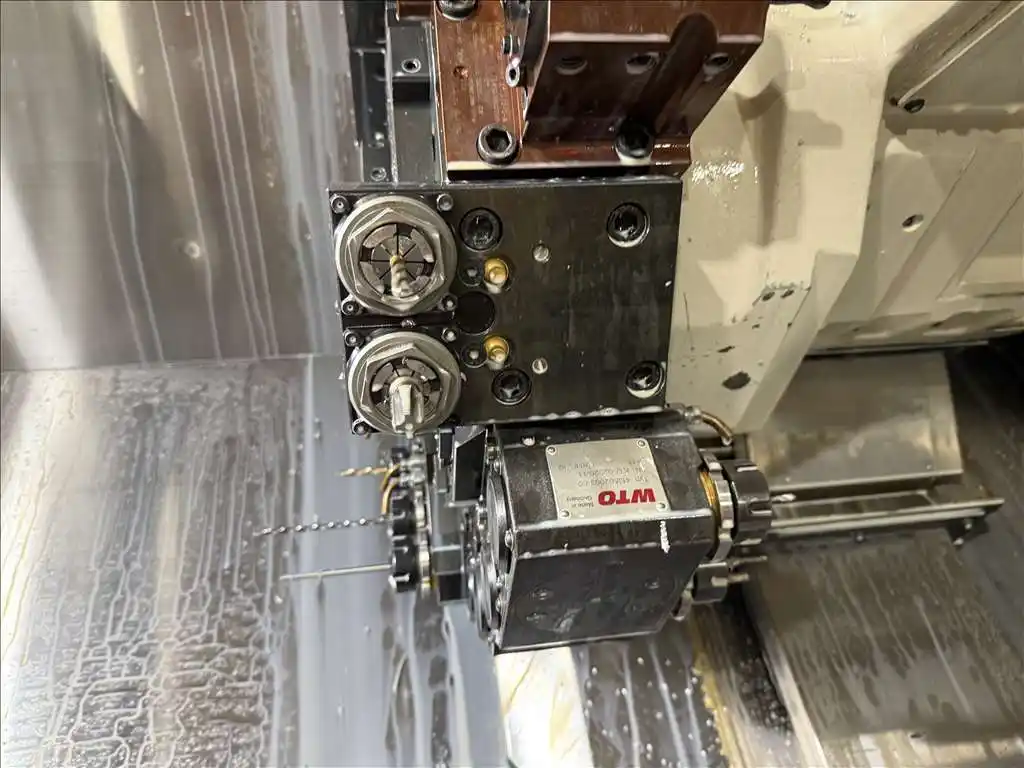

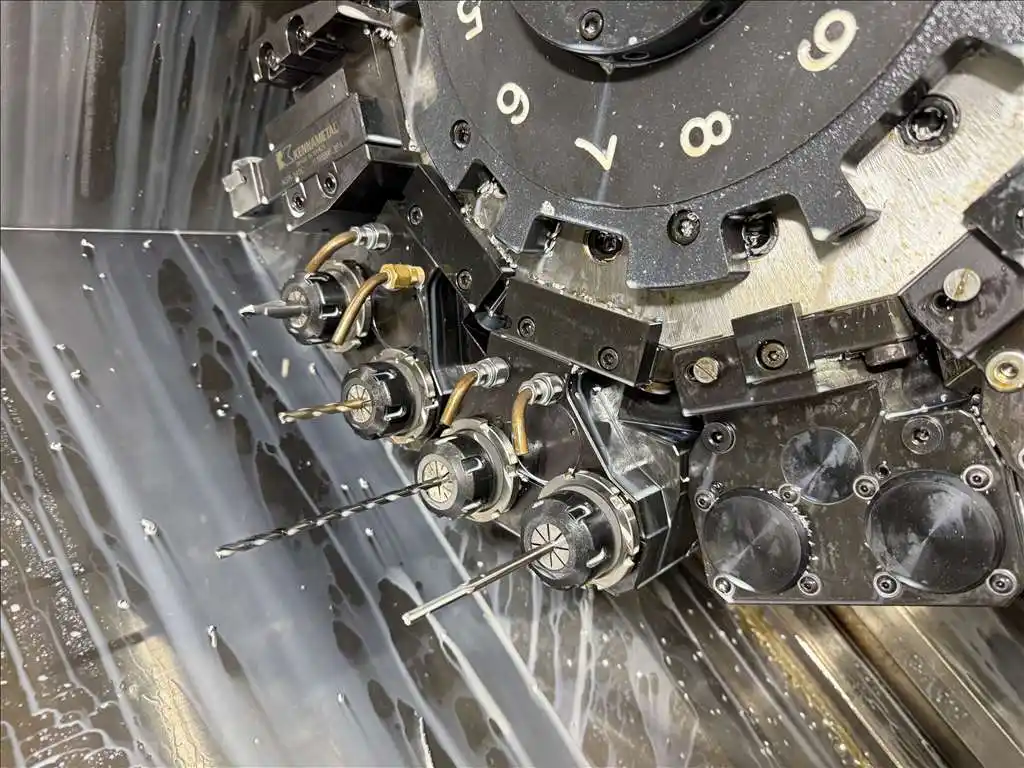

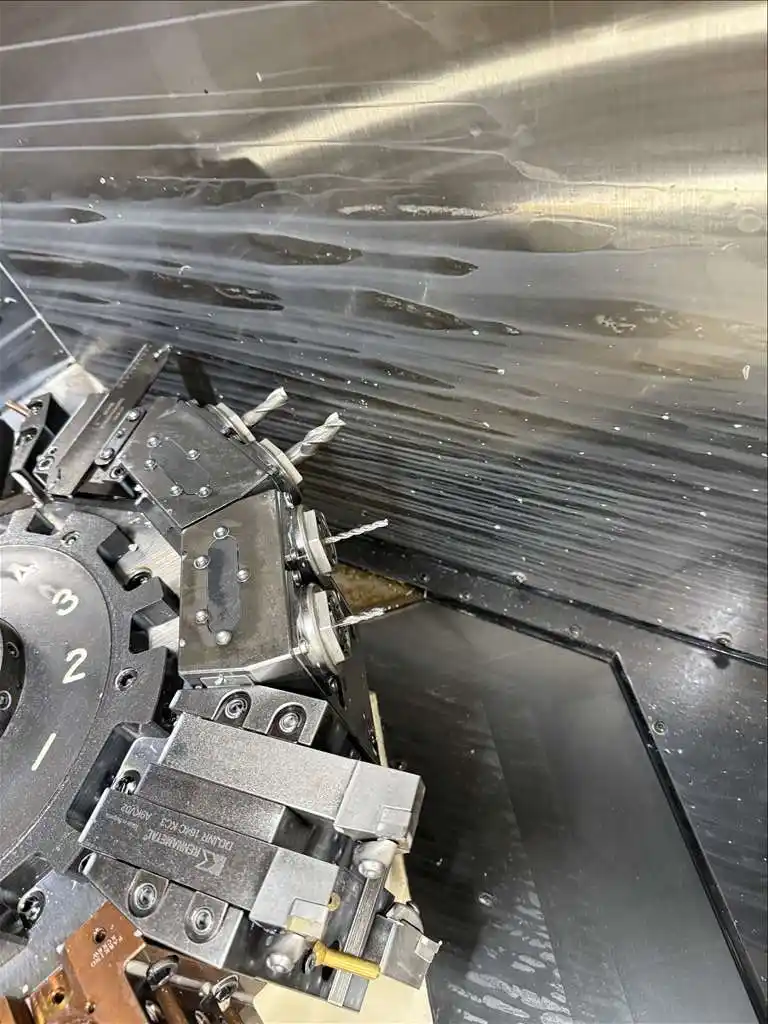

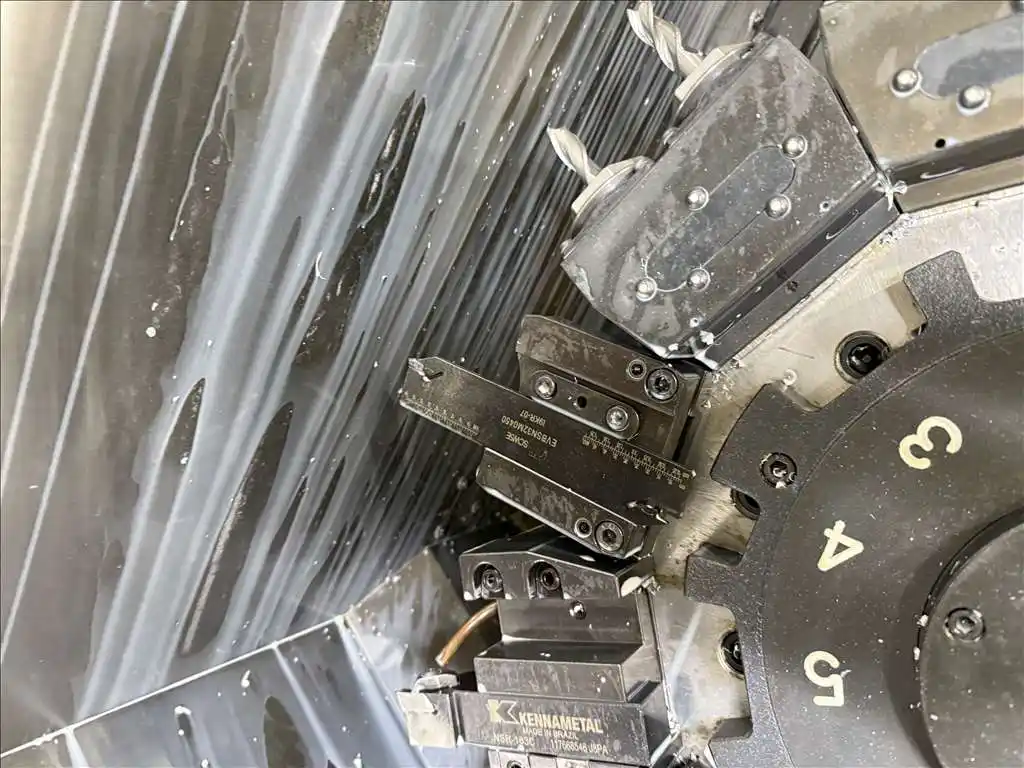

- (6) WTO Dual Tool Live Tools

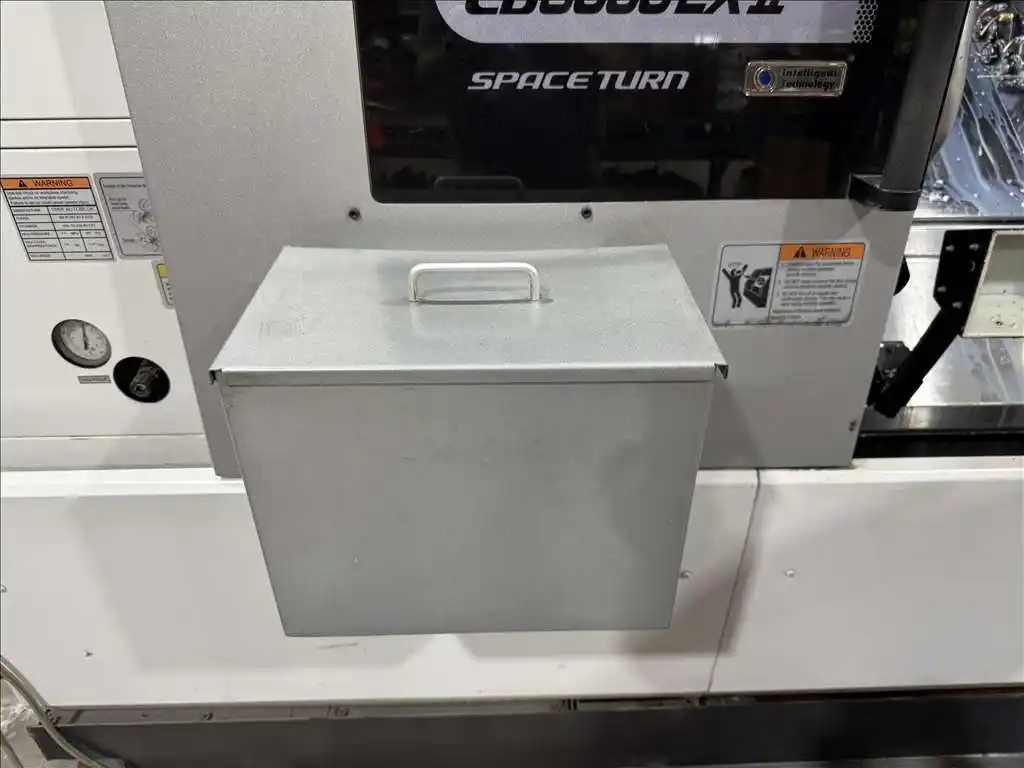

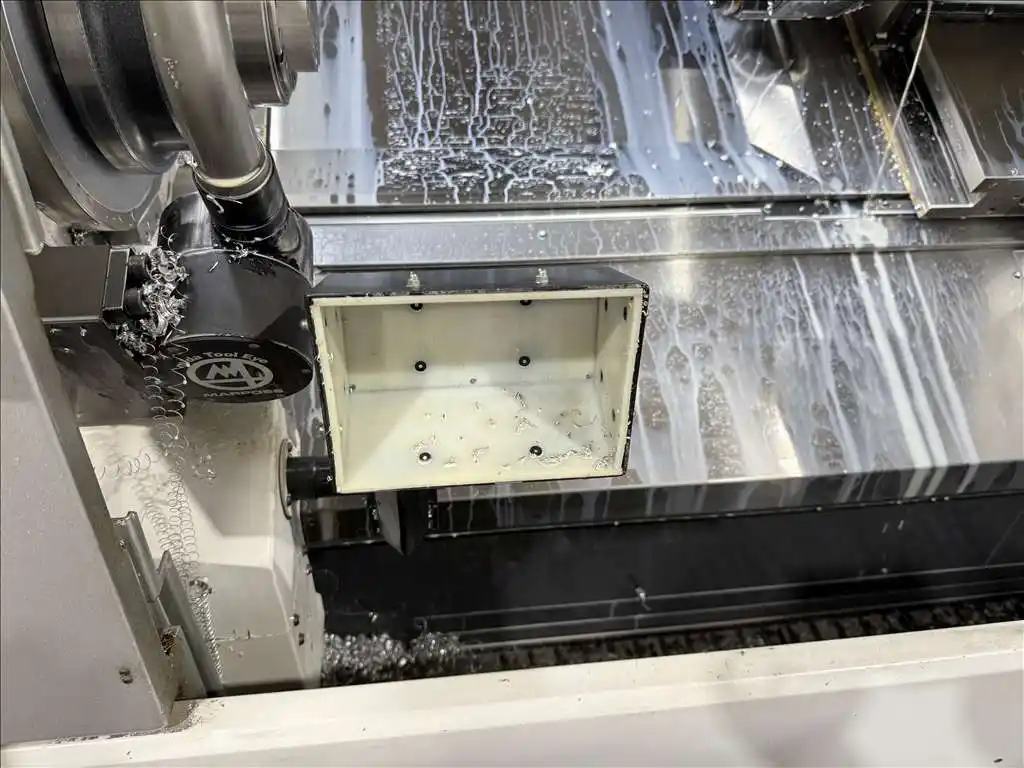

- Part Catcher

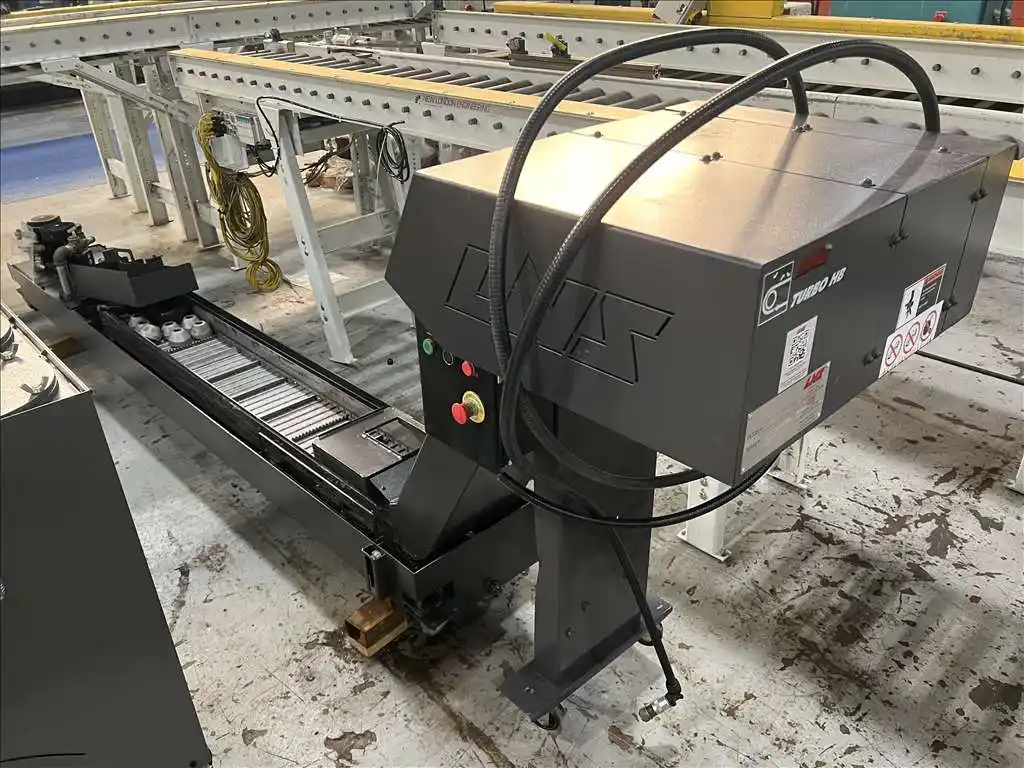

- LNS Chip Conveyor

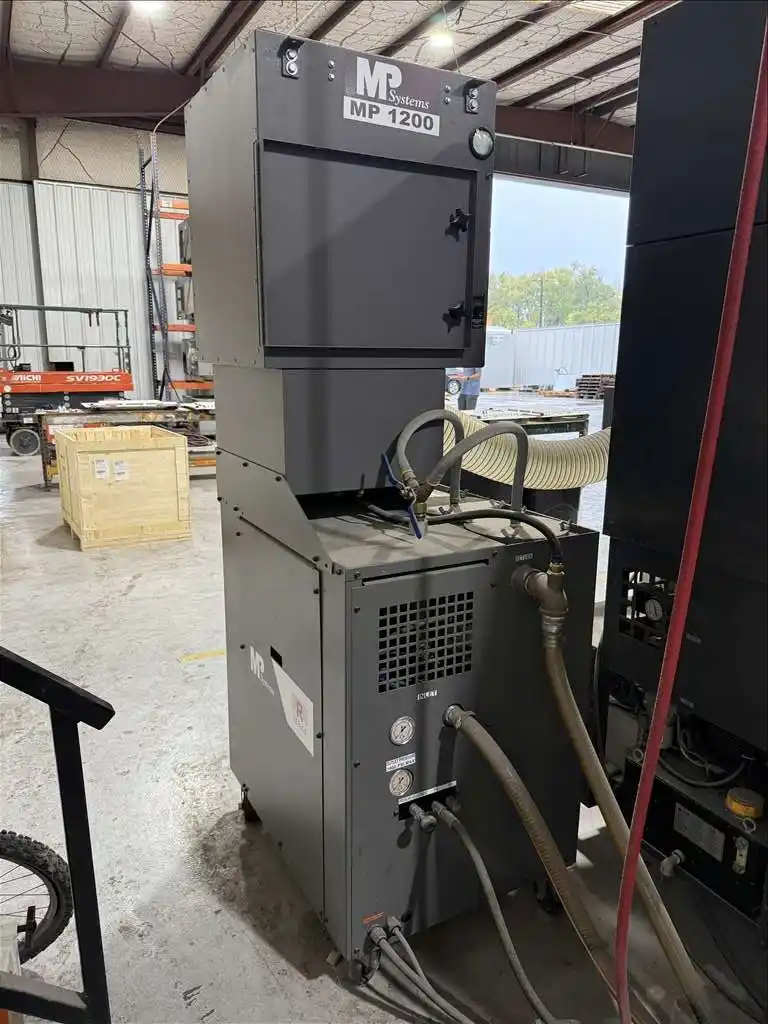

- MPSystems MP 1200 Mist Collector
- Show More
- Show Less
- OSP-P300LA CNC Control
- Live Tooling
- Tool Probe
- Pick-off Feature
- (2) Royal Collet Chucks
- LNS QLS3 T Servo Bar Feeder
- MP Systems AT RF High Pressure Coolant
- (6) WTO Dual Tool Live Tools
- Part Catcher
- LNS Chip Conveyor
- MPSystems MP 1200 Mist Collector
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
