Inventory # 44872 Year: 2022

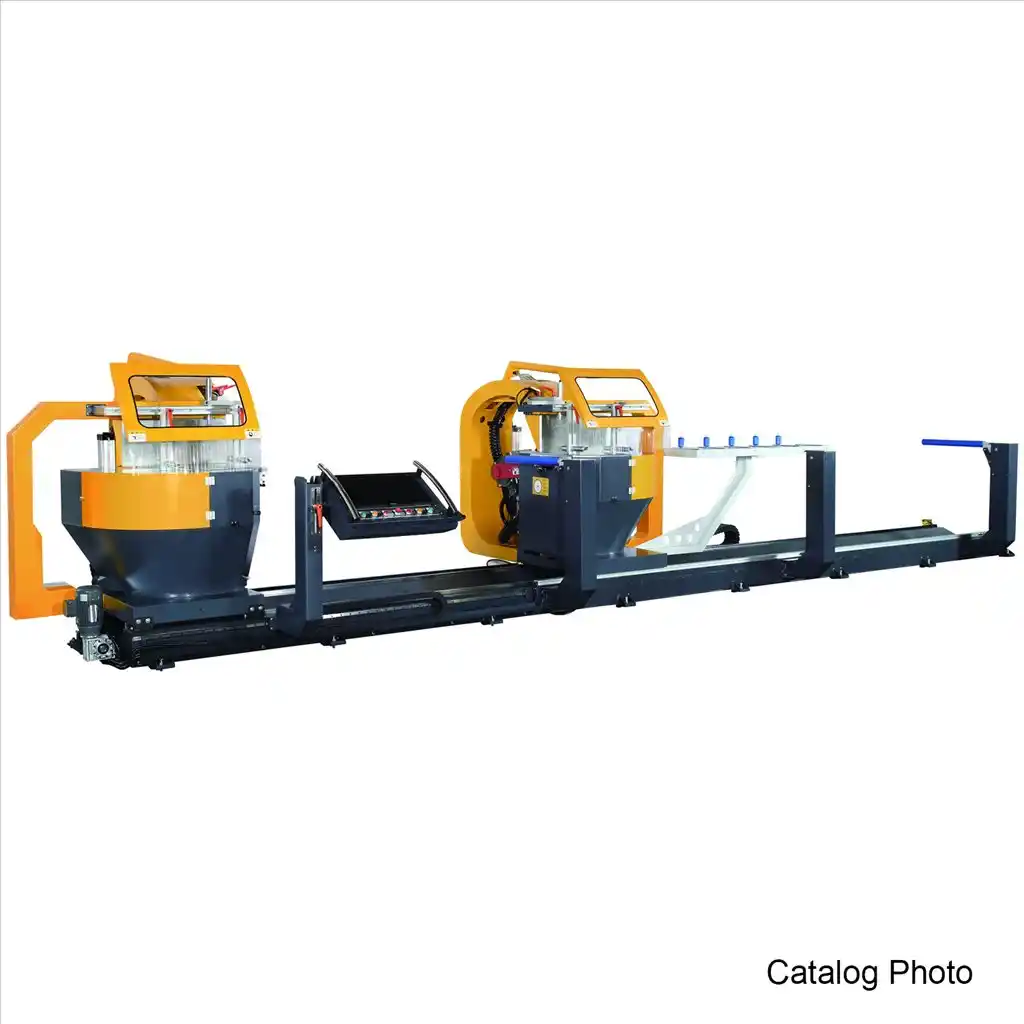

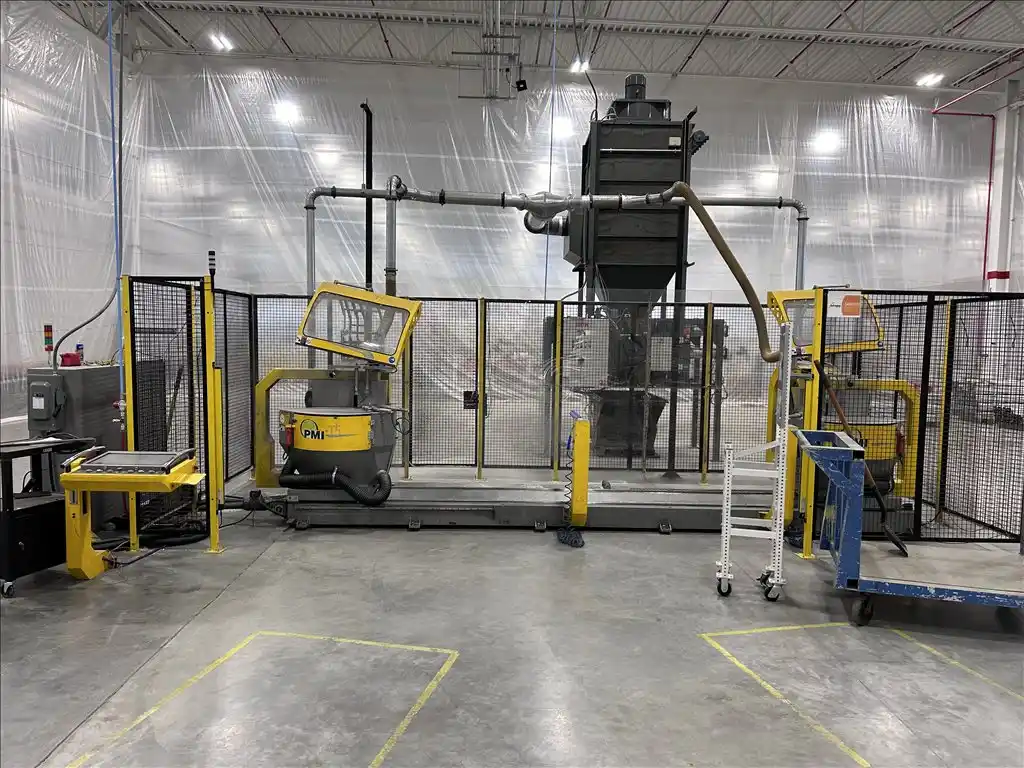

PAT Mooney PMI-T5 Automatic Double Head Compound Miter Upcut Saw
Specifications
- For 90° Cuts: 5.9" x 10.2"
- For 45° Cuts: 3.54" x 10.2"
- Max Cut Length: 177.2"
- Min Cut Length (Table at 90°/Saw 90° Tilt): 24.2"
- Min Cut Length (Table at 45°/Saw 45° Tilt): 36.6"
- Min Cut Length (Table at 67.5°/Saw 45° Tilt): 43.3"
- Blade Size: 22" D x 1" Arbor x 120 Teeth
- Precision of Cutting Length: +/- 0.006"
- Precision of Cutting Angle: +/- 0.15°
- Range of Rotation Angle: +/- 67.5°
- Rotating Speed of Main Motor: 2800 RPM
- Power of Main Motor: 7.5 hp x 2
- Show More
- Show Less
- For 90° Cuts: 149.86mm x 259.08mm
- For 45° Cuts: 89.92mm x 259.08mm
- Max Cut Length: 4500.88mm
- Min Cut Length (Table at 90°/Saw 90° Tilt): 614.68mm
- Min Cut Length (Table at 45°/Saw 45° Tilt): 929.64mm
- Min Cut Length (Table at 67.5°/Saw 45° Tilt): 1099.82mm
- Blade Size: 558.80mm D x 25.40mm Arbor x 120 Teeth
- Precision of Cutting Length: +/- 0.15mm
- Precision of Cutting Angle: +/- 0.15°
- Range of Rotation Angle: +/- 67.5°
- Rotating Speed of Main Motor: 2800 RPM
- Power of Main Motor: 5.59 kw x 2
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
