Inventory # 45187 Year: 2002

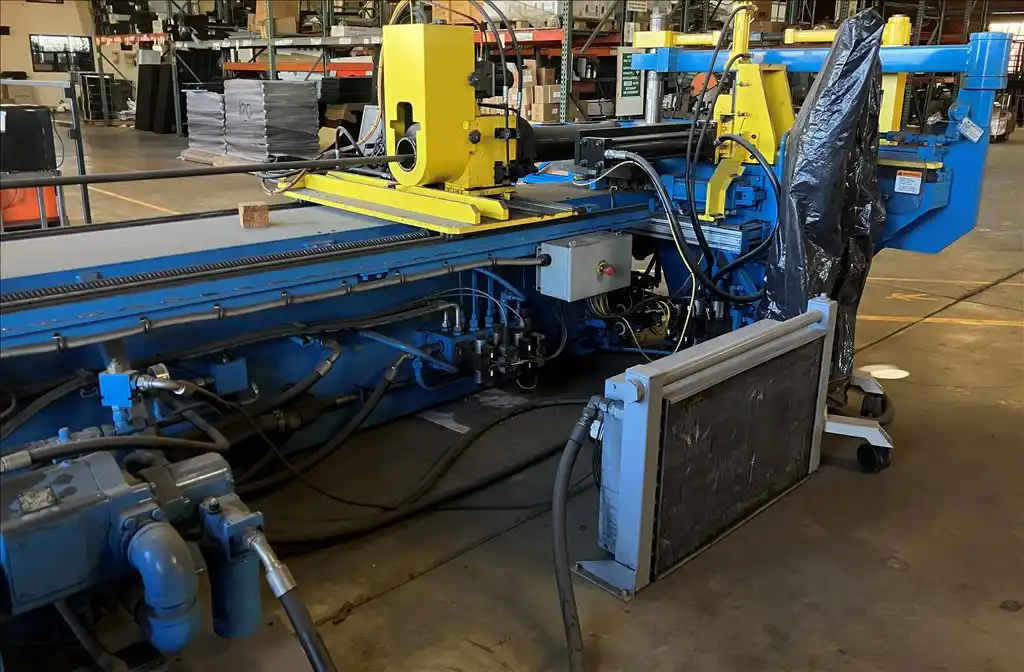

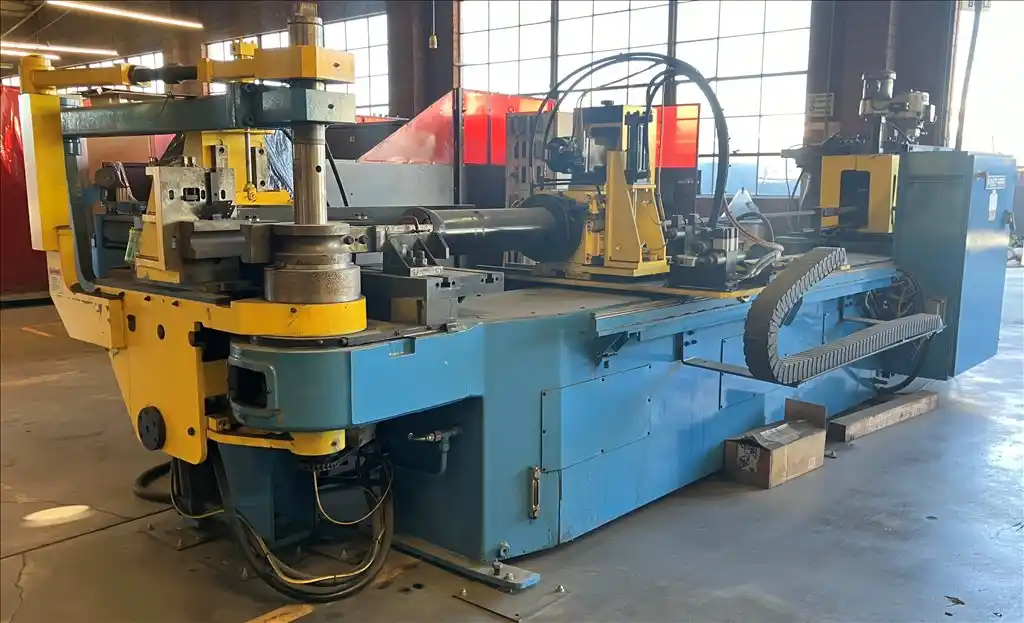

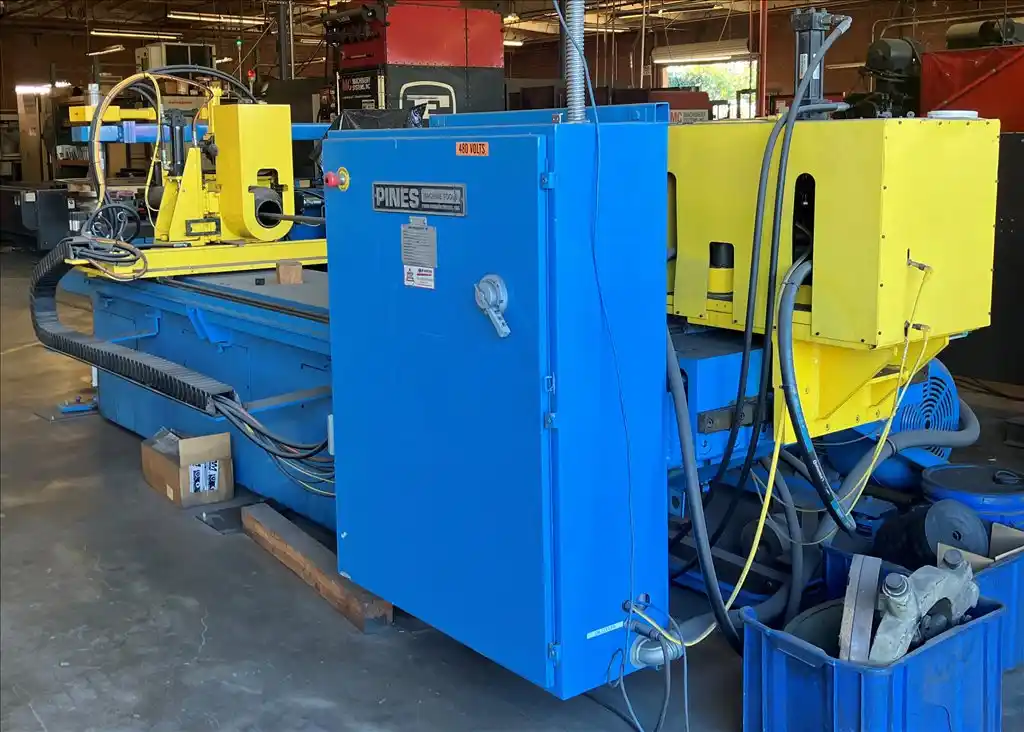

Pines 100 3-Axis CNC Tube Bender

Request a Quote
Measurement

Specifications
  • Maximum Tube Bending Capacity: 4" OD x 0.109" WT (mild steel)
  • Maximum Centerline Radius: 12"
  • Maximum Degree of Bend: 180° + springback
  • Maximum Tube Length Over Mandrel: 168" (approx)
  • Bending Rotation: Left-Hand (Counter-Clockwise)
  • Maximum Tube Bending Capacity: 101.60mm OD x 2.77mm WT (mild steel)
  • Maximum Centerline Radius: 304.80mm
  • Maximum Degree of Bend: 180° + springback
  • Maximum Tube Length Over Mandrel: 4267.20mm (approx)
  • Bending Rotation: Left-Hand (Counter-Clockwise)
  • Show More
  • Show Less
Equipped With

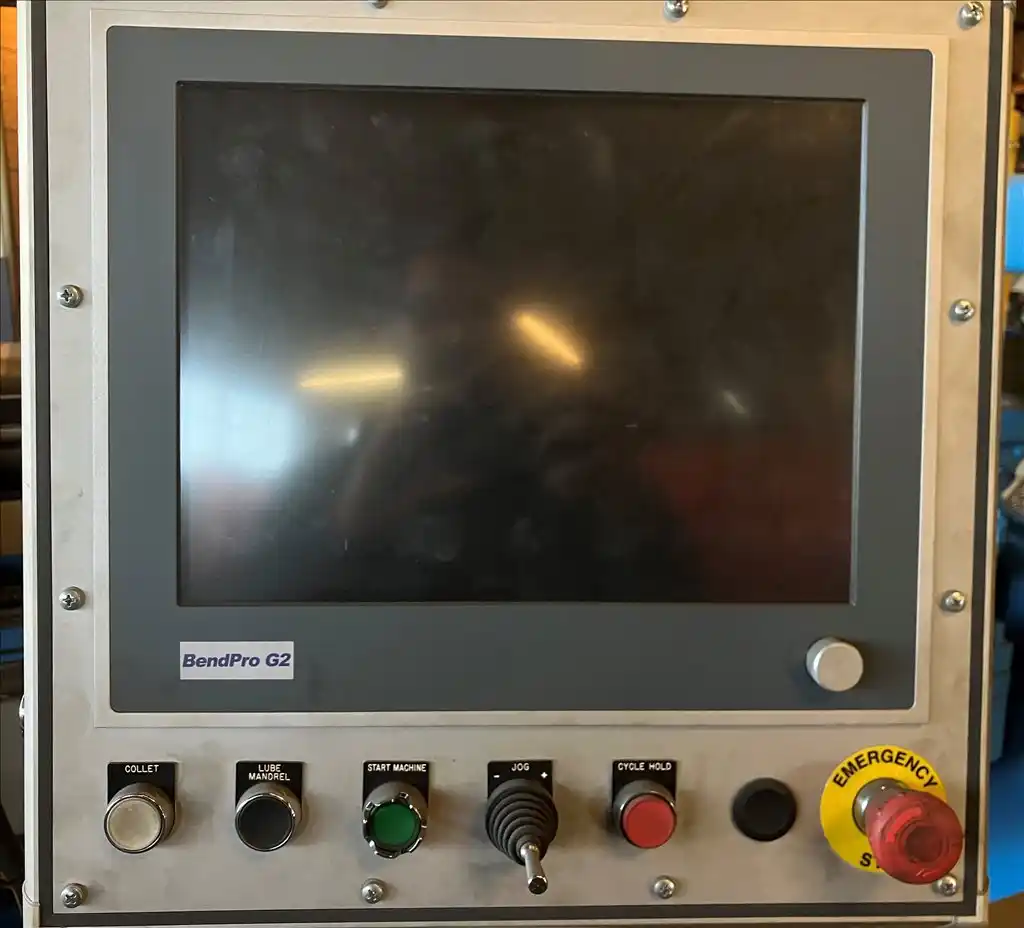

  • BendPro G2V2 CNC Control
  • Hydraulic Pressure Die Assist
  • Hydraulic Mandrel Extractor

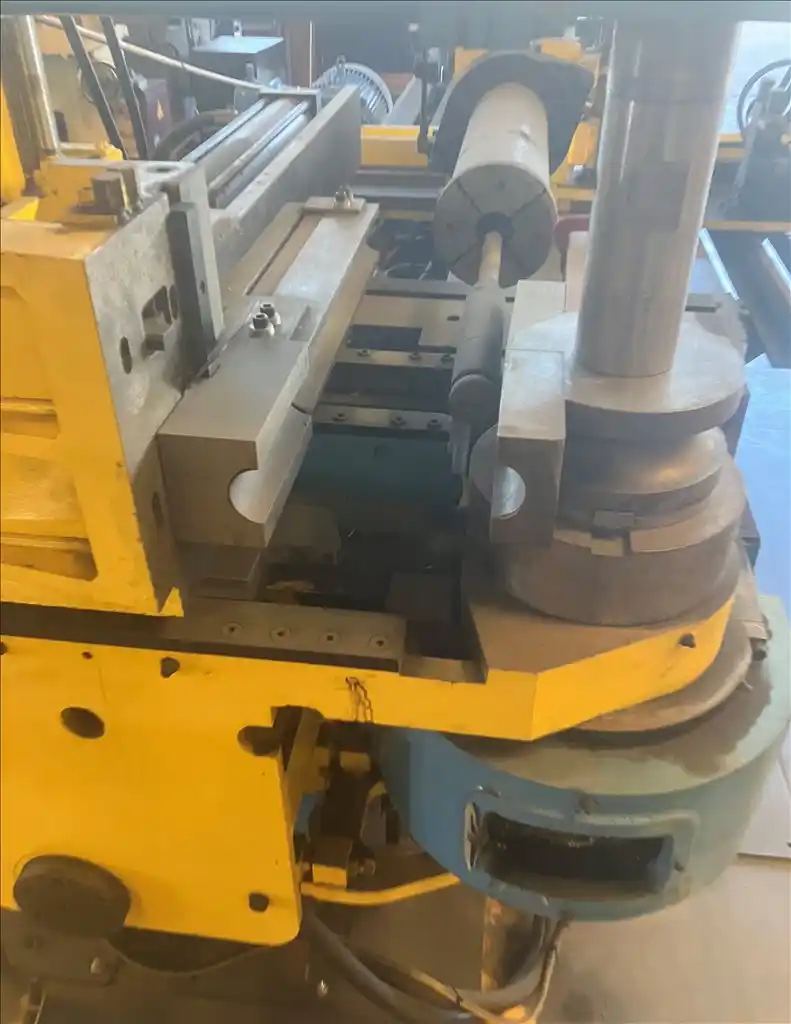

  • Wiper Die Holder
  • Overhead Tie Bar Assembly
  • Automatic Lubrication System
  • Show More
  • Show Less
  • BendPro G2V2 CNC Control
  • Hydraulic Pressure Die Assist
  • Hydraulic Mandrel Extractor
  • Wiper Die Holder
  • Overhead Tie Bar Assembly
  • Automatic Lubrication System
  • Show More
  • Show Less
Location & Terms
  • Terms: As Is, Where Is
  • Disclaimer: Preliminary Specifications....
