Inventory # 46265

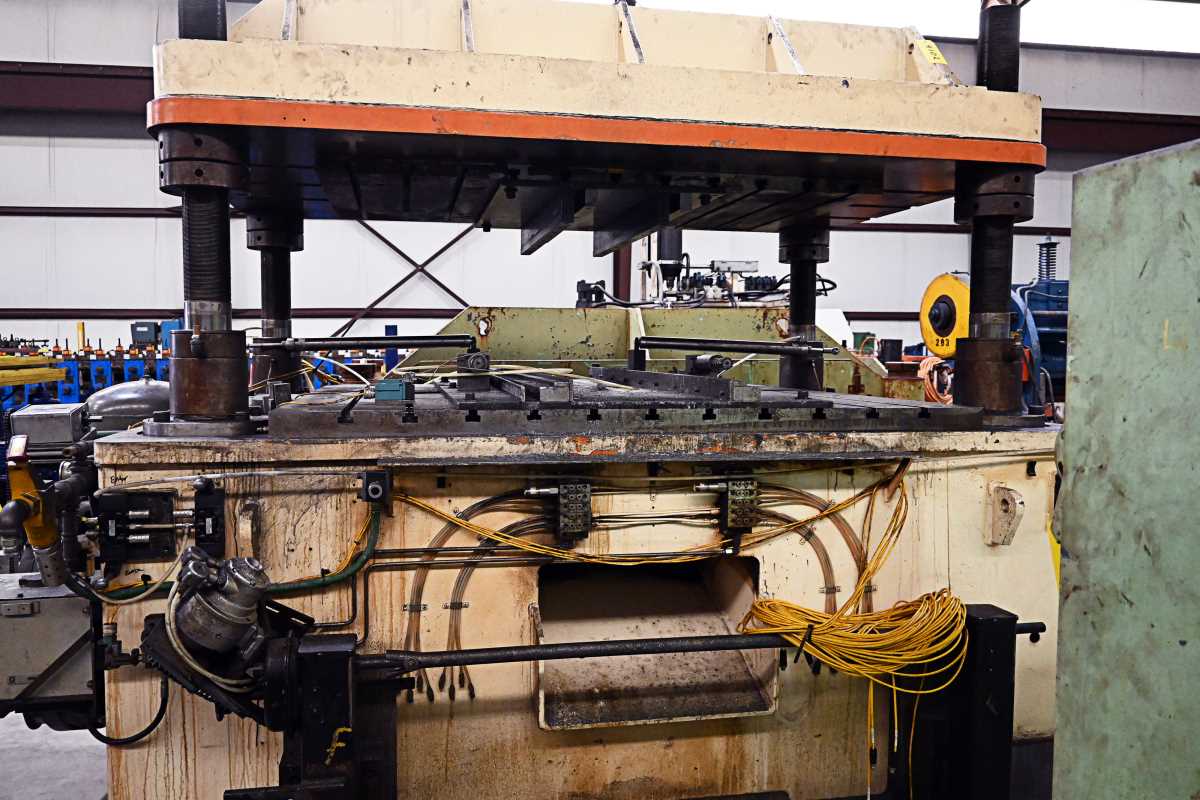

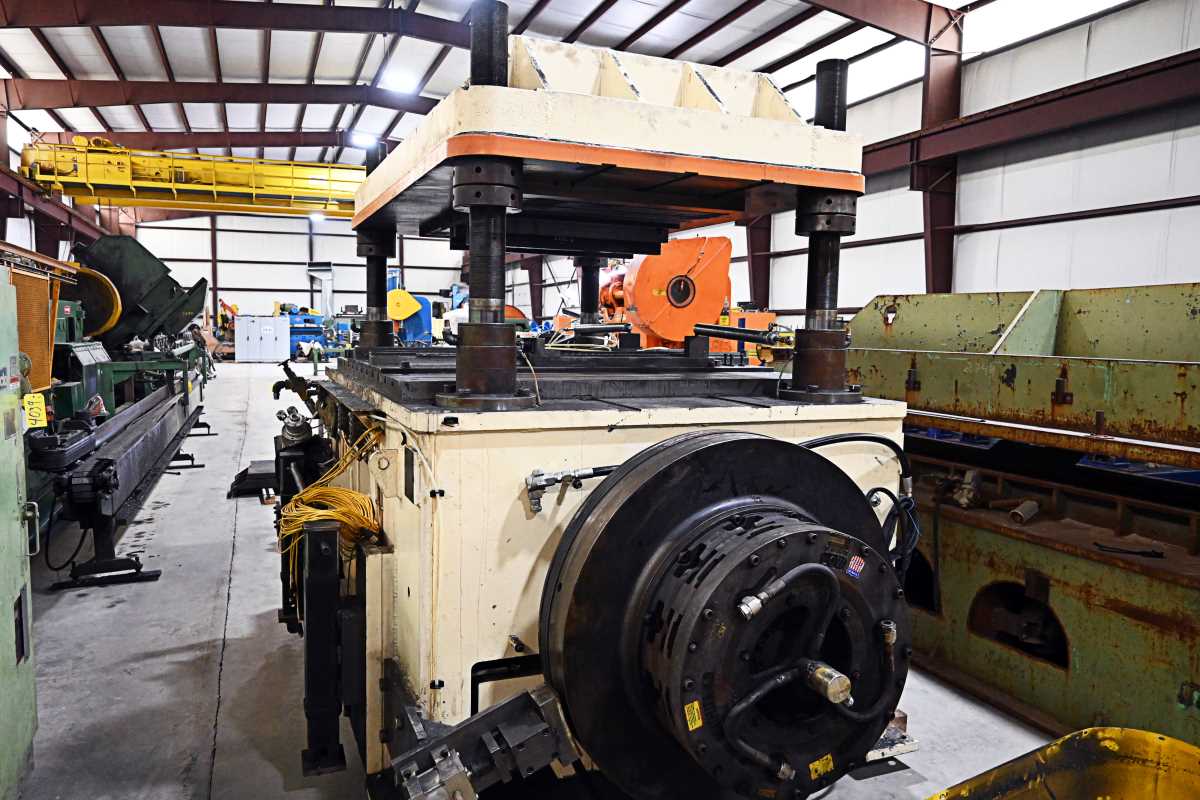

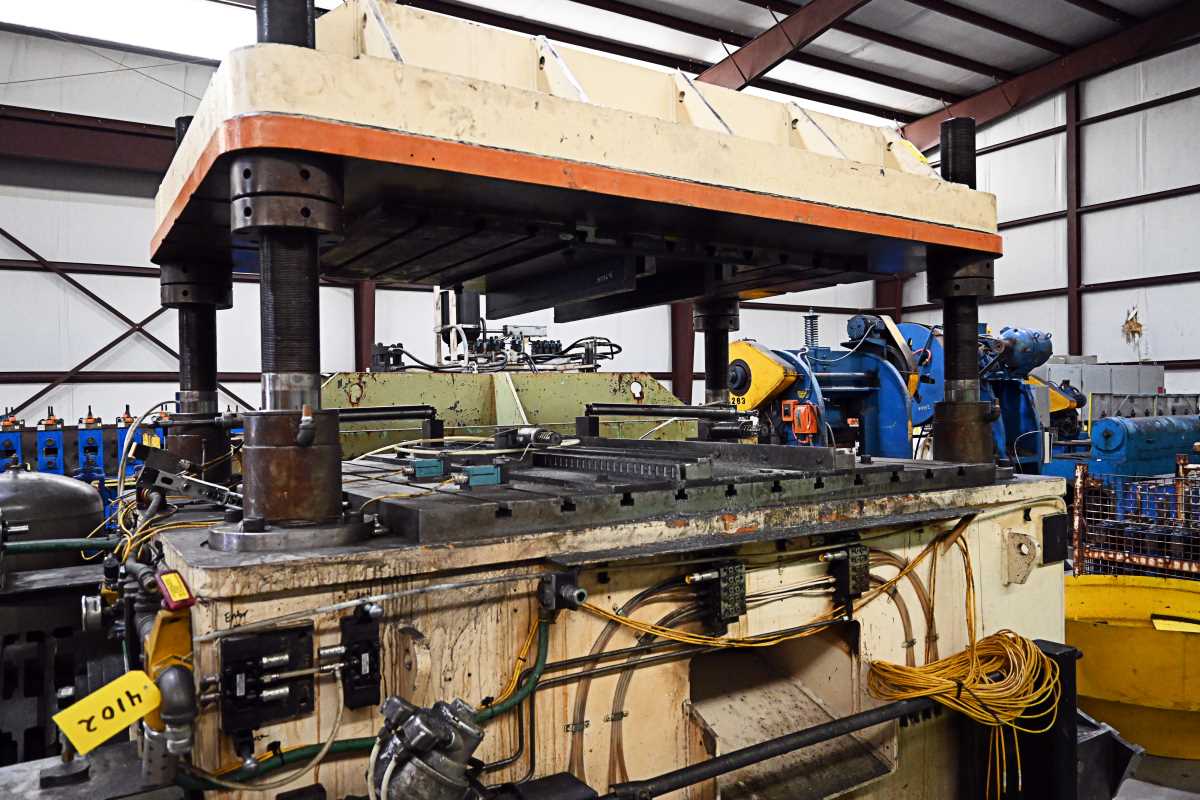

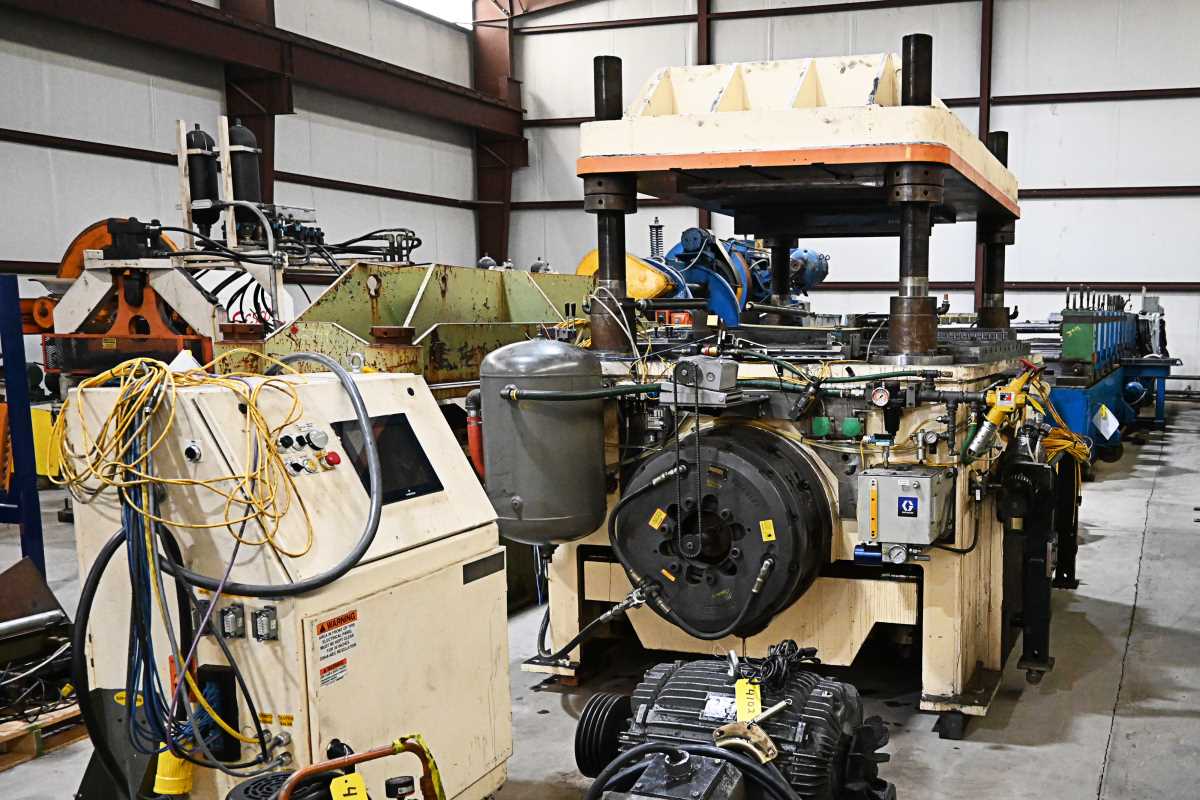

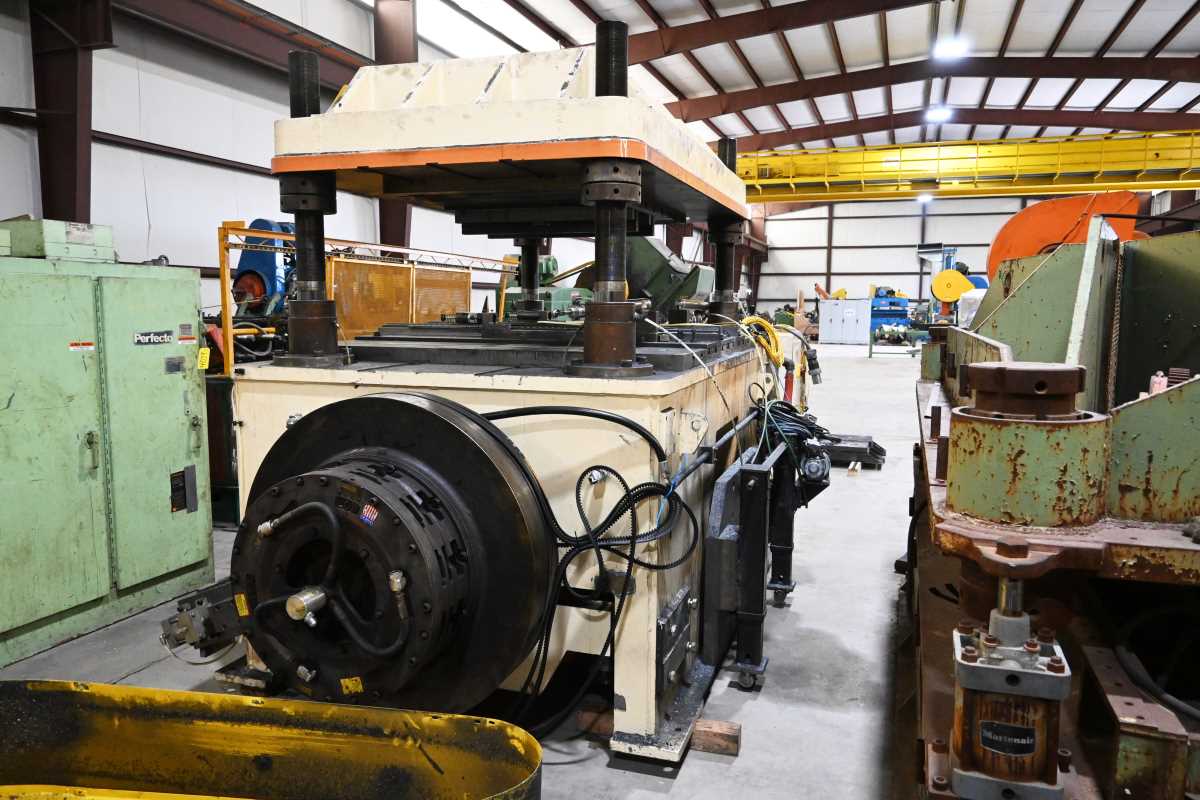

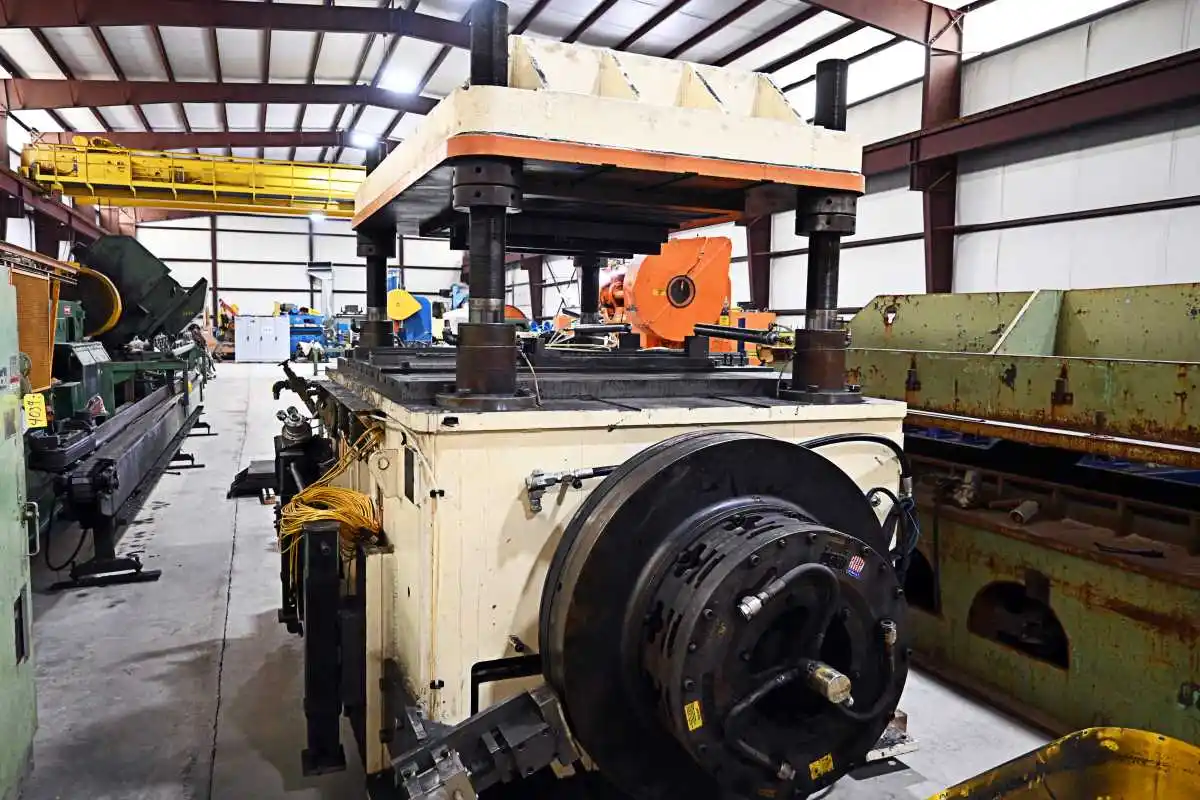

RLM 150 Ton X 2" 4-Post Cut Off Press

Request a Quote
Measurement

Specifications
  • Capacity: 150 Ton
  • Stroke: 2"
  • Bed: 106" x 71.5"
  • Shut Height: 17"
  • Ram Adjustment: 12" +
  • Base to Press Bed: 52"
  • Between Posts: 83.5" x 46"
  • Post Diameter: 4.5"
  • Motor: 40 hp
  • Show More
  • Show Less
  • Capacity: 136.07 Metric Ton
  • Stroke: 50.80mm
  • Bed: 2692.40mm x 1816.10mm
  • Shut Height: 431.80mm
  • Ram Adjustment: 304.80mm +
  • Base to Press Bed: 1320.80mm
  • Between Posts: 2120.90mm x 1168.40mm
  • Post Diameter: 114.30mm
  • Motor: 29.83 kw
  • Show More
  • Show Less
Equipped With
  • Upgraded Control Panel
  • Wichita Pneumatic Clutch
  • Hydraulic Cylinder
  • Hydraulic Unit For Adjustable Base
  • Upgraded Control Panel
  • Wichita Pneumatic Clutch
  • Hydraulic Cylinder
  • Hydraulic Unit For Adjustable Base
Location & Terms
  • Terms: F.O.B.
  • Location: PERRYSBURG, OH
  • Disclaimer: Preliminary Specifications....
