Inventory # 47724

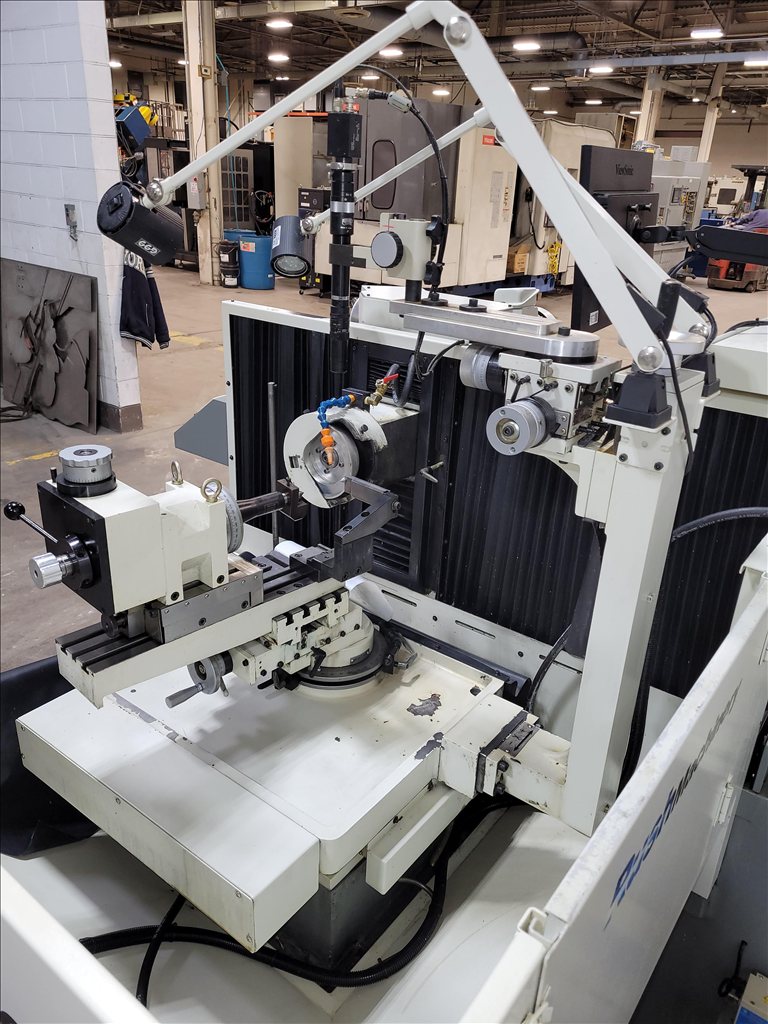

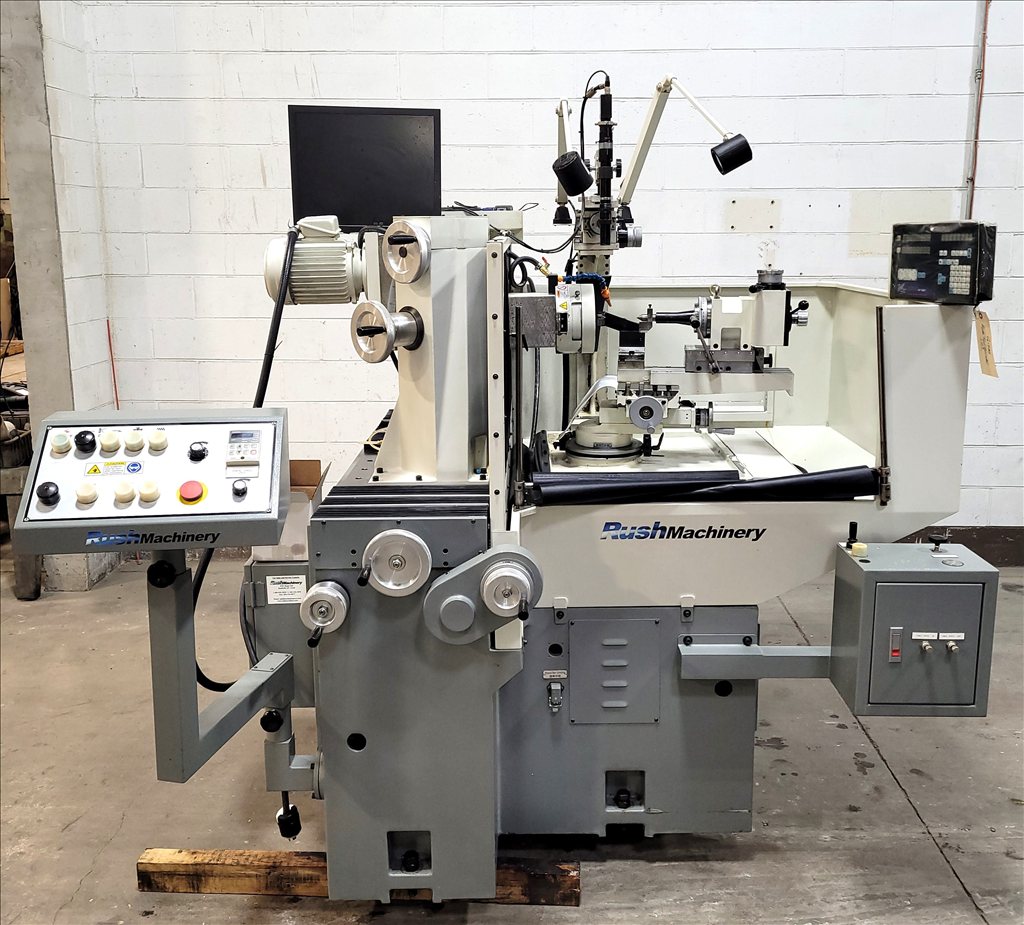

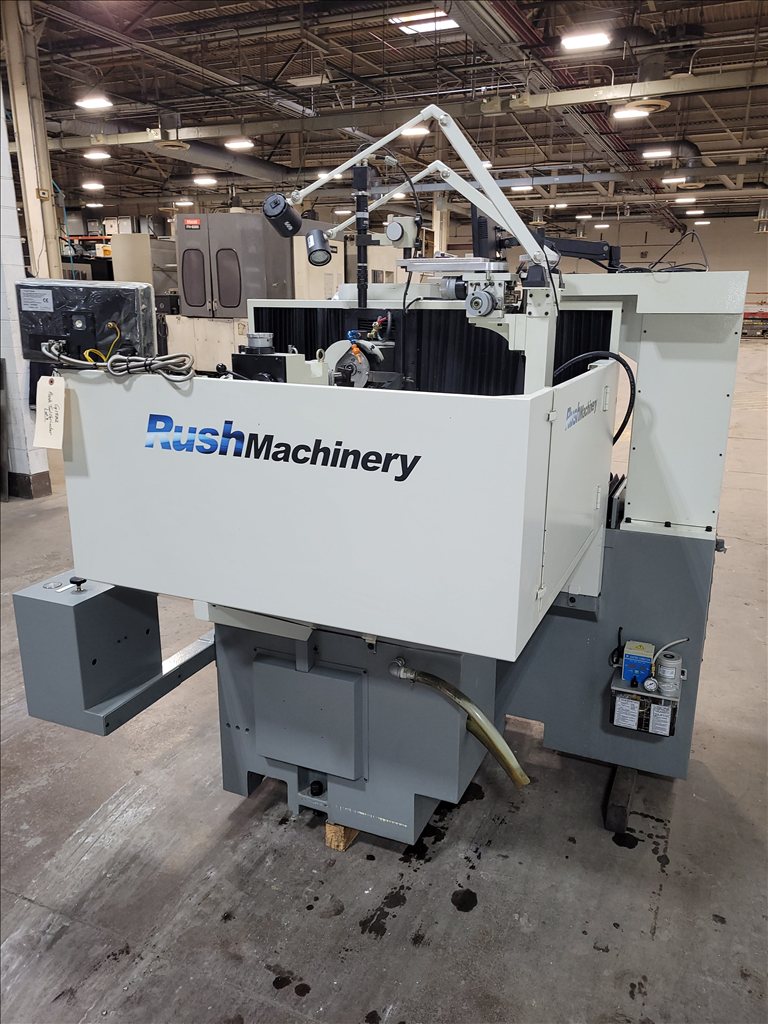

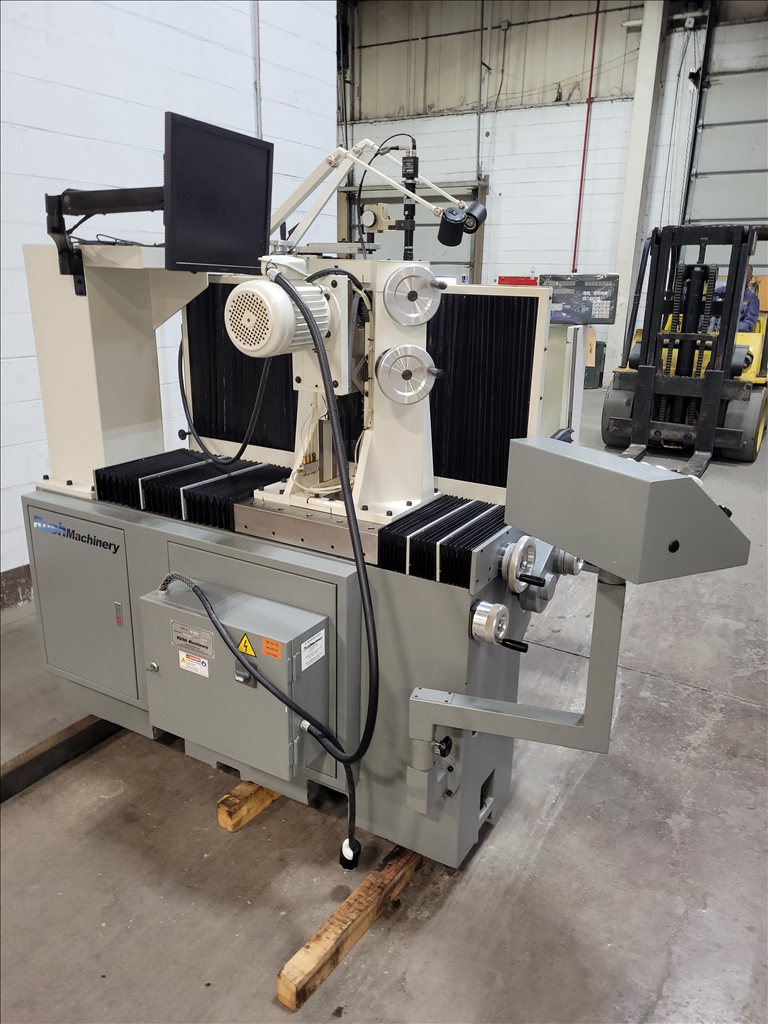

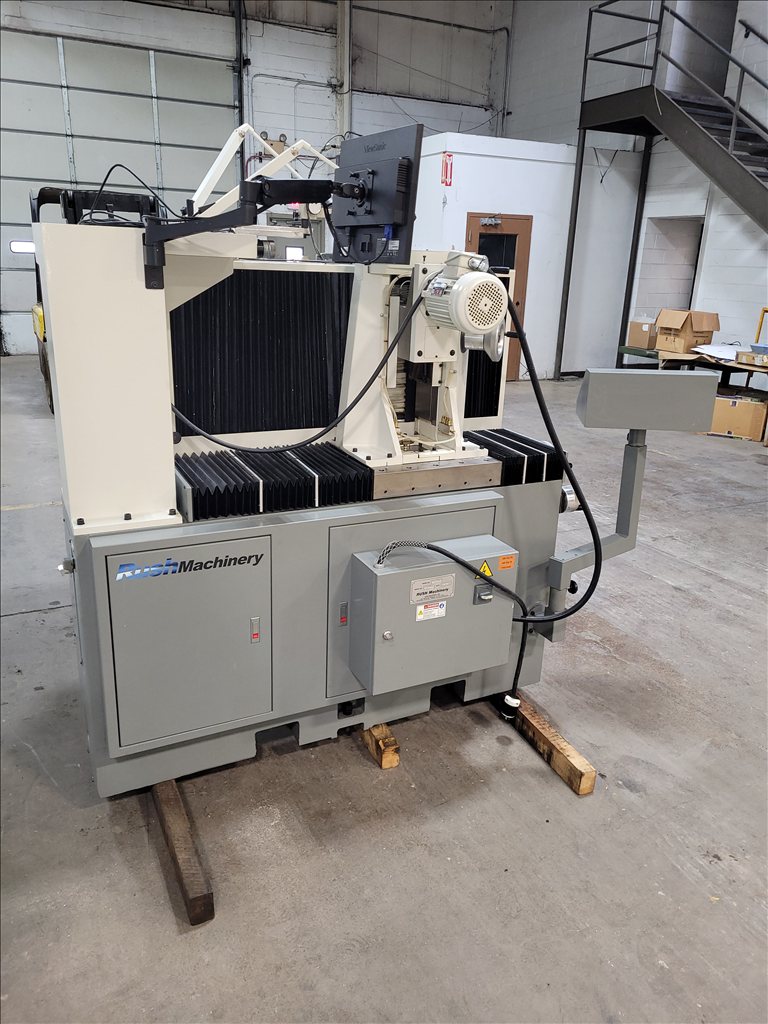

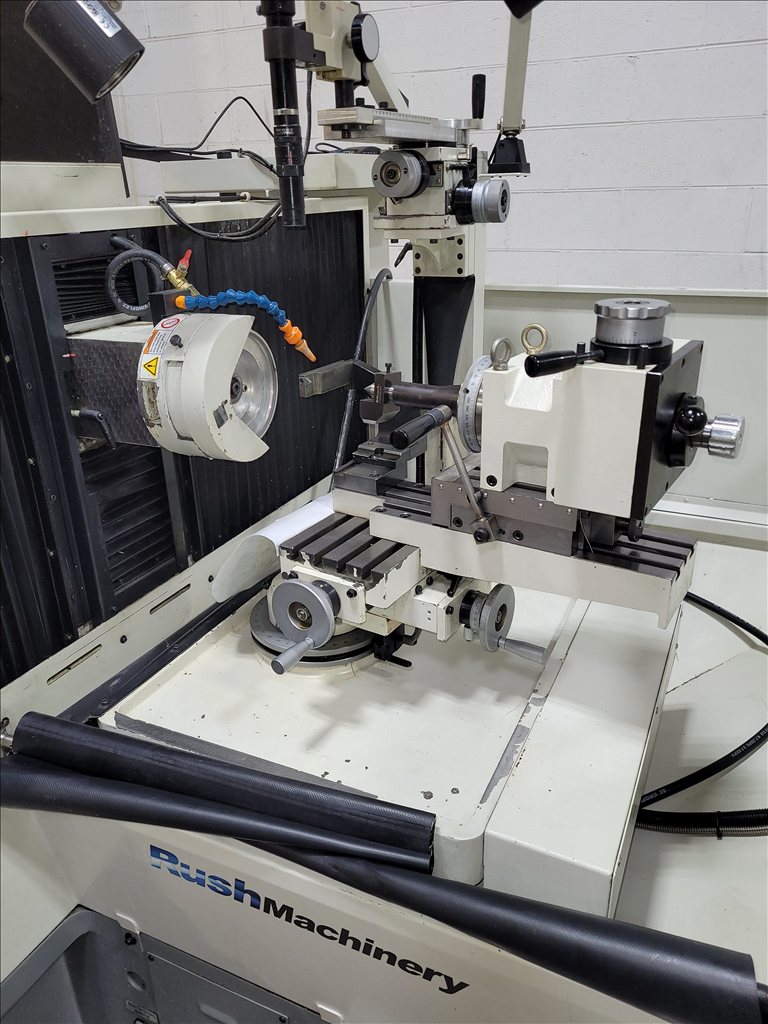

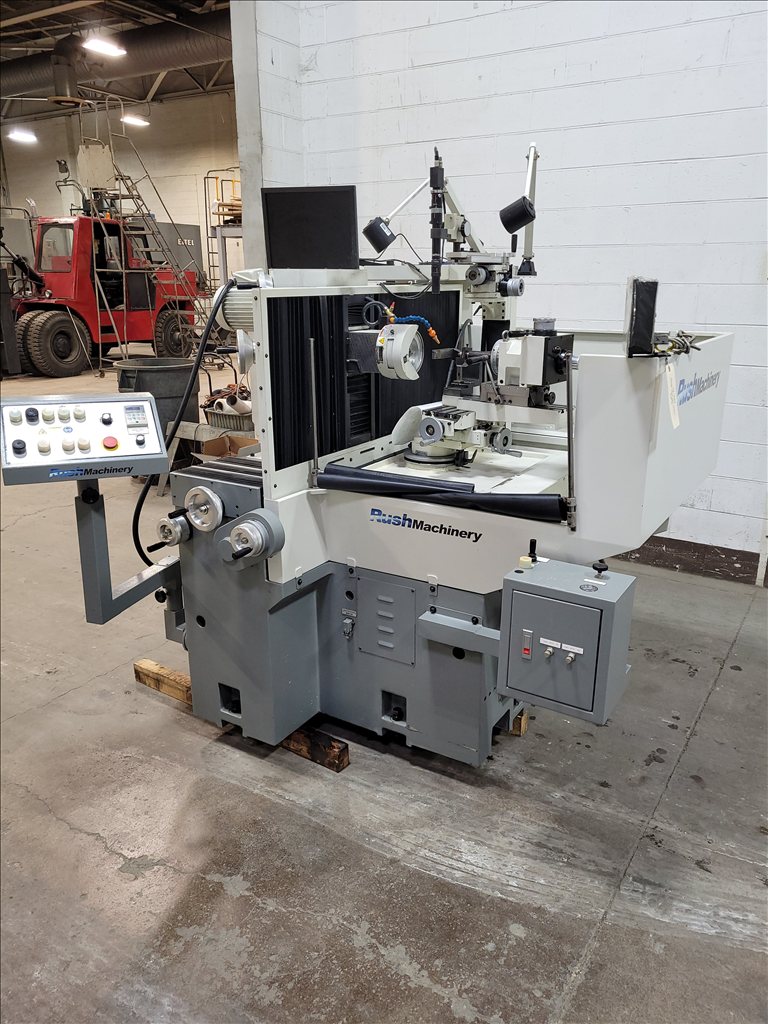

** ITEM IS SOLD - if you are looking for a similar item OR have a similar item to sell please contact us Phone 847-427-3333 or email scott@perfectionglobal.com Rush FC 500D PCD, Carbide, & HSS Tool Grinder
Specifications

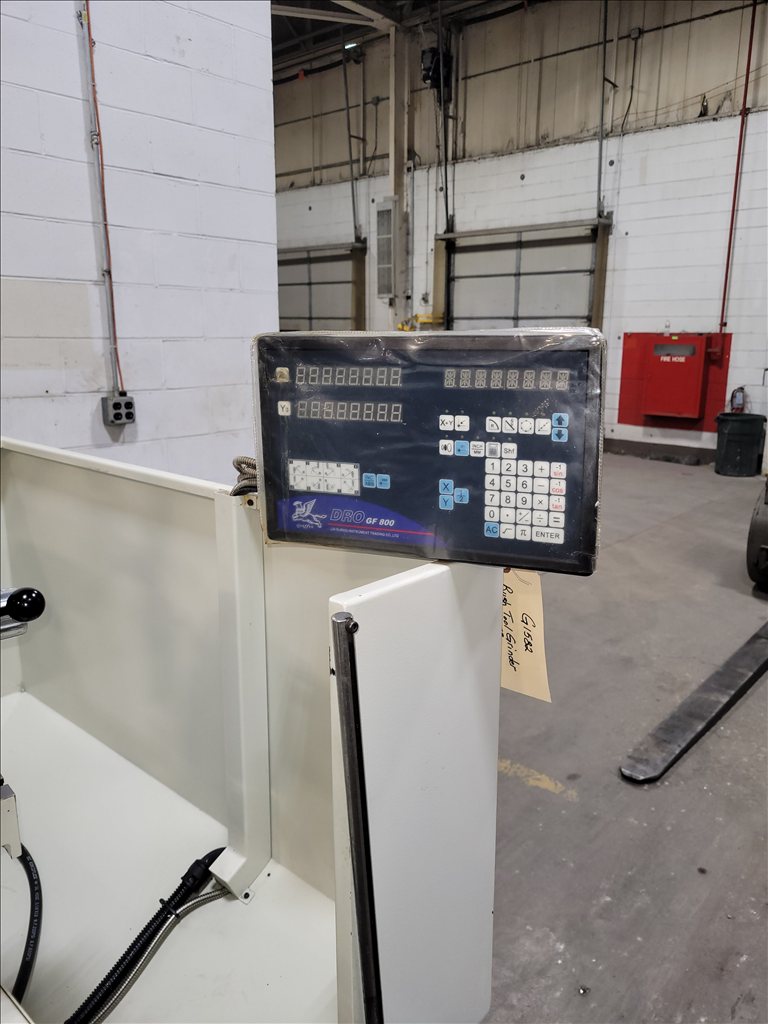

- Rush FC 500D, 0"-.0315" Grinding Tip Radii, 0.118"-1.02" Round Tool Shank Ø, 3600 RPM, 3 HP, 5.12" Height Adjustment, 0-50 Oscillation Frequency, 0-2.362" Oscillation Stroke, 0-16.535" Oscillation Stroke Range, -3°-25° Inclination Angle, 6" x 1.5" x 1.5" Grinding Wheel Size, 8.27" x 6.3" Cross-Table Clamping Surface w/ (4) T-Slots, 3.74" Cross-Table Slide Travels, 5.118" Controlled Infeed Travel, 3.15" Max Rapid Travel, 200° Cross Table Swivel, Variable Grinding Force, 2-Axis Plus Angle DRO...
- Rush FC 500D, 0"-.0315" Grinding Tip Radii, 0.118"-1.02" Round Tool Shank Ø, 3600 RPM, 3 HP, 5.12" Height Adjustment, 0-50 Oscillation Frequency, 0-2.362" Oscillation Stroke, 0-16.535" Oscillation Stroke Range, -3°-25° Inclination Angle, 6" x 1.5" x 1.5" Grinding Wheel Size, 8.27" x 6.3" Cross-Table Clamping Surface w/ (4) T-Slots, 3.74" Cross-Table Slide Travels, 5.118" Controlled Infeed Travel, 3.15" Max Rapid Travel, 200° Cross Table Swivel, Variable Grinding Force, 2-Axis Plus Angle DRO...
Location & Terms
- Terms: As Is, Where Is
- Location: Lake Bluff, IL
- Disclaimer: Preliminary Specifications....
