Inventory # 48447 Year: 1985

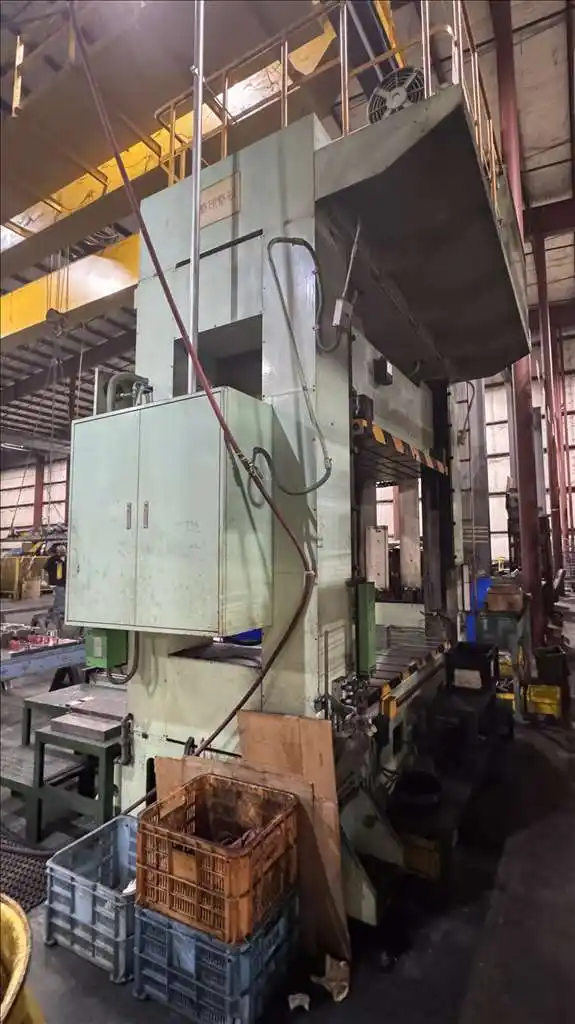

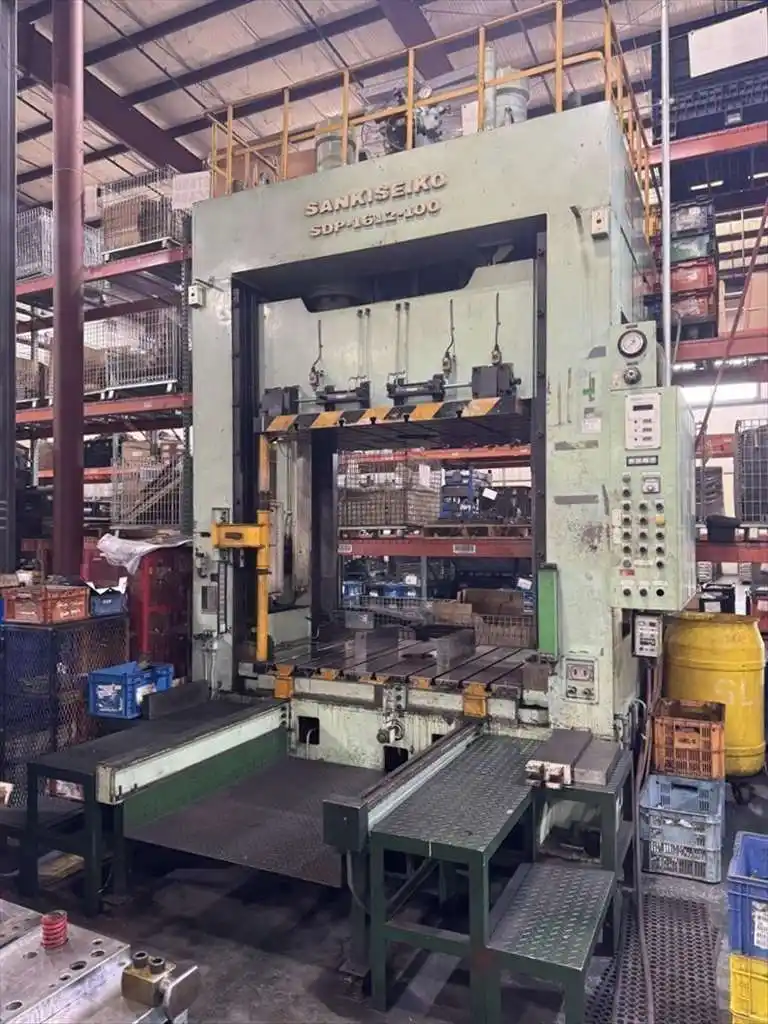

Sanki Seiko SDP-1612-100 Hydraulic Die Spotting Press
Specifications
- Tonnage Capacity: 20 - 100 Ton
- Ram Stroke: 35.4"
- Daylight: 55.1"
- Bed Area (L-R x F-B): 62.9” x 47.2”
- Lifting Stroke: 60 Ton
- Max. Table Load: 8 Ton
- Approach Speed: 106 IPM
- Pressing Speed: 18 IPM
- Return Speed: 173 IPM
- Show More
- Show Less
- Tonnage Capacity: 0.18 Metric Ton
- Ram Stroke: 899.16mm
- Daylight: 1399.54mm
- Bed Area (L-R x F-B): 1597.66mm x 1198.88mm
- Lifting Stroke: 54.43 Metric Ton
- Max. Table Load: 7.26 Metric Ton
- Approach Speed: 44.87 mm/sec
- Pressing Speed: 7.62 mm/sec
- Return Speed: 73.24 mm/sec
- Show More
- Show Less
Equipped With
- Flip Down Ram
- Moving Table Front to Back
- Ejector Device
- Resin Injection Cylinder
- Flip Down Ram
- Moving Table Front to Back
- Ejector Device
- Resin Injection Cylinder
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
