Inventory # 48319 Year: 2014

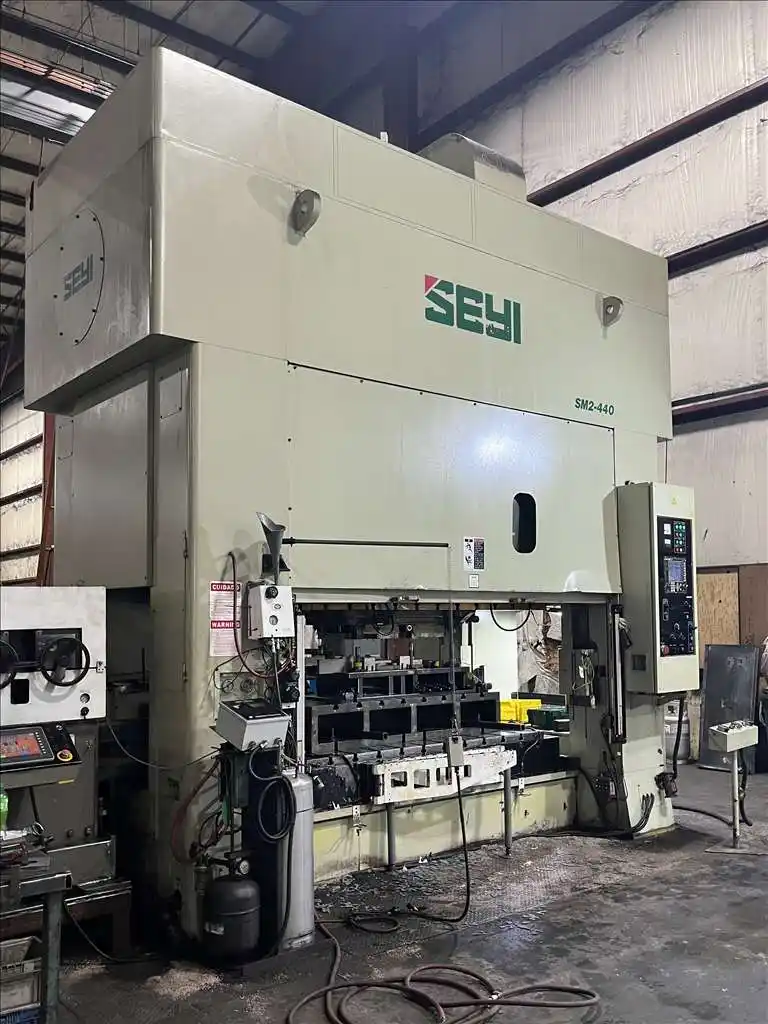

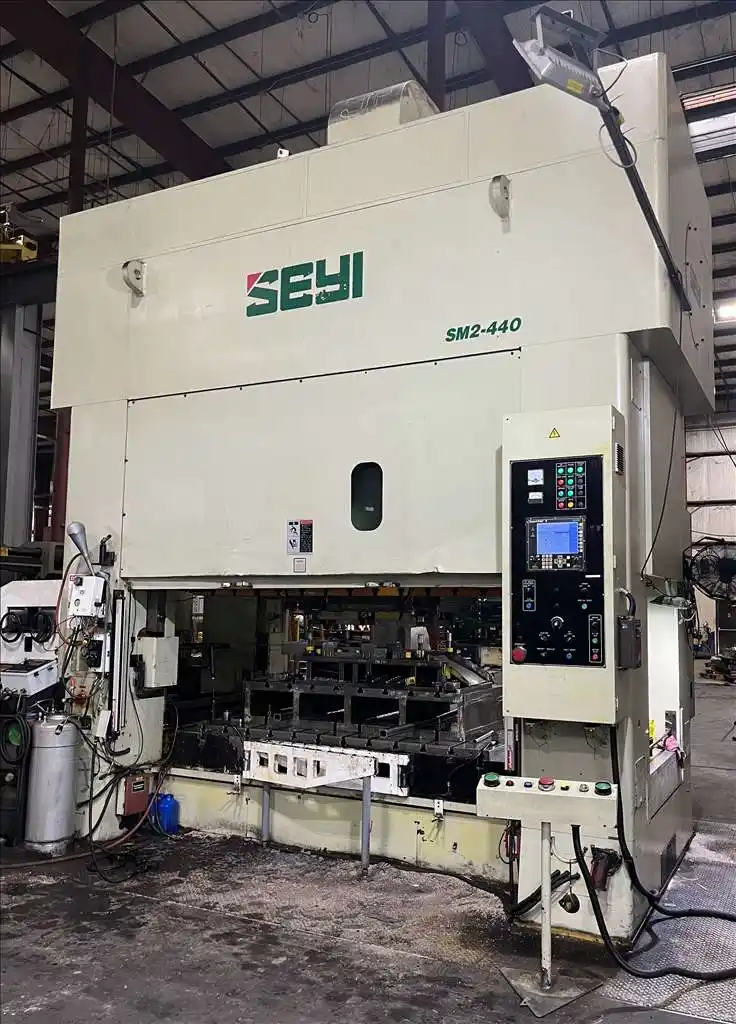

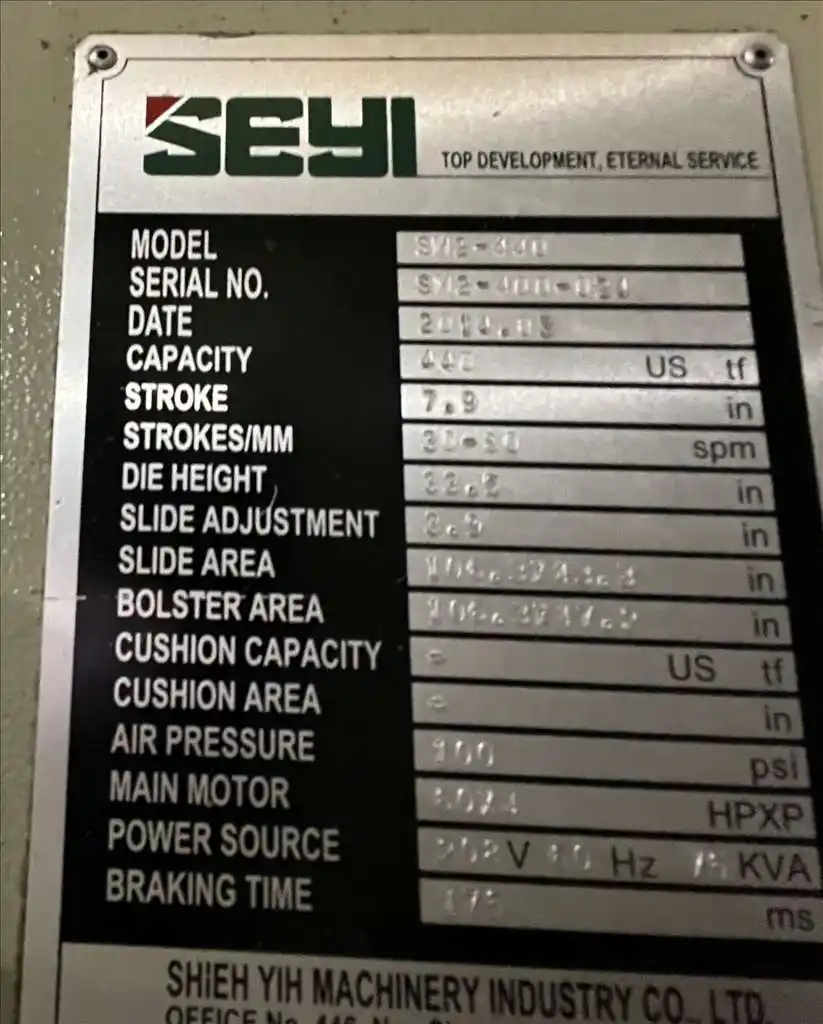

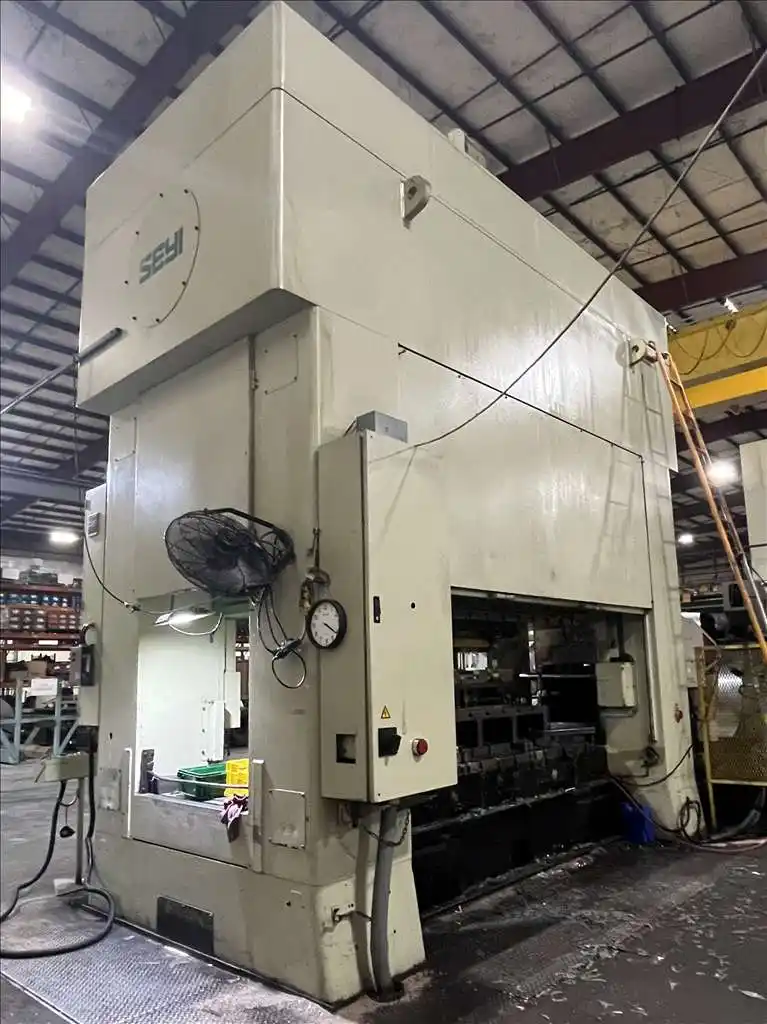

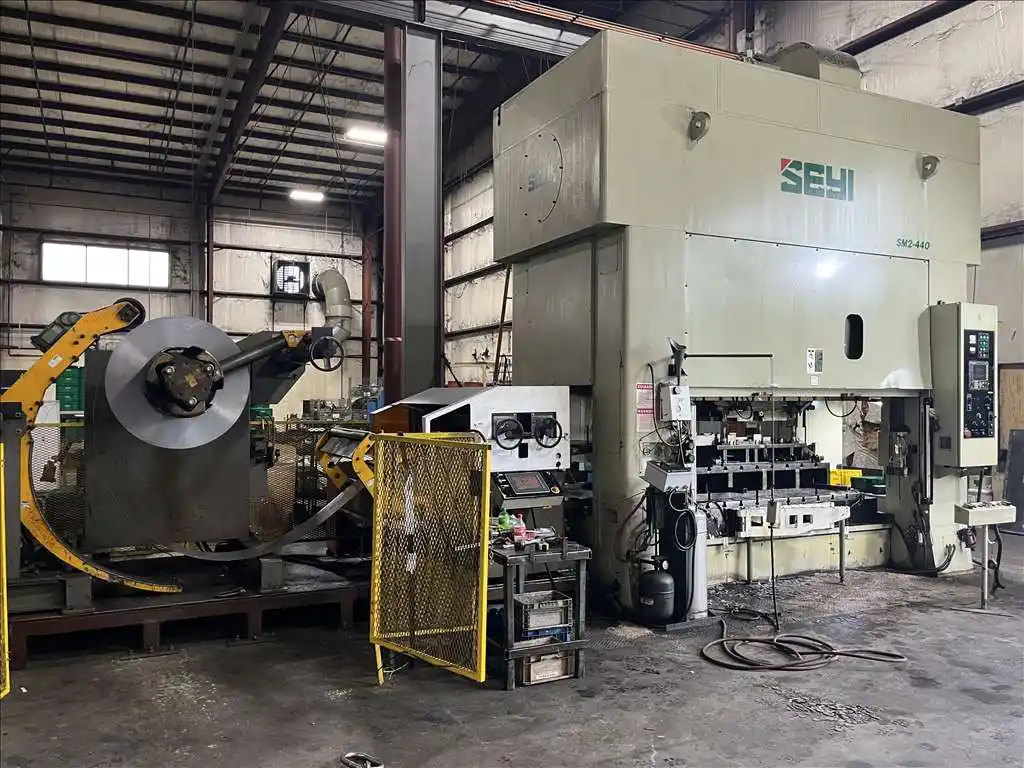

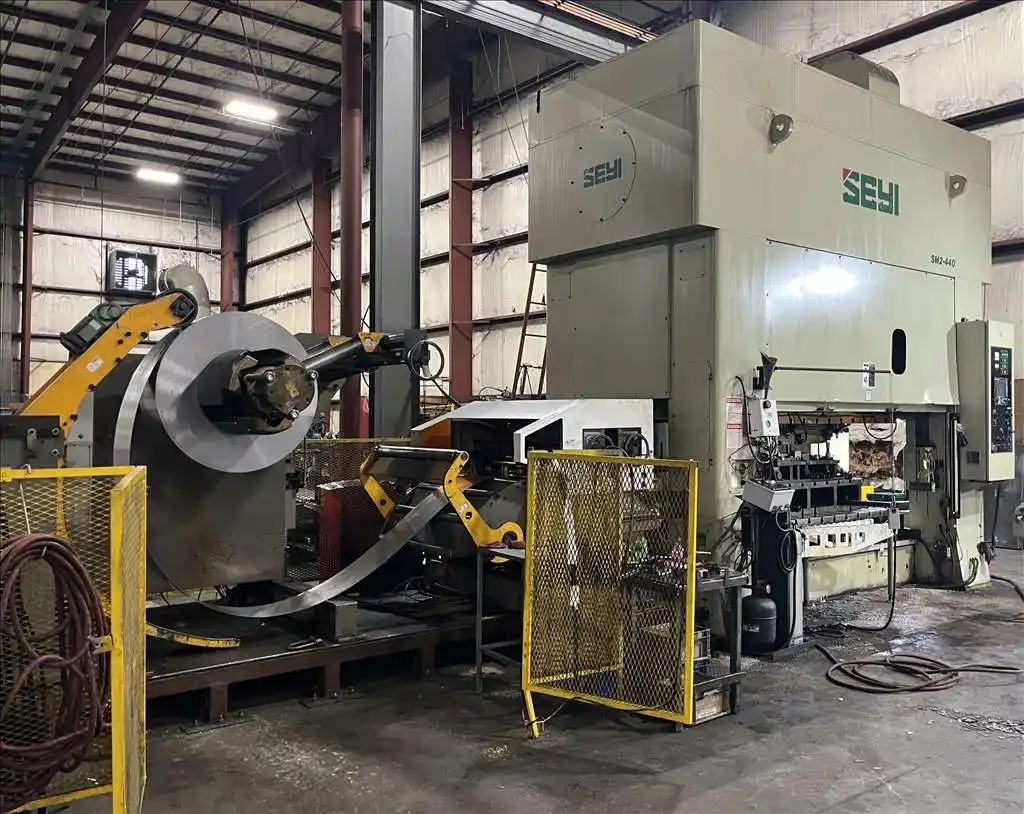

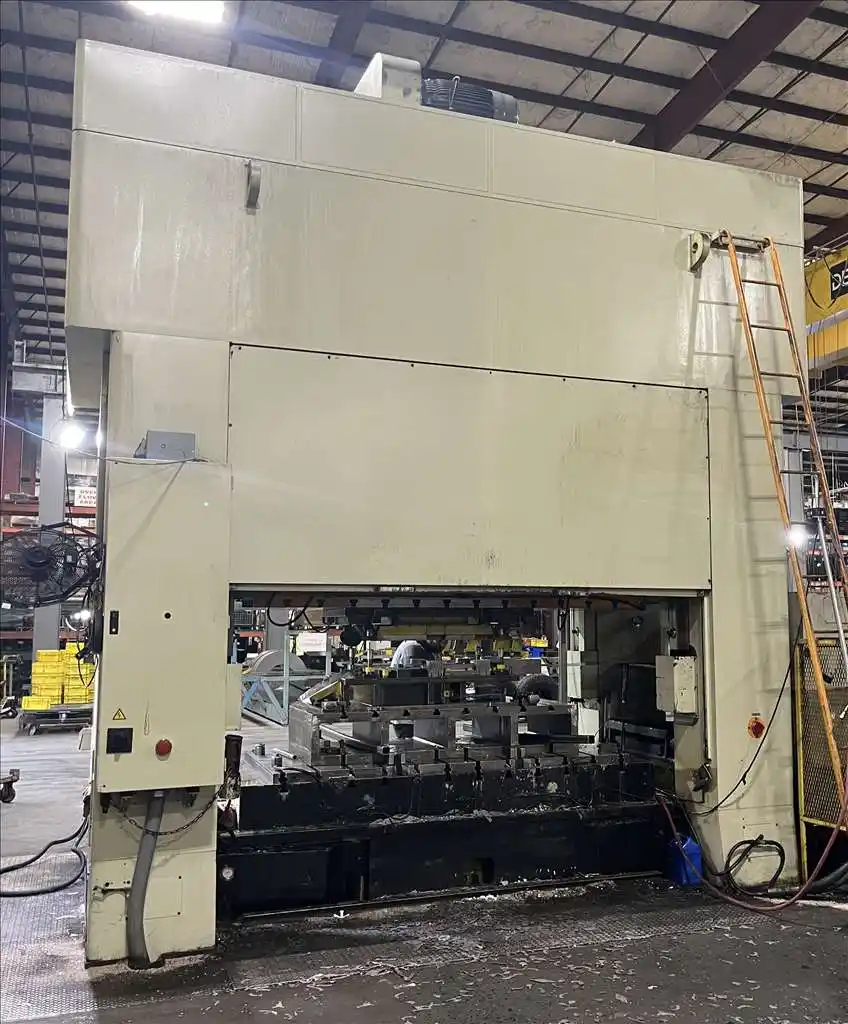

Seyi SM2-400 440 Ton Straight Side Double Crank Press
Specifications
- Tonnage Capacity (US Ton): 440 Ton @ 0.25" ABDC
- Stroke Length: 7.87"
- Stroke Speed: 30 - 80 SPM
- Die Height Over Bolster: 33.5"
- Bolster Area (L-R x F-B): 106" x 47"
- Slide Area (L-R x F-B): 106" x 43"
- Bolster Thickness: 9.8"
- Slide Adjustment: 3.9"
- Window Width: 35.4"
- Main Motor: 60 HP

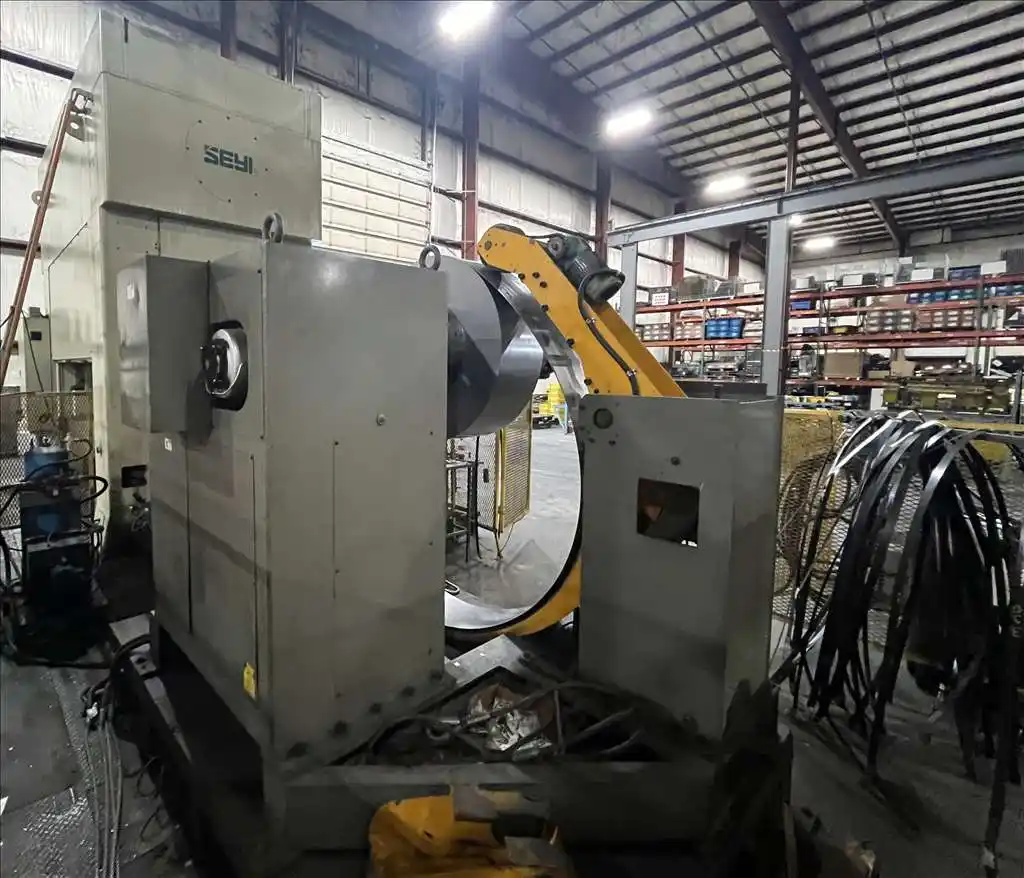

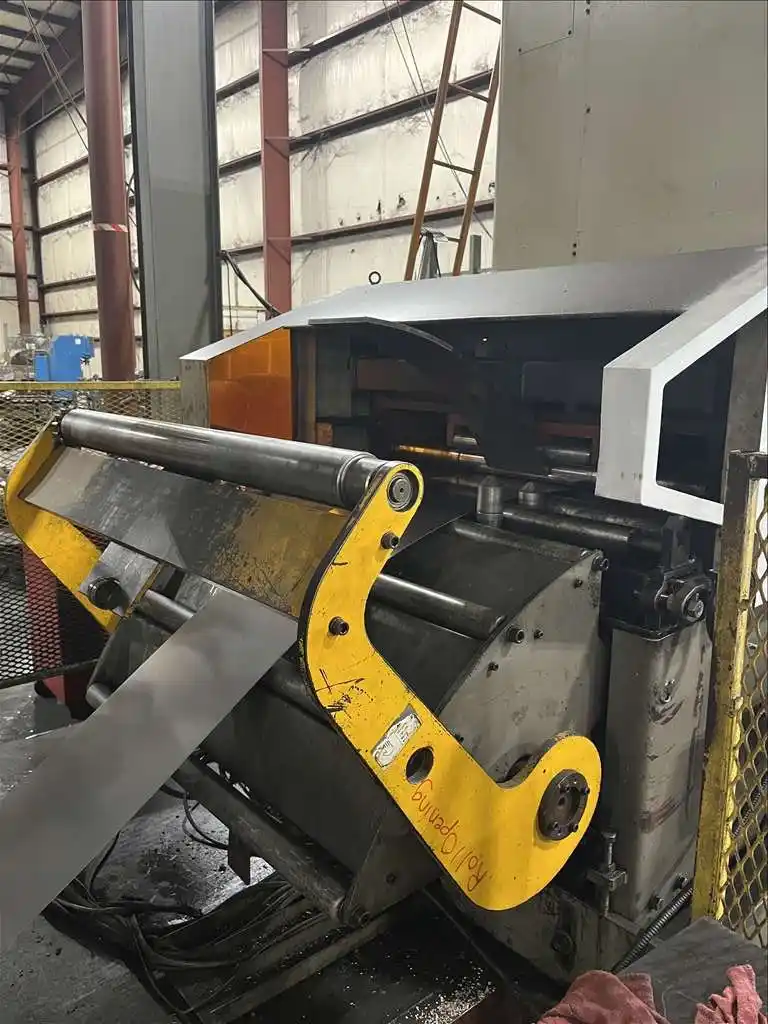

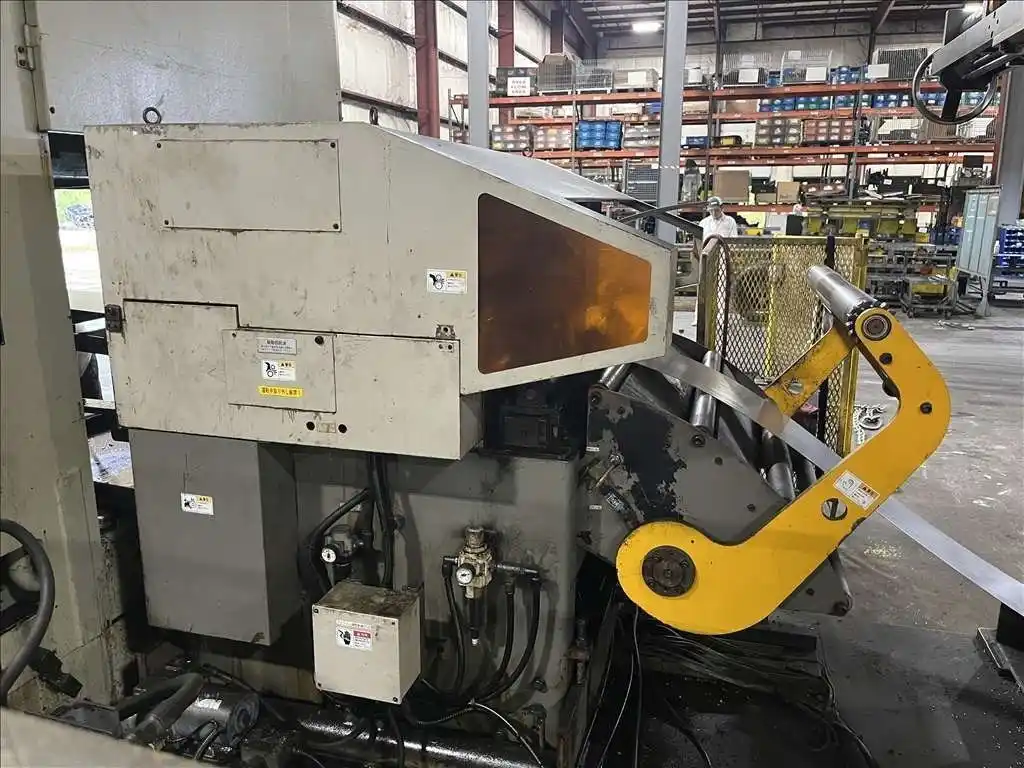

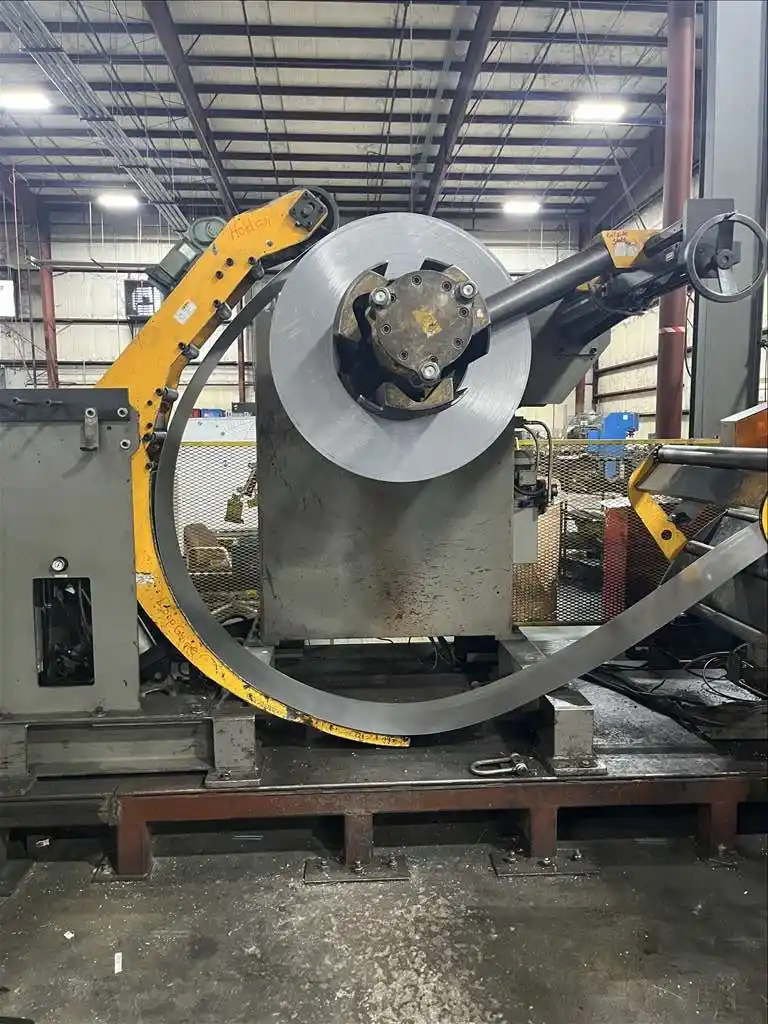

- Servo Coil Line
- Max. Coil Weight Capacity: 15,000 lb.
- Max. Coil Thickness @ 39" Width: 0.098" Mild Steel
- Max. Coil Thickness @ 17.9" Width: 0.157" Mild Steel
- Max. Coil Thickness @ 7.9" Width: 0.236" Mild Steel
- Max. Line Speed: 72 FPM
- Show More
- Show Less
- Tonnage Capacity (US Ton): 399.12 Metric Ton @ 6.35mm ABDC
- Stroke Length: 199.90mm
- Stroke Speed: 30 - 80 SPM
- Die Height Over Bolster: 850.90mm
- Bolster Area (L-R x F-B): 2692.40mm x 1193.80mm
- Slide Area (L-R x F-B): 2692.40mm x 1092.20mm
- Bolster Thickness: 248.92mm
- Slide Adjustment: 99.06mm
- Window Width: 899.16mm
- Main Motor: 44.74 kw
- Servo Coil Line
- Max. Coil Weight Capacity: 7,000 kg
- Max. Coil Thickness @ 990.60mm Width: 2.49mm Mild Steel
- Max. Coil Thickness @ 454.66mm Width: 3.99mm Mild Steel
- Max. Coil Thickness @ 200.66mm Width: 5.99mm Mild Steel
- Max. Line Speed: 365.76 mm/sec
- Show More
- Show Less
Equipped With

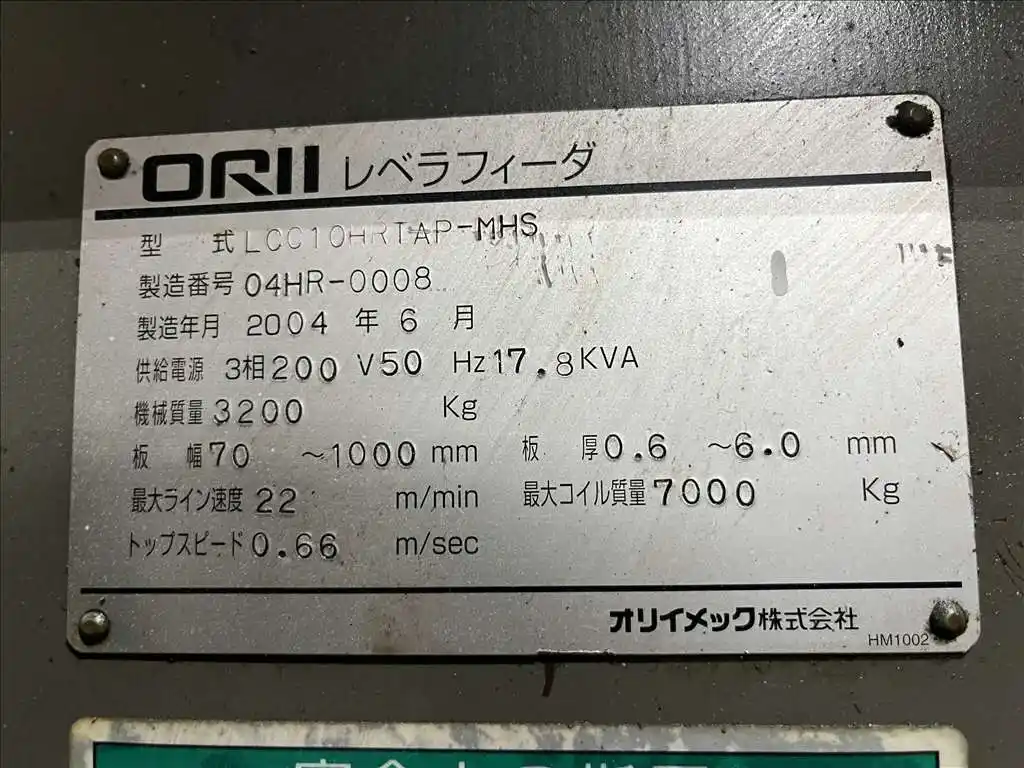

- Orii LCC10HR-TAP-MHS Spacesaver Servo Coil Line

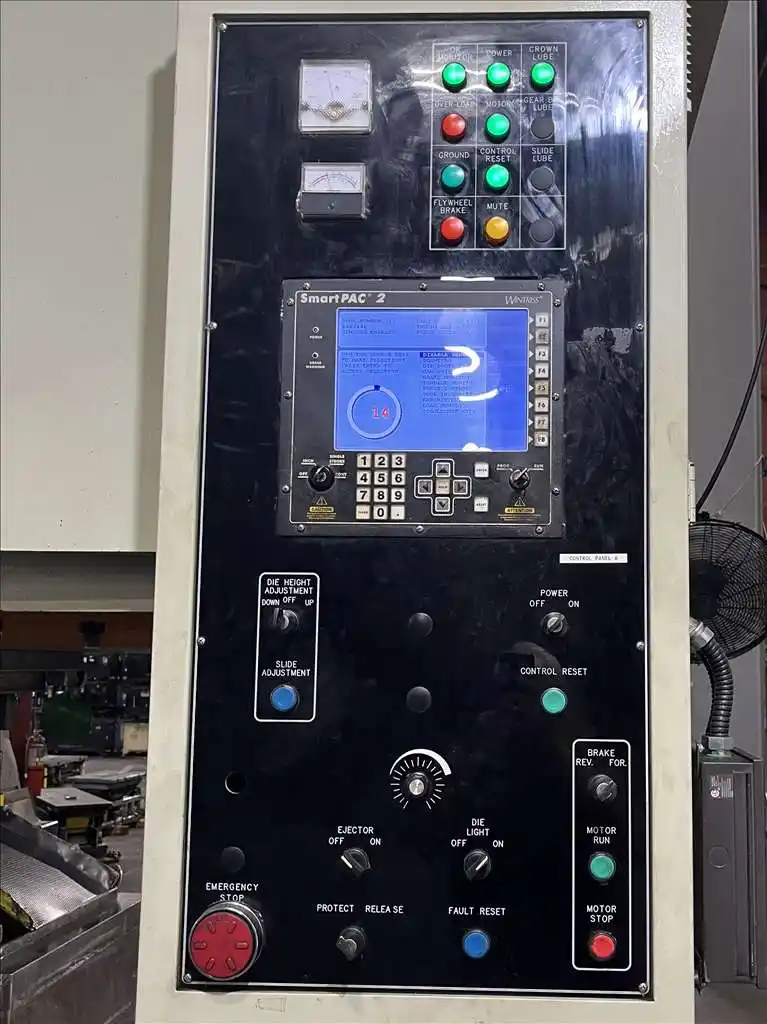

- SmartPac2 Control
- Operator T-Stand w/ Dual Palm Buttons
- Link Drive
- Wet Combination Clutch & Brake
- Hydraulic Overload Protection
- Micro Inching
- Recirculating Oil Lube
- Show More
- Show Less
- Orii LCC10HR-TAP-MHS Spacesaver Servo Coil Line
- SmartPac2 Control
- Operator T-Stand w/ Dual Palm Buttons
- Link Drive
- Wet Combination Clutch & Brake
- Hydraulic Overload Protection
- Micro Inching
- Recirculating Oil Lube
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
