Inventory # 42876 Year: 2015

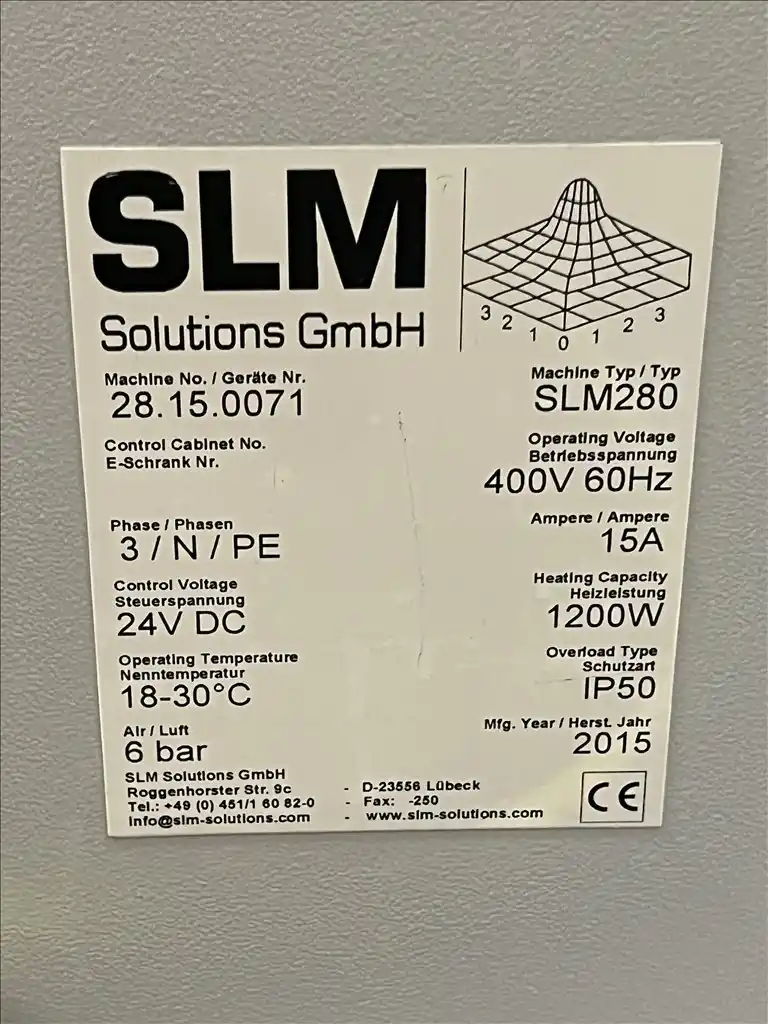

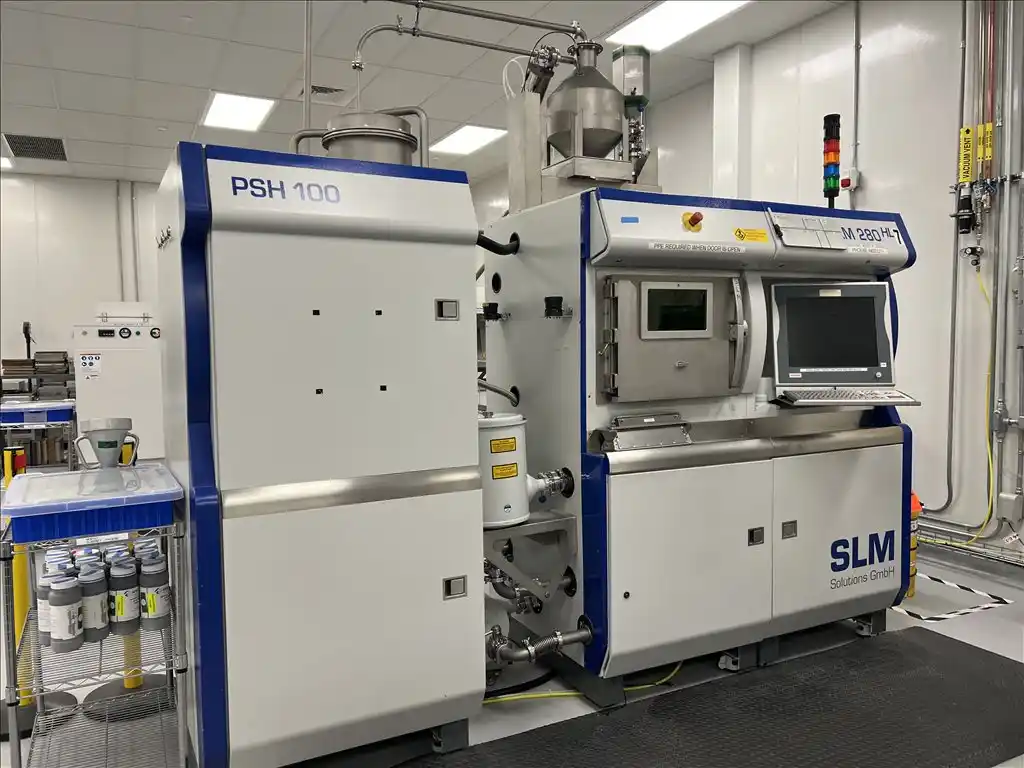

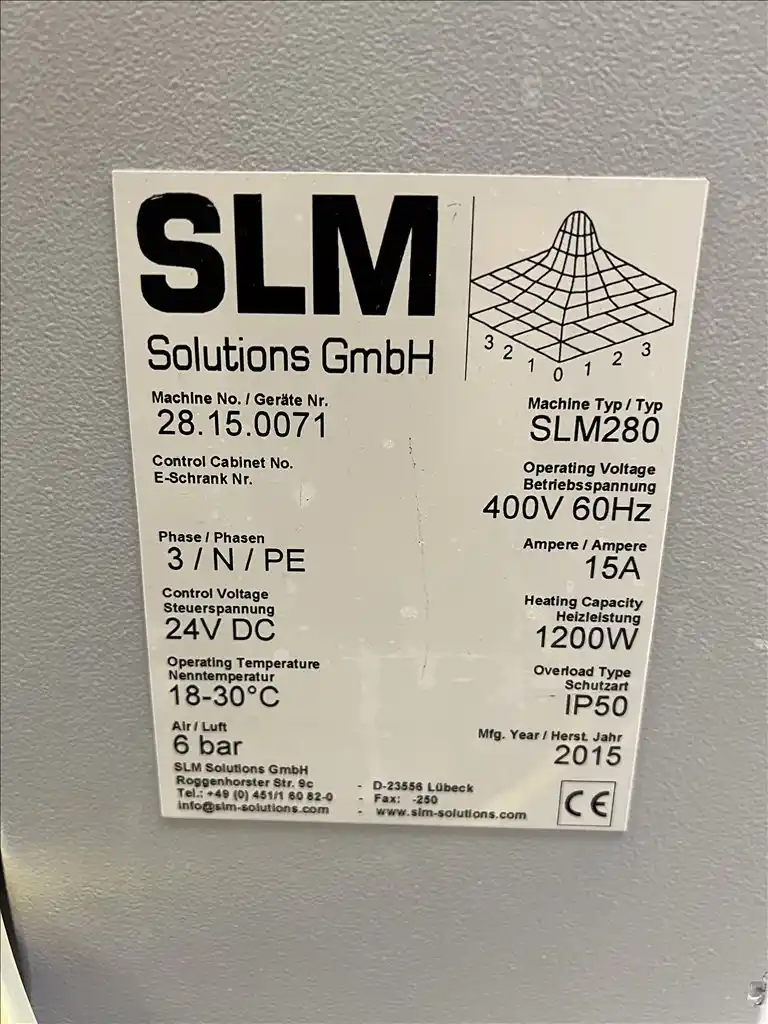

** ITEM IS SOLD - if you are looking for a similar item OR have a similar item to sell please contact us Phone 847-427-3333 or email scott@perfectionglobal.com SLM 280-HL Industrial 400W Twin Laser 3D Printer
Specifications
- Effective Build Volume: 11" x 11" x 13.8"
- Variable Layer Thickness: 20 - 100 µm
- Min. Wall Thickness / Scanning Line: 180 µm
- Build Platform Max. Temperature: 392°F
- YLR-400 SM Fiber Laser Specifications
- Nominal Output Power: 400 W
- Mode of Operation: CW or Modulated
- Central Emission Wavelength: 1075, (+/-) 5 nm
- Line Width (FWHM): <5 nm
- Output Power Tenability: 10% - 105%
- Output Power Stability (Long Term): (+ / -) 3%
- Typical Beam Quality: <1.10 M²
- Maximum Modulation Frequency: 20 khz
- Electrical Requirements: 240 VAC
- Maximum Power Consumption: 1800 W
- Cooling Method: Water
- Cooling Water Temperature: <86° F
- Electrical: 400V / 3 / 15A
- Show More
- Show Less
- Effective Build Volume: 280mm x 280mm x 350 mmm
- Variable Layer Thickness: 20 - 100 µm
- Min. Wall Thickness / Scanning Line: 180 m
- Build Platform Max. Temperature: 200°C
- YLR-400 SM Fiber Laser Specifications
- Nominal Output Power: 400 W
- Mode of Operation: CW or Modulated
- Central Emission Wavelength: 1075, (+/-) 5 nm
- Line Width (FWHM): <5 nm
- Output Power Tenability: 10% - 105%
- Output Power Stability (Long Term): (+ / -) 3%
- Typical Beam Quality: <1.10 M²
- Maximum Modulation Frequency: 20 khz
- Electrical Requirements: 240 VAC
- Maximum Power Consumption: 1800 W
- Cooling Method: Water
- Cooling Water Temperature: <30° C
- Electrical: 400V / 3 / 15A
- Show More
- Show Less
Equipped With
- (2) 400W YLR-400 SM Fiber Lasers

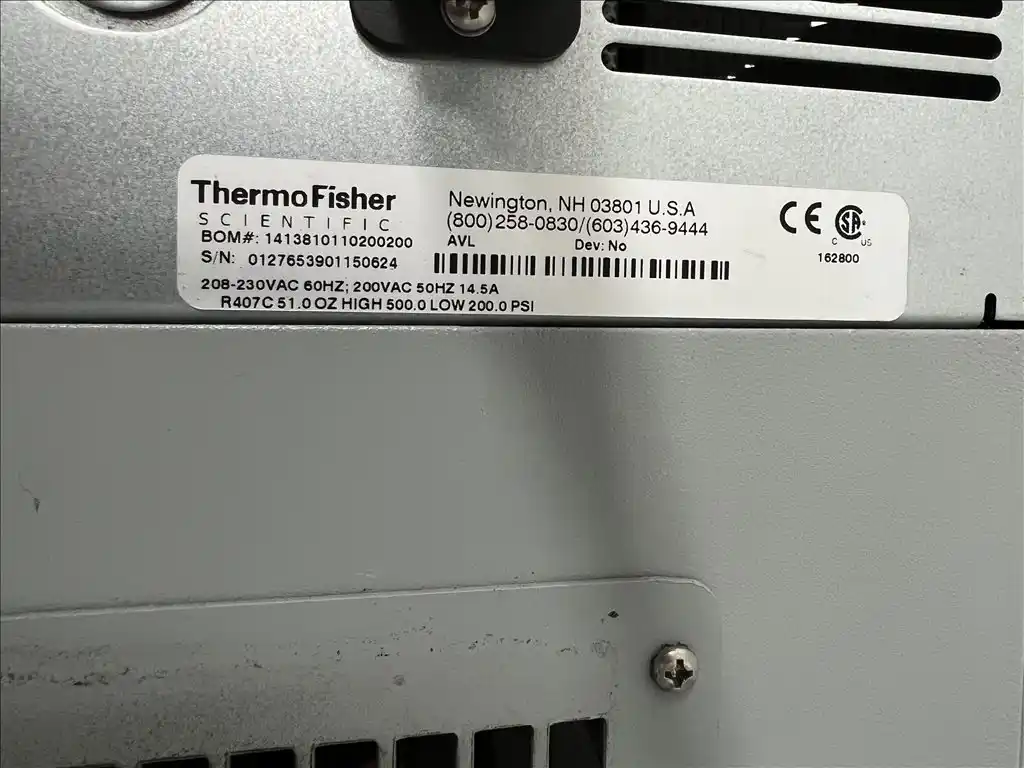

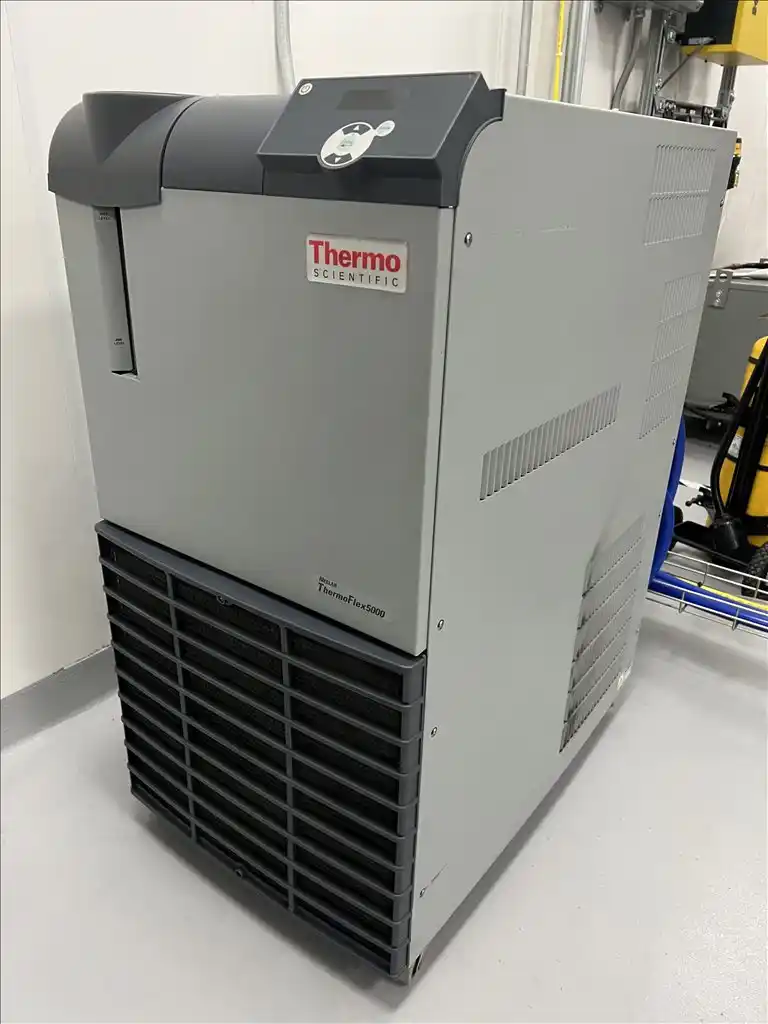

- Neslab Thermo Flex 2500 Laser Chiller

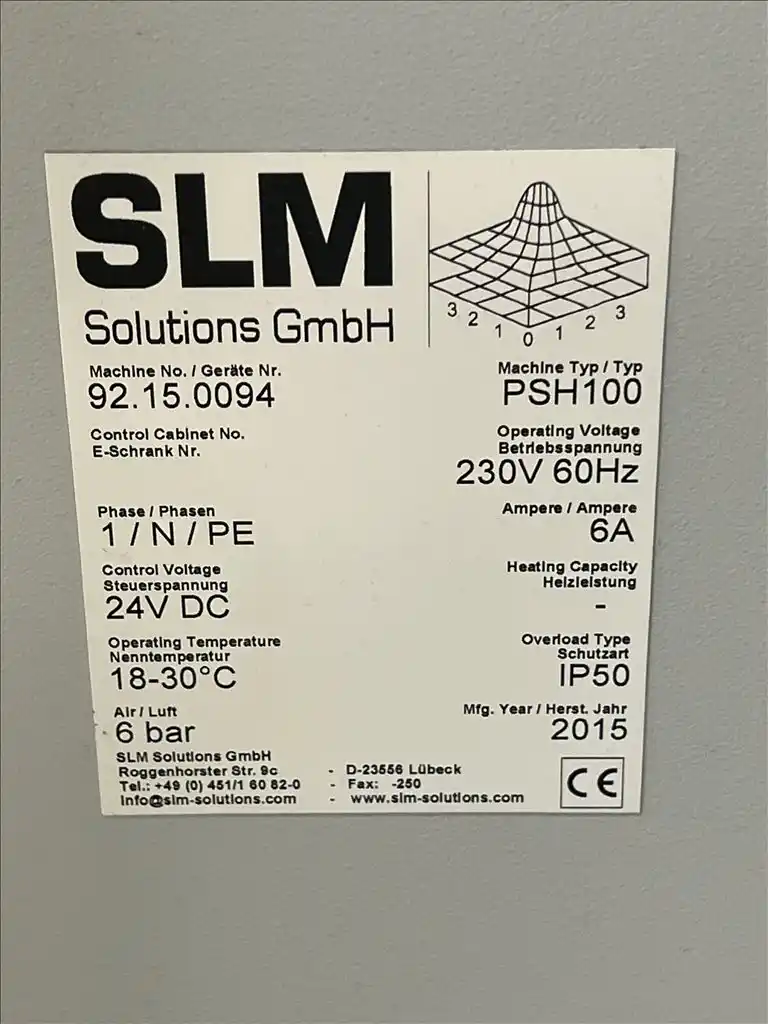

- Semi-Automatic PSH 100 Powder Sieving Station
- 2+1 Filter Upgrade
- Kaeser DC Desiccant Air Dryer
- Transformer
- Show More
- Show Less
- (2) 400W YLR-400 SM Fiber Lasers
- Neslab Thermo Flex 2500 Laser Chiller
- Semi-Automatic PSH 100 Powder Sieving Station
- 2+1 Filter Upgrade
- Kaeser DC Desiccant Air Dryer
- Transformer
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
