Inventory # 44796

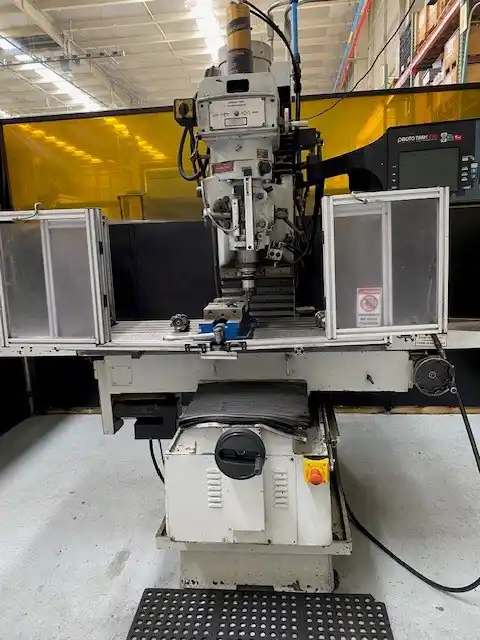

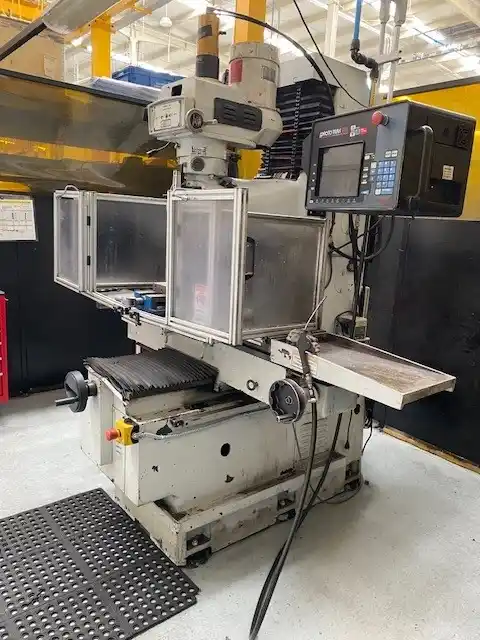

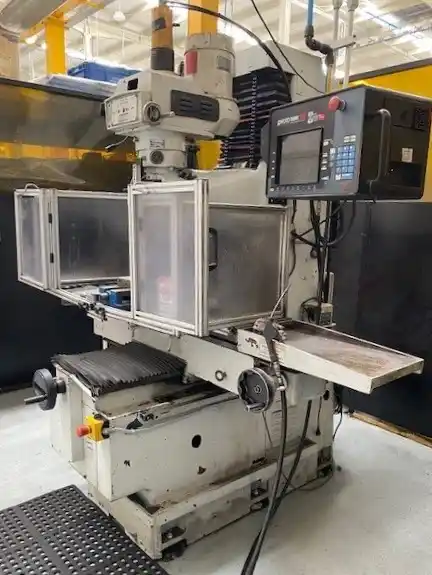

Southwestern Trak DPMS5 Vertical Mill

Request a Quote
Measurement

Specifications
  • Table Size: 50" x 12"
  • Spindle Motor: 5 hp
  • T-Slots (Number x Width x Pitch): 3 x 0.63" x 2.52"
  • X-Travel: 40"
  • Y-Travel: 20"
  • Z-Travel: 23.5"
  • Quill Diameter: 3-15/16"
  • Maximum Quill Travel: 5"
  • Spindle Taper: NMTB 40
  • Spindle Speed (Varispeed Drive): 70 - 3950 RPM
  • Spindle Center to Column Face: 20"
  • Show More
  • Show Less
  • Table Size: 1270.00mm x 304.80mm
  • Spindle Motor: 3.73 kw
  • T-Slots (Number x Width x Pitch): 3 x 16.00mm x 64.01mm
  • X-Travel: 1016.00mm
  • Y-Travel: 508.00mm
  • Z-Travel: 596.90mm
  • Quill Diameter: 100.01mm
  • Maximum Quill Travel: 127.00mm
  • Spindle Taper: NMTB 40
  • Spindle Speed (Varispeed Drive): 70 - 3950 RPM
  • Spindle Center to Column Face: 508.00mm
  • Show More
  • Show Less
Equipped With
  • ProtoTRAK SMX3 Control
  • ProtoTRAK SMX3 Control
Location & Terms
  • Terms: As Is, Where Is
  • Disclaimer: Preliminary Specifications....
