Inventory # 47131 Year: 2023

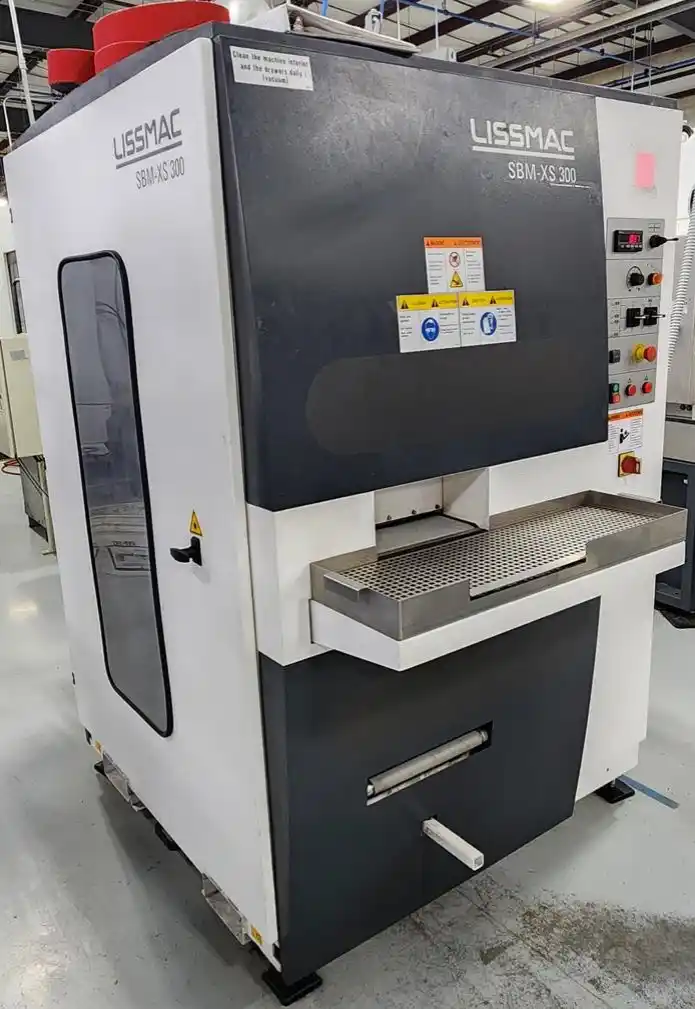

Lissmac SBM-XS 300 Small Parts Deburrer
Specifications
- Material Feed (Automatic)
- Working Width: 12"
- Material Thickness (Min - Max): 0.039" - 0.59"
- Conveyor Speed: 0 - 6.5 FPM
- Min. Part Size: 1" x 1"
- Double-Sided Deburring
- Max. Part Size: 7.8" x 7.8"
- Single-Sided Deburring
- Length of Part: 7.8"
- G - Grinding Unit
- Main Drive Motor: 2x 0.75 kW
- Current Load Motor: 2x 2.6 A
- Grinding Belt
- Width: 2.75"
- Length: 39.37"
- Length Tolerance: +/- 0.118"
- E - Edge Rounding Unit
- Main Drive Motor: 2x 1.5kW
- Current Load Motor: 2x 4.6 A
- General Information & Dust Collector
- Voltage: 4809 V / 60Hz
- Rated Load Current: 20 A
- Total Power Consumption: 15 kW
- Insulation Class: IP 42
- Noise Pressure Level: 78 dB
- Total Weight: 3500 lbs
- Dimensions (W/D/H): 52" x 91" x 75"
- Hours: 1258
- Show More
- Show Less
- Material Feed (Automatic)
- Working Width: 300mm
- Material Thickness (Min - Max): 0.99mm - 14.99mm
- Conveyor Speed: 0 - 33.02 mm/sec
- Min. Part Size: 25.40mm x 25.40mm
- Double-Sided Deburring
- Max. Part Size: 198.12mm x 198.12mm
- Single-Sided Deburring
- Length of Part: 198.12mm
- G - Grinding Unit
- Main Drive Motor: 2x 0.75 kW
- Current Load Motor: 2x 2.6 A
- Grinding Belt
- Width: 69.85mm
- Length: 1000.00mm
- Length Tolerance: +/- 3.00mm
- E - Edge Rounding Unit
- Main Drive Motor: 2x 1.5kW
- Current Load Motor: 2x 4.6 A
- General Information & Dust Collector
- Voltage: 4809 V / 60Hz
- Rated Load Current: 20 A
- Total Power Consumption: 15 kW
- Insulation Class: IP 42
- Noise Pressure Level: 78 dB
- Total Weight: 1587.25 kg
- Dimensions (W/D/H): 1320.80mm x 2311.40mm x 1905.00mm
- Hours: 1258
- Show More
- Show Less
Equipped With

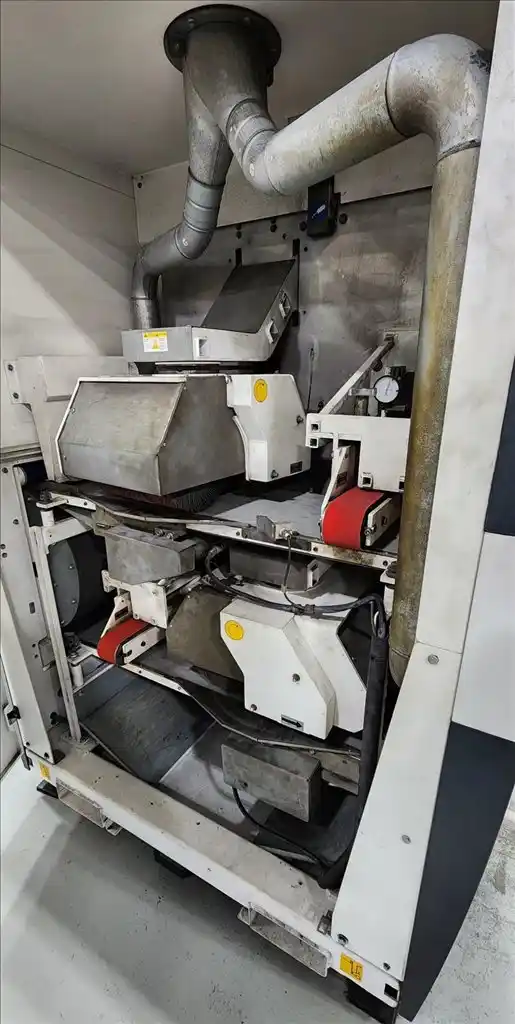

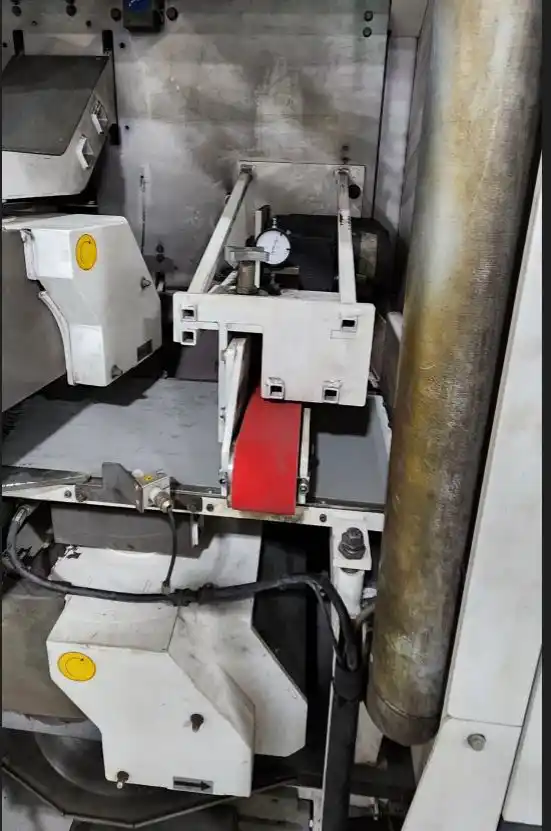

- Two Grinding Belts – One on Top and One on Bottom

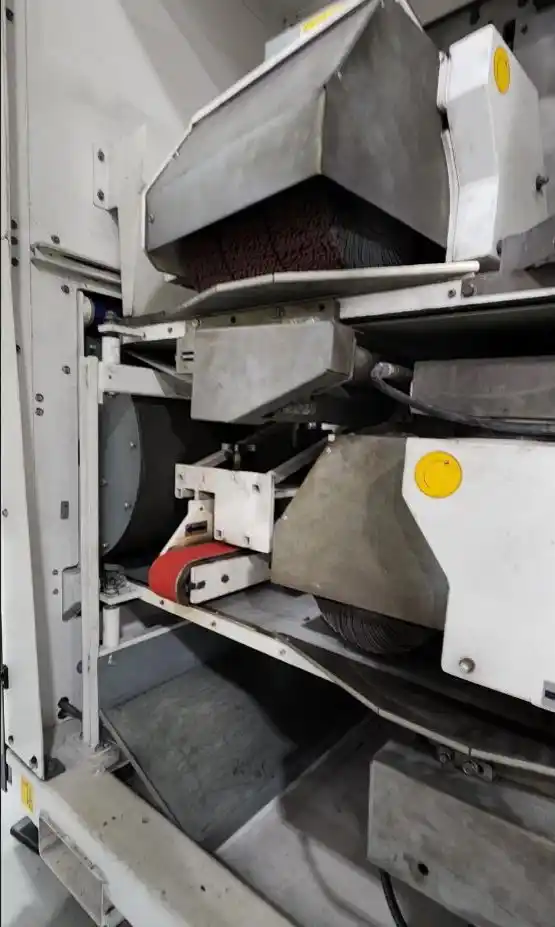

- Two Rotating Abrasive Flap Wheels (E-Units) – One on Top and One on Bottom
- Magnetic Table

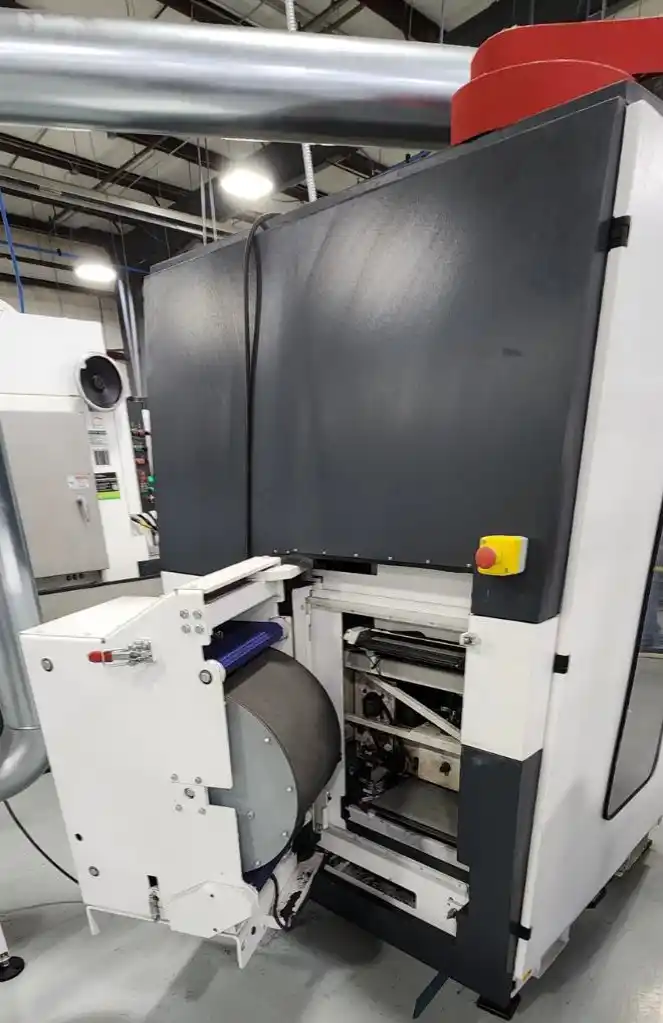

- Flip Station for Part in Length up to 7.8" (Double Sided Process)

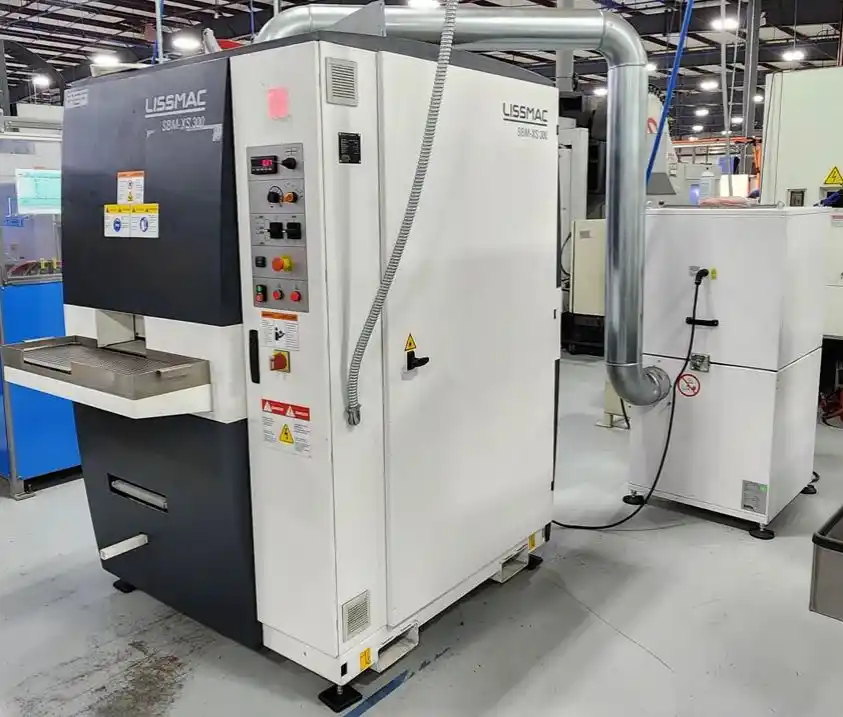

- DDE 1500 Dust Collection System
- Show More
- Show Less
- Two Grinding Belts One on Top and One on Bottom
- Two Rotating Abrasive Flap Wheels (E-Units) One on Top and One on Bottom
- Magnetic Table
- Flip Station for Part in Length up to 198.12mm (Double Sided Process)
- DDE 1500 Dust Collection System
- Show More
- Show Less
Location & Terms
- Terms: As Removed From Service
- Disclaimer: Preliminary Specifications....
