Inventory # 35855

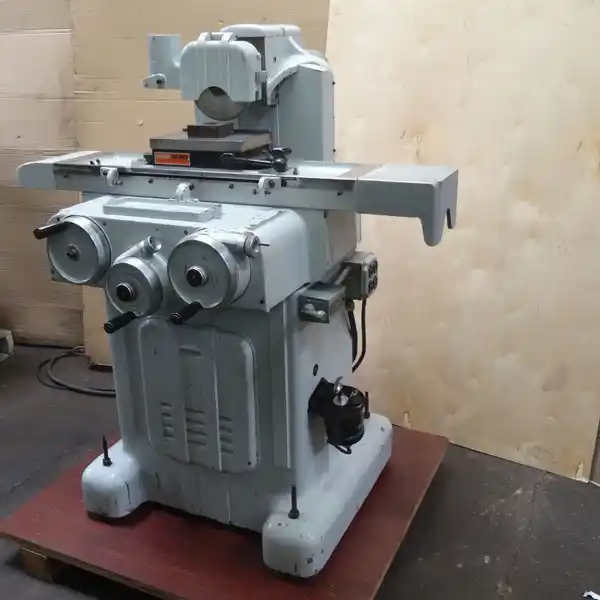

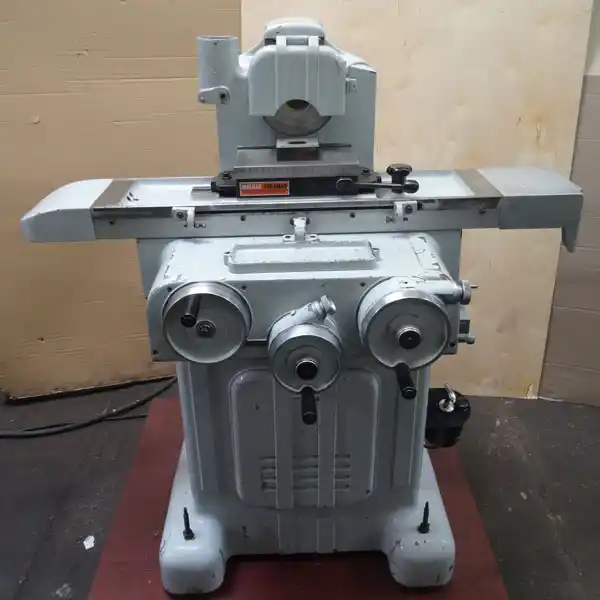

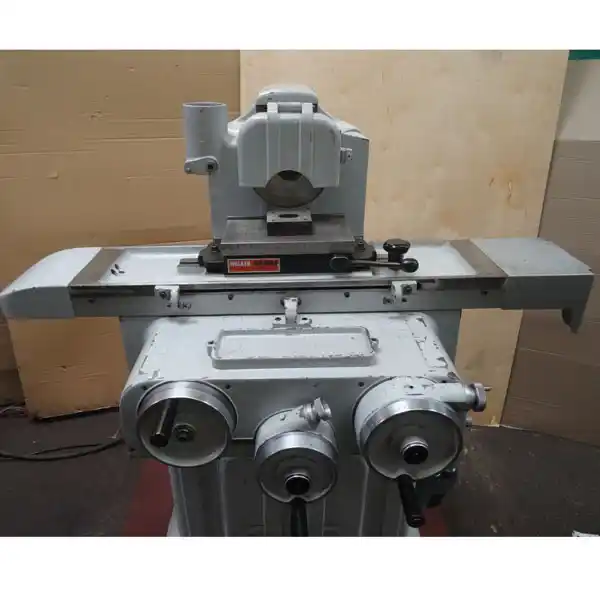

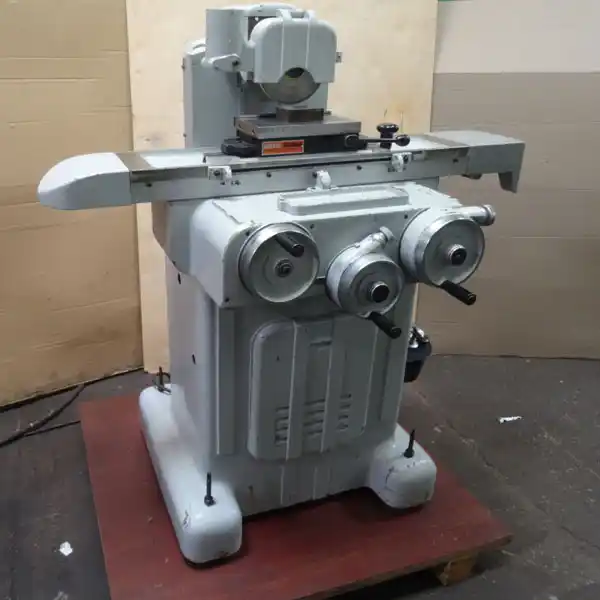

Taft Pierce #1 T-P Precision Recriprocating Surface Grinder
Specifications
- Type: Manual
- Table: 6" x 10"
- Table to Spindle Center: 12"
- Longitudinal Table Travel: 12.5"
- Cross Travel: 6"
- Grinding Wheel Capacity: 7" x 0.75" x 1.25"
- Chuck Size: 6" x 10"
- Spindle Speed: 0 RPM - 365 RPM
- Crossfeed Movement Per Rev of Handwheel: 0.100"
- Crossfeed Handwheel: 0.001"
- Crossfeed Fine Feed Knob Grad.: 0.00005"
- Vertical Feed Per Rev of Handwheel: 0.05"
- Standard Handwheel Grad.: 0.0005"
- Fine Feed Knob Grad.: 0.00005"
- Show More
- Show Less
- Type: Manual
- Table: 152.40mm x 254.00mm
- Table to Spindle Center: 304.80mm
- Longitudinal Table Travel: 317.50mm
- Cross Travel: 152.40mm
- Grinding Wheel Capacity: 177.80mm x 19.05mm x 31.75mm
- Chuck Size: 152.40mm x 254.00mm
- Spindle Speed: 0 RPM - 365 RPM
- Crossfeed Movement Per Rev of Handwheel: 2.54mm
- Crossfeed Handwheel: 0.03mm
- Crossfeed Fine Feed Knob Grad.: 0.00mm
- Vertical Feed Per Rev of Handwheel: 1.27mm
- Standard Handwheel Grad.: 0.01mm
- Fine Feed Knob Grad.: 0.00mm
- Show More
- Show Less
Equipped With
- Tilting Wheelhead Option (30°)
- Knob for Vertical Axis, 1 HP Taft Pierce Super-Precision Spindle Drive
- Anti-Backlash Nut Assembly for Crossfeed
- Automation Lubrication System
- Saddle Lock
- Replaceable Longitudinal Ways (VEE and Flay Way)

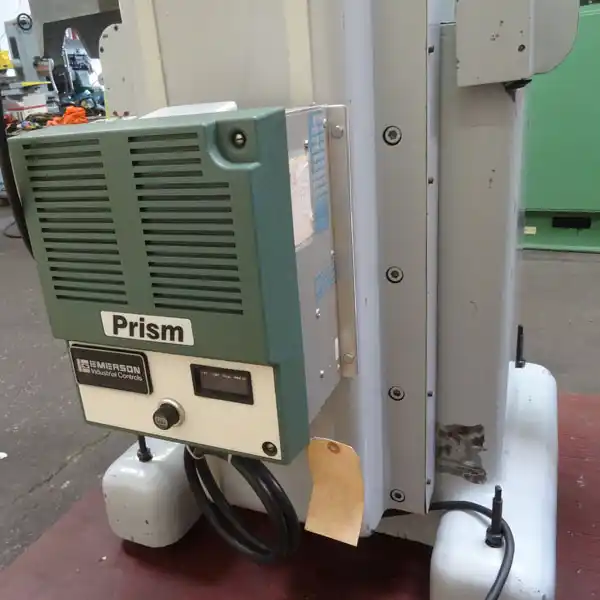

- 240 Volts / 7.2 Amps Adjustable Frequency Inverter Drive
- - Currently Wired for 220 Volts
- Show More
- Show Less
- Tilting Wheelhead Option (30°)
- Knob for Vertical Axis, 0.75 kw Taft Pierce Super-Precision Spindle Drive
- Anti-Backlash Nut Assembly for Crossfeed
- Automation Lubrication System
- Saddle Lock
- Replaceable Longitudinal Ways (VEE and Flay Way)
- 240 Volts / 7.2 Amps Adjustable Frequency Inverter Drive
- - Currently Wired for 220 Volts
- Show More
- Show Less
Location & Terms
- Disclaimer: Preliminary Specifications....
