Inventory # 47317 Year: 2014

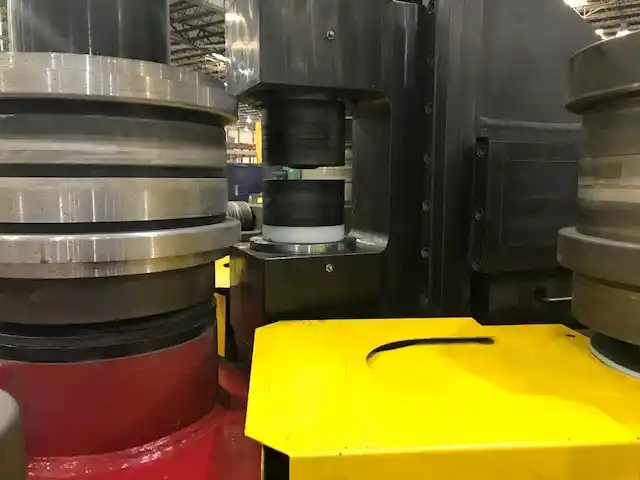

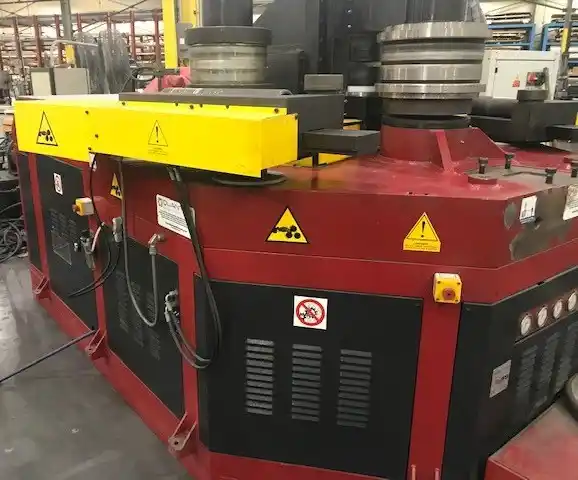

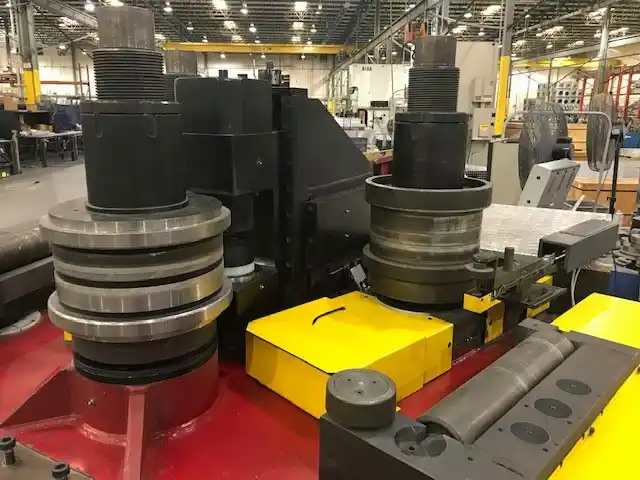

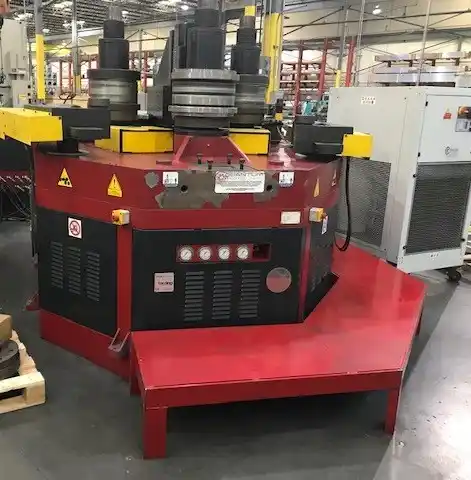

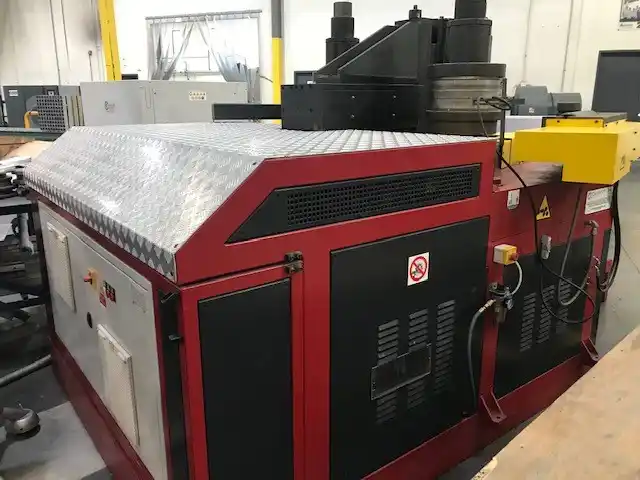

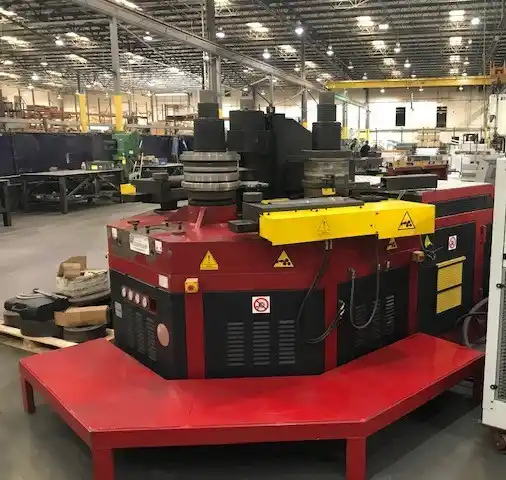

Tauring Alpha 200 CNC Hydraulic Angle Bending Roll
Specifications
- Round Tube: 10.75" x 0.5"
- Round Tube Min. Radius: 87"
- Square Tube: 10" x 10" x .40"
- Square Tube Min. Radius: 80"
- Flat Bar (Hard Way): 10" x 2.3"
- Flat Bar Min. Radius: 32"
- Angle (Leg Out): 7.8" x 7.8" x 0.78"
- Angle Min. Radius: 78"
- H Beam: IPE 330 / Min. Radius: 75"
- Driven Rolls: 3
- Shaft Diameter: 19.29"
- Standard Shaft Working Length: 15.75"
- Shaft Revolutions Per Minute: 7.1 RPM
- Main Motor: 24.1 hp
- Electrical: 480V/3PH/60Hz
- Show More
- Show Less
- Round Tube: 273.05mm x 12.70mm
- Round Tube Min. Radius: 2209.80mm
- Square Tube: 254.00mm x 254.00mm x 10.16mm
- Square Tube Min. Radius: 2032.00mm
- Flat Bar (Hard Way): 254.00mm x 58.42mm
- Flat Bar Min. Radius: 812.80mm
- Angle (Leg Out): 198.12mm x 198.12mm x 19.81mm
- Angle Min. Radius: 1981.20mm
- H Beam: IPE 330 / Min. Radius: 1905.00mm
- Driven Rolls: 3
- Shaft Diameter: 489.97mm
- Standard Shaft Working Length: 400.05mm
- Shaft Revolutions Per Minute: 7.1 RPM
- Main Motor: 17.97 kw
- Electrical: 480V/3PH/60Hz
- Show More
- Show Less
Equipped With

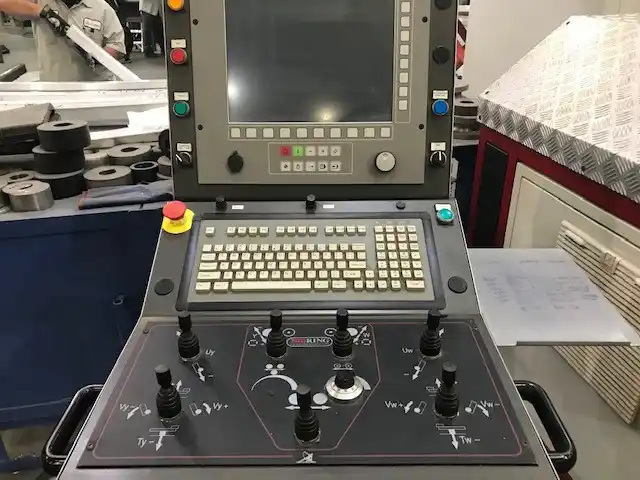

- Alpha200CNCi Control
- HE Device
- Hydraulic Roll Adjustment
- Universal Tool Set
- Alpha200CNCi Control
- HE Device
- Hydraulic Roll Adjustment
- Universal Tool Set
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
