Inventory # 47711 Year: 2009

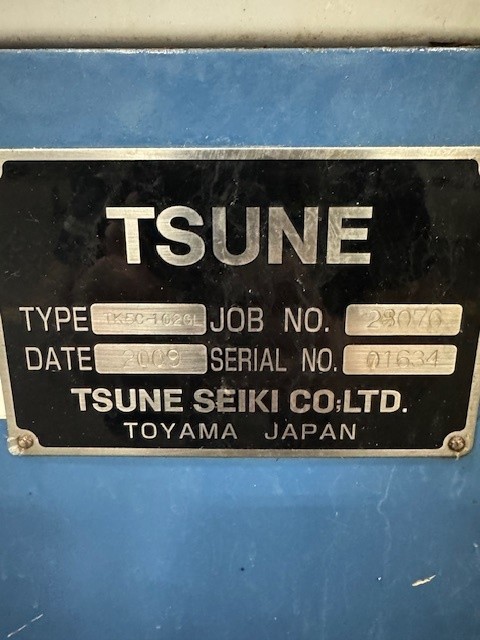

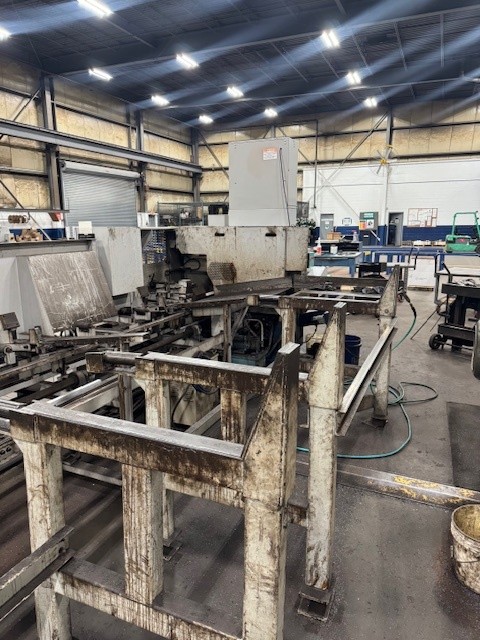

Tsune TK5C-102GL CNC Automatic Carbide Circular Saw
Specifications
- Cutting Capacity (Round Ø): 0.6" - 4"
- Cutting Capacity (Square): 0.6" - 2.95"
- Bar Stock Length: 10' - 20'
- Min. Cut-Off Length: 0.236"
- Max. Cut-Off Length: Up to Full Bar Length
- Remnant Cut-Off: 3.3"
- Standard Saw Blade: 14.2" x 0.1"
- Blade Speed: 60 - 120 RPM
- Blade Drive Motor: 15 HP
- Hydraulic Motor: 2 HP
- Feed Gripper Single Stroke: 25.9"
- Bar Loading Width: 31.5"
- Max. Bar Loading Weight: 6600 lbs
- Pre-Loading Stand Width: 36"
- Show More
- Show Less
- Cutting Capacity (Round ): 15.24mm - 101.60mm
- Cutting Capacity (Square): 15.24mm - 74.93mm
- Bar Stock Length: 3556.00mm
- Min. Cut-Off Length: 5.99mm
- Max. Cut-Off Length: Up to Full Bar Length
- Remnant Cut-Off: 83.82mm
- Standard Saw Blade: 360.68mm x 2.54mm
- Blade Speed: 60 - 120 RPM
- Blade Drive Motor: 11.19 kw
- Hydraulic Motor: 1.49 kw
- Feed Gripper Single Stroke: 657.86mm
- Bar Loading Width: 800.10mm
- Max. Bar Loading Weight: 2993.10 kg
- Pre-Loading Stand Width: 914.40mm
- Show More
- Show Less
Equipped With

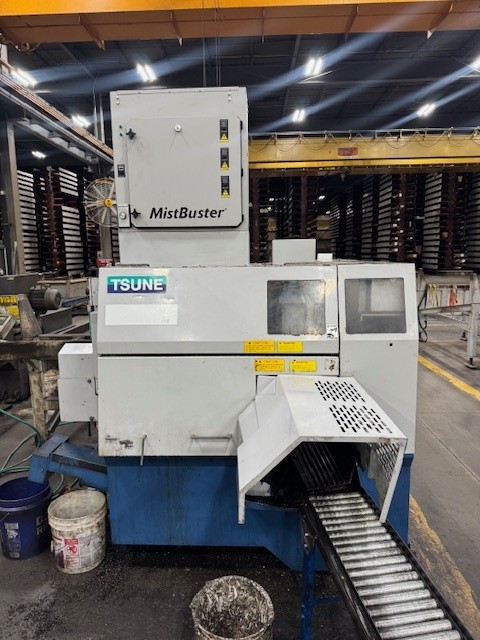

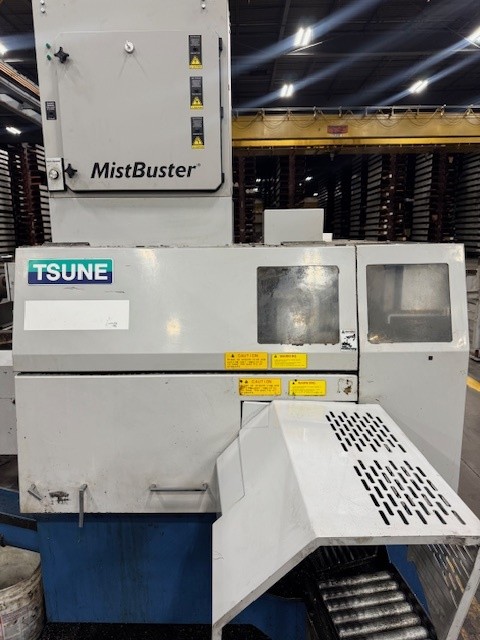

- Mistbuster 500 Coolant Collector

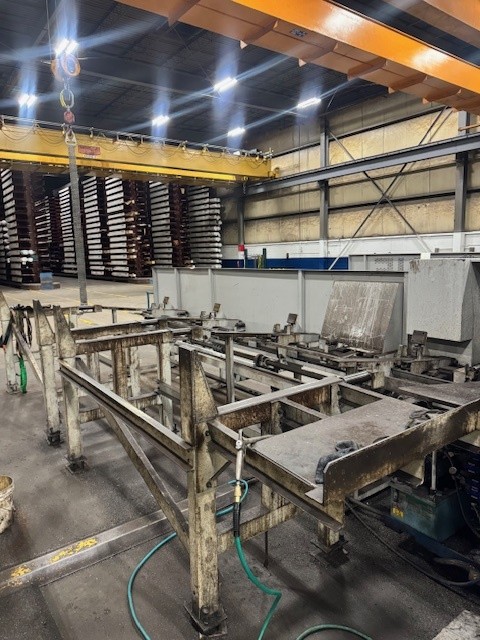

- Pre-Loading Stand

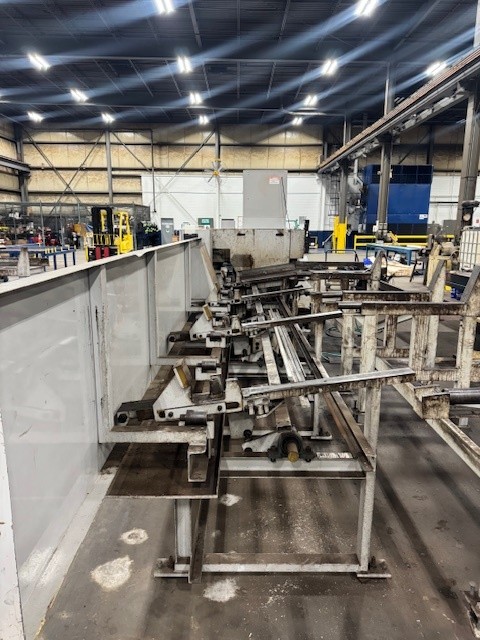

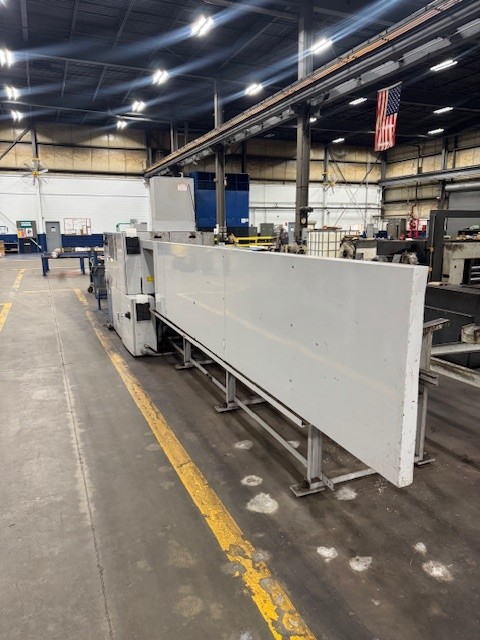

- Bar Loader
- Mistbuster 500 Coolant Collector
- Pre-Loading Stand
- Bar Loader
More Info

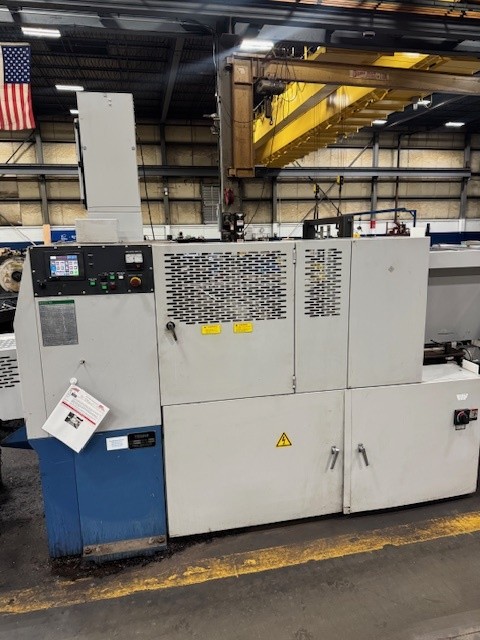

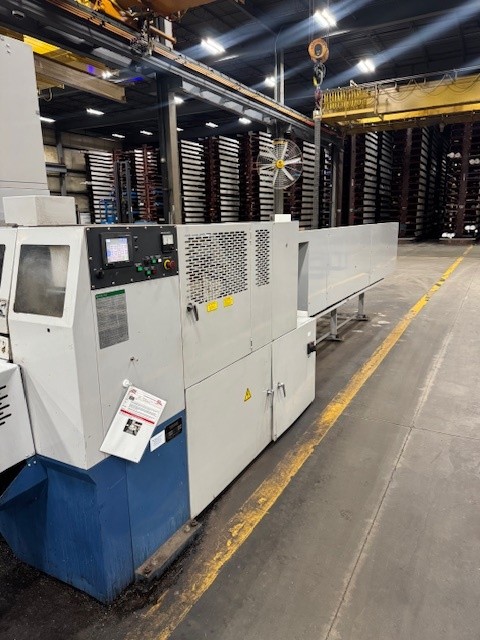

This Tsune TK5C-102GL is a high-performance circular cold saw engineered for high-speed, precision cutting of ferrous materials. Designed for production sawing, it features a fully automatic feed system, short remnant length capability, and a high-rigidity construction for consistent, burr-free cuts. The machine includes a flood coolant system and is optimized for fast cycle times, making it ideal for bar cutting, tube processing, and high-volume parts production in automotive and metal fabrication environments.
This unit is available now and can be inspected by appointment.
Interested in similar equipment?
Explore Perfection Global’s inventory of used cold and friction saws for sale.
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
