Inventory # 47460 Year: 1983

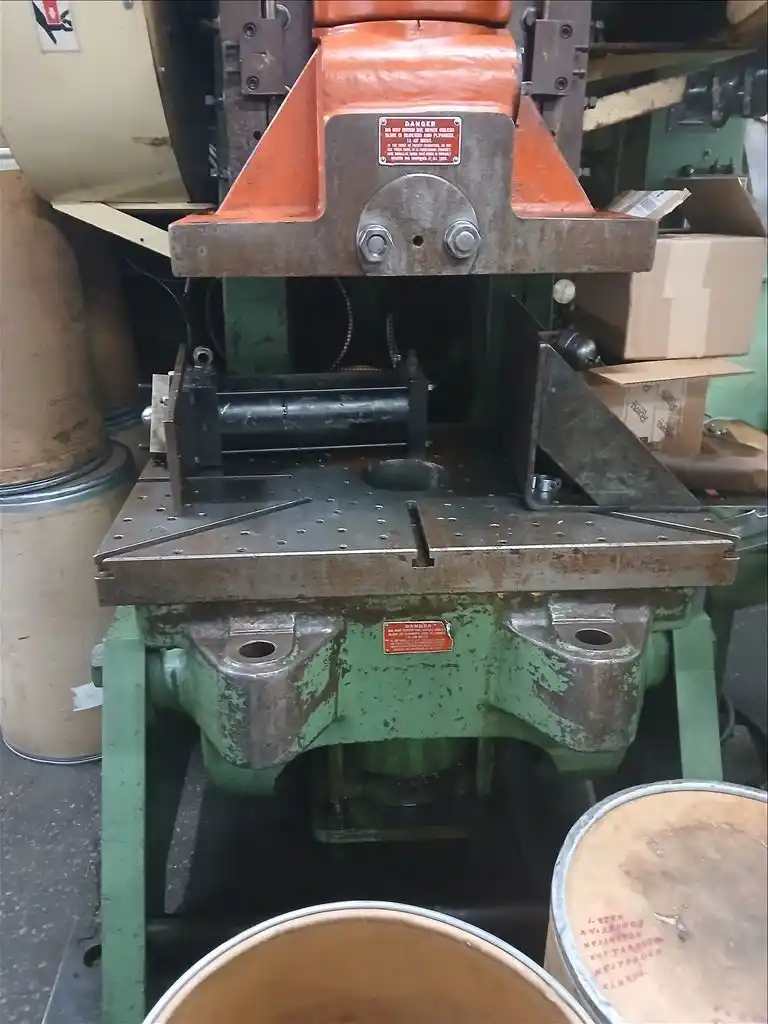

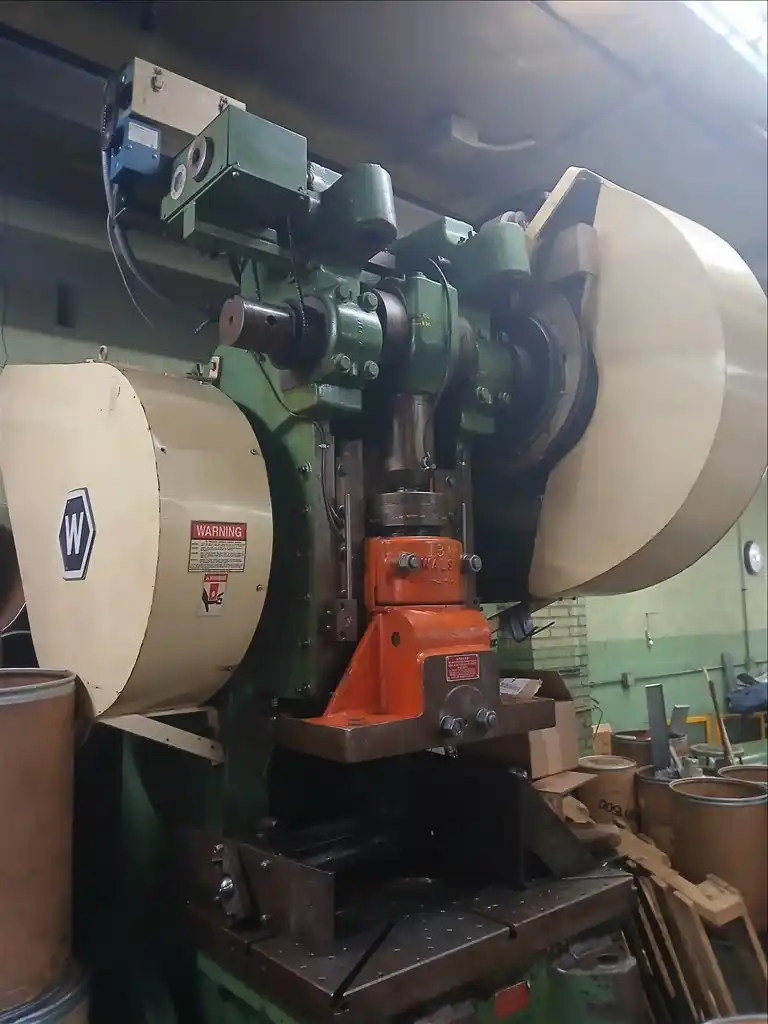

Walsh 90AC Back Geared OBI Press
Specifications
- Capacity: 90 Ton
- Stroke: 6"
- Shut Height: 13"
- Bolster Area: 42" x 27" x 3.5"
- Press Bed: 38" x 27"
- Slide: 25.8" x 15.5"
- Throat Depth: 14"
- Shank Hole Dia.: 3"
- Adjustment: 3"
- Open Between Uprights: 23"
- Phase: 3
- Cycle: 60
- Volt: 230/460
- Motor: 10 hp
- Motor Speed: 900 RPM
- Show More
- Show Less
- Capacity: 81.64 Metric Ton
- Stroke: 152.40mm
- Shut Height: 330.20mm
- Bolster Area: 1066.80mm x 685.80mm x 88.90mm
- Press Bed: 965.20mm x 685.80mm
- Slide: 655.32mm x 393.70mm
- Throat Depth: 355.60mm
- Shank Hole Dia.: 76.20mm
- Adjustment: 76.20mm
- Open Between Uprights: 584.20mm
- Phase: 3
- Cycle: 60
- Volt: 230/460
- Motor: 7.46 kw
- Motor Speed: 900 RPM
- Show More
- Show Less
Equipped With
- Flywheel
- Dayton Rogers MC14 Air Cushion
- Air Clutch & Brake
- Air Counterbalance
- Back Gear
- Tie Rods
- Operator T-Stand
- Vari Drive Motor
- Show More
- Show Less
- Flywheel
- Dayton Rogers MC14 Air Cushion
- Air Clutch & Brake
- Air Counterbalance
- Back Gear
- Tie Rods
- Operator T-Stand
- Vari Drive Motor
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
