Inventory # 48214 Year: 2011

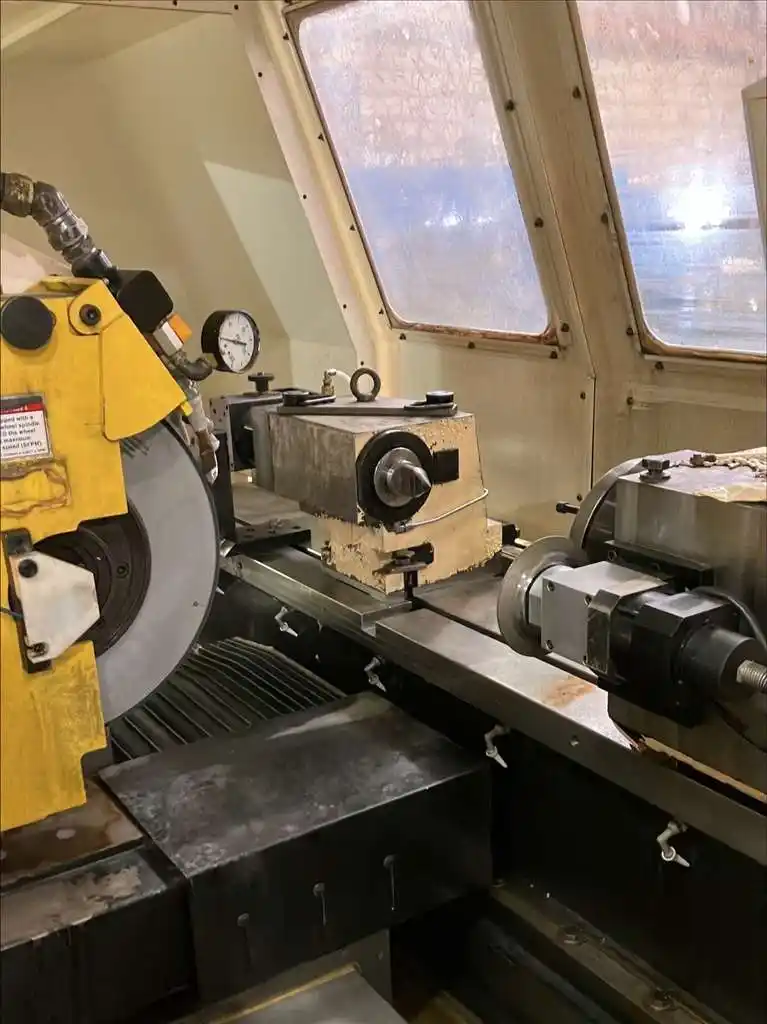

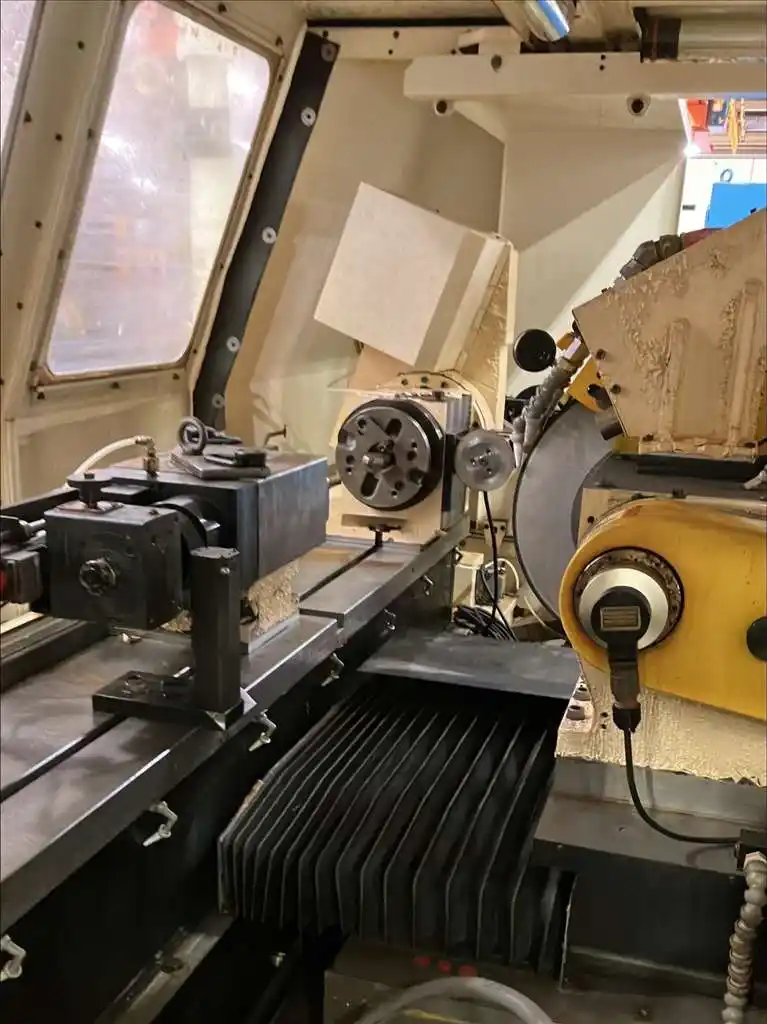

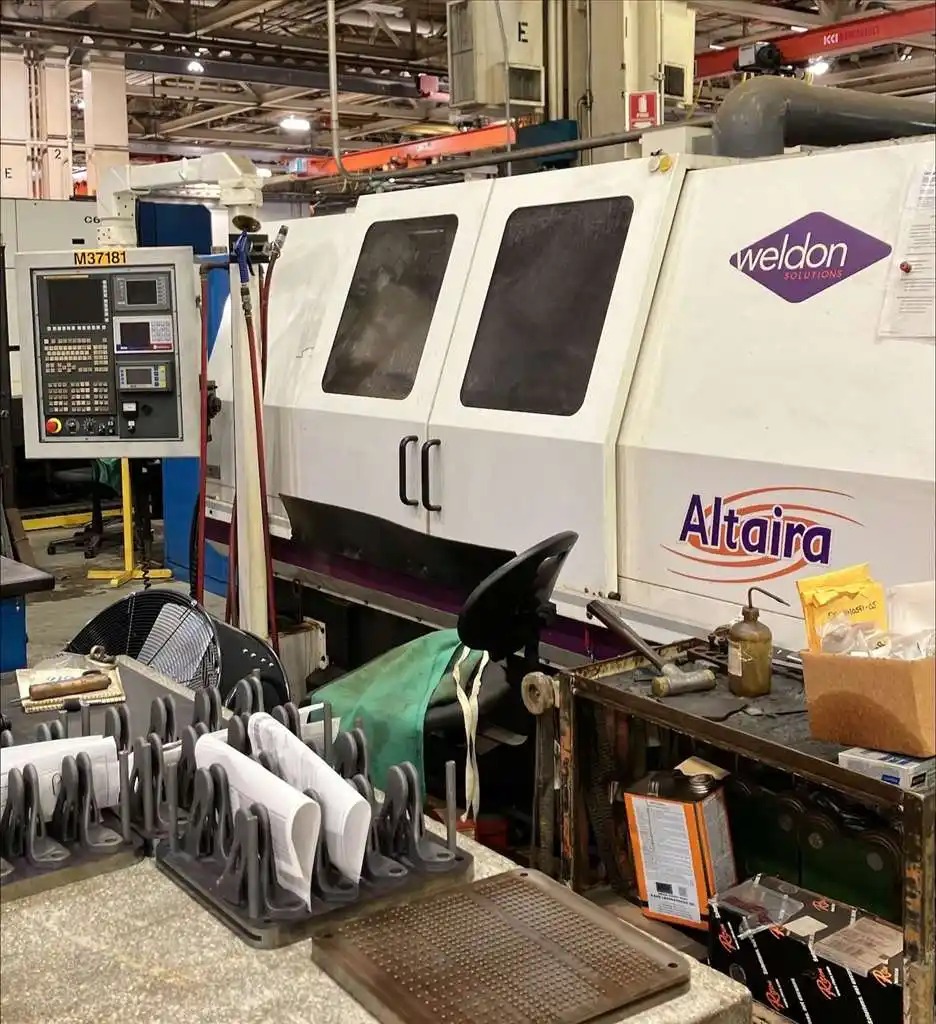

Weldon Altaira CNC OD Straight Ahead Cylindrical Grinder
Specifications
- Swing: 16"
- Distance Between Centers: 40"
- Max. Workpiece Weight (Between Centers): 600 lb.
- Z-Axis Travel; 53"
- X-Axis Travel: 13.5"
- Workhead
- Spindle Nose: 6" A2
- Center Taper: #5 Morse
- Through-Hole Diameter: 1.06"
- Speed (Infinitely Variable): 900 RPM
- Motor: 5 HP Fanuc AC Servo Drive
- Wheelhead
- Speed (Variable): 8,500 SFPM
- Motor: 25 HP
- Grinding Wheel
- Max. OD Wheel Diameter: 20"
- Max. Wheel Width: 4"
- Wheel Size Throw Away: 12"
- Tailstock
- Center Taper: #5 Morse
- Quill Retraction: 3.5"
- Table Drives
- 19 HP Fanuc AC Digital Servo Drives
- Hardened & Ground Cross Rails
- Show More
- Show Less
- Swing: 406.40mm
- Distance Between Centers: 1016.00mm
- Max. Workpiece Weight (Between Centers): 270 kg
- Z-Axis Travel; 1346.20mm
- X-Axis Travel: 342.90mm
- Workhead
- Spindle Nose: 152.40mm A2
- Center Taper: #5 Morse
- Through-Hole Diameter: 26.92mm
- Speed (Infinitely Variable): 900 RPM
- Motor: 3.73 kw Fanuc AC Servo Drive
- Wheelhead
- Speed (Variable): 8,500 SFPM
- Motor: 18.64 kw
- Grinding Wheel
- Max. OD Wheel Diameter: 508.00mm
- Max. Wheel Width: 101.60mm
- Wheel Size Throw Away: 304.80mm
- Tailstock
- Center Taper: #5 Morse
- Quill Retraction: 88.90mm
- Table Drives
- 14.17 kw Fanuc AC Digital Servo Drives
- Hardened & Ground Cross Rails
- Show More
- Show Less
Equipped With
- Fanuc Series 32i-A Control

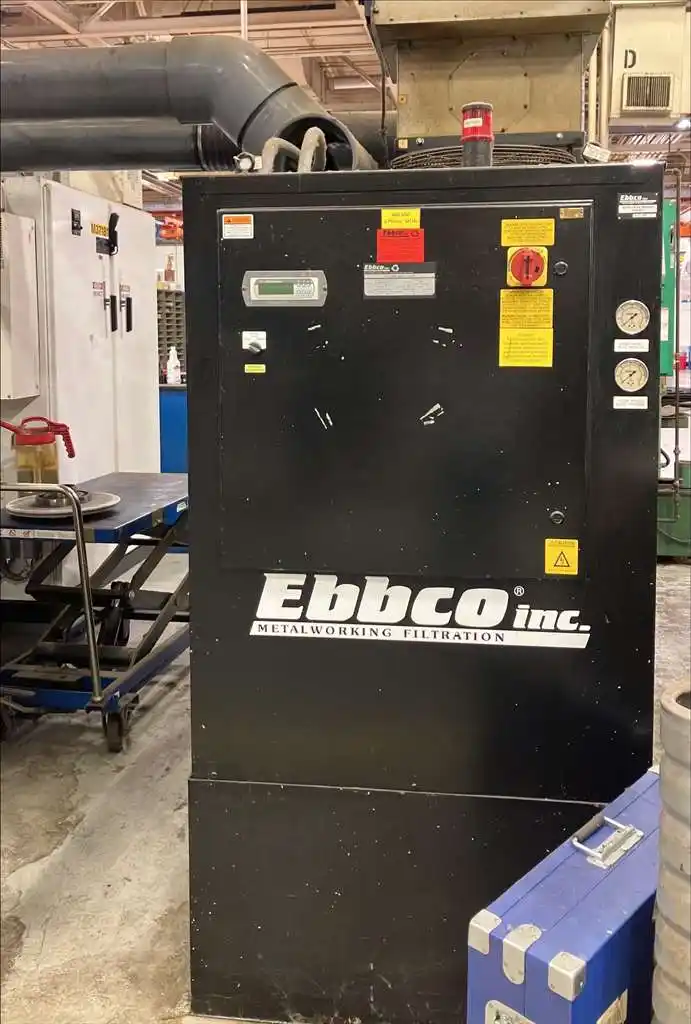

- Ebbco Filtration System
- Variable Speed Wheel Drive w/ Dynamic Braking
- Fanuc Series 32i-A Control
- Ebbco Filtration System
- Variable Speed Wheel Drive w/ Dynamic Braking
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
