Inventory # 43577 Year: N/A

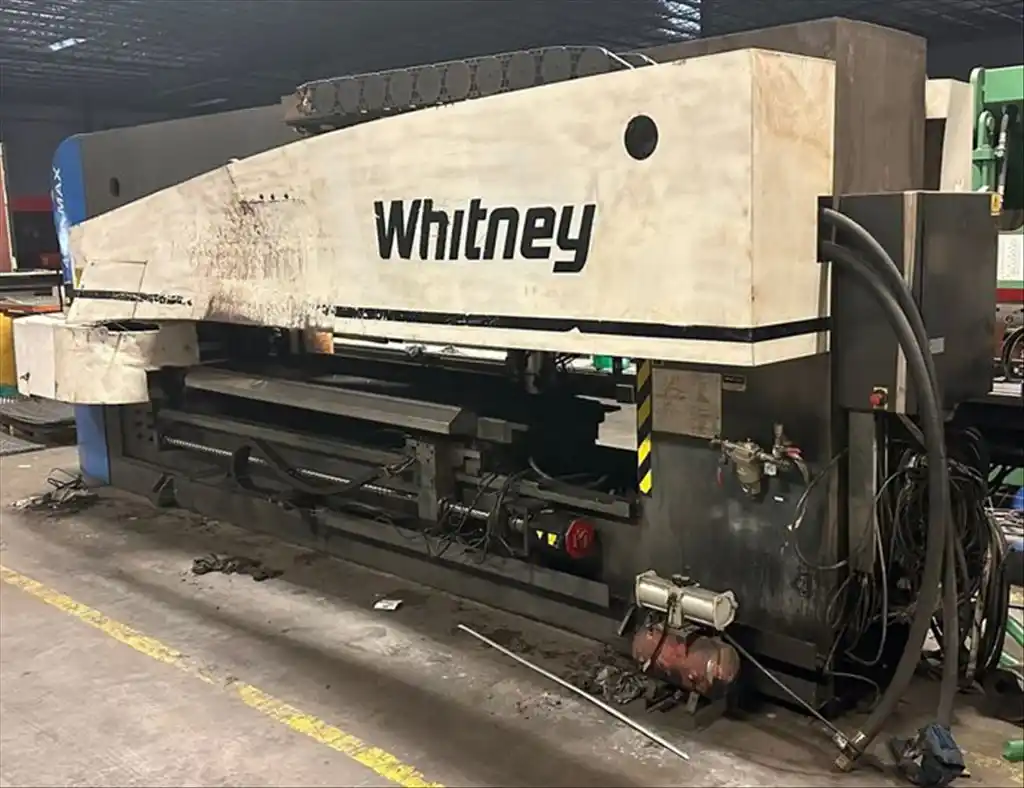

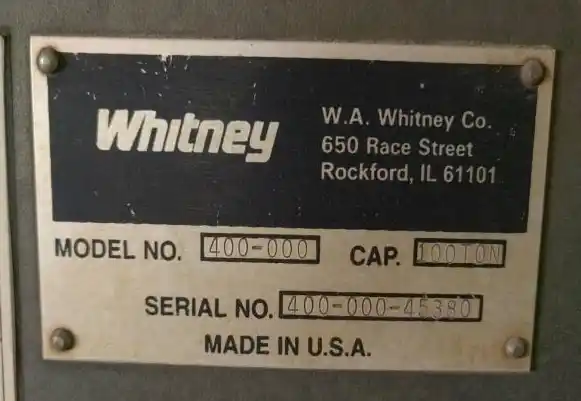

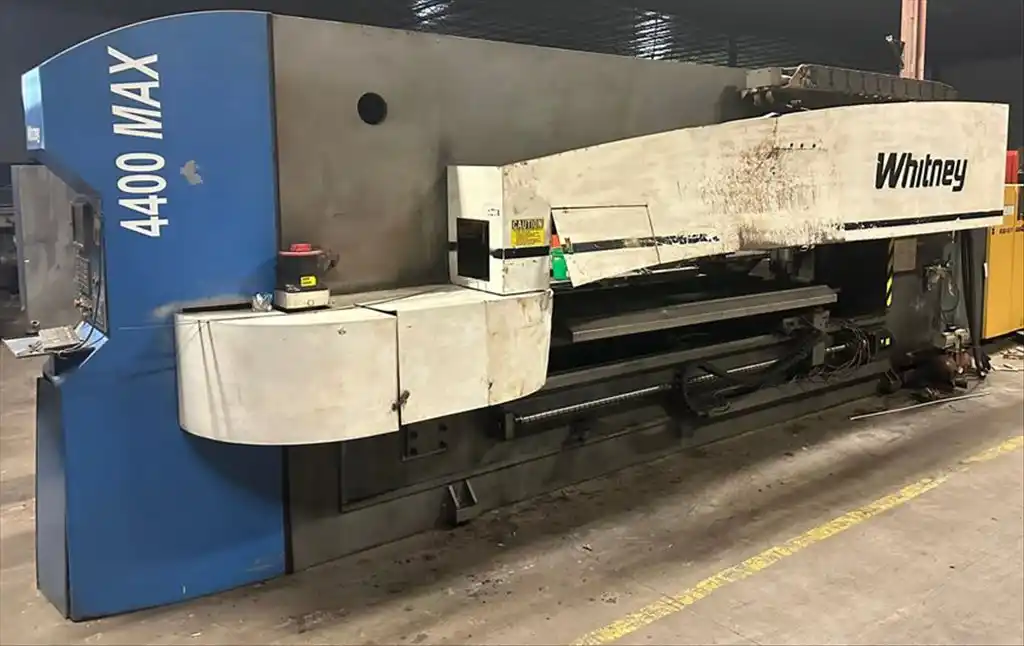

Whitney 4400 Max 100 Ton CNC Turret Punch & Plasma
Specifications
- Punching Force: 100 Tons
- Positioning Area (X x Y): 170" x 96"
- Max. Positioning Speed: 1200 IPM
- Positioning Accuracy: +/-0.005"
- Max. Blank Size w/o Extended Tables: 96" x 120"
- Max. Punching Diameter: 3"
- Max. Material Thickness: 1"
- Max. Workpiece Weight: 4900 lbs
- Punching Hit Rate on 1" Centers (10 Ga. Steel): 125 HPM
- Tooling: 44TC
- Plasma Output Current: 260A
- Digital Manual w/ Specs, Capacities, and Drawings Available on Request
- Show More
- Show Less
- Punching Force: 90.71 Metric Tons
- Positioning Area (X x Y): 4318.00mm x 2438.40mm
- Max. Positioning Speed: 508.00 mm/sec
- Positioning Accuracy: +/ 0.00mm
- Max. Blank Size w/o Extended Tables: 2438.40mm x 3048.00mm
- Max. Punching Diameter: 76.20mm
- Max. Material Thickness: 25.40mm
- Max. Workpiece Weight: 2222.15 kg
- Punching Hit Rate on 25.40mm Centers (3.40 mm Steel): 125 HPM
- Tooling: 44TC
- Plasma Output Current: 260A
- Digital Manual w/ Specs, Capacities, and Drawings Available on Request
- Show More
- Show Less
Equipped With

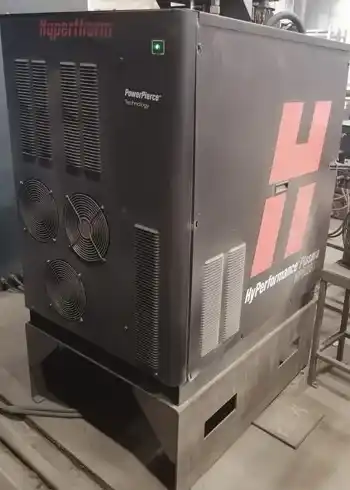

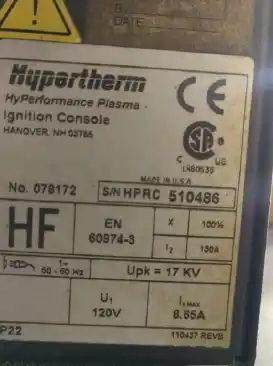

- Hypertherm HPR260 260A Plasma Source

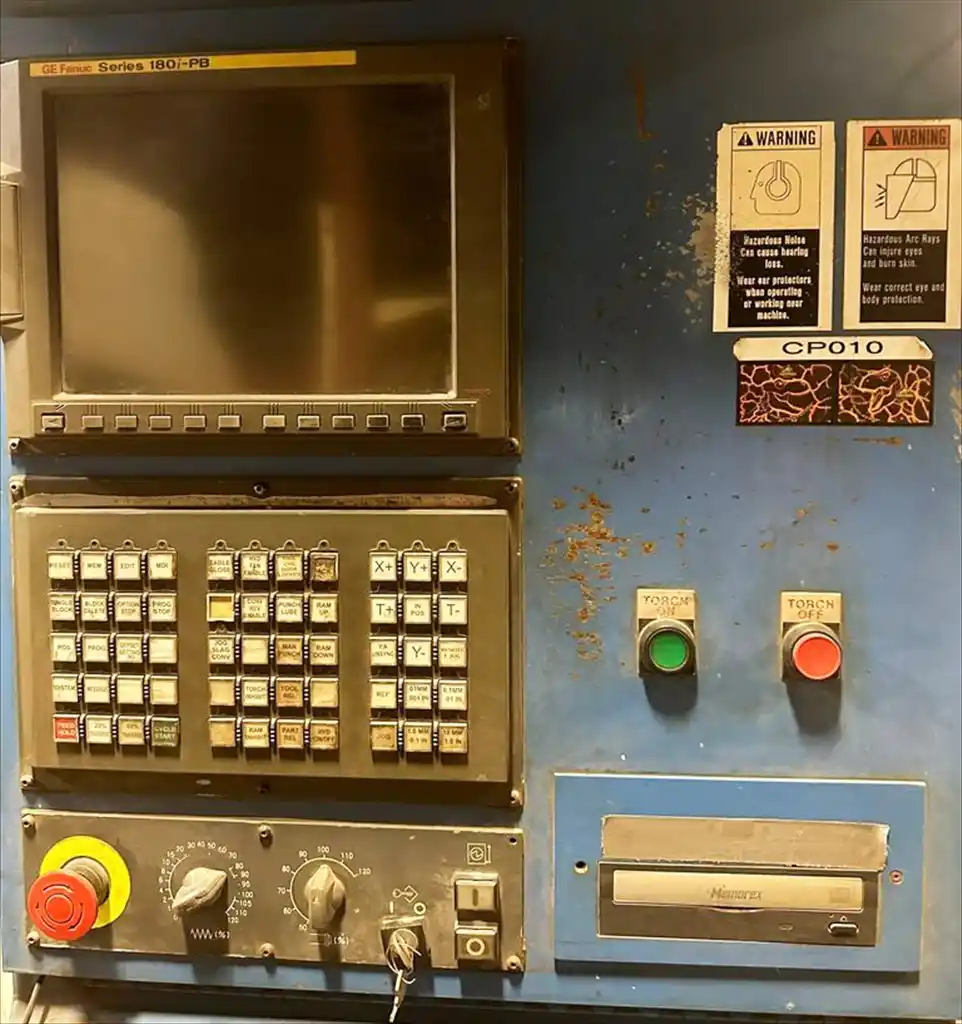

- Fanuc 180i-PB CNC Control
- 16-Station Automatic Tool Changer
- 24" x 96" Automatic Small Part Removal Drop Floor for Plasma

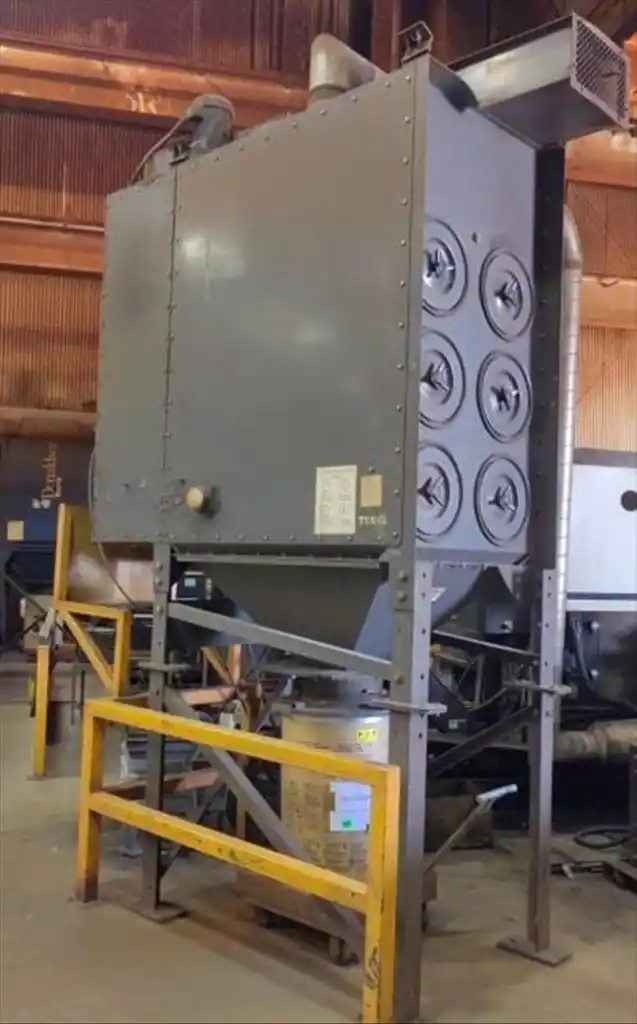

- Dust Collector
- Show More
- Show Less
- Hypertherm HPR260 260A Plasma Source
- Fanuc 180i-PB CNC Control
- 16-Station Automatic Tool Changer
- 609.60mm x 2438.40mm Automatic Small Part Removal Drop Floor for Plasma
- Dust Collector
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: San Benito, TX
- Disclaimer: Preliminary Specifications....
