Inventory # 47785

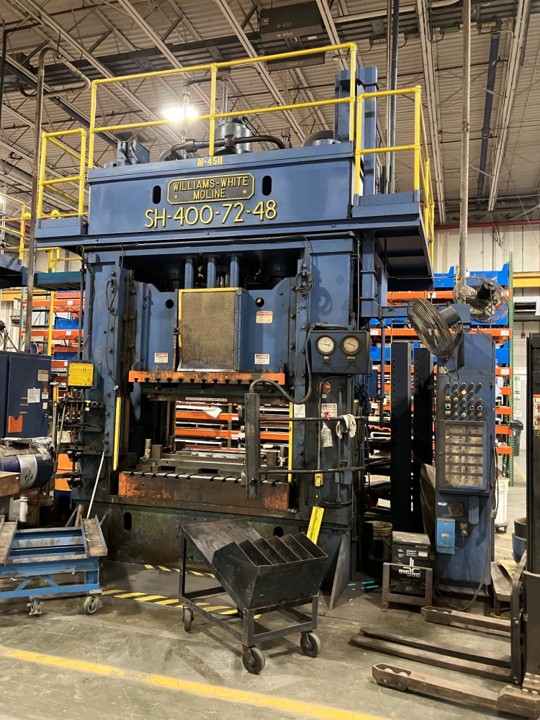

Williams & White SH-400-72-48 Straight Side Down Acting Hydraulic Press
Specifications
- Capacities
- Pressing: 400 Tons
- Intermediate Pressing: 110 Tons
- Stripping: 42 Tons
- Slide Face Size: 72" x 48"
- Bolster Size: 72" x 48" x 10"
- Distance Between Housings: 73"
- Daylight: 42"
- Stroke: 36"
- Floor to Bolster Face: 32"
- Floor to Top of Press: 16'8"
- Motor: 125 HP
- Platen Speeds
- Approach: 757 IPM
- Intermediate: 467 IPM
- Pressing: 129 IPM
- Return: 611 IPM
- Cushion
- Capacities (High/Low): 15 - 150 Tons / 63.8 - 6.4 Tons
- Pad Size: 48" x 30"
- Stroke: 12"
- Show More
- Show Less
- Capacities
- Pressing: 362.84 Metric Tons
- Intermediate Pressing: 99.78 Metric Tons
- Stripping: 38.10 Metric Tons
- Slide Face Size: 1828.80mm x 1219.20mm
- Bolster Size: 1828.80mm x 1219.20mm x 254.00mm
- Distance Between Housings: 1854.20mm
- Daylight: 1066.80mm
- Stroke: 914.40mm
- Floor to Bolster Face: 812.80mm
- Floor to Top of Press: 5080.00mm
- Motor: 93.21 kw
- Platen Speeds
- Approach: 320.46 mm/sec
- Intermediate: 197.70 mm/sec
- Pressing: 54.61 mm/sec
- Return: 258.66 mm/sec
- Cushion
- Capacities (High/Low): 15 - 150 Tons / 63.8 - 6.4 Tons
- Pad Size: 1219.20mm x 762.00mm
- Stroke: 304.80mm
- Show More
- Show Less
Equipped With
- Hydraulic Cushion
- Hydraulic Cushion
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
