Inventory # 47594

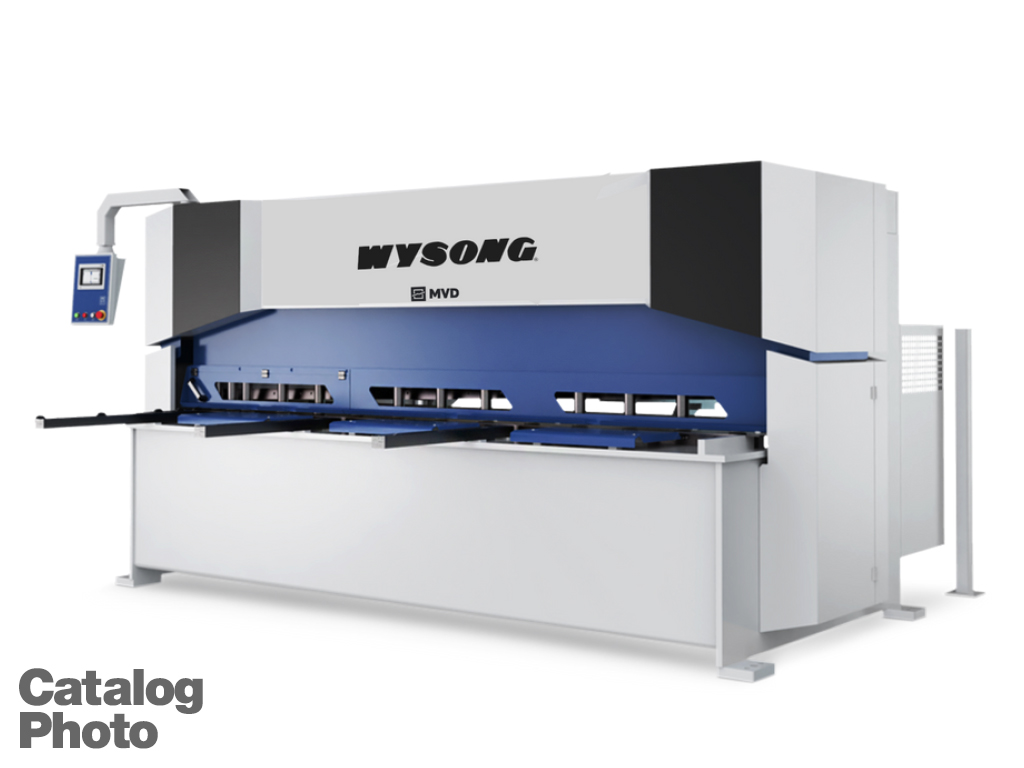

Wysong MB06-122 1/4" x 10' CNC Hydraulic Shear *New Machine*
Specifications
- Cutting Capacity (Mild Steel): 1/4" x 10' (9ga Stainless)
- Max. Cutting Length: 122"
- Distance Between Housings: 131"
- Cutting Angle: 1.5° (Optional Angular Gauge 0°-180°)
- Stroke Speed (STD/FAST): 18/23 SPM
- Throat Depth: 10" (Larger Throat Available)
- Table Height: 34"
- Oil Capacity: 42 Gallons
- Motor: 13 HP
- Show More
- Show Less
- Cutting Capacity (Mild Steel): 6.35mm x3048.00mm(9ga Stainless)
- Max. Cutting Length: 3098.80mm
- Distance Between Housings: 3327.40mm
- Cutting Angle: 1.5° (Optional Angular Gauge 0°-180°)
- Stroke Speed (STD/FAST): 18/23 SPM
- Throat Depth: 254.00mm (Larger Throat Available)
- Table Height: 863.60mm
- Oil Capacity: 159 liters
- Motor: 9.69 kw
- Show More
- Show Less
Equipped With
- Cybelec 12G 12" Touch Screen Control
- Standard Servo Motorized Backgauge (39" Travel)
- Programmable Backgauge Retract
- Backgauge Swing-Up Feature for Long Sheets
- Manual Blade Gap Adjustment
- Stroke Adjustment for Short Cutting Efficiency
- Two Edge Upper Blade
- Four Edge Lower Blade
- Transfer Table w/ Roller Balls
- Front Support Arms
- Illuminated Cutting Line
- Foot Pedal
- Many Other Options Available
- Show More
- Show Less
- Cybelec 12G 304.80mm Touch Screen Control
- Standard Servo Motorized Backgauge ( 990.60mm Travel)
- Programmable Backgauge Retract
- Backgauge Swing-Up Feature for Long Sheets
- Manual Blade Gap Adjustment
- Stroke Adjustment for Short Cutting Efficiency
- Two Edge Upper Blade
- Four Edge Lower Blade
- Transfer Table w/ Roller Balls
- Front Support Arms
- Illuminated Cutting Line
- Foot Pedal
- Many Other Options Available
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Disclaimer: Preliminary Specifications....
