Inventory # 47596

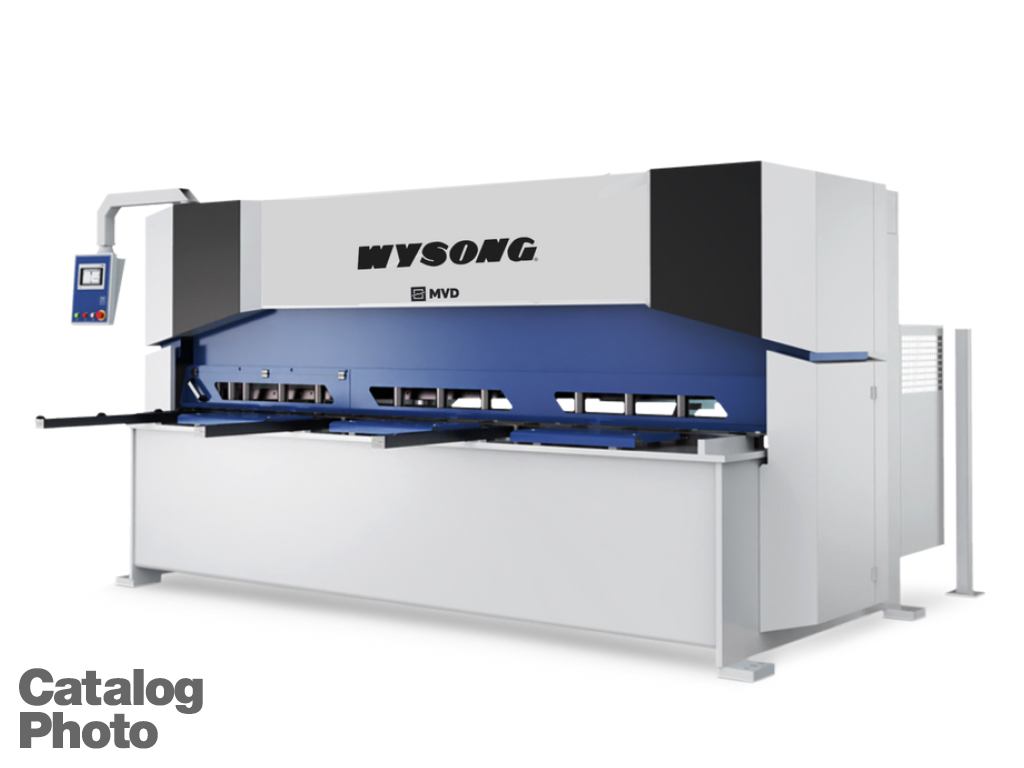

Wysong MB10-157 3/8" x 13' CNC Hydraulic Shear *New Machine*
Specifications
- Cutting Capacity (Mild Steel): 3/8ths x 13' (7/32nds Stainless)
- Max. Cutting Length: 157"
- Distance Between Housings: 167"
- Cutting Angle: 1.5° (Optional Angular Gauge 0°-180°)
- Stroke Speed (STD/FAST): 11/17 SPM
- Throat Depth: 10" (Larger Throat Available)
- Table Height: 35"
- Oil Capacity: 70 Gallons
- Motor: 30 HP
- Show More
- Show Less
- Cutting Capacity (Mild Steel): 3/8ths x3962.40mm(7/32nds Stainless)
- Max. Cutting Length: 3987.80mm
- Distance Between Housings: 4241.80mm
- Cutting Angle: 1.5° (Optional Angular Gauge 0°-180°)
- Stroke Speed (STD/FAST): 11/17 SPM
- Throat Depth: 254.00mm (Larger Throat Available)
- Table Height: 889.00mm
- Oil Capacity: 265 liters
- Motor: 22.37 kw
- Show More
- Show Less
Equipped With
- Cybelec 12G 12" Touch Screen Control
- Standard Servo Motorized Backgauge (39" Travel)
- Programmable Backgauge Retract
- Backgauge Swing-Up Feature for Long Sheets
- Manual Blade Gap Adjustment
- Stroke Adjustment for Short Cutting Efficiency
- Two Edge Upper Blade
- Four Edge Lower Blade
- Transfer Table w/ Roller Balls
- Front Support Arms
- Illuminated Cutting Line
- Foot Pedal
- Many Other Options Available
- Show More
- Show Less
- Cybelec 12G 304.80mm Touch Screen Control
- Standard Servo Motorized Backgauge ( 990.60mm Travel)
- Programmable Backgauge Retract
- Backgauge Swing-Up Feature for Long Sheets
- Manual Blade Gap Adjustment
- Stroke Adjustment for Short Cutting Efficiency
- Two Edge Upper Blade
- Four Edge Lower Blade
- Transfer Table w/ Roller Balls
- Front Support Arms
- Illuminated Cutting Line
- Foot Pedal
- Many Other Options Available
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Disclaimer: Preliminary Specifications....
