Inventory # 47551

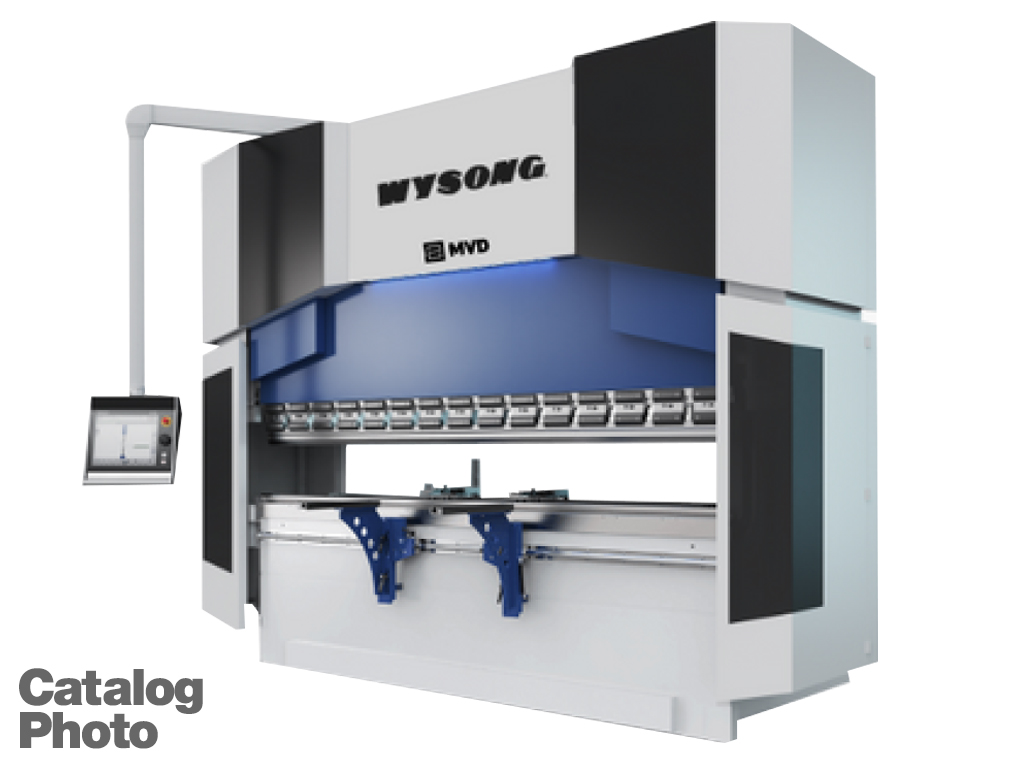

Wysong MB150-145 Hydraulic CNC Press Brake *New Machine*
Specifications
- Bending Capacity: 150 Tons
- Overall Length: 145" (Shorter/Longer Lengths Available)
- Distance Between Housings: 122"
- Stroke: 10" (Longer Stroke Available)
- Daylight: 18" (Larger Daylight Available)
- Throat Depth: 16" (Larger Throat Available)
- Approach Speed: 496 IPM
- Working Speed: 39 IPM
- Return Speed: 307 IPM
- Oil Tank: 48 Gallons (Servo / Hydraulic Options)
- Motor: 15 HP
- Show More
- Show Less
- Bending Capacity: 136 Metric Tons
- Overall Length: 3683 mm (Shorter/Longer Lengths Available)
- Distance Between Housings: 3100 mm
- Stroke: 250 mm (Longer Stroke Available)
- Daylight: 460 mm (Larger Daylight Available)
- Throat Depth: 405 mm (Larger Throat Available)
- Approach Speed: 210 mm/sec
- Working Speed: 16.5 mm/sec
- Return Speed: 130 mm/sec
- Oil Tank: 182 liters (Servo / Hydraulic Options)
- Motor: 11.2 kw
- Show More
- Show Less
Equipped With
- Delem DA-66S Touch Screen CNC Control
- Standard Single-Axis Backgauge (X)
- Optional 2-Axis Backgauge (X, R)
- Optional 4-Axis Backgauge (X, R, Z1, Z2)
- Optional 6-Axis Backgauge (X1, X2, R1, R2, Z1, Z2)
- Flush Floor Design
- North American/EU Universal Quick Release Punch Holders
- Sliding Front Sheet Support Arms
- Linear Scales
- Hoerbiger Hydraulics
- Full Length Rolleri Punch
- 4-Way Roller V-Die
- Fiessler Front Laser Safety
- Many Other Options Available
- Show More
- Show Less
- Delem DA-66S Touch Screen CNC Control
- Standard Single-Axis Backgauge (X)
- Optional 2-Axis Backgauge (X, R)
- Optional 4-Axis Backgauge (X, R, Z1, Z2)
- Optional 6-Axis Backgauge (X1, X2, R1, R2, Z1, Z2)
- Flush Floor Design
- North American/EU Universal Quick Release Punch Holders
- Sliding Front Sheet Support Arms
- Linear Scales
- Hoerbiger Hydraulics
- Full Length Rolleri Punch
- 4-Way Roller V-Die
- Fiessler Front Laser Safety
- Many Other Options Available
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Disclaimer: Preliminary Specifications....
