Inventory # 47570

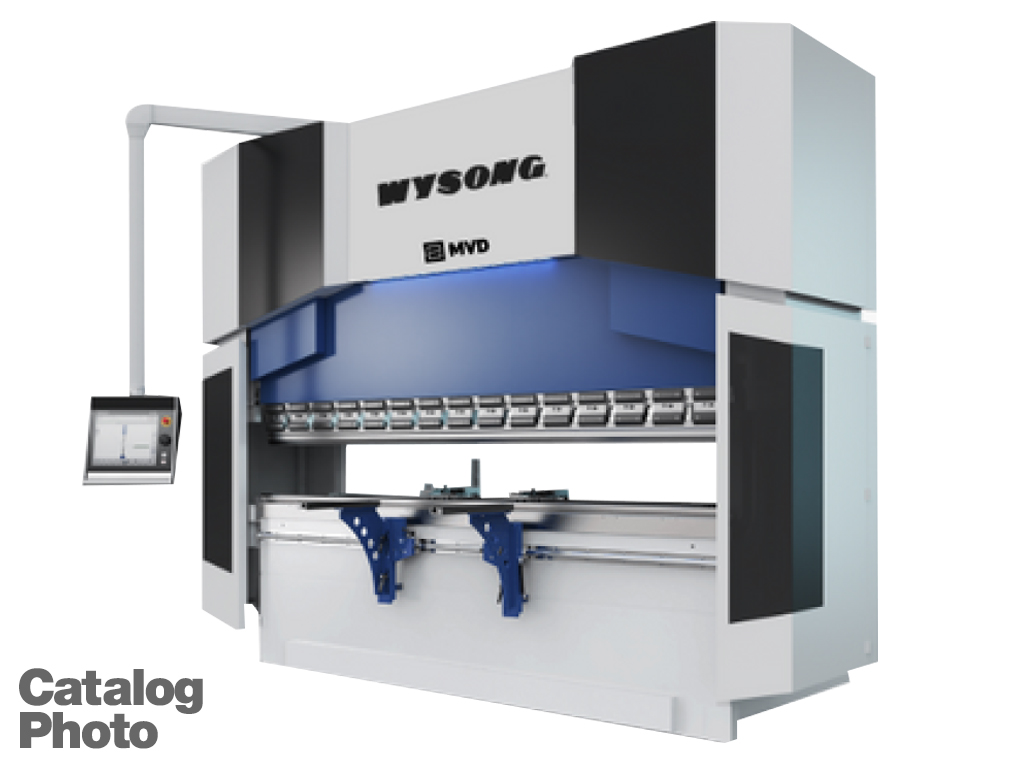

Wysong MB70-102 Hydraulic CNC Press Brake *New Machine*
Specifications
- Bending Capacity: 70 Tons
- Overall Length: 102" (Shorter/Longer Lengths Available)
- Distance Between Housings: 84"
- Stroke: 10"
- Daylight: 18"
- Throat Depth: 16" (Larger Throat Available)
- Approach Speed: 378 IPM
- Working Speed: 39 IPM
- Return Speed: 319 IPM
- Oil Tank: 45 Gallons
- Motor: 7 HP
- Show More
- Show Less
- Bending Capacity: 63.5 Metric Tons
- Overall Length: 2590 mm (Shorter/Longer Lengths Available)
- Distance Between Housings: 2130 mm
- Stroke: 255 mm
- Daylight: 455 mm
- Throat Depth: 405 mm (Larger Throat Available)
- Approach Speed: 160 mm/sec
- Working Speed: 16.5 mm/sec
- Return Speed: 135 mm/sec
- Oil Tank: 170 liters
- Motor: 5.2 kw
- Show More
- Show Less
Equipped With
- Delem DA-66S Touch Screen CNC Control
- Standard Single-Axis Backgauge (X)
- Optional 2-Axis Backgauge (X, R)
- Optional 4-Axis Backgauge (X, R, Z1, Z2)
- Optional 6-Axis Backgauge (X1, X2, R1, R2, Z1, Z2)
- North American/EU Universal Quick Release Punch Holders
- Sliding Front Sheet Support Arms
- Linear Scales
- Hoerbiger Hydraulics
- Full Length Rolleri Punch
- 4-Way Rollier V-Die
- Fiessler Front Laser Safety
- Many Other Options Available
- Show More
- Show Less
- Delem DA-66S Touch Screen CNC Control
- Standard Single-Axis Backgauge (X)
- Optional 2-Axis Backgauge (X, R)
- Optional 4-Axis Backgauge (X, R, Z1, Z2)
- Optional 6-Axis Backgauge (X1, X2, R1, R2, Z1, Z2)
- North American/EU Universal Quick Release Punch Holders
- Sliding Front Sheet Support Arms
- Linear Scales
- Hoerbiger Hydraulics
- Full Length Rolleri Punch
- 4-Way Rollier V-Die
- Fiessler Front Laser Safety
- Many Other Options Available
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Disclaimer: Preliminary Specifications....
